Pod Competition Full Pod Final Presentation; LEHIGH HYPERLOOP
- 1. Pod Design CORRELL FRENCH– TEAM CAPTAIN SEAMUS CULLINANE – DESIGN LEAD TECH TANASARNSOPAPORN – LEAD MECHANICAL ENGINEER

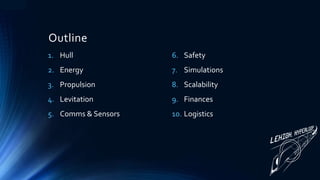

- 2. Outline 1. Hull 2. Energy 3.Propulsion 4. Levitation 5. Comms & Sensors 6. Safety 7. Simulations 8. Scalability 9. Finances 10. Logistics

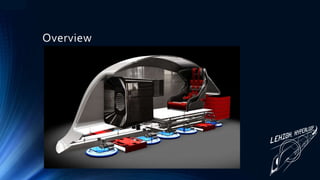

- 3.

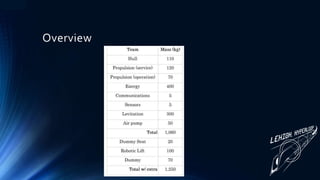

- 4.
- 5.

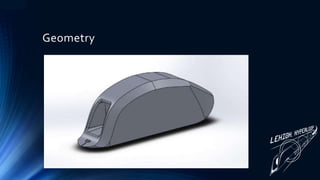

- 6.
- 7.

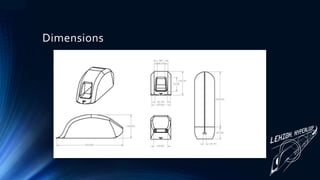

- 8.

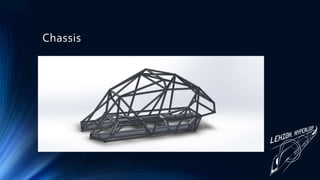

- 9.

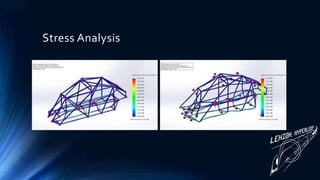

- 10.
- 11.

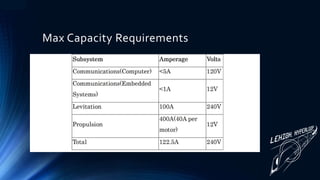

- 12.

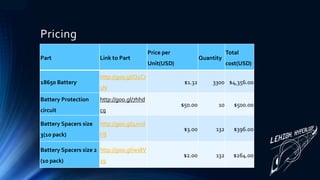

- 13. Pricing Part Link toPart Price per Unit(USD) Quantity Total cost(USD) 18650 Battery http://goo.gl/Q2Cr 1N $1.32 3300 $4,356.00 Battery Protection circuit http://goo.gl/7hhd cq $50.00 10 $500.00 Battery Spacers size 3(10 pack) http://goo.gl/4nvd FB $3.00 132 $396.00 Battery Spacers size 2 (10 pack) http://goo.gl/ws8V 19 $2.00 132 $264.00

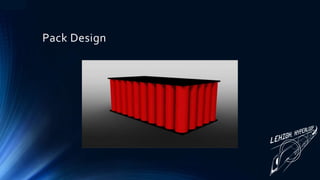

- 14.
- 15.
- 16.

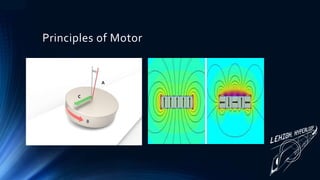

- 17.

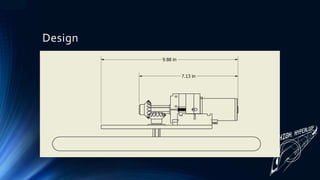

- 18.

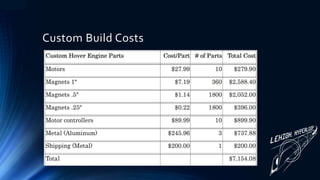

- 19.

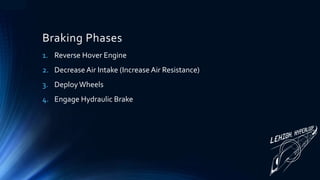

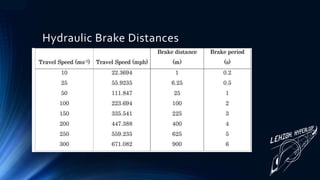

- 20. Braking Phases 1. ReverseHover Engine 2. Decrease Air Intake (Increase Air Resistance) 3. DeployWheels 4. Engage Hydraulic Brake

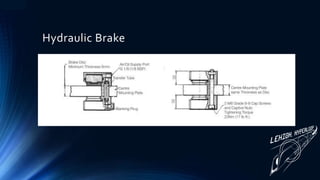

- 21.
- 22.
- 23.

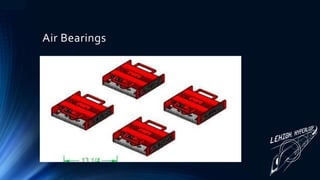

- 24.

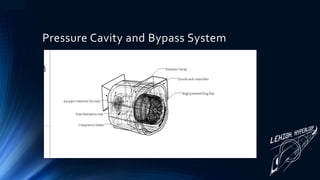

- 25. Pressure Cavity andBypass System
- 26.

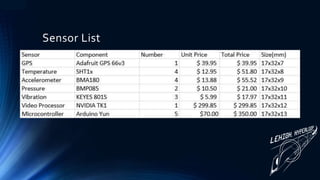

- 27.

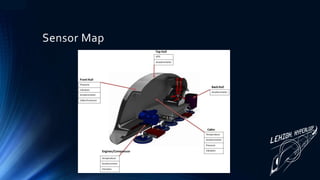

- 28.
- 29.

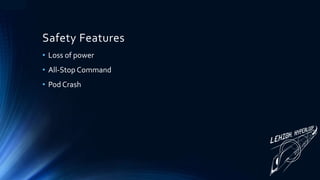

- 30. Safety Features • Lossof power • All-Stop Command • Pod Crash

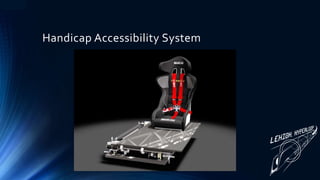

- 31.
- 32.

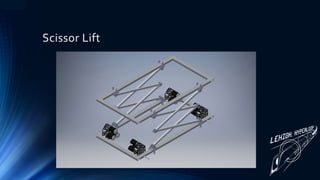

- 33.

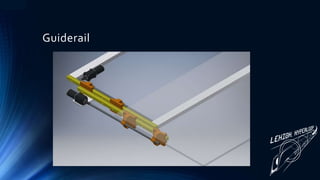

- 34.
- 35.

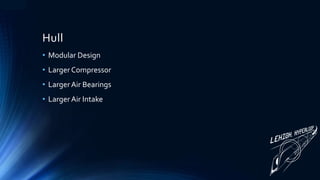

- 36. Hull • Modular Design •Larger Compressor • Larger Air Bearings • Larger Air Intake

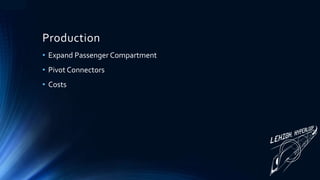

- 37. Production • Expand PassengerCompartment • Pivot Connectors • Costs
- 38. Performance • Lower operableair pressure • Increase Kantrowitz Limit • HigherTop Speed • Longer Acceleration • Larger Plug Fan

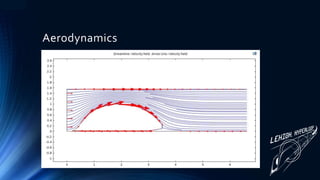

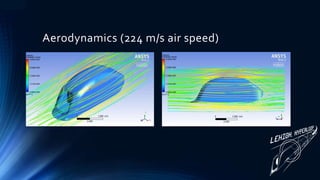

- 39.

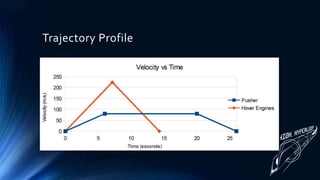

- 40.
- 41. Aerodynamics (224 m/sair speed)

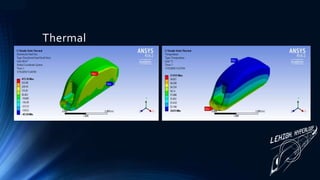

- 42.

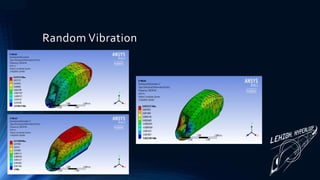

- 43.
- 44.

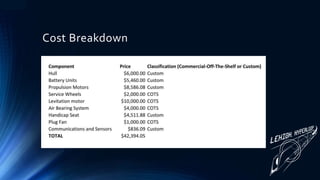

- 45.

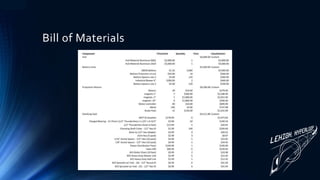

- 46.

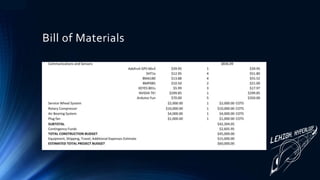

- 47.
- 48.
- 49.
- 50.

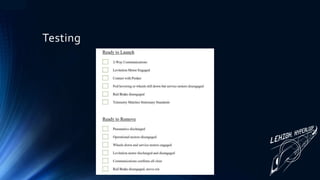

- 51.
