1. HIGH PERFORMANCE MODEL SERVING WITH
KUBERNETES AND ISTIO…
…AND AWS SAGEMAKER, GOOGLE CLOUD ML,
AZURE ML!
CHRIS FREGLY
FOUNDER @ PIPELINE.AI

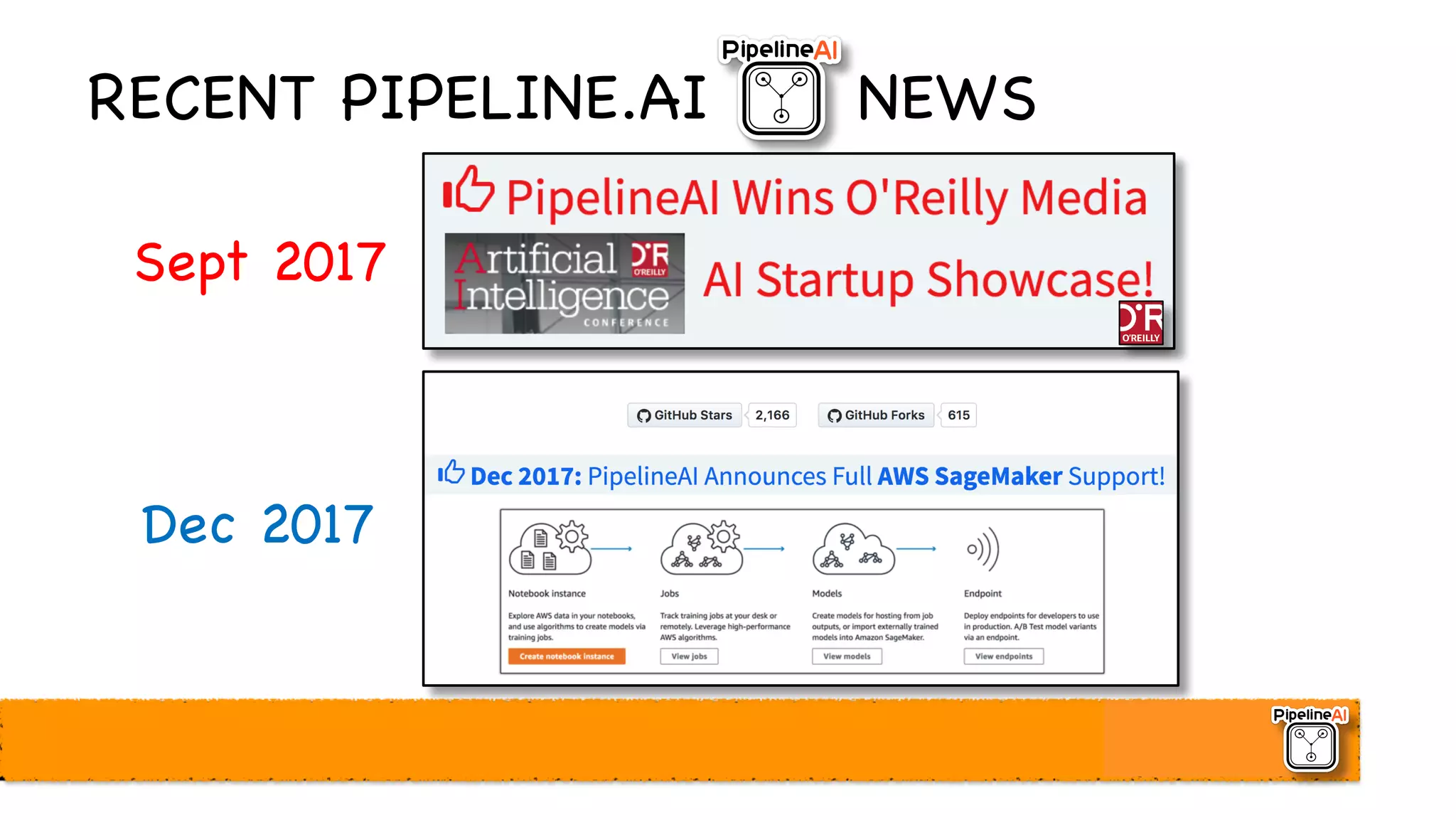

2. RECENT PIPELINE.AI NEWS
Sept 2017
Dec 2017

3. INTRODUCTIONS: ME
§ Chris Fregly, Founder & Engineer @PipelineAI
§ Formerly Netflix, Databricks, IBM Spark Tech
§ Advanced Spark and TensorFlow Meetup
§ Please Join Our 60,000+ Global Members!!
Contact Me
chris@pipeline.ai
@cfregly
Global Locations
* San Francisco
* Chicago
* Austin
* Washington DC
* Dusseldorf
* London

4. INTRODUCTIONS: YOU
§ Software Engineer, DevOps Engineer, Data {Scientist, Engineer}
§ Interested in Optimizing and Deploying TF Models to Production
§ Nice to Have a Working Knowledge of TensorFlow (Not Required)

5. PIPELINE.AI IS 100% OPEN SOURCE
§ https://github.com/PipelineAI/pipeline/
§ Please Star 🌟 this GitHub Repo!
§ Some VC’s Value GitHub Stars @ $1,500 Each (?!)

6. PIPELINE.AI OVERVIEW
450,000 Docker Downloads
60,000 Users Registered for GA
60,000 Meetup Members
40,000 LinkedIn Followers
2,200 GitHub Stars
12 Enterprise Beta Users

7. WHY HEAVY FOCUS ON MODEL SERVING?
Model Training
Batch & Boring
Offline in Research Lab
Pipeline Ends at Training
No Insight into Live Production
Small Number of Data Scientists
Optimizations Very Well-Known
Real-Time & Exciting!!
Online in Live Production
Pipeline Extends into Production
Continuous Insight into Live Production
Huuuuuuge Number of Application Users
**Many Optimizations Not Yet Utilized
<<<
Model Serving
100’s Training Jobs per Day 1,000,000’s Predictions per Sec

8. AGENDA
Part 0: Latest PipelineAI Research
Part 1: PipelineAI + Kubernetes + Istio

9. AGENDA
Part 0: Latest PipelineAI Research
§ Deploy, Tune Models + Runtimes Safely in Prod
§ Compare Models Both Offline and Online
§ Auto-Shift Traffic to Winning Model or Cloud
§ Live, Continuous Model Training in Production

10. PACKAGE MODEL + RUNTIME AS ONE
§ Build Model with Runtime into Immutable Docker Image
§ Emphasize Immutable Deployment and Infrastructure
§ Same Runtime Dependencies in All Environments
§ Local, Development, Staging, Production
§ No Library or Dependency Surprises
§ Deploy and Tune Model + Runtime Together
pipeline predict-server-build --model-type=tensorflow
--model-name=mnist
--model-tag=A
--model-path=./models/tensorflow/mnist/
Build Local
Model Server A

11. LOAD TEST LOCAL MODEL + RUNTIME
§ Perform Mini-Load Test on Local Model Server
§ Immediate, Local Prediction Performance Metrics
§ Compare to Previous Model + Runtime Variations
pipeline predict-server-start --model-type=tensorflow
--model-name=mnist
--model-tag=A
pipeline predict --model-endpoint-url=http://localhost:8080
--test-request-path=test_request.json
--test-request-concurrency=1000
Load Test Local
Model Server A
Start Local
Model Server A

12. PUSH IMAGE TO DOCKER REGISTRY
§ Supports All Public + Private Docker Registries
§ DockerHub, Artifactory, Quay, AWS, Google, …
§ Or Self-Hosted, Private Docker Registry
pipeline predict-server-push --image-registry-url=<your-registry>
--image-registry-repo=<your-repo>
--model-type=tensorflow
--model-name=mnist
--model-tag=A
Push Image To
Docker Registry

13. CLOUD-BASED OPTIONS
§ AWS SageMaker
§ Released Nov 2017 @ Re-invent
§ Custom Docker Images for Training/Serving (ie. PipelineAI Images)
§ Distributed TensorFlow Training through Estimator API
§ Traffic Splitting for A/B Model Testing
§ Google Cloud ML Engine
§ Mostly Command-Line Based
§ Driving TensorFlow Open Source API (ie. Experiment API)
§ Azure ML

14. TUNE MODEL + RUNTIME AS SINGLE UNIT
§ Model Training Optimizations
§ Model Hyper-Parameters (ie. Learning Rate)
§ Reduced Precision (ie. FP16 Half Precision)
§ Post-Training Model Optimizations
§ Quantize Model Weights + Activations From 32-bit to 8-bit
§ Fuse Neural Network Layers Together
§ Model Runtime Optimizations
§ Runtime Configs (ie. Request Batch Size)
§ Different Runtimes (ie. TensorFlow Lite, Nvidia TensorRT)

15. POST-TRAINING OPTIMIZATIONS
§ Prepare Model for Serving
§ Simplify Network
§ Reduce Model Size
§ Lower Precision for Fast Math
§ Some Tools
§ Graph Transform Tool (GTT)
§ tfcompile
After Training
After
Optimizing!
pipeline optimize --optimization-list=[quantize_weights, tfcompile]
--model-type=tensorflow
--model-name=mnist
--model-tag=A
--model-path=./tensorflow/mnist/model
--output-path=./tensorflow/mnist/optimized_model
Linear
Regression

16. RUNTIME OPTION: TENSORFLOW LITE
§ Post-Training Model Optimizations
§ Currently Supports iOS and Android
§ On-Device Prediction Runtime
§ Low-Latency, Fast Startup
§ Selective Operator Loading
§ 70KB Min - 300KB Max Runtime Footprint
§ Supports Accelerators (GPU, TPU)
§ Falls Back to CPU without Accelerator
§ Java and C++ APIs

17. RUNTIME OPTION: NVIDIA TENSOR-RT
§ Post-Training Model Optimizations
§ Specific to Nvidia GPU
§ GPU-Optimized Prediction Runtime
§ Alternative to TensorFlow Serving
§ PipelineAI Supports TensorRT!

18. DEPLOY MODELS SAFELY TO PROD
§ Deploy from CLI or Jupyter Notebook
§ Tear-Down or Rollback Models Quickly
§ Shadow Canary Deploy: ie.20% Live Traffic
§ Split Canary Deploy: ie. 97-2-1% Live Traffic
pipeline predict-cluster-start --model-runtime=tflite
--model-type=tensorflow
--model-name=mnist
--model-tag=B
--traffic-split=2
Start Production
Model Cluster B
pipeline predict-cluster-start --model-runtime=tensorrt
--model-type=tensorflow
--model-name=mnist
--model-tag=C
--traffic-split=1
Start Production
Model Cluster C
pipeline predict-cluster-start --model-runtime=tfserving_gpu
--model-type=tensorflow
--model-name=mnist
--model-tag=A
--traffic-split=97
Start Production
Model Cluster A

19. AGENDA
Part 0: Latest PipelineAI Research
§ Deploy, Tune Models + Runtimes Safely in Prod
§ Compare Models Both Offline and Online
§ Auto-Shift Traffic to Winning Model or Cloud
§ Live, Continuous Model Training in Production

20. COMPARE MODELS OFFLINE & ONLINE
§ Offline, Batch Metrics
§ Validation + Training Accuracy
§ CPU + GPU Utilization
§ Live Prediction Values
§ Compare Relative Precision
§ Newly-Seen, Streaming Data
§ Online, Real-Time Metrics
§ Response Time, Throughput
§ Cost ($) Per Prediction

21. VIEW REAL-TIME PREDICTION STREAM
§ Visually Compare Real-Time Predictions
Prediction
Inputs
Prediction
Results &
Confidences
Model B Model CModel A

22. PREDICTION PROFILING AND TUNING
§ Pinpoint Performance Bottlenecks
§ Fine-Grained Prediction Metrics
§ 3 Steps in Real-Time Prediction
1. transform_request()
2. predict()
3. transform_response()

23. AGENDA
Part 0: Latest PipelineAI Research
§ Deploy, Tune Models + Runtimes Safely in Prod
§ Compare Models Both Offline and Online
§ Auto-Shift Traffic to Winning Model or Cloud
§ Live, Continuous Model Training in Production

24. LIVE, ADAPTIVE TRAFFIC ROUTING
§ A/B Tests
§ Inflexible and Boring
§ Multi-Armed Bandits
§ Adaptive and Exciting!
pipeline traffic-router-split --model-type=tensorflow
--model-name=mnist
--model-tag-list=[A,B,C]
--model-weight-list=[1,2,97]
Adjust
Traffic Routing
Dynamically

25. SHIFT TRAFFIC TO MAX(REVENUE)
§ Shift Traffic to Winning Model using AI Bandit Algos

26. SHIFT TRAFFIC TO MIN(CLOUD CO$T)
§ Based on Cost ($) Per Prediction
§ Cost Changes Throughout Day
§ Lose AWS Spot Instances
§ Google Cloud Becomes Cheaper
§ Shift Across Clouds & On-Prem

27. AGENDA
Part 0: Latest PipelineAI Research
§ Deploy, Tune Models + Runtimes Safely in Prod
§ Compare Models Both Offline and Online
§ Auto-Shift Traffic to Winning Model or Cloud
§ Live, Continuous Model Training in Production

28. LIVE, CONTINUOUS MODEL TRAINING
§ The Holy Grail of Machine Learning
§ Q1 2018: PipelineAI Supports Continuous Model Training!
§ Kafka, Kinesis
§ Spark Streaming

29. PSEUDO-CONTINUOUS TRAINING
§ Identify and Fix Borderline Predictions (~50-50% Confidence)
§ Fix Along Class Boundaries
§ Retrain Newly-Labeled Data
§ Game-ify Labeling Process
§ Enable Crowd Sourcing

30. DEMOS!!
§ https://github.com/PipelineAI/pipeline/
§ Please Star 🌟 this GitHub Repo!

31. AGENDA
Part 0: Latest PipelineAI Research
Part 1: PipelineAI + Kubernetes + Istio

32. SPECIAL THANKS TO CHRISTIAN POSTA
§ http://blog.christianposta.com/istio-workshop/slides/

33. KUBERNETES INGRESS
§ Single Service
§ Can also use Service (LoadBalancer or NodePort)
§ Fan Out & Name-Based Virtual Hosting
§ Route Traffic Using Path or Host Header
§ Reduces # of load balancers needed
§ 404 Implemented as default backend
§ Federation / Hybrid-Cloud
§ Creates Ingress objects in every cluster
§ Monitors health and capacity of pods within each cluster
§ Routes clients to appropriate backend anywhere in federation
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: gateway-fanout
annotations:
kubernetes.io/ingress.class: istio
spec:
rules:
- host: foo.bar.com
http:
paths:
- path: /foo
backend:
serviceName: s1
servicePort: 80
- path: /bar
backend:
serviceName: s2
servicePort: 80
Fan Out (Path)
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: gateway-virtualhost
annotations:
kubernetes.io/ingress.class: istio
spec:
rules:
- host: foo.bar.com
http:
paths:
backend:
serviceName: s1
servicePort: 80
- host: bar.foo.com
http:
paths:
backend:
serviceName: s2
servicePort: 80
Virtual Hosting

34. KUBERNETES INGRESS CONTROLLER
§ Ingress Controller Types
§ Google Cloud: kubernetes.io/ingress.class: gce
§ Nginx: kubernetes.io/ingress.class: nginx
§ Istio: kubernetes.io/ingress.class: istio
§ Must Start Ingress Controller Manually
§ Just deploying Ingress is not enough
§ Not started by kube-controller-manager
§ Start Istio Ingress Controller kubectl apply -f
$ISTIO_INSTALL_PATH/install/kubernetes/istio.yaml

35. ISTIO ARCHITECTURE: ENVOY
§ Lyft Project
§ High-perf Proxy (C++)
§ Lots of Metrics
§ Zone-Aware
§ Service Discovery
§ Load Balancing
§ Fault Injection, Circuits
§ %-based Traffic Split, Shadow
§ Sidecar Pattern
§ Rate Limiting, Retries, Outlier Detection, Timeout with Budget, …

36. ISTIO ARCHITECTURE: MIXER
§ Enforce Access Control
§ Evaluate Request-Attrs
§ Collect Metrics
§ Platform-Independent
§ Extensible Plugin Model

37. ISTIO ARCHITECTURE: PILOT
§ Envoy service discovery
§ Intelligent routing
§ A/B Tests
§ Canary deployments
§ RouteRule->Envoy conf
§ Propagates to sidecars
§ Supports Kube, Consul, ...

38. ISTIO ARCHITECTURE: ISTIO-AUTH
§ Mutual TLS Auth
§ Credential management
§ Uses Service-identity
§ Canary deployments
§ Fine-grained ACLs
§ Attribute & role-based
§ Auditing & monitoring

39. ISTIO ROUTE RULES
§ Kubernetes Custom Resource Definition (CRD)
kind: CustomResourceDefinition
metadata:
name: routerules.config.istio.io
spec:
group: config.istio.io
names:
kind: RouteRule
listKind: RouteRuleList
plural: routerules
singular: routerule
scope: Namespaced
version: v1alpha2

40. A/B & BANDIT MODEL TESTING
§ Live Experiments in Production
§ Compare Existing Model A with Model B, Model C
§ Safe Split-Canary Deployment
§ Tip: Keep Ingress Simple – Use Route Rules Instead!
apiVersion: config.istio.io/v1alpha2
kind: RouteRule
metadata:
name: live-experiment-20-5-75
spec:
destination:
name: predict-mnist
precedence: 2 # Greater than global deny-all
route:
- labels:
version: A
weight: 20 # 20% still routes to model A
- labels:
version: B # 5% routes to new model B
weight: 5
- labels:
version: C # 75% routes to new model C
weight: 75
apiVersion: config.istio.io/v1alpha2
kind: RouteRule
metadata:
name: live-experiment-1-2-97
spec:
destination:
name: predict-mnist
precedence: 2 # Greater than global deny-all
route:
- labels:
version: A
weight: 1 # 1% routes to model A
- labels:
version: B # 2% routes to new model B
weight: 2
- labels:
version: C # 97% routes to new model C
weight: 97
apiVersion: config.istio.io/v1alpha2
kind: RouteRule
metadata:
name: live-experiment-97-2-1
spec:
destination:
name: predict-mnist
precedence: 2 # Greater than global deny-all
route:
- labels:
version: A
weight: 97 # 97% still routes to model A
- labels:
version: B # 2% routes to new model B
weight: 2
- labels:
version: C # 1% routes to new model C
weight: 1

41. ISTIO AUTO-SCALING
§ Traffic Routing and Auto-Scaling Occur Independently
§ Istio Continues to Obey Traffic Splits After Auto-Scaling
§ Auto-Scaling May Occur In Response to New Traffic Route

42. ADVANCED ROUTING RULES
§ Content-based Routing
§ Uses headers, username, payload, …
§ Cross-Environment Routing
§ Shadow traffic prod => staging

43. ISTIO DESTINATION POLICIES
§ Load Balancing
§ ROUND_ROBIN (default)
§ LEAST_CONN (between 2 randomly-selected hosts)
§ RANDOM
§ Circuit Breaker
§ Max connections
§ Max requests per conn
§ Consecutive errors
§ Penalty timer (15 mins)
§ Scan windows (5 mins)
circuitBreaker:
simpleCb:
maxConnections: 100
httpMaxRequests: 1000
httpMaxRequestsPerConnection: 10
httpConsecutiveErrors: 7
sleepWindow: 15m
httpDetectionInterval: 5m

44. ISTIO EGRESS
§ Whilelisted Domains Accessible Within Service Mesh
§ Apply RoutingRules and DestinationPolicys
§ Supports TLS, HTTP, GRPC kind: EgressRule
metadata:
name: foo-egress-rule
spec:
destination:
service: api.pipeline.ai
ports:
- port: 80
protocol: http
- port: 443
protocol: https

45. ISTIO & CHAOS + LATENCY MONKIES
§ Fault Injection
§ Delay
§ Abort
kind: RouteRule
metadata:
name: predict-mnist
spec:
destination:
name: predict-mnist
httpFault:
abort:
httpStatus: 420
percent: 100
kind: RouteRule
metadata:
name: predict-mnist
spec:
destination:
name: predict-mnist
httpFault:
delay:
fixedDelay: 7.000s
percent: 100

46. ISTIO METRICS AND MONITORING
§ Verify Traffic Splits
§ Fine-Grained Request Tracing

47. ISTIO SECURITY
§ Istio Certificate Authority
§ Mutual TLS

48. AGENDA
Part 0: Latest PipelineAI Research
Part 1: PipelineAI + Kubernetes + Istio

49. THANK YOU!!
§ https://github.com/PipelineAI/pipeline/
§ Please Star 🌟 this GitHub Repo!
§ Reminder: VC’s Value GitHub Stars @ $1,500 Each (!!)
Contact Me
chris@pipeline.ai
@cfregly
