The document provides an overview of getting started with Pimcore 5, highlighting its architecture based on Symfony 3 and e-commerce frameworks while emphasizing its long-term support and community. It details the new folder structure for the project, event-driven architecture, and template differences compared to previous versions. Additionally, it includes information about bundles, command usage, and the migration process from Pimcore 4 to 5, ensuring better support for different environments.

1. GETTING STARTED
5

2. PIMCORE5–GETTINGSTARTED
Pimcore 5
=
(Pimcore 4 - Zend Framework 1)
+
(Symfony 3 + E-Commerce Framework)

3. Why Symfony instead of ZF 3?
PIMCORE5–GETTINGSTARTED
• State-of-the-art
• Long-term Support (backward compatibility promise)
• Active Development
• Huge Community / 3rd Party-Tools & Integrations
• Configuration, Dependency Injection / Container
• Event-Driven
• Wide-spread, eg. Drupal, ez Publish, …

4. New Folder Structure
PIMCORE5–GETTINGSTARTED
• /app/ - Configs, Templates
• /bin/ - Executable Files (eg. /bin/console)
• /pimcore/ - Pimcore Files
• /src/ - Project Code (Controller, Services, Models, …)
• /var/ - Generated Files (not public – Symfony-Cache, Versions, …)
• /vendor/ - 3rd-Party Dependencies
• /web/ - Document – Root (Statics, Assets, …)

5. Differences in the Folder Structure
PIMCORE5–GETTINGSTARTED
• Project is located outside the Document-Root
• Everything that should be available via HTTP, has to be in /web/
• /static/is now /web/static/Trennung zwischen /var/ (private) und
/web/var/ (public)
• /website/ is now /app/and /src/
• /src/can contain any PSR-4 compliant classes
z.B. AppBundle and YourCompany
• Contains everything that used to be in /website/lib , /website/models and
/website/controllers
• CLI as Commands or scripts in /bin/

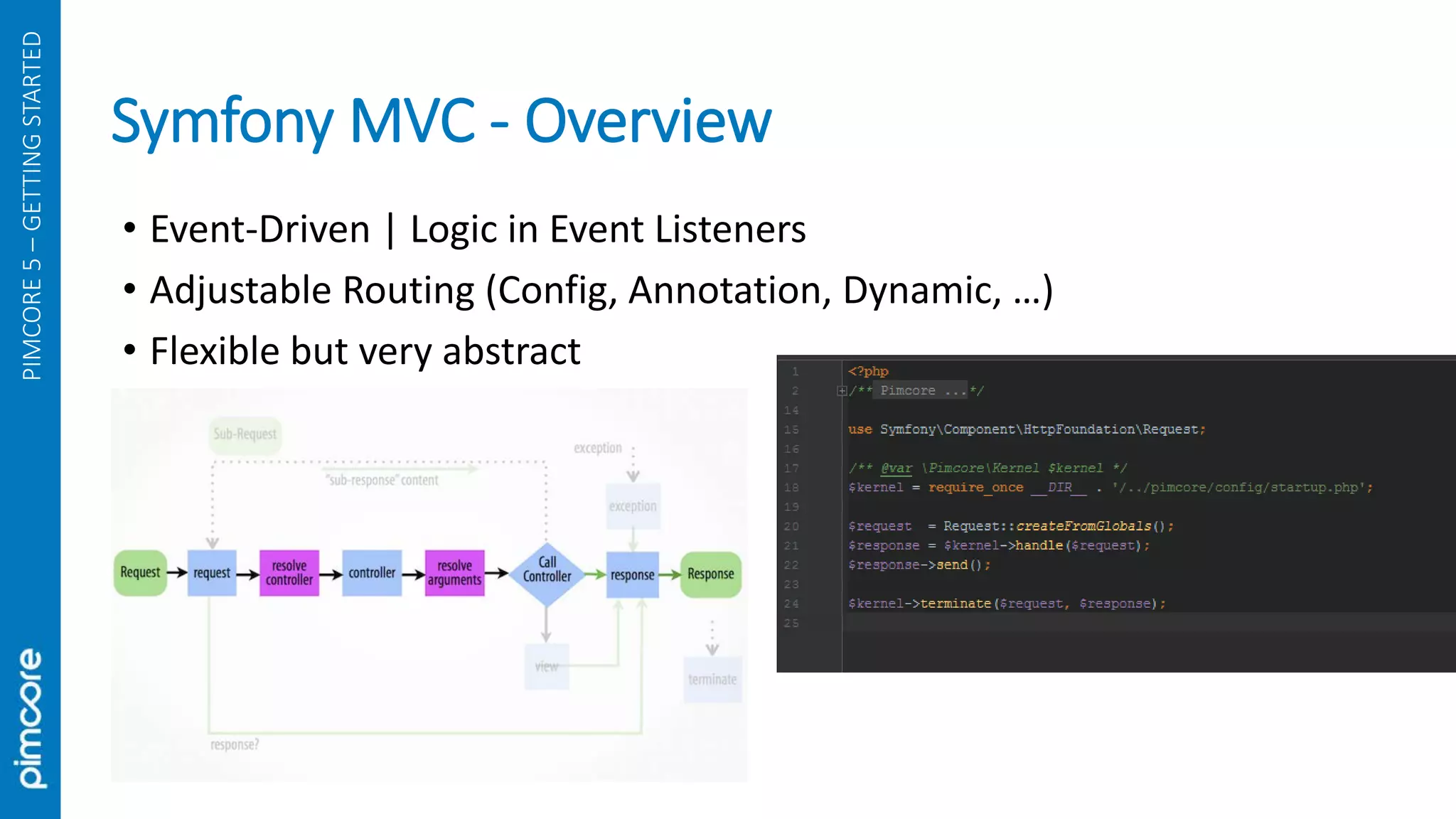

6. Symfony MVC - Overview
PIMCORE5–GETTINGSTARTED
• Event-Driven | Logic in Event Listeners
• Adjustable Routing (Config, Annotation, Dynamic, …)
• Flexible but very abstract

7. Controller / Action Differences
PIMCORE5–GETTINGSTARTED
• Controller can by any callable
• Default is AppBundleController... in /src/ folder
• Context-information are provided as arguments
• eg. request object, additional by argument resolver (eg. dokument)
• Per request / partial dedicated view instance
• View renderer and view model are separated
• Hooks in dispatch process are events (-> event-driven)
• Convenience functions by parent class or traits
• awesome_test|foo-bar => AwesomeTest|fooBar

8. Controller Example
PIMCORE5–GETTINGSTARTED

9. Template Differerences
PIMCORE5–GETTINGSTARTED
• Templates are located in /app/Resources/views/
• Flexible Templating: PHP (incl. Zend-Style) + Twig
• File structure: Controller/action.html.php
• Layout – concept (inheritance)
• Area-bricks (XML replaced by PHP class)
• Templating helpers
• PhpDoc annotations

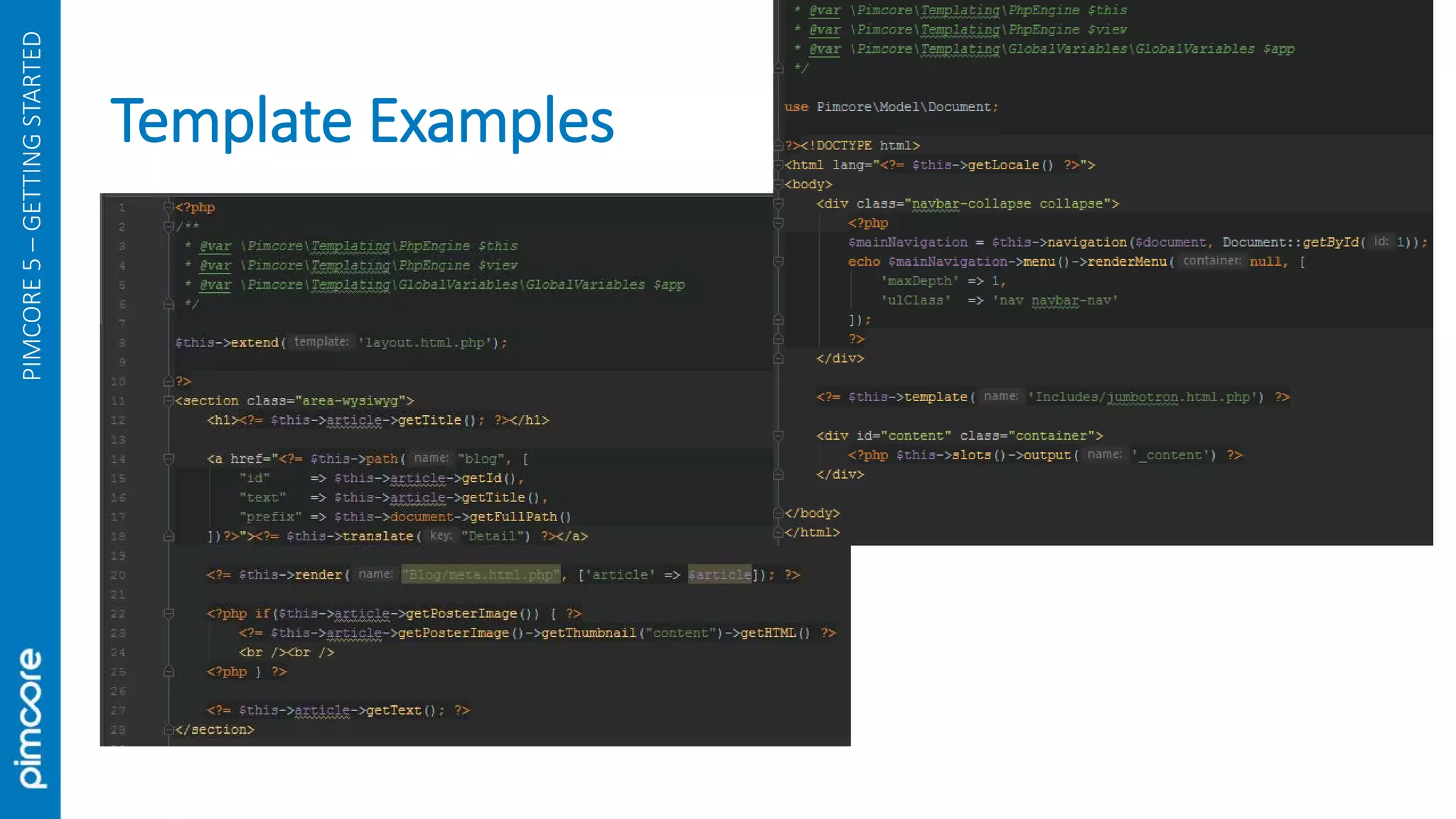

10. Template Examples
PIMCORE5–GETTINGSTARTED

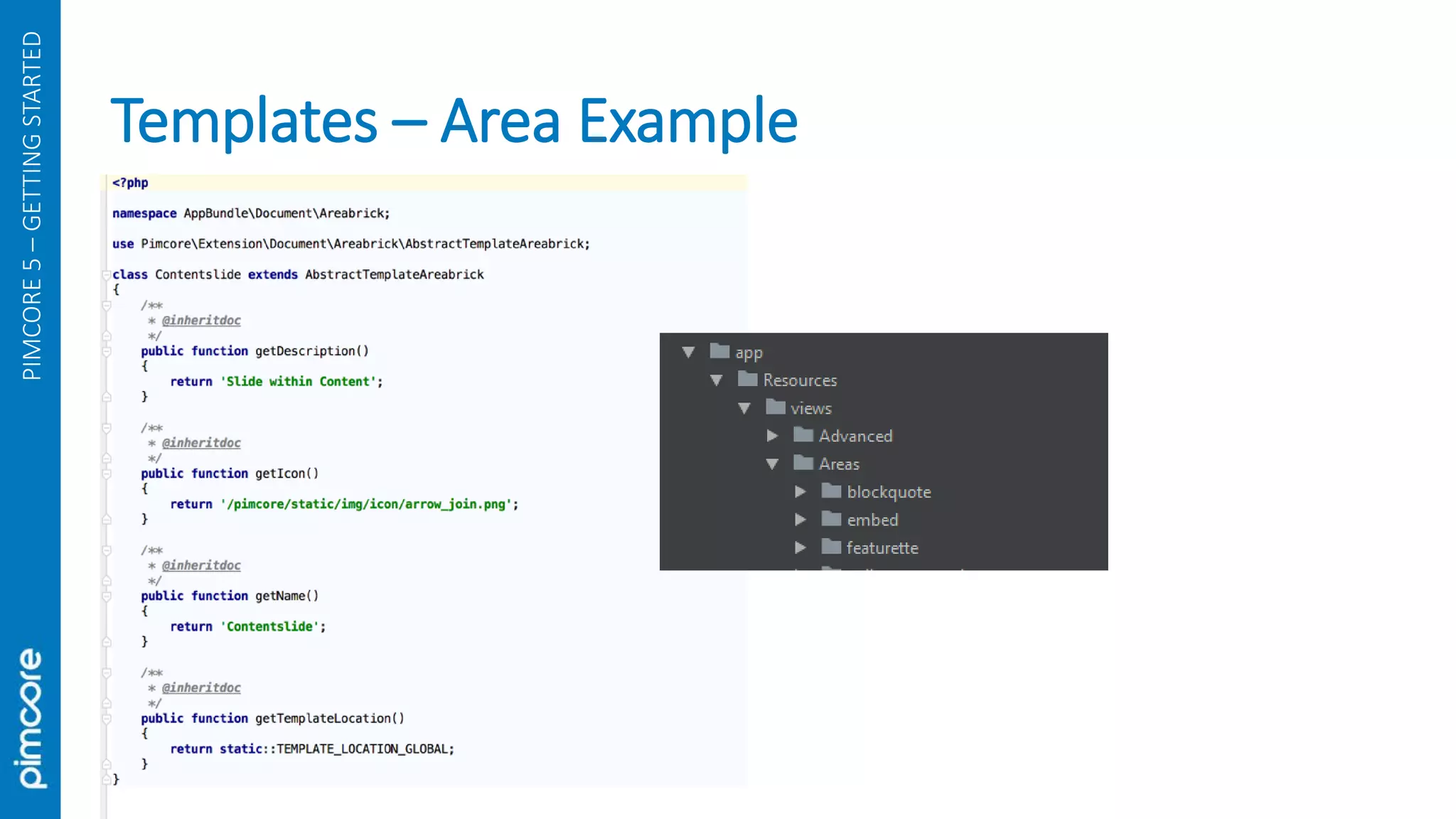

11. Templates – Area Example
PIMCORE5–GETTINGSTARTED

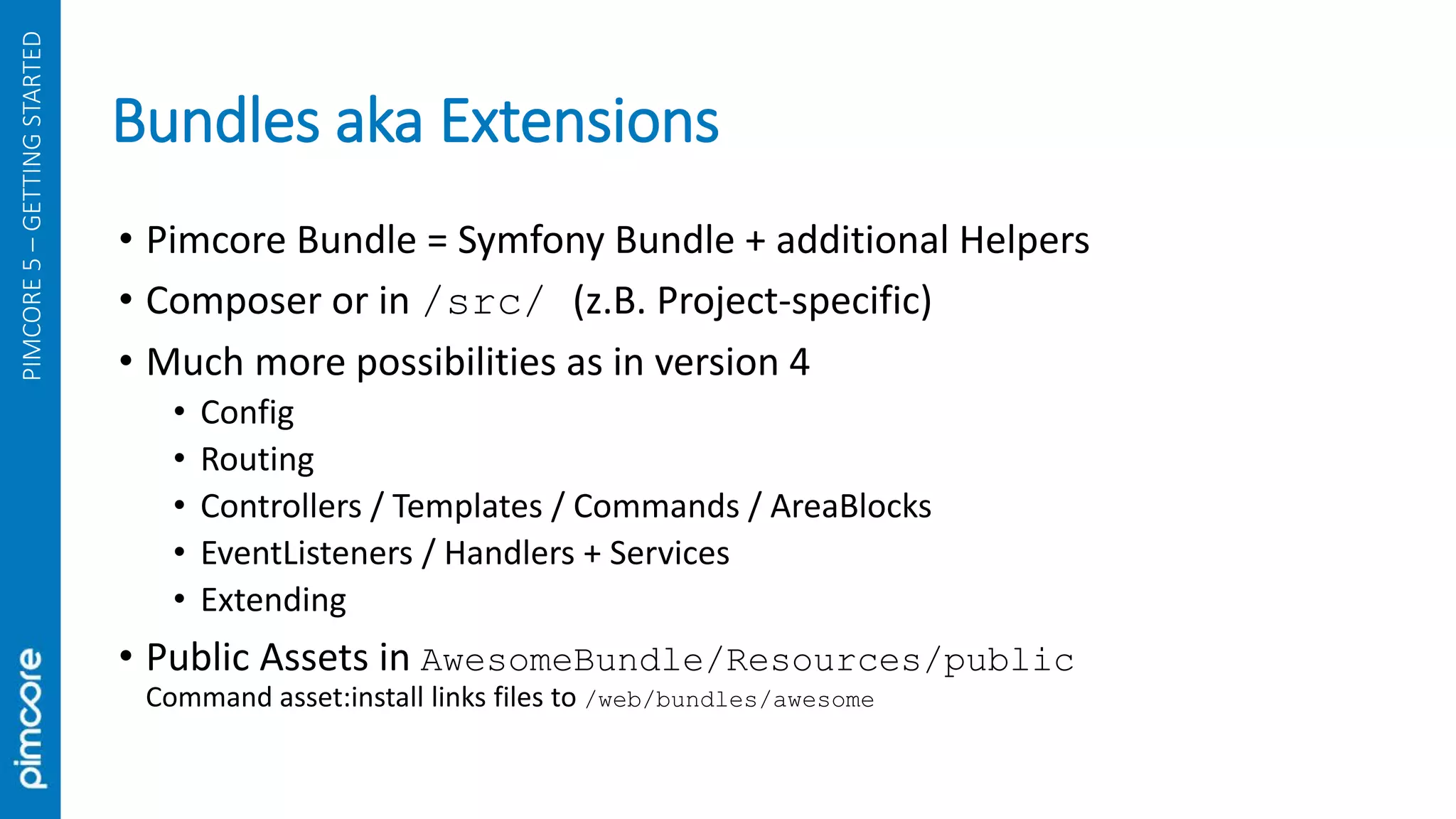

12. Bundles aka Extensions
PIMCORE5–GETTINGSTARTED
• Pimcore Bundle = Symfony Bundle + additional Helpers
• Composer or in /src/ (z.B. Project-specific)
• Much more possibilities as in version 4
• Config
• Routing
• Controllers / Templates / Commands / AreaBlocks
• EventListeners / Handlers + Services
• Extending
• Public Assets in AwesomeBundle/Resources/public
Command asset:install links files to /web/bundles/awesome

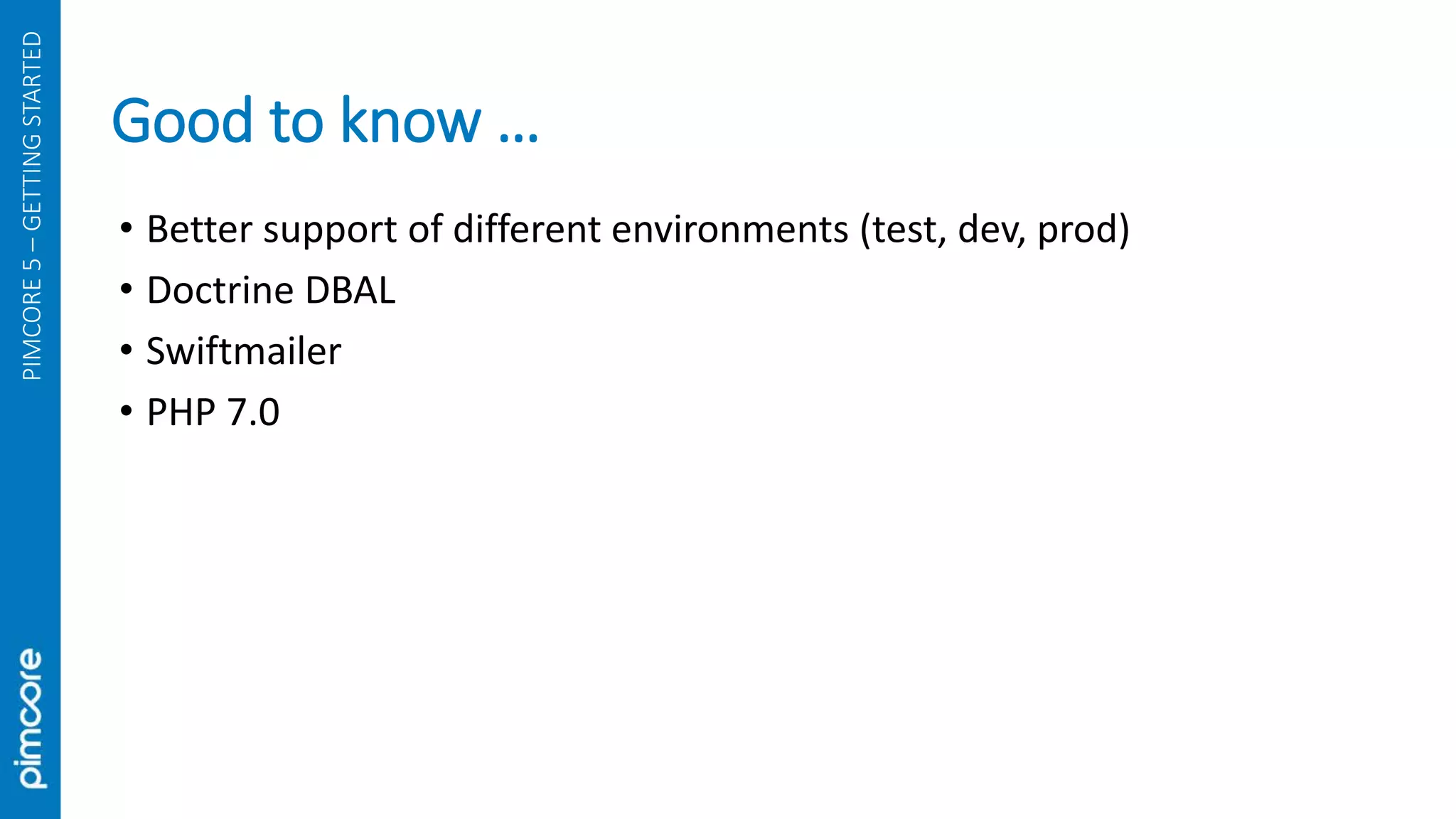

13. Good to know …
PIMCORE5–GETTINGSTARTED
• Better support of different environments (test, dev, prod)
• Doctrine DBAL
• Swiftmailer
• PHP 7.0

14. Migration from v4 to v5
PIMCORE5–GETTINGSTARTED
• Manually + supported by tools
• Controller
• Views / Bricks
• Zend_ has to be replaced
(in some cases there are compatible replacements)
• Compatibility Bridge runs v4 code in v5 environment
• Database structure remains almost untouched
