This study evaluated a surgical technique combining modified apically repositioned flap surgery with vestibular deepening using diode laser to increase attached gingiva in the lower anterior teeth. 16 patients underwent phase I therapy followed by flap surgery, bone grafting, and laser-assisted vestibular deepening. Post-operative increases were seen in attached gingiva, keratinized gingiva, and vestibular depth. The one-step procedure helped relieve tension on the gingiva while regenerating periodontal tissues, with minimal discomfort and complications. The technique aims to prolong the life of compromised lower front teeth in a cost-effective manner.

1. Periodontal Flap Surgery along with Vestibular
Deepening with Diode Laser to Increase
Attached Gingiva in Lower Anterior Teeth: A
Prospective Clinical Study
ASHU BHARDWAJ, ZEBA JAFRI, NISHAT SULTAN, MADHURI SAWAI & ANIKA DAING
EDITOR : PROFESSOR WANG WANG
INDIANS IN EDITORIAL TEAM IS DR. MANJUL TIWARI (SHARDA UNIV) AND DR. SHIBU THOMAS SEBASTIAN, PUSHPAGIRI
COLLEGE OF DENTAL SCIENCES, KERALA
JOURNAL OF NATURAL SCIENCE, BIOLOGY AND MEDICINE ¦ VOLUME 9 ¦ ISSUE 1 ¦ JANUARY-JUNE 2018

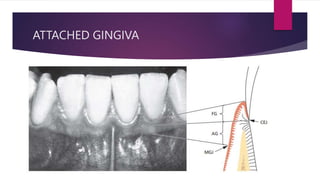

2. ATTACHED GINGIVA

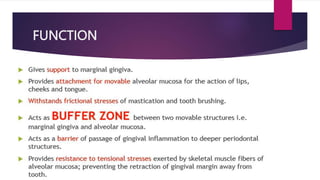

3. FUNCTION

4. IMPORTANCE OF WIDTH OF ATTACHED
GINGIVA

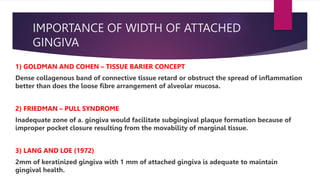

1) GOLDMAN AND COHEN – TISSUE BARIER CONCEPT
Dense collagenous band of connective tissue retard or obstruct the spread of inflammation
better than does the loose fibre arrangement of alveolar mucosa.
2) FRIEDMAN – PULL SYNDROME
Inadequate zone of a. gingiva would facilitate subgingival plaque formation because of
improper pocket closure resulting from the movability of marginal tissue.
3) LANG AND LOE (1972)
2mm of keratinized gingiva with 1 mm of attached gingiva is adequate to maintain
gingival health.

5. IMPORTANCE OF WIDTH OF ATTACHED
GINGIVA

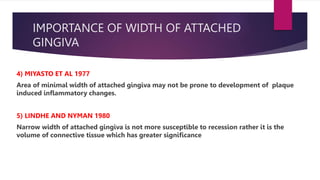

4) MIYASTO ET AL 1977
Area of minimal width of attached gingiva may not be prone to development of plaque
induced inflammatory changes.
5) LINDHE AND NYMAN 1980
Narrow width of attached gingiva is not more susceptible to recession rather it is the
volume of connective tissue which has greater significance

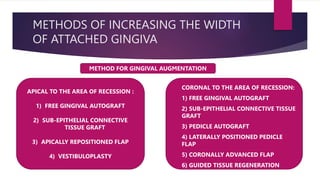

6. METHODS OF INCREASING THE WIDTH
OF ATTACHED GINGIVA
METHOD FOR GINGIVAL AUGMENTATION
APICAL TO THE AREA OF RECESSION :
1) FREE GINGIVAL AUTOGRAFT
2) SUB-EPITHELIAL CONNECTIVE
TISSUE GRAFT
3) APICALLY REPOSITIONED FLAP
4) VESTIBULOPLASTY
 CORONAL TO THE AREA OF RECESSION:
 1) FREE GINGIVAL AUTOGRAFT
 2) SUB-EPITHELIAL CONNECTIVE TISSUE
GRAFT
 3) PEDICLE AUTOGRAFT
 4) LATERALLY POSITIONED PEDICLE
FLAP
 5) CORONALLY ADVANCED FLAP
 6) GUIDED TISSUE REGENERATION

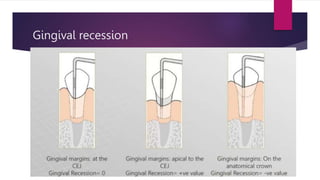

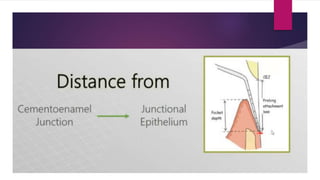

8. Gingival recession

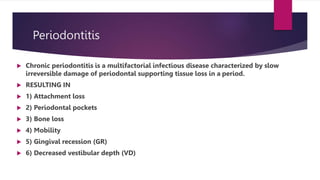

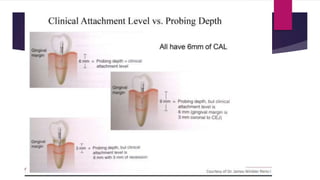

11. Periodontitis
 Chronic periodontitis is a multifactorial infectious disease characterized by slow
irreversible damage of periodontal supporting tissue loss in a period.
 RESULTING IN
 1) Attachment loss
 2) Periodontal pockets
 3) Bone loss
 4) Mobility
 5) Gingival recession (GR)
 6) Decreased vestibular depth (VD)

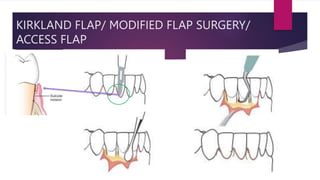

12. KIRKLAND FLAP/ MODIFIED FLAP SURGERY/
ACCESS FLAP

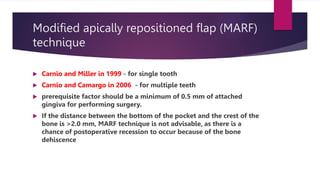

13. Modified apically repositioned flap (MARF)
technique
 Carnio and Miller in 1999 - for single tooth
 Carnio and Camargo in 2006 - for multiple teeth
 prerequisite factor should be a minimum of 0.5 mm of attached
gingiva for performing surgery.
 If the distance between the bottom of the pocket and the crest of the
bone is >2.0 mm, MARF technique is not advisable, as there is a
chance of postoperative recession to occur because of the bone
dehiscence

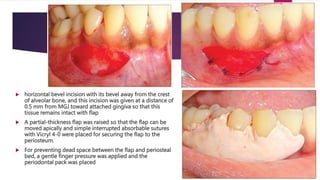

14.  horizontal bevel incision with its bevel away from the crest
of alveolar bone, and this incision was given at a distance of
0.5 mm from MGJ toward attached gingiva so that this
tissue remains intact with flap
 A partial-thickness flap was raised so that the flap can be
moved apically and simple interrupted absorbable sutures
with Vicryl 4-0 were placed for securing the flap to the
periosteum.
 For preventing dead space between the flap and periosteal
bed, a gentle finger pressure was applied and the
periodontal pack was placed

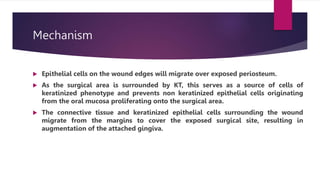

15. Mechanism
 Epithelial cells on the wound edges will migrate over exposed periosteum.
 As the surgical area is surrounded by KT, this serves as a source of cells of
keratinized phenotype and prevents non keratinized epithelial cells originating
from the oral mucosa proliferating onto the surgical area.
 The connective tissue and keratinized epithelial cells surrounding the wound
migrate from the margins to cover the exposed surgical site, resulting in
augmentation of the attached gingiva.

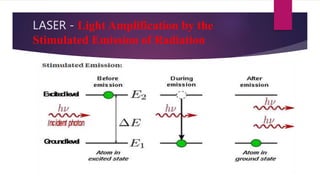

16. LASER - Light Amplification by the
Stimulated Emission of Radiation
Laser is an amplified light wave whose energy
has been increased by the process of
STIMULATED EMISSION

17. LASER - Light Amplification by the
Stimulated Emission of Radiation

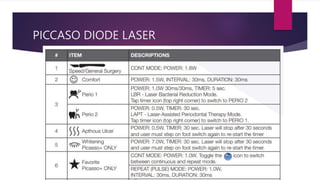

18. PICCASO DIODE LASER

19. MATERIALS AND METHODS
 Prospective, clinical study was conducted on 16 patients (4 males and 12 females; mean
age ± standard deviation [SD]: 35.06 ± 7.52) diagnosed as having generalized moderate-
to-severe chronic periodontitis.
INCLUSION CRITERIA
 No systemic disease
 Good compliance with plaque control instructions
 Generalized moderate-to-severe chronic periodontitis
 At least two mandibular anterior teeth with radiographic
bone loss, shallow vestibule, CAL ≥5 mm, and limited
attached gingiva
 No smoking
 Absence of traumatic occlusion
EXCLUSION CRITERIA
 Pregnant patients
Use of any medication known to
influence periodontal tissues

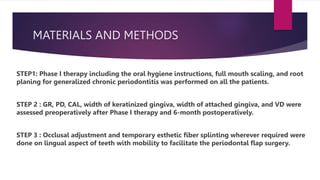

20. MATERIALS AND METHODS
STEP1: Phase I therapy including the oral hygiene instructions, full mouth scaling, and root
planing for generalized chronic periodontitis was performed on all the patients.
STEP 2 : GR, PD, CAL, width of keratinized gingiva, width of attached gingiva, and VD were
assessed preoperatively after Phase I therapy and 6-month postoperatively.
STEP 3 : Occlusal adjustment and temporary esthetic fiber splinting wherever required were
done on lingual aspect of teeth with mobility to facilitate the periodontal flap surgery.

22. MATERIALS AND METHODS

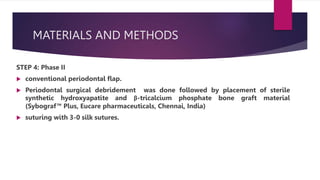

STEP 4: Phase II
 conventional periodontal flap.
 Periodontal surgical debridement was done followed by placement of sterile
synthetic hydroxyapatite and β-tricalcium phosphate bone graft material
(Sybograf™ Plus, Eucare pharmaceuticals, Chennai, India)
 suturing with 3-0 silk sutures.

23. MATERIALS AND METHODS
 A horizontal incision was given with diode laser (DenLase, Diode Laser Therapy System,
Daheng Group Inc., China; Laser parameters: Wavelength - 810 nm, output power: 0.5–7
W, continuous wave [CW], contact mode), to detach the fibers from underlying
periosteum leaving 1–2 mm of marginal gingiva
 sutures
 Care was taken to direct the laser away from the periosteum and bone.
 VD of 6–8 mm was achieved by separating the muscle attachments.
 noneugenol periodontal dressing (Coe-pak) (COE-PAK™, Periodontal Dressing, GC
America Inc., USA)

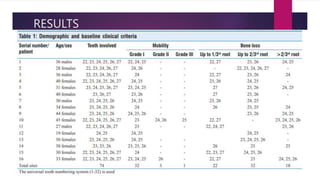

24. RESULTS

25. RESULTS

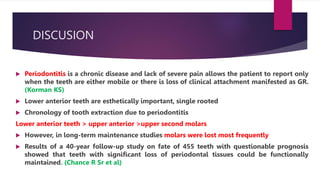

26. DISCUSION
 Periodontitis is a chronic disease and lack of severe pain allows the patient to report only
when the teeth are either mobile or there is loss of clinical attachment manifested as GR.
(Korman KS)
 Lower anterior teeth are esthetically important, single rooted
 Chronology of tooth extraction due to periodontitis
Lower anterior teeth > upper anterior >upper second molars
 However, in long-term maintenance studies molars were lost most frequently
 Results of a 40-year follow-up study on fate of 455 teeth with questionable prognosis
showed that teeth with significant loss of periodontal tissues could be functionally
maintained. (Chance R Sr et al)

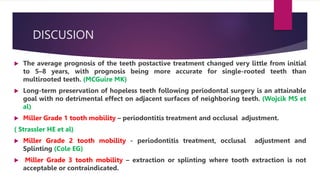

27. DISCUSION
 The average prognosis of the teeth postactive treatment changed very little from initial
to 5–8 years, with prognosis being more accurate for single-rooted teeth than
multirooted teeth. (MCGuire MK)
 Long-term preservation of hopeless teeth following periodontal surgery is an attainable
goal with no detrimental effect on adjacent surfaces of neighboring teeth. (Wojcik MS et
al)
 Miller Grade 1 tooth mobility – periodontitis treatment and occlusal adjustment.
( Strassler HE et al)
 Miller Grade 2 tooth mobility - periodontitis treatment, occlusal adjustment and
Splinting (Cole EG)
 Miller Grade 3 tooth mobility – extraction or splinting where tooth extraction is not
acceptable or contraindicated.

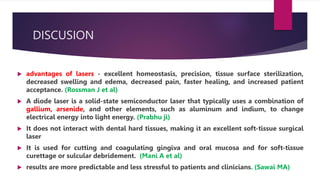

28. DISCUSION
 advantages of lasers - excellent homeostasis, precision, tissue surface sterilization,
decreased swelling and edema, decreased pain, faster healing, and increased patient
acceptance. (Rossman J et al)
 A diode laser is a solid-state semiconductor laser that typically uses a combination of
gallium, arsenide, and other elements, such as aluminum and indium, to change
electrical energy into light energy. (Prabhu ji)
 It does not interact with dental hard tissues, making it an excellent soft-tissue surgical
laser
 It is used for cutting and coagulating gingiva and oral mucosa and for soft-tissue
curettage or sulcular debridement. (Mani A et al)
 results are more predictable and less stressful to patients and clinicians. (Sawai MA)

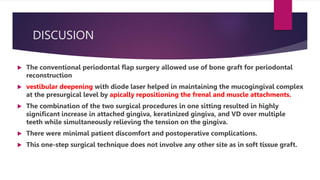

29. DISCUSION
 The conventional periodontal flap surgery allowed use of bone graft for periodontal
reconstruction
 vestibular deepening with diode laser helped in maintaining the mucogingival complex
at the presurgical level by apically repositioning the frenal and muscle attachments.
 The combination of the two surgical procedures in one sitting resulted in highly
significant increase in attached gingiva, keratinized gingiva, and VD over multiple
teeth while simultaneously relieving the tension on the gingiva.
 There were minimal patient discomfort and postoperative complications.
 This one-step surgical technique does not involve any other site as in soft tissue graft.

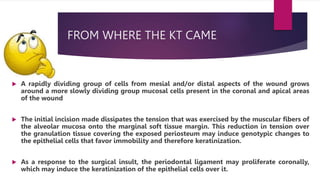

30. FROM WHERE THE KT CAME
 A rapidly dividing group of cells from mesial and/or distal aspects of the wound grows
around a more slowly dividing group mucosal cells present in the coronal and apical areas
of the wound
 The initial incision made dissipates the tension that was exercised by the muscular fibers of
the alveolar mucosa onto the marginal soft tissue margin. This reduction in tension over
the granulation tissue covering the exposed periosteum may induce genotypic changes to
the epithelial cells that favor immobility and therefore keratinization.
 As a response to the surgical insult, the periodontal ligament may proliferate coronally,
which may induce the keratinization of the epithelial cells over it.

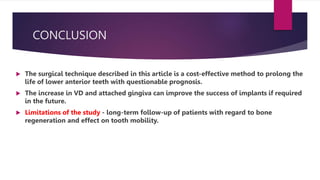

31. CONCLUSION
 The surgical technique described in this article is a cost-effective method to prolong the
life of lower anterior teeth with questionable prognosis.
 The increase in VD and attached gingiva can improve the success of implants if required
in the future.
 Limitations of the study - long-term follow-up of patients with regard to bone
regeneration and effect on tooth mobility.
