This document discusses Java packages. It explains that packages allow for organizing classes into namespaces to achieve code reuse and prevent naming collisions. Packages act as containers that group related classes and interfaces. The document also provides details on using packages from the Java API, package access protection, creating JAR files, package naming conventions, and common mistakes when working with packages.

1. Package
PRESENTED BY
R.RAMADEVI
M.sc(CS & IT)
NADAR SARASWATHI COLLEGE OF ARTS & SCIENCE
THENI

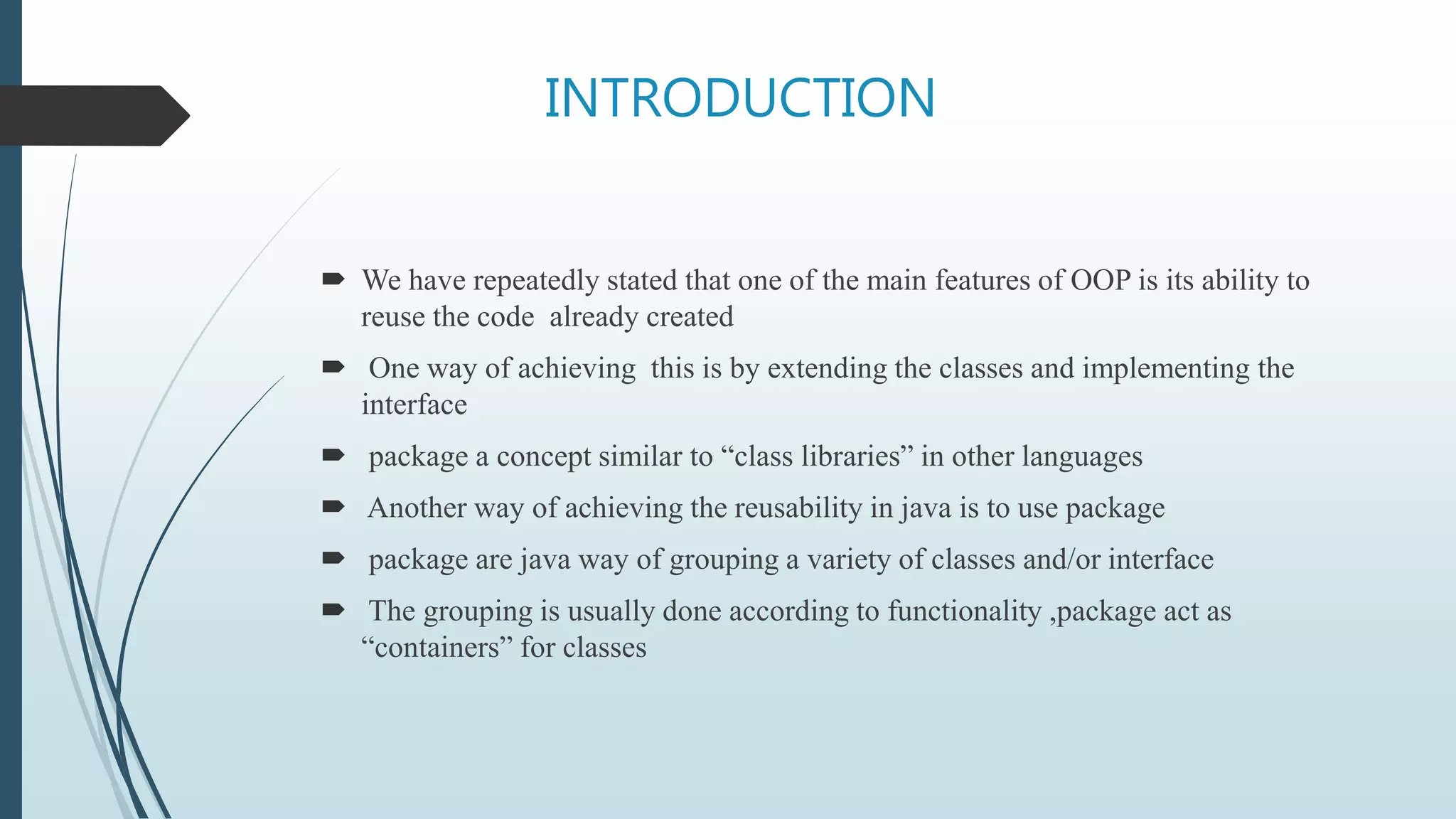

2. INTRODUCTION
 We have repeatedly stated that one of the main features of OOP is its ability to
reuse the code already created
 One way of achieving this is by extending the classes and implementing the
interface
 package a concept similar to “class libraries” in other languages
 Another way of achieving the reusability in java is to use package
 package are java way of grouping a variety of classes and/or interface
 The grouping is usually done according to functionality ,package act as
“containers” for classes

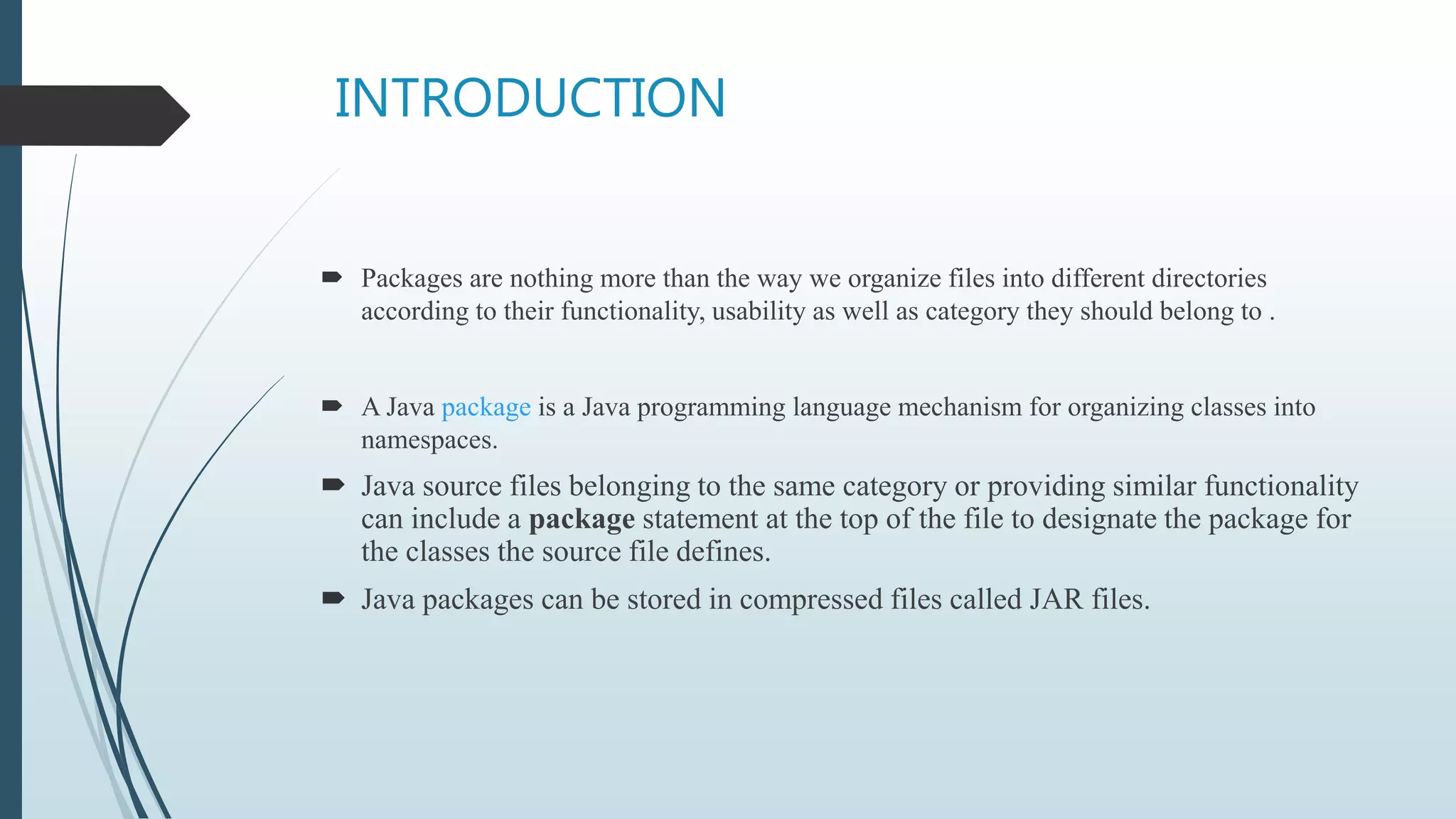

3. INTRODUCTION
 Packages are nothing more than the way we organize files into different directories
according to their functionality, usability as well as category they should belong to .
 A Java package is a Java programming language mechanism for organizing classes into
namespaces.
 Java source files belonging to the same category or providing similar functionality
can include a package statement at the top of the file to designate the package for
the classes the source file defines.
 Java packages can be stored in compressed files called JAR files.

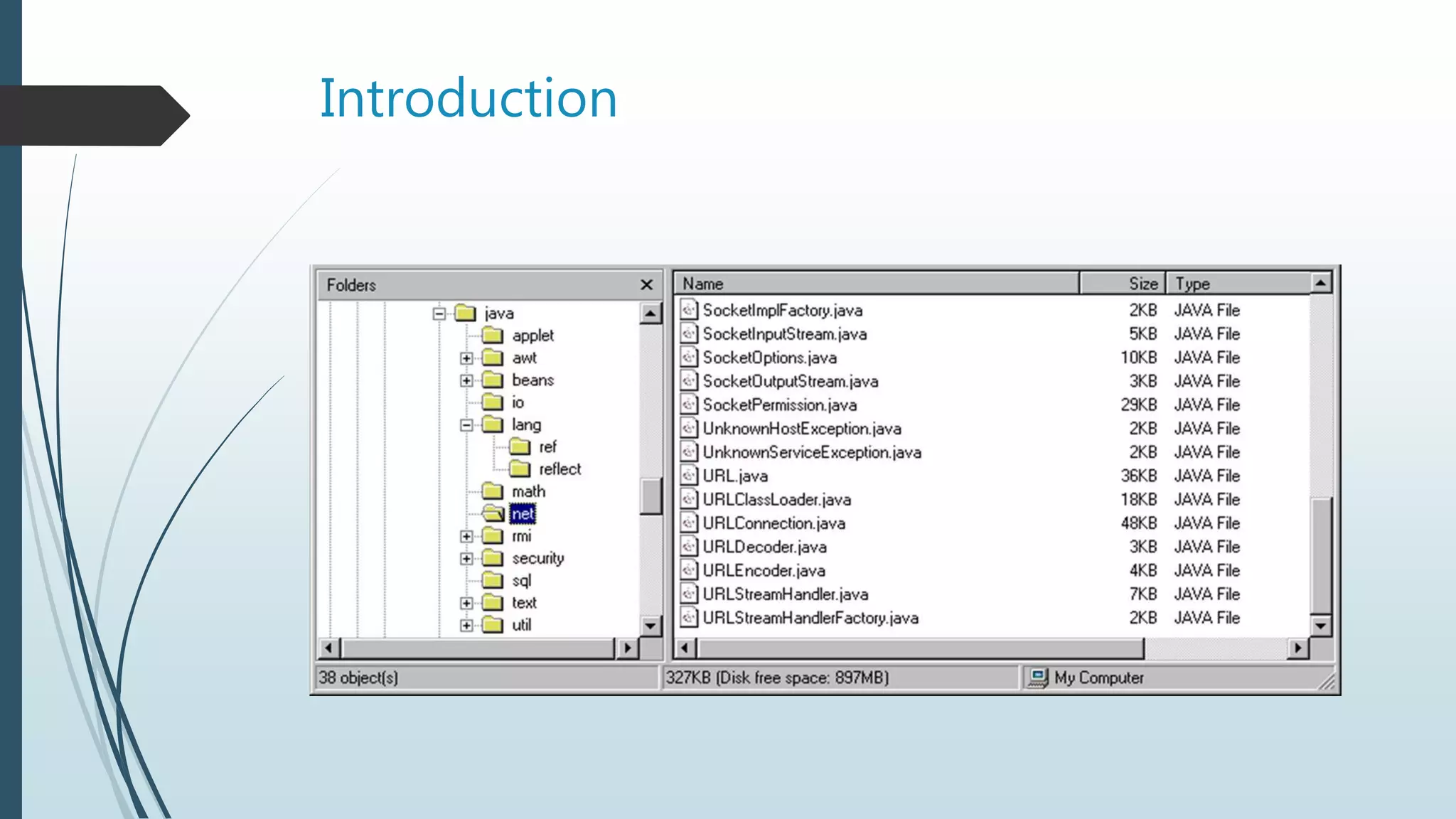

4. Introduction

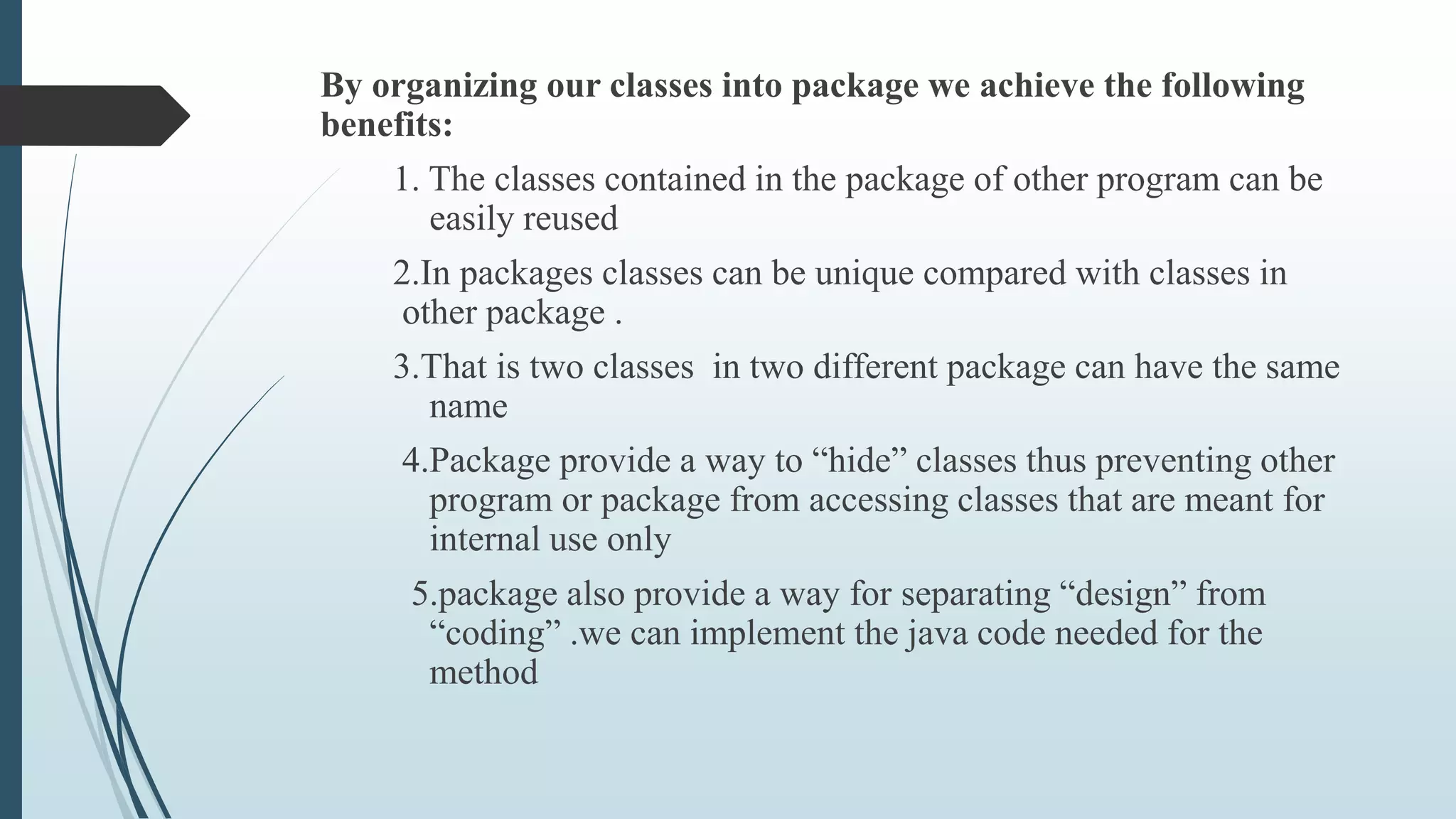

5. By organizing our classes into package we achieve the following
benefits:
1. The classes contained in the package of other program can be
easily reused
2.In packages classes can be unique compared with classes in
other package .
3.That is two classes in two different package can have the same
name
4.Package provide a way to “hide” classes thus preventing other
program or package from accessing classes that are meant for
internal use only
5.package also provide a way for separating “design” from
“coding” .we can implement the java code needed for the
method

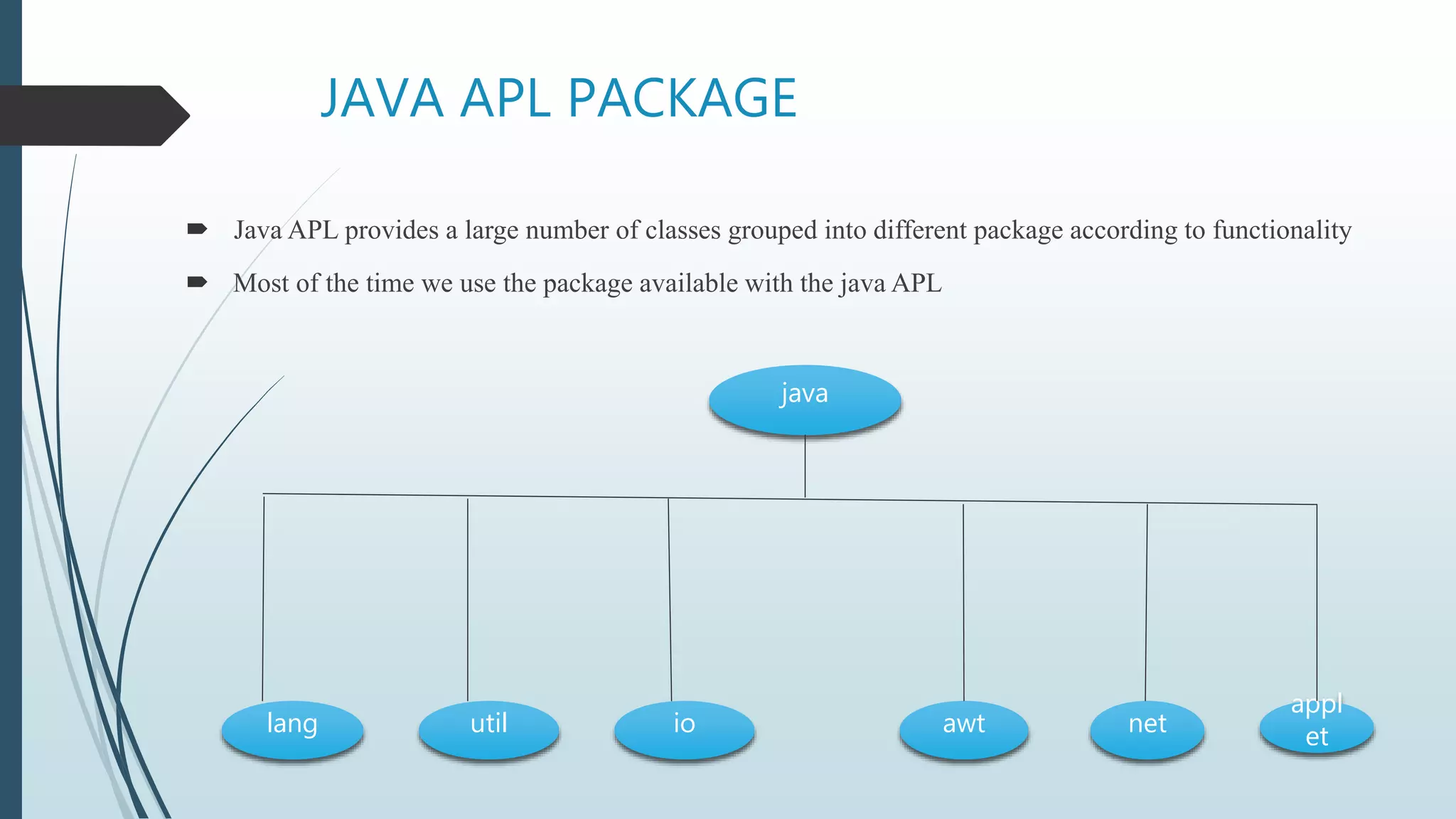

6. JAVA APL PACKAGE
 Java APL provides a large number of classes grouped into different package according to functionality
 Most of the time we use the package available with the java APL
java
lang util io awt net
appl
et

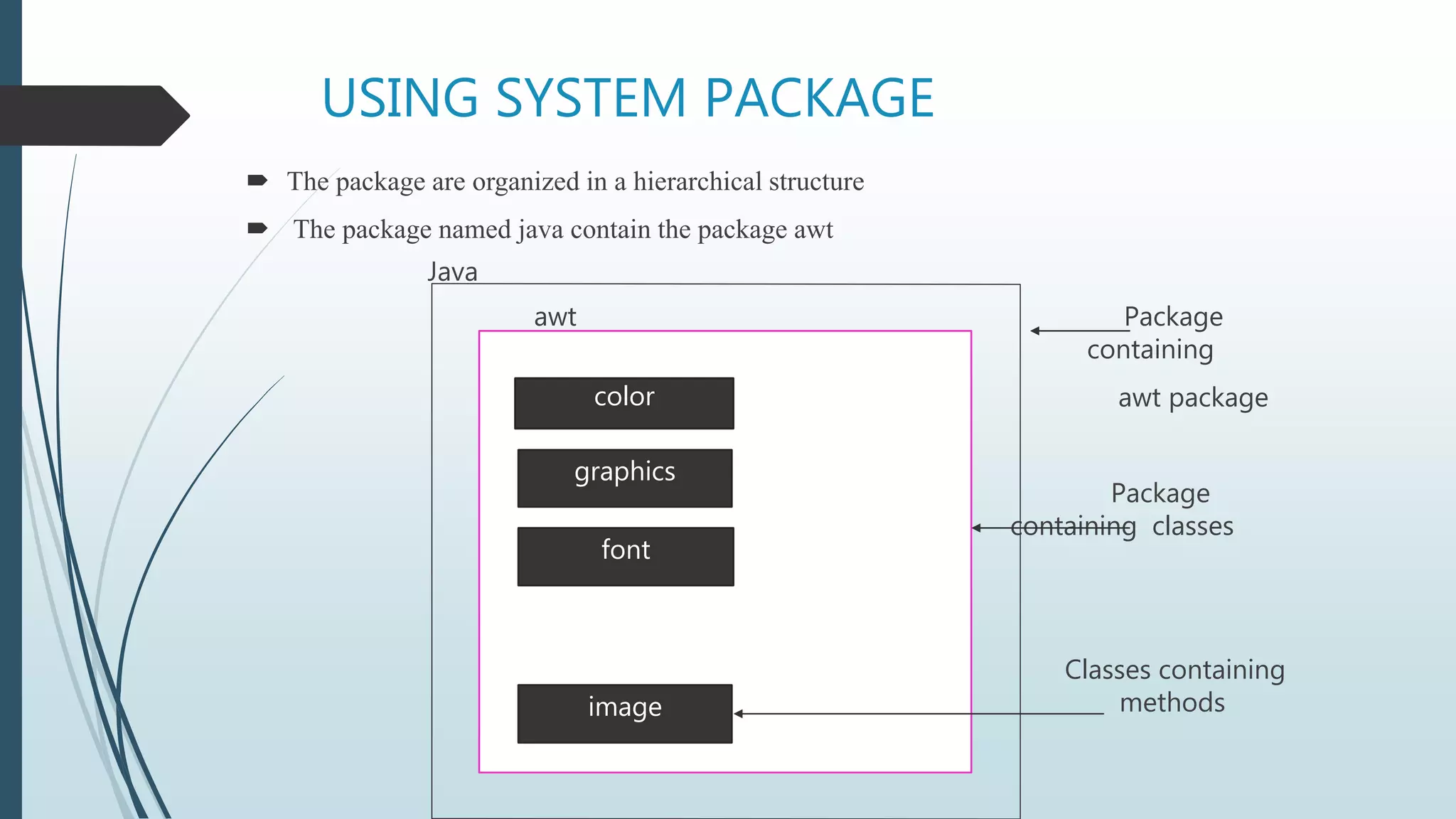

7. USING SYSTEM PACKAGE
 The package are organized in a hierarchical structure
 The package named java contain the package awt
Java
awt Package
containing
awt package
Package
containing classes
Classes containing
methods
color
graphics
font

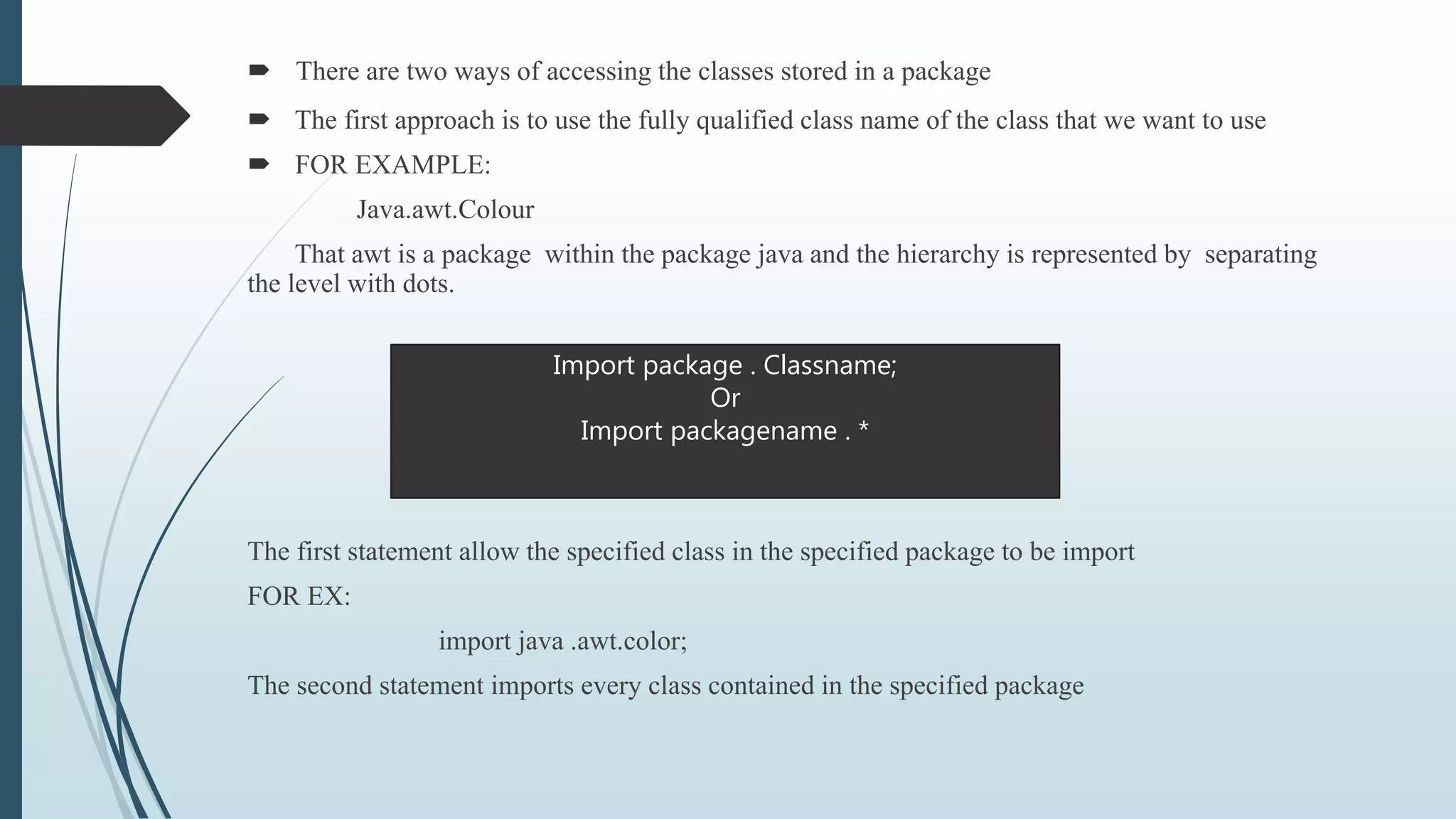

8.  There are two ways of accessing the classes stored in a package
 The first approach is to use the fully qualified class name of the class that we want to use
 FOR EXAMPLE:
Java.awt.Colour
That awt is a package within the package java and the hierarchy is represented by separating
the level with dots.
The first statement allow the specified class in the specified package to be import
FOR EX:
import java .awt.color;
The second statement imports every class contained in the specified package
Import package . Classname;
Or
Import packagename . *

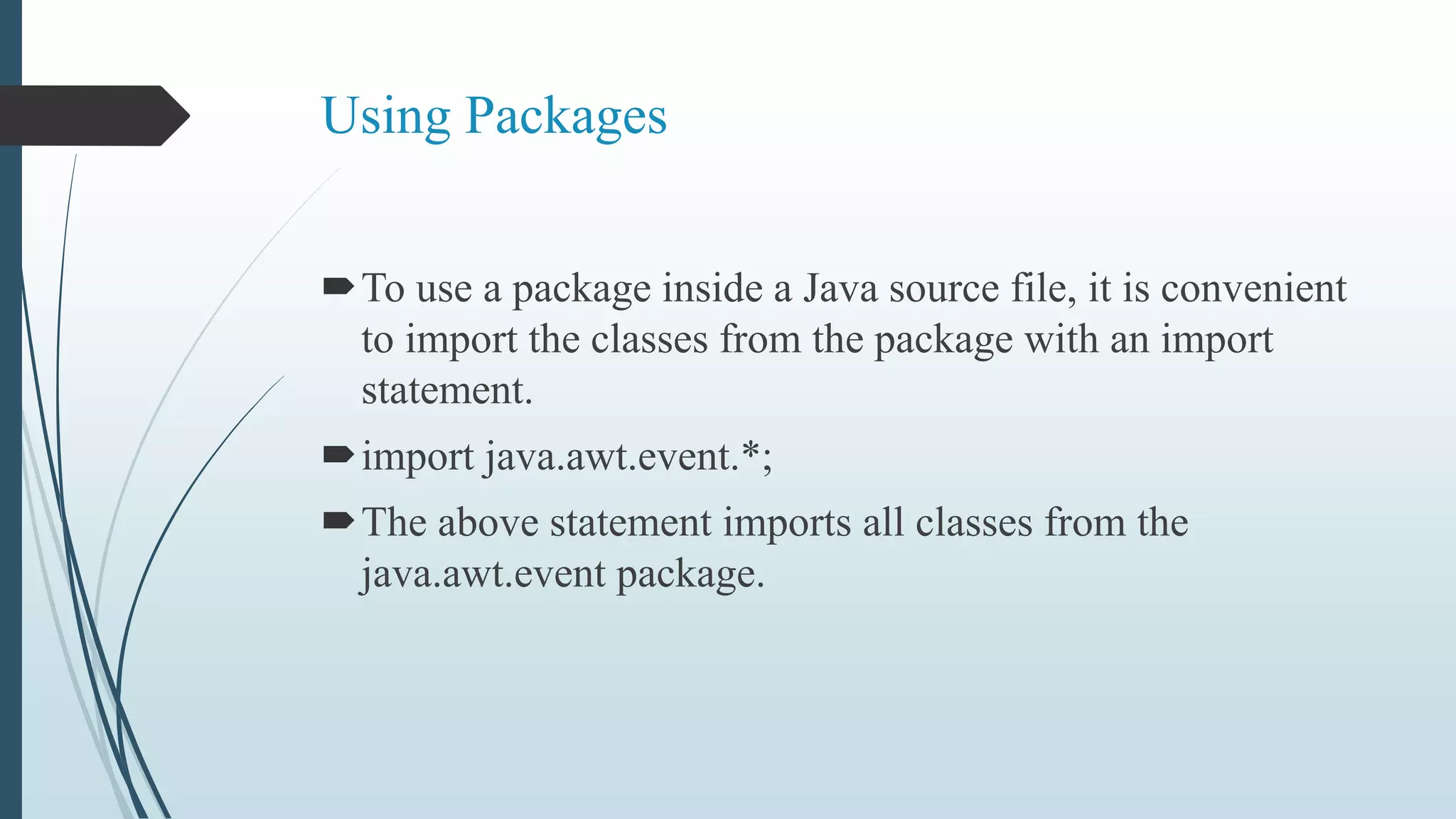

9. Using Packages
To use a package inside a Java source file, it is convenient
to import the classes from the package with an import
statement.
import java.awt.event.*;
The above statement imports all classes from the
java.awt.event package.

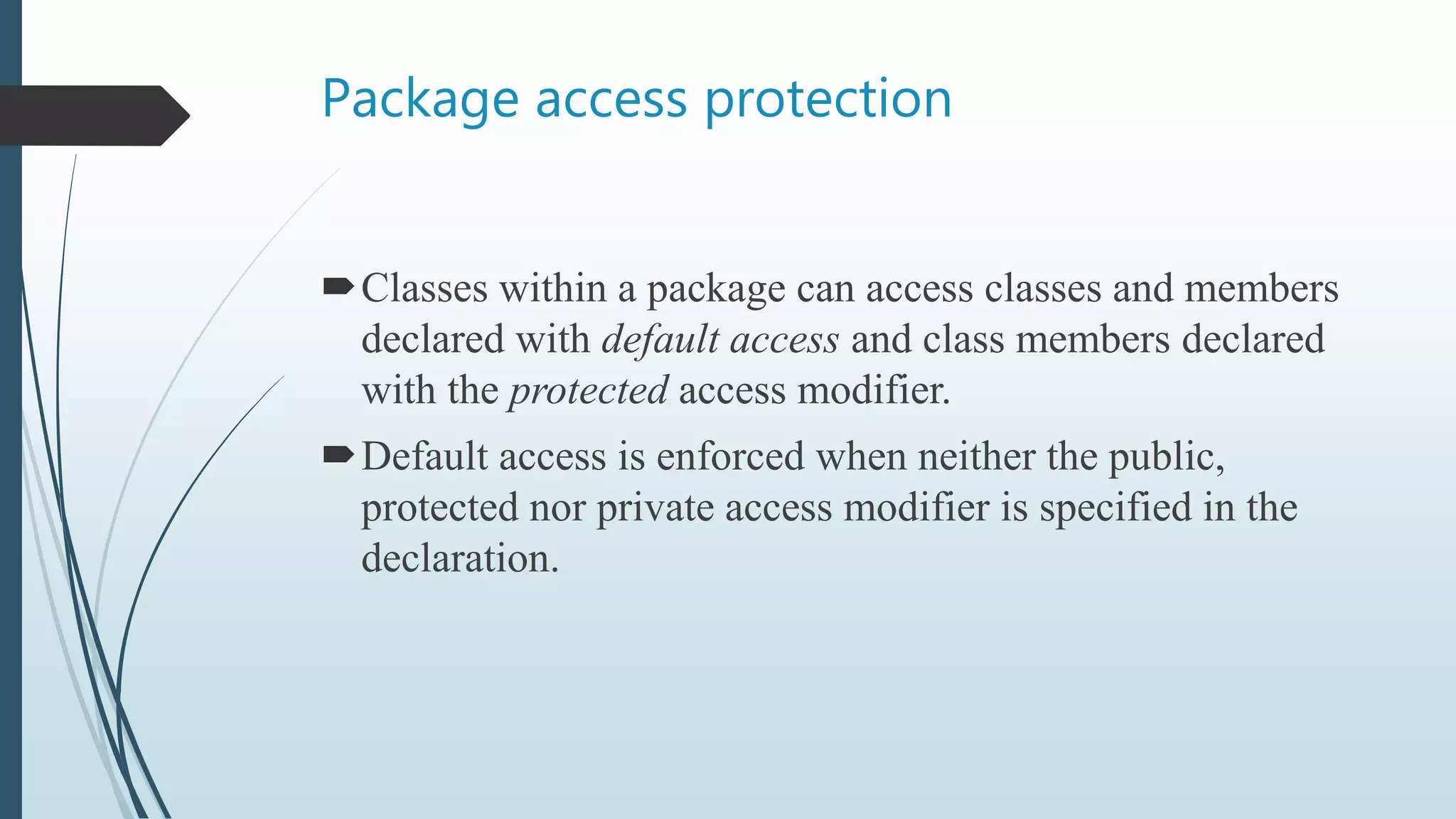

10. Package access protection
Classes within a package can access classes and members
declared with default access and class members declared
with the protected access modifier.
Default access is enforced when neither the public,
protected nor private access modifier is specified in the
declaration.

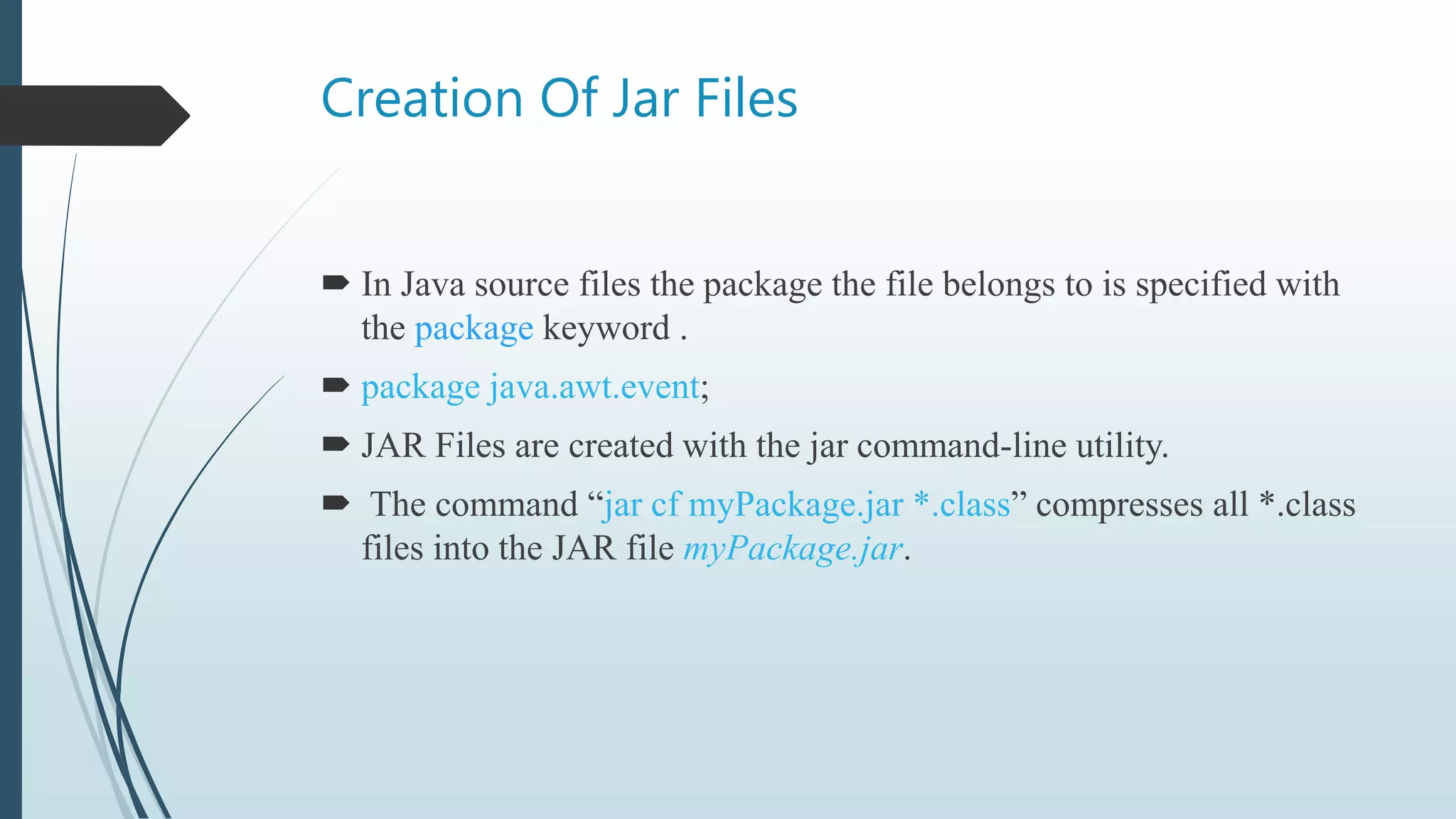

11. Creation Of Jar Files
 In Java source files the package the file belongs to is specified with
the package keyword .
 package java.awt.event;
 JAR Files are created with the jar command-line utility.
 The command “jar cf myPackage.jar *.class” compresses all *.class
files into the JAR file myPackage.jar.

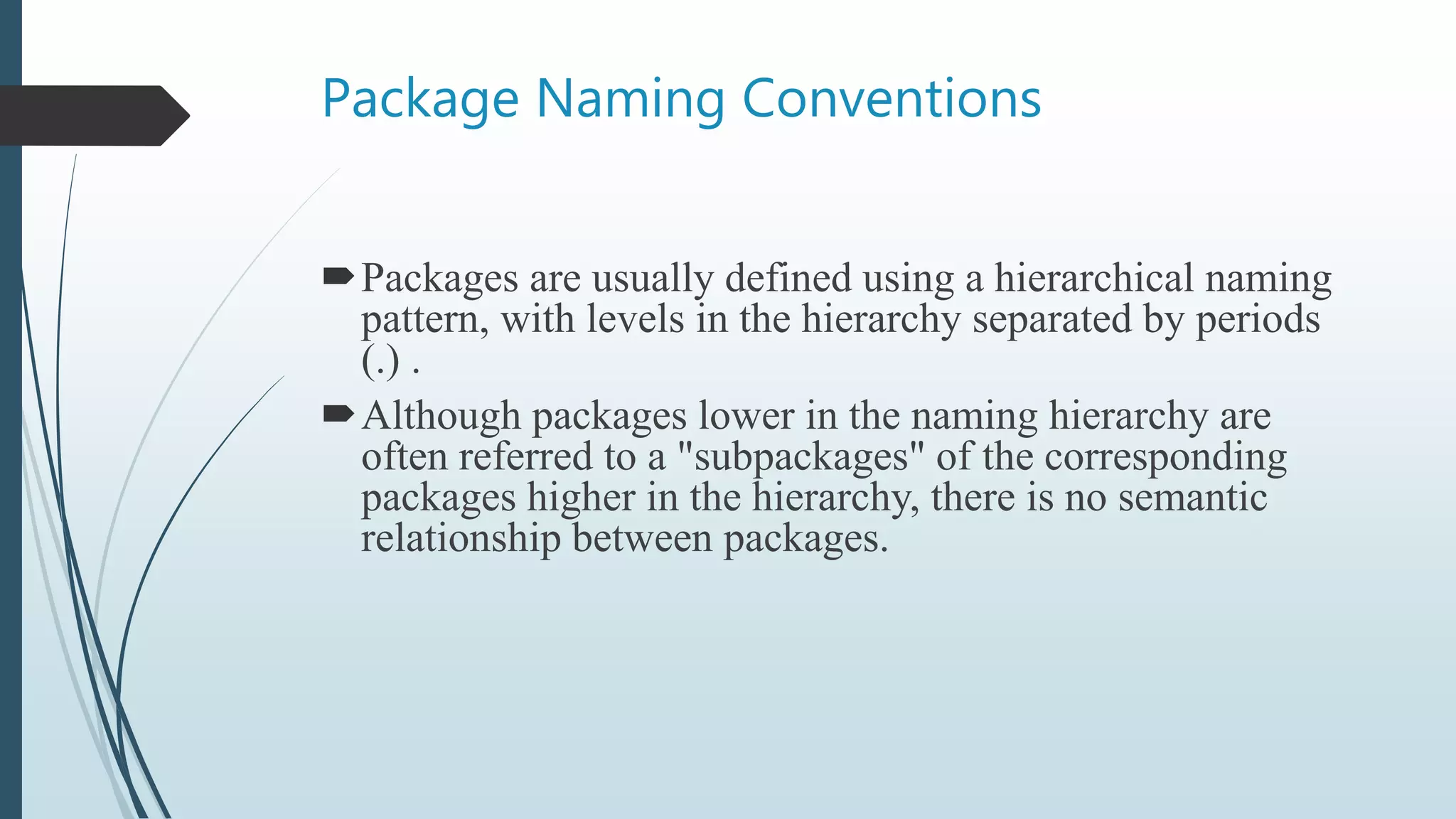

12. Package Naming Conventions
Packages are usually defined using a hierarchical naming
pattern, with levels in the hierarchy separated by periods
(.) .
Although packages lower in the naming hierarchy are
often referred to a "subpackages" of the corresponding
packages higher in the hierarchy, there is no semantic
relationship between packages.

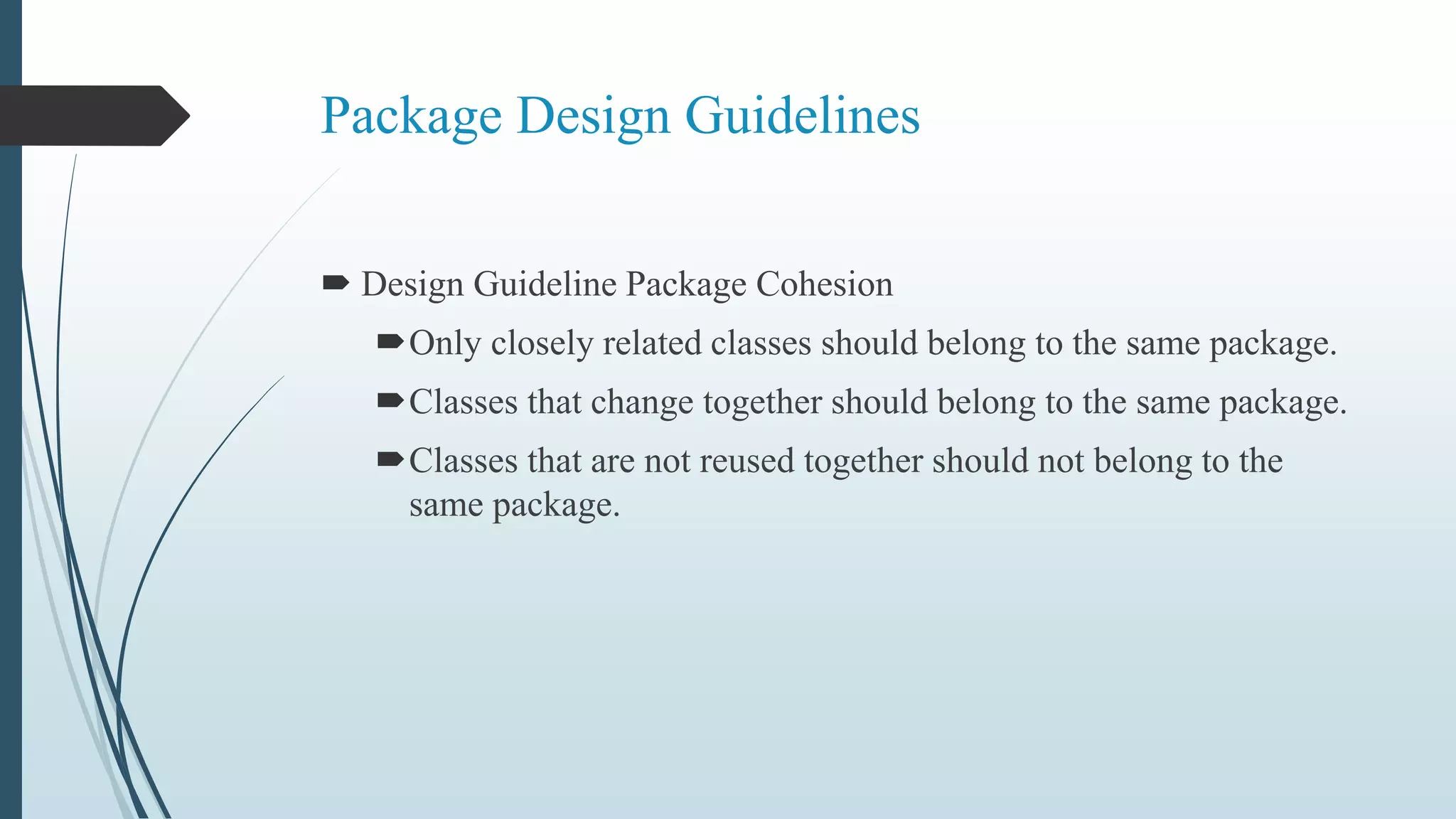

13. Package Design Guidelines
 Design Guideline Package Cohesion
Only closely related classes should belong to the same package.
Classes that change together should belong to the same package.
Classes that are not reused together should not belong to the
same package.

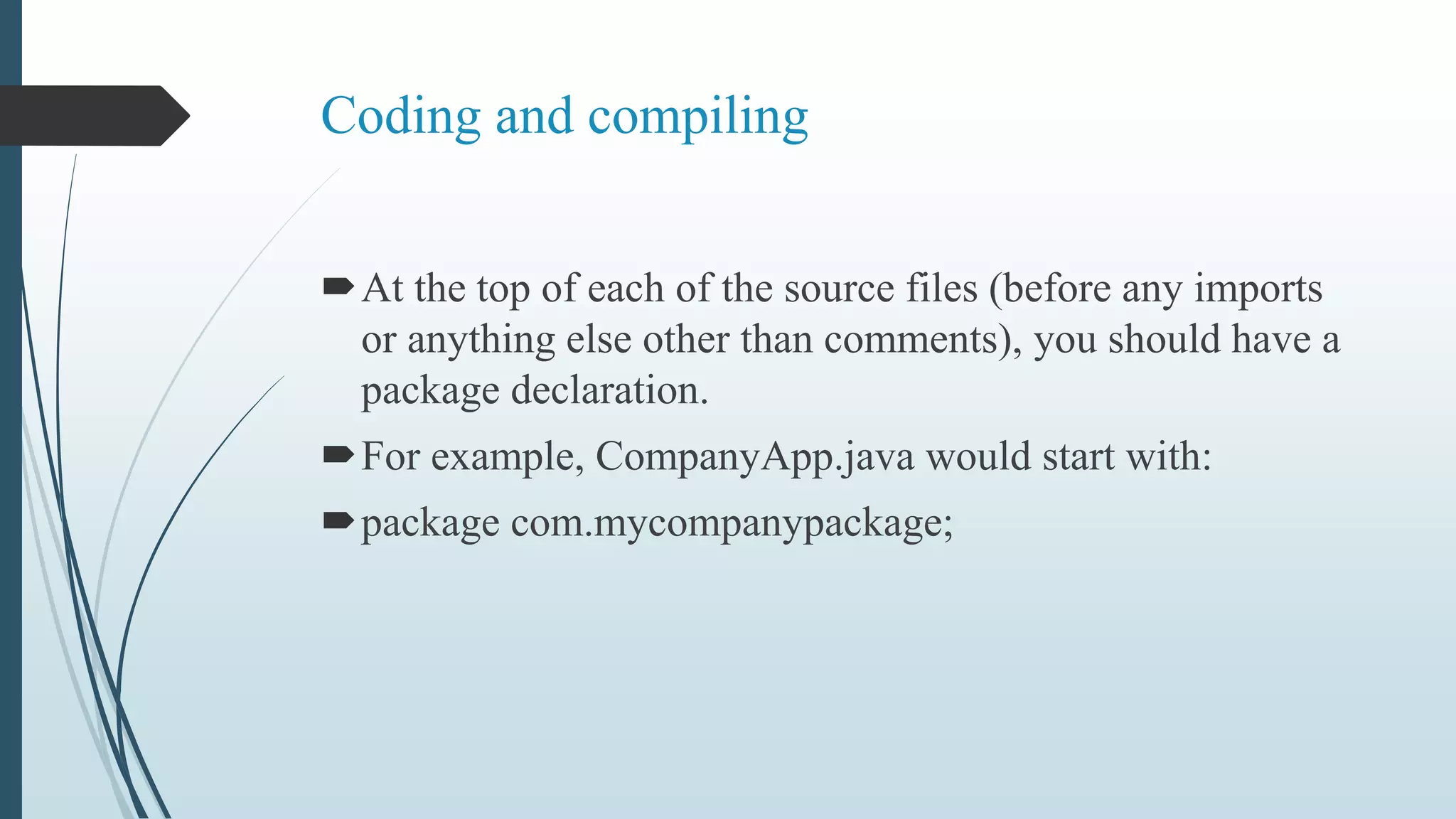

14. Coding and compiling
At the top of each of the source files (before any imports
or anything else other than comments), you should have a
package declaration.
For example, CompanyApp.java would start with:
package com.mycompanypackage;

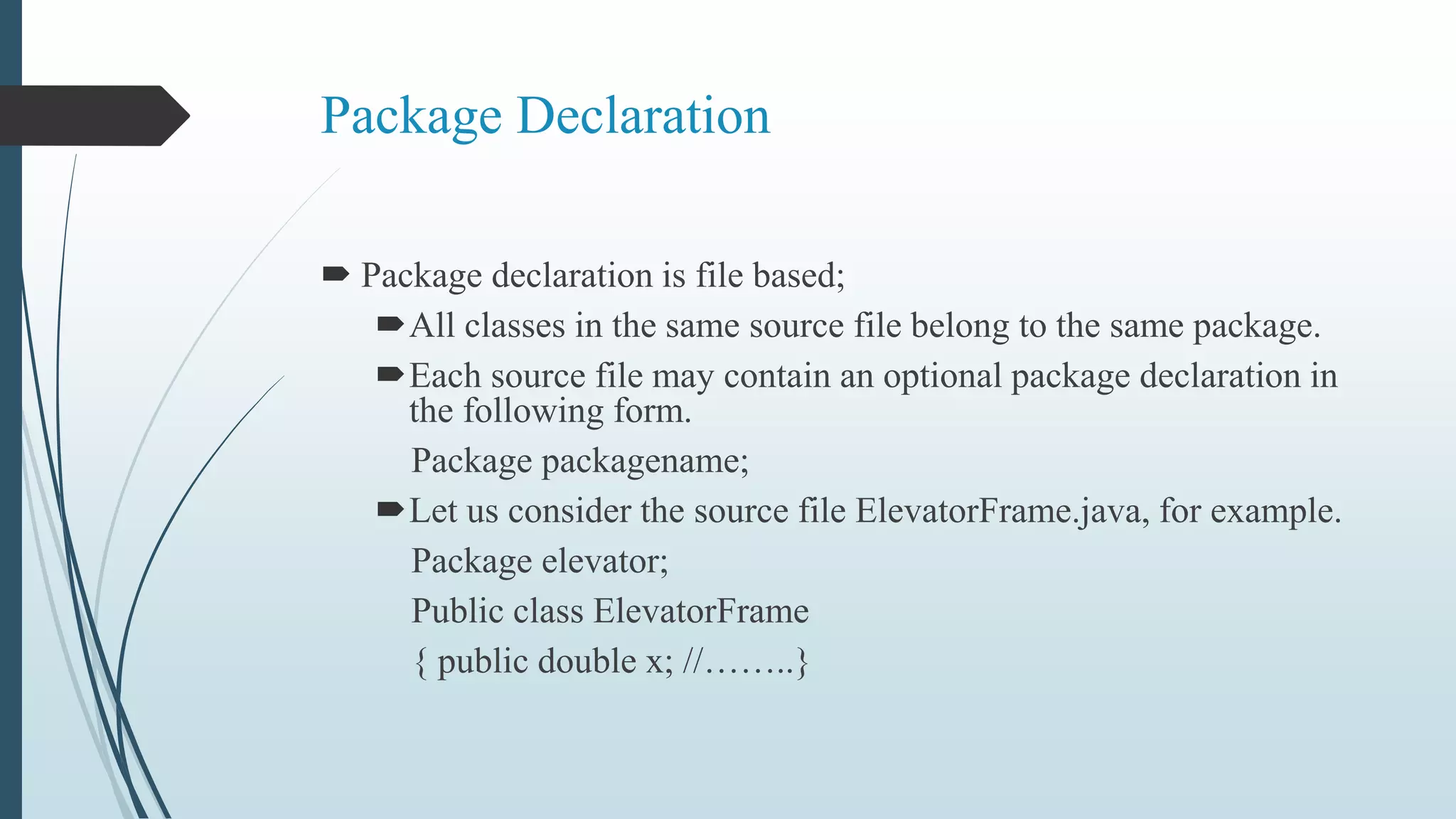

15. Package Declaration
 Package declaration is file based;
All classes in the same source file belong to the same package.
Each source file may contain an optional package declaration in
the following form.
Package packagename;
Let us consider the source file ElevatorFrame.java, for example.
Package elevator;
Public class ElevatorFrame
{ public double x; //……..}

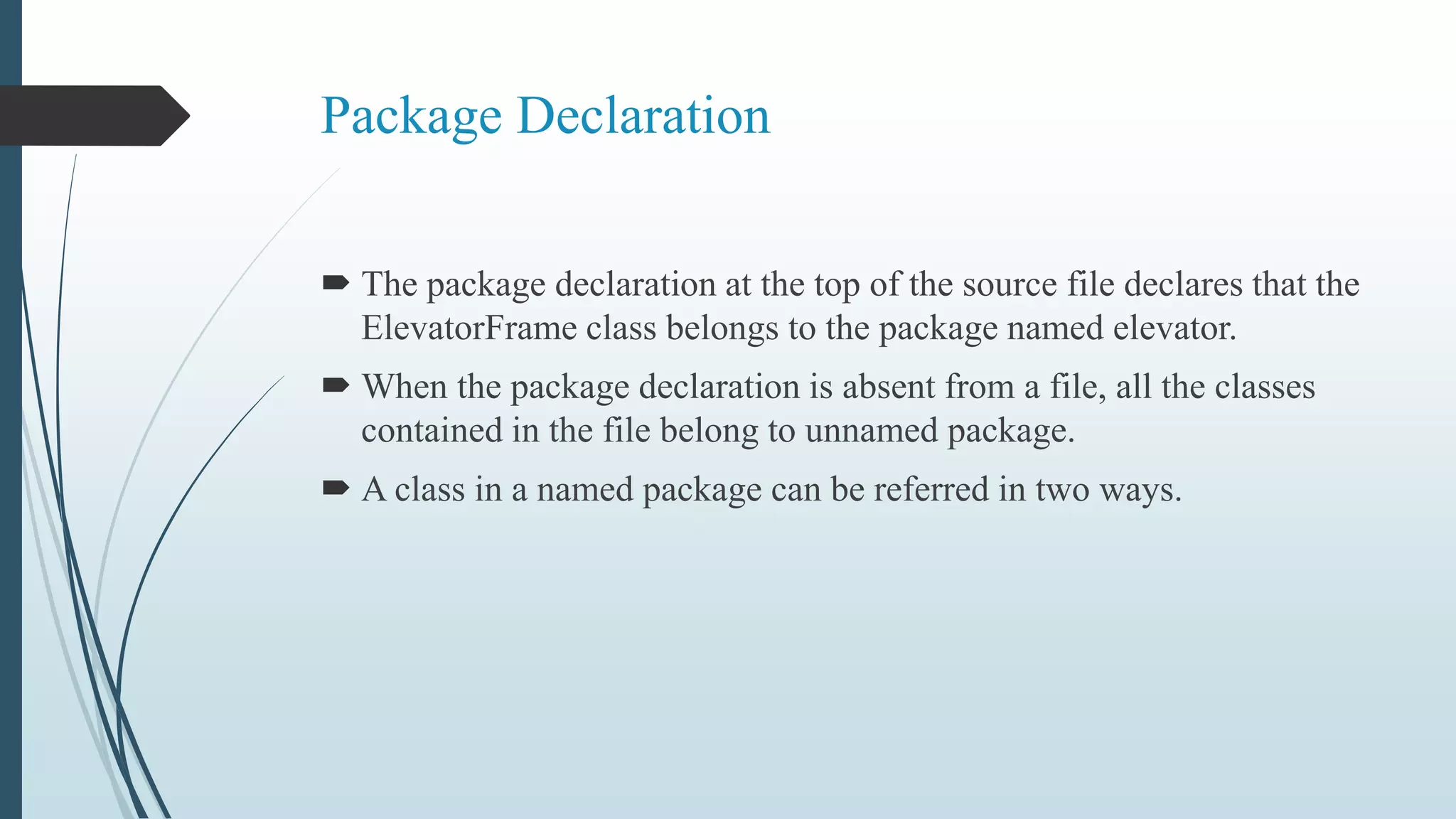

16. Package Declaration
 The package declaration at the top of the source file declares that the
ElevatorFrame class belongs to the package named elevator.
 When the package declaration is absent from a file, all the classes
contained in the file belong to unnamed package.
 A class in a named package can be referred in two ways.

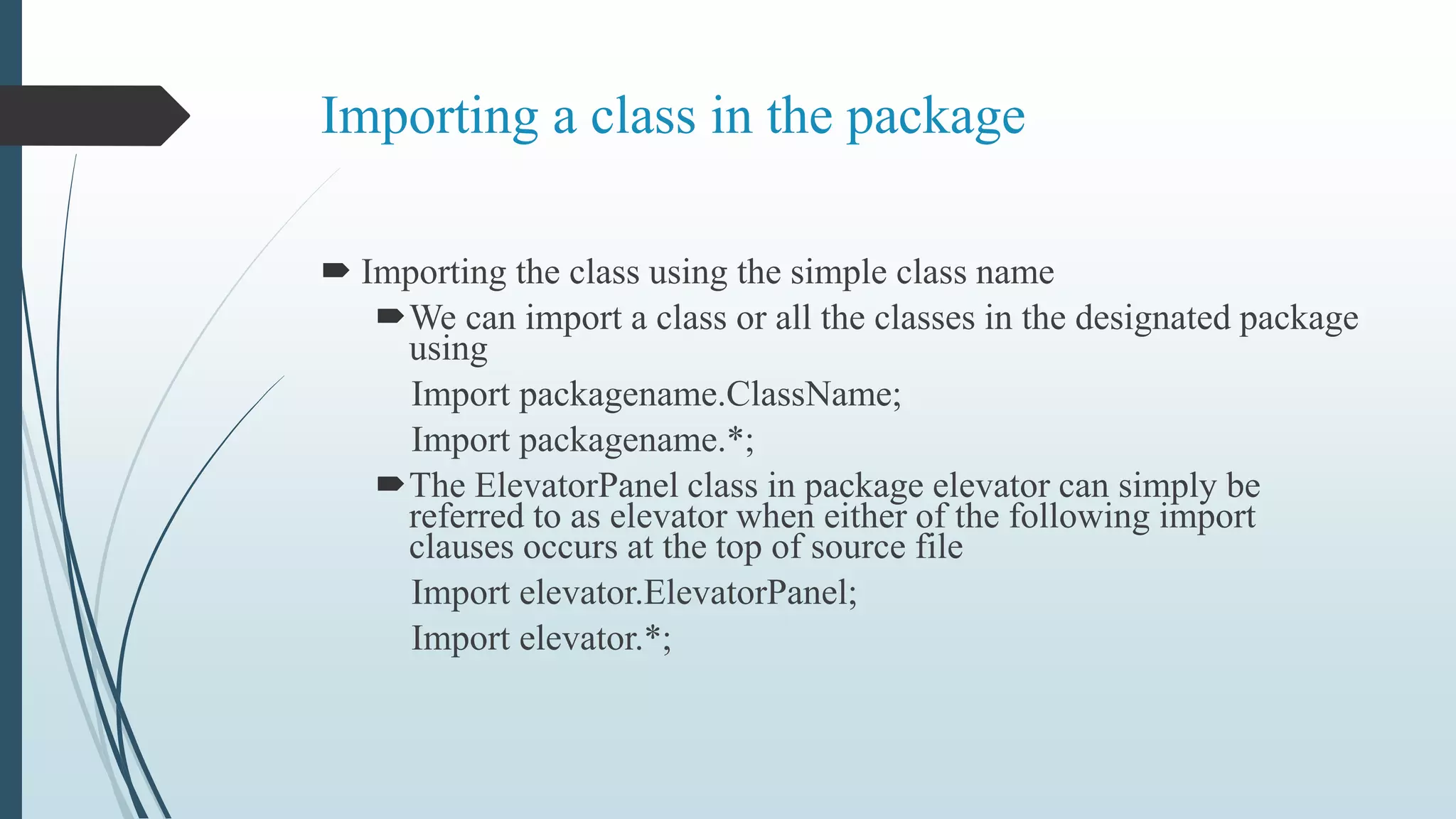

17. Importing a class in the package
 Importing the class using the simple class name
We can import a class or all the classes in the designated package
using
Import packagename.ClassName;
Import packagename.*;
The ElevatorPanel class in package elevator can simply be
referred to as elevator when either of the following import
clauses occurs at the top of source file
Import elevator.ElevatorPanel;
Import elevator.*;

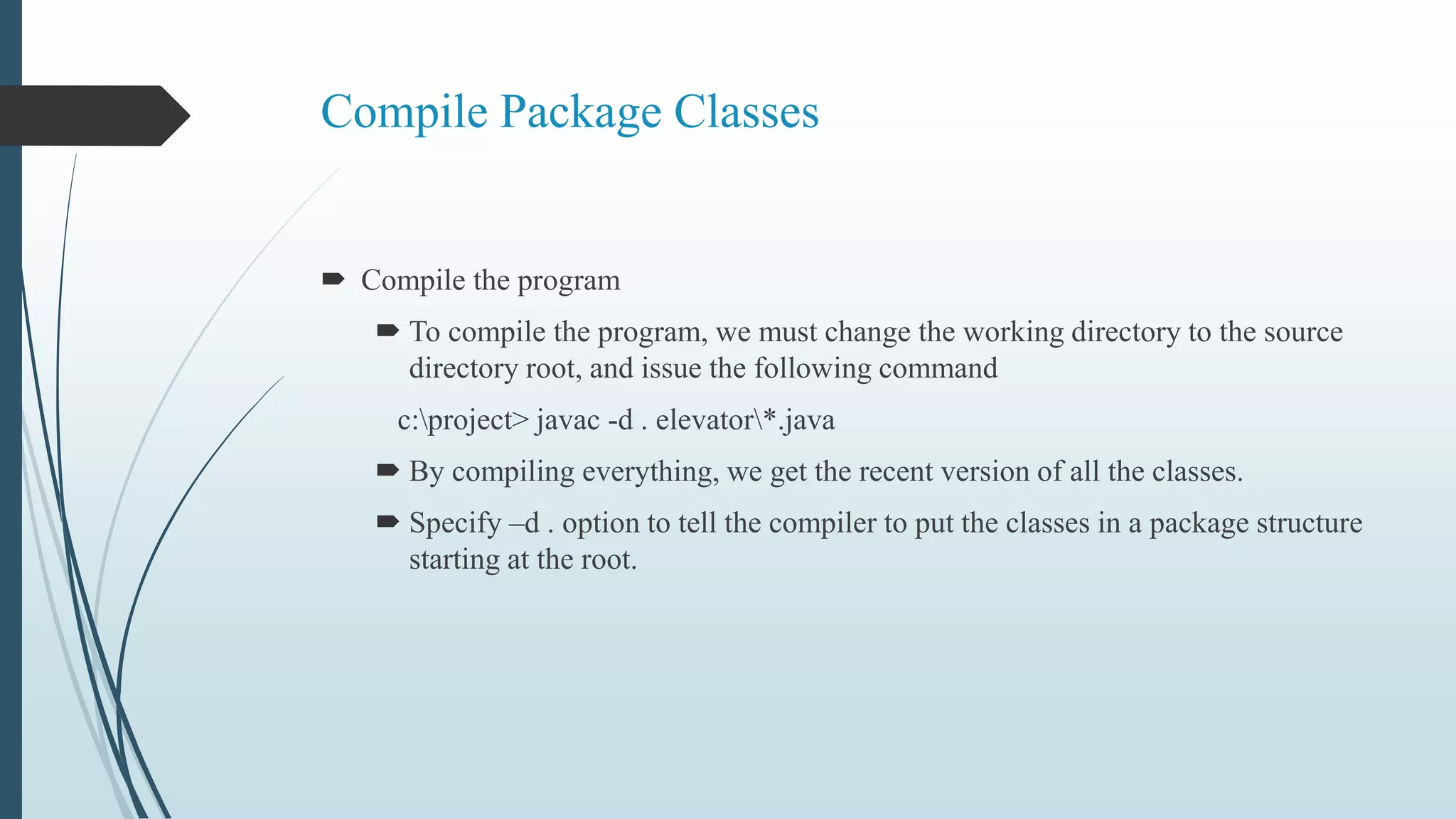

18. Compile Package Classes
 Compile the program
 To compile the program, we must change the working directory to the source
directory root, and issue the following command
c:project> javac -d . elevator*.java
 By compiling everything, we get the recent version of all the classes.
 Specify –d . option to tell the compiler to put the classes in a package structure
starting at the root.

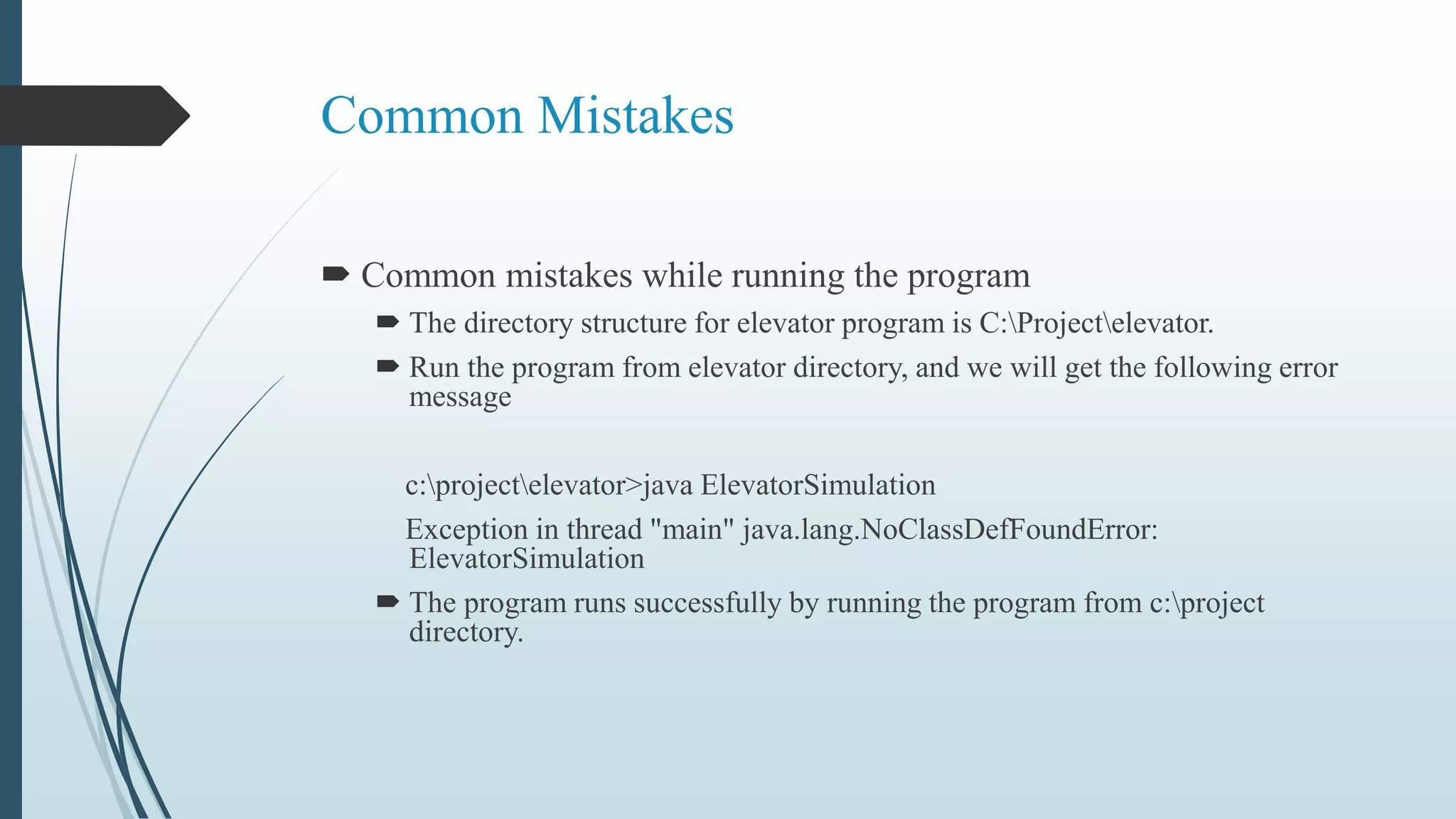

19. Common Mistakes
 Common mistakes while running the program
 The directory structure for elevator program is C:Projectelevator.
 Run the program from elevator directory, and we will get the following error
message
c:projectelevator>java ElevatorSimulation
Exception in thread "main" java.lang.NoClassDefFoundError:
ElevatorSimulation
 The program runs successfully by running the program from c:project
directory.

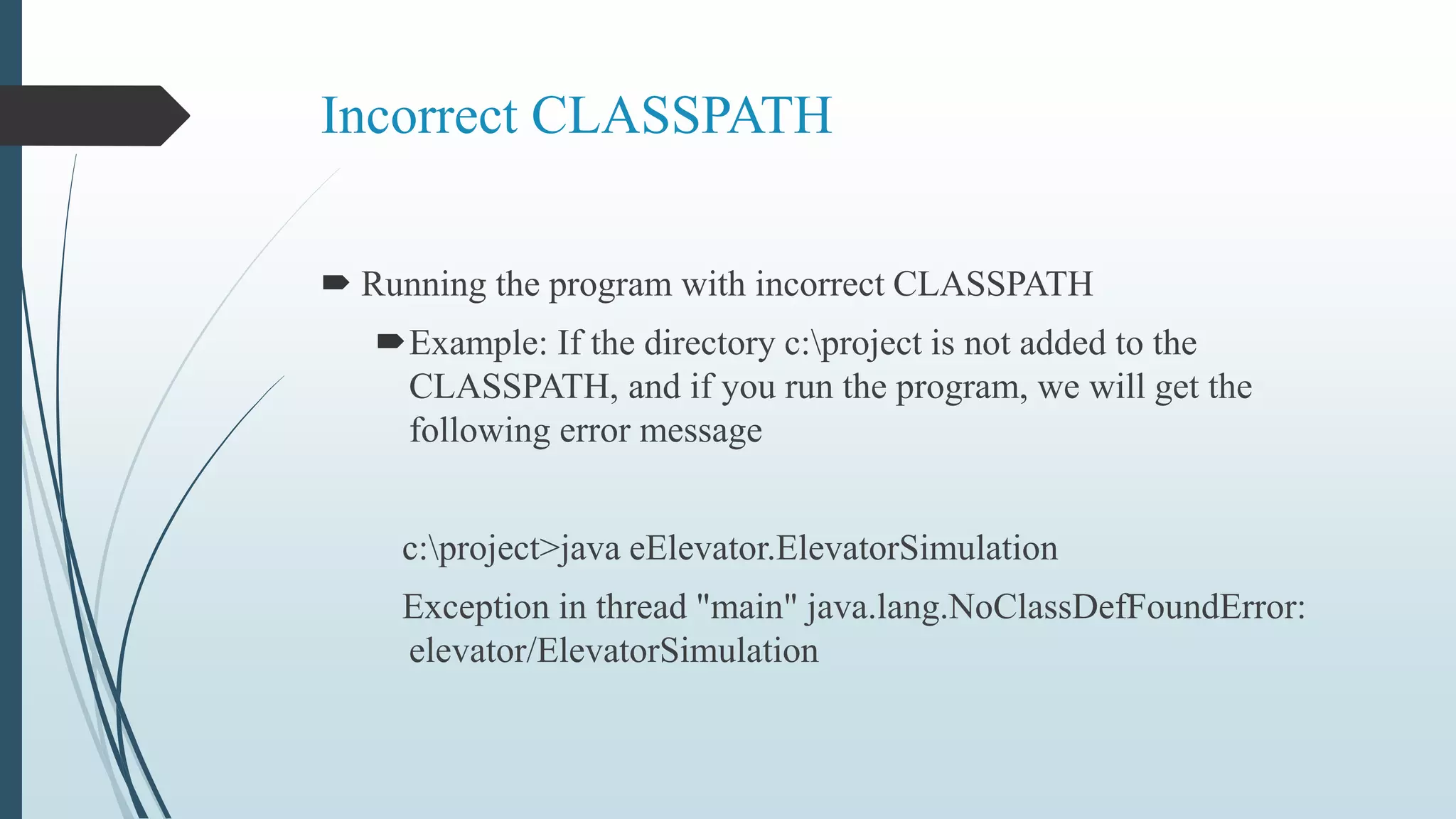

20. Incorrect CLASSPATH
 Running the program with incorrect CLASSPATH
Example: If the directory c:project is not added to the
CLASSPATH, and if you run the program, we will get the
following error message
c:project>java eElevator.ElevatorSimulation
Exception in thread "main" java.lang.NoClassDefFoundError:
elevator/ElevatorSimulation

21. THANKYOU!!!
