P13 056

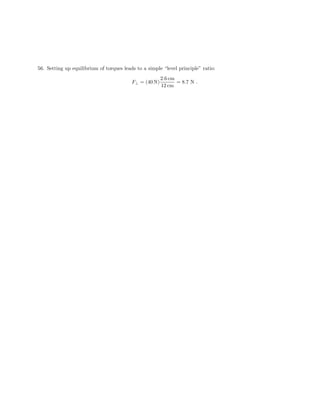

- 1. 56. Setting up equilibrium of torques leads to a simple “level principle” ratio: 2.6 cm F⊥ = (40 N) = 8.7 N . 12 cm
