Ospf
•
Download as PPTX, PDF
•
1 like
•
2,164 views
Joshua Fonseca
Follow
CCNA R&S chapter 5
Read less
Read more
Education
Technology
Report
Share
Report
Share
1 of 50
Download now
Recommended
Ospf.ppt
Ospf.ppt
Edgardo Scrimaglia
OSPF- Multi area
OSPF- Multi area
Ahmed Ali
Cisco ospf
Cisco ospf
sarasanandam
CCNP Route EIGRP Overview
CCNP Route EIGRP Overview
Visalini Kumaraswamy
Segment Routing Lab
Segment Routing Lab
Cisco Canada
CCNA SUMMER TRAINNING PPT
CCNA SUMMER TRAINNING PPT
Nishant Goel
Ospf
Ospf
DeeN Mohammad
Bgp
Bgp
Febrian
Recommended
Ospf.ppt
Ospf.ppt
Edgardo Scrimaglia
OSPF- Multi area
OSPF- Multi area
Ahmed Ali
Cisco ospf
Cisco ospf
sarasanandam
CCNP Route EIGRP Overview
CCNP Route EIGRP Overview
Visalini Kumaraswamy
Segment Routing Lab
Segment Routing Lab
Cisco Canada
CCNA SUMMER TRAINNING PPT
CCNA SUMMER TRAINNING PPT
Nishant Goel
Ospf
Ospf
DeeN Mohammad
Bgp
Bgp
Febrian
Asa packet-flow-00
Asa packet-flow-00
vinaydewangan11
Cisco Live! :: Introduction to IOS XR for Enterprises and Service Providers
Cisco Live! :: Introduction to IOS XR for Enterprises and Service Providers
Bruno Teixeira
CCNP ROUTE V7 CH6
CCNP ROUTE V7 CH6
Chaing Ravuth
CCNP Switching Chapter 1
CCNP Switching Chapter 1
Chaing Ravuth
Ospf area types
Ospf area types
Roger Perkin
CCNP v6 Route: Implementing IP Routing Chapter 3
CCNP v6 Route: Implementing IP Routing Chapter 3
Andy Juan Sarango Veliz
CCNP ROUTE V7 CH1
CCNP ROUTE V7 CH1
Chaing Ravuth
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)
anilinvns
Open Shortest Path First
Open Shortest Path First
Kashif Latif
CCNA Advanced Routing Protocols
CCNA Advanced Routing Protocols
Dsunte Wilson
Border Gatway Protocol
Border Gatway Protocol
Shashank Asthana
ccna project on topic company infrastructure
ccna project on topic company infrastructure
Prince Gautam
MPLS L3 VPN Deployment
MPLS L3 VPN Deployment
APNIC
How BGP Works
How BGP Works
ThousandEyes
Ccnp workbook network bulls
Ccnp workbook network bulls
Swapnil Kapate
Ccna PPT
Ccna PPT
AIRTEL
Bgp protocol
Bgp protocol
Smriti Tikoo
Ccnp presentation day 4 sd-access vs traditional network architecture
Ccnp presentation day 4 sd-access vs traditional network architecture
SagarR24
Border Gateway Protocol
Border Gateway Protocol
Kashif Latif
CCNA 2 Routing and Switching v5.0 Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 2
Nil Menon
CCNAv5 - S3: Chapter6 Multiarea OSPF
CCNAv5 - S3: Chapter6 Multiarea OSPF
Vuz Dở Hơi
Iben from Spirent talks at the SDN World Congress about the importance of and...
Iben from Spirent talks at the SDN World Congress about the importance of and...
Iben Rodriguez
More Related Content
What's hot
Asa packet-flow-00
Asa packet-flow-00
vinaydewangan11
Cisco Live! :: Introduction to IOS XR for Enterprises and Service Providers
Cisco Live! :: Introduction to IOS XR for Enterprises and Service Providers
Bruno Teixeira
CCNP ROUTE V7 CH6
CCNP ROUTE V7 CH6
Chaing Ravuth
CCNP Switching Chapter 1
CCNP Switching Chapter 1
Chaing Ravuth
Ospf area types
Ospf area types
Roger Perkin
CCNP v6 Route: Implementing IP Routing Chapter 3
CCNP v6 Route: Implementing IP Routing Chapter 3
Andy Juan Sarango Veliz
CCNP ROUTE V7 CH1
CCNP ROUTE V7 CH1
Chaing Ravuth
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)
anilinvns
Open Shortest Path First
Open Shortest Path First
Kashif Latif
CCNA Advanced Routing Protocols
CCNA Advanced Routing Protocols
Dsunte Wilson
Border Gatway Protocol
Border Gatway Protocol
Shashank Asthana
ccna project on topic company infrastructure
ccna project on topic company infrastructure
Prince Gautam
MPLS L3 VPN Deployment
MPLS L3 VPN Deployment
APNIC
How BGP Works
How BGP Works
ThousandEyes
Ccnp workbook network bulls
Ccnp workbook network bulls
Swapnil Kapate
Ccna PPT
Ccna PPT
AIRTEL
Bgp protocol
Bgp protocol
Smriti Tikoo
Ccnp presentation day 4 sd-access vs traditional network architecture
Ccnp presentation day 4 sd-access vs traditional network architecture
SagarR24
Border Gateway Protocol
Border Gateway Protocol
Kashif Latif
CCNA 2 Routing and Switching v5.0 Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 2
Nil Menon
What's hot
(20)
Asa packet-flow-00
Asa packet-flow-00
Cisco Live! :: Introduction to IOS XR for Enterprises and Service Providers
Cisco Live! :: Introduction to IOS XR for Enterprises and Service Providers
CCNP ROUTE V7 CH6
CCNP ROUTE V7 CH6
CCNP Switching Chapter 1
CCNP Switching Chapter 1
Ospf area types
Ospf area types
CCNP v6 Route: Implementing IP Routing Chapter 3
CCNP v6 Route: Implementing IP Routing Chapter 3
CCNP ROUTE V7 CH1
CCNP ROUTE V7 CH1
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)
Day 3 ENHANCED IGRP (EIGRP) AND OPEN SHORTEST PATH FIRST (OSPF)
Open Shortest Path First
Open Shortest Path First
CCNA Advanced Routing Protocols
CCNA Advanced Routing Protocols
Border Gatway Protocol
Border Gatway Protocol
ccna project on topic company infrastructure
ccna project on topic company infrastructure
MPLS L3 VPN Deployment
MPLS L3 VPN Deployment
How BGP Works
How BGP Works
Ccnp workbook network bulls
Ccnp workbook network bulls
Ccna PPT
Ccna PPT
Bgp protocol
Bgp protocol
Ccnp presentation day 4 sd-access vs traditional network architecture
Ccnp presentation day 4 sd-access vs traditional network architecture
Border Gateway Protocol
Border Gateway Protocol
CCNA 2 Routing and Switching v5.0 Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 2
Viewers also liked
CCNAv5 - S3: Chapter6 Multiarea OSPF
CCNAv5 - S3: Chapter6 Multiarea OSPF
Vuz Dở Hơi
Iben from Spirent talks at the SDN World Congress about the importance of and...
Iben from Spirent talks at the SDN World Congress about the importance of and...
Iben Rodriguez
Chapter5 adjust and troubleshoot single area ospf
Chapter5 adjust and troubleshoot single area ospf
Vuz Dở Hơi
Web technologies: recap on TCP-IP
Web technologies: recap on TCP-IP
Piero Fraternali
Ospf
Ospf
gopi1985
OSPF Virtual Link
OSPF Virtual Link
NetProtocol Xpert
project on OSPF
project on OSPF
Om Prakash
Sca n instructorppt_chapter1_finalfr
Sca n instructorppt_chapter1_finalfr
Yamadou BATHILY
OSPF - Routing Protocol
OSPF - Routing Protocol
selvakumar_b1985
Basic configuration fortigate v4.0 mr2
Basic configuration fortigate v4.0 mr2
Gol D Roger
Chapter 3 link aggregation
Chapter 3 link aggregation
Josue Wuezo
CCNAv5 - S3: Chapter9 IOS Images and Licensing
CCNAv5 - S3: Chapter9 IOS Images and Licensing
Vuz Dở Hơi
Conceptos y protocolos de enrutamiento: 11. OSPF
Conceptos y protocolos de enrutamiento: 11. OSPF
Francesc Perez
CCNAv5 - S3: Chapter3 Link Aggregation
CCNAv5 - S3: Chapter3 Link Aggregation
Vuz Dở Hơi
Deploy MPLS Traffic Engineering
Deploy MPLS Traffic Engineering
APNIC
Enrutamiento con ospf y eigrp
Enrutamiento con ospf y eigrp
.. ..
CCNA Exploration 3 - Chapter 5
CCNA Exploration 3 - Chapter 5
Irsandi Hasan
CCNAv5 - S4: Chapter 5: Network Address Translation for ipv4
CCNAv5 - S4: Chapter 5: Network Address Translation for ipv4
Vuz Dở Hơi
Viewers also liked
(18)
CCNAv5 - S3: Chapter6 Multiarea OSPF
CCNAv5 - S3: Chapter6 Multiarea OSPF
Iben from Spirent talks at the SDN World Congress about the importance of and...
Iben from Spirent talks at the SDN World Congress about the importance of and...
Chapter5 adjust and troubleshoot single area ospf
Chapter5 adjust and troubleshoot single area ospf
Web technologies: recap on TCP-IP
Web technologies: recap on TCP-IP
Ospf
Ospf
OSPF Virtual Link
OSPF Virtual Link
project on OSPF
project on OSPF
Sca n instructorppt_chapter1_finalfr
Sca n instructorppt_chapter1_finalfr
OSPF - Routing Protocol
OSPF - Routing Protocol
Basic configuration fortigate v4.0 mr2
Basic configuration fortigate v4.0 mr2
Chapter 3 link aggregation
Chapter 3 link aggregation
CCNAv5 - S3: Chapter9 IOS Images and Licensing
CCNAv5 - S3: Chapter9 IOS Images and Licensing
Conceptos y protocolos de enrutamiento: 11. OSPF
Conceptos y protocolos de enrutamiento: 11. OSPF
CCNAv5 - S3: Chapter3 Link Aggregation
CCNAv5 - S3: Chapter3 Link Aggregation
Deploy MPLS Traffic Engineering
Deploy MPLS Traffic Engineering
Enrutamiento con ospf y eigrp
Enrutamiento con ospf y eigrp
CCNA Exploration 3 - Chapter 5
CCNA Exploration 3 - Chapter 5
CCNAv5 - S4: Chapter 5: Network Address Translation for ipv4
CCNAv5 - S4: Chapter 5: Network Address Translation for ipv4
Similar to Ospf
Cisco ospf
Cisco ospf
sarasanandam
Day 12.2 enablingospf
Day 12.2 enablingospf
CYBERINTELLIGENTS
CCNP ROUTE V7 CH3
CCNP ROUTE V7 CH3
Chaing Ravuth
OSPF by Abdullah Mukhtar
OSPF by Abdullah Mukhtar
Abdullah Mukhtar
ENSA_Module_1.pptx
ENSA_Module_1.pptx
serieux1
Exploration routing chapter 10 & 11
Exploration routing chapter 10 & 11
Sachii Dosti
CSC427_Week_11.pdf
CSC427_Week_11.pdf
muazumuhammad6
CCNA3 Verson6 Chapter8
CCNA3 Verson6 Chapter8
Chaing Ravuth
ENSA_UNIT 1.pdfasasasaasafsedfsecfwefw wefwefw qeda
ENSA_UNIT 1.pdfasasasaasafsedfsecfwefw wefwefw qeda
drainagememes
ENSA_Module_1.pptx
ENSA_Module_1.pptx
rnamboori1
Configurasi ospf
Configurasi ospf
amri am
ENSA_Module_2.pptx
ENSA_Module_2.pptx
serieux1
ENSA_Module_2.pptx
ENSA_Module_2.pptx
SkyBlue659156
CCCNP ROUTE v6_ch03
CCCNP ROUTE v6_ch03
Licenciatura en Redes y Sistemas Operativos
ENSA_Module_2 Packet Tracer - Single-Area OSPFv2 Configuration
ENSA_Module_2 Packet Tracer - Single-Area OSPFv2 Configuration
kecatem465
CCNA3 Verson6 Chapter10
CCNA3 Verson6 Chapter10
Chaing Ravuth
Dynamic routing protocols (CCNA)
Dynamic routing protocols (CCNA)
Varinder Singh Walia
OSPF v3
OSPF v3
Irsandi Hasan
Routing and OSPF
Routing and OSPF
arpit
ospf-config.pdf
ospf-config.pdf
Denis Rasskazov
Similar to Ospf
(20)
Cisco ospf
Cisco ospf
Day 12.2 enablingospf
Day 12.2 enablingospf
CCNP ROUTE V7 CH3
CCNP ROUTE V7 CH3
OSPF by Abdullah Mukhtar
OSPF by Abdullah Mukhtar
ENSA_Module_1.pptx
ENSA_Module_1.pptx
Exploration routing chapter 10 & 11
Exploration routing chapter 10 & 11
CSC427_Week_11.pdf
CSC427_Week_11.pdf
CCNA3 Verson6 Chapter8
CCNA3 Verson6 Chapter8
ENSA_UNIT 1.pdfasasasaasafsedfsecfwefw wefwefw qeda
ENSA_UNIT 1.pdfasasasaasafsedfsecfwefw wefwefw qeda
ENSA_Module_1.pptx
ENSA_Module_1.pptx
Configurasi ospf
Configurasi ospf
ENSA_Module_2.pptx
ENSA_Module_2.pptx
ENSA_Module_2.pptx
ENSA_Module_2.pptx
CCCNP ROUTE v6_ch03
CCCNP ROUTE v6_ch03
ENSA_Module_2 Packet Tracer - Single-Area OSPFv2 Configuration
ENSA_Module_2 Packet Tracer - Single-Area OSPFv2 Configuration
CCNA3 Verson6 Chapter10
CCNA3 Verson6 Chapter10
Dynamic routing protocols (CCNA)
Dynamic routing protocols (CCNA)
OSPF v3
OSPF v3
Routing and OSPF
Routing and OSPF
ospf-config.pdf
ospf-config.pdf
Recently uploaded
Computed Fields and api Depends in the Odoo 17
Computed Fields and api Depends in the Odoo 17
Celine George
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
Nguyen Thanh Tu Collection
EPANDING THE CONTENT OF AN OUTLINE using notes.pptx
EPANDING THE CONTENT OF AN OUTLINE using notes.pptx
RaymartEstabillo3
Rapple "Scholarly Communications and the Sustainable Development Goals"
Rapple "Scholarly Communications and the Sustainable Development Goals"
National Information Standards Organization (NISO)
ACC 2024 Chronicles. Cardiology. Exam.pdf
ACC 2024 Chronicles. Cardiology. Exam.pdf
SpandanaRallapalli
How to do quick user assign in kanban in Odoo 17 ERP
How to do quick user assign in kanban in Odoo 17 ERP
Celine George
Hierarchy of management that covers different levels of management
Hierarchy of management that covers different levels of management
mkooblal
Keynote by Prof. Wurzer at Nordex about IP-design
Keynote by Prof. Wurzer at Nordex about IP-design
MIPLM
Raw materials used in Herbal Cosmetics.pptx
Raw materials used in Herbal Cosmetics.pptx
Ashokrao Mane college of Pharmacy Peth-Vadgaon
9953330565 Low Rate Call Girls In Rohini Delhi NCR
9953330565 Low Rate Call Girls In Rohini Delhi NCR
9953056974 Low Rate Call Girls In Saket, Delhi NCR
ROOT CAUSE ANALYSIS PowerPoint Presentation
ROOT CAUSE ANALYSIS PowerPoint Presentation
AadityaSharma884161
Field Attribute Index Feature in Odoo 17
Field Attribute Index Feature in Odoo 17
Celine George
Roles & Responsibilities in Pharmacovigilance
Roles & Responsibilities in Pharmacovigilance
SamikshaHamane
Judging the Relevance and worth of ideas part 2.pptx
Judging the Relevance and worth of ideas part 2.pptx
SherlyMaeNeri
Types of Journalistic Writing Grade 8.pptx
Types of Journalistic Writing Grade 8.pptx
Eyham Joco
ENGLISH6-Q4-W3.pptxqurter our high choom
ENGLISH6-Q4-W3.pptxqurter our high choom
nelietumpap1
Grade 9 Q4-MELC1-Active and Passive Voice.pptx
Grade 9 Q4-MELC1-Active and Passive Voice.pptx
ChelloAnnAsuncion2
Quarter 4 Peace-education.pptx Catch Up Friday
Quarter 4 Peace-education.pptx Catch Up Friday
MakMakNepo
Employee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptx
NirmalaLoungPoorunde1
Model Call Girl in Bikash Puri Delhi reach out to us at 🔝9953056974🔝
Model Call Girl in Bikash Puri Delhi reach out to us at 🔝9953056974🔝
9953056974 Low Rate Call Girls In Saket, Delhi NCR
Recently uploaded
(20)
Computed Fields and api Depends in the Odoo 17
Computed Fields and api Depends in the Odoo 17
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
HỌC TỐT TIẾNG ANH 11 THEO CHƯƠNG TRÌNH GLOBAL SUCCESS ĐÁP ÁN CHI TIẾT - CẢ NĂ...
EPANDING THE CONTENT OF AN OUTLINE using notes.pptx
EPANDING THE CONTENT OF AN OUTLINE using notes.pptx
Rapple "Scholarly Communications and the Sustainable Development Goals"
Rapple "Scholarly Communications and the Sustainable Development Goals"
ACC 2024 Chronicles. Cardiology. Exam.pdf
ACC 2024 Chronicles. Cardiology. Exam.pdf
How to do quick user assign in kanban in Odoo 17 ERP
How to do quick user assign in kanban in Odoo 17 ERP
Hierarchy of management that covers different levels of management
Hierarchy of management that covers different levels of management
Keynote by Prof. Wurzer at Nordex about IP-design
Keynote by Prof. Wurzer at Nordex about IP-design
Raw materials used in Herbal Cosmetics.pptx
Raw materials used in Herbal Cosmetics.pptx
9953330565 Low Rate Call Girls In Rohini Delhi NCR
9953330565 Low Rate Call Girls In Rohini Delhi NCR
ROOT CAUSE ANALYSIS PowerPoint Presentation
ROOT CAUSE ANALYSIS PowerPoint Presentation
Field Attribute Index Feature in Odoo 17
Field Attribute Index Feature in Odoo 17
Roles & Responsibilities in Pharmacovigilance
Roles & Responsibilities in Pharmacovigilance
Judging the Relevance and worth of ideas part 2.pptx
Judging the Relevance and worth of ideas part 2.pptx
Types of Journalistic Writing Grade 8.pptx
Types of Journalistic Writing Grade 8.pptx
ENGLISH6-Q4-W3.pptxqurter our high choom
ENGLISH6-Q4-W3.pptxqurter our high choom
Grade 9 Q4-MELC1-Active and Passive Voice.pptx
Grade 9 Q4-MELC1-Active and Passive Voice.pptx
Quarter 4 Peace-education.pptx Catch Up Friday
Quarter 4 Peace-education.pptx Catch Up Friday
Employee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptx
Model Call Girl in Bikash Puri Delhi reach out to us at 🔝9953056974🔝
Model Call Girl in Bikash Puri Delhi reach out to us at 🔝9953056974🔝
Ospf
1.
© 2008 Cisco
Systems, Inc. All rights reserved. Cisco ConfidentialPresentation_ID 1 Chapter 5: Adjust and Troubleshoot Single- Area OSPF Scaling Networks

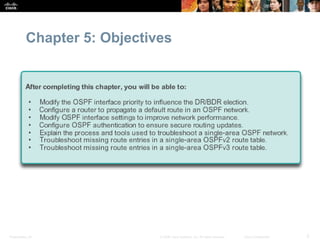

2.
Presentation_ID 2© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Chapter 5: Objectives
3.
© 2008 Cisco
Systems, Inc. All rights reserved. Cisco ConfidentialPresentation_ID 3 5.1 Advanced Single-Area OSPF Configurations
4.
Presentation_ID 4© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Static and Dynamic Routing Routers and Layer 3 switches learn about remote networks in one of two ways: Manually - Remote networks are manually entered into the route table using static routes. Dynamically - Remote routes are automatically learned using a dynamic routing protocol such as Enhanced Interior Gateway Routing Protocol (EIGRP) or Open Shortest Path First (OSPF).

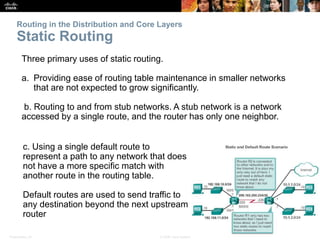

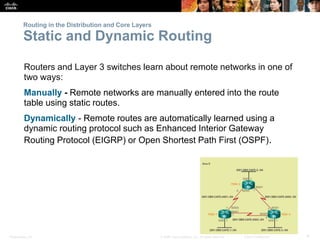

5.
Presentation_ID 5© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Static Routing Three primary uses of static routing. a. Providing ease of routing table maintenance in smaller networks that are not expected to grow significantly. b. Routing to and from stub networks. A stub network is a network accessed by a single route, and the router has only one neighbor. c. Using a single default route to represent a path to any network that does not have a more specific match with another route in the routing table. Default routes are used to send traffic to any destination beyond the next upstream router

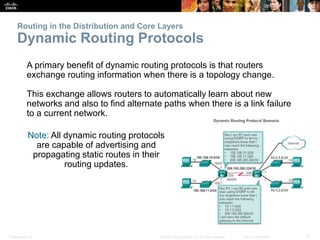

6.
Presentation_ID 6© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Dynamic Routing Protocols A primary benefit of dynamic routing protocols is that routers exchange routing information when there is a topology change. This exchange allows routers to automatically learn about new networks and also to find alternate paths when there is a link failure to a current network. Note: All dynamic routing protocols are capable of advertising and propagating static routes in their routing updates.

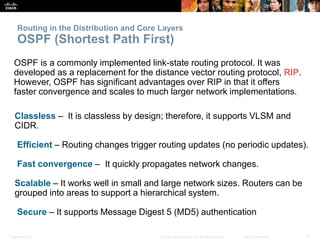

7.
Presentation_ID 7© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers OSPF (Shortest Path First) OSPF is a commonly implemented link-state routing protocol. It was developed as a replacement for the distance vector routing protocol, RIP. However, OSPF has significant advantages over RIP in that it offers faster convergence and scales to much larger network implementations. Classless – It is classless by design; therefore, it supports VLSM and CIDR. Efficient – Routing changes trigger routing updates (no periodic updates). Fast convergence – It quickly propagates network changes. Scalable – It works well in small and large network sizes. Routers can be grouped into areas to support a hierarchical system. Secure – It supports Message Digest 5 (MD5) authentication

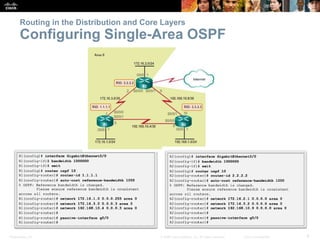

8.
Presentation_ID 8© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Configuring Single-Area OSPF

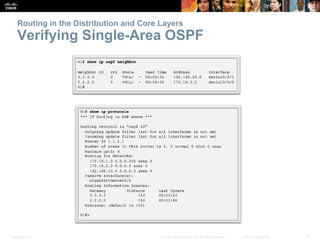

9.
Presentation_ID 9© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Verifying Single-Area OSPF
10.
Presentation_ID 10© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Verifying Single-Area OSPF show ip ospf neighbor Command to verify that the router has formed an adjacency with its neighboring routers. If the router ID of the neighboring router is not displayed, or if it does not show as being in a state of FULL, the two routers have not formed an OSPF adjacency. show ip protocols Command provides a quick way to verify vital OSPF configuration information. This includes the OSPF process ID, the router ID, networks the router is advertising, the neighbors the router is receiving updates from, and the default administrative distance, which is 110 for OSPF. show ip ospf Command is used to display the OSPF process ID and router ID as well as the OSPF SPF and OSPF area information. show ip ospf interface Command provides a detailed list for every OSPF- enabled interface and is very useful to determine whether the network statements were correctly composed. show ip ospf interface brief Command is useful to display a summary and status of OSPF-enabled interfaces.

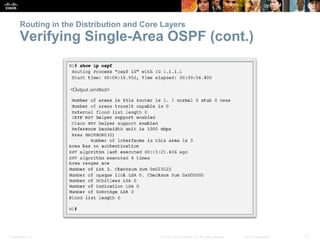

11.
Presentation_ID 11© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Verifying Single-Area OSPF (cont.)
12.
Presentation_ID 12© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Verifying Single-Area OSPF (cont.)

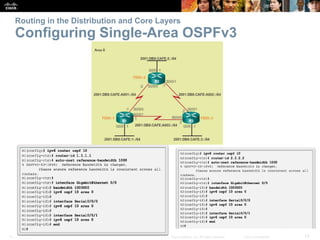

13.
Presentation_ID 13© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Configuring Single-Area OSPFv3

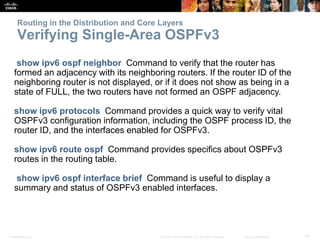

14.
Presentation_ID 14© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Verifying Single-Area OSPFv3 show ipv6 ospf neighbor Command to verify that the router has formed an adjacency with its neighboring routers. If the router ID of the neighboring router is not displayed, or if it does not show as being in a state of FULL, the two routers have not formed an OSPF adjacency. show ipv6 protocols Command provides a quick way to verify vital OSPFv3 configuration information, including the OSPF process ID, the router ID, and the interfaces enabled for OSPFv3. show ipv6 route ospf Command provides specifics about OSPFv3 routes in the routing table. show ipv6 ospf interface brief Command is useful to display a summary and status of OSPFv3 enabled interfaces.

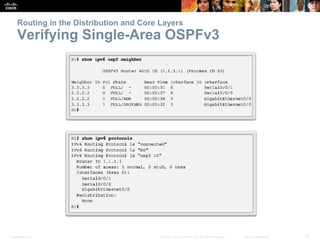

15.
Presentation_ID 15© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Verifying Single-Area OSPFv3

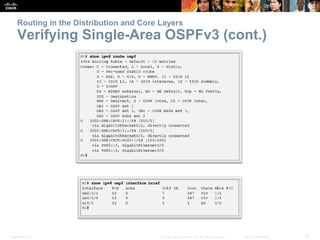

16.
Presentation_ID 16© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Routing in the Distribution and Core Layers Verifying Single-Area OSPFv3 (cont.)
17.
Presentation_ID 17© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks OSPF Network Types Point-to-point – Two routers interconnected over a common link. Often the configuration in WAN links. Broadcast Multiaccess – Multiple routers interconnected over an Ethernet network. Non-broadcast Multiaccess (NBMA) – Multiple routers interconnected in a network that does not allow broadcasts, such as Frame Relay. Point-to-multipoint – Multiple routers interconnected in a hub- and-spoke topology over an NBMA network. Virtual links – Special OSPF network used to interconnect distant OSPF areas to the backbone area.

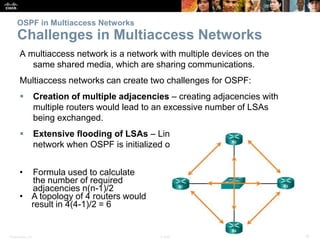

18.
Presentation_ID 18© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks Challenges in Multiaccess Networks A multiaccess network is a network with multiple devices on the same shared media, which are sharing communications. Multiaccess networks can create two challenges for OSPF: Creation of multiple adjacencies – creating adjacencies with multiple routers would lead to an excessive number of LSAs being exchanged. Extensive flooding of LSAs – Link-state routers flood the network when OSPF is initialized or when there is a change. • Formula used to calculate the number of required adjacencies n(n-1)/2 • A topology of 4 routers would result in 4(4-1)/2 = 6

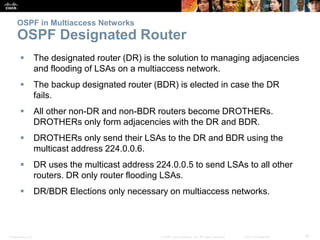

19.
Presentation_ID 19© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks OSPF Designated Router The designated router (DR) is the solution to managing adjacencies and flooding of LSAs on a multiaccess network. The backup designated router (BDR) is elected in case the DR fails. All other non-DR and non-BDR routers become DROTHERs. DROTHERs only form adjacencies with the DR and BDR. DROTHERs only send their LSAs to the DR and BDR using the multicast address 224.0.0.6. DR uses the multicast address 224.0.0.5 to send LSAs to all other routers. DR only router flooding LSAs. DR/BDR Elections only necessary on multiaccess networks.

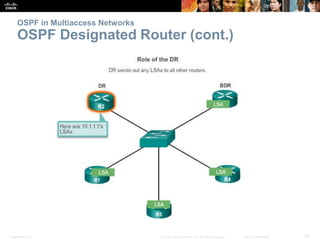

20.
Presentation_ID 20© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks OSPF Designated Router (cont.)

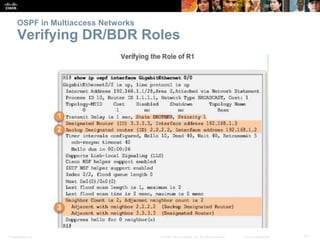

21.
Presentation_ID 21© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks Verifying DR/BDR Roles
22.
Presentation_ID 22© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks Verifying DR/BDR Adjacencies State of neighbors in multiaccess networks can be: FULL/DROTHER – This is a DR or BDR router that is fully adjacent with a non-DR or BDR router. FULL/DR – The router is fully adjacent with the indicated DR neighbor. FULL/BDR – The router is fully adjacent with the indicated BDR neighbor. 2-WAY/DROTHER – The non-DR or BDR router has a neighbor adjacency with another non-DR or BDR router. Full is the normal state of OSPF. The show ip ospf neighbor is used to verify the OSPF adjacencies.

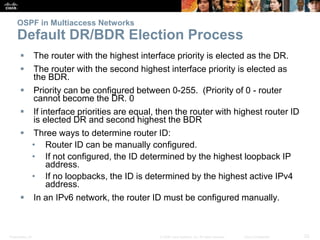

23.
Presentation_ID 23© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks Default DR/BDR Election Process The router with the highest interface priority is elected as the DR. The router with the second highest interface priority is elected as the BDR. Priority can be configured between 0-255. (Priority of 0 - router cannot become the DR. 0 If interface priorities are equal, then the router with highest router ID is elected DR and second highest the BDR Three ways to determine router ID: • Router ID can be manually configured. • If not configured, the ID determined by the highest loopback IP address. • If no loopbacks, the ID is determined by the highest active IPv4 address. In an IPv6 network, the router ID must be configured manually.

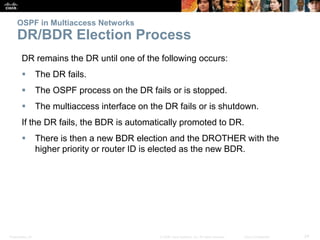

24.
Presentation_ID 24© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks DR/BDR Election Process DR remains the DR until one of the following occurs: The DR fails. The OSPF process on the DR fails or is stopped. The multiaccess interface on the DR fails or is shutdown. If the DR fails, the BDR is automatically promoted to DR. There is then a new BDR election and the DROTHER with the higher priority or router ID is elected as the new BDR.
25.
Presentation_ID 25© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential OSPF in Multiaccess Networks The OSPF Priority Instead of setting the router ID on all routers, it is better to control the election by setting interface priorities. • To change the priority, use one of the following commands: ip ospf priority value (OSPFv2 interface command) ipv6 ospf priority value (OSPFv3 interface command) To begin another OSPF election, use one of the following methods: • Shutdown the router interfaces and then re-enable them starting with the DR, then the BDR, and then all other routers. • Reset the OSPF process using the clear ip ospf process privileged EXEC mode command on all routers. Priority Value 0 Does not become a DR or BDR. 1 – 255 The higher the priority value, the more likely the router becomes the DR or BDR on the interface.

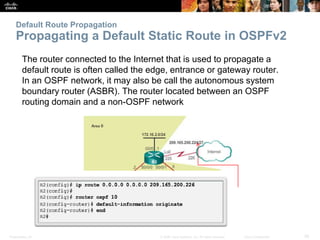

26.
Presentation_ID 26© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Default Route Propagation Propagating a Default Static Route in OSPFv2 The router connected to the Internet that is used to propagate a default route is often called the edge, entrance or gateway router. In an OSPF network, it may also be call the autonomous system boundary router (ASBR). The router located between an OSPF routing domain and a non-OSPF network
27.
Presentation_ID 27© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Default Route Propagation Verifying the Propagated Default Route

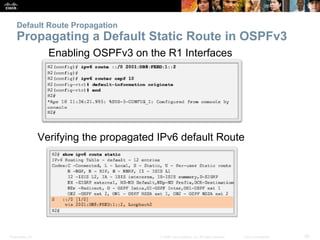

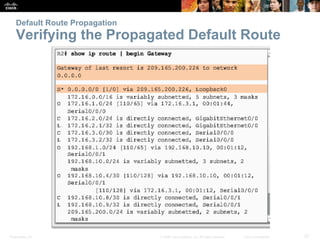

28.
Presentation_ID 28© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Default Route Propagation Propagating a Default Static Route in OSPFv3 Verifying the propagated IPv6 default Route Enabling OSPFv3 on the R1 Interfaces

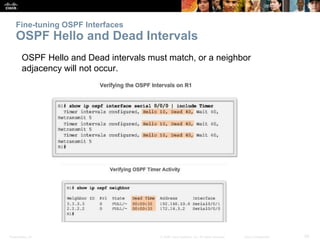

29.
Presentation_ID 29© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Fine-tuning OSPF Interfaces OSPF Hello and Dead Intervals OSPF Hello and Dead intervals must match, or a neighbor adjacency will not occur.

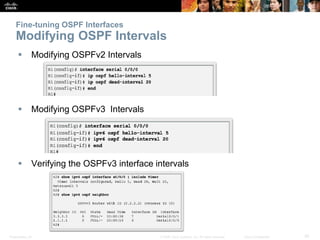

30.
Presentation_ID 30© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Fine-tuning OSPF Interfaces Modifying OSPF Intervals Modifying OSPFv2 Intervals Modifying OSPFv3 Intervals Verifying the OSPFv3 interface intervals

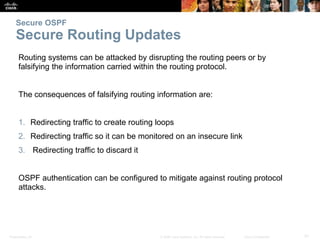

31.
Presentation_ID 31© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF Secure Routing Updates Routing systems can be attacked by disrupting the routing peers or by falsifying the information carried within the routing protocol. The consequences of falsifying routing information are: 1. Redirecting traffic to create routing loops 2. Redirecting traffic so it can be monitored on an insecure link 3. Redirecting traffic to discard it OSPF authentication can be configured to mitigate against routing protocol attacks.

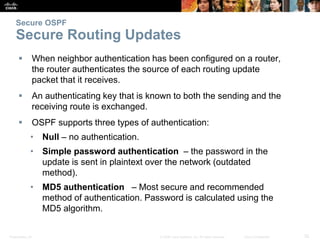

32.
Presentation_ID 32© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF Secure Routing Updates When neighbor authentication has been configured on a router, the router authenticates the source of each routing update packet that it receives. An authenticating key that is known to both the sending and the receiving route is exchanged. OSPF supports three types of authentication: • Null – no authentication. • Simple password authentication – the password in the update is sent in plaintext over the network (outdated method). • MD5 authentication – Most secure and recommended method of authentication. Password is calculated using the MD5 algorithm.
33.
Presentation_ID 33© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF MD5 Authentication
34.
Presentation_ID 34© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF Configuring OSPF MD5 Authentication MD5 authentication can be enabled globally for all interfaces or on a per-interface basis. To enable OSPF MD5 authentication globally, configure: • ip ospf message-digest-key key md5 password (interface configuration command) • area area-id authentication message-digest (router configuration command) To enable MD5 authentication on a per-interface basis, configure: • ip ospf message-digest-key key md5 password (interface configuration command) • ip ospf authentication message-digest (interface configuration command)

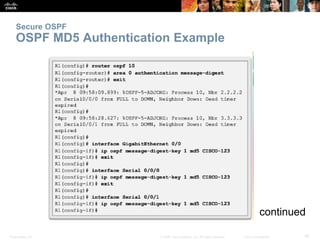

35.
Presentation_ID 35© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF OSPF MD5 Authentication Example continued

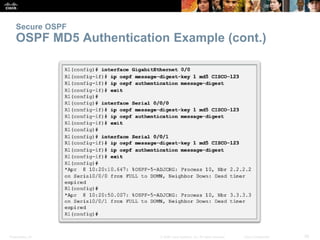

36.
Presentation_ID 36© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF OSPF MD5 Authentication Example (cont.)

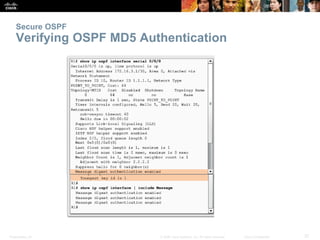

37.
Presentation_ID 37© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF Verifying OSPF MD5 Authentication
38.
Presentation_ID 38© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Secure OSPF Verifying OSPF MD5 Authentication (cont.)
39.
© 2008 Cisco
Systems, Inc. All rights reserved. Cisco ConfidentialPresentation_ID 39 5.2 Troubleshooting Single-Area OSPF Implementations

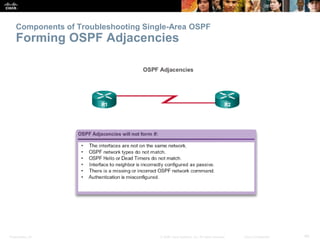

40.
Presentation_ID 40© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Components of Troubleshooting Single-Area OSPF Forming OSPF Adjacencies

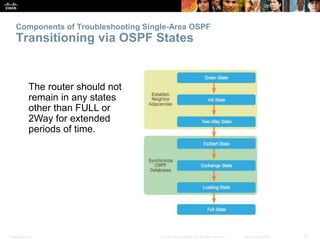

41.
Presentation_ID 41© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Components of Troubleshooting Single-Area OSPF Transitioning via OSPF States The router should not remain in any states other than FULL or 2Way for extended periods of time.

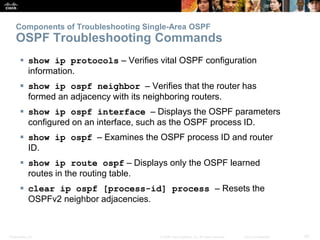

42.
Presentation_ID 42© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Components of Troubleshooting Single-Area OSPF OSPF Troubleshooting Commands show ip protocols – Verifies vital OSPF configuration information. show ip ospf neighbor – Verifies that the router has formed an adjacency with its neighboring routers. show ip ospf interface – Displays the OSPF parameters configured on an interface, such as the OSPF process ID. show ip ospf – Examines the OSPF process ID and router ID. show ip route ospf – Displays only the OSPF learned routes in the routing table. clear ip ospf [process-id] process – Resets the OSPFv2 neighbor adjacencies.

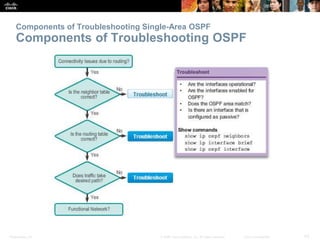

43.
Presentation_ID 43© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Components of Troubleshooting Single-Area OSPF Components of Troubleshooting OSPF

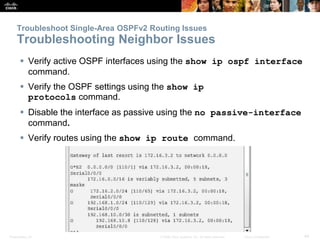

44.
Presentation_ID 44© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Troubleshoot Single-Area OSPFv2 Routing Issues Troubleshooting Neighbor Issues Verify active OSPF interfaces using the show ip ospf interface command. Verify the OSPF settings using the show ip protocols command. Disable the interface as passive using the no passive-interface command. Verify routes using the show ip route command.

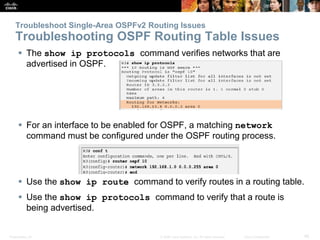

45.
Presentation_ID 45© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Troubleshoot Single-Area OSPFv2 Routing Issues Troubleshooting OSPF Routing Table Issues The show ip protocols command verifies networks that are advertised in OSPF. For an interface to be enabled for OSPF, a matching network command must be configured under the OSPF routing process. Use the show ip route command to verify routes in a routing table. Use the show ip protocols command to verify that a route is being advertised.

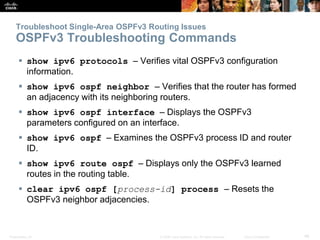

46.
Presentation_ID 46© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Troubleshoot Single-Area OSPFv3 Routing Issues OSPFv3 Troubleshooting Commands show ipv6 protocols – Verifies vital OSPFv3 configuration information. show ipv6 ospf neighbor – Verifies that the router has formed an adjacency with its neighboring routers. show ipv6 ospf interface – Displays the OSPFv3 parameters configured on an interface. show ipv6 ospf – Examines the OSPFv3 process ID and router ID. show ipv6 route ospf – Displays only the OSPFv3 learned routes in the routing table. clear ipv6 ospf [process-id] process – Resets the OSPFv3 neighbor adjacencies.
47.
Presentation_ID 47© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Chapter 5: Summary OSPF defines five network types: point-to-point, broadcast multiaccess, NBMA, point-to-multipoint, and virtual links. The DR and BDR are elected to overcome challenges of flooding in an OSPF network. The routers in the network elect the router with the highest interface priority as DR. The router with the second highest interface priority is elected as the BDR. If all priorities are equal, the router with the highest ID is elected DR and the second highest ID becomes the BDR. To propagate a default route in OSPF, the ASBR must be configured with a default static route and the default-information originate command. Verify routes with the show ip route or show ipv6 route command.

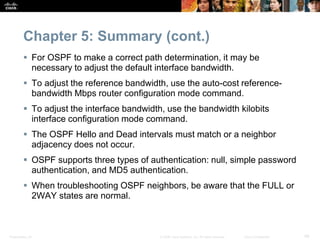

48.
Presentation_ID 48© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Chapter 5: Summary (cont.) For OSPF to make a correct path determination, it may be necessary to adjust the default interface bandwidth. To adjust the reference bandwidth, use the auto-cost reference- bandwidth Mbps router configuration mode command. To adjust the interface bandwidth, use the bandwidth kilobits interface configuration mode command. The OSPF Hello and Dead intervals must match or a neighbor adjacency does not occur. OSPF supports three types of authentication: null, simple password authentication, and MD5 authentication. When troubleshooting OSPF neighbors, be aware that the FULL or 2WAY states are normal.

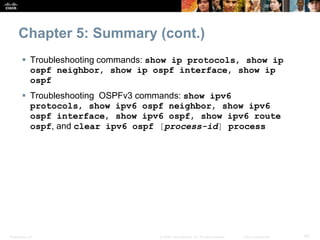

49.
Presentation_ID 49© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential Chapter 5: Summary (cont.) Troubleshooting commands: show ip protocols, show ip ospf neighbor, show ip ospf interface, show ip ospf Troubleshooting OSPFv3 commands: show ipv6 protocols, show ipv6 ospf neighbor, show ipv6 ospf interface, show ipv6 ospf, show ipv6 route ospf, and clear ipv6 ospf [process-id] process
50.
Presentation_ID 50© 2008
Cisco Systems, Inc. All rights reserved. Cisco Confidential
