Oracle Forms- key triggers
Key triggers in Oracle Forms are used to define and enhance keyboard functionality. Key triggers can be defined at different levels and can contain built-in functions to execute actions like committing records or exiting forms. Common types of key triggers include function key triggers, Key-Fn triggers, Key-Others triggers, and mouse-event key triggers. Key triggers provide consistent functionality across function keys, buttons, menus, and mouse events.
![20260201 [FOSDEM] gomodjail - library sandboxing for Go modules.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/20260201fosdemgomodjail-librarysandboxingforgomodules-260201225659-76609ec4-thumbnail.jpg?width=640&height=640&fit=bounds)
Oracle Forms- key triggers
- 1.

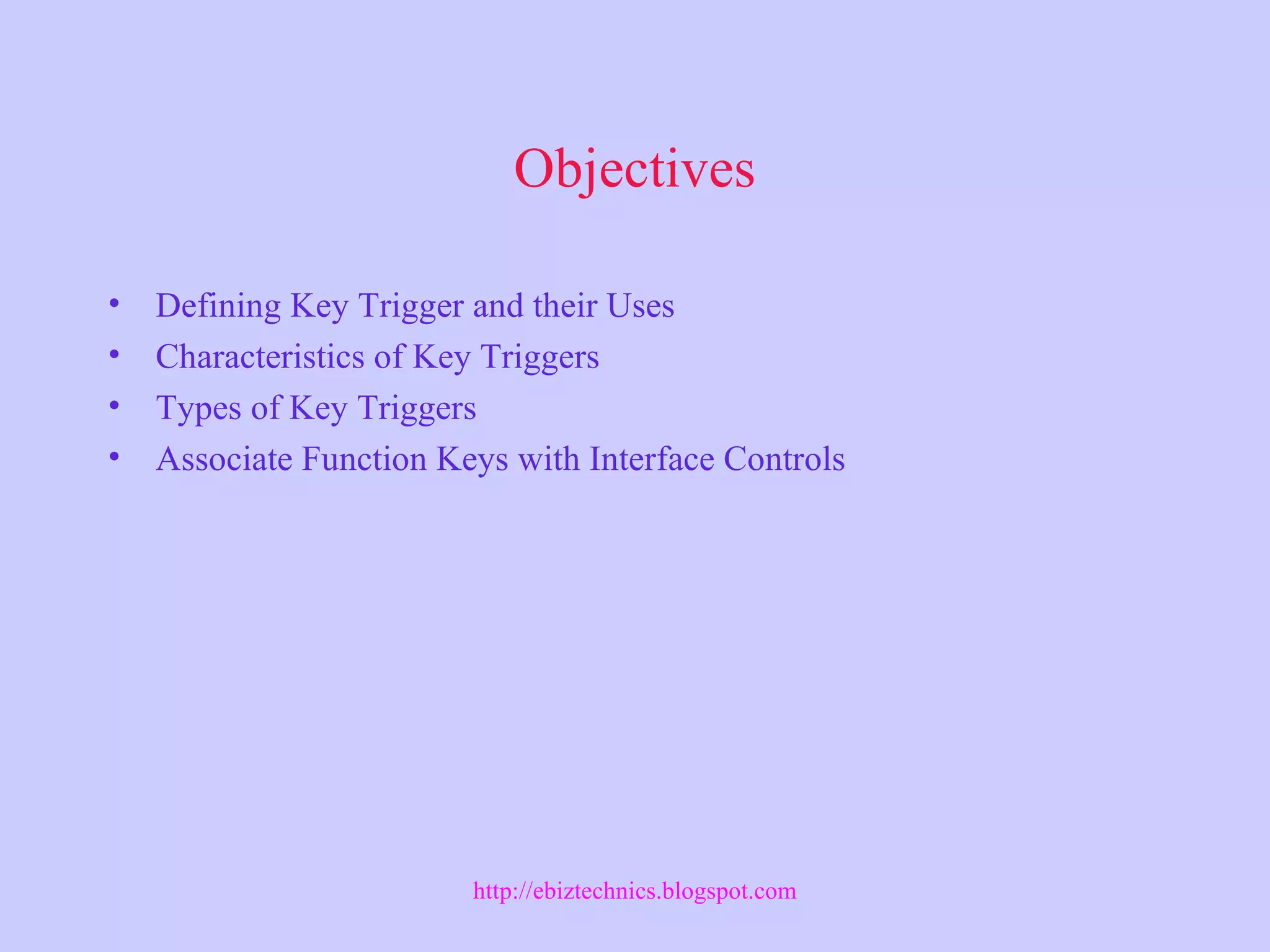

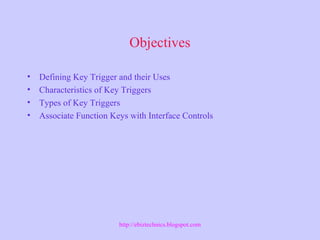

- 2. Objectives • Defining KeyTrigger and their Uses • Characteristics of Key Triggers • Types of Key Triggers • Associate Function Keys with Interface Controls http://ebiztechnics.blogspot.com
- 3. Key Trigger • Whatis a key trigger? • Example: Using a Key-Exit trigger display an Alert, If user selects Yes. Exit the form. SET_ALERT_PROPERTY(‘exit_alert’, ALERT_MESSAGE_TEXT, ‘Do you really want to leave the form?’); IF SHOW_ALERT(‘exit_alert’) = ALERT_BUTTON1 THEN EXIT_FORM; END IF; http://ebiztechnics.blogspot.com

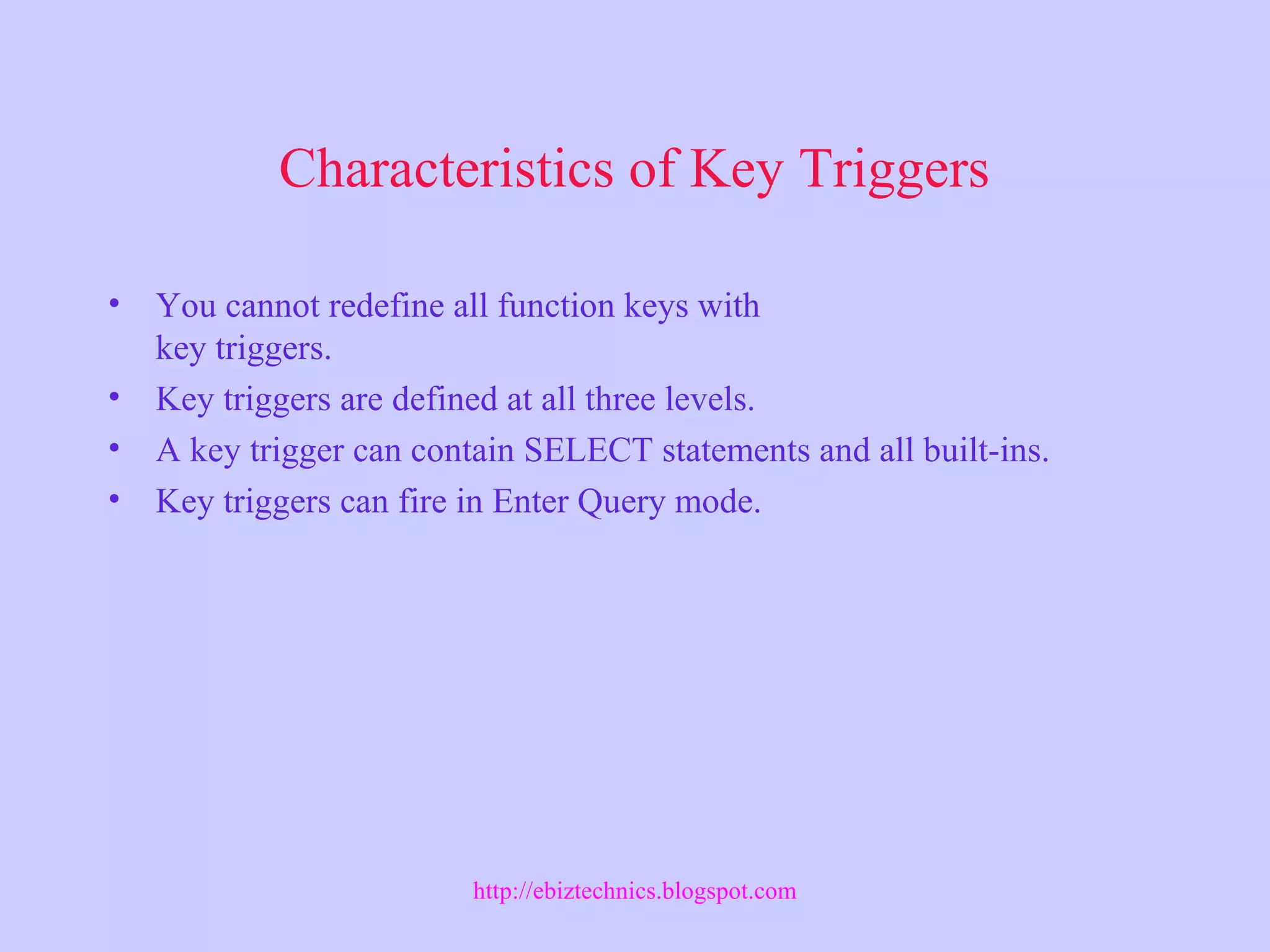

- 4. Characteristics of KeyTriggers • You cannot redefine all function keys with key triggers. • Key triggers are defined at all three levels. • A key trigger can contain SELECT statements and all built-ins. • Key triggers can fire in Enter Query mode. http://ebiztechnics.blogspot.com

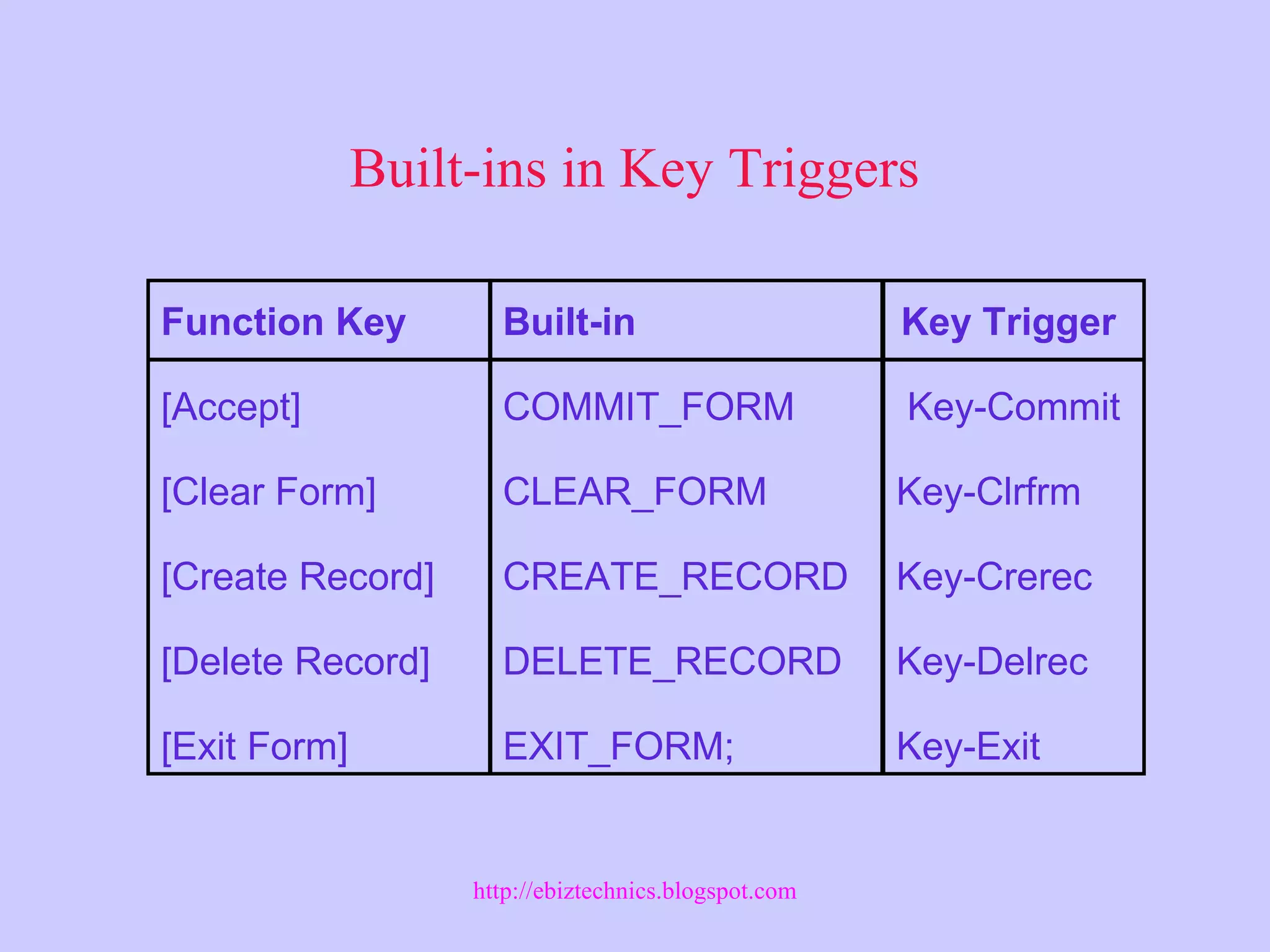

- 5. Built-ins in KeyTriggers Function Key [Accept] [Clear Form] [Create Record] [Delete Record] [Exit Form] Key Trigger Key-Commit Key-Clrfrm Key-Crerec Key-Delrec Key-Exit Built-in COMMIT_FORM CLEAR_FORM CREATE_RECORD DELETE_RECORD EXIT_FORM; http://ebiztechnics.blogspot.com

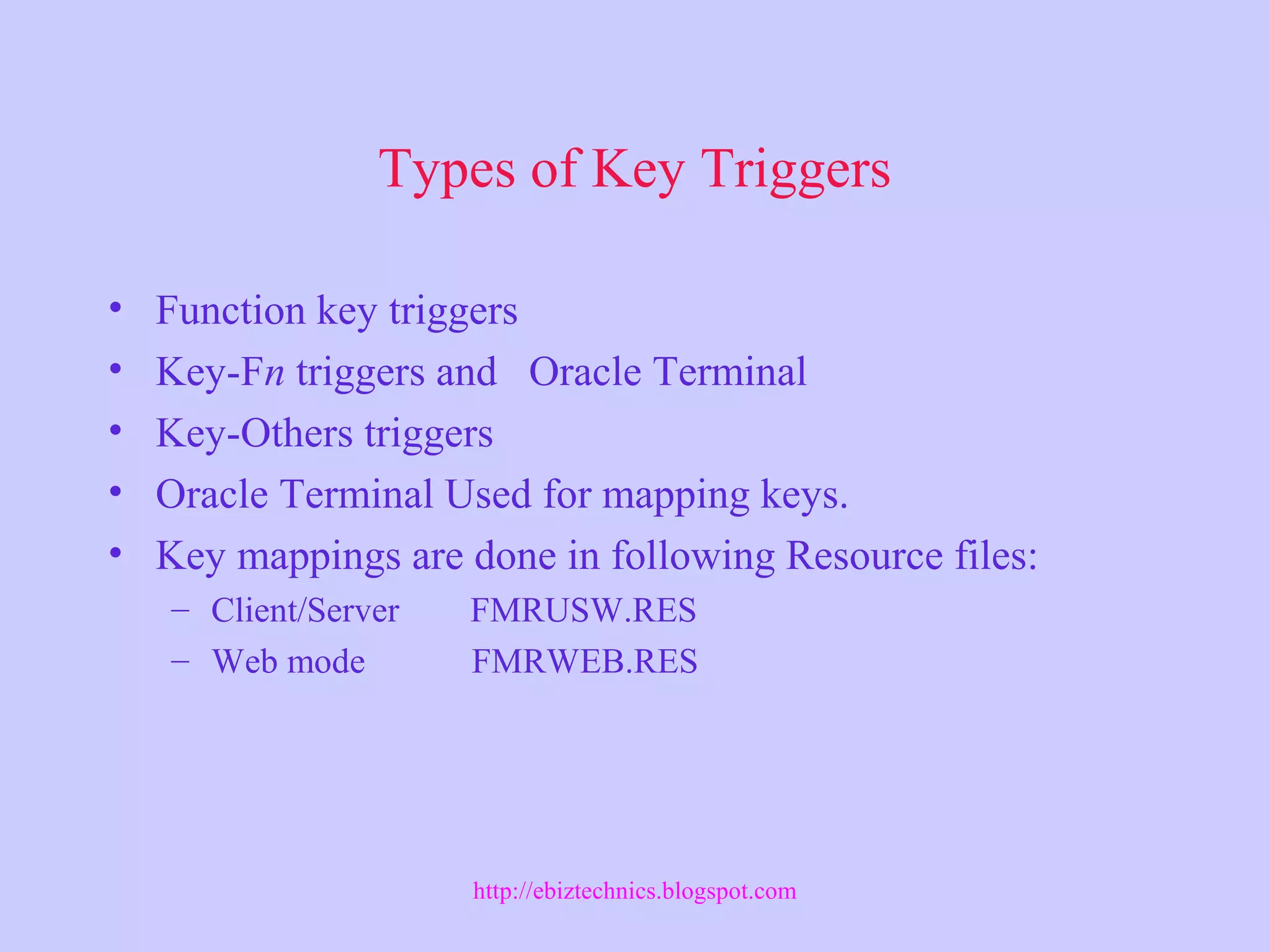

- 6. Types of KeyTriggers • Function key triggers • Key-Fn triggers and Oracle Terminal • Key-Others triggers • Oracle Terminal Used for mapping keys. • Key mappings are done in following Resource files: – Client/Server FMRUSW.RES – Web mode FMRWEB.RES http://ebiztechnics.blogspot.com
- 7. Mouse-event key triggers •Key-Next-Item • Key-Prev-Item • Key-Nxtrec • Key-Prvrec • Key-Up • Key-Down • Key-Scrup • Key-Scrdown • Key-Nxtblk • Key-Prvblk http://ebiztechnics.blogspot.com

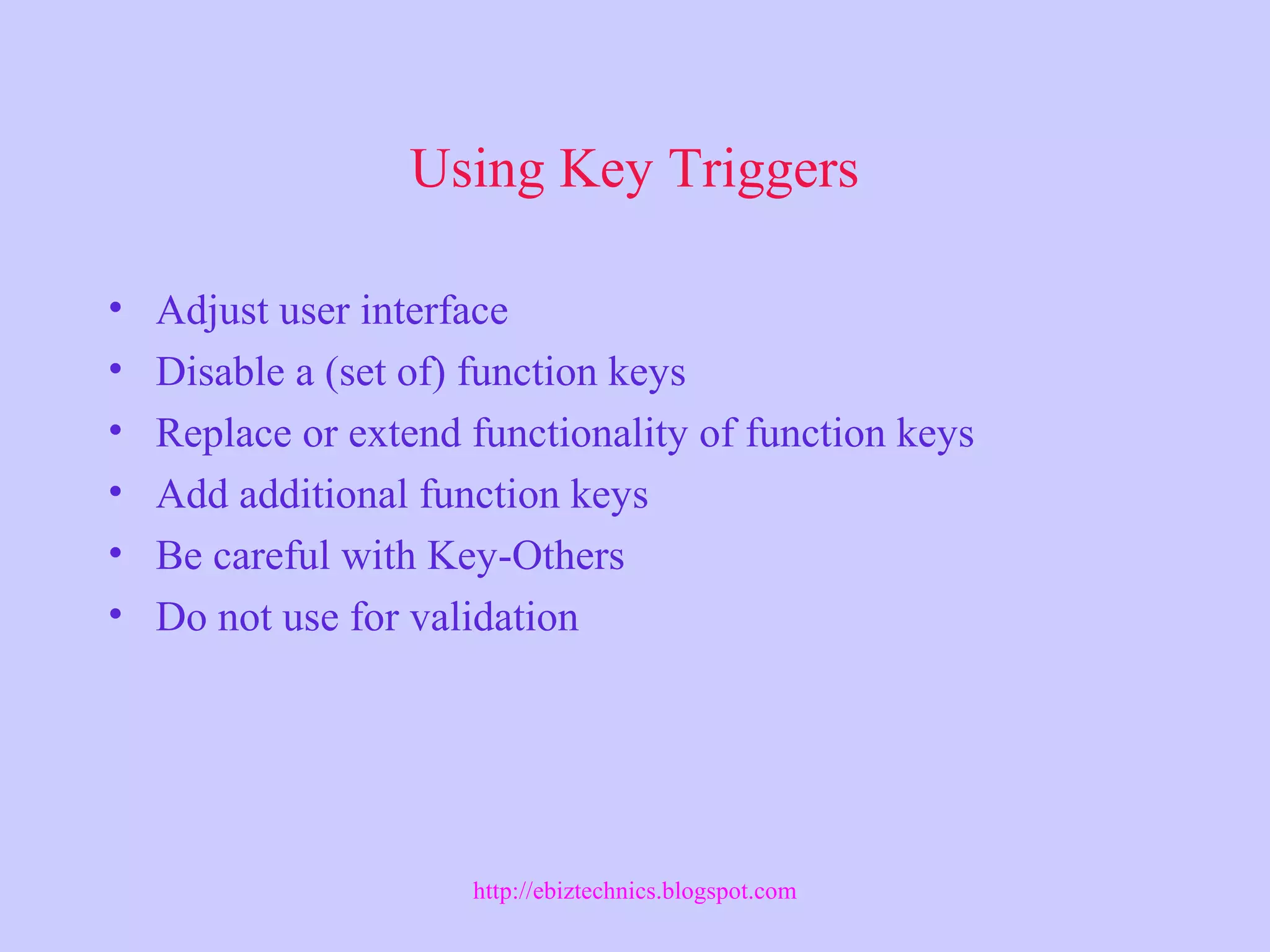

- 8. Using Key Triggers •Adjust user interface • Disable a (set of) function keys • Replace or extend functionality of function keys • Add additional function keys • Be careful with Key-Others • Do not use for validation http://ebiztechnics.blogspot.com

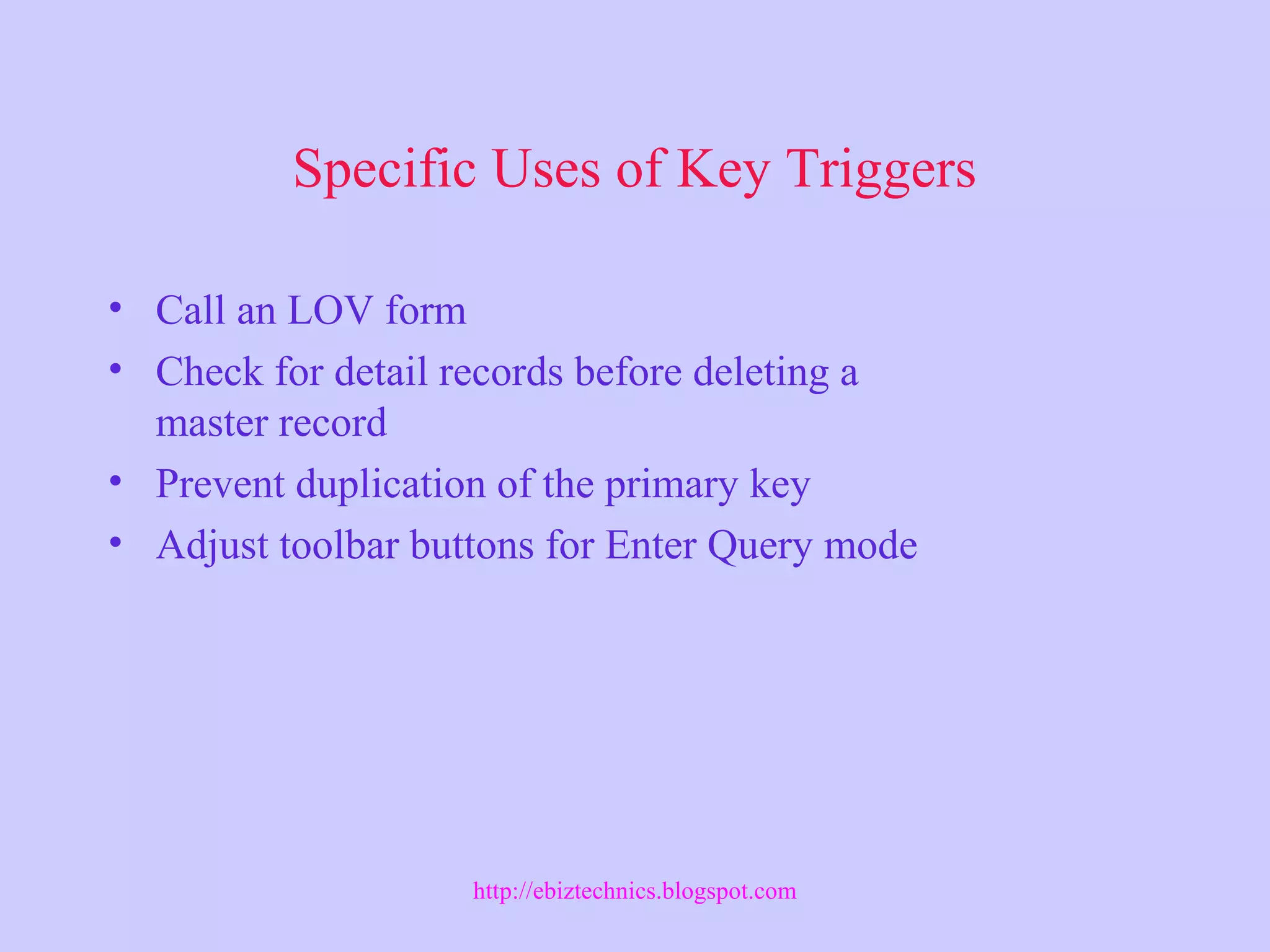

- 9. Specific Uses ofKey Triggers • Call an LOV form • Check for detail records before deleting a master record • Prevent duplication of the primary key • Adjust toolbar buttons for Enter Query mode http://ebiztechnics.blogspot.com

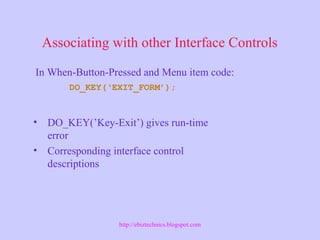

- 10. Associating with otherInterface Controls • DO_KEY(’Key-Exit’) gives run-time error • Corresponding interface control descriptions In When-Button-Pressed and Menu item code: DO_KEY(‘EXIT_FORM’); http://ebiztechnics.blogspot.com

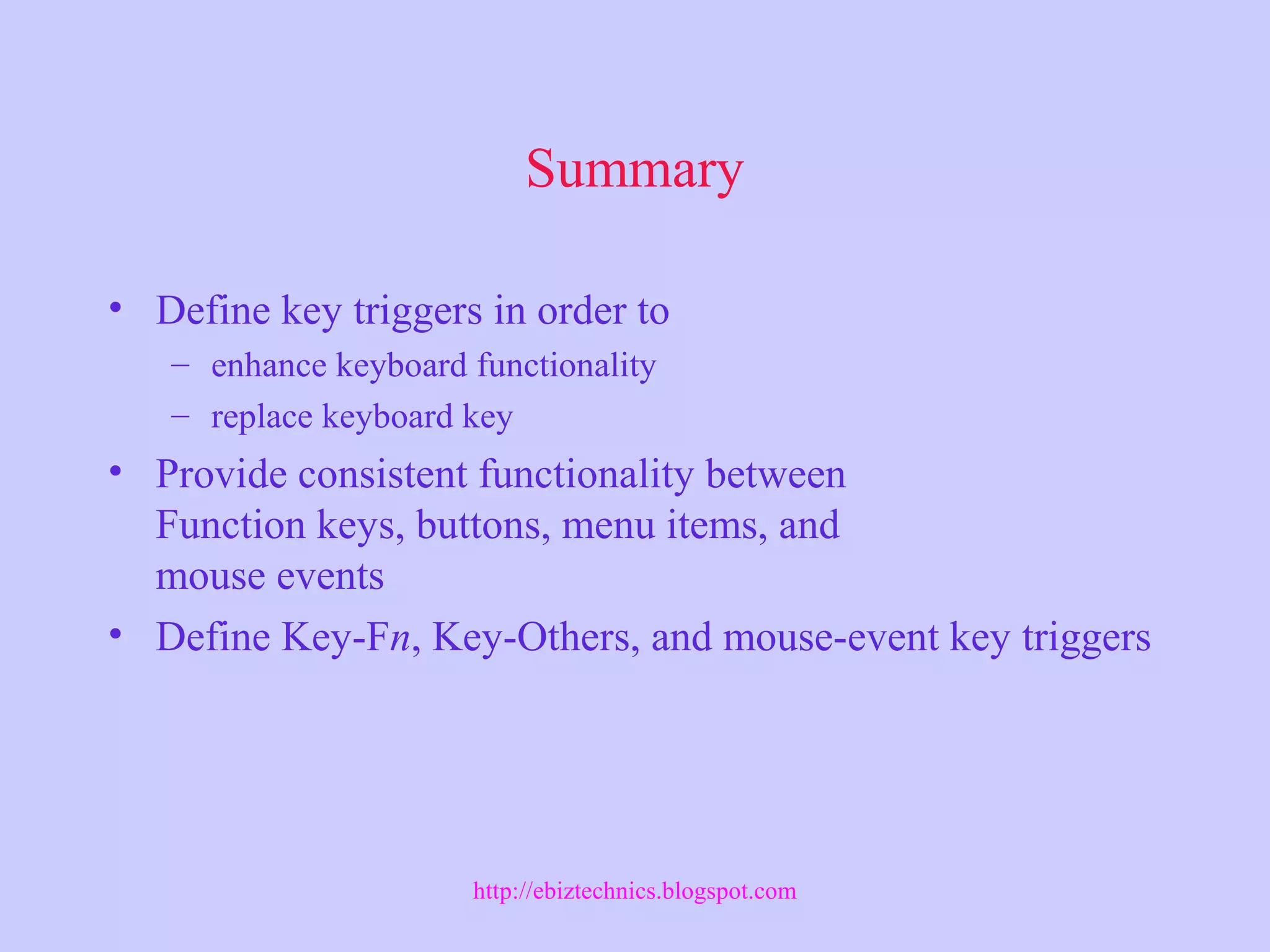

- 11. Summary • Define keytriggers in order to – enhance keyboard functionality – replace keyboard key • Provide consistent functionality between Function keys, buttons, menu items, and mouse events • Define Key-Fn, Key-Others, and mouse-event key triggers http://ebiztechnics.blogspot.com
Editor's Notes
- #4 What is a key trigger? A key trigger, like any other trigger, is a subprogram that is executed when a Certain event occurs. In the case of a key trigger, the event is pressing the Function key for which the trigger is defined. The trigger is usually named after The event that causes it to fire. When the key trigger is defined for a function Key, the usual functionality of the key is replaced by the PL/SQL text of the Trigger. In respect, key triggers resemble “on triggers”. Note: If you also want to execute the default functionality of the function Key, you must ensure that the key trigger includes the built-in function Associated with the key.
- #8 Technical Note Since mouse-event key triggers are not executed when the mouse is used to Initiate window interaction, you should not place code that needs to be executed Every time the window interaction occurs in a mouse-event key trigger.
