x.ai is a personal assistant that schedules meetings for users (1). It uses natural language processing and supervised machine learning with large training data sets (2). Meetings, people, places, and companies are modeled with various collections and relationships in a database (3).

1. x.ai a personal assistant
who schedules meetings for you
DATA ENGINEERING APRIL 2015 NEW YORK CITY VISIT X.AI TO JOIN THE WAITLIST
Optimizing data architecture design for
natural language processing
@alexpoon06
@xdotai

2. What’s x.ai?
Magically Schedule
Meetings

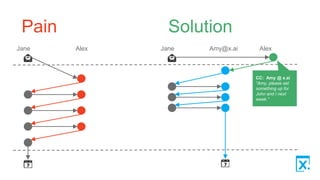

3. Pain Solution
Jane Alex Jane Amy@x.ai Alex
CC: Amy @ x.ai
“Amy, please set
something up for
John and I next
week.”

4. Product Characteristics
● Need quick response
● Supervised Learning requires large training data set
● # meetings scale linearly with # users
● 1 user meets with N people
● people share meeting places and company

5. Technical challenges
● Natural language understanding with extremely high
accuracy
● Natural conversation over email with people
● Complex data relationship
● Optimize for sparse data
● Speed of development and change

6. Stack
Database
(tell you in a couple of slides)

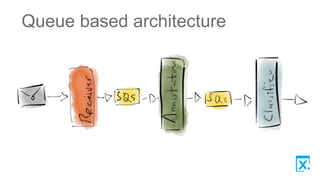

7. Queue based architecture

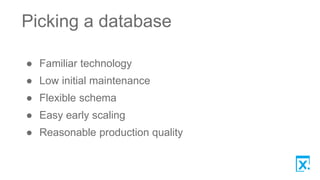

8. Picking a database
● Familiar technology
● Low initial maintenance
● Flexible schema
● Easy early scaling
● Reasonable production quality

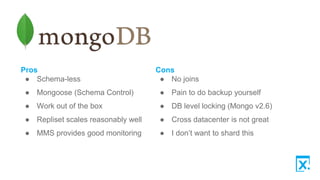

9. Pros
● Schema-less
● Mongoose (Schema Control)
● Work out of the box
● Repliset scales reasonably well
● MMS provides good monitoring
Cons
● No joins
● Pain to do backup yourself
● DB level locking (Mongo v2.6)
● Cross datacenter is not great
● I don’t want to shard this

10. Modeling Meetings
{
host : Participant,
guests : [Participant],
time : { start : Date,
end: Date,
recurring: String},
timezone : String,
duration : Number,
locations : [Location],
timeInitiated : Date,
timeRescheduled: [Date],
timeCompleted: Date,
status : String,
…...
}

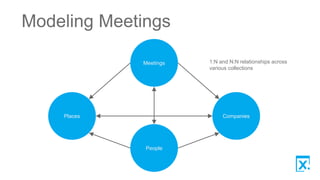

11. Modeling Meetings
Meetings
People
Places Companies
1:N and N:N relationships across
various collections

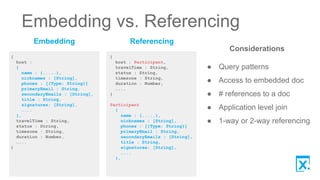

12. Embedding vs. Referencing
{
host :
{
name : {.....},
nicknames : [String],
phones : [{Type: String}]
primaryEmail : String,
secondaryEmails : [String],
title : String,
signatures: [String],
…...
},
travelTime : String,
status : String,
timezone : String,
duration : Number,
…...
}
{
host : Participant,
travelTime : String,
status : String,
timezone : String,
duration : Number,
…...
}
Participant
{
name : {.....},
nicknames : [String],
phones : [{Type: String}]
primaryEmail : String,
secondaryEmails : [String],
title : String,
signatures: [String],
…...
},
Embedding Referencing
Considerations
● Query patterns
● Access to embedded doc
● # references to a doc
● Application level join
● 1-way or 2-way referencing

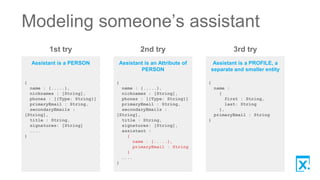

13. Assistant is a PERSON Assistant is an Attribute of
PERSON
Assistant is a PROFILE, a
separate and smaller entity
Modeling someone’s assistant
1st try 2nd try 3rd try
{
name : {.....},
nicknames : [String],
phones : [{Type: String}]
primaryEmail : String,
secondaryEmails :
[String],
title : String,
signatures: [String]
…...
}
{
name :
{
first : String,
last: String
},
primaryEmail : String
}
{
name : {.....},
nicknames : [String],
phones : [{Type: String}]
primaryEmail : String,
secondaryEmails :
[String],
title : String,
signatures: [String],
assistant :
{
name : {.....},
primaryEmail : String
}
…...
}

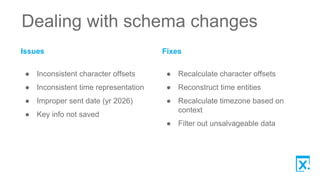

14. Dealing with schema changes
Issues
● Inconsistent character offsets
● Inconsistent time representation
● Improper sent date (yr 2026)
● Key info not saved
Fixes
● Recalculate character offsets
● Reconstruct time entities
● Recalculate timezone based on
context
● Filter out unsalvageable data

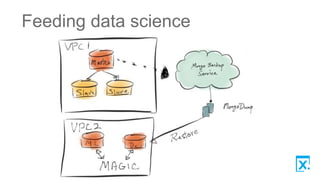

15. Feeding data science

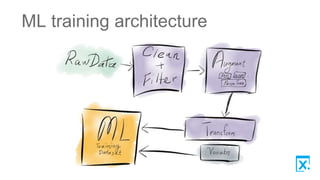

16. ML training architecture

17. alex @ x.ai
coo and founder
25 Broadway. 9th Floor
New York, 10005 NY
E: hello@x.ai
T: @xdotai
Visit x.ai to join the waitlist
