This document describes a project that proposes a hierarchical graph model called HEPV (Hierarchical Encoded Path View) to efficiently find optimal paths for transportation applications. The HEPV model partitions a large graph into smaller subgraphs and precomputes paths between border nodes to allow for on-demand optimal path retrieval. Algorithms are developed to create and maintain the HEPV structure and to retrieve optimal paths between any two nodes by searching partitions and an encoded supergraph. The project scope involves developing this hierarchical graph model, algorithms for path computation and precomputation, and a GUI for users to obtain optimal paths.

1. 2/11/2016SinhgadCollegeofEngineering
1
Presented by……………
Ashwini More B8238586
Punam Nerkar B8238589
Ramola Nikam B8238591
Shradha Pidhekar B8238605

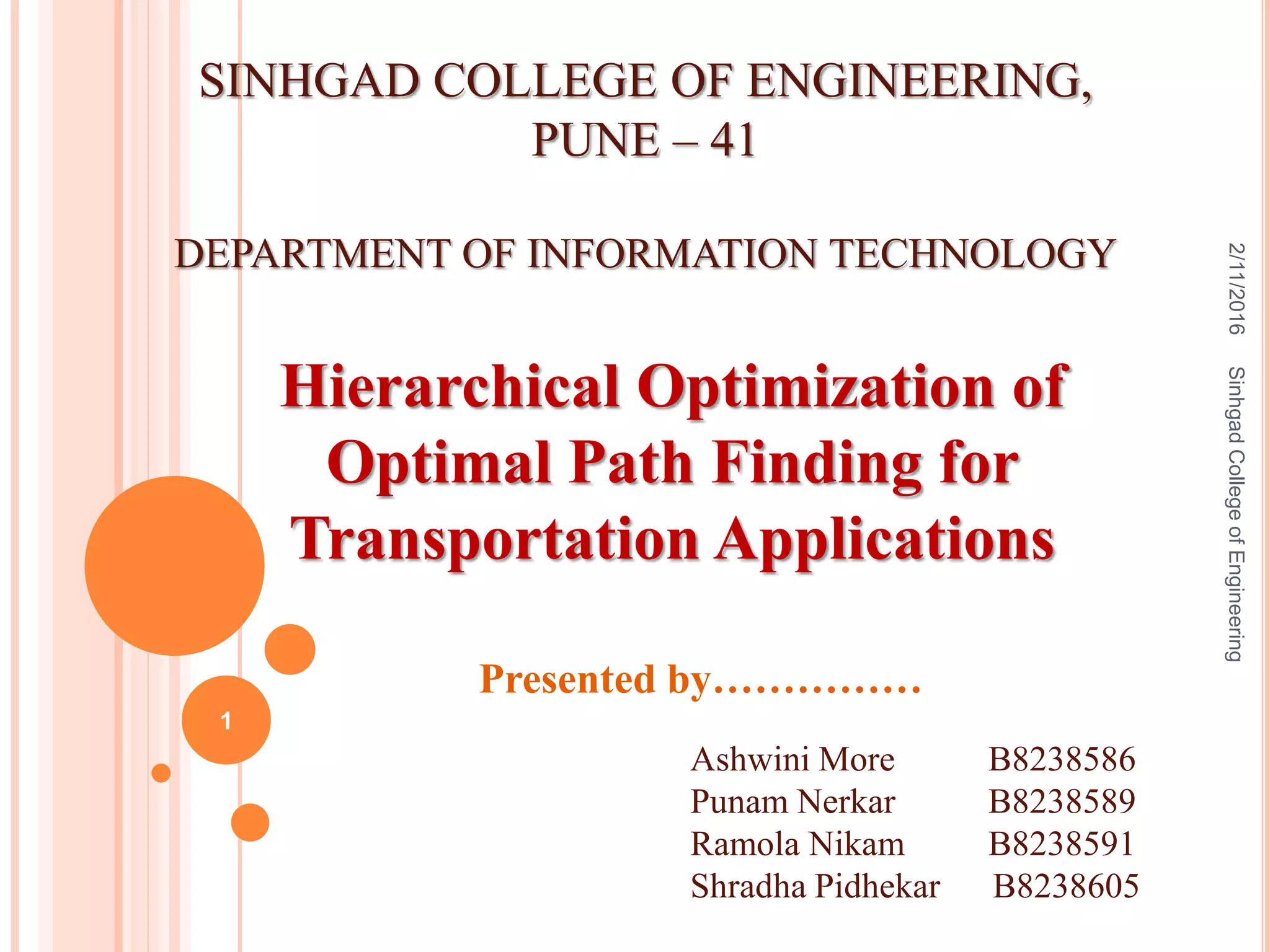

Hierarchical Optimization of
Optimal Path Finding for
Transportation Applications
SINHGAD COLLEGE OF ENGINEERING,
PUNE – 41
DEPARTMENT OF INFORMATION TECHNOLOGY

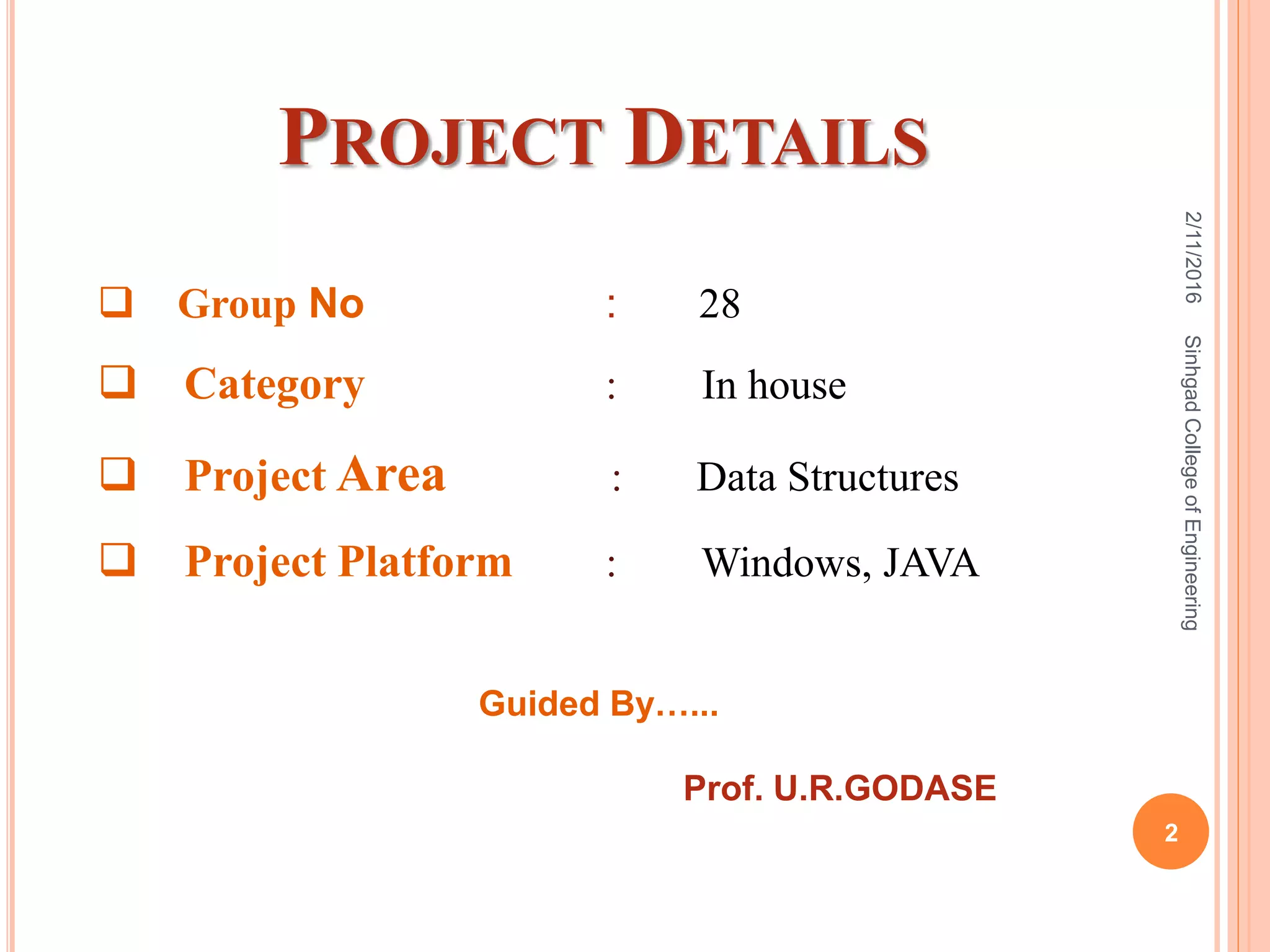

2. PROJECT DETAILS
2/11/2016
2
SinhgadCollegeofEngineering
 Group No : 28
 Category : In house
 Project Area : Data Structures
 Project Platform : Windows, JAVA
Guided By…...
Prof. U.R.GODASE

3. AGENDA
 Introduction
 Literature Survey
 Problem Statement
 Project Scope
 Project Analysis
 Project Design
 Implementation(Algorithms)
 Project Plan
 Conclusions
 References
2/11/2016
3
SinhgadCollegeofEngineering

4. INTRODUCTION
 Efficient path query
processing
 Study the problem in
the context of
automobile
navigation systems
 Precomputing
Technique were used
 Proposed HEPV
2/11/2016
4
SinhgadCollegeofEngineering

5. LITERATURE SURVEY
2/11/2016
5
SinhgadCollegeofEngineering
Sr.
no
Dijkstra Transitive
Closure
Hierarchical A* HEPV
1 On demand Precompute Both Precompute
and On demand
Both Precompute
and On demand
2 No
Fragments
No Fragments Fragments Fragments
3 No Optimality
Guaranteed
No Optimality
Guaranteed
No
Optimality
Guaranteed
Optimality
Guaranteed
4 Can’t handle
Large graph
Can handle
Huge graph
Can handle Huge
graph
Can handle Huge
graph

6. PROBLEM STATEMENT
 To find an optimal path for an
individual to travel in an
alien place such that
intermediate nodes are
revealed.
2/11/2016
6
SinhgadCollegeofEngineering

7. PROJECT SCOPE
2/11/2016SinhgadCollegeofEngineering
7
 Propose a hierarchical graph
model
 Complete computation of paths
on-demand and precomputed
paths.

8. ENCODED PATH VIEW STRUCTURE
2/11/2016
8
SinhgadCollegeofEngineering

9. ENCODED PATH VIEW STRUCTURE
2/11/2016
9
SinhgadCollegeofEngineering
a
b c e
d2
3 4
c 2
4
6
PATH a-e

10. PROPOSED ALGORITHM : HEPV
2/11/2016
10
SinhgadCollegeofEngineering

11. PROPOSED ALGORITHM : HEPV
2/11/2016
11
SinhgadCollegeofEngineering
Border Nodes
Local Nodes

12. PROJECT ANALYSIS
2/11/2016
12
SinhgadCollegeofEngineering
 Use Case Level 1 Diagram
Additional Diagrams

13. PROJECT DESIGN
2/11/2016
13
SinhgadCollegeofEngineering
 Data Flow Diagram
 Entity Relationship Diagram
 Sequence Diagram
 State Transition Diagram

14. DATA FLOW DIAGRAM
2/11/2016
14
SinhgadCollegeofEngineering
Create
Partition
Check
Source &
destination
Retrieve
Path
Extract
Border
Nodes
User
Create
supergraph
GUI
Source and
destination
Partition
Status of
Source and
Destination
Minimum
weight and path
Border
Nodes
Supergraph
Partition
Supergraph
Partition
Source &
destination

15. ENTITY RELATIONSHIP DIAGRAM
2/11/2016
15
SinhgadCollegeofEngineering
PARTITION
SOURCE
HOP1
FLAT GRAPH
DEST WEIGHT
HOP
CREATE
SRC
DESTI
LWEIGHT
SUPERGRAPH
SOURCE1
DEST1
WEIGHT1
HOP2
PART NO
CREATE
* 1
*
1

16. SEQUENCE DIAGRAM
2/11/2016
16
SinhgadCollegeofEngineering
sd Sequence Diagram Model
User System Partition Supergraph
Path Retrieval
alt
[if source/destination is border node]
[if source/destination is local node]
create_partition
get_border_node
check_link
get_min_wt_and_hop
encode_supergraph
enter_ source_destination
submit_source_destination
retrieve_path
retrieve_path
submit_optimal_path
display_optimal_path

17. STATE DIAGRAM
2/11/2016
17
SinhgadCollegeofEngineering
stm State Diagram
Accepting source and
destination
Searching source and destination
Searching in partition
Searching in
Supergraph
Path retriev ed
Fi nal
start
not found
not found
found

18. 2/11/2016
18
SinhgadCollegeofEngineering
HEPV CREATION ALGORITHM

19. 2/11/2016
19
SinhgadCollegeofEngineering
3
7
4 5
1
5
1 6
2
4 4
5
1
HEPV CREATION ALGORITHM

20. HEPV CREATION ALGORITHM
2/11/2016
20
SinhgadCollegeofEngineering

21. PATH RETRIEVAL ALGORITHM
2/11/2016
21
SinhgadCollegeofEngineering

22. CASE 1
Source Node : Border Node
Destination Node: Border Node
2/11/2016
22
SinhgadCollegeofEngineering
3
7
4 5
1
5
1 6
2
4 4
5
1

23. 2/11/2016
23
SinhgadCollegeofEngineering
CASE 2
Source Node : Border Node
Destination Node: Local Node
3
7
4 5
1
5
1 6
2
4 4
5
1

24. 2/11/2016
24
SinhgadCollegeofEngineering
CASE 3
Source Node : Local Node
Destination Node: Border Node
3
7
4 5
1
5
1 6
2
4 4
5
1

25. 2/11/2016
25
SinhgadCollegeofEngineering
CASE 4
Source Node : Local Node
Destination Node: Local Node
3
7
4 5
1
5
1 6
2
4 4
5
1

26. HEPV UPDATE ALGORITHM
2/11/2016
26
SinhgadCollegeofEngineering

27. PROJECT PLAN
 Gantt Chart-I
 Gantt Chart-II
 Project Plan
2/11/2016
27
SinhgadCollegeofEngineering

28. CONCLUSIONS
 Hierarchical graph model (HEPV) exploits path
retrieving strategies
 Algorithms are developed to create and maintain
HEPV
 Shortest path retrieval algorithm developed which
can be shown to be optimal
2/11/2016
28
SinhgadCollegeofEngineering

29. REFERENCES
[1] Ning Jing, Yun-Wu Huang, Elke Rundensteiner,
“Hierarchical Optimization of Optimal Path Finding
for Transportation Applications.”,pp. 1-8.
[2] R. Agrawal, S. Dar and H. V. Jagadish, “Direct
Transitive Closure Algorithms: Design and
Performance Evaluation,” ACM TODS, Vol. 15, No.
3, Sep. 1990, pp. 427 – 458.
2/11/2016
29
SinhgadCollegeofEngineering

30. REFERENCES
[3] R. Agrawal and H. V. Jagadish, “Hybrid Transitive
Closure Algorithms,” Proc. of the 16th VLDB Conf.,
1990, pp. 326 – 334.
[4] T. Cormen, C. Leiserson, and R. L. Rivest,
“Introduction to Algorithms,” The MIT Press, 1993.
2/11/2016
30
SinhgadCollegeofEngineering

31. 2/11/2016SinhgadCollegeofEngineering
31
Thank You…
