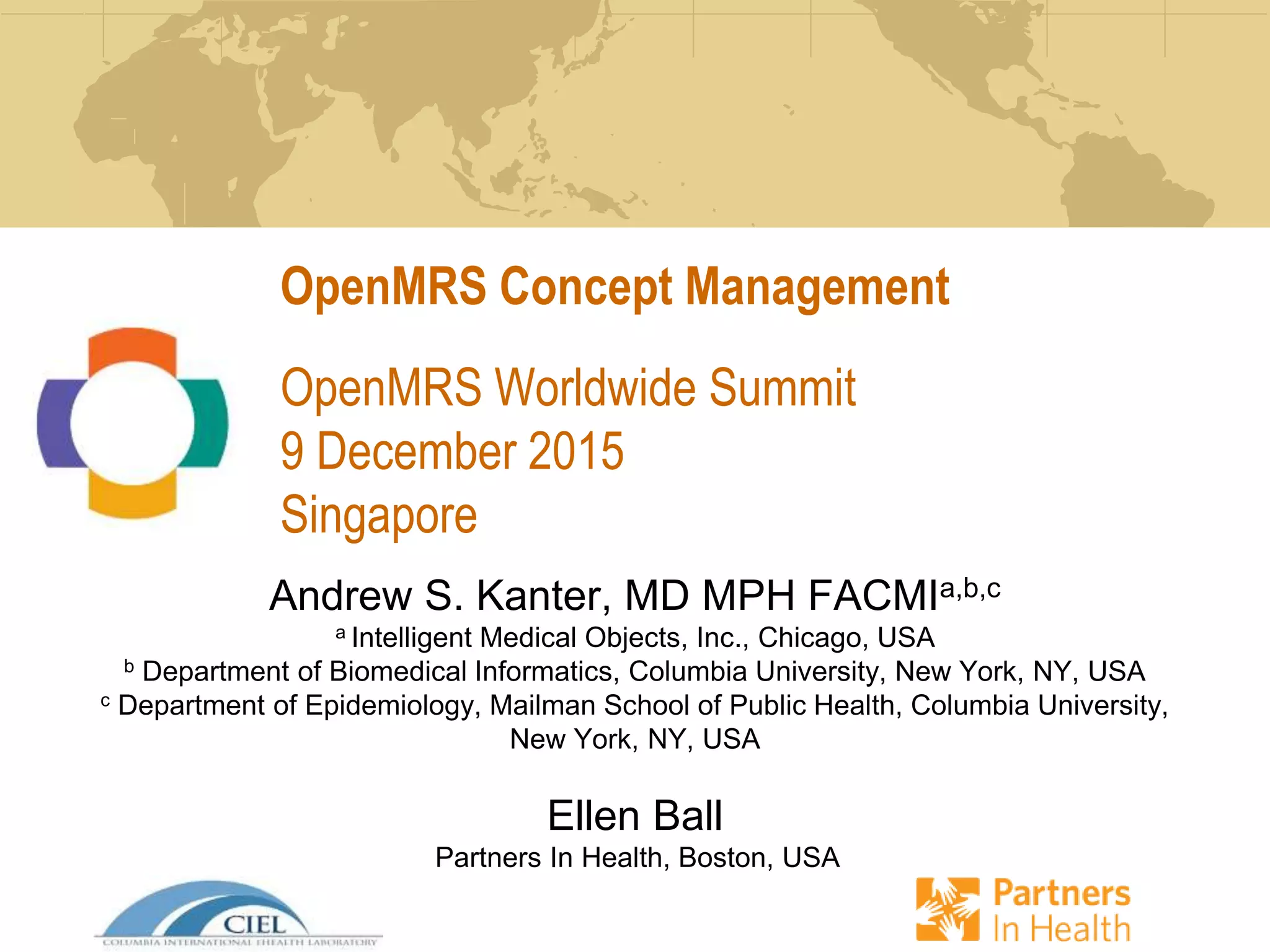

OpenMRS Concept Management Tutorial presented on 9 Dec 2015 at the OpenMRS Worldwide Summit in Singapore. Presented by Andy Kanter and Ellen Ball. 4 hour presentation.

1. Andrew S. Kanter, MD MPH FACMIa,b,c
a Intelligent Medical Objects, Inc., Chicago, USA
b Department of Biomedical Informatics, Columbia University, New York, NY, USA
c Department of Epidemiology, Mailman School of Public Health, Columbia University,
New York, NY, USA
Ellen Ball
Partners In Health, Boston, USA
OpenMRS Concept Management
OpenMRS Worldwide Summit
9 December 2015
Singapore

2. Topics
• Terminology 101
• OpenMRS data model and concepts
• Controlled terminology and reference mappings
• Management of concept dictionary
• Usage on forms and reports
• Future

3. Introduction and Disclosure

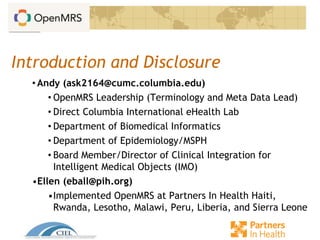

• Andy (ask2164@cumc.columbia.edu)
• OpenMRS Leadership (Terminology and Meta Data Lead)
• Direct Columbia International eHealth Lab
• Department of Biomedical Informatics
• Department of Epidemiology/MSPH
• Board Member/Director of Clinical Integration for
Intelligent Medical Objects (IMO)
•Ellen (eball@pih.org)
•Implemented OpenMRS at Partners In Health Haiti,
Rwanda, Lesotho, Malawi, Peru, Liberia, and Sierra Leone

4. Terminology 101
Terminology about terminology
(independent of OpenMRS)

5. Why vocabulary matters…
● Clinical users of EHRs resist the constraints of structured
documentation
● Users and administrators underestimate the complexity and
difficulty of data mining
● Data is dirty, misplaced, and/or incomplete
● Humans think conceptually, systems store data literally
● Everything we want to do depends on how meaning is
recorded in the information system. Clinical intent is
paramount and you get one chance to capture it correctly!

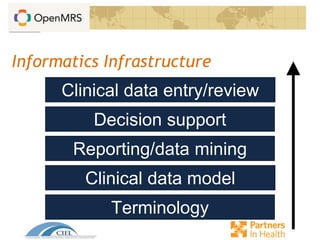

6. Terminology
Reporting/data mining
Clinical data model
Decision support
Clinical data entry/review
Informatics Infrastructure

7. The Interoperability-Adoption Tug-of-War
● Interoperability
requires standards
and limited scope
● Adoption favors
customization and
local preferences
producing broad
scope

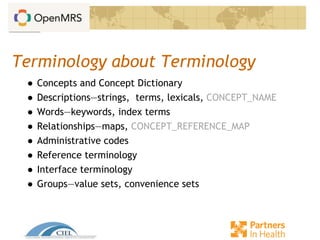

8. Terminology about Terminology
● Concepts and Concept Dictionary
● Descriptions—strings, terms, lexicals, CONCEPT_NAME
● Words—keywords, index terms
● Relationships—maps, CONCEPT_REFERENCE_MAP
● Administrative codes
● Reference terminology
● Interface terminology
● Groups—value sets, convenience sets

9. Terminology about Terminology (cont)
● Domains
● Granularity—broader vs. more specific
● Pre-coordination
● Post-coordination

10. Concepts
● The actual meaning is a phrase or even a paragraph.
● Developed at the right level for the user
● Severe right knee pain
● Liver dysfunction
● Can have many different descriptions but all have the same
meaning
● Assigned a non-sensical numeric identifier
● Meaning often developed through relationships to other concepts
● One description often flagged as the default name

11. Concepts
● Goal: default description (fully specified name) sufficient
to understand the concept
● Unambiguously defined
● Have one domain
● Can provide more semantics around concept than default
description
● Fully specified name includes appended domain, e.g., cough
(finding) vs. cough (symptom)

12. Descriptions
● A collection of text strings or terms
● perennial allergic rhinitis
● seasonal allergies (hay fever)
● allergic rhinitis, seasonal
● hay fever
● perennial rhinitis
● perennial allergies
● …

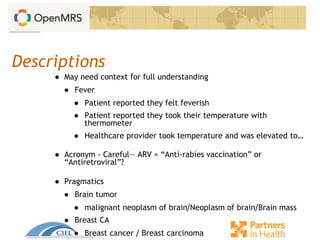

13. Descriptions
● May need context for full understanding
● Fever
● Patient reported they felt feverish
● Patient reported they took their temperature with
thermometer
● Healthcare provider took temperature and was elevated to…
● Acronym - Careful— ARV = “Anti-rabies vaccination” or
“Antiretroviral”?
● Pragmatics
● Brain tumor
● malignant neoplasm of brain/Neoplasm of brain/Brain mass
● Breast CA
● Breast cancer / Breast carcinoma

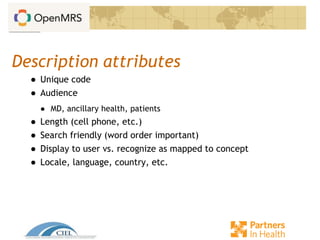

14. Description attributes
● Unique code
● Audience
● MD, ancillary health, patients
● Length (cell phone, etc.)
● Search friendly (word order important)
● Display to user vs. recognize as mapped to concept
● Locale, language, country, etc.

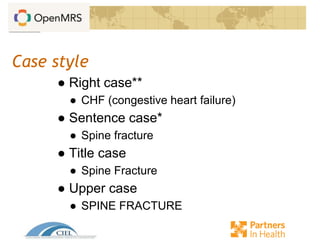

15. Case style
● Right case**
● CHF (congestive heart failure)
● Sentence case*
● Spine fracture
● Title case
● Spine Fracture
● Upper case
● SPINE FRACTURE

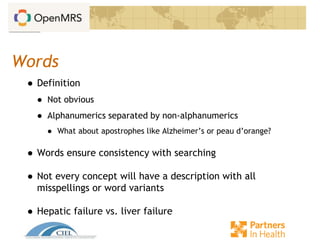

16. Words
● Definition
● Not obvious
● Alphanumerics separated by non-alphanumerics
● What about apostrophes like Alzheimer’s or peau d’orange?
● Words ensure consistency with searching
● Not every concept will have a description with all
misspellings or word variants
● Hepatic failure vs. liver failure

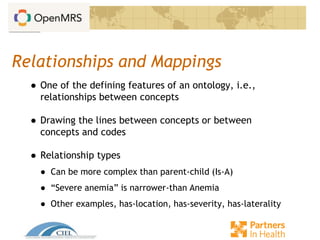

17. Relationships and Mappings
● One of the defining features of an ontology, i.e.,
relationships between concepts
● Drawing the lines between concepts or between
concepts and codes
● Relationship types
● Can be more complex than parent-child (Is-A)
● “Severe anemia” is narrower-than Anemia
● Other examples, has-location, has-severity, has-laterality

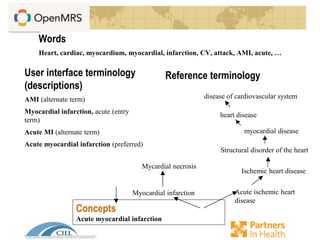

18. User interface terminology
(descriptions)
AMI (alternate term)
Myocardial infarction, acute (entry
term)
Acute MI (alternate term)
Acute myocardial infarction (preferred)
Reference terminology
Acute ischemic heart
disease
Ischemic heart disease
Structural disorder of the heart
myocardial disease
heart disease
disease of cardiovascular system
Myocardial infarction
Mycardial necrosis
Concepts
Acute myocardial infarction
Words
Heart, cardiac, myocardium, myocardial, infarction, CV, attack, AMI, acute, …

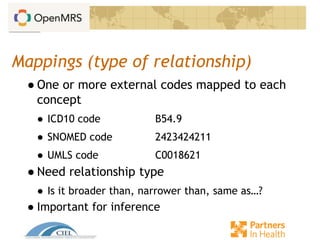

19. Mappings (type of relationship)
● One or more external codes mapped to each
concept
● ICD10 code B54.9
● SNOMED code 2423424211
● UMLS code C0018621
● Need relationship type
● Is it broader than, narrower than, same as…?
● Important for inference

20. Mappings and Inference
● Malaria
● Same as SNOMED CT 61462000 (Malaria)
● Same as ICD-10 B54 (Unspecified malaria)
● Severe malaria
● Narrower than SNOMED CT 61462000 (Malaria)
● In both eyes
● Narrower than SNOMED CT 54485002 (ophthalmic
use)

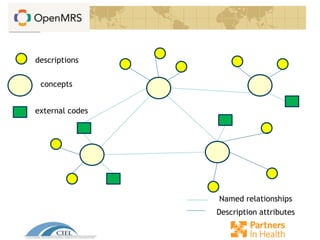

21. Concept-oriented terminologydescriptions
concepts
Named relationships
Description attributes
external codes

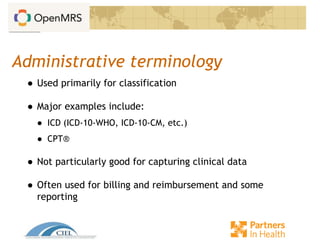

22. Administrative terminology
● Used primarily for classification
● Major examples include:
● ICD (ICD-10-WHO, ICD-10-CM, etc.)
● CPT®
● Not particularly good for capturing clinical data
● Often used for billing and reimbursement and some
reporting

23. Administrative terminology
● ICD-10-CM is now mandated for use in the US as of 10/15
● Differences between ICD-9-CM, ICD-10 and ICD-10-CM
● 13,000 ICD-9-CM to 68,000+ for ICD-10-CM
● 3-5 digits for ICD-9 compared to 3-7 for ICD-10
● ICD-9 had only a few alpha codes, all ICD-10 codes start with
a letter
● Combination codes for conditions and common symptoms
or manifestations and for poisonings and external causes
● Added laterality

24. Reference terminology

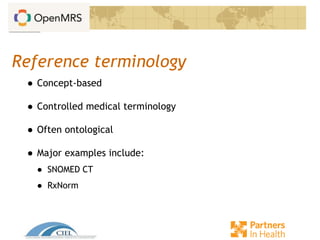

● Concept-based
● Controlled medical terminology
● Often ontological
● Major examples include:
● SNOMED CT
● RxNorm

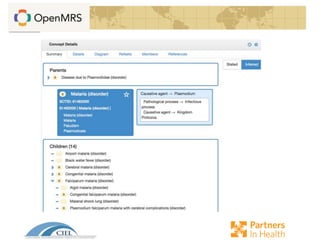

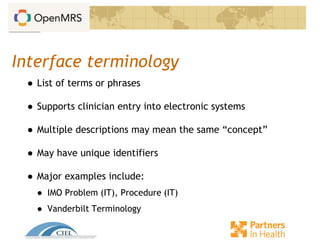

26. Interface terminology
● List of terms or phrases
● Supports clinician entry into electronic systems
● Multiple descriptions may mean the same “concept”
● May have unique identifiers
● Major examples include:
● IMO Problem (IT), Procedure (IT)
● Vanderbilt Terminology

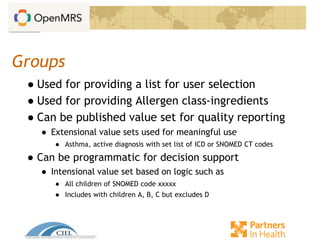

27. Groups
● Used for providing a list for user selection
● Used for providing Allergen class-ingredients
● Can be published value set for quality reporting
● Extensional value sets used for meaningful use
● Asthma, active diagnosis with set list of ICD or SNOMED CT codes
● Can be programmatic for decision support
● Intensional value set based on logic such as
● All children of SNOMED code xxxxx
● Includes with children A, B, C but excludes D

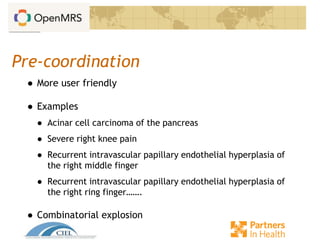

28. Pre-coordination
● More user friendly
● Examples
● Acinar cell carcinoma of the pancreas
● Severe right knee pain
● Recurrent intravascular papillary endothelial hyperplasia of
the right middle finger
● Recurrent intravascular papillary endothelial hyperplasia of
the right ring finger…….
● Combinatorial explosion

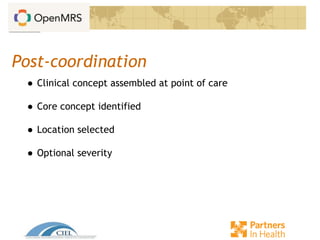

29. Post-coordination
● Clinical concept assembled at point of care
● Core concept identified
● Location selected
● Optional severity

30. Examples

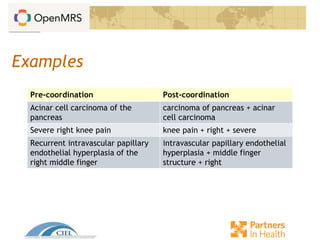

Pre-coordination Post-coordination
Acinar cell carcinoma of the
pancreas
carcinoma of pancreas + acinar
cell carcinoma
Severe right knee pain knee pain + right + severe
Recurrent intravascular papillary
endothelial hyperplasia of the
right middle finger
intravascular papillary endothelial
hyperplasia + middle finger
structure + right

31. Terminology Process

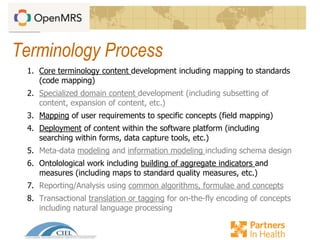

1. Core terminology content development including mapping to standards
(code mapping)
2. Specialized domain content development (including subsetting of
content, expansion of content, etc.)
3. Mapping of user requirements to specific concepts (field mapping)
4. Deployment of content within the software platform (including
searching within forms, data capture tools, etc.)
5. Meta-data modeling and information modeling including schema design
6. Ontolological work including building of aggregate indicators and
measures (including maps to standard quality measures, etc.)
7. Reporting/Analysis using common algorithms, formulae and concepts
8. Transactional translation or tagging for on-the-fly encoding of concepts
including natural language processing

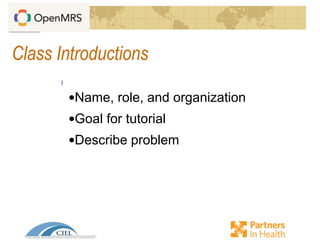

32. Class Introductions
•Name, role, and organization
•Goal for tutorial
•Describe problem

33. OpenMRS
Concepts and Data Model

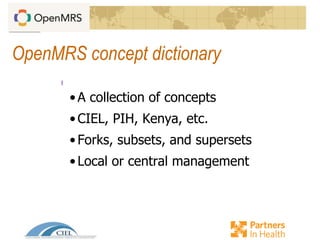

34. OpenMRS concept dictionary
•A collection of concepts
•CIEL, PIH, Kenya, etc.
•Forks, subsets, and supersets
•Local or central management

35. Concept creation workflow
Paper form,
list of data
fields, or
indicators
Concept
analysis in
existing forms
Propose new
concept in CIEL
or use existing
concept
Add language,
description,
synonyms, and
mappings

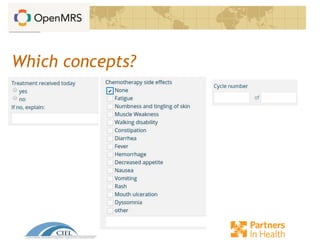

36. Which concepts?

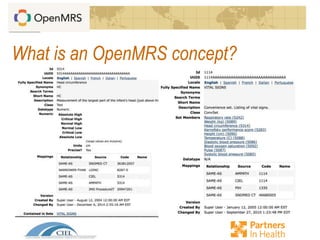

37. What is an OpenMRS concept?

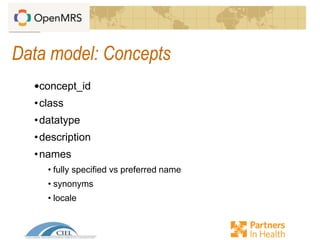

38. Data model: Concepts
•concept_id
•class
•datatype
•description
•names
• fully specified vs preferred name
• synonyms
• locale

39. Data model: Concept classes

40. Data model: Coded answers

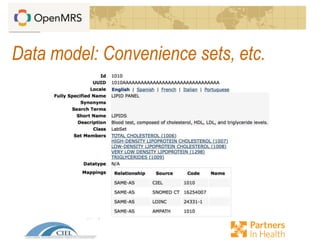

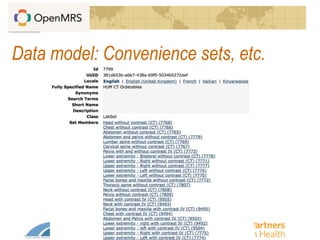

41. Data model: Convenience sets, etc.

42. Data model: Concept data type

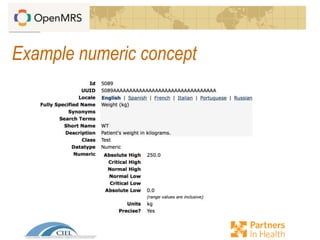

43. Example numeric concept

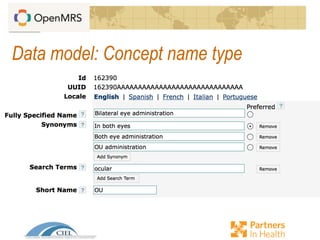

44. Data model: Concept name type

45. Data model: Locale
● ISO Language code (en, fr, es, ht, etc)
● Language+country
Anemia (en-US), Anaemia (en-GB),
Anémie (fr)
● UTF-8

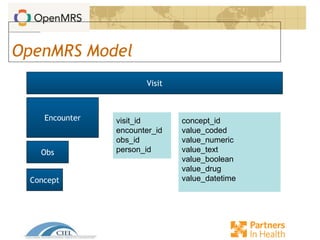

46. OpenMRS Model
Visit
Encounter
Obs
Concept
visit_id
encounter_id
obs_id
person_id
concept_id
value_coded
value_numeric
value_text
value_boolean
value_drug
value_datetime

47. OpenMRS Model:

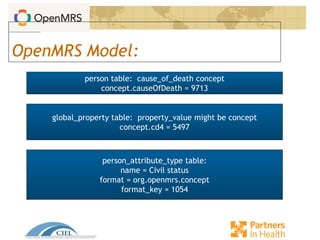

person table: cause_of_death concept
concept.causeOfDeath = 9713
global_property table: property_value might be concept
concept.cd4 = 5497
person_attribute_type table:
name = Civil status
format = org.openmrs.concept
format_key = 1054

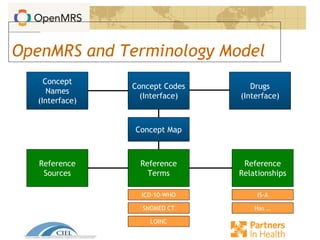

48. OpenMRS and Terminology Model
Concept
Names
(Interface)
Concept Codes
(Interface)
Reference
Terms
Reference
Sources
Reference
Relationships
ICD-10-WHO
SNOMED CT
LOINC
IS-A
Has …
Concept Map
Drugs
(Interface)

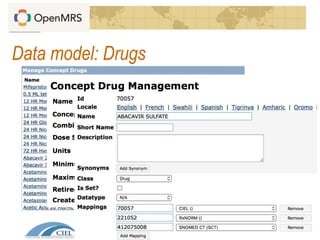

49. Data model: Drugs

50. Leveraging Reference Maps
Reasons for using shared concepts

51. Why not just use ICD-10 or SNOMED?
• Admin/Reference terms change which
require changing reports and forms
• Clinicians don’t use terms like
• Other disease of blood & blood-forming organ
• SNOMED is post-coordinated
• Hard to say fracture of RIGHT arm

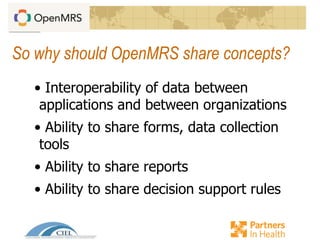

52. So why should OpenMRS share concepts?
• Interoperability of data between
applications and between organizations
• Ability to share forms, data collection
tools
• Ability to share reports
• Ability to share decision support rules

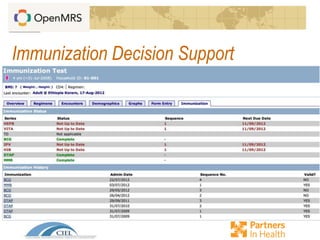

53. Immunization Decision Support

54. Leveraging Maps for Reporting
• There are multiple CIEL concepts
mapped to the same ICD or SNOMED
code
• Use Reference_Reference_Map to build
subsumption queries
• CIEL/OCL to add map for particular
value sets

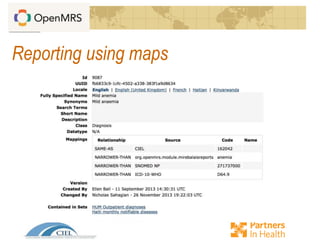

55. Reporting using maps

56. Managing a concept dictionary
Strategies, translation, etc.

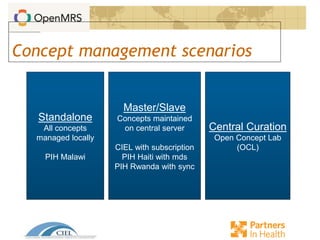

57. Concept management scenarios
Standalone
All concepts
managed locally
PIH Malawi
Master/Slave
Concepts maintained
on central server
CIEL with subscription
PIH Haiti with mds
PIH Rwanda with sync
Central Curation
Open Concept Lab
(OCL)

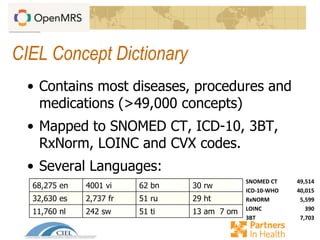

58. CIEL Concept Dictionary
• Contains most diseases, procedures and
medications (>49,000 concepts)
• Mapped to SNOMED CT, ICD-10, 3BT,
RxNorm, LOINC and CVX codes.
• Several Languages:
SNOMED CT 49,514
ICD-10-WHO 40,015
RxNORM 5,599
LOINC 390
3BT 7,703
68,275 en 4001 vi 62 bn 30 rw
32,630 es 2,737 fr 51 ru 29 ht
11,760 nl 242 sw 51 ti 13 am 7 om

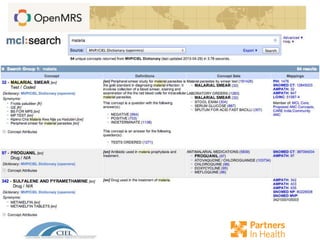

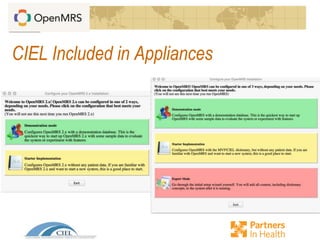

60. CIEL Included in Appliances

61. 311 users in 40+ countries
CIEL Dictionary via Dropbox

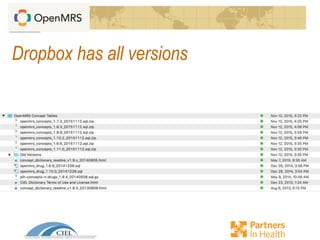

62. Dropbox has all versions

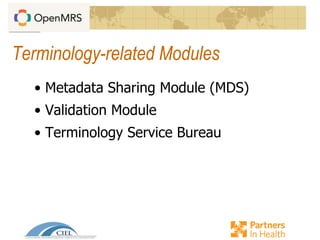

63. Terminology-related Modules
• Metadata Sharing Module (MDS)
• Validation Module
• Terminology Service Bureau

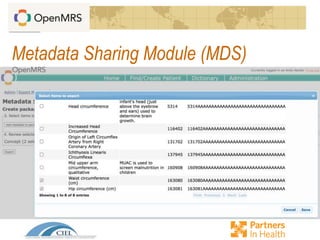

64. Metadata Sharing Module (MDS)

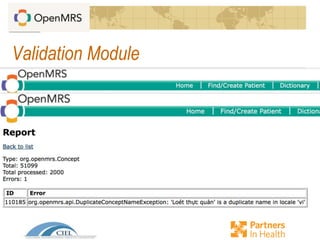

65. Validation Module

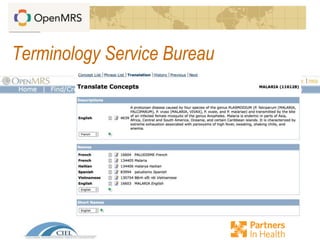

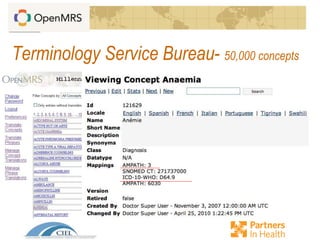

66. Terminology Service Bureau- 50,000 concepts

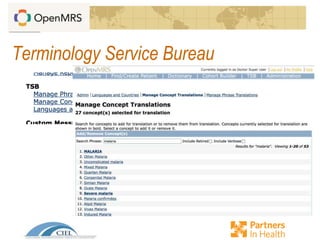

67. Terminology Service Bureau

68. Terminology Service Bureau

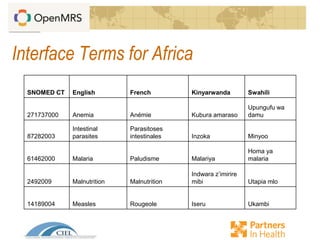

69. Interface Terms for Africa
SNOMED CT English French Kinyarwanda Swahili
271737000 Anemia Anémie Kubura amaraso
Upungufu wa
damu
87282003
Intestinal
parasites
Parasitoses
intestinales Inzoka Minyoo
61462000 Malaria Paludisme Malariya
Homa ya
malaria
2492009 Malnutrition Malnutrition
Indwara z’imirire
mibi Utapia mlo
14189004 Measles Rougeole Iseru Ukambi

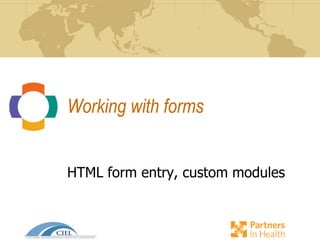

70. Working with forms

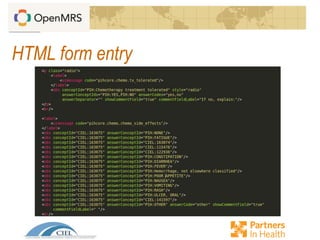

HTML form entry, custom modules

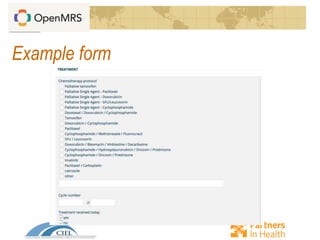

71. Example form

72. HTML form entry

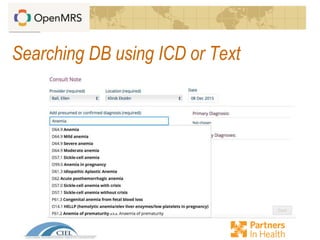

73. Searching DB using ICD or Text

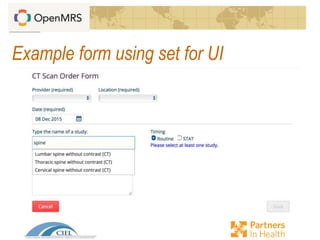

74. Example form using set for UI

75. Data model: Convenience sets, etc.

76. Future
Open Concept Lab, sustainability

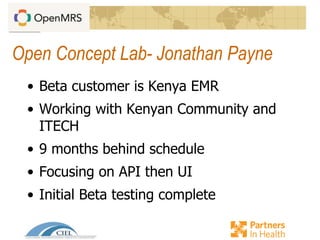

77. Open Concept Lab- Jonathan Payne
• Beta customer is Kenya EMR
• Working with Kenyan Community and
ITECH
• 9 months behind schedule
• Focusing on API then UI
• Initial Beta testing complete

78. Open
MRS

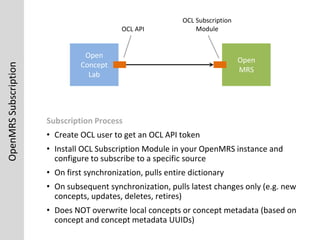

OpenMRSSubscription
Subscription Process
• Create OCL user to get an OCL API token
• Install OCL Subscription Module in your OpenMRS instance and
configure to subscribe to a specific source
• On first synchronization, pulls entire dictionary
• On subsequent synchronization, pulls latest changes only (e.g. new
concepts, updates, deletes, retires)
• Does NOT overwrite local concepts or concept metadata (based on
concept and concept metadata UUIDs)
Open
Concept
Lab
OCL API
OCL Subscription
Module

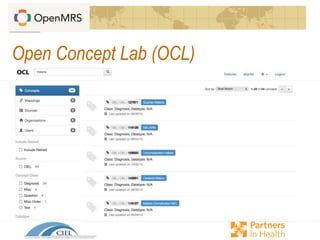

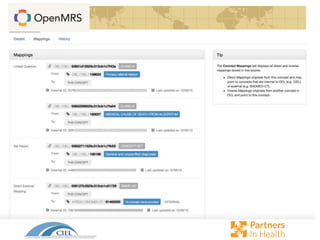

79. Open Concept Lab (OCL)

83. OpenHIE and
Terminology
Management
Terminology
Management
Service
2
1
2
1
• OCL as source of content
for the TS.
• Requires local TS.
• Appropriate for high-
volume, real-time
transactions (e.g. code
validation, lookups,
transformations, etc.).
• OCL provides canonical
source(s) to HIE,
subscription service, &
collaborative
management tool.
• NOT for real-time, high-
volume transactions.
• Alleviates need for local
service.

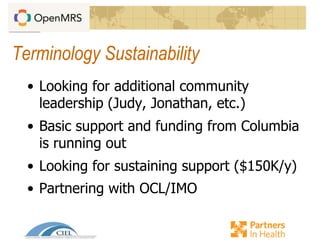

84. Terminology Sustainability
• Looking for additional community
leadership (Judy, Jonathan, etc.)
• Basic support and funding from Columbia
is running out
• Looking for sustaining support ($150K/y)
• Partnering with OCL/IMO

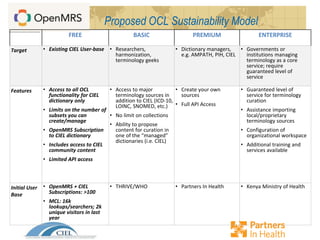

85. Proposed OCL Sustainability Model
FREE BASIC PREMIUM ENTERPRISE
Target • Existing CIEL User-base • Researchers,
harmonization,
terminology geeks
• Dictionary managers,
e.g. AMPATH, PIH, CIEL
• Governments or
institutions managing
terminology as a core
service; require
guaranteed level of
service
Features • Access to all OCL
functionality for CIEL
dictionary only
• Limits on the number of
subsets you can
create/manage
• OpenMRS Subscription
to CIEL dictionary
• Includes access to CIEL
community content
• Limited API access
• Access to major
terminology sources in
addition to CIEL (ICD-10,
LOINC, SNOMED, etc.)
• No limit on collections
• Ability to propose
content for curation in
one of the “managed”
dictionaries (i.e. CIEL)
• Create your own
sources
• Full API Access
• Guaranteed level of
service for terminology
curation
• Assistance importing
local/proprietary
terminology sources
• Configuration of
organizational workspace
• Additional training and
services available
Initial User
Base
• OpenMRS + CIEL
Subscriptions: >100
• MCL: 16k
lookups/searchers; 2k
unique visitors in last
year
• THRIVE/WHO • Partners In Health • Kenya Ministry of Health

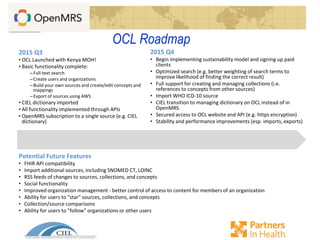

86. OCL Roadmap
2015 Q3
• OCL Launched with Kenya MOH!
• Basic functionality complete:
–Full-text search
–Create users and organizations
–Build your own sources and create/edit concepts and
mappings
–Export of sources using AWS
• CIEL dictionary imported
• All functionality implemented through APIs
• OpenMRS subscription to a single source (e.g. CIEL
dictionary)
2015 Q4
• Begin implementing sustainability model and signing up paid
clients
• Optimized search (e.g. better weighting of search terms to
improve likelihood of finding the correct result)
• Full support for creating and managing collections (i.e.
references to concepts from other sources)
• Import WHO ICD-10 source
• CIEL transition to managing dictionary on OCL instead of in
OpenMRS
• Secured access to OCL website and API (e.g. https encryption)
• Stability and performance improvements (esp. imports, exports)
Potential Future Features
• FHIR API compatibility
• Import additional sources, including SNOMED CT, LOINC
• RSS feeds of changes to sources, collections, and concepts
• Social functionality
• Improved organization management - better control of access to content for members of an organization
• Ability for users to "star" sources, collections, and concepts
• Collection/source comparisons
• Ability for users to "follow" organizations or other users

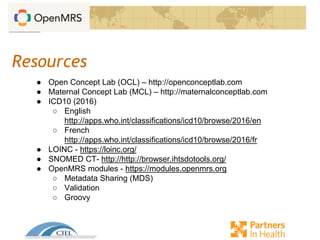

87. Resources
● Open Concept Lab (OCL) – http://openconceptlab.com
● Maternal Concept Lab (MCL) – http://maternalconceptlab.com
● ICD10 (2016)
○ English
http://apps.who.int/classifications/icd10/browse/2016/en
○ French
http://apps.who.int/classifications/icd10/browse/2016/fr
● LOINC - https://loinc.org/
● SNOMED CT- http://http://browser.ihtsdotools.org/
● OpenMRS modules - https://modules.openmrs.org
○ Metadata Sharing (MDS)
○ Validation
○ Groovy
