1. Mobile Driver‘s License | mDL online
Autor: Oliver Terbu
Klassifizierung: öffentlich
Oliver Terbu
Solution Architect
Österreichische Staatsdruckerei GmbH
e-government innovations
terbu@staatsdruckerei.at
Tenschertstrasse 7 | 1239 Wien | www.staatsdruckerei.at

2. 2
Reference: http://www.sosiphone.com/blogiphone/wp-content/uploads/2010/11/appwall.png

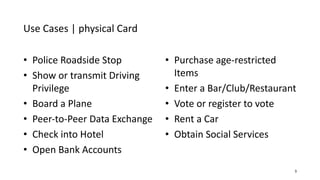

3. Use Cases | physical Card
3
• Police Roadside Stop
• Show or transmit Driving
Privilege
• Board a Plane
• Peer-to-Peer Data Exchange
• Check into Hotel
• Open Bank Accounts
• Purchase age-restricted
Items
• Enter a Bar/Club/Restaurant
• Vote or register to vote
• Rent a Car
• Obtain Social Services

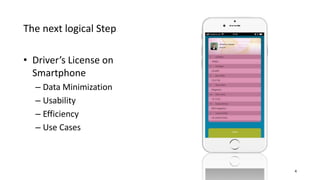

4. The next logical Step
4
• Driver’s License on
Smartphone
– Data Minimization
– Usability
– Efficiency
– Use Cases
Oe
SD
09
:1
1

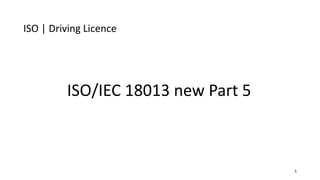

5. ISO | Driving Licence
5
ISO/IEC 18013 new Part 5

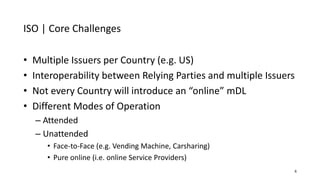

6. ISO | Core Challenges
6
• Multiple Issuers per Country (e.g. US)
• Interoperability between Relying Parties and multiple Issuers
• Not every Country will introduce an “online” mDL
• Different Modes of Operation
– Attended
– Unattended
• Face-to-Face (e.g. Vending Machine, Carsharing)
• Pure online (i.e. online Service Providers)

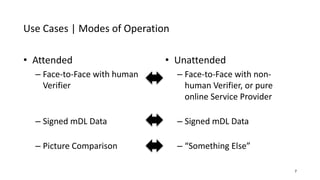

7. Use Cases | Modes of Operation
7
• Attended
– Face-to-Face with human
Verifier
– Signed mDL Data
– Picture Comparison
• Unattended
– Face-to-Face with non-
human Verifier, or pure
online Service Provider
– Signed mDL Data
– “Something Else”

8. ISO | Interfaces
8
• 3 Interfaces
– Engagement:
Kick-off Data Transfer
– Data Transfer: Protocol
and Data Structures
– Trust Model: Certificate
Profiles and Policy,
Trust List Format
Jurisdiction A
Trust Model
Engagement
Jurisdiction B
1
3
4
2
Data
Transfer
out-of-scope
of ISO 18013
online mDL
Holder Device
online mDL
Reader Device
Issuing AuthorityIssuing Authority

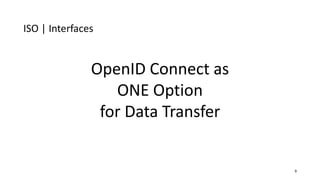

9. ISO | Interfaces
9
OpenID Connect as
ONE Option
for Data Transfer

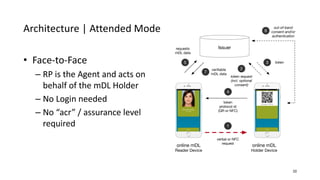

10. Architecture | Attended Mode
10
• Face-to-Face
– RP is the Agent and acts on
behalf of the mDL Holder
– No Login needed
– No “acr” / assurance level
required
online mDL
Holder Device
online mDL
Reader Device
out-of-band
consent and/or
authentication
requests
mDL data
token
protocol id
(QR or NFC)
token request
(incl. optional
consent)
verifiable
mDL data
4
2
5
7
6
token3
verbal or NFC
request
1
Issuer

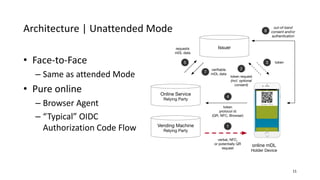

11. Architecture | Unattended Mode
11
• Face-to-Face
– Same as attended Mode
• Pure online
– Browser Agent
– “Typical” OIDC
Authorization Code Flow
online mDL
Holder Device
out-of-band
consent and/or
authentication
requests
mDL data
token
protocol id
(QR, NFC, Browser)
token request
(incl. optional
consent)
verifiable
mDL data
4
2
5
7
6
token3
Issuer
Online Service
Relying Party
Vending Machine
Relying Party
verbal, NFC,
or potentially QR
request
1

12. ISO | OpenID Connect | mDL Profile
12
• Kicked-off with “token” containing
– A tokenized, non-correlatable, time-limited identifier for the
mDL Holder
– A URL pointing to Discovery Endpoint of Issuer
• HTTPS with trusted Communication Certificates for Server
Authentication
• Based on Authorization Code Flow (Metadata, Dynamic
Client Registration)

13. ISO | OpenID Connect | mDL Profile
13
• id_token / UserInfo
– JWT is signed with dedicated “Token Signer” obtained via
Metadata
– Contains mDL related Claims
• New Claims
– licence_number
– entitlements (e.g. Vehicle Categories)
– …

14. ISO | OpenID Connect | mDL Profile
14
• Reuse IANA Claim Registry
– iat
– …
• New Scopes with Parameters (e.g. for age attestation)
• Mandatory Parameters
– login_hint to transmit mDL Holder Identifier
– acr to request and communicate back the Assurance Level

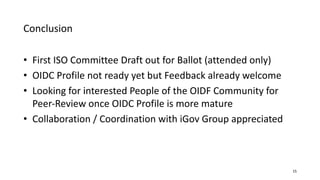

15. Conclusion
15
• First ISO Committee Draft out for Ballot (attended only)
• OIDC Profile not ready yet but Feedback already welcome
• Looking for interested People of the OIDF Community for
Peer-Review once OIDC Profile is more mature
• Collaboration / Coordination with iGov Group appreciated

16. Thank You!
