- 1. OpenTravel 2.0 Creating Messagesfrom Objects January 2014 © 2014 OpenTravel.org

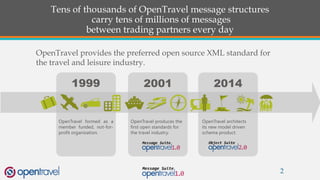

- 2. Tens of thousandsof OpenTravel message structures carry tens of millions of messages between trading partners every day 2 OpenTravel formed as a member funded, not-for- profit organization. OpenTravel produces the first open standards for the travel industry. OpenTravel architects its new model driven schema product. OpenTravel provides the preferred open source XML standard for the travel and leisure industry. 1999 2001 2014

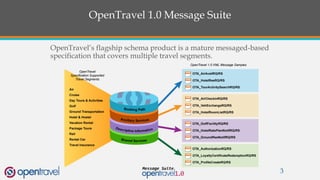

- 3. OpenTravel 1.0 MessageSuite 3 OpenTravel’s flagship schema product is a mature messaged-based specification that covers multiple travel segments.
- 4. 2.0 XML ObjectSuite addresses growing complexity in travel industry distribution Model driven messaging • Focus on exchanged information – not message structure • Manage the model - not individual messages • Models are easy to extend • Smaller messages 4 Programming friendly Improved productivity Faster to market
- 5. OTM-DE uses anInformation Model to Simplify Development & Maintenance 5 In most cases manually developed schema do not map well to applications’ information models which means • Additional coding is required to deal with the mismatch The goal instead is to let tooling (Model Designer, Repository & Compiler) handle the serialization of the objects for sending across the network OpenTravel Model – Development Environment (OTM-DE)
- 6. Implementers create light-weightor functionally-rich transactions by “binding” to a collection Model contains organized collections of summary, detail and query attributes and elements: • Light-weight example: Flight notifications for mobile devices • Functionally rich example: PNR management 6

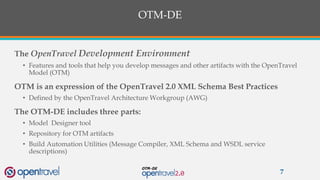

- 7. OTM-DE The OpenTravel DevelopmentEnvironment • Features and tools that help you develop messages and other artifacts with the OpenTravel Model (OTM) OTM is an expression of the OpenTravel 2.0 XML Schema Best Practices • Defined by the OpenTravel Architecture Workgroup (AWG) The OTM-DE includes three parts: • Model Designer tool • Repository for OTM artifacts • Build Automation Utilities (Message Compiler, XML Schema and WSDL service descriptions) 7

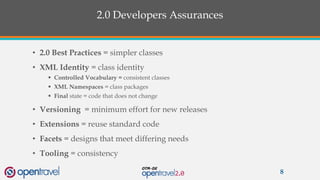

- 8. 2.0 Developers Assurances •2.0 Best Practices = simpler classes • XML Identity = class identity Controlled Vocabulary = consistent classes XML Namespaces = class packages Final state = code that does not change • Versioning = minimum effort for new releases • Extensions = reuse standard code • Facets = designs that meet differing needs • Tooling = consistency 8

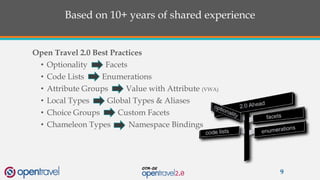

- 9. Based on 10+years of shared experience Open Travel 2.0 Best Practices • Optionality vs. Facets • Code Lists vs. Enumerations • Attribute Groups vs. Value with Attribute (VWA) • Local Types vs. Global Types & Aliases • Choice Groups vs. Custom Facets • Chameleon Types vs. Namespace Bindings 9

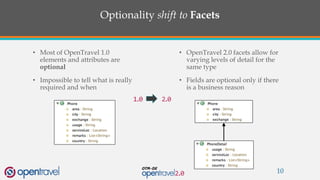

- 10. Optionality shift toFacets • Most of OpenTravel 1.0 elements and attributes are optional • Impossible to tell what is really required and when 10 • OpenTravel 2.0 facets allow for varying levels of detail for the same type • Fields are optional only if there is a business reason

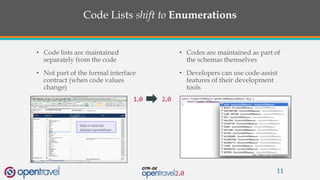

- 11. Code Lists shiftto Enumerations • Code lists are maintained separately from the code • Not part of the formal interface contract (when code values change) 11 • Codes are maintained as part of the schemas themselves • Developers can use code-assist features of their development tools Data in external detailed spreadsheet

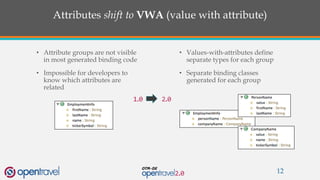

- 12. Attributes shift toVWA (value with attribute) • Attribute groups are not visible in most generated binding code • Impossible for developers to know which attributes are related 12 • Values-with-attributes define separate types for each group • Separate binding classes generated for each group

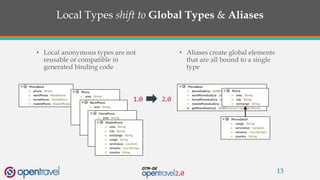

- 13. Local Types shiftto Global Types & Aliases • Local anonymous types are not reusable or compatible in generated binding code 13 • Aliases create global elements that are all bound to a single type

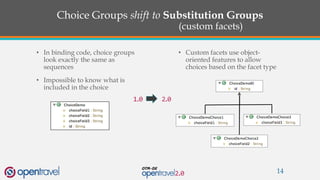

- 14. Choice Groups shiftto Substitution Groups (custom facets) • In binding code, choice groups look exactly the same as sequences • Impossible to know what is included in the choice 14 • Custom facets use object- oriented features to allow choices based on the facet type
- 15. Chameleon Types shiftto Namespace Bindings • Chameleon schemas bind types to each namespace that includes them • Binding classes may be duplicated numerous times 15 • Namespace-assigned types are bound once • The single copy of each type is re-used throughout the generated binding code

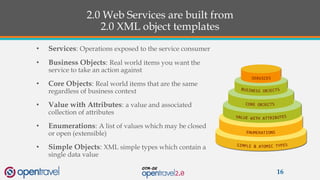

- 16. 2.0 Web Servicesare built from 2.0 XML object templates • Services: Operations exposed to the service consumer • Business Objects: Real world items you want the service to take an action against • Core Objects: Real world items that are the same regardless of business context • Value with Attributes: a value and associated collection of attributes • Enumerations: A list of values which may be closed or open (extensible) • Simple Objects: XML simple types which contain a single data value 16
- 17. Hierarchy of XMLObjects represent lowest layer 17 Web Service Model Service Operation Business Object Core Object Business Object Core Object Value with Attribute VWA Enumeration Simple Type Core Object Value with Attribute VWA Enumeration Simple Type Value with Attribute VWA Enumeration Simple Type Atomic Type Enumeration Simple Type Atomic Type Simple Type Atomic Type The OpenTravel Model Designer is used if you need to make extensions to the OpenTravel Model (OTM) shown here. Value with Attribute VWA

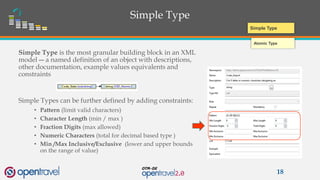

- 18. Simple Type Simple Typeis the most granular building block in an XML model ― a named definition of an object with descriptions, other documentation, example values equivalents and constraints Simple Types can be further defined by adding constraints: • Pattern (limit valid characters) • Character Length (min / max ) • Fraction Digits (max allowed) • Numeric Characters (total for decimal based type ) • Min /Max Inclusive/Exclusive (lower and upper bounds on the range of value) 18 Atomic Type Simple Type

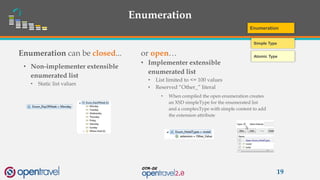

- 19. Enumeration Enumeration can beclosed... 19 Enumeration Simple Type Atomic Type • Non-implementer extensible enumerated list • Static list values or open… • Implementer extensible enumerated list • List limited to <= 100 values • Reserved “Other_” literal • When compiled the open enumeration creates an XSD simpleType for the enumerated list and a complexType with simple content to add the extension attribute

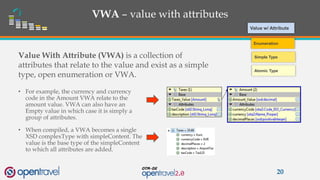

- 20. VWA – valuewith attributes • For example, the currency and currency code in the Amount VWA relate to the amount value. VWA can also have an Empty value in which case it is simply a group of attributes. • When compiled, a VWA becomes a single XSD complexType with simpleContent. The value is the base type of the simpleContent to which all attributes are added. 20 Value With Attribute (VWA) is a collection of attributes that relate to the value and exist as a simple type, open enumeration or VWA. Value w/ Attribute Enumeration Simple Type Atomic Type
- 21. Core Object Core Objectdescribes multiple representations of a real- world object that is the same regardless of business context—an Address is an Address—in searching for golf courses and booking an airline ticket. A Core Object defines up to six different representations (facets) that can be used as types in other objects. • Simple Type • Summary • Detail • Roles • Simple List • Detail List 21 Core Object Value w/ Attribute Enumeration Simple Type

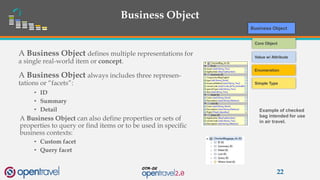

- 22. Business Object A BusinessObject defines multiple representations for a single real-world item or concept. A Business Object always includes three represen- tations or “facets”: • ID • Summary • Detail A Business Object can also define properties or sets of properties to query or find items or to be used in specific business contexts: • Custom facet • Query facet 22 Business Object Core Object Value w/ Attribute Enumeration Simple Type Example of checked bag intended for use in air travel.

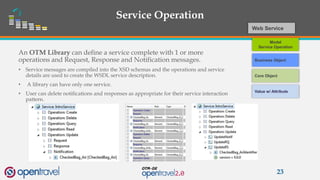

- 23. Service Operation An OTMLibrary can define a service complete with 1 or more operations and Request, Response and Notification messages. • Service messages are compiled into the XSD schemas and the operations and service details are used to create the WSDL service description. • A library can have only one service. • User can delete notifications and responses as appropriate for their service interaction pattern. 23 Web Service Model Service Operation Business Object Core Object Value w/ Attribute

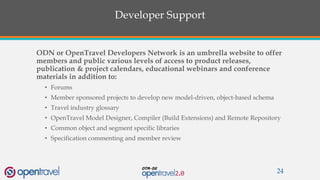

- 24. Developer Support ODN orOpenTravel Developers Network is an umbrella website to offer members and public various levels of access to product releases, publication & project calendars, educational webinars and conference materials in addition to: • Forums • Member sponsored projects to develop new model-driven, object-based schema • Travel industry glossary • OpenTravel Model Designer, Compiler (Build Extensions) and Remote Repository • Common object and segment specific libraries • Specification commenting and member review 24

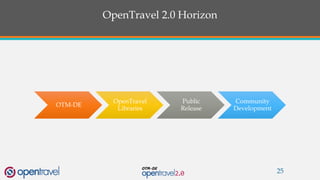

- 25.
- 26. OpenTravel 2.0 Creating Messagesfrom Objects For more information info@opentravel.org www.opentravel.org © 2014 OpenTravel.org
