OOPs Development with Scala
Here is one way to model the parking lot system using object-oriented design principles: 1. ParkingSpot class - Properties: id, type (regular, handicapped, compact), occupied - Methods: occupy(), vacate() 2. ParkingLot class - Properties: spots (list of ParkingSpot), currentOccupancy - Methods: - findSpotForRegularCar() - findSpotForHandicappedCar() - findSpotForCompactCar() - isFull() - isEmpty() 3. ValetParking class - Property: currentSpot - Methods: - parkCar() - retrieveCar() 4. Car class -
More Related Content
Similar to OOPs Development with Scala
More from Knoldus Inc.
OOPs Development with Scala
- 1. Introduction to Object OrientedProgramming Mumbai

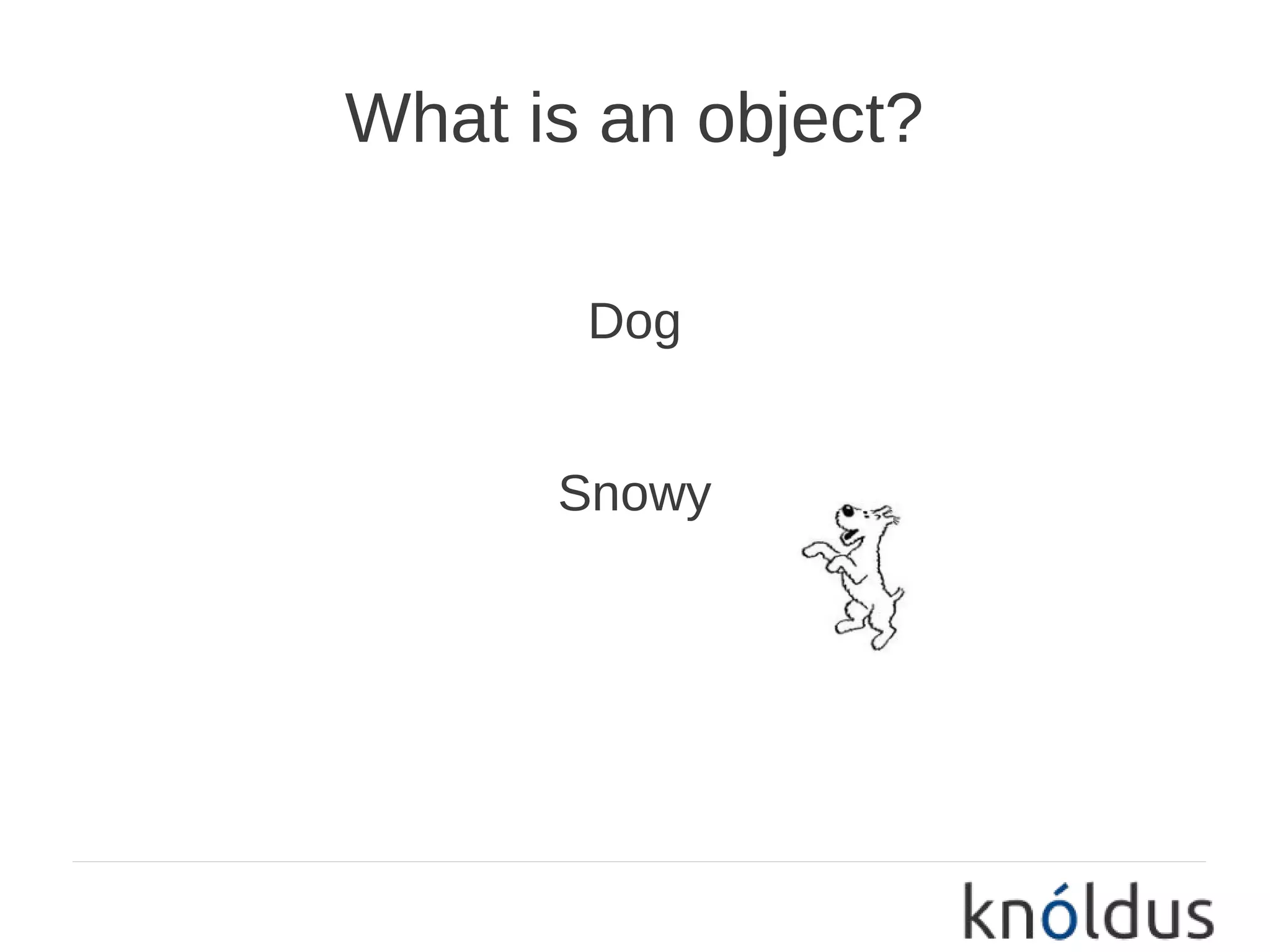

- 2. What is anobject? Dog Snowy
- 3. Dog is ageneralization of Snowy Dog Animal Snowy Subclass?

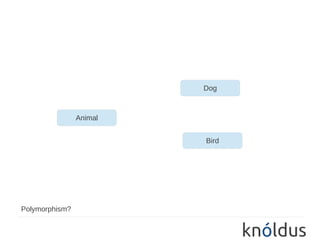

- 4. Dog Animal Bird Polymorphism?

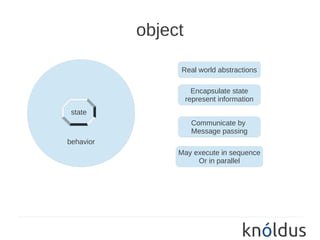

- 5. object Real world abstractions Encapsulate state represent information state Communicate by Message passing behavior May execute in sequence Or in parallel

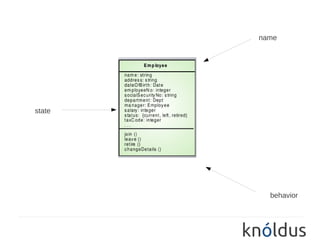

- 6. name state behavior

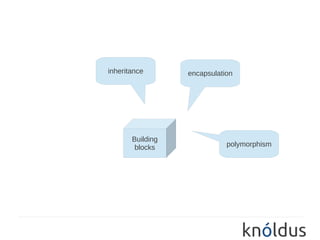

- 7. inheritance encapsulation Building blocks polymorphism

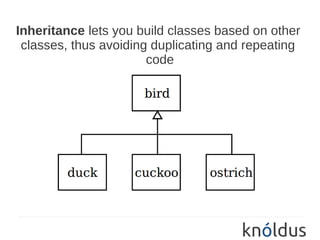

- 8. Inheritance lets youbuild classes based on other classes, thus avoiding duplicating and repeating code

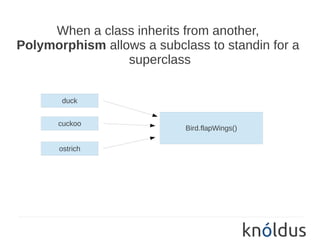

- 9. When a classinherits from another, Polymorphism allows a subclass to standin for a superclass duck cuckoo Bird.flapWings() ostrich

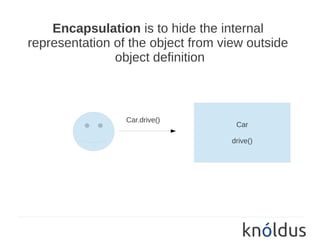

- 10. Encapsulation is tohide the internal representation of the object from view outside object definition Car.drive() Car drive()
- 11. camry car accord Vehicle toyota motorcycle honda Harley-davidson civic corolla 5 mins

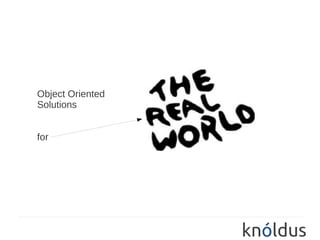

- 12.

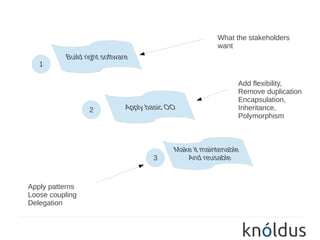

- 13. What the stakeholders want 1 Add flexibility, Remove duplication Encapsulation, 2 Inheritance, Polymorphism 3 Apply patterns Loose coupling Delegation
- 14. We have aproduct which collects checks from various banks and processes them. The process includes sending out email, a fax or storing a scan for the check.

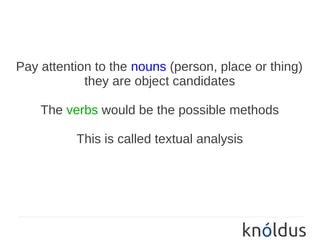

- 15. Pay attention tothe nouns (person, place or thing) they are object candidates The verbs would be the possible methods This is called textual analysis
- 16. We have aproduct which collects checks from various banks and processes them. The process includes sending out email, a fax or storing a scan for the check. 5 mins

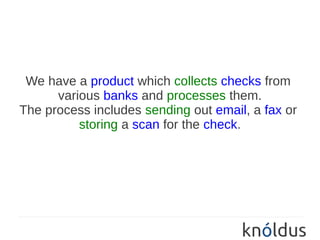

- 17. We have aproduct which collects checks from various banks and processes them. The process includes sending out email, a fax or storing a scan for the check.

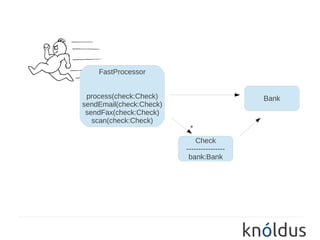

- 18. FastProcessor process(check:Check) Bank sendEmail(check:Check) sendFax(check:Check) scan(check:Check) * Check ---------------- bank:Bank

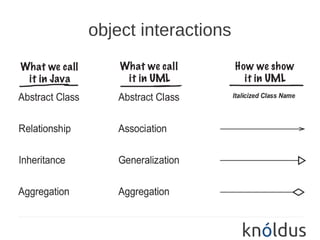

- 19.

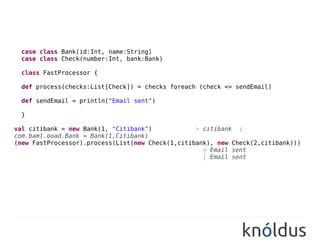

- 20. case class Bank(id:Int,name:String) case class Check(number:Int, bank:Bank) class FastProcessor { def process(checks:List[Check]) = checks foreach (check => sendEmail) def sendEmail = println("Email sent") } val citibank = new Bank(1, "Citibank") //> citibank : com.baml.ooad.Bank = Bank(1,Citibank) (new FastProcessor).process(List(new Check(1,citibank), new Check(2,citibank))) //> Email sent //| Email sent

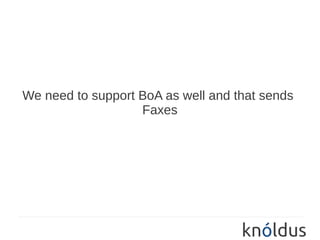

- 21. We need tosupport BoA as well and that sends Faxes
- 22. We dont touchthe design

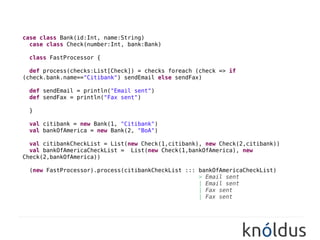

- 23. case class Bank(id:Int,name:String) case class Check(number:Int, bank:Bank) class FastProcessor { def process(checks:List[Check]) = checks foreach (check => if (check.bank.name=="Citibank") sendEmail else sendFax) def sendEmail = println("Email sent") def sendFax = println("Fax sent") } val citibank = new Bank(1, "Citibank") // val bankOfAmerica = new Bank(2, "BoA") // val citibankCheckList = List(new Check(1,citibank), new Check(2,citibank)) val bankOfAmericaCheckList = List(new Check(1,bankOfAmerica), new Check(2,bankOfAmerica)) (new FastProcessor).process(citibankCheckList ::: bankOfAmericaCheckList) //> Email sent //| Email sent //| Fax sent //| Fax sent

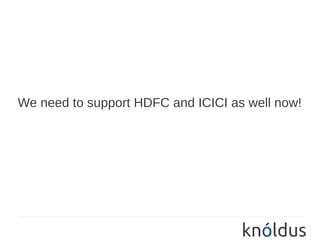

- 24. We need tosupport HDFC and ICICI as well now!
- 25. good design ==flexible design whenever there is a change encapsulate it 5 mins

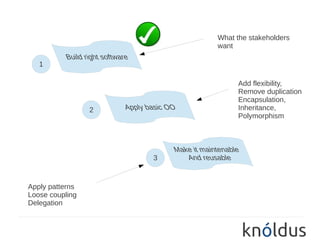

- 26. What the stakeholders want 1 Add flexibility, Remove duplication Encapsulation, 2 Inheritance, Polymorphism 3 Apply patterns Loose coupling Delegation
- 27. trait Bank { def process(check: Check) } object CitiBank extends Bank { val name = "CitiBank" def process(check: Check) = sendEmail def sendEmail = println("Email sent") } object BankOfAmerica extends Bank { val name = "BoA" def process(check: Check) = sendFax def sendFax = println("Fax sent") } object HDFC extends Bank { val name = "HDFC" def process(check: Check) = {sendFax; sendEmail} def sendEmail = println("Email sent") def sendFax = println("Fax sent") } case class Check(number: Int, bank: Bank)

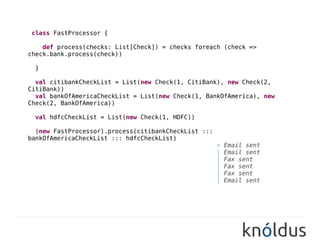

- 28. class FastProcessor { def process(checks: List[Check]) = checks foreach (check => check.bank.process(check)) } val citibankCheckList = List(new Check(1, CitiBank), new Check(2, CitiBank)) val bankOfAmericaCheckList = List(new Check(1, BankOfAmerica), new Check(2, BankOfAmerica)) val hdfcCheckList = List(new Check(1, HDFC)) (new FastProcessor).process(citibankCheckList ::: bankOfAmericaCheckList ::: hdfcCheckList) //> Email sent //| Email sent //| Fax sent //| Fax sent //| Fax sent //| Email sent

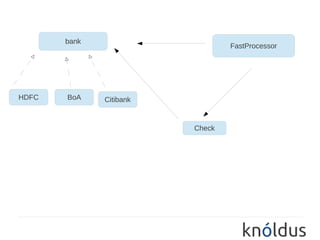

- 29. bank FastProcessor HDFC BoA Citibank Check
- 30. bank FastProcessor HDFC BoA Citibank Check

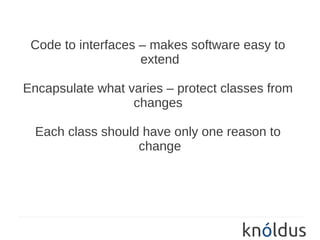

- 31. Code to interfaces– makes software easy to extend Encapsulate what varies – protect classes from changes Each class should have only one reason to change

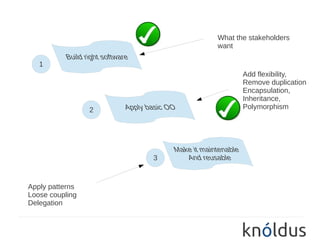

- 32. What the stakeholders want 1 Add flexibility, Remove duplication Encapsulation, Inheritance, 2 Polymorphism 3 Apply patterns Loose coupling Delegation

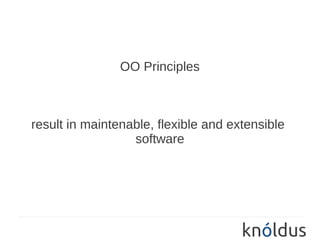

- 33. OO Principles result inmaintenable, flexible and extensible software
- 34. Open Closed Principle Classesshould be open for extension and closed for modification

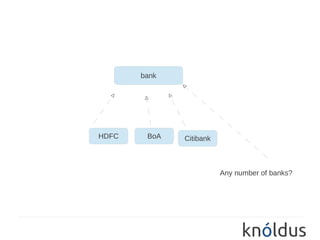

- 35. bank HDFC BoA Citibank Any number of banks?
- 36. DRY Don't repeat yourself All duplicate code should be encapsulated / abstracted

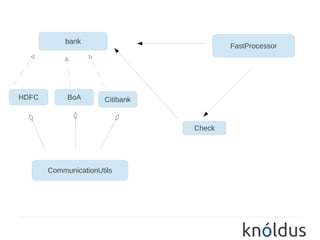

- 37. bank FastProcessor HDFC BoA Citibank Check CommunicationUtils

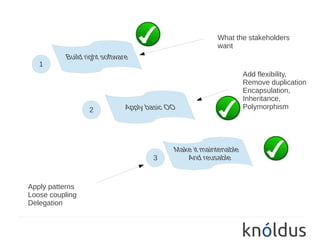

- 38. What the stakeholders want 1 Add flexibility, Remove duplication Encapsulation, Inheritance, 2 Polymorphism 3 Apply patterns Loose coupling Delegation
- 39. Single Responsibility Principle Eachobject should have only one reason to change

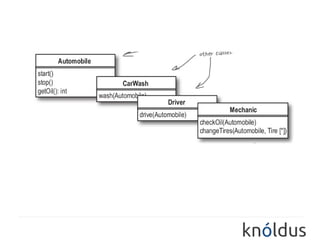

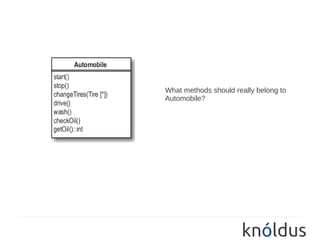

- 41. What methods shouldreally belong to Automobile?
- 43. Liskov Substitution Principle SubtypesMUST be substitutable for their base types Ensures well designed inheritance

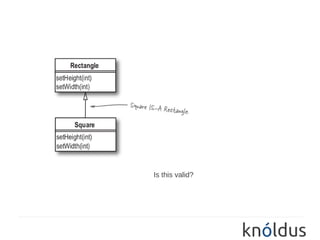

- 44.

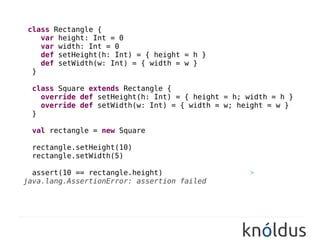

- 45. class Rectangle { var height: Int = 0 var width: Int = 0 def setHeight(h: Int) = { height = h } def setWidth(w: Int) = { width = w } } class Square extends Rectangle { override def setHeight(h: Int) = { height = h; width = h } override def setWidth(w: Int) = { width = w; height = w } } val rectangle = new Square rectangle.setHeight(10) rectangle.setWidth(5) assert(10 == rectangle.height) //> java.lang.AssertionError: assertion failed

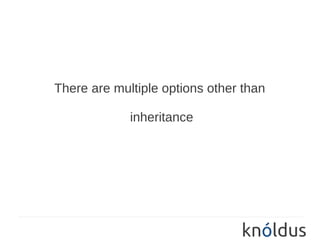

- 46. There are multipleoptions other than inheritance

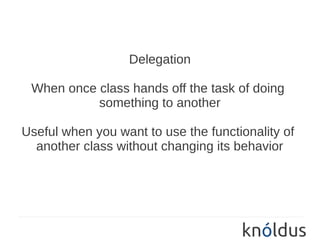

- 47. Delegation When onceclass hands off the task of doing something to another Useful when you want to use the functionality of another class without changing its behavior

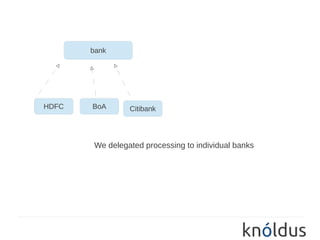

- 48. bank HDFC BoA Citibank We delegated processing to individual banks

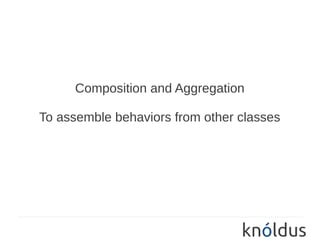

- 49. Composition and Aggregation Toassemble behaviors from other classes
- 50. HDFC BoA Citibank CommunicationUtils
- 51. 30 min Exercise Design an OO parking lot. What classes and functions will it have. It should say, full, empty and also be able to find spot for Valet parking. The lot has 3 different types of parking: regular, handicapped and compact.
