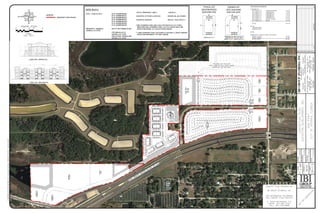

Oak Pointe Development Conceptual Plan 032615
- 1. IBIGROUP(FLORIDA)INC. *THE STORMWATER AREAHAS NOT BEEN EVALUATED, PRELIMINARY STORMWATER CALCULATIONS MUST BE DONE FOR MORE ACCURATE POND SIZING ** THIS STORMWATER ALIGNMENT ASSUMES A JOINT PERMIT WITH THE PROPERTY TO THE NORTH PROPERTY BOUNDARY LEGEND SITE DATA SCPA - PARCEL ID #: 29-21-28-0000-00-004 29-21-28-0000-00-011 29-21-28-0000-00-016 29-21-28-0000-00-033 29-21-28-0000-00-038 32-21-28-0000-00-004 32-21-28-0000-00-030 PROPERTY ADDRESS: 1621 W MCCORMICK RD APOPKA, FL 32703 1787 IRMALEE LN APOPKA, FL 32703 2901 OCOEE APOPKA RD APOPKA, FL 32703 TOTAL PROPERTY AREA: EXISTING FUTURE LAND USE: MIXED, RL, RL/COMM EXISTING ZONING: MIX-EC, PUD, PUD/C-1 DEVELOPMENT SUMMARY COMMERCIAL OUT PARCEL 'A' CHARTER SCHOOL 3.30 AC OUT PARCEL 'B' COMMERCIAL 1.74 AC OUT PARCEL 'C' COMMERCIAL 1.52 AC OUT PARCEL 'D' COMMERCIAL 1.75 AC OUT PARCEL 'E' COMMERCIAL 1.97 AC OUT PARCEL 'F' COMMERCIAL 2.95 AC OUT PARCEL 'G ' RETAIL CENTER 11.37 AC OUT PARCEL 'H' HOTEL 4.54 AC TOTAL 29.14 AC RETAIL ANCHOR STORE STRIP CENTER HOTEL RESIDENTIAL - SINGLE FAMILY DETACHED PHASE 1 (EAST) 92 DU PHASE 2 (WEST) 93 DU TOTAL UNITS: 185 DU RESIDENTAIL - MUILTI FAMILY UNITS: 36 UNIT (8 BLDG'S): 288 UNITS TYPICAL LOT SIZE/PROPOSED BUILDING PAD 50' 120' 6,000 SF (0.14 AC.) 40' 75' 5' 20' REAR SETBACK 25' FRONT SETBACK 60' 120' CORNER LOTS SHALL HAVE AN ADDITIONAL 15% LOT AREA 6,000 SF X 1.15 = 6,900 SF (0.16 AC.) 40' 75' 15' 20' REAR SETBACK 25' FRONT SETBACK CORNER LOT SIZE/ BUILDING PAD FOR LOTS 5'
