Nokia X1–01 User Guide




              Issue 2. 1 EN




  Cyan Magenta Yellow Black
Keys and parts



                               1              2
                        Exit
                   ct
               Sele




        8

                                                    3




        7                                      4
                               6
                                       5


1   Earpiece                       5   Microphone
2   Screen                         6   Scroll key
3   End/Power key                  7   Call key
4   Keypad                         8   Selection keys




       Cyan Magenta Yellow Black
14
                                     9

                                     10
                    13


                                     11
               12

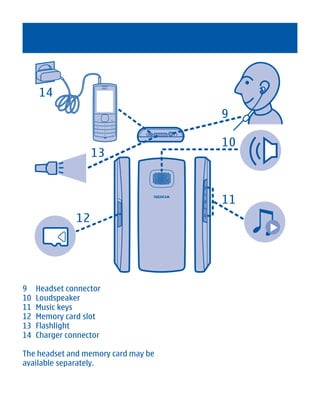

9    Headset connector
10   Loudspeaker
11   Music keys
12   Memory card slot
13   Flashlight
14   Charger connector

The headset and memory card may be
available separately.




        Cyan Magenta Yellow Black

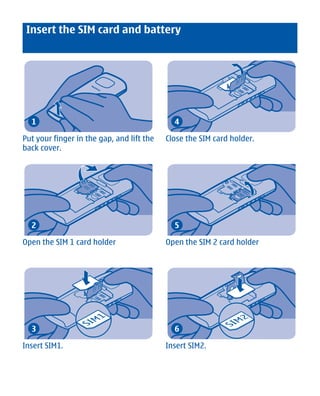

Insert the SIM card and battery




  1                                          4

Put your finger in the gap, and lift the   Close the SIM card holder.
back cover.




  2                                          5

Open the SIM 1 card holder                 Open the SIM 2 card holder




  3                                          6

Insert SIM1.                               Insert SIM2.




        Cyan Magenta Yellow Black

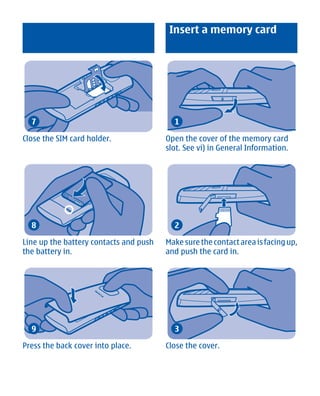

Insert a memory card




  7                                       1

Close the SIM card holder.              Open the cover of the memory card
                                        slot. See vi) in General Information.




  8                                       2

Line up the battery contacts and push   Make sure the contact area is facing up,
the battery in.                         and push the card in.




  9                                       3

Press the back cover into place.        Close the cover.




       Cyan Magenta Yellow Black
Charge the battery                       Switch on




                                               2 seconds



  1                                        1

Connect the charger to a wall outlet.    Press and hold the power key             .



                                                               Dual SIM

                                                           1   SIM1


                                                           2   SIM2

                                                       Select              Back
  2                                        2

Connect the charger to the phone.        Set which SIM card to use. Press OK.
                                         See v) in General Information.

                                                           Time:




                                                                   09
                                                                   09:00
                                                           OK              Back


  3                                        3

The phone indicates a full charge. You   To set the hour, press up or down. You
can use the phone while charging.        can also press the number keys.




       Cyan Magenta Yellow Black

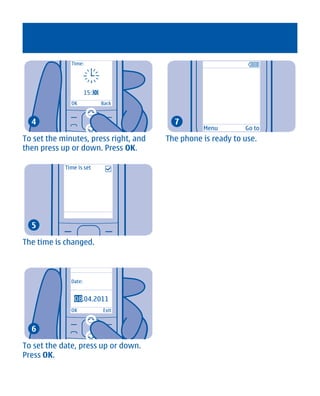

Time:




                      15:00
              OK              Back


  4                                      7
                                                 Menu        Go to
To set the minutes, press right, and   The phone is ready to use.
then press up or down. Press OK.

            Time is set




  5

The time is changed.



              Date:


                08
                08.04.2011
              OK              Exit


  6

To set the date, press up or down.
Press OK.




       Cyan Magenta Yellow Black

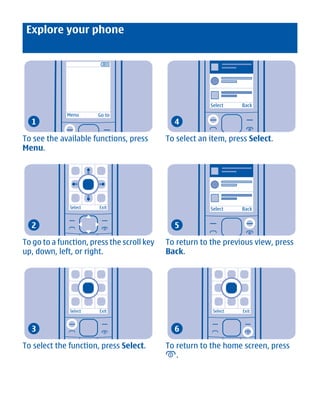

Explore your phone




                                                         Select    Back
             Menu      Go to
  1                                           4

To see the available functions, press       To select an item, press Select.
Menu.




              Select   Exit                              Select    Back


  2                                           5

To go to a function, press the scroll key   To return to the previous view, press
up, down, left, or right.                   Back.




              Select   Exit                               Select   Exit



  3                                           6

To select the function, press Select.       To return to the home screen, press
                                               .




        Cyan Magenta Yellow Black

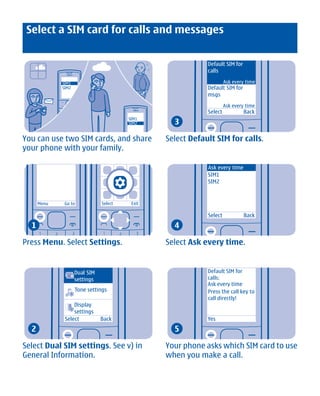

Select a SIM card for calls and messages


                                                             Default SIM for
                                                             calls

              SIM1                                                    Ask every time
              SIM2                                           Default SIM for
                                                             msgs
                                                                      Ask every time
                                                             Select            Back
                                                   3
                                         SIM1
                                         SIM2


You can use two SIM cards, and share             Select Default SIM for calls.
your phone with your family.

                                                             Ask every time
                                                             SIM1
                                                             SIM2


      Menu     Go to            Select    Exit

                                                             Select            Back
  1                                                4

Press Menu. Select Settings.                     Select Ask every time.


                     Dual SIM                                Default SIM for
                     settings                                calls:
                                                             Ask every time
                     Tone settings                           Press the call key to
                                                             call directly!
                   Display
                   settings
               Select           Back                         Yes
  2                                                5

Select Dual SIM settings. See v) in              Your phone asks which SIM card to use
General Information.                             when you make a call.




             Cyan Magenta Yellow Black
Default SIM for                           Menu    Go to
           calls
                    Ask every time
           Default SIM for
           msgs
                    Ask every time
           Select            Back
  6

Select Default SIM for msgs.            Tip: To open Dual SIM settings from
                                        the home screen, press and hold *.

           Ask every time
           SIM1
           SIM2




           Select            Back
  7

Select Ask every time.


           Default SIM for
           msgs.:
           Ask every time
           Press the call key to
           send the message
           directly!

           OK
  8

Your phone asks which SIM card to use
when you send a message.




       Cyan Magenta Yellow Black

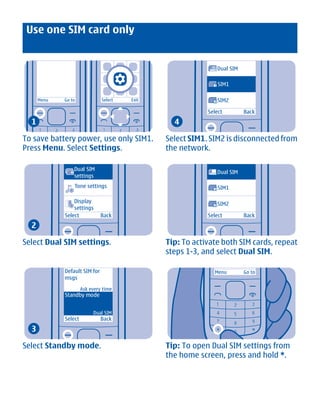

Use one SIM card only


                                                                  Dual SIM

                                                              1   SIM1

      Menu    Go to             Select   Exit                 2   SIM2

                                                            Select           Back
  1                                               4

To save battery power, use only SIM1.           Select SIM1. SIM2 is disconnected from
Press Menu. Select Settings.                    the network.

                  Dual SIM
                                                                  Dual SIM
                  settings
                  Tone settings                               1   SIM1

                  Display                                         SIM2
                                                              2
                  settings
              Select            Back                        Select           Back
  2

Select Dual SIM settings.                       Tip: To activate both SIM cards, repeat
                                                steps 1-3, and select Dual SIM.

              Default SIM for                                 Menu           Go to
              msgs

                       Ask every time
              Standby mode


                            Dual SIM
              Select            Back
  3

Select Standby mode.                            Tip: To open Dual SIM settings from
                                                the home screen, press and hold *.




             Cyan Magenta Yellow Black

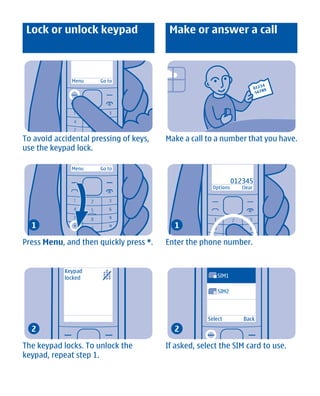

Lock or unlock keypad                   Make or answer a call



              Menu    Go to




To avoid accidental pressing of keys,   Make a call to a number that you have.
use the keypad lock.

              Menu    Go to

                                                                 012345
                                                      Options       Clear




  1                                       1

Press Menu, and then quickly press *.   Enter the phone number.


            Keypad
            locked                                    1   SIM1

                                                      2   SIM2



                                                    Select          Back
  2                                       2

The keypad locks. To unlock the         If asked, select the SIM card to use.
keypad, repeat step 1.




       Cyan Magenta Yellow Black

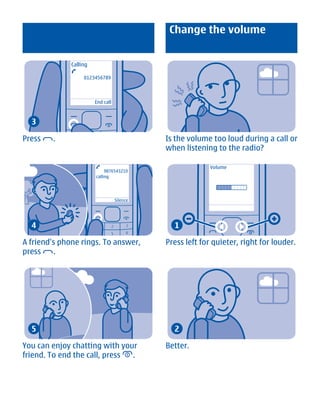

Change the volume


              Calling

                   0123456789



                        End call



  3

Press   .                                    Is the volume too loud during a call or
                                             when listening to the radio?

                                                           Volume
                             9876543210
                        calling




                                   Silence




  4                                            1

A friend's phone rings. To answer,           Press left for quieter, right for louder.
press     .




  5                                            2

You can enjoy chatting with your             Better.
friend. To end the call, press .




        Cyan Magenta Yellow Black

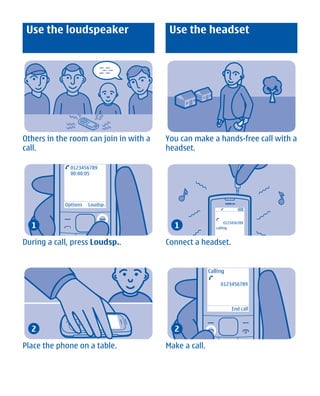

Use the loudspeaker                     Use the headset




Others in the room can join in with a   You can make a hands-free call with a
call.                                   headset.

              0123456789
              00:00:05




            Options   Loudsp.



  1                                       1                    0123456789
                                                          calling



During a call, press Loudsp..           Connect a headset.


                                                       Calling

                                                            0123456789



                                                                  End call



  2                                       2

Place the phone on a table.             Make a call.




       Cyan Magenta Yellow Black

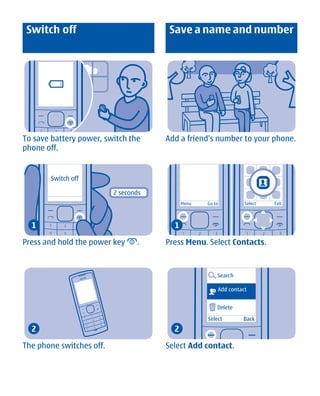

Switch off                            Save a name and number




To save battery power, switch the     Add a friend's number to your phone.
phone off.


       Switch off

                          2 seconds
                                            Menu   Go to         Select   Exit




  1                                     1

Press and hold the power key      .   Press Menu. Select Contacts.



                                                       Search

                                                       Add contact


                                                       Delete

                                                   Select       Back
  2                                     2

The phone switches off.               Select Add contact.




       Cyan Magenta Yellow Black
SIM1
            SIM2                           Phone number:              Phone number:
            Phone


                                                      0123                  0123456789
                                           OK         Clear           OK          Clear
            Select            Back

  3                                    6

Select where to save the contact.    Enter the phone number. Press OK.


              Contact name:

              Mi


              OK        Clear
                                                           Use      Back


  4                                    7

Write the name.                      Go to a picture, and press Use.


                                                           Mike

            Contact name:                                9876543210
                                                      calling
            Mike



            OK              Clear                                 Silence
  5                                    8

Press OK.                            When you receive a call, the name,
                                     number, and picture are shown.




       Cyan Magenta Yellow Black

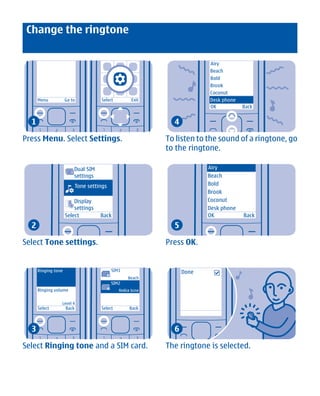

Change the ringtone


                                                                             Airy
                                                                             Beach
                                                                             Bold
                                                                             Brook
                                                                             Coconut
      Menu           Go to            Select             Exit                Desk phone
                                                                             OK           Back


  1                                                               4

Press Menu. Select Settings.                                    To listen to the sound of a ringtone, go
                                                                to the ringtone.

                         Dual SIM                                            Airy
                         settings                                            Beach
                            Tone settings                                    Bold
                                                                             Brook
                         Display                                             Coconut
                         settings                                            Desk phone
                     Select           Back                                   OK           Back
  2                                                               5

Select Tone settings.                                           Press OK.


      Ringing tone                              SIM1                  Done
                                            1
                                                       Beach
                                                SIM2
      Ringing volume                        2
                                                   Nokia tune


                 Level 4
      Select         Back             Select            Back



  3                                                               6

Select Ringing tone and a SIM card.                             The ringtone is selected.




               Cyan Magenta Yellow Black

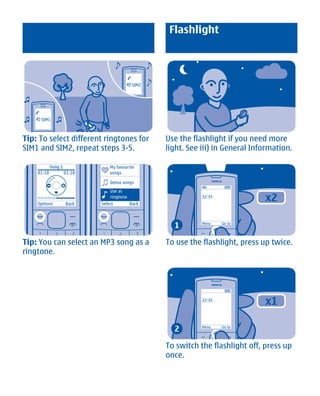

Flashlight



                                            2   SIM2




    1   SIM1



Tip: To select different ringtones for                 Use the flashlight if you need more
SIM1 and SIM2, repeat steps 3-5.                       light. See iii) in General Information.

            Song 1               My favourite
    01:10            01:18       songs

                                 Demo songs
                                 Use as

    Options          Back
                                 ringtone
                             Select         Back
                                                                  22:35
                                                                                     x2

                                                         1        Menu    Go to




Tip: You can select an MP3 song as a                   To use the flashlight, press up twice.
ringtone.




                                                                  22:35
                                                                                     x1

                                                         2        Menu    Go to




                                                       To switch the flashlight off, press up
                                                       once.




            Cyan Magenta Yellow Black

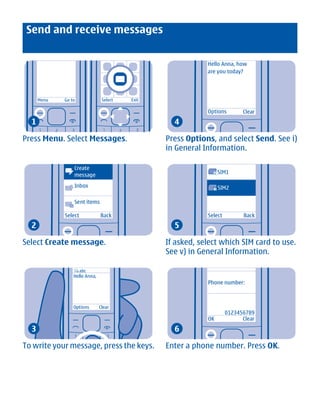

Send and receive messages


                                                             Hello Anna, how
                                                             are you today?




      Menu    Go to              Select   Exit

                                                             Options          Clear
  1                                                4

Press Menu. Select Messages.                     Press Options, and select Send. See i)
                                                 in General Information.

                  Create
                                                                      SIM1
                  message                                      1


                  Inbox                                               SIM2
                                                                  2


                  Sent items

              Select            Back                         Select           Back
  2                                                5

Select Create message.                           If asked, select which SIM card to use.
                                                 See v) in General Information.

                       abc
                  Hello Anna,
                                                             Phone number:



                  Options       Clear
                                                                        0123456789
                                                             OK               Clear
  3                                                6

To write your message, press the keys.           Enter a phone number. Press OK.




             Cyan Magenta Yellow Black
Write text


                                         Press a key repeatedly until the letter
                                         is shown.

                                         Change the writing language: select
                                         Menu > Settings > Phone
                                         settings > Language, the language,
  7                                      and OK. See iv) in General Information.

The message is sent.                     Insert a space: press 0.

                                         Change a word: press * repeatedly
                                         until the word is shown.
            1 message
            received                     Insert a number: press and hold the
                                         number key.

            Show          Exit           Insert a special character: press and
  8                                      hold *.

To read a message, press Show.           Change the text input method: press #
                                         repeatedly.

              Hello Anna, how            Use predictive text: select Options >
              are you today?             Dictionary and the language. Press a
                                         key for each letter. When the word is
                                         shown, press 0. Start writing the next
              Options     Back           word.

  9                                      Stop using predictive text: select
                                         Options > Dictionary > Dictionary
To view the rest of the message, press   off.
down.




       Cyan Magenta Yellow Black

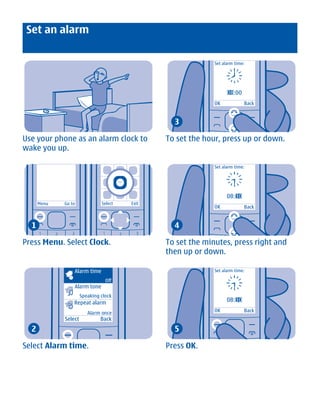

Set an alarm

                                                              Set alarm time:




                                                                    08
                                                                    08:00
                                                              OK            Back


                                                  3

Use your phone as an alarm clock to             To set the hour, press up or down.
wake you up.

                                                              Set alarm time:




                                                                    08:30
      Menu    Go to             Select   Exit
                                                              OK            Back


  1                                               4

Press Menu. Select Clock.                       To set the minutes, press right and
                                                then up or down.

                  Alarm time                                  Set alarm time:

                                  Off
                  Alarm tone
                       Speaking clock
                  Repeat alarm                                      08:30

                          Alarm once                          OK            Back
              Select            Back
  2                                               5

Select Alarm time.                              Press OK.




             Cyan Magenta Yellow Black

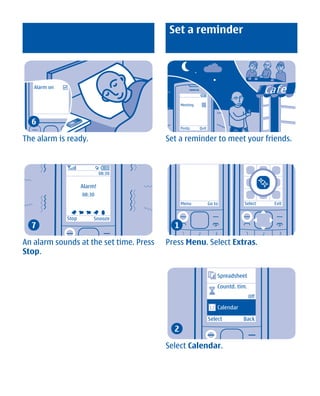

Set a reminder




   Alarm on


                                               Meeting



  6
                                               Postp.    Quit


The alarm is ready.                      Set a reminder to meet your friends.



                              08:30

                     Alarm!
                     08:30
                                               Menu             Go to          Select    Exit


              Stop        Snooze
  7                                        1

An alarm sounds at the set time. Press   Press Menu. Select Extras.
Stop.

                                                                    Spreadsheet
                                                                    Countd. tim.
                                                                                   Off

                                                                    Calendar

                                                                Select         Back
                                           2

                                         Select Calendar.




         Cyan Magenta Yellow Black

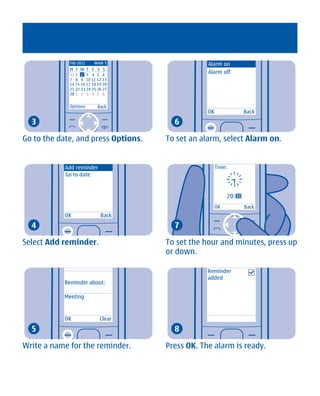

Feb 2011     Week 5                 Alarm on
             M T W T F S S
             31 1 2 3 4 5 6
                                                 Alarm off
             7 8 9 10 11 12 13
             14 15 16 17 18 19 20
             21 22 23 24 25 26 27
             28 1 2 3 4 5 6


             Options        Back
                                                 OK                Back
  3                                    6

Go to the date, and press Options.   To set an alarm, select Alarm on.


            Add reminder                              Time:
            Go to date


                                                           20:30
                                                      OK           Back
            OK               Back
  4                                    7

Select Add reminder.                 To set the hour and minutes, press up
                                     or down.

                                                 Reminder
                                                 added
           Reminder about:

           Meeting



           OK                Clear
  5                                    8

Write a name for the reminder.       Press OK. The alarm is ready.




       Cyan Magenta Yellow Black

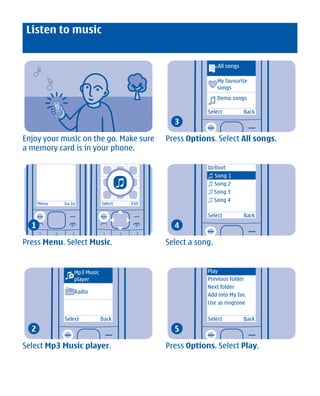

Listen to music


                                                                All songs

                                                                My favourite
                                                                songs
                                                                Demo songs

                                                          Select            Back
                                                3

Enjoy your music on the go. Make sure         Press Options. Select All songs.
a memory card is in your phone.

                                                               Root
                                                               Song 1
                                                               Song 2
                                                               Song 3
                                                               Song 4
      Menu    Go to           Select   Exit

                                                          Select            Back
  1                                             4

Press Menu. Select Music.                     Select a song.


                  Mp3 Music                               Play
                  player                                  Previous folder
                                                          Next folder
                  Radio
                                                          Add into My fav.
                                                          Use as ringtone

              Select          Back                        Select            Back
  2                                             5

Select Mp3 Music player.                      Press Options. Select Play.




             Cyan Magenta Yellow Black

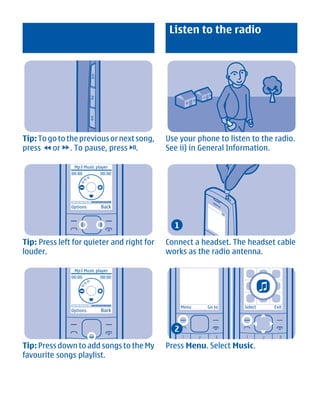

Listen to the radio




Tip: To go to the previous or next song,    Use your phone to listen to the radio.
press or . To pause, press .                See ii) in General Information.

                Mp3 Music player
               00:00        00:00




               Options      Back


                                              1

Tip: Press left for quieter and right for   Connect a headset. The headset cable
louder.                                     works as the radio antenna.

                Mp3 Music player
               00:00        00:00




                                                  Menu   Go to     Select   Exit
               Options      Back


                                              2

Tip: Press down to add songs to the My      Press Menu. Select Music.
favourite songs playlist.




        Cyan Magenta Yellow Black

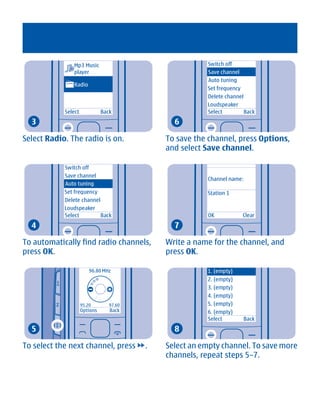

Mp3 Music                                 Switch off
               player                                    Save channel
                                                         Auto tuning
               Radio
                                                         Set frequency
                                                         Delete channel
                                                         Loudspeaker
            Select             Back                      Select         Back
  3                                             6

Select Radio. The radio is on.                To save the channel, press Options,
                                              and select Save channel.

            Switch off
            Save channel
                                                         Channel name:
            Auto tuning
            Set frequency                                Station 1
            Delete channel
            Loudspeaker
            Select         Back                          OK            Clear
  4                                             7

To automatically find radio channels,         Write a name for the channel, and
press OK.                                     press OK.

                         96.80 MHz                       1. (empty)
                                                         2. (empty)
                                                         3. (empty)
                                                         4. (empty)
                     95.20        97.60                  5. (empty)
                     Options      Back                   6. (empty)
                                                         Select        Back
  5                                             8

To select the next channel, press         .   Select an empty channel. To save more
                                              channels, repeat steps 5–7.




       Cyan Magenta Yellow Black

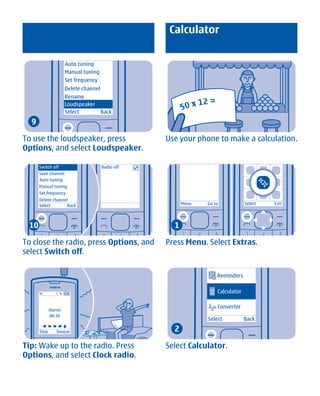

Calculator


                      Auto tuning
                      Manual tuning
                      Set frequency
                      Delete channel
                      Rename
                      Loudspeaker
                      Select         Back
  9

To use the loudspeaker, press                     Use your phone to make a calculation.
Options, and select Loudspeaker.

      Switch off                      Radio off
      Save channel
      Auto tuning
      Manual tuning
      Set frequency
      Delete channel
      Select        Back                                Menu   Go to            Select   Exit




 10                                                 1

To close the radio, press Options, and            Press Menu. Select Extras.
select Switch off.

                                                                   Reminders

                                                                   Calculator

                                                                   Converter
             Alarm!
             08:30
                                                               Select           Back

      Stop      Snooze                              2

Tip: Wake up to the radio. Press                  Select Calculator.
Options, and select Clock radio.




             Cyan Magenta Yellow Black

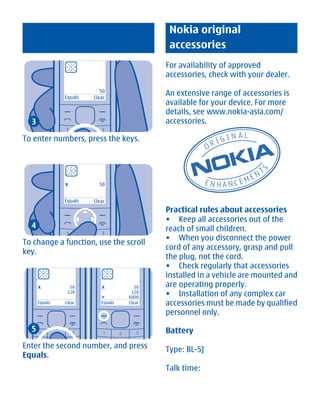

Nokia original
                                             accessories
                                            For availability of approved
                                            accessories, check with your dealer.

               Equals
                           50
                        Clear
                                            An extensive range of accessories is
                                            available for your device. For more
                                            details, see www.nokia-asia.com/
  3                                         accessories.

To enter numbers, press the keys.




               x          50


               Equals   Clear
                                            Practical rules about accessories
                                            • Keep all accessories out of the
  4                                         reach of small children.
                                            • When you disconnect the power
To change a function, use the scroll
                                            cord of any accessory, grasp and pull
key.
                                            the plug, not the cord.
                                            • Check regularly that accessories
                                            installed in a vehicle are mounted and
      x          50        x           50   are operating properly.
                120
                           =
                                     120
                                    6000
                                            • Installation of any complex car
      Equals   Clear       Equals   Clear   accessories must be made by qualified
                                            personnel only.

  5                                         Battery
Enter the second number, and press          Type: BL-5J
Equals.
                                            Talk time:




           Cyan Magenta Yellow Black

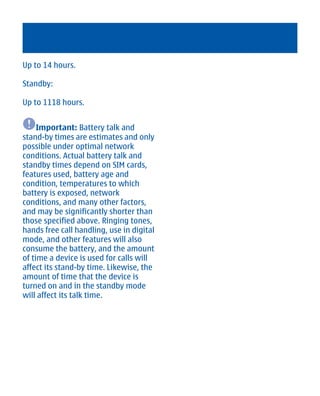

Up to 14 hours.

Standby:

Up to 1118 hours.


     Important: Battery talk and
stand-by times are estimates and only
possible under optimal network
conditions. Actual battery talk and
standby times depend on SIM cards,
features used, battery age and
condition, temperatures to which
battery is exposed, network
conditions, and many other factors,
and may be significantly shorter than
those specified above. Ringing tones,
hands free call handling, use in digital
mode, and other features will also
consume the battery, and the amount
of time a device is used for calls will
affect its stand-by time. Likewise, the
amount of time that the device is
turned on and in the standby mode
will affect its talk time.




        Cyan Magenta Yellow Black

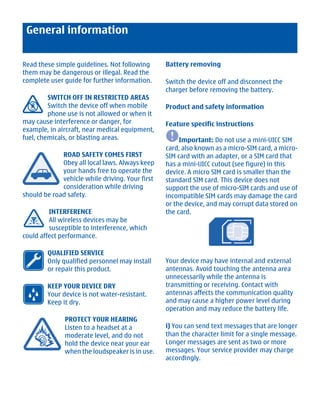

General information


Read these simple guidelines. Not following      Battery removing
them may be dangerous or illegal. Read the
complete user guide for further information.     Switch the device off and disconnect the
                                                 charger before removing the battery.
         SWITCH OFF IN RESTRICTED AREAS
         Switch the device off when mobile       Product and safety information
         phone use is not allowed or when it
may cause interference or danger, for            Feature specific instructions
example, in aircraft, near medical equipment,
fuel, chemicals, or blasting areas.                   Important: Do not use a mini-UICC SIM
                                                 card, also known as a micro-SIM card, a micro-
             ROAD SAFETY COMES FIRST             SIM card with an adapter, or a SIM card that
             Obey all local laws. Always keep    has a mini-UICC cutout (see figure) in this
             your hands free to operate the      device. A micro SIM card is smaller than the
             vehicle while driving. Your first   standard SIM card. This device does not
             consideration while driving         support the use of micro-SIM cards and use of
should be road safety.                           incompatible SIM cards may damage the card
                                                 or the device, and may corrupt data stored on
         INTERFERENCE                            the card.
         All wireless devices may be
         susceptible to interference, which
could affect performance.

        QUALIFIED SERVICE
        Only qualified personnel may install     Your device may have internal and external
        or repair this product.                  antennas. Avoid touching the antenna area
                                                 unnecessarily while the antenna is
        KEEP YOUR DEVICE DRY                     transmitting or receiving. Contact with
        Your device is not water-resistant.      antennas affects the communication quality
        Keep it dry.                             and may cause a higher power level during
                                                 operation and may reduce the battery life.
              PROTECT YOUR HEARING
              Listen to a headset at a           i) You can send text messages that are longer
              moderate level, and do not         than the character limit for a single message.
              hold the device near your ear      Longer messages are sent as two or more
              when the loudspeaker is in use.    messages. Your service provider may charge
                                                 accordingly.




         Cyan Magenta Yellow Black
Characters with accents, other marks, or some       Your device supports microSD cards with a
language options, take more space, and limit        capacity of up to 16 GB.
the number of characters that can be sent in a
single message.

ii) To listen to the radio, you need to attach a
compatible headset to the device. The headset
acts as an antenna.
                                                        Important: Do not remove the memory
                                                    card when an application is using it. Doing so
iii) Do not shine the flashlight in anyone's        may damage the memory card and the device,
eyes.                                               and corrupt data stored on the card.

iv) Sending and receiving messages in some          Network services and costs
languages is a network service. For                 Your device is approved for use on the (E)GSM
availability, contact your service provider.        900 and 1800 MHz networks.
Send messages only to devices that support
the selected language.                              To use the device, you need a subscription
                                                    with a service provider.
v) If you only have one SIM card, insert the card
into the SIM1 card holder.                          Using network services and downloading
                                                    content to your device requires a network
Some features and services are only available       connection and may result in data traffic costs.
when using the SIM card in the SIM1 card            Some product features require support from
holder.                                             the network, and you may need to subscribe
                                                    to them.
Both SIM cards are available at the same time
when the phone is not being used, but while         Take care of your device
one SIM card is active, for example, making a       Handle your device, battery, charger and
call or sending or receiving a message, the         accessories with care. The following
other is unavailable.                               suggestions help you protect your warranty
                                                    coverage.
vi) Use only compatible memory cards                • Keep the device dry. Precipitation,
approved by Nokia for use with this device.         humidity, and all types of liquids or moisture
Incompatible cards may damage the card and          can contain minerals that corrode electronic
the device and corrupt data stored on the card.     circuits. If your device gets wet, remove the
                                                    battery, and allow the device to dry.




         Cyan Magenta Yellow Black

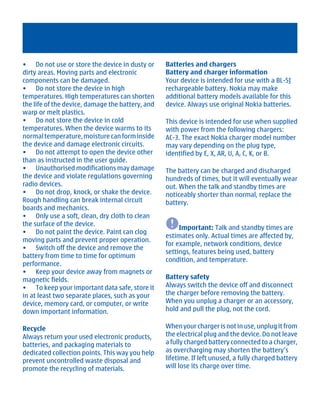

• Do not use or store the device in dusty or      Batteries and chargers
dirty areas. Moving parts and electronic          Battery and charger information
components can be damaged.                        Your device is intended for use with a BL-5J
• Do not store the device in high                 rechargeable battery. Nokia may make
temperatures. High temperatures can shorten       additional battery models available for this
the life of the device, damage the battery, and   device. Always use original Nokia batteries.
warp or melt plastics.
• Do not store the device in cold                 This device is intended for use when supplied
temperatures. When the device warms to its        with power from the following chargers:
normal temperature, moisture can form inside      AC-3. The exact Nokia charger model number
the device and damage electronic circuits.        may vary depending on the plug type,
• Do not attempt to open the device other         identified by E, X, AR, U, A, C, K, or B.
than as instructed in the user guide.
• Unauthorised modifications may damage           The battery can be charged and discharged
the device and violate regulations governing      hundreds of times, but it will eventually wear
radio devices.                                    out. When the talk and standby times are
• Do not drop, knock, or shake the device.        noticeably shorter than normal, replace the
Rough handling can break internal circuit         battery.
boards and mechanics.
• Only use a soft, clean, dry cloth to clean
the surface of the device.
                                                       Important: Talk and standby times are
• Do not paint the device. Paint can clog
                                                  estimates only. Actual times are affected by,
moving parts and prevent proper operation.
                                                  for example, network conditions, device
• Switch off the device and remove the
                                                  settings, features being used, battery
battery from time to time for optimum
                                                  condition, and temperature.
performance.
• Keep your device away from magnets or
magnetic fields.                                  Battery safety
• To keep your important data safe, store it      Always switch the device off and disconnect
in at least two separate places, such as your     the charger before removing the battery.
device, memory card, or computer, or write        When you unplug a charger or an accessory,
down important information.                       hold and pull the plug, not the cord.

Recycle                                           When your charger is not in use, unplug it from
Always return your used electronic products,      the electrical plug and the device. Do not leave
batteries, and packaging materials to             a fully charged battery connected to a charger,
dedicated collection points. This way you help    as overcharging may shorten the battery’s
prevent uncontrolled waste disposal and           lifetime. If left unused, a fully charged battery
promote the recycling of materials.               will lose its charge over time.




         Cyan Magenta Yellow Black

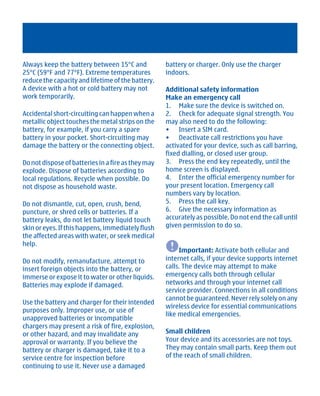

Always keep the battery between 15°C and            battery or charger. Only use the charger
25°C (59°F and 77°F). Extreme temperatures          indoors.
reduce the capacity and lifetime of the battery.
A device with a hot or cold battery may not         Additional safety information
work temporarily.                                   Make an emergency call
                                                    1. Make sure the device is switched on.
Accidental short-circuiting can happen when a       2. Check for adequate signal strength. You
metallic object touches the metal strips on the     may also need to do the following:
battery, for example, if you carry a spare          • Insert a SIM card.
battery in your pocket. Short-circuiting may        • Deactivate call restrictions you have
damage the battery or the connecting object.        activated for your device, such as call barring,
                                                    fixed dialling, or closed user group.
Do not dispose of batteries in a fire as they may   3. Press the end key repeatedly, until the
explode. Dispose of batteries according to          home screen is displayed.
local regulations. Recycle when possible. Do        4. Enter the official emergency number for
not dispose as household waste.                     your present location. Emergency call
                                                    numbers vary by location.
Do not dismantle, cut, open, crush, bend,           5. Press the call key.
puncture, or shred cells or batteries. If a         6. Give the necessary information as
battery leaks, do not let battery liquid touch      accurately as possible. Do not end the call until
skin or eyes. If this happens, immediately flush    given permission to do so.
the affected areas with water, or seek medical
help.
                                                         Important: Activate both cellular and
Do not modify, remanufacture, attempt to            internet calls, if your device supports internet
insert foreign objects into the battery, or         calls. The device may attempt to make
immerse or expose it to water or other liquids.     emergency calls both through cellular
Batteries may explode if damaged.                   networks and through your internet call
                                                    service provider. Connections in all conditions
                                                    cannot be guaranteed. Never rely solely on any
Use the battery and charger for their intended
                                                    wireless device for essential communications
purposes only. Improper use, or use of
                                                    like medical emergencies.
unapproved batteries or incompatible
chargers may present a risk of fire, explosion,
or other hazard, and may invalidate any             Small children
approval or warranty. If you believe the            Your device and its accessories are not toys.
battery or charger is damaged, take it to a         They may contain small parts. Keep them out
service centre for inspection before                of the reach of small children.
continuing to use it. Never use a damaged




         Cyan Magenta Yellow Black

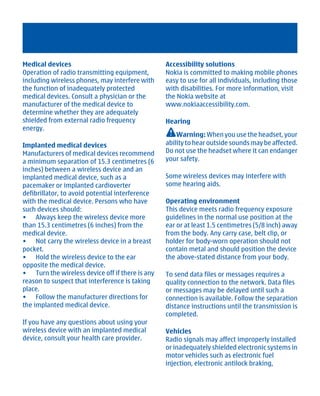

Medical devices                                  Accessibility solutions
Operation of radio transmitting equipment,       Nokia is committed to making mobile phones
including wireless phones, may interfere with    easy to use for all individuals, including those
the function of inadequately protected           with disabilities. For more information, visit
medical devices. Consult a physician or the      the Nokia website at
manufacturer of the medical device to            www.nokiaaccessibility.com.
determine whether they are adequately
shielded from external radio frequency           Hearing
energy.
                                                     Warning: When you use the headset, your
Implanted medical devices                        ability to hear outside sounds may be affected.
Manufacturers of medical devices recommend       Do not use the headset where it can endanger
a minimum separation of 15.3 centimetres (6      your safety.
inches) between a wireless device and an
implanted medical device, such as a              Some wireless devices may interfere with
pacemaker or implanted cardioverter              some hearing aids.
defibrillator, to avoid potential interference
with the medical device. Persons who have        Operating environment
such devices should:                             This device meets radio frequency exposure
• Always keep the wireless device more           guidelines in the normal use position at the
than 15.3 centimetres (6 inches) from the        ear or at least 1.5 centimetres (5/8 inch) away
medical device.                                  from the body. Any carry case, belt clip, or
• Not carry the wireless device in a breast      holder for body-worn operation should not
pocket.                                          contain metal and should position the device
• Hold the wireless device to the ear            the above-stated distance from your body.
opposite the medical device.
• Turn the wireless device off if there is any   To send data files or messages requires a
reason to suspect that interference is taking    quality connection to the network. Data files
place.                                           or messages may be delayed until such a
• Follow the manufacturer directions for         connection is available. Follow the separation
the implanted medical device.                    distance instructions until the transmission is
                                                 completed.
If you have any questions about using your
wireless device with an implanted medical        Vehicles
device, consult your health care provider.       Radio signals may affect improperly installed
                                                 or inadequately shielded electronic systems in
                                                 motor vehicles such as electronic fuel
                                                 injection, electronic antilock braking,




         Cyan Magenta Yellow Black

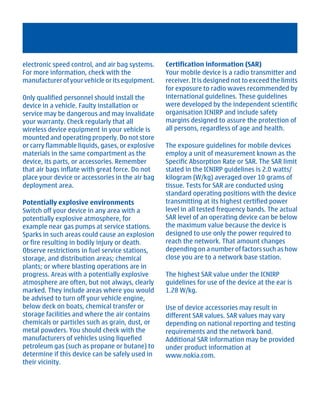

electronic speed control, and air bag systems.    Certification information (SAR)
For more information, check with the              Your mobile device is a radio transmitter and
manufacturer of your vehicle or its equipment.    receiver. It is designed not to exceed the limits
                                                  for exposure to radio waves recommended by
Only qualified personnel should install the       international guidelines. These guidelines
device in a vehicle. Faulty installation or       were developed by the independent scientific
service may be dangerous and may invalidate       organisation ICNIRP and include safety
your warranty. Check regularly that all           margins designed to assure the protection of
wireless device equipment in your vehicle is      all persons, regardless of age and health.
mounted and operating properly. Do not store
or carry flammable liquids, gases, or explosive   The exposure guidelines for mobile devices
materials in the same compartment as the          employ a unit of measurement known as the
device, its parts, or accessories. Remember       Specific Absorption Rate or SAR. The SAR limit
that air bags inflate with great force. Do not    stated in the ICNIRP guidelines is 2.0 watts/
place your device or accessories in the air bag   kilogram (W/kg) averaged over 10 grams of
deployment area.                                  tissue. Tests for SAR are conducted using
                                                  standard operating positions with the device
Potentially explosive environments                transmitting at its highest certified power
Switch off your device in any area with a         level in all tested frequency bands. The actual
potentially explosive atmosphere, for             SAR level of an operating device can be below
example near gas pumps at service stations.       the maximum value because the device is
Sparks in such areas could cause an explosion     designed to use only the power required to
or fire resulting in bodily injury or death.      reach the network. That amount changes
Observe restrictions in fuel service stations,    depending on a number of factors such as how
storage, and distribution areas; chemical         close you are to a network base station.
plants; or where blasting operations are in
progress. Areas with a potentially explosive      The highest SAR value under the ICNIRP
atmosphere are often, but not always, clearly     guidelines for use of the device at the ear is
marked. They include areas where you would        1.28 W/kg.
be advised to turn off your vehicle engine,
below deck on boats, chemical transfer or         Use of device accessories may result in
storage facilities and where the air contains     different SAR values. SAR values may vary
chemicals or particles such as grain, dust, or    depending on national reporting and testing
metal powders. You should check with the          requirements and the network band.
manufacturers of vehicles using liquefied         Additional SAR information may be provided
petroleum gas (such as propane or butane) to      under product information at
determine if this device can be safely used in    www.nokia.com.
their vicinity.




         Cyan Magenta Yellow Black

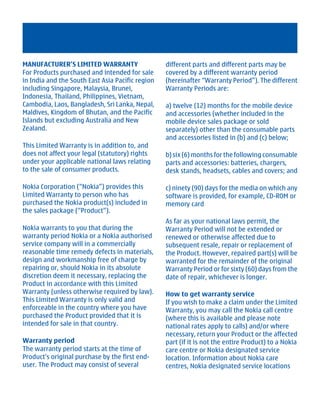

MANUFACTURER’S LIMITED WARRANTY                   different parts and different parts may be
For Products purchased and intended for sale      covered by a different warranty period
in India and the South East Asia Pacific region   (hereinafter “Warranty Period”). The different
including Singapore, Malaysia, Brunei,            Warranty Periods are:
Indonesia, Thailand, Philippines, Vietnam,
Cambodia, Laos, Bangladesh, Sri Lanka, Nepal,     a) twelve (12) months for the mobile device
Maldives, Kingdom of Bhutan, and the Pacific      and accessories (whether included in the
Islands but excluding Australia and New           mobile device sales package or sold
Zealand.                                          separately) other than the consumable parts
                                                  and accessories listed in (b) and (c) below;
This Limited Warranty is in addition to, and
does not affect your legal (statutory) rights     b) six (6) months for the following consumable
under your applicable national laws relating      parts and accessories: batteries, chargers,
to the sale of consumer products.                 desk stands, headsets, cables and covers; and

Nokia Corporation (“Nokia”) provides this         c) ninety (90) days for the media on which any
Limited Warranty to person who has                software is provided, for example, CD-ROM or
purchased the Nokia product(s) included in        memory card
the sales package (“Product”).
                                                  As far as your national laws permit, the
Nokia warrants to you that during the             Warranty Period will not be extended or
warranty period Nokia or a Nokia authorised       renewed or otherwise affected due to
service company will in a commercially            subsequent resale, repair or replacement of
reasonable time remedy defects in materials,      the Product. However, repaired part(s) will be
design and workmanship free of charge by          warranted for the remainder of the original
repairing or, should Nokia in its absolute        Warranty Period or for sixty (60) days from the
discretion deem it necessary, replacing the       date of repair, whichever is longer.
Product in accordance with this Limited
Warranty (unless otherwise required by law).      How to get warranty service
This Limited Warranty is only valid and           If you wish to make a claim under the Limited
enforceable in the country where you have         Warranty, you may call the Nokia call centre
purchased the Product provided that it is         (where this is available and please note
intended for sale in that country.                national rates apply to calls) and/or where
                                                  necessary, return your Product or the affected
Warranty period                                   part (if it is not the entire Product) to a Nokia
The warranty period starts at the time of         care centre or Nokia designated service
Product's original purchase by the first end-     location. Information about Nokia care
user. The Product may consist of several          centres, Nokia designated service locations




         Cyan Magenta Yellow Black

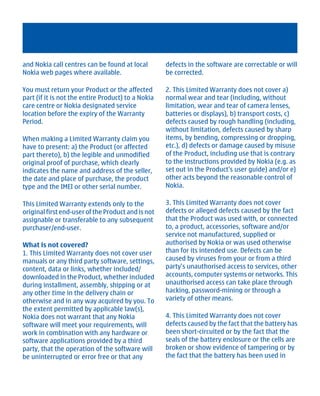

and Nokia call centres can be found at local        defects in the software are correctable or will
Nokia web pages where available.                    be corrected.

You must return your Product or the affected        2. This Limited Warranty does not cover a)
part (if it is not the entire Product) to a Nokia   normal wear and tear (including, without
care centre or Nokia designated service             limitation, wear and tear of camera lenses,
location before the expiry of the Warranty          batteries or displays), b) transport costs, c)
Period.                                             defects caused by rough handling (including,
                                                    without limitation, defects caused by sharp
When making a Limited Warranty claim you            items, by bending, compressing or dropping,
have to present: a) the Product (or affected        etc.), d) defects or damage caused by misuse
part thereto), b) the legible and unmodified        of the Product, including use that is contrary
original proof of purchase, which clearly           to the instructions provided by Nokia (e.g. as
indicates the name and address of the seller,       set out in the Product's user guide) and/or e)
the date and place of purchase, the product         other acts beyond the reasonable control of
type and the IMEI or other serial number.           Nokia.

This Limited Warranty extends only to the           3. This Limited Warranty does not cover
original first end-user of the Product and is not   defects or alleged defects caused by the fact
assignable or transferable to any subsequent        that the Product was used with, or connected
purchaser/end-user.                                 to, a product, accessories, software and/or
                                                    service not manufactured, supplied or
What is not covered?                                authorised by Nokia or was used otherwise
1. This Limited Warranty does not cover user        than for its intended use. Defects can be
manuals or any third party software, settings,      caused by viruses from your or from a third
content, data or links, whether included/           party's unauthorised access to services, other
downloaded in the Product, whether included         accounts, computer systems or networks. This
during installment, assembly, shipping or at        unauthorised access can take place through
any other time in the delivery chain or             hacking, password-mining or through a
otherwise and in any way acquired by you. To        variety of other means.
the extent permitted by applicable law(s),
Nokia does not warrant that any Nokia               4. This Limited Warranty does not cover
software will meet your requirements, will          defects caused by the fact that the battery has
work in combination with any hardware or            been short-circuited or by the fact that the
software applications provided by a third           seals of the battery enclosure or the cells are
party, that the operation of the software will      broken or show evidence of tampering or by
be uninterrupted or error free or that any          the fact that the battery has been used in




          Cyan Magenta Yellow Black

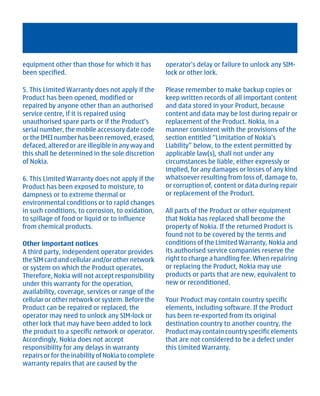

equipment other than those for which it has         operator's delay or failure to unlock any SIM-
been specified.                                     lock or other lock.

5. This Limited Warranty does not apply if the      Please remember to make backup copies or
Product has been opened, modified or                keep written records of all important content
repaired by anyone other than an authorised         and data stored in your Product, because
service centre, if it is repaired using             content and data may be lost during repair or
unauthorised spare parts or if the Product’s        replacement of the Product. Nokia, in a
serial number, the mobile accessory date code       manner consistent with the provisions of the
or the IMEI number has been removed, erased,        section entitled “Limitation of Nokia's
defaced, altered or are illegible in any way and    Liability” below, to the extent permitted by
this shall be determined in the sole discretion     applicable law(s), shall not under any
of Nokia.                                           circumstances be liable, either expressly or
                                                    implied, for any damages or losses of any kind
6. This Limited Warranty does not apply if the      whatsoever resulting from loss of, damage to,
Product has been exposed to moisture, to            or corruption of, content or data during repair
dampness or to extreme thermal or                   or replacement of the Product.
environmental conditions or to rapid changes
in such conditions, to corrosion, to oxidation,     All parts of the Product or other equipment
to spillage of food or liquid or to influence       that Nokia has replaced shall become the
from chemical products.                             property of Nokia. If the returned Product is
                                                    found not to be covered by the terms and
Other important notices                             conditions of the Limited Warranty, Nokia and
A third party, independent operator provides        its authorised service companies reserve the
the SIM card and cellular and/or other network      right to charge a handling fee. When repairing
or system on which the Product operates.            or replacing the Product, Nokia may use
Therefore, Nokia will not accept responsibility     products or parts that are new, equivalent to
under this warranty for the operation,              new or reconditioned.
availability, coverage, services or range of the
cellular or other network or system. Before the     Your Product may contain country specific
Product can be repaired or replaced, the            elements, including software. If the Product
operator may need to unlock any SIM-lock or         has been re-exported from its original
other lock that may have been added to lock         destination country to another country, the
the product to a specific network or operator.      Product may contain country specific elements
Accordingly, Nokia does not accept                  that are not considered to be a defect under
responsibility for any delays in warranty           this Limited Warranty.
repairs or for the inability of Nokia to complete
warranty repairs that are caused by the




         Cyan Magenta Yellow Black

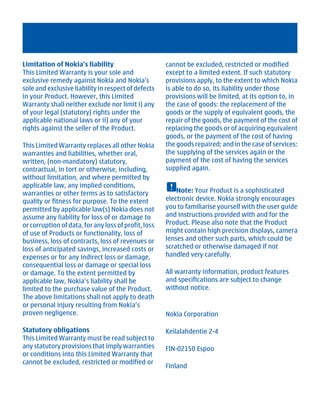

Limitation of Nokia's liability                       cannot be excluded, restricted or modified
This Limited Warranty is your sole and                except to a limited extent. If such statutory
exclusive remedy against Nokia and Nokia's            provisions apply, to the extent to which Nokia
sole and exclusive liability in respect of defects    is able to do so, its liability under those
in your Product. However, this Limited                provisions will be limited, at its option to, in
Warranty shall neither exclude nor limit i) any       the case of goods: the replacement of the
of your legal (statutory) rights under the            goods or the supply of equivalent goods, the
applicable national laws or ii) any of your           repair of the goods, the payment of the cost of
rights against the seller of the Product.             replacing the goods or of acquiring equivalent
                                                      goods, or the payment of the cost of having
This Limited Warranty replaces all other Nokia        the goods repaired; and in the case of services:
warranties and liabilities, whether oral,             the supplying of the services again or the
written, (non-mandatory) statutory,                   payment of the cost of having the services
contractual, in tort or otherwise, including,         supplied again.
without limitation, and where permitted by
applicable law, any implied conditions,
warranties or other terms as to satisfactory              Note: Your Product is a sophisticated
quality or fitness for purpose. To the extent         electronic device. Nokia strongly encourages
permitted by applicable law(s) Nokia does not         you to familiarise yourself with the user guide
assume any liability for loss of or damage to         and instructions provided with and for the
or corruption of data, for any loss of profit, loss   Product. Please also note that the Product
of use of Products or functionality, loss of          might contain high precision displays, camera
business, loss of contracts, loss of revenues or      lenses and other such parts, which could be
loss of anticipated savings, increased costs or       scratched or otherwise damaged if not
expenses or for any indirect loss or damage,          handled very carefully.
consequential loss or damage or special loss
or damage. To the extent permitted by                 All warranty information, product features
applicable law, Nokia’s liability shall be            and specifications are subject to change
limited to the purchase value of the Product.         without notice.
The above limitations shall not apply to death
or personal injury resulting from Nokia’s
proven negligence.                                    Nokia Corporation

Statutory obligations                                 Keilalahdentie 2-4
This Limited Warranty must be read subject to
any statutory provisions that imply warranties        FIN-02150 Espoo
or conditions into this Limited Warranty that
cannot be excluded, restricted or modified or
                                                      Finland




          Cyan Magenta Yellow Black

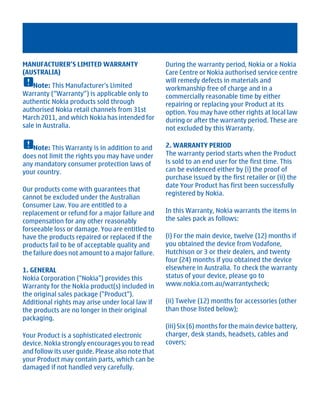

MANUFACTURER’S LIMITED WARRANTY                    During the warranty period, Nokia or a Nokia
(AUSTRALIA)                                        Care Centre or Nokia authorised service centre
                                                   will remedy defects in materials and
    Note: This Manufacturer's Limited              workmanship free of charge and in a
Warranty (“Warranty”) is applicable only to        commercially reasonable time by either
authentic Nokia products sold through              repairing or replacing your Product at its
authorised Nokia retail channels from 31st         option. You may have other rights at local law
March 2011, and which Nokia has intended for       during or after the warranty period. These are
sale in Australia.                                 not excluded by this Warranty.

   Note: This Warranty is in addition to and       2. WARRANTY PERIOD
does not limit the rights you may have under       The warranty period starts when the Product
any mandatory consumer protection laws of          is sold to an end user for the first time. This
your country.                                      can be evidenced either by (i) the proof of
                                                   purchase issued by the first retailer or (ii) the
                                                   date Your Product has first been successfully
Our products come with guarantees that
                                                   registered by Nokia.
cannot be excluded under the Australian
Consumer Law. You are entitled to a
replacement or refund for a major failure and      In this Warranty, Nokia warrants the items in
compensation for any other reasonably              the sales pack as follows:
forseeable loss or damage. You are entitled to
have the products repaired or replaced if the      (i) For the main device, twelve (12) months if
products fail to be of acceptable quality and      you obtained the device from Vodafone,
the failure does not amount to a major failure.    Hutchison or 3 or their dealers, and twenty
                                                   four (24) months if you obtained the device
1. GENERAL                                         elsewhere in Australia. To check the warranty
Nokia Corporation ("Nokia") provides this          status of your device, please go to
Warranty for the Nokia product(s) included in      www.nokia.com.au/warrantycheck;
the original sales package ("Product").
Additional rights may arise under local law if     (ii) Twelve (12) months for accessories (other
the products are no longer in their original       than those listed below);
packaging.
                                                   (iii) Six (6) months for the main device battery,
Your Product is a sophisticated electronic         charger, desk stands, headsets, cables and
device. Nokia strongly encourages you to read      covers;
and follow its user guide. Please also note that
your Product may contain parts, which can be
damaged if not handled very carefully.




         Cyan Magenta Yellow Black
(iv) Twelve (12) months for the main device       • Date and place of purchase, as well as the
battery if the battery is integrated within the   name of the retailer from whom your Product
device and non-removable;                         was first purchased; and
                                                  • A short description of the issue affecting
(v) Three (3) months for the CD-ROM and           your Product
memory card.
                                                  You will need to deliver your Product to a
No repair or replacement will renew or extend     Nokia Care Centre or Nokia authorised service
the warranty periods. However, original or        centre at your own cost. If you visit a Nokia
replacement parts or replacement Products         Care Centre or Nokia authorised service centre
provided under this Warranty will be covered      for assistance under this Warranty, please
by this Warranty for the remainder of the         remember to bring along a copy of the original
original warranty period or for sixty (60) days   proof of purchase.
from the date of repair or replacement,
whichever is longer.                              If you wish to claim under this Warranty, you
                                                  must inform Nokia or a Nokia Care Centre or
3. HOW TO OBTAIN YOUR WARRANTY                    Nokia authorised service centre of the issue
SERVICE                                           affecting your Product within a reasonable
If you suspect that your Product may require      time from noticing it and always before the
service under this Warranty, please first go to   applicable warranty period expires (see
www.nokia.com.au/support, and follow any          section 2 above). After the warranty period,
instructions on how to troubleshoot the           you may have other rights at local law. These
suspected issue and how to proceed. You can       are not excluded by this Warranty.
also call the Nokia Careline for assistance
(national or premium rates may apply). You        Nokia recommends that you register your
can find information about how to contact         Product with Nokia or activate a Nokia user
Nokia in the sales package or at                  account, which may in some circumstances
www.nokia.com.au/contactus. If you call the       enable Nokia to provide you a more
Nokia Careline or use other available support,    personalised warranty service.
please have the following information readily
available:                                        4. WHAT THIS WARRANTY DOES NOT COVER
• Your name, address, telephone number,           Nokia does not provide a Warranty for the
OVI user account details, and other contact       following:
information;
• Your Product type, name, model number,          1. User guides
product code, and serial number, which are
available from the sales package of your
Product;




         Cyan Magenta Yellow Black
2. Any third party software, settings, content,     more information on pixel defects and
data, or links installed or downloaded onto         industry standards, please go to
your Product at any time                            www.nokia.com.

3. Nokia and third party services or enabling       This Warranty is not valid if:
clients (please read the terms and conditions
that may accompany the services to review           1. Your Product has been (a) opened, modified,
your applicable rights and obligations)             or repaired without Nokia’s authorisation, or
                                                    (b) repaired with unauthorised spare parts.
4. Normal wear and tear
                                                    2. Your Product's serial number, the mobile
5. Reduced charging capacity of the battery,        accessory date code, or the IMEI number has
which is a result of the natural end of life        been removed, erased, defaced, altered or if
process of batteries                                these are illegible in any way, and this shall be
                                                    determined in the sole discretion of Nokia.
6. Defects or damage caused by: (a) misuse, (b)
not using your Product in accordance with the       3. The software your product runs on has been
user guide, (c) using your Product with, or         modified, except by Nokia.
connecting it to, any product, accessory,
software, or service not manufactured or            In this Warranty, Nokia does not warrant that
supplied by Nokia, (d) any products combined        any Nokia software (including updates and
with your Product by a third party, or (e) other    upgrades) provided with, in, or for your
acts beyond Nokia’s reasonable control              Product will meet your requirements, work in
                                                    combination with any hardware or software
7. Damage caused by hacking, cracking,              not provided by Nokia, that the operation of
viruses, or other malware, or by unauthorised       Nokia software will be uninterrupted or error
access to services, accounts, computer              free or that any defects in the software are
systems or networks                                 correctable or will be corrected. For Nokia
                                                    software related defects, Nokia or a Nokia Care
8. Damage caused by exposure of the Product         Centre or Nokia authorised service centre will
to moisture, to dampness or to extreme              make available the latest version of the Nokia
thermal or environmental conditions or to           software for reinstallation on your Product.
rapid changes in such conditions, to corrosion,     Some Nokia software may be subject to
to oxidation, to spillage of food or liquid or to   separate licence terms. Please refer to
influence from chemical products.                   www.nokia.com or the license terms, which
                                                    apply to the Nokia software, for information
9. Pixel defects in your Product’s display that     on support that may be available for it. This
are within the scope of industry standards. For     Warranty does not cover transport costs.




         Cyan Magenta Yellow Black
5. OTHER IMPORTANT NOTICES                          not considered a defect under this Warranty
An independent operator provides the SIM            even if they would not be operational.
card and the cellular or other network or
system on which your Product operates.              6. LIMITATION OF NOKIA'S LIABILITY
Therefore, Nokia does not assume any                Subject to rights under local law(s) that cannot
responsibility for the operation, availability,     be excluded, Nokia shall not under any
coverage, services, or range of the cellular or     circumstances be liable, either expressly or
other networks or systems. Before Nokia or a        implicitly, for any damages or losses of any
Nokia Care Centre or Nokia authorised service       kind whatsoever resulting from loss of,
centre can repair or replace your Product, the      damage to, or corruption of, content or data
operator may need to unlock the SIM-lock or         or the recreation or transfer thereof even if
other lock that may lock your Product to a          such loss, damage, or corruption was
specific network or operator. In these              contributed to by your Product. There is
situations, please first contact your operator      always the risk of data loss, damage or
and request it to unlock your Product.              corruption when using software. Please note
                                                    that you should always back up all data
All parts of your Product that Nokia has            and content (including, without
replaced become Nokia’s property. When              limitation, any licence numbers and
repairing or replacing your Product, Nokia          activation codes) stored on your Product
may use new or re-conditioned parts or              before taking your Product in for service
products.                                           since service activities will erase all data
                                                    from your Product.
If this Warranty does not cover your Product
or the service it requires, and you do not have     TO THE EXTENT PERMITTED BY APPLICABLE
a right to a repair or replacement under local      LAW(S) NOKIA SHALL NOT BE LIABLE FOR ANY
law, Nokia, Nokia Care Centres and Nokia            LOSS OF PROFIT, PRODUCTS OR FUNCTIONALITY,
authorised service centres reserve the right to     BUSINESS, CONTRACTS, REVENUES OR
charge for the repair or replacement of your        ANTICIPATED SAVINGS, INCREASED COSTS OR
Product, as well as a handling fee.                 EXPENSES, OR FOR ANY INDIRECT,
                                                    CONSEQUENTIAL OR SPECIAL LOSS OR DAMAGE,
Your Product may contain country specific           EVEN IF IT IS NEGLIGENT. HOWEVER, LOCAL LAW
elements, including software. The Warranty          MAY GIVE YOU ADDITIONAL REMEDIES IN
services available in a particular country may      DAMAGES THAT CANNOT BE EXCLUDED.
be limited to the Products and country specific
elements available in that country. Also, if your   To the extent permitted by applicable law,
Product has been re-exported from its original      Nokia’s liability under this Warranty shall be
destination to another country, your Product        limited to the purchase value of your Product.
may contain country specific elements that are




         Cyan Magenta Yellow Black
Nokia Corporation                                  replaced if the products fail to be of acceptable
                                                   quality and the failure does not amount to a
Keilalahdentie 2-4                                 failure of substantial character. Where your
                                                   Nokia product was supplied to you for
FIN-02150 Espoo                                    business purposes, consumer guarantees
                                                   under the Consumer Guarantees Act 1993 (NZ)
                                                   will not apply.
Finland
                                                   1. GENERAL
                                                   Nokia Corporation ("Nokia") provides this
www.nokia.com.au/warranty                          Warranty for the Nokia product(s) included in
                                                   the original sales package ("Product").
Nokia Careline: 1300 366 733                       Additional rights may arise under local law if
                                                   the products are no longer in their original
Email: www.nokia.com.au/asknokia                   packaging.

MANUFACTURER’S LIMITED WARRANTY (NEW               Your Product is a sophisticated electronic
ZEALAND)                                           device. Nokia strongly encourages you to read
                                                   and follow its user guide. Please also note that
   Note: This Manufacturer's Limited               your Product may contain parts, which can be
Warranty (“Warranty”) is applicable only to        damaged if not handled very carefully.
authentic Nokia products sold through
authorised Nokia retail channels, and which
                                                   During the warranty period, Nokia or a Nokia
Nokia has intended for sale in New Zealand.
                                                   Care Centre or Nokia authorised service centre
                                                   will remedy defects in materials and
   Note: This Warranty is in addition to and       workmanship free of charge and in a
does not limit the rights you may have under       commercially reasonable time by either
any mandatory consumer protection laws of          repairing or replacing your Product at its
your country.                                      option. You may have other rights at local law
                                                   during or after the warranty period. These are
                                                   not excluded by this Warranty.
Our products come with consumer guarantees
that cannot be excluded under the Consumer
Guarantees Act 1993 (NZ). Under consumer           2. WARRANTY PERIOD
guarantees you are entitled to a replacement       The warranty period starts when the Product
or refund for a failure of substantial character   is sold to an end user for the first time. This
and for compensation for any other                 can be evidenced either by (i) the proof of
reasonably foreseeable loss or damage. You         purchase issued by the first retailer or (ii) the
are entitled to have the products repaired or




          Cyan Magenta Yellow Black
date Your Product has first been successfully       suspected issue and how to proceed. You can
registered by Nokia.                                also call the Nokia Careline for assistance
                                                    (national or premium rates may apply). You
In this Warranty, Nokia warrants the items in       can find information about how to contact
the sales pack as follows:                          Nokia in the sales package or at
                                                    www.nokia.co.nz/contactus. If you call the
(i) Twelve (12) months for the main device;         Nokia Careline or use other available support,
                                                    please have the following information readily
                                                    available:
(ii) Twelve (12) months for accessories (other
                                                    • Your name, address, telephone number,
than those listed below);
                                                    OVI user account details, and other contact
                                                    information;
(iii) Six (6) months for the main device battery,   • Your Product type, name, model number,
charger, desk stands, headsets, cables and          product code, and serial number, which are
covers;                                             available from the sales package of your
                                                    Product;
(iv) Twelve (12) months for the main device         • Date and place of purchase, as well as the
battery if the battery is integrated within the     name of the retailer from whom your Product
device and non-removable;                           was first purchased; and
                                                    • A short description of the issue affecting
(v) Three (3) months for the CD-ROM and             your Product
memory card.
                                                    You will need to deliver your Product to a
No repair or replacement will renew or extend       Nokia Care Centre or Nokia authorised service
the warranty periods. However, original or          centre at your own cost. If you visit a Nokia
replacement parts or replacement Products           Care Centre or Nokia authorised service centre
provided under this Warranty will be covered        for assistance under this Warranty, please
by this Warranty for the remainder of the           remember to bring along a copy of the original
original warranty period or for sixty (60) days     proof of purchase.
from the date of repair or replacement,
whichever is longer.                                If you wish to claim under this Warranty, you
                                                    must inform Nokia or a Nokia Care Centre or
3. HOW TO OBTAIN YOUR WARRANTY                      Nokia authorised service centre of the issue
SERVICE                                             affecting your Product within a reasonable
If you suspect that your Product may require        time from noticing it and always before the
service under this Warranty, please first go to     applicable warranty period expires (see
www.nokia.co.nz/support, and follow any             section 2 above). After the warranty period,
instructions on how to troubleshoot the




         Cyan Magenta Yellow Black
you may have other rights at local law. These     with your Product by a third party, or (e) other
are not excluded by this Warranty.                acts beyond Nokia’s reasonable control

Nokia recommends that you register your           7. Damage caused by hacking, cracking,
Product with Nokia or activate a Nokia user       viruses, or other malware, or by unauthorised
account, which may in some circumstances          access to services, accounts, computer
enable Nokia to provide you a more                systems or networks
personalised warranty service.
                                                  8. Damage caused by exposure of the Product
4. WHAT THIS WARRANTY DOES NOT COVER              to moisture, to dampness or to extreme
Nokia does not provide a Warranty for the         thermal or environmental conditions or to
following:                                        rapid changes in such conditions, to corrosion,
                                                  to oxidation, to spillage of food or liquid or to
1. User guides                                    influence from chemical products

2. Any third party software, settings, content,   9. Pixel defects in your Product’s display that
data, or links installed or downloaded onto       are within the scope of industry standards. For
your Product at any time                          more information on pixel defects and
                                                  industry standards, please go to
3. Nokia and third party services or enabling     www.nokia.com.
clients (please read the terms and conditions
that may accompany the services to review         This Warranty is not valid if:
your applicable rights and obligations)
                                                  1. Your Product has been (a) opened, modified,
4. Normal wear and tear                           or repaired without Nokia’s authorisation, or
                                                  (b) repaired with unauthorised spare parts.
5. Reduced charging capacity of the battery,
which is a result of the natural end of life      2. Your Product's serial number, the mobile
process of batteries                              accessory date code, or the IMEI number has
                                                  been removed, erased, defaced, altered or if
6. Defects or damage caused by: (a) misuse, (b)   these are illegible in any way, and this shall be
not using your Product in accordance with the     determined in the sole discretion of Nokia.
user guide, (c) using your Product with, or
connecting it to, any product, accessory,         3. The software your product runs on has been
software, or service not manufactured or          modified, except by Nokia.
supplied by Nokia, (d) any products combined




         Cyan Magenta Yellow Black
In this Warranty, Nokia does not warrant that     repairing or replacing your Product, Nokia
any Nokia software (including updates and         may use new or re-conditioned parts or
upgrades) provided with, in, or for your          products.
Product will meet your requirements, work in
combination with any hardware or software         If this Warranty does not cover your Product
not provided by Nokia, that the operation of      or the service it requires, and you do not have
Nokia software will be uninterrupted or error     a right to a repair or replacement under local
free or that any defects in the software are      law, Nokia, Nokia Care Centres and Nokia
correctable or will be corrected. For Nokia       authorised service centres reserve the right to
software related defects, Nokia or a Nokia Care   charge for the repair or replacement of your
Centre or Nokia authorised service centre will    Product, as well as a handling fee.
make available the latest version of the Nokia
software for reinstallation on your Product.      Your Product may contain country specific
Some Nokia software may be subject to             elements, including software. The Warranty
separate licence terms. Please refer to           services available in a particular country may
www.nokia.com or the license terms, which         be limited to the Products and country specific
apply to the Nokia software, for information      elements available in that country. Also, if your
on support that may be available for it. This     Product has been re-exported from its original
Warranty does not cover transport costs.          destination to another country, your Product
                                                  may contain country specific elements that are
5. OTHER IMPORTANT NOTICES                        not considered a defect under this Warranty
An independent operator provides the SIM          even if they would not be operational.
card and the cellular or other network or
system on which your Product operates.            6. LIMITATION OF NOKIA'S LIABILITY
Therefore, Nokia does not assume any              Subject to rights under local law(s) that cannot
responsibility for the operation, availability,   be excluded, Nokia shall not under any
coverage, services, or range of the cellular or   circumstances be liable, either expressly or
other networks or systems. Before Nokia or a      implicitly, for any damages or losses of any
Nokia Care Centre or Nokia authorised service     kind whatsoever resulting from loss of,
centre can repair or replace your Product, the    damage to, or corruption of, content or data
operator may need to unlock the SIM-lock or       or the recreation or transfer thereof even if
other lock that may lock your Product to a        such loss, damage, or corruption was
specific network or operator. In these            contributed to by your Product. There is
situations, please first contact your operator    always the risk of data loss, damage or
and request it to unlock your Product.            corruption when using software.Please note
                                                  that you should always back up all data
All parts of your Product that Nokia has          and content (including, without
replaced become Nokia’s property. When            limitation, any licence numbers and




         Cyan Magenta Yellow Black
activation codes) stored on your Product         DECLARATION OF CONFORMITY


                                                                    0434
before taking your Product in for service
since service activities will erase all data
from your Product.

TO THE EXTENT PERMITTED BY APPLICABLE
LAW(S) NOKIA SHALL NOT BE LIABLE FOR ANY
LOSS OF PROFIT, PRODUCTS OR FUNCTIONALITY,
BUSINESS, CONTRACTS, REVENUES OR                 Nokia is transitioning between EU Notified
ANTICIPATED SAVINGS, INCREASED COSTS OR          Bodies and this product has been approved as
EXPENSES, OR FOR ANY INDIRECT,                   complying with EU regulations with both
CONSEQUENTIAL OR SPECIAL LOSS OR DAMAGE,         Notified Bodies. Either of the CE marks shown
EVEN IF IT IS NEGLIGENT. HOWEVER, LOCAL LAW      may appear on the product during this
MAY GIVE YOU ADDITIONAL REMEDIES IN              transition period.
DAMAGES THAT CANNOT BE EXCLUDED.
                                                 Hereby, NOKIA CORPORATION declares that this
To the extent permitted by applicable law,       RM-713 product is in compliance with the
Nokia’s liability under this Warranty shall be   essential requirements and other relevant
limited to the purchase value of your Product.   provisions of Directive 1999/5/EC. A copy of the
                                                 Declaration of Conformity can be found at
                                                 www.nokia.com/global/declaration.
Nokia Corporation
                                                 © 2011 Nokia. All rights reserved.
Keilalahdentie 2-4
                                                 Nokia and Nokia Connecting People are
FIN-02150 Espoo                                  trademarks or registered trademarks of Nokia
                                                 Corporation. Nokia tune is a sound mark of
Finland                                          Nokia Corporation. Other product and
                                                 company names mentioned herein may be
                                                 trademarks or tradenames of their respective
                                                 owners.
www.nokia.co.nz/warranty
                                                 Reproduction, transfer, distribution, or
Nokia Careline: 0800 665 421 (0800 NOKIA1)
                                                 storage of part or all of the contents in this
                                                 document in any form without the prior
Email: www.nokia.co.nz/asknokia                  written permission of Nokia is prohibited.
                                                 Nokia operates a policy of continuous




          Cyan Magenta Yellow Black
development. Nokia reserves the right to
make changes and improvements to any of the
products described in this document without
prior notice.

To the maximum extent permitted by
applicable law, under no circumstances shall
Nokia or any of its licensors be responsible for
any loss of data or income or any special,
incidental, consequential or indirect damages
howsoever caused.

The contents of this document are provided
"as is". Except as required by applicable law,
no warranties of any kind, either express or
implied, including, but not limited to, the
implied warranties of merchantability and
fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents
of this document. Nokia reserves the right to
revise this document or withdraw it at any
time without prior notice.

The availability of products, features,
applications and services may vary by region.
For more information, contact your Nokia
dealer or your service provider. This device
may contain commodities, technology or
software subject to export laws and
regulations from the US and other countries.
Diversion contrary to law is prohibited.




         Cyan Magenta Yellow Black

More Related Content

Viewers also liked

TCI2013 Mapping the competencies of the TCI Network
TCI2013 Mapping the competencies of the TCI NetworkTCI2013 Mapping the competencies of the TCI Network
TCI2013 Mapping the competencies of the TCI Network
TCI Network

life
lifelife
life
Eja Halim

TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...
TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...
TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...
TCI Network

TCIOceania15 IP Toolkit for Collaboration: overview
TCIOceania15 IP Toolkit for Collaboration: overviewTCIOceania15 IP Toolkit for Collaboration: overview
TCIOceania15 IP Toolkit for Collaboration: overview
TCI Network

TCI 2014 Raising the regional governments´ commitment to the shared value cre...
TCI 2014 Raising the regional governments´ commitment to the shared value cre...TCI 2014 Raising the regional governments´ commitment to the shared value cre...
TCI 2014 Raising the regional governments´ commitment to the shared value cre...
TCI Network

Enthusiasm – the heartbeat to social media implementation
Enthusiasm – the heartbeat to social media implementationEnthusiasm – the heartbeat to social media implementation
Enthusiasm – the heartbeat to social media implementation
Social Intelligence

TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...
TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...
TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...
TCI Network

My view on facebook as a social media platform
My view on facebook as a social media platformMy view on facebook as a social media platform
My view on facebook as a social media platform
Social Intelligence

TCIOceania14 CSIRO: Global precincts
TCIOceania14 CSIRO: Global precinctsTCIOceania14 CSIRO: Global precincts
TCIOceania14 CSIRO: Global precincts
TCI Network

TCI 2013 Regional smart specialization realities from an issues stand point
TCI 2013 Regional smart specialization realities from an issues stand pointTCI 2013 Regional smart specialization realities from an issues stand point
TCI 2013 Regional smart specialization realities from an issues stand point
TCI Network

TCI2013 From #TCI2012 to #TCI2013...& Beyond
TCI2013 From #TCI2012 to #TCI2013...& BeyondTCI2013 From #TCI2012 to #TCI2013...& Beyond
TCI2013 From #TCI2012 to #TCI2013...& Beyond
TCI Network

TCI 2014 Management 3.0 Agile cluster management
TCI 2014 Management 3.0 Agile cluster management  TCI 2014 Management 3.0 Agile cluster management
TCI 2014 Management 3.0 Agile cluster management
TCI Network

TCI 2013 How to link clusters and innovation in a border region
TCI 2013 How to link clusters and innovation in a border regionTCI 2013 How to link clusters and innovation in a border region
TCI 2013 How to link clusters and innovation in a border region
TCI Network

TCI 2014 Hamburg Aviation
TCI 2014 Hamburg AviationTCI 2014 Hamburg Aviation
TCI 2014 Hamburg Aviation
TCI Network

Naomi inglesa
Naomi inglesaNaomi inglesa
Naomi inglesa
orixe6maila

TCI 2013 Collaborative innovation models
TCI 2013 Collaborative innovation models TCI 2013 Collaborative innovation models
TCI 2013 Collaborative innovation models
TCI Network

TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas
TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas
TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas
TCI Network


Viewers also liked (17)

TCI2013 Mapping the competencies of the TCI Network
TCI2013 Mapping the competencies of the TCI NetworkTCI2013 Mapping the competencies of the TCI Network
TCI2013 Mapping the competencies of the TCI Network

life
lifelife
life

TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...
TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...
TCI 2014 David meets Goliath: Collaboration between entrepreneurs and large c...

TCIOceania15 IP Toolkit for Collaboration: overview
TCIOceania15 IP Toolkit for Collaboration: overviewTCIOceania15 IP Toolkit for Collaboration: overview
TCIOceania15 IP Toolkit for Collaboration: overview

TCI 2014 Raising the regional governments´ commitment to the shared value cre...
TCI 2014 Raising the regional governments´ commitment to the shared value cre...TCI 2014 Raising the regional governments´ commitment to the shared value cre...
TCI 2014 Raising the regional governments´ commitment to the shared value cre...

Enthusiasm – the heartbeat to social media implementation
Enthusiasm – the heartbeat to social media implementationEnthusiasm – the heartbeat to social media implementation
Enthusiasm – the heartbeat to social media implementation

TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...
TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...
TCI 2015 Cluster management: a strategic knowledge centred perspective. The c...

My view on facebook as a social media platform
My view on facebook as a social media platformMy view on facebook as a social media platform
My view on facebook as a social media platform

TCIOceania14 CSIRO: Global precincts
TCIOceania14 CSIRO: Global precinctsTCIOceania14 CSIRO: Global precincts
TCIOceania14 CSIRO: Global precincts

TCI 2013 Regional smart specialization realities from an issues stand point
TCI 2013 Regional smart specialization realities from an issues stand pointTCI 2013 Regional smart specialization realities from an issues stand point
TCI 2013 Regional smart specialization realities from an issues stand point

TCI2013 From #TCI2012 to #TCI2013...& Beyond
TCI2013 From #TCI2012 to #TCI2013...& BeyondTCI2013 From #TCI2012 to #TCI2013...& Beyond
TCI2013 From #TCI2012 to #TCI2013...& Beyond

TCI 2014 Management 3.0 Agile cluster management
TCI 2014 Management 3.0 Agile cluster management  TCI 2014 Management 3.0 Agile cluster management
TCI 2014 Management 3.0 Agile cluster management

TCI 2013 How to link clusters and innovation in a border region
TCI 2013 How to link clusters and innovation in a border regionTCI 2013 How to link clusters and innovation in a border region
TCI 2013 How to link clusters and innovation in a border region

TCI 2014 Hamburg Aviation
TCI 2014 Hamburg AviationTCI 2014 Hamburg Aviation
TCI 2014 Hamburg Aviation

Naomi inglesa
Naomi inglesaNaomi inglesa
Naomi inglesa

TCI 2013 Collaborative innovation models
TCI 2013 Collaborative innovation models TCI 2013 Collaborative innovation models
TCI 2013 Collaborative innovation models

TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas
TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas
TCI 2016 Implementation of Bogota-Region’s RIS3 and Clusters’ Agendas


Similar to Nokia x1 01-ug_en

User Manual for ICON G8 Plus
User Manual for ICON G8 PlusUser Manual for ICON G8 Plus
User Manual for ICON G8 Plus
TVC Skyshop

Huawei ideos x5_manual
Huawei ideos x5_manualHuawei ideos x5_manual
Huawei ideos x5_manual
Martina Ghislandi

Gionee P5 Mini Manual / User Guide
Gionee P5 Mini Manual / User GuideGionee P5 Mini Manual / User Guide
Gionee P5 Mini Manual / User Guide
manualsheet

Manual sony-yendo-walkman-w150
Manual sony-yendo-walkman-w150Manual sony-yendo-walkman-w150
Manual sony-yendo-walkman-w150
Patrick François Jarwoski

Vodafone Smart Platinum 7 Manual / User Guide
Vodafone Smart Platinum 7 Manual / User GuideVodafone Smart Platinum 7 Manual / User Guide
Vodafone Smart Platinum 7 Manual / User Guide
manualsheet

G1manual
G1manualG1manual
G1manual
Boris Sanchez


Similar to Nokia x1 01-ug_en (6)

User Manual for ICON G8 Plus
User Manual for ICON G8 PlusUser Manual for ICON G8 Plus
User Manual for ICON G8 Plus

Huawei ideos x5_manual
Huawei ideos x5_manualHuawei ideos x5_manual
Huawei ideos x5_manual

Gionee P5 Mini Manual / User Guide
Gionee P5 Mini Manual / User GuideGionee P5 Mini Manual / User Guide
Gionee P5 Mini Manual / User Guide

Manual sony-yendo-walkman-w150
Manual sony-yendo-walkman-w150Manual sony-yendo-walkman-w150
Manual sony-yendo-walkman-w150

Vodafone Smart Platinum 7 Manual / User Guide
Vodafone Smart Platinum 7 Manual / User GuideVodafone Smart Platinum 7 Manual / User Guide
Vodafone Smart Platinum 7 Manual / User Guide

G1manual
G1manualG1manual
G1manual


Recently uploaded

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation
Wouter Lemaire

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdfAI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
Techgropse Pvt.Ltd.

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Speck&Tech

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization
David Brossard

Infrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI modelsInfrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI models
Zilliz

CAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on BlockchainCAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on Blockchain
Claudio Di Ciccio

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
Edge AI and Vision Alliance

Things to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUUThings to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUU
FODUU

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI
Kumud Singh

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng


Recently uploaded (20)

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdfAI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization

Infrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI modelsInfrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI models

CAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on BlockchainCAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on Blockchain

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...

Things to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUUThings to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUU

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation


Nokia x1 01-ug_en

  • 1. Nokia X1–01 User Guide Issue 2. 1 EN Cyan Magenta Yellow Black
  • 2. Keys and parts 1 2 Exit ct Sele 8 3 7 4 6 5 1 Earpiece 5 Microphone 2 Screen 6 Scroll key 3 End/Power key 7 Call key 4 Keypad 8 Selection keys Cyan Magenta Yellow Black
  • 3. 14 9 10 13 11 12 9 Headset connector 10 Loudspeaker 11 Music keys 12 Memory card slot 13 Flashlight 14 Charger connector The headset and memory card may be available separately. Cyan Magenta Yellow Black
  • 4. Insert the SIM card and battery 1 4 Put your finger in the gap, and lift the Close the SIM card holder. back cover. 2 5 Open the SIM 1 card holder Open the SIM 2 card holder 3 6 Insert SIM1. Insert SIM2. Cyan Magenta Yellow Black
  • 5. Insert a memory card 7 1 Close the SIM card holder. Open the cover of the memory card slot. See vi) in General Information. 8 2 Line up the battery contacts and push Make sure the contact area is facing up, the battery in. and push the card in. 9 3 Press the back cover into place. Close the cover. Cyan Magenta Yellow Black
  • 6. Charge the battery Switch on 2 seconds 1 1 Connect the charger to a wall outlet. Press and hold the power key . Dual SIM 1 SIM1 2 SIM2 Select Back 2 2 Connect the charger to the phone. Set which SIM card to use. Press OK. See v) in General Information. Time: 09 09:00 OK Back 3 3 The phone indicates a full charge. You To set the hour, press up or down. You can use the phone while charging. can also press the number keys. Cyan Magenta Yellow Black
  • 7. Time: 15:00 OK Back 4 7 Menu Go to To set the minutes, press right, and The phone is ready to use. then press up or down. Press OK. Time is set 5 The time is changed. Date: 08 08.04.2011 OK Exit 6 To set the date, press up or down. Press OK. Cyan Magenta Yellow Black
  • 8. Explore your phone Select Back Menu Go to 1 4 To see the available functions, press To select an item, press Select. Menu. Select Exit Select Back 2 5 To go to a function, press the scroll key To return to the previous view, press up, down, left, or right. Back. Select Exit Select Exit 3 6 To select the function, press Select. To return to the home screen, press . Cyan Magenta Yellow Black
  • 9. Select a SIM card for calls and messages Default SIM for calls SIM1 Ask every time SIM2 Default SIM for msgs Ask every time Select Back 3 SIM1 SIM2 You can use two SIM cards, and share Select Default SIM for calls. your phone with your family. Ask every time SIM1 SIM2 Menu Go to Select Exit Select Back 1 4 Press Menu. Select Settings. Select Ask every time. Dual SIM Default SIM for settings calls: Ask every time Tone settings Press the call key to call directly! Display settings Select Back Yes 2 5 Select Dual SIM settings. See v) in Your phone asks which SIM card to use General Information. when you make a call. Cyan Magenta Yellow Black
  • 10. Default SIM for Menu Go to calls Ask every time Default SIM for msgs Ask every time Select Back 6 Select Default SIM for msgs. Tip: To open Dual SIM settings from the home screen, press and hold *. Ask every time SIM1 SIM2 Select Back 7 Select Ask every time. Default SIM for msgs.: Ask every time Press the call key to send the message directly! OK 8 Your phone asks which SIM card to use when you send a message. Cyan Magenta Yellow Black
  • 11. Use one SIM card only Dual SIM 1 SIM1 Menu Go to Select Exit 2 SIM2 Select Back 1 4 To save battery power, use only SIM1. Select SIM1. SIM2 is disconnected from Press Menu. Select Settings. the network. Dual SIM Dual SIM settings Tone settings 1 SIM1 Display SIM2 2 settings Select Back Select Back 2 Select Dual SIM settings. Tip: To activate both SIM cards, repeat steps 1-3, and select Dual SIM. Default SIM for Menu Go to msgs Ask every time Standby mode Dual SIM Select Back 3 Select Standby mode. Tip: To open Dual SIM settings from the home screen, press and hold *. Cyan Magenta Yellow Black
  • 12. Lock or unlock keypad Make or answer a call Menu Go to To avoid accidental pressing of keys, Make a call to a number that you have. use the keypad lock. Menu Go to 012345 Options Clear 1 1 Press Menu, and then quickly press *. Enter the phone number. Keypad locked 1 SIM1 2 SIM2 Select Back 2 2 The keypad locks. To unlock the If asked, select the SIM card to use. keypad, repeat step 1. Cyan Magenta Yellow Black
  • 13. Change the volume Calling 0123456789 End call 3 Press . Is the volume too loud during a call or when listening to the radio? Volume 9876543210 calling Silence 4 1 A friend's phone rings. To answer, Press left for quieter, right for louder. press . 5 2 You can enjoy chatting with your Better. friend. To end the call, press . Cyan Magenta Yellow Black
  • 14. Use the loudspeaker Use the headset Others in the room can join in with a You can make a hands-free call with a call. headset. 0123456789 00:00:05 Options Loudsp. 1 1 0123456789 calling During a call, press Loudsp.. Connect a headset. Calling 0123456789 End call 2 2 Place the phone on a table. Make a call. Cyan Magenta Yellow Black
  • 15. Switch off Save a name and number To save battery power, switch the Add a friend's number to your phone. phone off. Switch off 2 seconds Menu Go to Select Exit 1 1 Press and hold the power key . Press Menu. Select Contacts. Search Add contact Delete Select Back 2 2 The phone switches off. Select Add contact. Cyan Magenta Yellow Black
  • 16. SIM1 SIM2 Phone number: Phone number: Phone 0123 0123456789 OK Clear OK Clear Select Back 3 6 Select where to save the contact. Enter the phone number. Press OK. Contact name: Mi OK Clear Use Back 4 7 Write the name. Go to a picture, and press Use. Mike Contact name: 9876543210 calling Mike OK Clear Silence 5 8 Press OK. When you receive a call, the name, number, and picture are shown. Cyan Magenta Yellow Black
  • 17. Change the ringtone Airy Beach Bold Brook Coconut Menu Go to Select Exit Desk phone OK Back 1 4 Press Menu. Select Settings. To listen to the sound of a ringtone, go to the ringtone. Dual SIM Airy settings Beach Tone settings Bold Brook Display Coconut settings Desk phone Select Back OK Back 2 5 Select Tone settings. Press OK. Ringing tone SIM1 Done 1 Beach SIM2 Ringing volume 2 Nokia tune Level 4 Select Back Select Back 3 6 Select Ringing tone and a SIM card. The ringtone is selected. Cyan Magenta Yellow Black
  • 18. Flashlight 2 SIM2 1 SIM1 Tip: To select different ringtones for Use the flashlight if you need more SIM1 and SIM2, repeat steps 3-5. light. See iii) in General Information. Song 1 My favourite 01:10 01:18 songs Demo songs Use as Options Back ringtone Select Back 22:35 x2 1 Menu Go to Tip: You can select an MP3 song as a To use the flashlight, press up twice. ringtone. 22:35 x1 2 Menu Go to To switch the flashlight off, press up once. Cyan Magenta Yellow Black
  • 19. Send and receive messages Hello Anna, how are you today? Menu Go to Select Exit Options Clear 1 4 Press Menu. Select Messages. Press Options, and select Send. See i) in General Information. Create SIM1 message 1 Inbox SIM2 2 Sent items Select Back Select Back 2 5 Select Create message. If asked, select which SIM card to use. See v) in General Information. abc Hello Anna, Phone number: Options Clear 0123456789 OK Clear 3 6 To write your message, press the keys. Enter a phone number. Press OK. Cyan Magenta Yellow Black
  • 20. Write text Press a key repeatedly until the letter is shown. Change the writing language: select Menu > Settings > Phone settings > Language, the language, 7 and OK. See iv) in General Information. The message is sent. Insert a space: press 0. Change a word: press * repeatedly until the word is shown. 1 message received Insert a number: press and hold the number key. Show Exit Insert a special character: press and 8 hold *. To read a message, press Show. Change the text input method: press # repeatedly. Hello Anna, how Use predictive text: select Options > are you today? Dictionary and the language. Press a key for each letter. When the word is shown, press 0. Start writing the next Options Back word. 9 Stop using predictive text: select Options > Dictionary > Dictionary To view the rest of the message, press off. down. Cyan Magenta Yellow Black
  • 21. Set an alarm Set alarm time: 08 08:00 OK Back 3 Use your phone as an alarm clock to To set the hour, press up or down. wake you up. Set alarm time: 08:30 Menu Go to Select Exit OK Back 1 4 Press Menu. Select Clock. To set the minutes, press right and then up or down. Alarm time Set alarm time: Off Alarm tone Speaking clock Repeat alarm 08:30 Alarm once OK Back Select Back 2 5 Select Alarm time. Press OK. Cyan Magenta Yellow Black
  • 22. Set a reminder Alarm on Meeting 6 Postp. Quit The alarm is ready. Set a reminder to meet your friends. 08:30 Alarm! 08:30 Menu Go to Select Exit Stop Snooze 7 1 An alarm sounds at the set time. Press Press Menu. Select Extras. Stop. Spreadsheet Countd. tim. Off Calendar Select Back 2 Select Calendar. Cyan Magenta Yellow Black
  • 23. Feb 2011 Week 5 Alarm on M T W T F S S 31 1 2 3 4 5 6 Alarm off 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 1 2 3 4 5 6 Options Back OK Back 3 6 Go to the date, and press Options. To set an alarm, select Alarm on. Add reminder Time: Go to date 20:30 OK Back OK Back 4 7 Select Add reminder. To set the hour and minutes, press up or down. Reminder added Reminder about: Meeting OK Clear 5 8 Write a name for the reminder. Press OK. The alarm is ready. Cyan Magenta Yellow Black
  • 24. Listen to music All songs My favourite songs Demo songs Select Back 3 Enjoy your music on the go. Make sure Press Options. Select All songs. a memory card is in your phone. Root Song 1 Song 2 Song 3 Song 4 Menu Go to Select Exit Select Back 1 4 Press Menu. Select Music. Select a song. Mp3 Music Play player Previous folder Next folder Radio Add into My fav. Use as ringtone Select Back Select Back 2 5 Select Mp3 Music player. Press Options. Select Play. Cyan Magenta Yellow Black
  • 25. Listen to the radio Tip: To go to the previous or next song, Use your phone to listen to the radio. press or . To pause, press . See ii) in General Information. Mp3 Music player 00:00 00:00 Options Back 1 Tip: Press left for quieter and right for Connect a headset. The headset cable louder. works as the radio antenna. Mp3 Music player 00:00 00:00 Menu Go to Select Exit Options Back 2 Tip: Press down to add songs to the My Press Menu. Select Music. favourite songs playlist. Cyan Magenta Yellow Black
  • 26. Mp3 Music Switch off player Save channel Auto tuning Radio Set frequency Delete channel Loudspeaker Select Back Select Back 3 6 Select Radio. The radio is on. To save the channel, press Options, and select Save channel. Switch off Save channel Channel name: Auto tuning Set frequency Station 1 Delete channel Loudspeaker Select Back OK Clear 4 7 To automatically find radio channels, Write a name for the channel, and press OK. press OK. 96.80 MHz 1. (empty) 2. (empty) 3. (empty) 4. (empty) 95.20 97.60 5. (empty) Options Back 6. (empty) Select Back 5 8 To select the next channel, press . Select an empty channel. To save more channels, repeat steps 5–7. Cyan Magenta Yellow Black
  • 27. Calculator Auto tuning Manual tuning Set frequency Delete channel Rename Loudspeaker Select Back 9 To use the loudspeaker, press Use your phone to make a calculation. Options, and select Loudspeaker. Switch off Radio off Save channel Auto tuning Manual tuning Set frequency Delete channel Select Back Menu Go to Select Exit 10 1 To close the radio, press Options, and Press Menu. Select Extras. select Switch off. Reminders Calculator Converter Alarm! 08:30 Select Back Stop Snooze 2 Tip: Wake up to the radio. Press Select Calculator. Options, and select Clock radio. Cyan Magenta Yellow Black
  • 28. Nokia original accessories For availability of approved accessories, check with your dealer. Equals 50 Clear An extensive range of accessories is available for your device. For more details, see www.nokia-asia.com/ 3 accessories. To enter numbers, press the keys. x 50 Equals Clear Practical rules about accessories • Keep all accessories out of the 4 reach of small children. • When you disconnect the power To change a function, use the scroll cord of any accessory, grasp and pull key. the plug, not the cord. • Check regularly that accessories installed in a vehicle are mounted and x 50 x 50 are operating properly. 120 = 120 6000 • Installation of any complex car Equals Clear Equals Clear accessories must be made by qualified personnel only. 5 Battery Enter the second number, and press Type: BL-5J Equals. Talk time: Cyan Magenta Yellow Black
  • 29. Up to 14 hours. Standby: Up to 1118 hours. Important: Battery talk and stand-by times are estimates and only possible under optimal network conditions. Actual battery talk and standby times depend on SIM cards, features used, battery age and condition, temperatures to which battery is exposed, network conditions, and many other factors, and may be significantly shorter than those specified above. Ringing tones, hands free call handling, use in digital mode, and other features will also consume the battery, and the amount of time a device is used for calls will affect its stand-by time. Likewise, the amount of time that the device is turned on and in the standby mode will affect its talk time. Cyan Magenta Yellow Black
  • 30. General information Read these simple guidelines. Not following Battery removing them may be dangerous or illegal. Read the complete user guide for further information. Switch the device off and disconnect the charger before removing the battery. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile Product and safety information phone use is not allowed or when it may cause interference or danger, for Feature specific instructions example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas. Important: Do not use a mini-UICC SIM card, also known as a micro-SIM card, a micro- ROAD SAFETY COMES FIRST SIM card with an adapter, or a SIM card that Obey all local laws. Always keep has a mini-UICC cutout (see figure) in this your hands free to operate the device. A micro SIM card is smaller than the vehicle while driving. Your first standard SIM card. This device does not consideration while driving support the use of micro-SIM cards and use of should be road safety. incompatible SIM cards may damage the card or the device, and may corrupt data stored on INTERFERENCE the card. All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install Your device may have internal and external or repair this product. antennas. Avoid touching the antenna area unnecessarily while the antenna is KEEP YOUR DEVICE DRY transmitting or receiving. Contact with Your device is not water-resistant. antennas affects the communication quality Keep it dry. and may cause a higher power level during operation and may reduce the battery life. PROTECT YOUR HEARING Listen to a headset at a i) You can send text messages that are longer moderate level, and do not than the character limit for a single message. hold the device near your ear Longer messages are sent as two or more when the loudspeaker is in use. messages. Your service provider may charge accordingly. Cyan Magenta Yellow Black
  • 31. Characters with accents, other marks, or some Your device supports microSD cards with a language options, take more space, and limit capacity of up to 16 GB. the number of characters that can be sent in a single message. ii) To listen to the radio, you need to attach a compatible headset to the device. The headset acts as an antenna. Important: Do not remove the memory card when an application is using it. Doing so iii) Do not shine the flashlight in anyone's may damage the memory card and the device, eyes. and corrupt data stored on the card. iv) Sending and receiving messages in some Network services and costs languages is a network service. For Your device is approved for use on the (E)GSM availability, contact your service provider. 900 and 1800 MHz networks. Send messages only to devices that support the selected language. To use the device, you need a subscription with a service provider. v) If you only have one SIM card, insert the card into the SIM1 card holder. Using network services and downloading content to your device requires a network Some features and services are only available connection and may result in data traffic costs. when using the SIM card in the SIM1 card Some product features require support from holder. the network, and you may need to subscribe to them. Both SIM cards are available at the same time when the phone is not being used, but while Take care of your device one SIM card is active, for example, making a Handle your device, battery, charger and call or sending or receiving a message, the accessories with care. The following other is unavailable. suggestions help you protect your warranty coverage. vi) Use only compatible memory cards • Keep the device dry. Precipitation, approved by Nokia for use with this device. humidity, and all types of liquids or moisture Incompatible cards may damage the card and can contain minerals that corrode electronic the device and corrupt data stored on the card. circuits. If your device gets wet, remove the battery, and allow the device to dry. Cyan Magenta Yellow Black
  • 32. • Do not use or store the device in dusty or Batteries and chargers dirty areas. Moving parts and electronic Battery and charger information components can be damaged. Your device is intended for use with a BL-5J • Do not store the device in high rechargeable battery. Nokia may make temperatures. High temperatures can shorten additional battery models available for this the life of the device, damage the battery, and device. Always use original Nokia batteries. warp or melt plastics. • Do not store the device in cold This device is intended for use when supplied temperatures. When the device warms to its with power from the following chargers: normal temperature, moisture can form inside AC-3. The exact Nokia charger model number the device and damage electronic circuits. may vary depending on the plug type, • Do not attempt to open the device other identified by E, X, AR, U, A, C, K, or B. than as instructed in the user guide. • Unauthorised modifications may damage The battery can be charged and discharged the device and violate regulations governing hundreds of times, but it will eventually wear radio devices. out. When the talk and standby times are • Do not drop, knock, or shake the device. noticeably shorter than normal, replace the Rough handling can break internal circuit battery. boards and mechanics. • Only use a soft, clean, dry cloth to clean the surface of the device. Important: Talk and standby times are • Do not paint the device. Paint can clog estimates only. Actual times are affected by, moving parts and prevent proper operation. for example, network conditions, device • Switch off the device and remove the settings, features being used, battery battery from time to time for optimum condition, and temperature. performance. • Keep your device away from magnets or magnetic fields. Battery safety • To keep your important data safe, store it Always switch the device off and disconnect in at least two separate places, such as your the charger before removing the battery. device, memory card, or computer, or write When you unplug a charger or an accessory, down important information. hold and pull the plug, not the cord. Recycle When your charger is not in use, unplug it from Always return your used electronic products, the electrical plug and the device. Do not leave batteries, and packaging materials to a fully charged battery connected to a charger, dedicated collection points. This way you help as overcharging may shorten the battery’s prevent uncontrolled waste disposal and lifetime. If left unused, a fully charged battery promote the recycling of materials. will lose its charge over time. Cyan Magenta Yellow Black
  • 33. Always keep the battery between 15°C and battery or charger. Only use the charger 25°C (59°F and 77°F). Extreme temperatures indoors. reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not Additional safety information work temporarily. Make an emergency call 1. Make sure the device is switched on. Accidental short-circuiting can happen when a 2. Check for adequate signal strength. You metallic object touches the metal strips on the may also need to do the following: battery, for example, if you carry a spare • Insert a SIM card. battery in your pocket. Short-circuiting may • Deactivate call restrictions you have damage the battery or the connecting object. activated for your device, such as call barring, fixed dialling, or closed user group. Do not dispose of batteries in a fire as they may 3. Press the end key repeatedly, until the explode. Dispose of batteries according to home screen is displayed. local regulations. Recycle when possible. Do 4. Enter the official emergency number for not dispose as household waste. your present location. Emergency call numbers vary by location. Do not dismantle, cut, open, crush, bend, 5. Press the call key. puncture, or shred cells or batteries. If a 6. Give the necessary information as battery leaks, do not let battery liquid touch accurately as possible. Do not end the call until skin or eyes. If this happens, immediately flush given permission to do so. the affected areas with water, or seek medical help. Important: Activate both cellular and Do not modify, remanufacture, attempt to internet calls, if your device supports internet insert foreign objects into the battery, or calls. The device may attempt to make immerse or expose it to water or other liquids. emergency calls both through cellular Batteries may explode if damaged. networks and through your internet call service provider. Connections in all conditions cannot be guaranteed. Never rely solely on any Use the battery and charger for their intended wireless device for essential communications purposes only. Improper use, or use of like medical emergencies. unapproved batteries or incompatible chargers may present a risk of fire, explosion, or other hazard, and may invalidate any Small children approval or warranty. If you believe the Your device and its accessories are not toys. battery or charger is damaged, take it to a They may contain small parts. Keep them out service centre for inspection before of the reach of small children. continuing to use it. Never use a damaged Cyan Magenta Yellow Black
  • 34. Medical devices Accessibility solutions Operation of radio transmitting equipment, Nokia is committed to making mobile phones including wireless phones, may interfere with easy to use for all individuals, including those the function of inadequately protected with disabilities. For more information, visit medical devices. Consult a physician or the the Nokia website at manufacturer of the medical device to www.nokiaaccessibility.com. determine whether they are adequately shielded from external radio frequency Hearing energy. Warning: When you use the headset, your Implanted medical devices ability to hear outside sounds may be affected. Manufacturers of medical devices recommend Do not use the headset where it can endanger a minimum separation of 15.3 centimetres (6 your safety. inches) between a wireless device and an implanted medical device, such as a Some wireless devices may interfere with pacemaker or implanted cardioverter some hearing aids. defibrillator, to avoid potential interference with the medical device. Persons who have Operating environment such devices should: This device meets radio frequency exposure • Always keep the wireless device more guidelines in the normal use position at the than 15.3 centimetres (6 inches) from the ear or at least 1.5 centimetres (5/8 inch) away medical device. from the body. Any carry case, belt clip, or • Not carry the wireless device in a breast holder for body-worn operation should not pocket. contain metal and should position the device • Hold the wireless device to the ear the above-stated distance from your body. opposite the medical device. • Turn the wireless device off if there is any To send data files or messages requires a reason to suspect that interference is taking quality connection to the network. Data files place. or messages may be delayed until such a • Follow the manufacturer directions for connection is available. Follow the separation the implanted medical device. distance instructions until the transmission is completed. If you have any questions about using your wireless device with an implanted medical Vehicles device, consult your health care provider. Radio signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection, electronic antilock braking, Cyan Magenta Yellow Black
  • 35. electronic speed control, and air bag systems. Certification information (SAR) For more information, check with the Your mobile device is a radio transmitter and manufacturer of your vehicle or its equipment. receiver. It is designed not to exceed the limits for exposure to radio waves recommended by Only qualified personnel should install the international guidelines. These guidelines device in a vehicle. Faulty installation or were developed by the independent scientific service may be dangerous and may invalidate organisation ICNIRP and include safety your warranty. Check regularly that all margins designed to assure the protection of wireless device equipment in your vehicle is all persons, regardless of age and health. mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive The exposure guidelines for mobile devices materials in the same compartment as the employ a unit of measurement known as the device, its parts, or accessories. Remember Specific Absorption Rate or SAR. The SAR limit that air bags inflate with great force. Do not stated in the ICNIRP guidelines is 2.0 watts/ place your device or accessories in the air bag kilogram (W/kg) averaged over 10 grams of deployment area. tissue. Tests for SAR are conducted using standard operating positions with the device Potentially explosive environments transmitting at its highest certified power Switch off your device in any area with a level in all tested frequency bands. The actual potentially explosive atmosphere, for SAR level of an operating device can be below example near gas pumps at service stations. the maximum value because the device is Sparks in such areas could cause an explosion designed to use only the power required to or fire resulting in bodily injury or death. reach the network. That amount changes Observe restrictions in fuel service stations, depending on a number of factors such as how storage, and distribution areas; chemical close you are to a network base station. plants; or where blasting operations are in progress. Areas with a potentially explosive The highest SAR value under the ICNIRP atmosphere are often, but not always, clearly guidelines for use of the device at the ear is marked. They include areas where you would 1.28 W/kg. be advised to turn off your vehicle engine, below deck on boats, chemical transfer or Use of device accessories may result in storage facilities and where the air contains different SAR values. SAR values may vary chemicals or particles such as grain, dust, or depending on national reporting and testing metal powders. You should check with the requirements and the network band. manufacturers of vehicles using liquefied Additional SAR information may be provided petroleum gas (such as propane or butane) to under product information at determine if this device can be safely used in www.nokia.com. their vicinity. Cyan Magenta Yellow Black
  • 36. MANUFACTURER’S LIMITED WARRANTY different parts and different parts may be For Products purchased and intended for sale covered by a different warranty period in India and the South East Asia Pacific region (hereinafter “Warranty Period”). The different including Singapore, Malaysia, Brunei, Warranty Periods are: Indonesia, Thailand, Philippines, Vietnam, Cambodia, Laos, Bangladesh, Sri Lanka, Nepal, a) twelve (12) months for the mobile device Maldives, Kingdom of Bhutan, and the Pacific and accessories (whether included in the Islands but excluding Australia and New mobile device sales package or sold Zealand. separately) other than the consumable parts and accessories listed in (b) and (c) below; This Limited Warranty is in addition to, and does not affect your legal (statutory) rights b) six (6) months for the following consumable under your applicable national laws relating parts and accessories: batteries, chargers, to the sale of consumer products. desk stands, headsets, cables and covers; and Nokia Corporation (“Nokia”) provides this c) ninety (90) days for the media on which any Limited Warranty to person who has software is provided, for example, CD-ROM or purchased the Nokia product(s) included in memory card the sales package (“Product”). As far as your national laws permit, the Nokia warrants to you that during the Warranty Period will not be extended or warranty period Nokia or a Nokia authorised renewed or otherwise affected due to service company will in a commercially subsequent resale, repair or replacement of reasonable time remedy defects in materials, the Product. However, repaired part(s) will be design and workmanship free of charge by warranted for the remainder of the original repairing or, should Nokia in its absolute Warranty Period or for sixty (60) days from the discretion deem it necessary, replacing the date of repair, whichever is longer. Product in accordance with this Limited Warranty (unless otherwise required by law). How to get warranty service This Limited Warranty is only valid and If you wish to make a claim under the Limited enforceable in the country where you have Warranty, you may call the Nokia call centre purchased the Product provided that it is (where this is available and please note intended for sale in that country. national rates apply to calls) and/or where necessary, return your Product or the affected Warranty period part (if it is not the entire Product) to a Nokia The warranty period starts at the time of care centre or Nokia designated service Product's original purchase by the first end- location. Information about Nokia care user. The Product may consist of several centres, Nokia designated service locations Cyan Magenta Yellow Black
  • 37. and Nokia call centres can be found at local defects in the software are correctable or will Nokia web pages where available. be corrected. You must return your Product or the affected 2. This Limited Warranty does not cover a) part (if it is not the entire Product) to a Nokia normal wear and tear (including, without care centre or Nokia designated service limitation, wear and tear of camera lenses, location before the expiry of the Warranty batteries or displays), b) transport costs, c) Period. defects caused by rough handling (including, without limitation, defects caused by sharp When making a Limited Warranty claim you items, by bending, compressing or dropping, have to present: a) the Product (or affected etc.), d) defects or damage caused by misuse part thereto), b) the legible and unmodified of the Product, including use that is contrary original proof of purchase, which clearly to the instructions provided by Nokia (e.g. as indicates the name and address of the seller, set out in the Product's user guide) and/or e) the date and place of purchase, the product other acts beyond the reasonable control of type and the IMEI or other serial number. Nokia. This Limited Warranty extends only to the 3. This Limited Warranty does not cover original first end-user of the Product and is not defects or alleged defects caused by the fact assignable or transferable to any subsequent that the Product was used with, or connected purchaser/end-user. to, a product, accessories, software and/or service not manufactured, supplied or What is not covered? authorised by Nokia or was used otherwise 1. This Limited Warranty does not cover user than for its intended use. Defects can be manuals or any third party software, settings, caused by viruses from your or from a third content, data or links, whether included/ party's unauthorised access to services, other downloaded in the Product, whether included accounts, computer systems or networks. This during installment, assembly, shipping or at unauthorised access can take place through any other time in the delivery chain or hacking, password-mining or through a otherwise and in any way acquired by you. To variety of other means. the extent permitted by applicable law(s), Nokia does not warrant that any Nokia 4. This Limited Warranty does not cover software will meet your requirements, will defects caused by the fact that the battery has work in combination with any hardware or been short-circuited or by the fact that the software applications provided by a third seals of the battery enclosure or the cells are party, that the operation of the software will broken or show evidence of tampering or by be uninterrupted or error free or that any the fact that the battery has been used in Cyan Magenta Yellow Black
  • 38. equipment other than those for which it has operator's delay or failure to unlock any SIM- been specified. lock or other lock. 5. This Limited Warranty does not apply if the Please remember to make backup copies or Product has been opened, modified or keep written records of all important content repaired by anyone other than an authorised and data stored in your Product, because service centre, if it is repaired using content and data may be lost during repair or unauthorised spare parts or if the Product’s replacement of the Product. Nokia, in a serial number, the mobile accessory date code manner consistent with the provisions of the or the IMEI number has been removed, erased, section entitled “Limitation of Nokia's defaced, altered or are illegible in any way and Liability” below, to the extent permitted by this shall be determined in the sole discretion applicable law(s), shall not under any of Nokia. circumstances be liable, either expressly or implied, for any damages or losses of any kind 6. This Limited Warranty does not apply if the whatsoever resulting from loss of, damage to, Product has been exposed to moisture, to or corruption of, content or data during repair dampness or to extreme thermal or or replacement of the Product. environmental conditions or to rapid changes in such conditions, to corrosion, to oxidation, All parts of the Product or other equipment to spillage of food or liquid or to influence that Nokia has replaced shall become the from chemical products. property of Nokia. If the returned Product is found not to be covered by the terms and Other important notices conditions of the Limited Warranty, Nokia and A third party, independent operator provides its authorised service companies reserve the the SIM card and cellular and/or other network right to charge a handling fee. When repairing or system on which the Product operates. or replacing the Product, Nokia may use Therefore, Nokia will not accept responsibility products or parts that are new, equivalent to under this warranty for the operation, new or reconditioned. availability, coverage, services or range of the cellular or other network or system. Before the Your Product may contain country specific Product can be repaired or replaced, the elements, including software. If the Product operator may need to unlock any SIM-lock or has been re-exported from its original other lock that may have been added to lock destination country to another country, the the product to a specific network or operator. Product may contain country specific elements Accordingly, Nokia does not accept that are not considered to be a defect under responsibility for any delays in warranty this Limited Warranty. repairs or for the inability of Nokia to complete warranty repairs that are caused by the Cyan Magenta Yellow Black
  • 39. Limitation of Nokia's liability cannot be excluded, restricted or modified This Limited Warranty is your sole and except to a limited extent. If such statutory exclusive remedy against Nokia and Nokia's provisions apply, to the extent to which Nokia sole and exclusive liability in respect of defects is able to do so, its liability under those in your Product. However, this Limited provisions will be limited, at its option to, in Warranty shall neither exclude nor limit i) any the case of goods: the replacement of the of your legal (statutory) rights under the goods or the supply of equivalent goods, the applicable national laws or ii) any of your repair of the goods, the payment of the cost of rights against the seller of the Product. replacing the goods or of acquiring equivalent goods, or the payment of the cost of having This Limited Warranty replaces all other Nokia the goods repaired; and in the case of services: warranties and liabilities, whether oral, the supplying of the services again or the written, (non-mandatory) statutory, payment of the cost of having the services contractual, in tort or otherwise, including, supplied again. without limitation, and where permitted by applicable law, any implied conditions, warranties or other terms as to satisfactory Note: Your Product is a sophisticated quality or fitness for purpose. To the extent electronic device. Nokia strongly encourages permitted by applicable law(s) Nokia does not you to familiarise yourself with the user guide assume any liability for loss of or damage to and instructions provided with and for the or corruption of data, for any loss of profit, loss Product. Please also note that the Product of use of Products or functionality, loss of might contain high precision displays, camera business, loss of contracts, loss of revenues or lenses and other such parts, which could be loss of anticipated savings, increased costs or scratched or otherwise damaged if not expenses or for any indirect loss or damage, handled very carefully. consequential loss or damage or special loss or damage. To the extent permitted by All warranty information, product features applicable law, Nokia’s liability shall be and specifications are subject to change limited to the purchase value of the Product. without notice. The above limitations shall not apply to death or personal injury resulting from Nokia’s proven negligence. Nokia Corporation Statutory obligations Keilalahdentie 2-4 This Limited Warranty must be read subject to any statutory provisions that imply warranties FIN-02150 Espoo or conditions into this Limited Warranty that cannot be excluded, restricted or modified or Finland Cyan Magenta Yellow Black
  • 40. MANUFACTURER’S LIMITED WARRANTY During the warranty period, Nokia or a Nokia (AUSTRALIA) Care Centre or Nokia authorised service centre will remedy defects in materials and Note: This Manufacturer's Limited workmanship free of charge and in a Warranty (“Warranty”) is applicable only to commercially reasonable time by either authentic Nokia products sold through repairing or replacing your Product at its authorised Nokia retail channels from 31st option. You may have other rights at local law March 2011, and which Nokia has intended for during or after the warranty period. These are sale in Australia. not excluded by this Warranty. Note: This Warranty is in addition to and 2. WARRANTY PERIOD does not limit the rights you may have under The warranty period starts when the Product any mandatory consumer protection laws of is sold to an end user for the first time. This your country. can be evidenced either by (i) the proof of purchase issued by the first retailer or (ii) the date Your Product has first been successfully Our products come with guarantees that registered by Nokia. cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and In this Warranty, Nokia warrants the items in compensation for any other reasonably the sales pack as follows: forseeable loss or damage. You are entitled to have the products repaired or replaced if the (i) For the main device, twelve (12) months if products fail to be of acceptable quality and you obtained the device from Vodafone, the failure does not amount to a major failure. Hutchison or 3 or their dealers, and twenty four (24) months if you obtained the device 1. GENERAL elsewhere in Australia. To check the warranty Nokia Corporation ("Nokia") provides this status of your device, please go to Warranty for the Nokia product(s) included in www.nokia.com.au/warrantycheck; the original sales package ("Product"). Additional rights may arise under local law if (ii) Twelve (12) months for accessories (other the products are no longer in their original than those listed below); packaging. (iii) Six (6) months for the main device battery, Your Product is a sophisticated electronic charger, desk stands, headsets, cables and device. Nokia strongly encourages you to read covers; and follow its user guide. Please also note that your Product may contain parts, which can be damaged if not handled very carefully. Cyan Magenta Yellow Black
  • 41. (iv) Twelve (12) months for the main device • Date and place of purchase, as well as the battery if the battery is integrated within the name of the retailer from whom your Product device and non-removable; was first purchased; and • A short description of the issue affecting (v) Three (3) months for the CD-ROM and your Product memory card. You will need to deliver your Product to a No repair or replacement will renew or extend Nokia Care Centre or Nokia authorised service the warranty periods. However, original or centre at your own cost. If you visit a Nokia replacement parts or replacement Products Care Centre or Nokia authorised service centre provided under this Warranty will be covered for assistance under this Warranty, please by this Warranty for the remainder of the remember to bring along a copy of the original original warranty period or for sixty (60) days proof of purchase. from the date of repair or replacement, whichever is longer. If you wish to claim under this Warranty, you must inform Nokia or a Nokia Care Centre or 3. HOW TO OBTAIN YOUR WARRANTY Nokia authorised service centre of the issue SERVICE affecting your Product within a reasonable If you suspect that your Product may require time from noticing it and always before the service under this Warranty, please first go to applicable warranty period expires (see www.nokia.com.au/support, and follow any section 2 above). After the warranty period, instructions on how to troubleshoot the you may have other rights at local law. These suspected issue and how to proceed. You can are not excluded by this Warranty. also call the Nokia Careline for assistance (national or premium rates may apply). You Nokia recommends that you register your can find information about how to contact Product with Nokia or activate a Nokia user Nokia in the sales package or at account, which may in some circumstances www.nokia.com.au/contactus. If you call the enable Nokia to provide you a more Nokia Careline or use other available support, personalised warranty service. please have the following information readily available: 4. WHAT THIS WARRANTY DOES NOT COVER • Your name, address, telephone number, Nokia does not provide a Warranty for the OVI user account details, and other contact following: information; • Your Product type, name, model number, 1. User guides product code, and serial number, which are available from the sales package of your Product; Cyan Magenta Yellow Black
  • 42. 2. Any third party software, settings, content, more information on pixel defects and data, or links installed or downloaded onto industry standards, please go to your Product at any time www.nokia.com. 3. Nokia and third party services or enabling This Warranty is not valid if: clients (please read the terms and conditions that may accompany the services to review 1. Your Product has been (a) opened, modified, your applicable rights and obligations) or repaired without Nokia’s authorisation, or (b) repaired with unauthorised spare parts. 4. Normal wear and tear 2. Your Product's serial number, the mobile 5. Reduced charging capacity of the battery, accessory date code, or the IMEI number has which is a result of the natural end of life been removed, erased, defaced, altered or if process of batteries these are illegible in any way, and this shall be determined in the sole discretion of Nokia. 6. Defects or damage caused by: (a) misuse, (b) not using your Product in accordance with the 3. The software your product runs on has been user guide, (c) using your Product with, or modified, except by Nokia. connecting it to, any product, accessory, software, or service not manufactured or In this Warranty, Nokia does not warrant that supplied by Nokia, (d) any products combined any Nokia software (including updates and with your Product by a third party, or (e) other upgrades) provided with, in, or for your acts beyond Nokia’s reasonable control Product will meet your requirements, work in combination with any hardware or software 7. Damage caused by hacking, cracking, not provided by Nokia, that the operation of viruses, or other malware, or by unauthorised Nokia software will be uninterrupted or error access to services, accounts, computer free or that any defects in the software are systems or networks correctable or will be corrected. For Nokia software related defects, Nokia or a Nokia Care 8. Damage caused by exposure of the Product Centre or Nokia authorised service centre will to moisture, to dampness or to extreme make available the latest version of the Nokia thermal or environmental conditions or to software for reinstallation on your Product. rapid changes in such conditions, to corrosion, Some Nokia software may be subject to to oxidation, to spillage of food or liquid or to separate licence terms. Please refer to influence from chemical products. www.nokia.com or the license terms, which apply to the Nokia software, for information 9. Pixel defects in your Product’s display that on support that may be available for it. This are within the scope of industry standards. For Warranty does not cover transport costs. Cyan Magenta Yellow Black
  • 43. 5. OTHER IMPORTANT NOTICES not considered a defect under this Warranty An independent operator provides the SIM even if they would not be operational. card and the cellular or other network or system on which your Product operates. 6. LIMITATION OF NOKIA'S LIABILITY Therefore, Nokia does not assume any Subject to rights under local law(s) that cannot responsibility for the operation, availability, be excluded, Nokia shall not under any coverage, services, or range of the cellular or circumstances be liable, either expressly or other networks or systems. Before Nokia or a implicitly, for any damages or losses of any Nokia Care Centre or Nokia authorised service kind whatsoever resulting from loss of, centre can repair or replace your Product, the damage to, or corruption of, content or data operator may need to unlock the SIM-lock or or the recreation or transfer thereof even if other lock that may lock your Product to a such loss, damage, or corruption was specific network or operator. In these contributed to by your Product. There is situations, please first contact your operator always the risk of data loss, damage or and request it to unlock your Product. corruption when using software. Please note that you should always back up all data All parts of your Product that Nokia has and content (including, without replaced become Nokia’s property. When limitation, any licence numbers and repairing or replacing your Product, Nokia activation codes) stored on your Product may use new or re-conditioned parts or before taking your Product in for service products. since service activities will erase all data from your Product. If this Warranty does not cover your Product or the service it requires, and you do not have TO THE EXTENT PERMITTED BY APPLICABLE a right to a repair or replacement under local LAW(S) NOKIA SHALL NOT BE LIABLE FOR ANY law, Nokia, Nokia Care Centres and Nokia LOSS OF PROFIT, PRODUCTS OR FUNCTIONALITY, authorised service centres reserve the right to BUSINESS, CONTRACTS, REVENUES OR charge for the repair or replacement of your ANTICIPATED SAVINGS, INCREASED COSTS OR Product, as well as a handling fee. EXPENSES, OR FOR ANY INDIRECT, CONSEQUENTIAL OR SPECIAL LOSS OR DAMAGE, Your Product may contain country specific EVEN IF IT IS NEGLIGENT. HOWEVER, LOCAL LAW elements, including software. The Warranty MAY GIVE YOU ADDITIONAL REMEDIES IN services available in a particular country may DAMAGES THAT CANNOT BE EXCLUDED. be limited to the Products and country specific elements available in that country. Also, if your To the extent permitted by applicable law, Product has been re-exported from its original Nokia’s liability under this Warranty shall be destination to another country, your Product limited to the purchase value of your Product. may contain country specific elements that are Cyan Magenta Yellow Black
  • 44. Nokia Corporation replaced if the products fail to be of acceptable quality and the failure does not amount to a Keilalahdentie 2-4 failure of substantial character. Where your Nokia product was supplied to you for FIN-02150 Espoo business purposes, consumer guarantees under the Consumer Guarantees Act 1993 (NZ) will not apply. Finland 1. GENERAL Nokia Corporation ("Nokia") provides this www.nokia.com.au/warranty Warranty for the Nokia product(s) included in the original sales package ("Product"). Nokia Careline: 1300 366 733 Additional rights may arise under local law if the products are no longer in their original Email: www.nokia.com.au/asknokia packaging. MANUFACTURER’S LIMITED WARRANTY (NEW Your Product is a sophisticated electronic ZEALAND) device. Nokia strongly encourages you to read and follow its user guide. Please also note that Note: This Manufacturer's Limited your Product may contain parts, which can be Warranty (“Warranty”) is applicable only to damaged if not handled very carefully. authentic Nokia products sold through authorised Nokia retail channels, and which During the warranty period, Nokia or a Nokia Nokia has intended for sale in New Zealand. Care Centre or Nokia authorised service centre will remedy defects in materials and Note: This Warranty is in addition to and workmanship free of charge and in a does not limit the rights you may have under commercially reasonable time by either any mandatory consumer protection laws of repairing or replacing your Product at its your country. option. You may have other rights at local law during or after the warranty period. These are not excluded by this Warranty. Our products come with consumer guarantees that cannot be excluded under the Consumer Guarantees Act 1993 (NZ). Under consumer 2. WARRANTY PERIOD guarantees you are entitled to a replacement The warranty period starts when the Product or refund for a failure of substantial character is sold to an end user for the first time. This and for compensation for any other can be evidenced either by (i) the proof of reasonably foreseeable loss or damage. You purchase issued by the first retailer or (ii) the are entitled to have the products repaired or Cyan Magenta Yellow Black
  • 45. date Your Product has first been successfully suspected issue and how to proceed. You can registered by Nokia. also call the Nokia Careline for assistance (national or premium rates may apply). You In this Warranty, Nokia warrants the items in can find information about how to contact the sales pack as follows: Nokia in the sales package or at www.nokia.co.nz/contactus. If you call the (i) Twelve (12) months for the main device; Nokia Careline or use other available support, please have the following information readily available: (ii) Twelve (12) months for accessories (other • Your name, address, telephone number, than those listed below); OVI user account details, and other contact information; (iii) Six (6) months for the main device battery, • Your Product type, name, model number, charger, desk stands, headsets, cables and product code, and serial number, which are covers; available from the sales package of your Product; (iv) Twelve (12) months for the main device • Date and place of purchase, as well as the battery if the battery is integrated within the name of the retailer from whom your Product device and non-removable; was first purchased; and • A short description of the issue affecting (v) Three (3) months for the CD-ROM and your Product memory card. You will need to deliver your Product to a No repair or replacement will renew or extend Nokia Care Centre or Nokia authorised service the warranty periods. However, original or centre at your own cost. If you visit a Nokia replacement parts or replacement Products Care Centre or Nokia authorised service centre provided under this Warranty will be covered for assistance under this Warranty, please by this Warranty for the remainder of the remember to bring along a copy of the original original warranty period or for sixty (60) days proof of purchase. from the date of repair or replacement, whichever is longer. If you wish to claim under this Warranty, you must inform Nokia or a Nokia Care Centre or 3. HOW TO OBTAIN YOUR WARRANTY Nokia authorised service centre of the issue SERVICE affecting your Product within a reasonable If you suspect that your Product may require time from noticing it and always before the service under this Warranty, please first go to applicable warranty period expires (see www.nokia.co.nz/support, and follow any section 2 above). After the warranty period, instructions on how to troubleshoot the Cyan Magenta Yellow Black
  • 46. you may have other rights at local law. These with your Product by a third party, or (e) other are not excluded by this Warranty. acts beyond Nokia’s reasonable control Nokia recommends that you register your 7. Damage caused by hacking, cracking, Product with Nokia or activate a Nokia user viruses, or other malware, or by unauthorised account, which may in some circumstances access to services, accounts, computer enable Nokia to provide you a more systems or networks personalised warranty service. 8. Damage caused by exposure of the Product 4. WHAT THIS WARRANTY DOES NOT COVER to moisture, to dampness or to extreme Nokia does not provide a Warranty for the thermal or environmental conditions or to following: rapid changes in such conditions, to corrosion, to oxidation, to spillage of food or liquid or to 1. User guides influence from chemical products 2. Any third party software, settings, content, 9. Pixel defects in your Product’s display that data, or links installed or downloaded onto are within the scope of industry standards. For your Product at any time more information on pixel defects and industry standards, please go to 3. Nokia and third party services or enabling www.nokia.com. clients (please read the terms and conditions that may accompany the services to review This Warranty is not valid if: your applicable rights and obligations) 1. Your Product has been (a) opened, modified, 4. Normal wear and tear or repaired without Nokia’s authorisation, or (b) repaired with unauthorised spare parts. 5. Reduced charging capacity of the battery, which is a result of the natural end of life 2. Your Product's serial number, the mobile process of batteries accessory date code, or the IMEI number has been removed, erased, defaced, altered or if 6. Defects or damage caused by: (a) misuse, (b) these are illegible in any way, and this shall be not using your Product in accordance with the determined in the sole discretion of Nokia. user guide, (c) using your Product with, or connecting it to, any product, accessory, 3. The software your product runs on has been software, or service not manufactured or modified, except by Nokia. supplied by Nokia, (d) any products combined Cyan Magenta Yellow Black
  • 47. In this Warranty, Nokia does not warrant that repairing or replacing your Product, Nokia any Nokia software (including updates and may use new or re-conditioned parts or upgrades) provided with, in, or for your products. Product will meet your requirements, work in combination with any hardware or software If this Warranty does not cover your Product not provided by Nokia, that the operation of or the service it requires, and you do not have Nokia software will be uninterrupted or error a right to a repair or replacement under local free or that any defects in the software are law, Nokia, Nokia Care Centres and Nokia correctable or will be corrected. For Nokia authorised service centres reserve the right to software related defects, Nokia or a Nokia Care charge for the repair or replacement of your Centre or Nokia authorised service centre will Product, as well as a handling fee. make available the latest version of the Nokia software for reinstallation on your Product. Your Product may contain country specific Some Nokia software may be subject to elements, including software. The Warranty separate licence terms. Please refer to services available in a particular country may www.nokia.com or the license terms, which be limited to the Products and country specific apply to the Nokia software, for information elements available in that country. Also, if your on support that may be available for it. This Product has been re-exported from its original Warranty does not cover transport costs. destination to another country, your Product may contain country specific elements that are 5. OTHER IMPORTANT NOTICES not considered a defect under this Warranty An independent operator provides the SIM even if they would not be operational. card and the cellular or other network or system on which your Product operates. 6. LIMITATION OF NOKIA'S LIABILITY Therefore, Nokia does not assume any Subject to rights under local law(s) that cannot responsibility for the operation, availability, be excluded, Nokia shall not under any coverage, services, or range of the cellular or circumstances be liable, either expressly or other networks or systems. Before Nokia or a implicitly, for any damages or losses of any Nokia Care Centre or Nokia authorised service kind whatsoever resulting from loss of, centre can repair or replace your Product, the damage to, or corruption of, content or data operator may need to unlock the SIM-lock or or the recreation or transfer thereof even if other lock that may lock your Product to a such loss, damage, or corruption was specific network or operator. In these contributed to by your Product. There is situations, please first contact your operator always the risk of data loss, damage or and request it to unlock your Product. corruption when using software.Please note that you should always back up all data All parts of your Product that Nokia has and content (including, without replaced become Nokia’s property. When limitation, any licence numbers and Cyan Magenta Yellow Black
  • 48. activation codes) stored on your Product DECLARATION OF CONFORMITY 0434 before taking your Product in for service since service activities will erase all data from your Product. TO THE EXTENT PERMITTED BY APPLICABLE LAW(S) NOKIA SHALL NOT BE LIABLE FOR ANY LOSS OF PROFIT, PRODUCTS OR FUNCTIONALITY, BUSINESS, CONTRACTS, REVENUES OR Nokia is transitioning between EU Notified ANTICIPATED SAVINGS, INCREASED COSTS OR Bodies and this product has been approved as EXPENSES, OR FOR ANY INDIRECT, complying with EU regulations with both CONSEQUENTIAL OR SPECIAL LOSS OR DAMAGE, Notified Bodies. Either of the CE marks shown EVEN IF IT IS NEGLIGENT. HOWEVER, LOCAL LAW may appear on the product during this MAY GIVE YOU ADDITIONAL REMEDIES IN transition period. DAMAGES THAT CANNOT BE EXCLUDED. Hereby, NOKIA CORPORATION declares that this To the extent permitted by applicable law, RM-713 product is in compliance with the Nokia’s liability under this Warranty shall be essential requirements and other relevant limited to the purchase value of your Product. provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.nokia.com/global/declaration. Nokia Corporation © 2011 Nokia. All rights reserved. Keilalahdentie 2-4 Nokia and Nokia Connecting People are FIN-02150 Espoo trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Finland Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. www.nokia.co.nz/warranty Reproduction, transfer, distribution, or Nokia Careline: 0800 665 421 (0800 NOKIA1) storage of part or all of the contents in this document in any form without the prior Email: www.nokia.co.nz/asknokia written permission of Nokia is prohibited. Nokia operates a policy of continuous Cyan Magenta Yellow Black
  • 49. development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of products, features, applications and services may vary by region. For more information, contact your Nokia dealer or your service provider. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. Cyan Magenta Yellow Black
