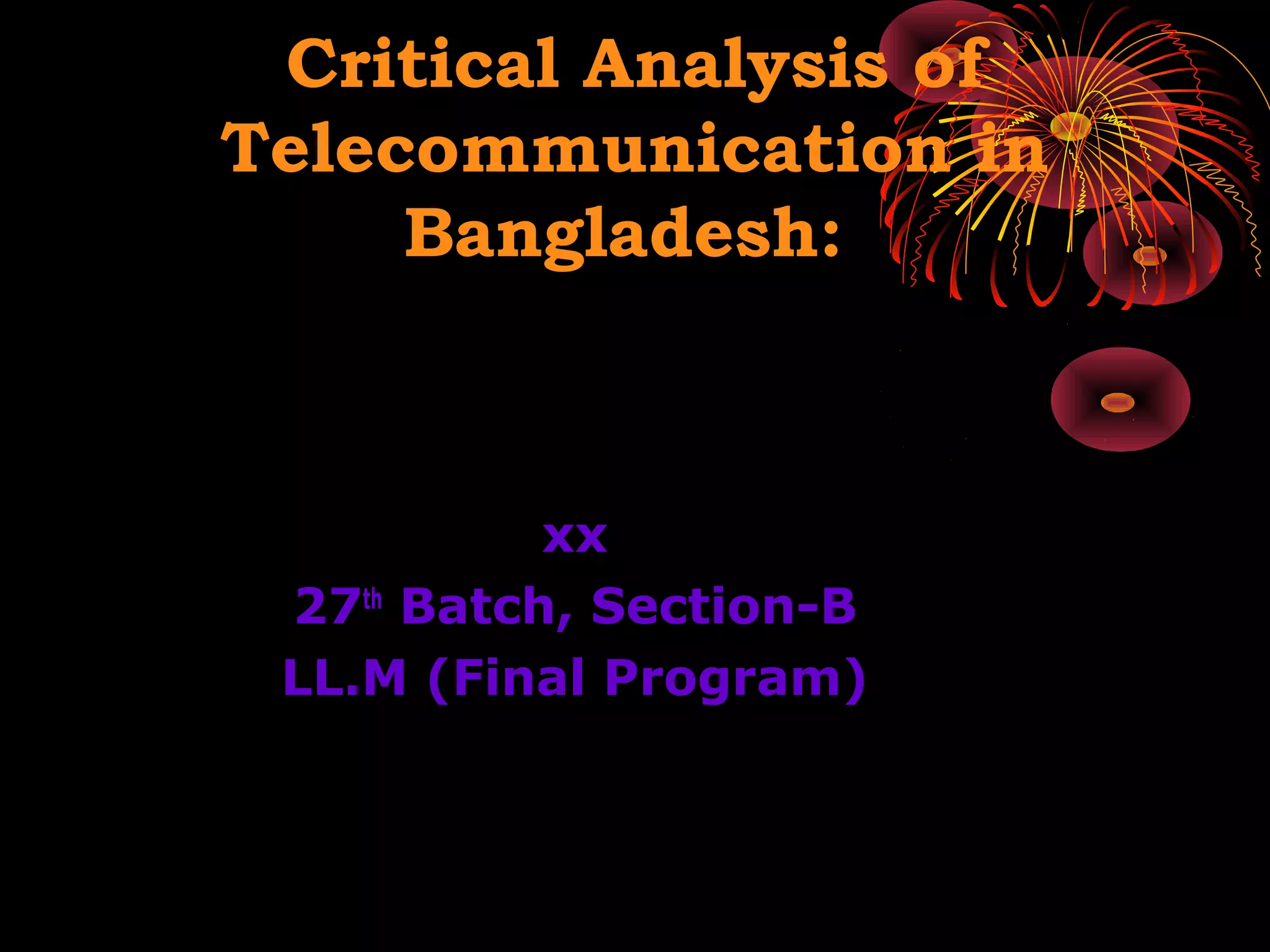

Critical Analysis of
Telecommunication in
Bangladesh:

xx
27th Batch, Section-B
LL.M (Final Program)

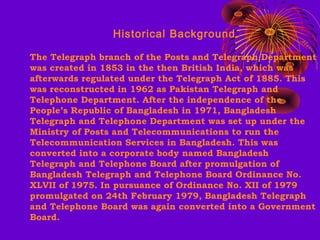

Historical Background
The Telegraph branch of the Posts and Telegraph Department
was created in 1853 in the then British India, which was
afterwards regulated under the Telegraph Act of 1885. This
was reconstructed in 1962 as Pakistan Telegraph and
Telephone Department. After the independence of the
People’s Republic of Bangladesh in 1971, Bangladesh
Telegraph and Telephone Department was set up under the
Ministry of Posts and Telecommunications to run the
Telecommunication Services in Bangladesh. This was
converted into a corporate body named Bangladesh
Telegraph and Telephone Board after promulgation of
Bangladesh Telegraph and Telephone Board Ordinance No.
XLVII of 1975. In pursuance of Ordinance No. XII of 1979
promulgated on 24th February 1979, Bangladesh Telegraph
and Telephone Board was again converted into a Government
Board.

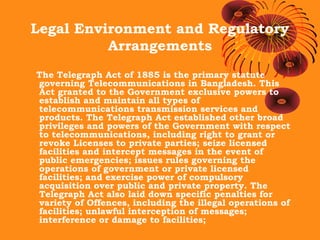

Legal Environment and Regulatory
Arrangements
The Telegraph Act of 1885 is the primary statute
governing Telecommunications in Bangladesh. This
Act granted to the Government exclusive powers to
establish and maintain all types of
telecommunications transmission services and
products. The Telegraph Act established other broad
privileges and powers of the Government with respect
to telecommunications, including right to grant or
revoke Licenses to private parties; seize licensed
facilities and intercept messages in the event of
public emergencies; issues rules governing the
operations of government or private licensed
facilities; and exercise power of compulsory
acquisition over public and private property. The
Telegraph Act also laid down specific penalties for
variety of Offences, including the illegal operations of
facilities; unlawful interception of messages;
interference or damage to facilities;

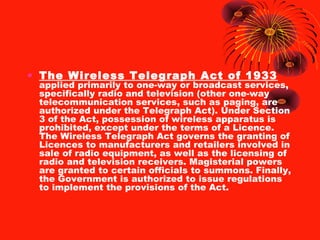

• The Wireless Telegraph Act of 1933

applied primarily to one-way or broadcast services,
specifically radio and television (other one-way
telecommunication services, such as paging, are
authorized under the Telegraph Act). Under Section
3 of the Act, possession of wireless apparatus is
prohibited, except under the terms of a Licence.
The Wireless Telegraph Act governs the granting of
Licences to manufacturers and retailers involved in
sale of radio equipment, as well as the licensing of
radio and television receivers. Magisterial powers
are granted to certain officials to summons. Finally,
the Government is authorized to issue regulations
to implement the provisions of the Act.

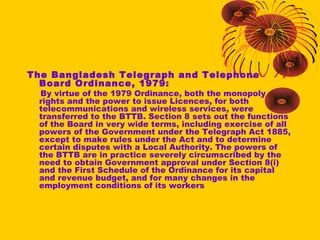

The Bangladesh Telegraph and Telephone
Board Ordinance, 1979:

By virtue of the 1979 Ordinance, both the monopoly
rights and the power to issue Licences, for both
telecommunications and wireless services, were
transferred to the BTTB. Section 8 sets out the functions
of the Board in very wide terms, including exercise of all
powers of the Government under the Telegraph Act 1885,
except to make rules under the Act and to determine
certain disputes with a Local Authority. The powers of
the BTTB are in practice severely circumscribed by the
need to obtain Government approval under Section 8(i)
and the First Schedule of the Ordinance for its capital
and revenue budget, and for many changes in the
employment conditions of its workers
•
•

•

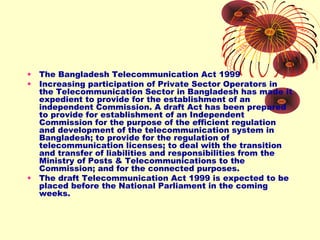

The Bangladesh Telecommunication Act 1999
Increasing participation of Private Sector Operators in
the Telecommunication Sector in Bangladesh has made it
expedient to provide for the establishment of an
independent Commission. A draft Act has been prepared
to provide for establishment of an Independent
Commission for the purpose of the efficient regulation
and development of the telecommunication system in
Bangladesh; to provide for the regulation of
telecommunication licenses; to deal with the transition
and transfer of liabilities and responsibilities from the
Ministry of Posts & Telecommunications to the
Commission; and for the connected purposes.
The draft Telecommunication Act 1999 is expected to be
placed before the National Parliament in the coming
weeks.

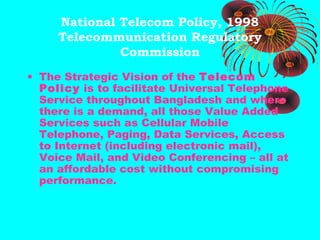

National Telecom Policy, 1998
Telecommunication Regulatory
Commission
• The Strategic Vision of the Telecom
Policy is to facilitate Universal Telephone
Service throughout Bangladesh and where
there is a demand, all those Value Added
Services such as Cellular Mobile
Telephone, Paging, Data Services, Access
to Internet (including electronic mail),
Voice Mail, and Video Conferencing – all at
an affordable cost without compromising
performance.

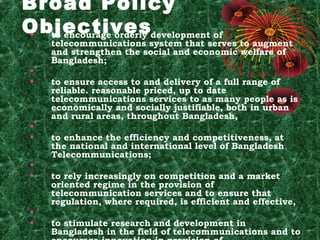

Broad Policy
Objectivesdevelopment of
•
to encourage orderly
•
•

•
•
•
•

•
•

telecommunications system that serves to augment
and strengthen the social and economic welfare of
Bangladesh;

to ensure access to and delivery of a full range of
reliable. reasonable priced, up to date
telecommunications services to as many people as is
economically and socially justifiable, both in urban
and rural areas, throughout Bangladesh,

to enhance the efficiency and competitiveness, at
the national and international level of Bangladesh
Telecommunications;

to rely increasingly on competition and a market
oriented regime in the provision of
telecommunication services and to ensure that
regulation, where required, is efficient and effective,

to stimulate research and development in
Bangladesh in the field of telecommunications and to
TELECOMMUNICATION
ADMINISTRATION IN BANGLADESH
· Bangladesh T & T Board (BTTB) is run as a
Government establishment under the
Ministry of Posts and Telecommunications
(MOPT). The Board comprises of 1 (one)
Chairman, 4 (four) full time Members and 3
(three) part time Members, all appointed by
the Government of Bangladesh.

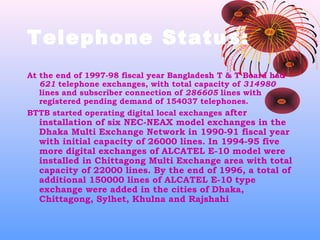

Telephone Status:
At the end of 1997-98 fiscal year Bangladesh T & T Board had
621 telephone exchanges, with total capacity of 314980
lines and subscriber connection of 286605 lines with
registered pending demand of 154037 telephones.
BTTB started operating digital local exchanges after

installation of six NEC-NEAX model exchanges in the
Dhaka Multi Exchange Network in 1990-91 fiscal year
with initial capacity of 26000 lines. In 1994-95 five
more digital exchanges of ALCATEL E-10 model were
installed in Chittagong Multi Exchange area with total
capacity of 22000 lines. By the end of 1996, a total of
additional 150000 lines of ALCATEL E-10 type
exchange were added in the cities of Dhaka,
Chittagong, Sylhet, Khulna and Rajshahi
Public Telephones
Years back public telephone services were provided
through coin boxes in the urban area and landline /
wireless Public Call Offices (PCOs) in the rural areas. The
services through these public telephones had been far
from satisfactory. To improve the public telephone
service, Card Phone Service was introduced from later
part of 1992 with programmes of replacing the old coin
boxes and PCOs. By June 1997, 1283 card phone booths
have been installed in different parts of Bangladesh. All
card phones have access to nation wide dialing and 635
of them have international direct dialing facility. Due to
better and easier public accessibility to telephone the
card phone service has attained popularity in
Bangladesh. A massive program of installing card phone
has been taken to cover all thanas and rural growth
centres of the country.

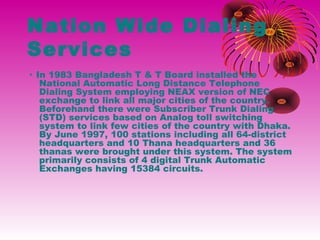

Nation Wide Dialing
Services
· In 1983 Bangladesh T & T Board installed the
National Automatic Long Distance Telephone
Dialing System employing NEAX version of NEC
exchange to link all major cities of the country.
Beforehand there were Subscriber Trunk Dialing
(STD) services based on Analog toll switching
system to link few cities of the country with Dhaka.
By June 1997, 100 stations including all 64-district
headquarters and 10 Thana headquarters and 36
thanas were brought under this system. The system
primarily consists of 4 digital Trunk Automatic
Exchanges having 15384 circuits.

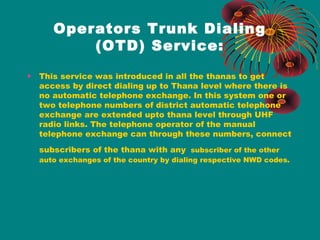

Operators Trunk Dialing
(OTD) Service:
•

This service was introduced in all the thanas to get
access by direct dialing up to Thana level where there is
no automatic telephone exchange. In this system one or
two telephone numbers of district automatic telephone
exchange are extended upto thana level through UHF
radio links. The telephone operator of the manual
telephone exchange can through these numbers, connect
subscribers of the thana with any subscriber of the other

auto exchanges of the country by dialing respective NWD codes.

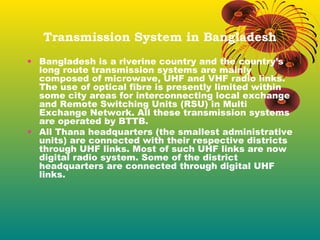

Transmission System in Bangladesh
• Bangladesh is a riverine country and the country’s
long route transmission systems are mainly
composed of microwave, UHF and VHF radio links.
The use of optical fibre is presently limited within
some city areas for interconnecting local exchange
and Remote Switching Units (RSU) in Multi
Exchange Network. All these transmission systems
are operated by BTTB.
• All Thana headquarters (the smallest administrative
units) are connected with their respective districts
through UHF links. Most of such UHF links are now
digital radio system. Some of the district
headquarters are connected through digital UHF
links.

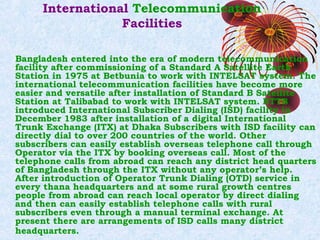

International Telecommunication
Facilities
Bangladesh entered into the era of modern telecommunication
facility after commissioning of a Standard A Satellite Earth
Station in 1975 at Betbunia to work with INTELSAT system. The
international telecommunication facilities have become more
easier and versatile after installation of Standard B Satellite
Station at Talibabad to work with INTELSAT system. BTTB
introduced International Subscriber Dialing (ISD) facility in
December 1983 after installation of a digital International
Trunk Exchange (ITX) at Dhaka Subscribers with ISD facility can
directly dial to over 200 countries of the world. Other
subscribers can easily establish overseas telephone call through
Operator via the ITX by booking overseas call. Most of the
telephone calls from abroad can reach any district head quarters
of Bangladesh through the ITX without any operator’s help.
After introduction of Operator Trunk Dialing (OTD) service in
every thana headquarters and at some rural growth centres
people from abroad can reach local operator by direct dialing
and then can easily establish telephone calls with rural
subscribers even through a manual terminal exchange. At
present there are arrangements of ISD calls many district
headquarters.

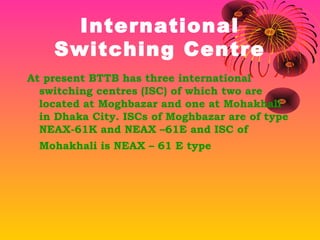

International
Switching Centre
At present BTTB has three international
switching centres (ISC) of which two are
located at Moghbazar and one at Mohakhali
in Dhaka City. ISCs of Moghbazar are of type
NEAX-61K and NEAX –61E and ISC of
Mohakhali is NEAX – 61 E type

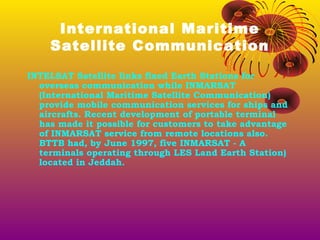

International Maritime
Satellite Communication
INTELSAT Satellite links fixed Earth Stations for
overseas communication while INMARSAT
(International Maritime Satellite Communication)
provide mobile communication services for ships and
aircrafts. Recent development of portable terminal
has made it possible for customers to take advantage
of INMARSAT service from remote locations also.
BTTB had, by June 1997, five INMARSAT - A
terminals operating through LES Land Earth Station)
located in Jeddah.

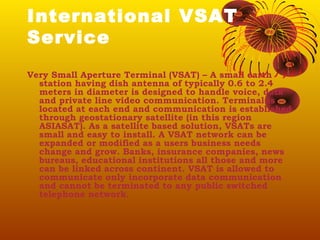

International VSAT
Service
Very Small Aperture Terminal (VSAT) – A small earth
station having dish antenna of typically 0.6 to 2.4
meters in diameter is designed to handle voice, data
and private line video communication. Terminal is
located at each end and communication is established
through geostationary satellite (in this region
ASIASAT). As a satellite based solution, VSATs are
small and easy to install. A VSAT network can be
expanded or modified as a users business needs
change and grow. Banks, insurance companies, news
bureaus, educational institutions all those and more
can be linked across continent. VSAT is allowed to
communicate only incorporate data communication
and cannot be terminated to any public switched
telephone network.

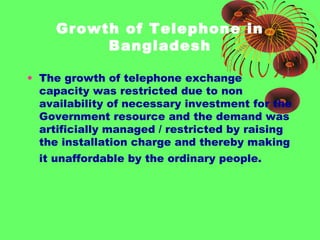

Growth of Telephone in
Bangladesh
• The growth of telephone exchange
capacity was restricted due to non
availability of necessary investment for the
Government resource and the demand was
artificially managed / restricted by raising
the installation charge and thereby making
it unaffordable by the ordinary people.

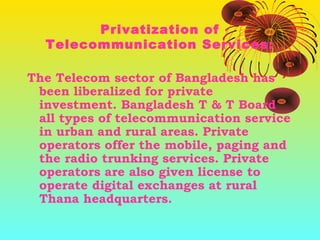

Privatization of
Telecommunication Services:
The Telecom sector of Bangladesh has
been liberalized for private
investment. Bangladesh T & T Board
all types of telecommunication service
in urban and rural areas. Private
operators offer the mobile, paging and
the radio trunking services. Private
operators are also given license to
operate digital exchanges at rural
Thana headquarters.
Rural
Telecommunication:
•

The responsibility of providing Rural
Telecommunication was entrusted to two Private
Operators i.e. Bangladesh Rural
Telecommunication Authority (BRTA) & Sheba
Telecom; and for the area of Bangladesh was
more or less divided into two equal parts
between the two Operators. Unfortunately, the
success of these two operators were limited and
even after about 7 to 9 years of operation, the
coverage have been very inadequate and quality
had been poor. Inadequacy of interconnection
facility between BTTB network and the network
of the private operators played a major role for
this state of affairs. The technical and the
financial limitations of the operator were also
there. The absence of an Independent Regulatory
Body have been identified as an impediment for
the solution for furthering development of
telecommunication in Bangladesh
Thank You

Any Question?

More Related Content

What's hot

telecommunication industry after reliance
telecommunication industry after reliance telecommunication industry after reliance
telecommunication industry after reliance
ANKUR BAROT

Mobilink and warid merger
Mobilink and warid mergerMobilink and warid merger
Mobilink and warid merger
Mamoona Iqbal

Vodafone Strategy
Vodafone StrategyVodafone Strategy
Vodafone Strategy
Shahzad Khan

mba project on vodafone
mba project on vodafonemba project on vodafone
mba project on vodafone
Projects Kart

Grameen phone project
Grameen phone projectGrameen phone project
Grameen phone project
Jasfia Khanam Fama

Grameenphone The market Leader
Grameenphone The market LeaderGrameenphone The market Leader
Grameenphone The market Leader
Sadman Prodhan

Industry analysis conducted at vodafone
Industry analysis conducted at vodafoneIndustry analysis conducted at vodafone
Industry analysis conducted at vodafone
Projects Kart

Vodafone Presentation
Vodafone PresentationVodafone Presentation
Vodafone Presentation
Puneet Mishra

Presentation slides on Telecom Pakistan
Presentation slides on Telecom Pakistan  Presentation slides on Telecom Pakistan
Presentation slides on Telecom Pakistan
Ali Shah

Vodafone report final
Vodafone report finalVodafone report final
Vodafone report final
Shri Theja

Airtel vs vodafone
Airtel vs vodafoneAirtel vs vodafone
Airtel vs vodafone
Rahul Thakur

Vodafone
VodafoneVodafone
Vodafone
Mustafa

A Study Of Telecom Industry
A Study Of Telecom  IndustryA Study Of Telecom  Industry
A Study Of Telecom Industry
akash agrawal

Indian telecom industry- its existence and current scenario in India shubham
Indian telecom industry- its existence and current scenario in India shubhamIndian telecom industry- its existence and current scenario in India shubham
Indian telecom industry- its existence and current scenario in India shubham
Shubham Parsekar

Study of Telecom Sector
Study of Telecom SectorStudy of Telecom Sector
Study of Telecom Sector
Gaurav Goel

Service operations in telecom sector
Service operations in telecom sectorService operations in telecom sector
Service operations in telecom sector
Aakash Varma

Mass media research
Mass media researchMass media research
Mass media research
divya2612

A project report on comparative analysis of airtel and bsnl landline
A project report on comparative analysis of airtel and bsnl landlineA project report on comparative analysis of airtel and bsnl landline
A project report on comparative analysis of airtel and bsnl landline
Babasab Patil

Marketing strategy of telecom sector in india(project)
Marketing strategy of telecom sector in india(project)Marketing strategy of telecom sector in india(project)
Marketing strategy of telecom sector in india(project)
ankan sengupta

Pakistan telecommunication
Pakistan telecommunicationPakistan telecommunication
Pakistan telecommunication
Allied school system


What's hot (20)

telecommunication industry after reliance
telecommunication industry after reliance telecommunication industry after reliance
telecommunication industry after reliance

Mobilink and warid merger
Mobilink and warid mergerMobilink and warid merger
Mobilink and warid merger

Vodafone Strategy
Vodafone StrategyVodafone Strategy
Vodafone Strategy

mba project on vodafone
mba project on vodafonemba project on vodafone
mba project on vodafone

Grameen phone project
Grameen phone projectGrameen phone project
Grameen phone project

Grameenphone The market Leader
Grameenphone The market LeaderGrameenphone The market Leader
Grameenphone The market Leader

Industry analysis conducted at vodafone
Industry analysis conducted at vodafoneIndustry analysis conducted at vodafone
Industry analysis conducted at vodafone

Vodafone Presentation
Vodafone PresentationVodafone Presentation
Vodafone Presentation

Presentation slides on Telecom Pakistan
Presentation slides on Telecom Pakistan  Presentation slides on Telecom Pakistan
Presentation slides on Telecom Pakistan

Vodafone report final
Vodafone report finalVodafone report final
Vodafone report final

Airtel vs vodafone
Airtel vs vodafoneAirtel vs vodafone
Airtel vs vodafone

Vodafone
VodafoneVodafone
Vodafone

A Study Of Telecom Industry
A Study Of Telecom  IndustryA Study Of Telecom  Industry
A Study Of Telecom Industry

Indian telecom industry- its existence and current scenario in India shubham
Indian telecom industry- its existence and current scenario in India shubhamIndian telecom industry- its existence and current scenario in India shubham
Indian telecom industry- its existence and current scenario in India shubham

Study of Telecom Sector
Study of Telecom SectorStudy of Telecom Sector
Study of Telecom Sector

Service operations in telecom sector
Service operations in telecom sectorService operations in telecom sector
Service operations in telecom sector

Mass media research
Mass media researchMass media research
Mass media research

A project report on comparative analysis of airtel and bsnl landline
A project report on comparative analysis of airtel and bsnl landlineA project report on comparative analysis of airtel and bsnl landline
A project report on comparative analysis of airtel and bsnl landline

Marketing strategy of telecom sector in india(project)
Marketing strategy of telecom sector in india(project)Marketing strategy of telecom sector in india(project)
Marketing strategy of telecom sector in india(project)

Pakistan telecommunication
Pakistan telecommunicationPakistan telecommunication
Pakistan telecommunication


Similar to New microsoft power point presentation (sayef amin)

Critical analysis of customer services and land line services in bangladesh b...
Critical analysis of customer services and land line services in bangladesh b...Critical analysis of customer services and land line services in bangladesh b...
Critical analysis of customer services and land line services in bangladesh b...
Asian Paint Bangladesh Ltd

Telecom industry analysis
Telecom industry analysisTelecom industry analysis
Telecom industry analysis
Heemanish Midde

Operation management Telecom Sector in India
Operation management Telecom Sector in India Operation management Telecom Sector in India
Operation management Telecom Sector in India
Saurabh Tiwari

Operation management Telecom Sector in India
Operation management Telecom Sector in IndiaOperation management Telecom Sector in India
Operation management Telecom Sector in India
Saurabh Tiwari

Telecom sector
Telecom sectorTelecom sector
Telecom sector
Gayathri Reddy

Presentation on telecom industry in India
Presentation on  telecom industry in IndiaPresentation on  telecom industry in India
Presentation on telecom industry in India
Unitedworld School Of Business

Presentation on telecom industry in india
Presentation on  telecom industry in india Presentation on  telecom industry in india
Presentation on telecom industry in india
Unitedworld School Of Business

KNOWLEDAGE OF BTRC
KNOWLEDAGE OF BTRCKNOWLEDAGE OF BTRC
KNOWLEDAGE OF BTRC
MDSHAMIMHOSSAIN27

Telecom industry
Telecom industryTelecom industry
Telecom industry
Rishi Kumar Gupta

BTRC
BTRCBTRC
Cochin_12112018_II.ppt
Cochin_12112018_II.pptCochin_12112018_II.ppt
Cochin_12112018_II.ppt
Anil Bhat

V.G.Sabu._PhD._Thesis_Presentation.pdf
V.G.Sabu._PhD._Thesis_Presentation.pdfV.G.Sabu._PhD._Thesis_Presentation.pdf
V.G.Sabu._PhD._Thesis_Presentation.pdf
AbinasbehuraBC20137

Effect of Reliance Jio Promotion activites on Customers.pdf
Effect of Reliance Jio Promotion activites on Customers.pdfEffect of Reliance Jio Promotion activites on Customers.pdf
Effect of Reliance Jio Promotion activites on Customers.pdf
Nitesh Kumar Mishra

Exploring Legal and Policy Regime of Telecom Service in Nepal
Exploring Legal and Policy Regime of Telecom Service in NepalExploring Legal and Policy Regime of Telecom Service in Nepal
Exploring Legal and Policy Regime of Telecom Service in Nepal
Santosh Sigdel

Telecom sector of Pakistan in 2022.
Telecom sector of Pakistan in 2022.Telecom sector of Pakistan in 2022.
Telecom sector of Pakistan in 2022.
Muhamad Ibrahim

Case study
Case studyCase study
Case study
Siddhi Raut

BSNL-TrainingReport
BSNL-TrainingReportBSNL-TrainingReport
BSNL-TrainingReport
Nishant Bharti

Indian telecom industry past, present & future
Indian telecom industry  past, present & futureIndian telecom industry  past, present & future
Indian telecom industry past, present & future
Reeha Paul

STUDY OF CUSTOMER PREFERENCE TOWARDS AIRTEL
STUDY OF CUSTOMER PREFERENCE TOWARDS AIRTELSTUDY OF CUSTOMER PREFERENCE TOWARDS AIRTEL
STUDY OF CUSTOMER PREFERENCE TOWARDS AIRTEL
Ashish Gupta

Management Information Systems: Telecom Industry
Management Information Systems: Telecom IndustryManagement Information Systems: Telecom Industry
Management Information Systems: Telecom Industry
Kashif Choudhury


Similar to New microsoft power point presentation (sayef amin) (20)

Critical analysis of customer services and land line services in bangladesh b...
Critical analysis of customer services and land line services in bangladesh b...Critical analysis of customer services and land line services in bangladesh b...
Critical analysis of customer services and land line services in bangladesh b...

Telecom industry analysis
Telecom industry analysisTelecom industry analysis
Telecom industry analysis

Operation management Telecom Sector in India
Operation management Telecom Sector in India Operation management Telecom Sector in India
Operation management Telecom Sector in India

Operation management Telecom Sector in India
Operation management Telecom Sector in IndiaOperation management Telecom Sector in India
Operation management Telecom Sector in India

Telecom sector
Telecom sectorTelecom sector
Telecom sector

Presentation on telecom industry in India
Presentation on  telecom industry in IndiaPresentation on  telecom industry in India
Presentation on telecom industry in India

Presentation on telecom industry in india
Presentation on  telecom industry in india Presentation on  telecom industry in india
Presentation on telecom industry in india

KNOWLEDAGE OF BTRC
KNOWLEDAGE OF BTRCKNOWLEDAGE OF BTRC
KNOWLEDAGE OF BTRC

Telecom industry
Telecom industryTelecom industry
Telecom industry

BTRC
BTRCBTRC
BTRC

Cochin_12112018_II.ppt
Cochin_12112018_II.pptCochin_12112018_II.ppt
Cochin_12112018_II.ppt

V.G.Sabu._PhD._Thesis_Presentation.pdf
V.G.Sabu._PhD._Thesis_Presentation.pdfV.G.Sabu._PhD._Thesis_Presentation.pdf
V.G.Sabu._PhD._Thesis_Presentation.pdf

Effect of Reliance Jio Promotion activites on Customers.pdf
Effect of Reliance Jio Promotion activites on Customers.pdfEffect of Reliance Jio Promotion activites on Customers.pdf
Effect of Reliance Jio Promotion activites on Customers.pdf

Exploring Legal and Policy Regime of Telecom Service in Nepal
Exploring Legal and Policy Regime of Telecom Service in NepalExploring Legal and Policy Regime of Telecom Service in Nepal
Exploring Legal and Policy Regime of Telecom Service in Nepal

Telecom sector of Pakistan in 2022.
Telecom sector of Pakistan in 2022.Telecom sector of Pakistan in 2022.
Telecom sector of Pakistan in 2022.

Case study
Case studyCase study
Case study

BSNL-TrainingReport
BSNL-TrainingReportBSNL-TrainingReport
BSNL-TrainingReport

Indian telecom industry past, present & future
Indian telecom industry  past, present & futureIndian telecom industry  past, present & future
Indian telecom industry past, present & future

STUDY OF CUSTOMER PREFERENCE TOWARDS AIRTEL
STUDY OF CUSTOMER PREFERENCE TOWARDS AIRTELSTUDY OF CUSTOMER PREFERENCE TOWARDS AIRTEL
STUDY OF CUSTOMER PREFERENCE TOWARDS AIRTEL

Management Information Systems: Telecom Industry
Management Information Systems: Telecom IndustryManagement Information Systems: Telecom Industry
Management Information Systems: Telecom Industry


More from Asian Paint Bangladesh Ltd

Telecommunication union by Sayef Amin +8801924122222
Telecommunication union by Sayef Amin +8801924122222Telecommunication union by Sayef Amin +8801924122222
Telecommunication union by Sayef Amin +8801924122222
Asian Paint Bangladesh Ltd

Energy policy in china by Sayef Amin +8801924122222
Energy policy in china by Sayef Amin +8801924122222Energy policy in china by Sayef Amin +8801924122222
Energy policy in china by Sayef Amin +8801924122222
Asian Paint Bangladesh Ltd

Performance of grameenphone in telecommunication sector of bangladesh a compa...
Performance of grameenphone in telecommunication sector of bangladesh a compa...Performance of grameenphone in telecommunication sector of bangladesh a compa...
Performance of grameenphone in telecommunication sector of bangladesh a compa...
Asian Paint Bangladesh Ltd

Environment pollution of bangladesh – it’s effect and control +8801924122222
Environment pollution of bangladesh – it’s effect and control +8801924122222Environment pollution of bangladesh – it’s effect and control +8801924122222
Environment pollution of bangladesh – it’s effect and control +8801924122222
Asian Paint Bangladesh Ltd

Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...
Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...
Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...
Asian Paint Bangladesh Ltd

Pacific bangladesh telecom limited
Pacific bangladesh telecom limited Pacific bangladesh telecom limited
Pacific bangladesh telecom limited
Asian Paint Bangladesh Ltd

Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)
Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)
Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)
Asian Paint Bangladesh Ltd

Customer service of airtel telecom bangladesh limited by sayef amin 019241222...
Customer service of airtel telecom bangladesh limited by sayef amin 019241222...Customer service of airtel telecom bangladesh limited by sayef amin 019241222...
Customer service of airtel telecom bangladesh limited by sayef amin 019241222...
Asian Paint Bangladesh Ltd

Telecommunication law for Telecommunication Union 01924122222
Telecommunication law for Telecommunication Union 01924122222Telecommunication law for Telecommunication Union 01924122222
Telecommunication law for Telecommunication Union 01924122222
Asian Paint Bangladesh Ltd

Sayef amin (telecommunication law)power point presentation
Sayef amin (telecommunication law)power point presentationSayef amin (telecommunication law)power point presentation
Sayef amin (telecommunication law)power point presentation
Asian Paint Bangladesh Ltd

Researchon Monograph: "Traffic Jam in Dhaka City"
Researchon Monograph: "Traffic Jam in Dhaka City"Researchon Monograph: "Traffic Jam in Dhaka City"
Researchon Monograph: "Traffic Jam in Dhaka City"
Asian Paint Bangladesh Ltd

Assignment On: “Ensuring Safe Drinking Water in Bangladesh”
Assignment On: “Ensuring Safe Drinking Water in Bangladesh”Assignment On: “Ensuring Safe Drinking Water in Bangladesh”
Assignment On: “Ensuring Safe Drinking Water in Bangladesh”
Asian Paint Bangladesh Ltd

Montreal Convention (Convention for the Unification of Certain Rules for Inte...
Montreal Convention (Convention for the Unification of Certain Rules for Inte...Montreal Convention (Convention for the Unification of Certain Rules for Inte...
Montreal Convention (Convention for the Unification of Certain Rules for Inte...
Asian Paint Bangladesh Ltd

Assignment on: Hague Convention, 1970
Assignment on: Hague Convention, 1970Assignment on: Hague Convention, 1970
Assignment on: Hague Convention, 1970
Asian Paint Bangladesh Ltd

Assignment On: Government of the People’s Republic of Bangladesh National Po...
Assignment On:  Government of the People’s Republic of Bangladesh National Po...Assignment On:  Government of the People’s Republic of Bangladesh National Po...
Assignment On: Government of the People’s Republic of Bangladesh National Po...
Asian Paint Bangladesh Ltd

National policy for safe water supply & sanitation 1998
National policy for safe water supply & sanitation 1998National policy for safe water supply & sanitation 1998
National policy for safe water supply & sanitation 1998
Asian Paint Bangladesh Ltd

Assignment On: “Water Resources Management in the Remediation of Ground Water...
Assignment On: “Water Resources Management in the Remediation of Ground Water...Assignment On: “Water Resources Management in the Remediation of Ground Water...
Assignment On: “Water Resources Management in the Remediation of Ground Water...
Asian Paint Bangladesh Ltd

Specific Releif Act 1877
Specific Releif Act 1877Specific Releif Act 1877
Specific Releif Act 1877
Asian Paint Bangladesh Ltd

Water act 2013 Bangladesh
Water act 2013 BangladeshWater act 2013 Bangladesh
Water act 2013 Bangladesh
Asian Paint Bangladesh Ltd

Indo bangla joint river commission +8801924122222/+8804475122222/+8801614122222
Indo bangla  joint river commission +8801924122222/+8804475122222/+8801614122222Indo bangla  joint river commission +8801924122222/+8804475122222/+8801614122222
Indo bangla joint river commission +8801924122222/+8804475122222/+8801614122222
Asian Paint Bangladesh Ltd


More from Asian Paint Bangladesh Ltd (20)

Telecommunication union by Sayef Amin +8801924122222
Telecommunication union by Sayef Amin +8801924122222Telecommunication union by Sayef Amin +8801924122222
Telecommunication union by Sayef Amin +8801924122222

Energy policy in china by Sayef Amin +8801924122222
Energy policy in china by Sayef Amin +8801924122222Energy policy in china by Sayef Amin +8801924122222
Energy policy in china by Sayef Amin +8801924122222

Performance of grameenphone in telecommunication sector of bangladesh a compa...
Performance of grameenphone in telecommunication sector of bangladesh a compa...Performance of grameenphone in telecommunication sector of bangladesh a compa...
Performance of grameenphone in telecommunication sector of bangladesh a compa...

Environment pollution of bangladesh – it’s effect and control +8801924122222
Environment pollution of bangladesh – it’s effect and control +8801924122222Environment pollution of bangladesh – it’s effect and control +8801924122222
Environment pollution of bangladesh – it’s effect and control +8801924122222

Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...
Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...
Assignment on Interpretation of Statutes in Common Law and Civil Law System 0...

Pacific bangladesh telecom limited
Pacific bangladesh telecom limited Pacific bangladesh telecom limited
Pacific bangladesh telecom limited

Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)
Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)
Solar energy presentation(sayef amin 01924122222/01614122222/04475122222)

Customer service of airtel telecom bangladesh limited by sayef amin 019241222...
Customer service of airtel telecom bangladesh limited by sayef amin 019241222...Customer service of airtel telecom bangladesh limited by sayef amin 019241222...
Customer service of airtel telecom bangladesh limited by sayef amin 019241222...

Telecommunication law for Telecommunication Union 01924122222
Telecommunication law for Telecommunication Union 01924122222Telecommunication law for Telecommunication Union 01924122222
Telecommunication law for Telecommunication Union 01924122222

Sayef amin (telecommunication law)power point presentation
Sayef amin (telecommunication law)power point presentationSayef amin (telecommunication law)power point presentation
Sayef amin (telecommunication law)power point presentation

Researchon Monograph: "Traffic Jam in Dhaka City"
Researchon Monograph: "Traffic Jam in Dhaka City"Researchon Monograph: "Traffic Jam in Dhaka City"
Researchon Monograph: "Traffic Jam in Dhaka City"

Assignment On: “Ensuring Safe Drinking Water in Bangladesh”
Assignment On: “Ensuring Safe Drinking Water in Bangladesh”Assignment On: “Ensuring Safe Drinking Water in Bangladesh”
Assignment On: “Ensuring Safe Drinking Water in Bangladesh”

Montreal Convention (Convention for the Unification of Certain Rules for Inte...
Montreal Convention (Convention for the Unification of Certain Rules for Inte...Montreal Convention (Convention for the Unification of Certain Rules for Inte...
Montreal Convention (Convention for the Unification of Certain Rules for Inte...

Assignment on: Hague Convention, 1970
Assignment on: Hague Convention, 1970Assignment on: Hague Convention, 1970
Assignment on: Hague Convention, 1970

Assignment On: Government of the People’s Republic of Bangladesh National Po...
Assignment On:  Government of the People’s Republic of Bangladesh National Po...Assignment On:  Government of the People’s Republic of Bangladesh National Po...
Assignment On: Government of the People’s Republic of Bangladesh National Po...

National policy for safe water supply & sanitation 1998
National policy for safe water supply & sanitation 1998National policy for safe water supply & sanitation 1998
National policy for safe water supply & sanitation 1998

Assignment On: “Water Resources Management in the Remediation of Ground Water...
Assignment On: “Water Resources Management in the Remediation of Ground Water...Assignment On: “Water Resources Management in the Remediation of Ground Water...
Assignment On: “Water Resources Management in the Remediation of Ground Water...

Specific Releif Act 1877
Specific Releif Act 1877Specific Releif Act 1877
Specific Releif Act 1877

Water act 2013 Bangladesh
Water act 2013 BangladeshWater act 2013 Bangladesh
Water act 2013 Bangladesh

Indo bangla joint river commission +8801924122222/+8804475122222/+8801614122222
Indo bangla  joint river commission +8801924122222/+8804475122222/+8801614122222Indo bangla  joint river commission +8801924122222/+8804475122222/+8801614122222
Indo bangla joint river commission +8801924122222/+8804475122222/+8801614122222


Recently uploaded

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS
Celine George

Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour International

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides
Celine George

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use
Excellence Foundation for South Sudan

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
artenzmartenkai

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008
Glenn Rivera

A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...
Association for Project Management

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
Celine George

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf
Scholarhat

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17
Celine George

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx
AntonioJarligoCompra

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS
Celine George

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cátedra Banco Santander

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf
Scholarhat

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Alvaro Barbosa

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book
lakitawilson


Recently uploaded (20)

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS

Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008

A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book


New microsoft power point presentation (sayef amin)

  • 1. Critical Analysis of Telecommunication in Bangladesh: xx 27th Batch, Section-B LL.M (Final Program)
  • 2. Historical Background The Telegraph branch of the Posts and Telegraph Department was created in 1853 in the then British India, which was afterwards regulated under the Telegraph Act of 1885. This was reconstructed in 1962 as Pakistan Telegraph and Telephone Department. After the independence of the People’s Republic of Bangladesh in 1971, Bangladesh Telegraph and Telephone Department was set up under the Ministry of Posts and Telecommunications to run the Telecommunication Services in Bangladesh. This was converted into a corporate body named Bangladesh Telegraph and Telephone Board after promulgation of Bangladesh Telegraph and Telephone Board Ordinance No. XLVII of 1975. In pursuance of Ordinance No. XII of 1979 promulgated on 24th February 1979, Bangladesh Telegraph and Telephone Board was again converted into a Government Board.
  • 3. Legal Environment and Regulatory Arrangements The Telegraph Act of 1885 is the primary statute governing Telecommunications in Bangladesh. This Act granted to the Government exclusive powers to establish and maintain all types of telecommunications transmission services and products. The Telegraph Act established other broad privileges and powers of the Government with respect to telecommunications, including right to grant or revoke Licenses to private parties; seize licensed facilities and intercept messages in the event of public emergencies; issues rules governing the operations of government or private licensed facilities; and exercise power of compulsory acquisition over public and private property. The Telegraph Act also laid down specific penalties for variety of Offences, including the illegal operations of facilities; unlawful interception of messages; interference or damage to facilities;
  • 4. • The Wireless Telegraph Act of 1933 applied primarily to one-way or broadcast services, specifically radio and television (other one-way telecommunication services, such as paging, are authorized under the Telegraph Act). Under Section 3 of the Act, possession of wireless apparatus is prohibited, except under the terms of a Licence. The Wireless Telegraph Act governs the granting of Licences to manufacturers and retailers involved in sale of radio equipment, as well as the licensing of radio and television receivers. Magisterial powers are granted to certain officials to summons. Finally, the Government is authorized to issue regulations to implement the provisions of the Act.
  • 5. The Bangladesh Telegraph and Telephone Board Ordinance, 1979: By virtue of the 1979 Ordinance, both the monopoly rights and the power to issue Licences, for both telecommunications and wireless services, were transferred to the BTTB. Section 8 sets out the functions of the Board in very wide terms, including exercise of all powers of the Government under the Telegraph Act 1885, except to make rules under the Act and to determine certain disputes with a Local Authority. The powers of the BTTB are in practice severely circumscribed by the need to obtain Government approval under Section 8(i) and the First Schedule of the Ordinance for its capital and revenue budget, and for many changes in the employment conditions of its workers
  • 6. • • • The Bangladesh Telecommunication Act 1999 Increasing participation of Private Sector Operators in the Telecommunication Sector in Bangladesh has made it expedient to provide for the establishment of an independent Commission. A draft Act has been prepared to provide for establishment of an Independent Commission for the purpose of the efficient regulation and development of the telecommunication system in Bangladesh; to provide for the regulation of telecommunication licenses; to deal with the transition and transfer of liabilities and responsibilities from the Ministry of Posts & Telecommunications to the Commission; and for the connected purposes. The draft Telecommunication Act 1999 is expected to be placed before the National Parliament in the coming weeks.
  • 7. National Telecom Policy, 1998 Telecommunication Regulatory Commission • The Strategic Vision of the Telecom Policy is to facilitate Universal Telephone Service throughout Bangladesh and where there is a demand, all those Value Added Services such as Cellular Mobile Telephone, Paging, Data Services, Access to Internet (including electronic mail), Voice Mail, and Video Conferencing – all at an affordable cost without compromising performance.
  • 8. Broad Policy Objectivesdevelopment of • to encourage orderly • • • • • • • • telecommunications system that serves to augment and strengthen the social and economic welfare of Bangladesh;   to ensure access to and delivery of a full range of reliable. reasonable priced, up to date telecommunications services to as many people as is economically and socially justifiable, both in urban and rural areas, throughout Bangladesh,   to enhance the efficiency and competitiveness, at the national and international level of Bangladesh Telecommunications;   to rely increasingly on competition and a market oriented regime in the provision of telecommunication services and to ensure that regulation, where required, is efficient and effective,   to stimulate research and development in Bangladesh in the field of telecommunications and to
  • 9. TELECOMMUNICATION ADMINISTRATION IN BANGLADESH · Bangladesh T & T Board (BTTB) is run as a Government establishment under the Ministry of Posts and Telecommunications (MOPT). The Board comprises of 1 (one) Chairman, 4 (four) full time Members and 3 (three) part time Members, all appointed by the Government of Bangladesh.
  • 10. Telephone Status: At the end of 1997-98 fiscal year Bangladesh T & T Board had 621 telephone exchanges, with total capacity of 314980 lines and subscriber connection of 286605 lines with registered pending demand of 154037 telephones. BTTB started operating digital local exchanges after installation of six NEC-NEAX model exchanges in the Dhaka Multi Exchange Network in 1990-91 fiscal year with initial capacity of 26000 lines. In 1994-95 five more digital exchanges of ALCATEL E-10 model were installed in Chittagong Multi Exchange area with total capacity of 22000 lines. By the end of 1996, a total of additional 150000 lines of ALCATEL E-10 type exchange were added in the cities of Dhaka, Chittagong, Sylhet, Khulna and Rajshahi
  • 11. Public Telephones Years back public telephone services were provided through coin boxes in the urban area and landline / wireless Public Call Offices (PCOs) in the rural areas. The services through these public telephones had been far from satisfactory. To improve the public telephone service, Card Phone Service was introduced from later part of 1992 with programmes of replacing the old coin boxes and PCOs. By June 1997, 1283 card phone booths have been installed in different parts of Bangladesh. All card phones have access to nation wide dialing and 635 of them have international direct dialing facility. Due to better and easier public accessibility to telephone the card phone service has attained popularity in Bangladesh. A massive program of installing card phone has been taken to cover all thanas and rural growth centres of the country.
  • 12. Nation Wide Dialing Services · In 1983 Bangladesh T & T Board installed the National Automatic Long Distance Telephone Dialing System employing NEAX version of NEC exchange to link all major cities of the country. Beforehand there were Subscriber Trunk Dialing (STD) services based on Analog toll switching system to link few cities of the country with Dhaka. By June 1997, 100 stations including all 64-district headquarters and 10 Thana headquarters and 36 thanas were brought under this system. The system primarily consists of 4 digital Trunk Automatic Exchanges having 15384 circuits.
  • 13. Operators Trunk Dialing (OTD) Service: • This service was introduced in all the thanas to get access by direct dialing up to Thana level where there is no automatic telephone exchange. In this system one or two telephone numbers of district automatic telephone exchange are extended upto thana level through UHF radio links. The telephone operator of the manual telephone exchange can through these numbers, connect subscribers of the thana with any subscriber of the other auto exchanges of the country by dialing respective NWD codes.
  • 14. Transmission System in Bangladesh • Bangladesh is a riverine country and the country’s long route transmission systems are mainly composed of microwave, UHF and VHF radio links. The use of optical fibre is presently limited within some city areas for interconnecting local exchange and Remote Switching Units (RSU) in Multi Exchange Network. All these transmission systems are operated by BTTB. • All Thana headquarters (the smallest administrative units) are connected with their respective districts through UHF links. Most of such UHF links are now digital radio system. Some of the district headquarters are connected through digital UHF links.
  • 15. International Telecommunication Facilities Bangladesh entered into the era of modern telecommunication facility after commissioning of a Standard A Satellite Earth Station in 1975 at Betbunia to work with INTELSAT system. The international telecommunication facilities have become more easier and versatile after installation of Standard B Satellite Station at Talibabad to work with INTELSAT system. BTTB introduced International Subscriber Dialing (ISD) facility in December 1983 after installation of a digital International Trunk Exchange (ITX) at Dhaka Subscribers with ISD facility can directly dial to over 200 countries of the world. Other subscribers can easily establish overseas telephone call through Operator via the ITX by booking overseas call. Most of the telephone calls from abroad can reach any district head quarters of Bangladesh through the ITX without any operator’s help. After introduction of Operator Trunk Dialing (OTD) service in every thana headquarters and at some rural growth centres people from abroad can reach local operator by direct dialing and then can easily establish telephone calls with rural subscribers even through a manual terminal exchange. At present there are arrangements of ISD calls many district headquarters.
  • 16. International Switching Centre At present BTTB has three international switching centres (ISC) of which two are located at Moghbazar and one at Mohakhali in Dhaka City. ISCs of Moghbazar are of type NEAX-61K and NEAX –61E and ISC of Mohakhali is NEAX – 61 E type
  • 17. International Maritime Satellite Communication INTELSAT Satellite links fixed Earth Stations for overseas communication while INMARSAT (International Maritime Satellite Communication) provide mobile communication services for ships and aircrafts. Recent development of portable terminal has made it possible for customers to take advantage of INMARSAT service from remote locations also. BTTB had, by June 1997, five INMARSAT - A terminals operating through LES Land Earth Station) located in Jeddah.
  • 18. International VSAT Service Very Small Aperture Terminal (VSAT) – A small earth station having dish antenna of typically 0.6 to 2.4 meters in diameter is designed to handle voice, data and private line video communication. Terminal is located at each end and communication is established through geostationary satellite (in this region ASIASAT). As a satellite based solution, VSATs are small and easy to install. A VSAT network can be expanded or modified as a users business needs change and grow. Banks, insurance companies, news bureaus, educational institutions all those and more can be linked across continent. VSAT is allowed to communicate only incorporate data communication and cannot be terminated to any public switched telephone network.
  • 19. Growth of Telephone in Bangladesh • The growth of telephone exchange capacity was restricted due to non availability of necessary investment for the Government resource and the demand was artificially managed / restricted by raising the installation charge and thereby making it unaffordable by the ordinary people.
  • 20. Privatization of Telecommunication Services: The Telecom sector of Bangladesh has been liberalized for private investment. Bangladesh T & T Board all types of telecommunication service in urban and rural areas. Private operators offer the mobile, paging and the radio trunking services. Private operators are also given license to operate digital exchanges at rural Thana headquarters.
  • 21. Rural Telecommunication: • The responsibility of providing Rural Telecommunication was entrusted to two Private Operators i.e. Bangladesh Rural Telecommunication Authority (BRTA) & Sheba Telecom; and for the area of Bangladesh was more or less divided into two equal parts between the two Operators. Unfortunately, the success of these two operators were limited and even after about 7 to 9 years of operation, the coverage have been very inadequate and quality had been poor. Inadequacy of interconnection facility between BTTB network and the network of the private operators played a major role for this state of affairs. The technical and the financial limitations of the operator were also there. The absence of an Independent Regulatory Body have been identified as an impediment for the solution for furthering development of telecommunication in Bangladesh
