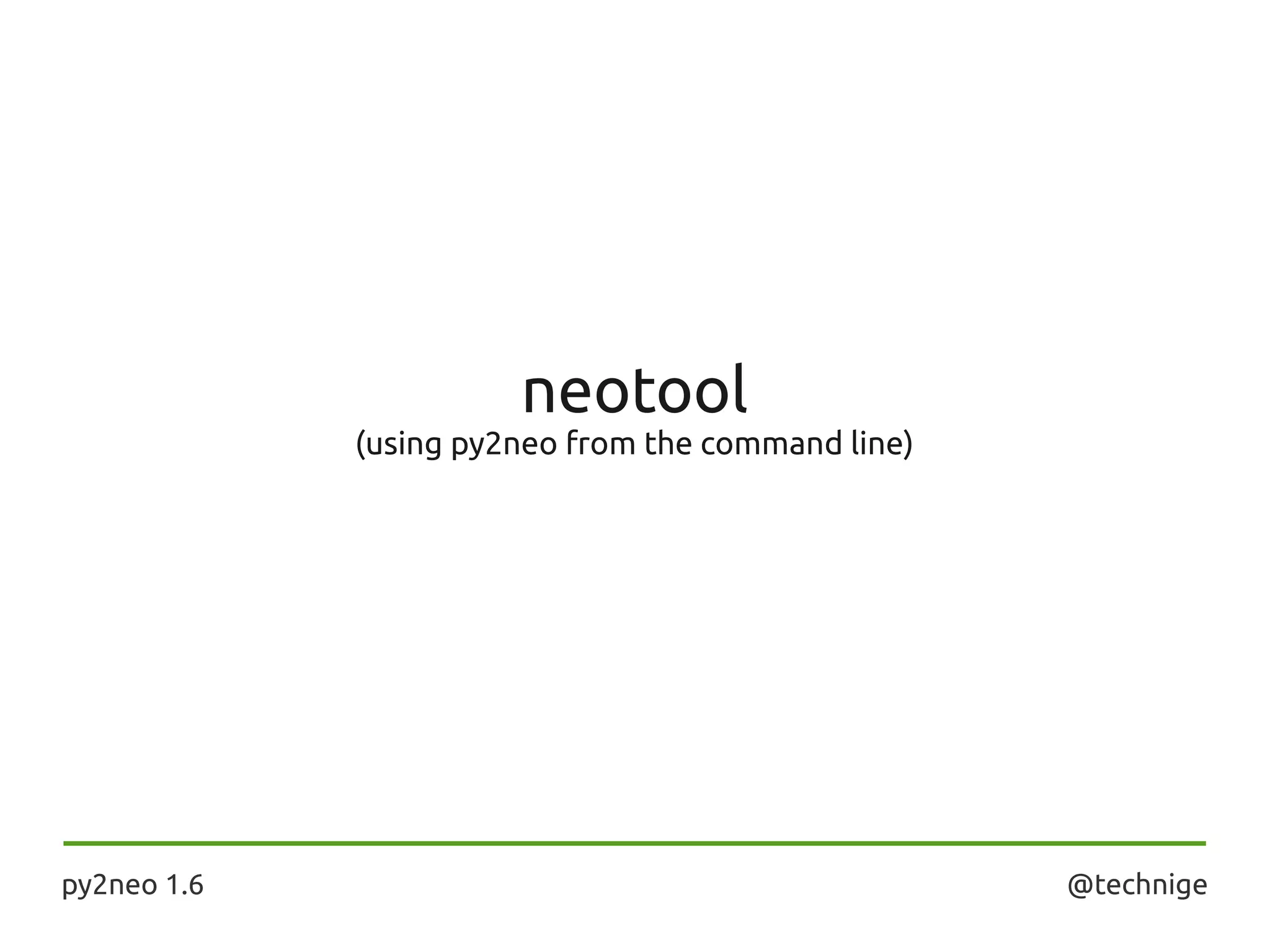

1. neotool
(using py2neo from the command line)
py2neo 1.6 @technige

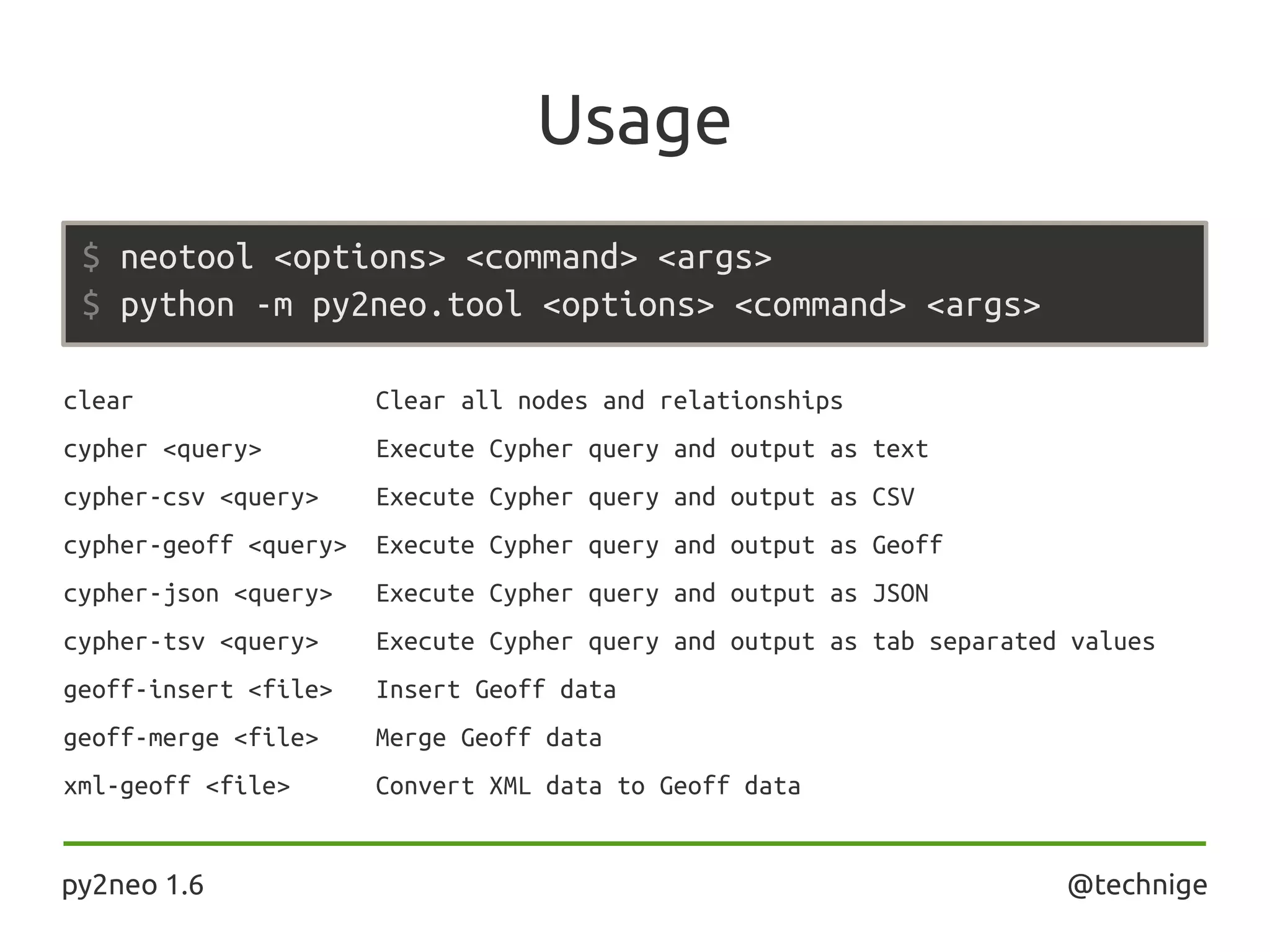

2. Usage
$ neotool <options> <command> <args>
$ python -m py2neo.tool <options> <command> <args>
clear Clear all nodes and relationships
cypher <query> Execute Cypher query and output as text
cypher-csv <query> Execute Cypher query and output as CSV
cypher-geoff <query> Execute Cypher query and output as Geoff
cypher-json <query> Execute Cypher query and output as JSON
cypher-tsv <query> Execute Cypher query and output as tab separated values
geoff-insert <file> Insert Geoff data
geoff-merge <file> Merge Geoff data
xml-geoff <file> Convert XML data to Geoff data
py2neo 1.6 @technige

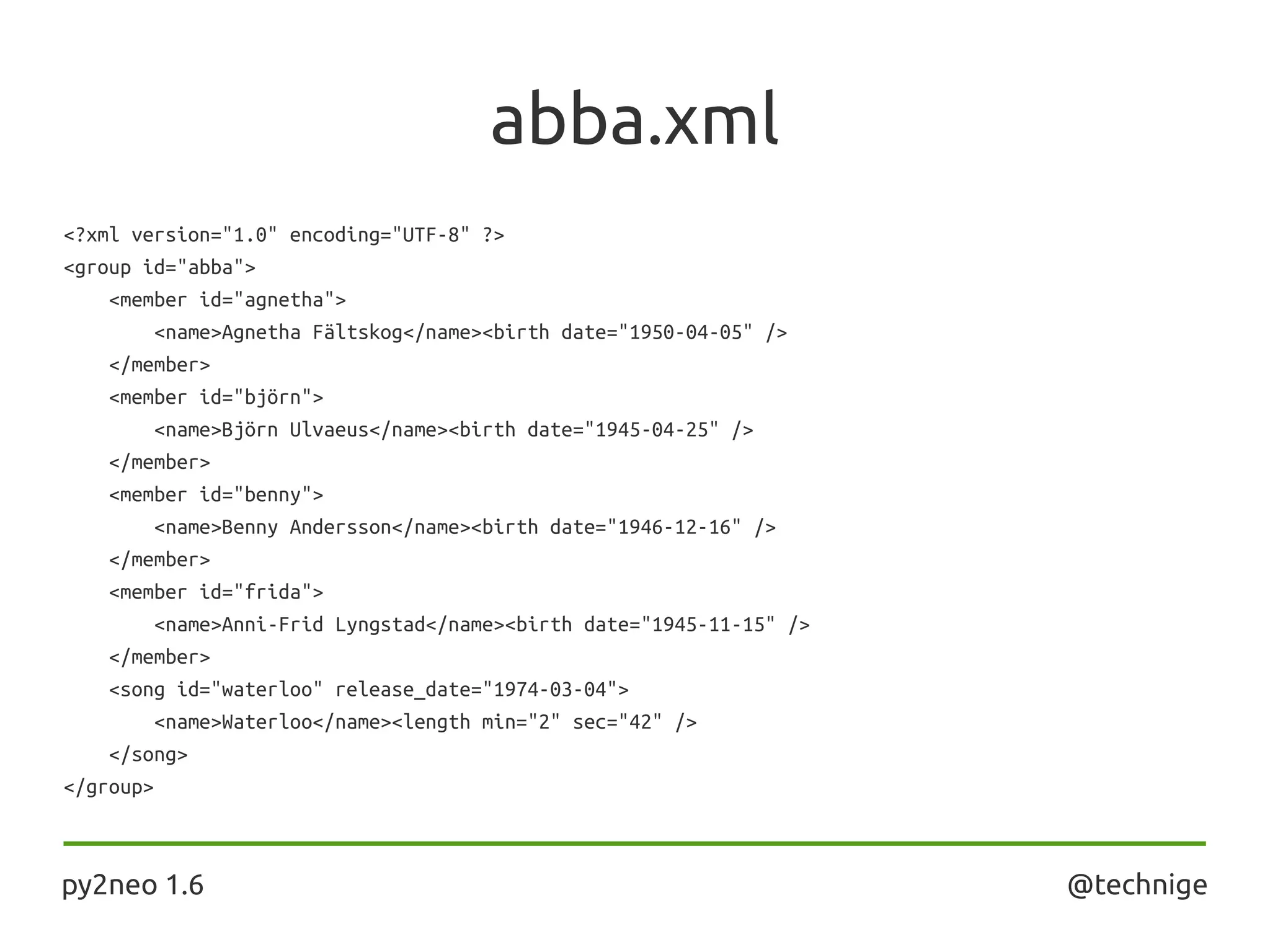

3. abba.xml
<?xml version="1.0" encoding="UTF-8" ?>
<group id="abba">
<member id="agnetha">
<name>Agnetha Fältskog</name><birth date="1950-04-05" />
</member>
<member id="björn">
<name>Björn Ulvaeus</name><birth date="1945-04-25" />
</member>
<member id="benny">
<name>Benny Andersson</name><birth date="1946-12-16" />
</member>
<member id="frida">
<name>Anni-Frid Lyngstad</name><birth date="1945-11-15" />
</member>
<song id="waterloo" release_date="1974-03-04">
<name>Waterloo</name><length min="2" sec="42" />
</song>
</group>
py2neo 1.6 @technige

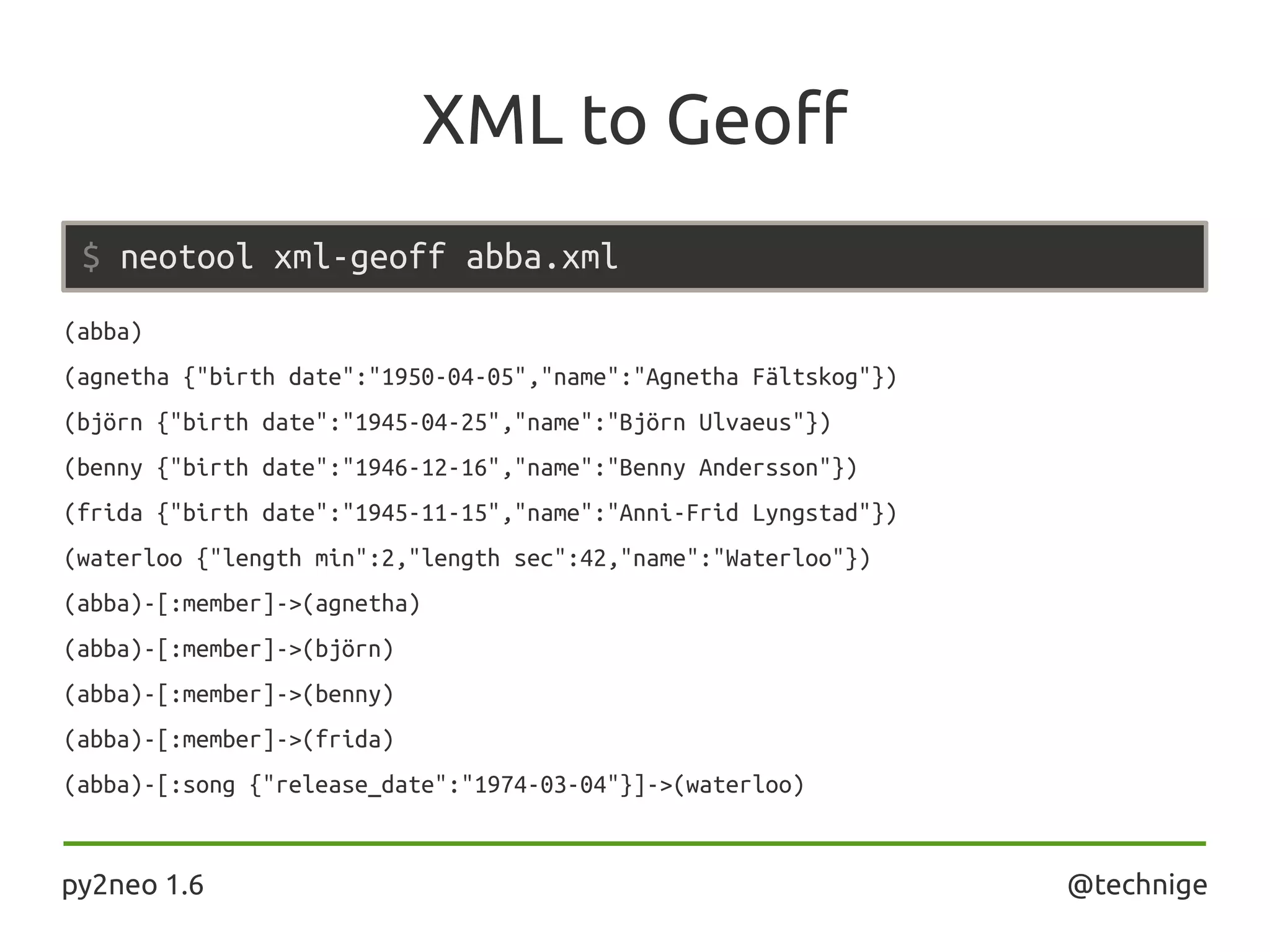

4. XML to Geoff
$ neotool xml-geoff abba.xml
(abba)
(agnetha {"birth date":"1950-04-05","name":"Agnetha Fältskog"})
(björn {"birth date":"1945-04-25","name":"Björn Ulvaeus"})
(benny {"birth date":"1946-12-16","name":"Benny Andersson"})
(frida {"birth date":"1945-11-15","name":"Anni-Frid Lyngstad"})
(waterloo {"length min":2,"length sec":42,"name":"Waterloo"})
(abba)-[:member]->(agnetha)
(abba)-[:member]->(björn)
(abba)-[:member]->(benny)
(abba)-[:member]->(frida)
(abba)-[:song {"release_date":"1974-03-04"}]->(waterloo)
py2neo 1.6 @technige

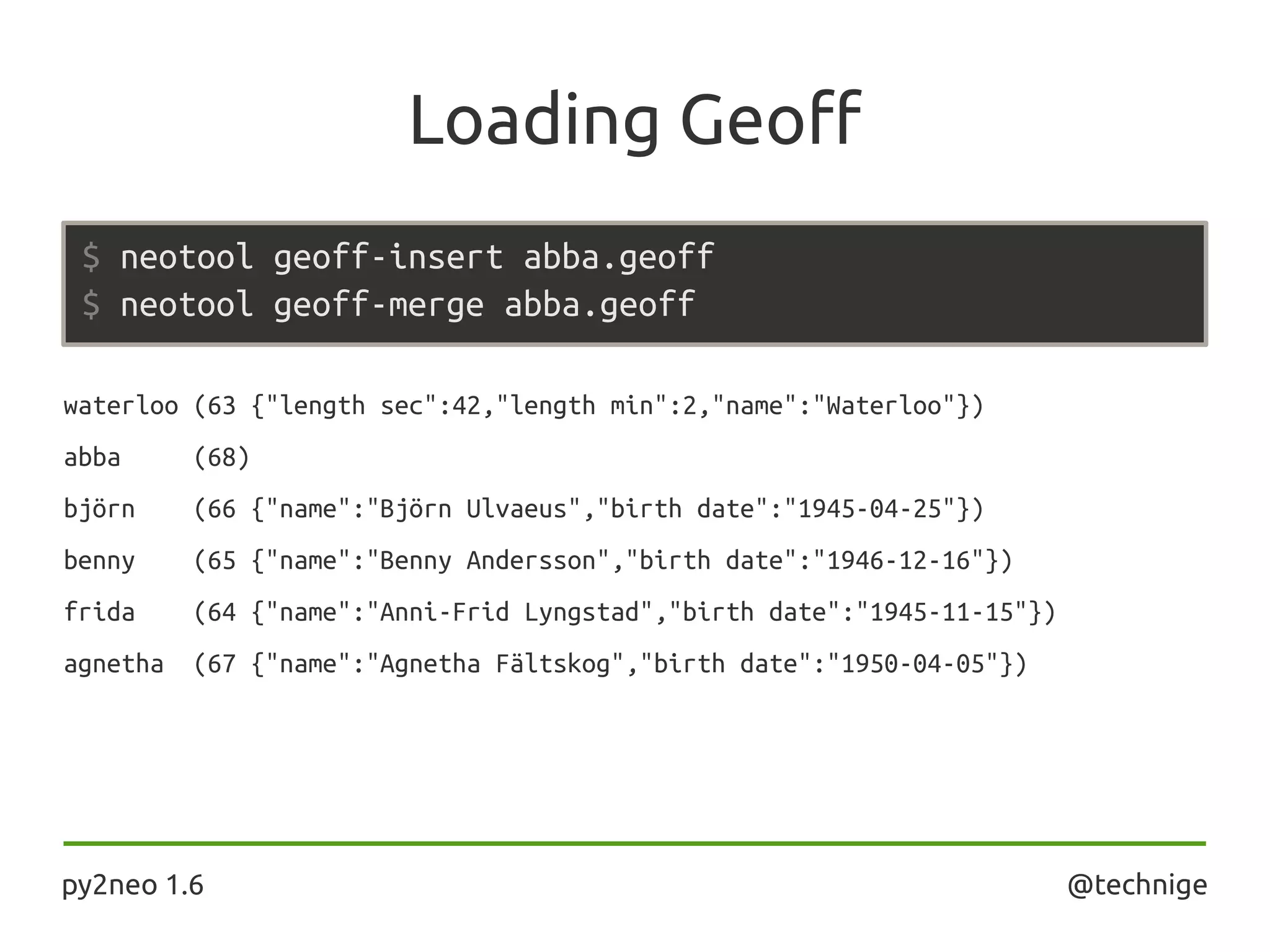

5. Loading Geoff
$ neotool geoff-insert abba.geoff
$ neotool geoff-merge abba.geoff
waterloo (63 {"length sec":42,"length min":2,"name":"Waterloo"})
abba (68)
björn (66 {"name":"Björn Ulvaeus","birth date":"1945-04-25"})
benny (65 {"name":"Benny Andersson","birth date":"1946-12-16"})
frida (64 {"name":"Anni-Frid Lyngstad","birth date":"1945-11-15"})
agnetha (67 {"name":"Agnetha Fältskog","birth date":"1950-04-05"})
py2neo 1.6 @technige

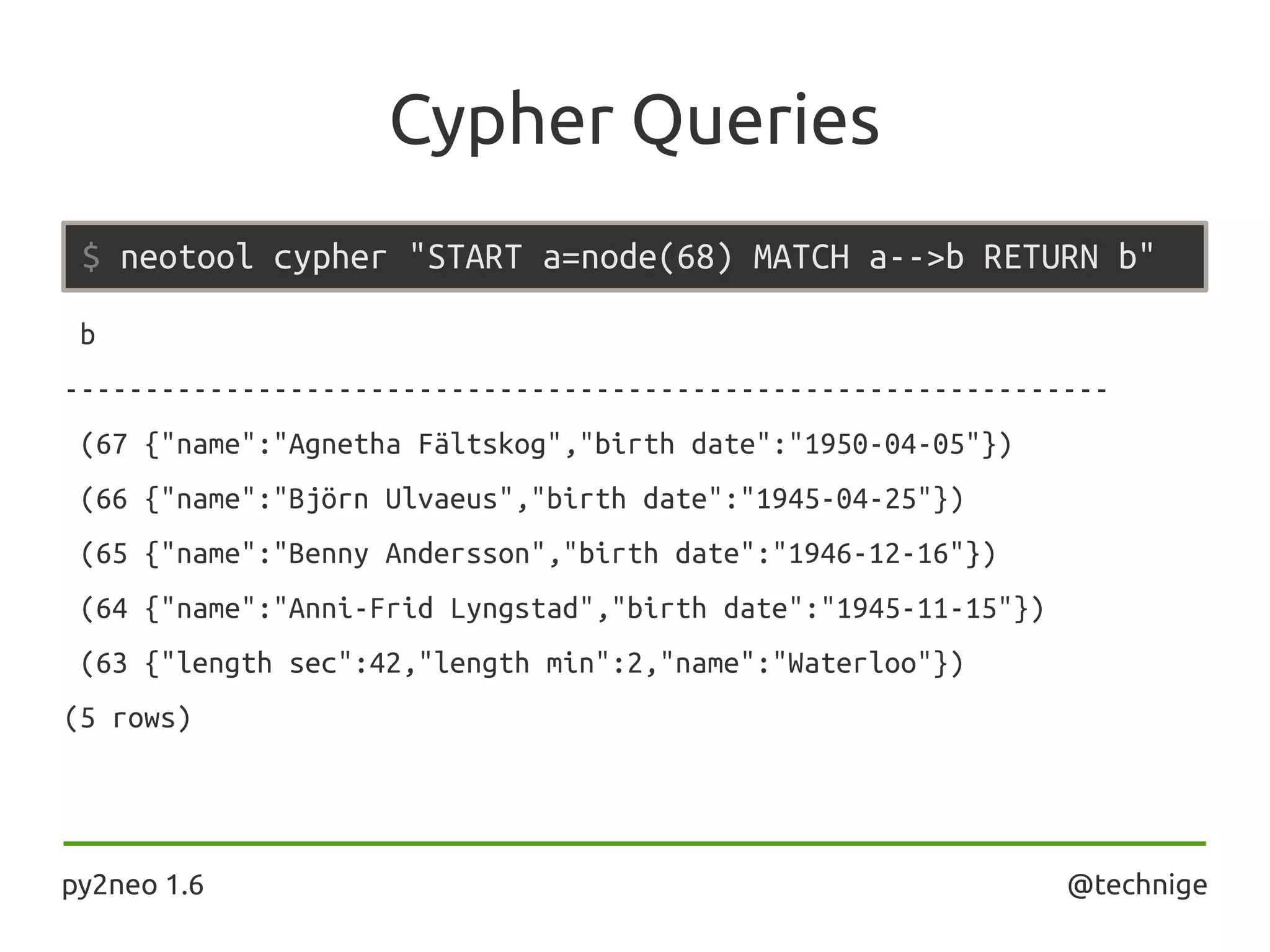

6. Cypher Queries
$ neotool cypher "START a=node(68) MATCH a-->b RETURN b"
b
-----------------------------------------------------------------
(67 {"name":"Agnetha Fältskog","birth date":"1950-04-05"})
(66 {"name":"Björn Ulvaeus","birth date":"1945-04-25"})
(65 {"name":"Benny Andersson","birth date":"1946-12-16"})
(64 {"name":"Anni-Frid Lyngstad","birth date":"1945-11-15"})
(63 {"length sec":42,"length min":2,"name":"Waterloo"})
(5 rows)
py2neo 1.6 @technige

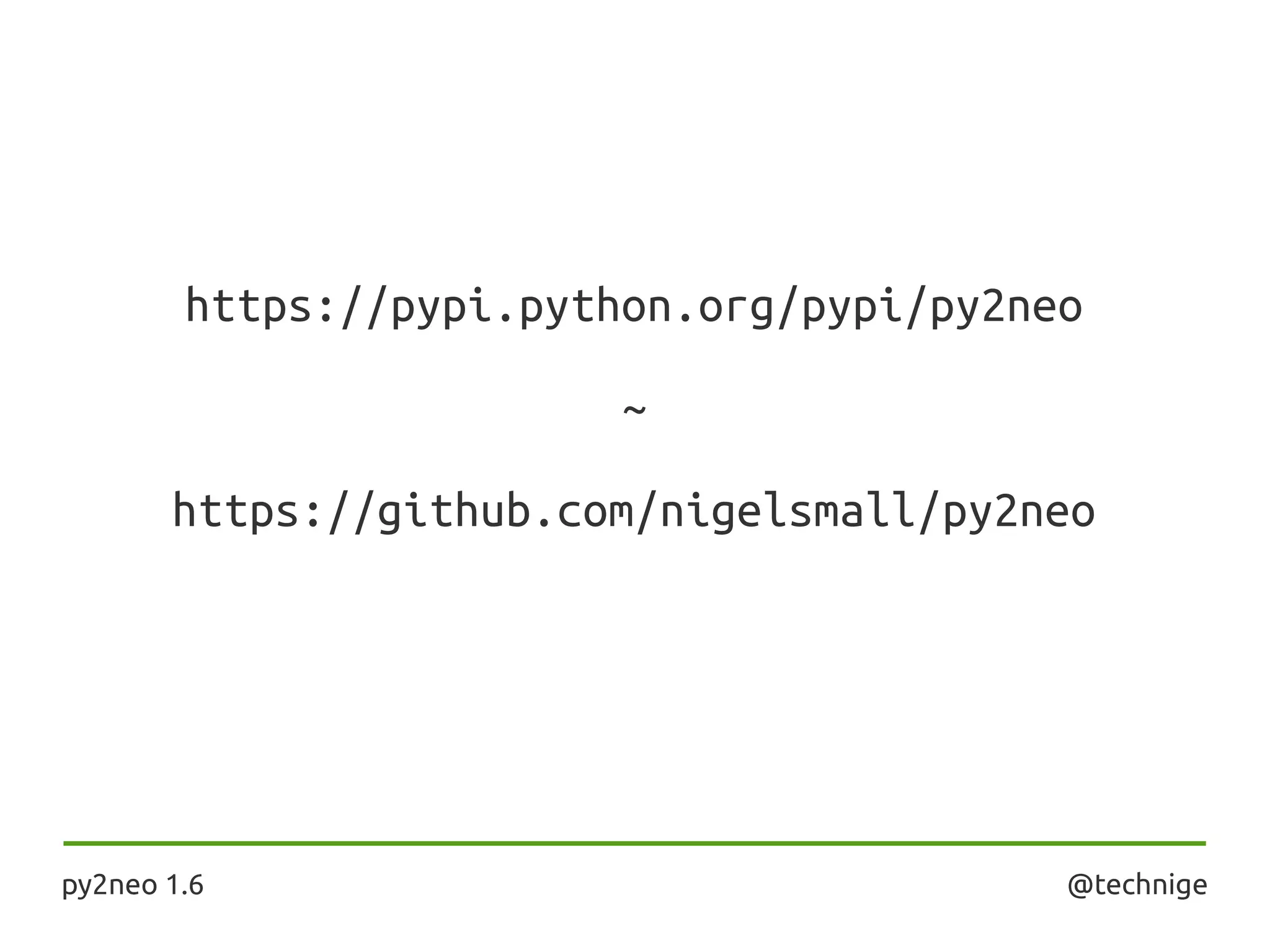

7. https://pypi.python.org/pypi/py2neo
~
https://github.com/nigelsmall/py2neo
py2neo 1.6 @technige
