1. STRUCTURAL DRAWING
NAME OF THE PROJECT : 5 STOREY BUILDING DESIGN
PROJECT DONE BY : TANVIR ARAF
ID : 1510010
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

2. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
3'-0"
WIDE
VER
M.BED
12'-0" X 10'-0"
BATH
8'-0" X 6'-1"
BED
12'-0" X 12'-4" DRAWING
9'-7" X 9'-0"
DINING
14'-0" X 12'-9"
BATH
6'-7" X 6'-7"
KITCHEN
7'-0" X 6'-7"
3'-0" WIDE VER
KITCHEN
7'-0" X 6'-7"
BATH
6'-7" X 6'-7"
M.BED
12'-0" X 10'-0"
3'-0"
WIDE
VER
DINING
14'-0" X 12'-9"
BATH
8'-0" X 6'-1"
BED
12'-0" X 12'-4"
DRAWING
9'-7" X 9'-0"
3'-0" WIDE VER
TWO UNIT PLAN
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

3. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
TWO UNIT PLAN
15'-11"
13'-3"
10'-8"
8'
16'-4"
15'-11" 12'-9"
11'-11"
8'-9"
8'-9"
18'-7"
16'-11"
12'-5"
5'-4"
1'-1"
5'-4"
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

4. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
ELEVATION VIEWS
EAST ELEVATION WEST ELEVATION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

5. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
ELEVATION VIEWS
SOUTH ELEVATION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

6. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
ELEVATION VIEWS
NORTH ELEVATION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

7. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
SECTION PLANES
SECTION A-A
SECTION B-B
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

8. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
SECTION A-A
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

9. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020

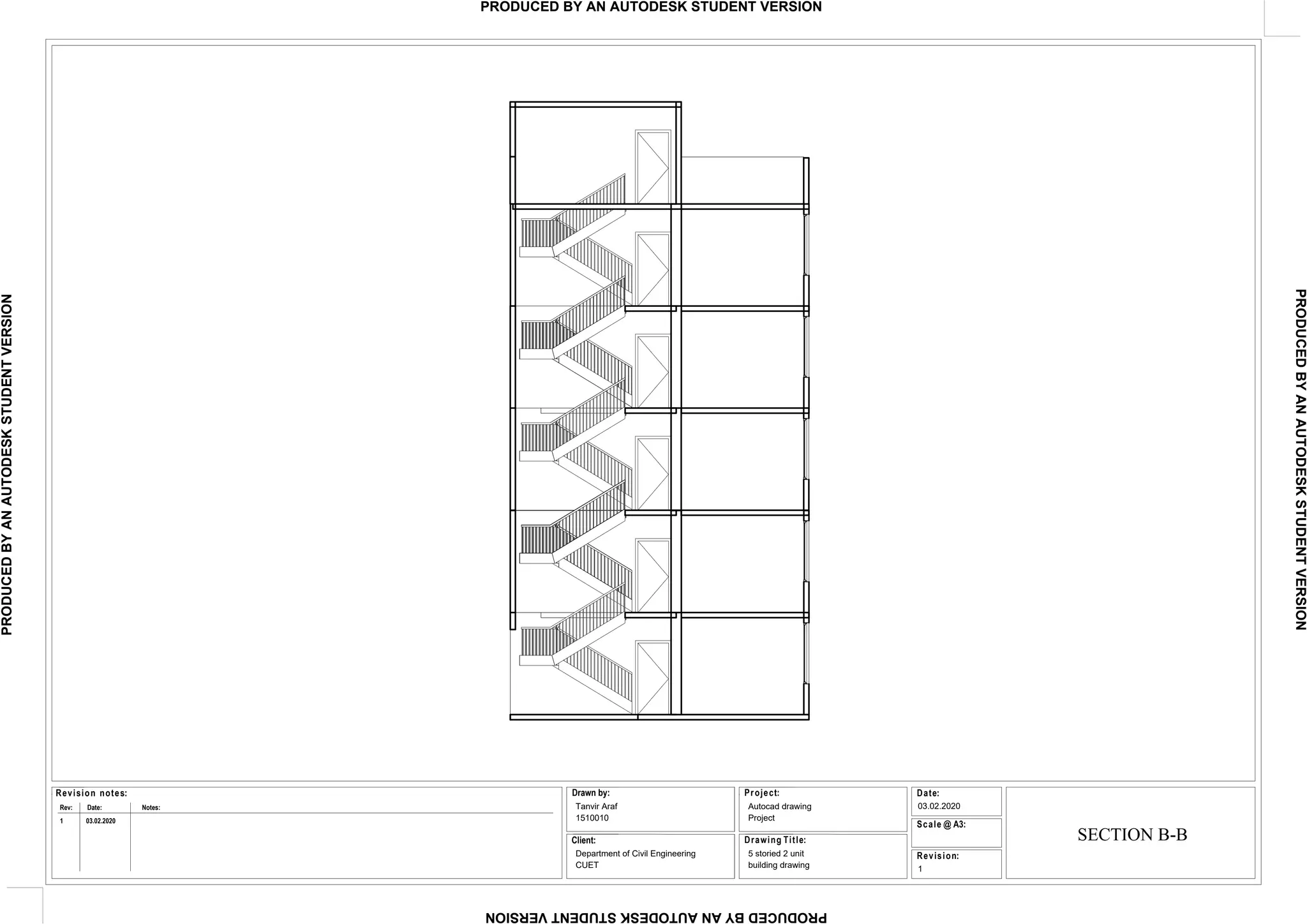

SECTION B-B
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

10. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
14'-11" 11'-7" 5'-7" 5'-7" 11'-7" 14'-11"
12'-4"
7'-6"
15'-5"
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

11. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
CEMENT : SAND: KHOA = 1:1.5:3
TYPE
BELOW GROUND LEVEL
CLEAR COVER - 2.5" TIE
10" X 10"
4-20 mmØ Rod
4-16 mmØ Rod
C1
C2
10" X 10"
4-20 mmØ Rod
4-16 mmØ Rod
10" X 10"
4-20 mmØ Rod
4-16 mmØ Rod
10" X 10"
4-20 mmØ Rod
4-16 mmØ Rod
10mm
Ø
bar
@
4"-7"-4"
c/c
COLUMN SCHEDULE
fy=60,000 psi
f 'c = 3,000 psi
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

12. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
62'-11"
34'-11"
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

13. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
2-16 mm Ø Hanger Bar +
3-20 mm Ø Extra Top
10 mm Ø @ 6" To 8" c/c
2-16 mm Ø Hanger Bar +
3-20 mm Ø Extra Top
Hanger Bar
2-16 mm Ø Hanger Bar +
3-20 mm Ø Extra Top
2-16 mm Ø Hanger Bar +
3-20 mm Ø Extra Top
2-16 mm Ø Hanger Bar +
3-16 mm Ø Extra Bottom
2-16 mm Ø Hanger Bar +
3-16 mm Ø Extra Bottom
2-16 mm Ø Hanger Bar +
3-16 mm Ø Extra Bottom
L/4
L/8 L/8
L/4
10" 10" 10" 10"
A
A
B
B
C
C
LONG SECTION OF RB2
14"
3-20mm Ø Ext. Top
3-16mm Ø Ext. Bottom
Stirup 10mmØ @ 6" to 7" c/c
2-16mm Ø Main Bar
2-16mm Ø Hanger Bar
3-20mm Ø Ext. Top
Stirup 10mmØ @ 7" c/c
10"
SECTION,A-A SECTION,B-B SECTION,C-C
A A
18" 18"
10 mm @ 6" c/c
T10 ties @ 12" c/c
Df
=
7'-0"
(minimum)
FGL (Finished GL)
GB
SEC. THRU COLUMN & FOOTING
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

14. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

15. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
FOOTINGTYPE SIZE REINFORCEMENT(BR) Df(mimimum)
F1 5'-9" X5'-9" T16 mm@ 6" c/c (B.W)
10" 4" 14" 18"
d1 d2 d A
CASTING BOTTOM
F2 7'-6" X7'-6" T16 mm@ 5" c/c (B.W)
12" 6" 18" 18"
F3 8'-3" X8'-3" T16 mm@ 4.5" c/c (B.W)
14" 6" 20" 18"
F4 6'-1" X 6'-1" T16 mm@ 5" c/c (B.W)
11" 4" 15" 18"
7'-0"
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

16. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
SLAB THICKNESS 5"
10 mm Ø 5" c/c
1-12 mm Ø extra top
SLAB DETAILING
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

17. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020

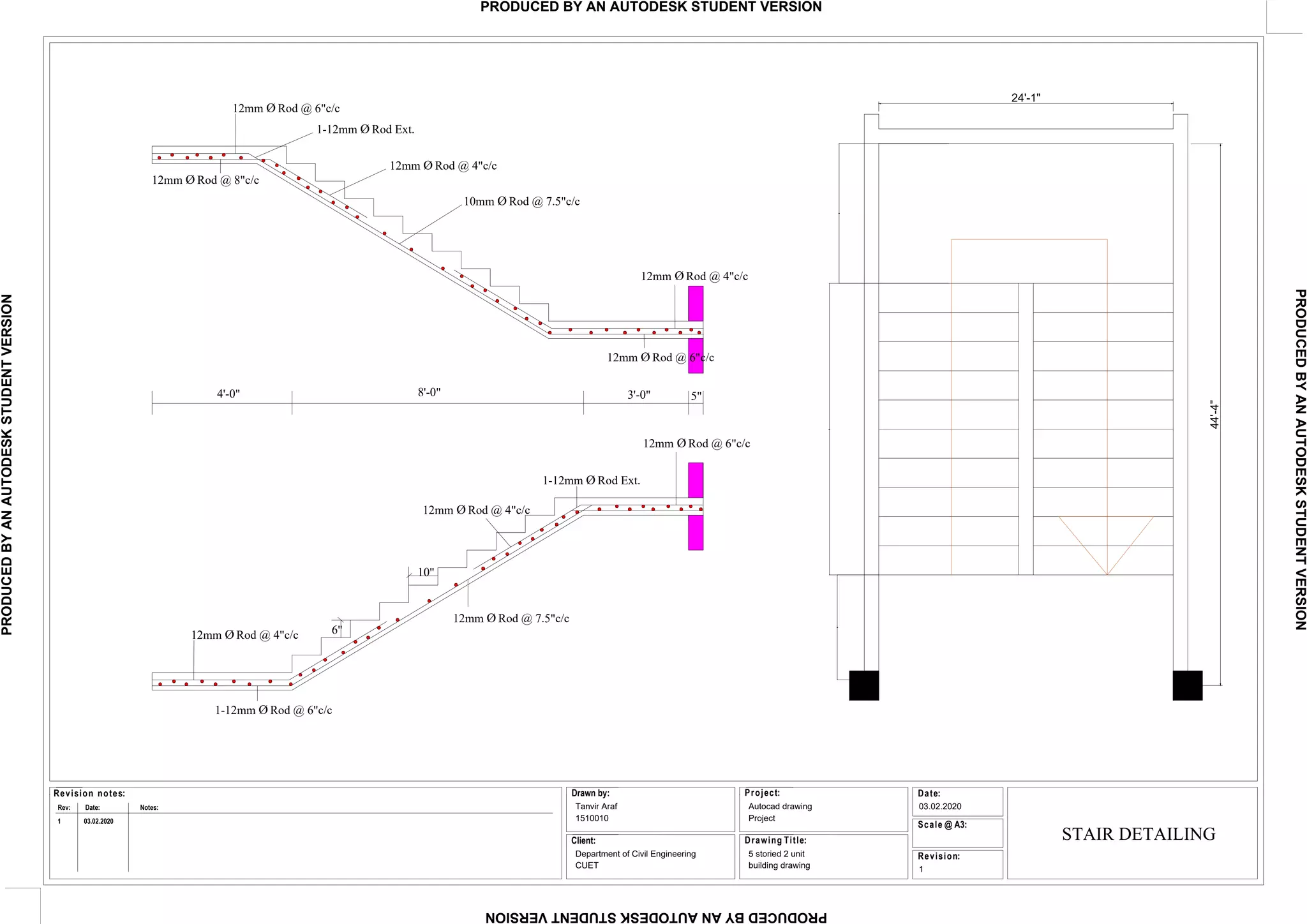

12mm Ø Rod @ 6"c/c
1-12mm Ø Rod Ext.
12mm Ø Rod @ 4"c/c
10mm Ø Rod @ 7.5"c/c
12mm Ø Rod @ 4"c/c
12mm Ø Rod @ 6"c/c
12mm Ø Rod @ 8"c/c
4'-0" 8'-0" 3'-0" 5"
10"
6"
12mm Ø Rod @ 4"c/c
12mm Ø Rod @ 4"c/c
1-12mm Ø Rod Ext.
12mm Ø Rod @ 6"c/c
12mm Ø Rod @ 7.5"c/c
1-12mm Ø Rod @ 6"c/c
44'-4"
24'-1"
STAIR DETAILING
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

18. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
DRAWING
KITCHEN
DINING
D
R
A
W
I
N
G
K
I
T
C
H
E
N
DINING
FURNITURE LAYOUT
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

19. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
ELECTRICAL LAYOUT
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

20. Date:
Revision:
Project:
Scale @ A3:
Drawing Title:
Revision notes:
Rev: Date: Notes:
Drawn by:
Client:
Tanvir Araf
1510010
Department of Civil Engineering
CUET
Autocad drawing
Project
5 storied 2 unit
building drawing
03.02.2020
1
1 03.02.2020
2ND
CHAMBER
1ST
CHAMBER
OUTLET TYPE
SLOPE= 1:50
18' MANHOLE COVER
SLOPE= 1:50
18' MANHOLE COVER
1ST
2ND
PLAN OF SEPTIC TANK
SECTION OF SEPTIC TANK
WATER LEVEL
ORDINARY BRICK
WORK 1:6
CEMENT BRICK
WORK 1:6
5'-0" DIA
10"
VARIABLE
5"
3-3/8" Ø
1
4" Ø @ 9"c/c
R.C.C. WALL
CURB
SECTION OF SOAK WALL
PLAN OF SOAK WELL = 20'-0" DEPTH
SEPTIC TANK &
SOAK WALL
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED
BY
AN
AUTODESK
STUDENT
VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
