A genset, or generator set, is a portable power source that provides electricity through a motor, essential for maintaining power during outages in homes and businesses. It functions via an engine that converts fuel into mechanical energy, which an alternator then converts into electrical energy, predominantly offering AC power for various applications. Gensets come in different types based on fuel sources, including gasoline, diesel, and biodiesel, each having its benefits and drawbacks.

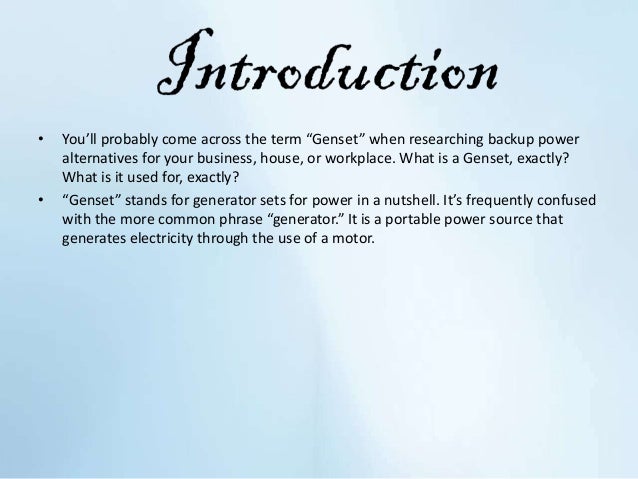

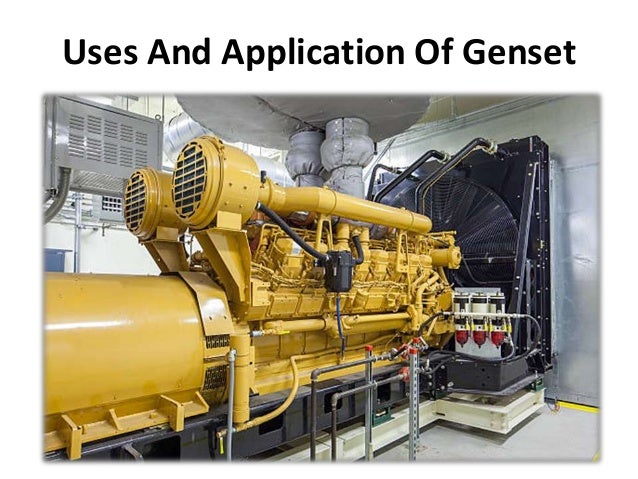

1. Uses And Application Of Genset

2. • You’ll probably come across the term “Genset” when researching backup power
alternatives for your business, house, or workplace. What is a Genset, exactly?
What is it used for, exactly?
• “Genset” stands for generator sets for power in a nutshell. It’s frequently confused
with the more common phrase “generator.” It is a portable power source that
generates electricity through the use of a motor.

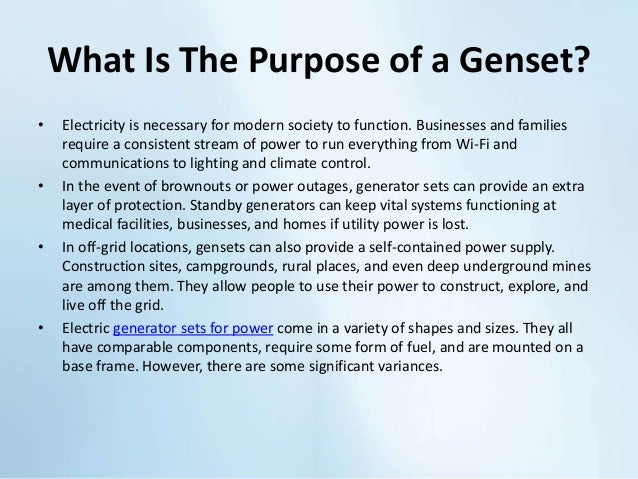

3. What Is The Purpose of a Genset?
• Electricity is necessary for modern society to function. Businesses and families
require a consistent stream of power to run everything from Wi-Fi and
communications to lighting and climate control.
• In the event of brownouts or power outages, generator sets can provide an extra
layer of protection. Standby generators can keep vital systems functioning at
medical facilities, businesses, and homes if utility power is lost.
• In off-grid locations, gensets can also provide a self-contained power supply.
Construction sites, campgrounds, rural places, and even deep underground mines
are among them. They allow people to use their power to construct, explore, and
live off the grid.
• Electric generator sets for power come in a variety of shapes and sizes. They all
have comparable components, require some form of fuel, and are mounted on a
base frame. However, there are some significant variances.

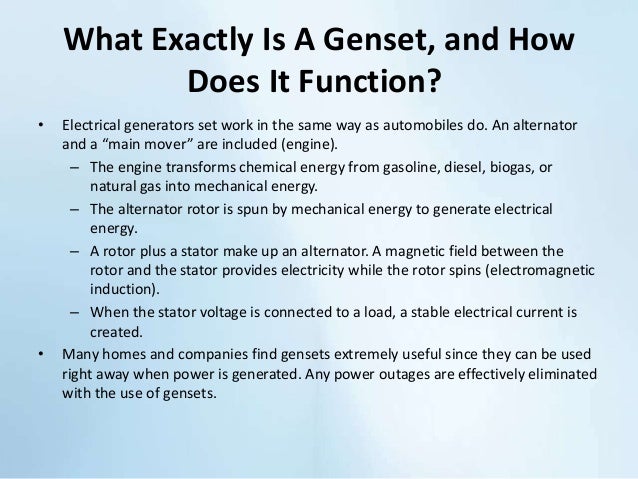

4. What Exactly Is A Genset, and How
Does It Function?
• Electrical generators set work in the same way as automobiles do. An alternator
and a “main mover” are included (engine).
– The engine transforms chemical energy from gasoline, diesel, biogas, or
natural gas into mechanical energy.
– The alternator rotor is spun by mechanical energy to generate electrical
energy.
– A rotor plus a stator make up an alternator. A magnetic field between the
rotor and the stator provides electricity while the rotor spins (electromagnetic
induction).
– When the stator voltage is connected to a load, a stable electrical current is
created.
• Many homes and companies find gensets extremely useful since they can be used
right away when power is generated. Any power outages are effectively eliminated
with the use of gensets.

5. What’s The Difference Between AC
and DC Generators?
• Electromagnetic induction is used by all generators, although differing
arrangements can produce two types of electrical energy: alternating current (AC)
and direct current (DC).
• The AC type makes up the vast majority of generator sets. However, it’s important
to understand the differences.
• Alternating current, as its name implies, reverses direction. Hundreds of times
every second, it oscillates back and forth. Because AC power can travel at a high
voltage, it can be used for long-distance grid delivery. For smaller-scale use, a
transformer “steps down” the voltage. Small motors, domestic appliances,
computers, and office equipment are all powered by AC generators.
• At lower voltages, direct current only flows in one direction. From the generator to
the final destination, everything is in order. Large-scale electric motors, banks of
batteries and solar cells, and LED lights are all powered by DC generators.

6. What Are The Elements That Make Up
A Genset?
• The following items are commonly seen in generator sets:
• Engine/motor
• It’s the main genset component, and it runs on gasoline. Engines developed to
fulfill demand and work under harsh situations are known as good engines (i.e.,
bad weather).
• Alternator
• This component transfers mechanical energy into electrical energy; without it, no
power exists.
• A panel of control
• It is the genset’s “brain,” controlling and regulating all of the other components.
• System of fuel
• The storage tanks and lines that deliver fuel to the engine make up this
component.

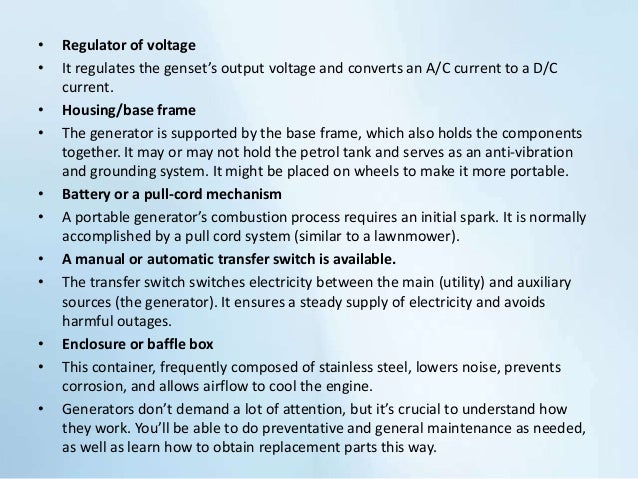

7. • Regulator of voltage
• It regulates the genset’s output voltage and converts an A/C current to a D/C
current.
• Housing/base frame
• The generator is supported by the base frame, which also holds the components
together. It may or may not hold the petrol tank and serves as an anti-vibration
and grounding system. It might be placed on wheels to make it more portable.
• Battery or a pull-cord mechanism
• A portable generator’s combustion process requires an initial spark. It is normally
accomplished by a pull cord system (similar to a lawnmower).
• A manual or automatic transfer switch is available.
• The transfer switch switches electricity between the main (utility) and auxiliary
sources (the generator). It ensures a steady supply of electricity and avoids
harmful outages.
• Enclosure or baffle box
• This container, frequently composed of stainless steel, lowers noise, prevents
corrosion, and allows airflow to cool the engine.
• Generators don’t demand a lot of attention, but it’s crucial to understand how
they work. You’ll be able to do preventative and general maintenance as needed,
as well as learn how to obtain replacement parts this way.

8. What Are The Different Kinds of
Gensets?
• Generator sets for power exist in a variety of sizes and can run on a variety of
fuels. The following are the various generator fuel systems, along with their
benefits and drawbacks.
• Generators that run on gasoline
• The fuel is widely available; gasoline generators are the most preferred option.
Gas-powered generators are relatively inexpensive, and they’re extremely
portable.
• On the other hand, a gas generator has a short lifespan and is inefficient in fuel
consumption. Gasoline will last roughly a year in storage. However, it is highly
combustible, which could pose a risk in some situations.

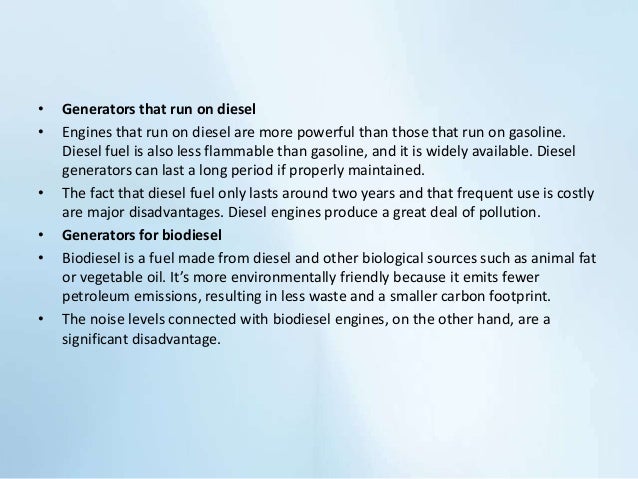

9. • Generators that run on diesel
• Engines that run on diesel are more powerful than those that run on gasoline.
Diesel fuel is also less flammable than gasoline, and it is widely available. Diesel
generators can last a long period if properly maintained.
• The fact that diesel fuel only lasts around two years and that frequent use is costly
are major disadvantages. Diesel engines produce a great deal of pollution.
• Generators for biodiesel
• Biodiesel is a fuel made from diesel and other biological sources such as animal fat
or vegetable oil. It’s more environmentally friendly because it emits fewer
petroleum emissions, resulting in less waste and a smaller carbon footprint.
• The noise levels connected with biodiesel engines, on the other hand, are a
significant disadvantage.

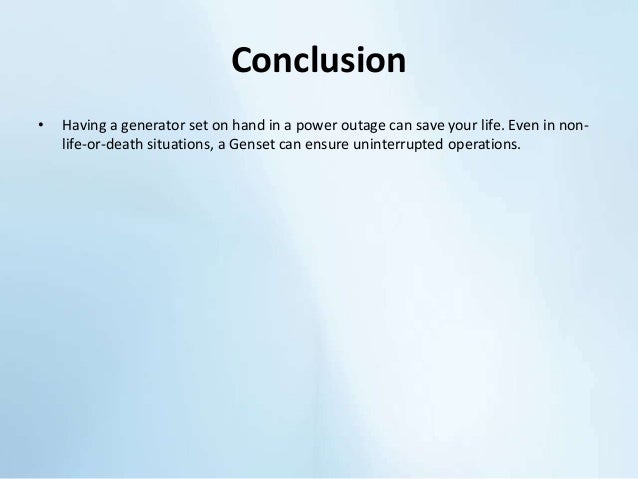

10. Conclusion
• Having a generator set on hand in a power outage can save your life. Even in non-
life-or-death situations, a Genset can ensure uninterrupted operations.

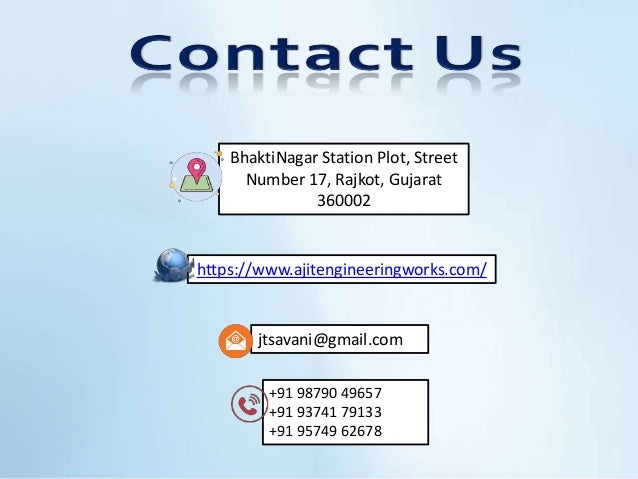

11. https://www.ajitengineeringworks.com/
