Mule Esb
- 1. Real World Integration Challenges and Enterprise Service Bus (ESB) Khasimsaheb Presented in Open Source Series Workshop 2010

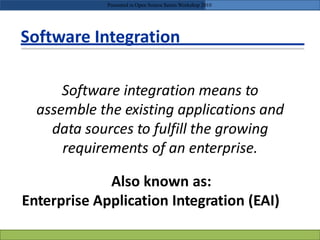

- 2. Software Integration Software integration means to assemble the existing applications and data sources to fulfill the growing requirements of an enterprise. Also known as: Enterprise Application Integration (EAI) Presented in Open Source Series Workshop 2010

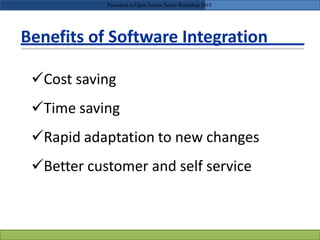

- 3. Benefits of Software Integration Cost saving Time saving Rapid adaptation to new changes Better customer and self service Presented in Open Source Series Workshop 2010

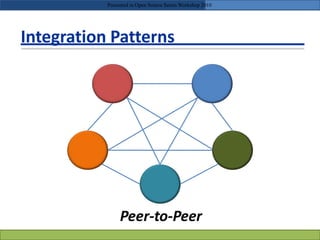

- 4. Integration Patterns Peer-to-Peer Presented in Open Source Series Workshop 2010
- 5. Integration Patterns Client-Server / Hub ‘n Spoke Presented in Open Source Series Workshop 2010
- 6. Integration Patterns Pipeline Presented in Open Source Series Workshop 2010

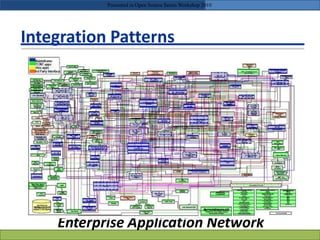

- 7. Integration Patterns Enterprise Application Network Presented in Open Source Series Workshop 2010

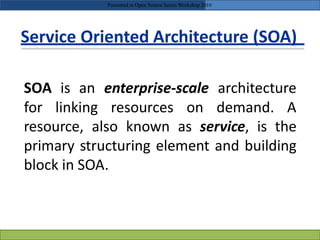

- 8. Service Oriented Architecture (SOA) resource, also known as service, is the primary structuring element and building block in SOA. Presented in Open Source Series Workshop 2010 SOA is an enterprise-scale architecture for linking resources on demand. A

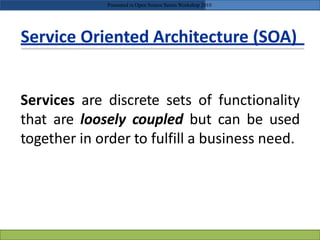

- 9. Service Oriented Architecture (SOA) Services are discrete sets of functionality that are loosely coupled but can be used together in order to fulfill a business need. Presented in Open Source Series Workshop 2010

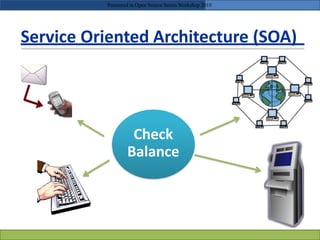

- 10. Service Oriented Architecture (SOA) Check Balance Presented in Open Source Series Workshop 2010

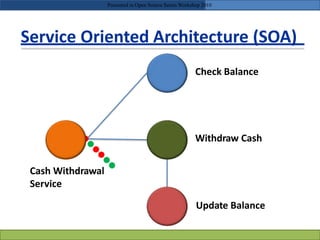

- 11. Service Oriented Architecture (SOA) Withdraw Cash Cash Withdrawal Service Update Balance Check Balance Presented in Open Source Series Workshop 2010

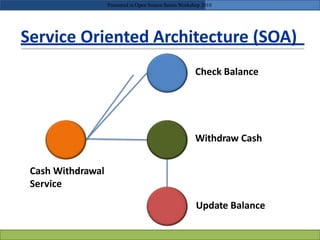

- 12. Service Oriented Architecture (SOA) Withdraw Cash Cash Withdrawal Service Update Balance Check Balance Presented in Open Source Series Workshop 2010

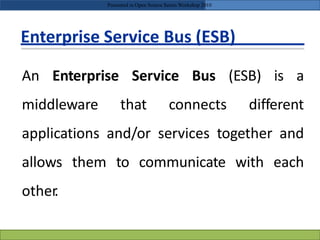

- 13. Enterprise Service Bus (ESB) An Enterprise Service Bus (ESB) is a middleware that connects different applications and/or services together and allows them to communicate with each other. Presented in Open Source Series Workshop 2010

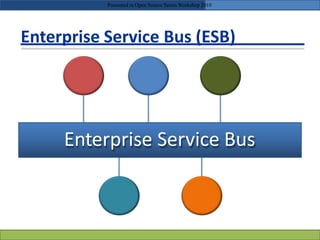

- 14. Enterprise Service Bus (ESB) Enterprise Service Bus Presented in Open Source Series Workshop 2010

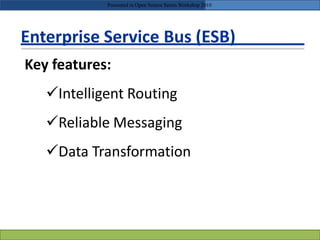

- 15. Enterprise Service Bus (ESB) Key features: Intelligent Routing Reliable Messaging Data Transformation Presented in Open Source Series Workshop 2010

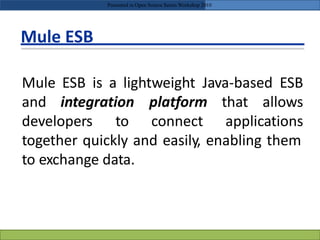

- 16. Mule ESB Mule ESB is a lightweight Java-based ESB and integration developers to platform that allows connect applications together quickly and easily, enabling them to exchange data. Presented in Open Source Series Workshop 2010

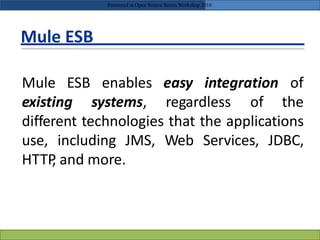

- 17. Mule ESB Mule ESB existing enables easy integration of systems, regardless of the different technologies that the applications use, including JMS, Web Services, JDBC, HTTP, and more. Presented in Open Source Series Workshop 2010

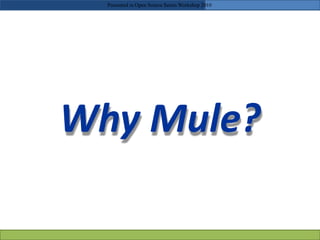

- 18. Why Mule? Presented in Open Source Series Workshop 2010
- 19. Mule ESB Reasons to use Mule ESB: Open Source Platform Independent Service Hosting/Creation Service Mediation Multi-protocol support Presented in Open Source Series Workshop 2010

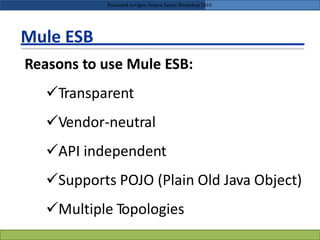

- 20. Mule ESB Reasons to use Mule ESB: Transparent Vendor-neutral API independent Supports POJO (Plain Old Java Object) Multiple Topologies Presented in Open Source Series Workshop 2010
- 21. Mule ESB Presented in Open Source Series Workshop 2010
- 22. Mule ESB Routers Filters Transformers Endpoints Presented in Open Source Series Workshop 2010

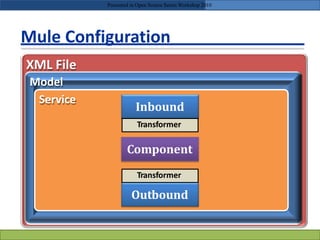

- 23. Mule Configuration XML File Model Service Inbound Outbound Component Transformer Transformer Presented in Open Source Series Workshop 2010

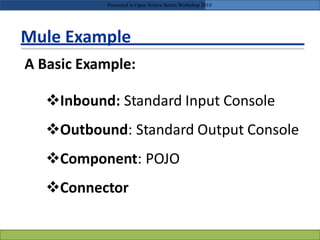

- 24. Mule Example A Basic Example: Inbound: Standard Input Console Outbound: Standard Output Console Component: POJO Connector Presented in Open Source Series Workshop 2010

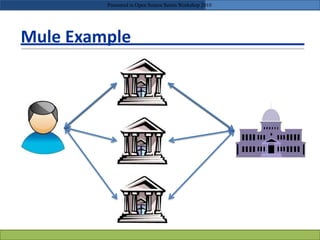

- 25. Mule Example Presented in Open Source Series Workshop 2010

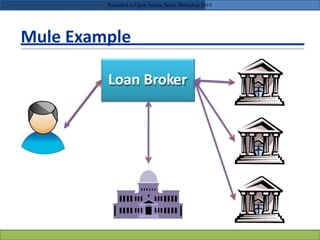

- 26. Mule Example Loan Broker Presented in Open Source Series Workshop 2010
- 27. Mule Example Loan BrokerStandard I/O Console POJO Web Services SOAP/Http Presented in Open Source Series Workshop 2010

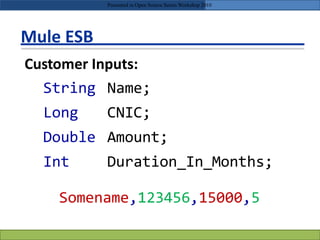

- 28. Mule ESB String Long Double Int Name; CNIC; Amount; Duration_In_Months; Customer Inputs: Somename,123456,15000,5 Presented in Open Source Series Workshop 2010
- 29. Mule ESB Loan Broker Input: LoanQuoteRequest Name : String CNIC : Long Amount : Double Duration : Integer AgencyResponse : String Loan Broker Output: Bank-1 has the lowest quote of 4.4% Presented in Open Source Series Workshop 2010

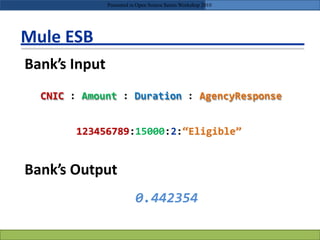

- 30. Mule ESB Bank’s Input CNIC : Amount : Duration : AgencyResponse 123456789:15000:2:“Eligible” Bank’s Output 0.442354 Presented in Open Source Series Workshop 2010

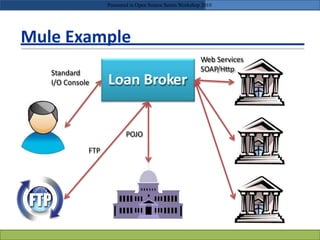

- 31. Mule Example Loan Broker Standard I/O Console Web Services SOAP/Http POJO FTP Presented in Open Source Series Workshop 2010
- 33. Presented in Open Source Series Workshop 2010
- 34. Presented in Open Source Series Workshop 2010
