The document details the specifications and features of MTR08 RTD sensors for measuring bearing temperatures in turbines and heavy equipment. These sensors include various designs with flexible cables, different element lengths, wire combinations, and sheath materials. The document also provides ordering codes and options for customization based on user requirements.

1. STANDARD SPECIFICATIONS
RTD SENSOR
FEATURES
APPLICATION
Ü With Flexible Cable
Ü Various designs of Hot ends
Ü Bearing temperature
Ü Tubines
MTR08
DRAWING
ISO 9001 : 2015 www.miepl.com 01
:
:
:
:
:
:
:
:
:Pt-100, class B
-200...400°C
Simplex, 3 Wire
AISI 316 SS
6.0 mm
25 mm
3000 mm
PTFE / PTFE / SS Braided Lead wires
Element
Range
Wire combination
Sheath material
Sheath diameter
Element length
Lead wire length
Lead Wire type
Bearing
SS 316 Sheath
PTFE / PTFE / SS braided lead wires
Lead Wire Length Element
Length
REFERENCE
Ü IEC-751 / DIN 43760
MIEPL Make RTD MTR08 accurately sense
temperature with an excellent degree of repeatability
and interchange ability of elements. The RTD is
composed of certain metallic elements whose change
in resistance is a function of temperature.This type of
RTDs are used to measure the bearing temperature
of Turbine, Motor and other heavy equipment.

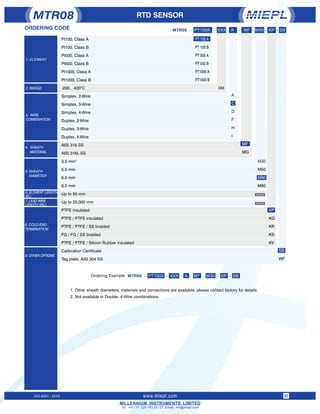

2. ORDERING CODE
RTD SENSORMTR08
6. ELEMENT LENGTH
(EL)
MILLENNIUM INSTRUMENTS LIMITED
Tel : +91- 11- 220 143 25 / 27, Email : mil@miepl.com
ISO 9001 : 2015 www.miepl.com 02
PT 100 A
PT 100 B
PT 500 A
PT 500 B
PT1000 A
PT1000 B
XXX
A
C
D
F
H
I
1. ELEMENT
M30
M50
M60
M80
9. OTHER OPTIONS
1. Other sheath diameters, materials and connections are available, please contact factory for details.
2. Not available in Double, 4-Wire combinations.
Ordering Example MTR08 - PT100A XXX A MF M30 KP SB- - - - - -
XXXXX
MF
MG
KP
KQ
KR
KS
KV
2. RANGE
3. WIRE
COMBINATION
4. SHEATH
MATERIAL
5. SHEATH
DIAMETER
Pt100, Class A
Pt100, Class B
Pt500, Class A
Pt500, Class B
Pt1000, Class A
Pt1000, Class B
-200…400°C
Simplex, 2-Wire
Simplex, 3-Wire
Simplex, 4-Wire
Duplex, 2-Wire
Duplex, 3-Wire
Duplex, 4-Wire
AISI 316 SS
AISI 316L SS
2
3.0 mm
5.0 mm
6.0 mm
8.0 mm
Up to 50 mm
Up to 25,000 mm
PTFE insulated
PTFE / PTFE insulated
PTFE / PTFE / SS braided
FG / FG / SS braided
PTFE / PTFE / Silicon Rubber insulated
Calibration Certificate
Tag plate, AISI 304 SS
XXXXX
SB
WF
7. LEAD WIRE
LENGTH (WL))
8. COLD END
TERMINATION
MTR08 - - - -- -PT100A XXX A MF M30 KP SB-
