This document outlines the REST API operations for user groups in MMC, including creating, getting, updating, deleting user groups, and getting user group permissions. The operations are performed through HTTP requests to the MMC REST API, with sample cURL commands provided for each operation.

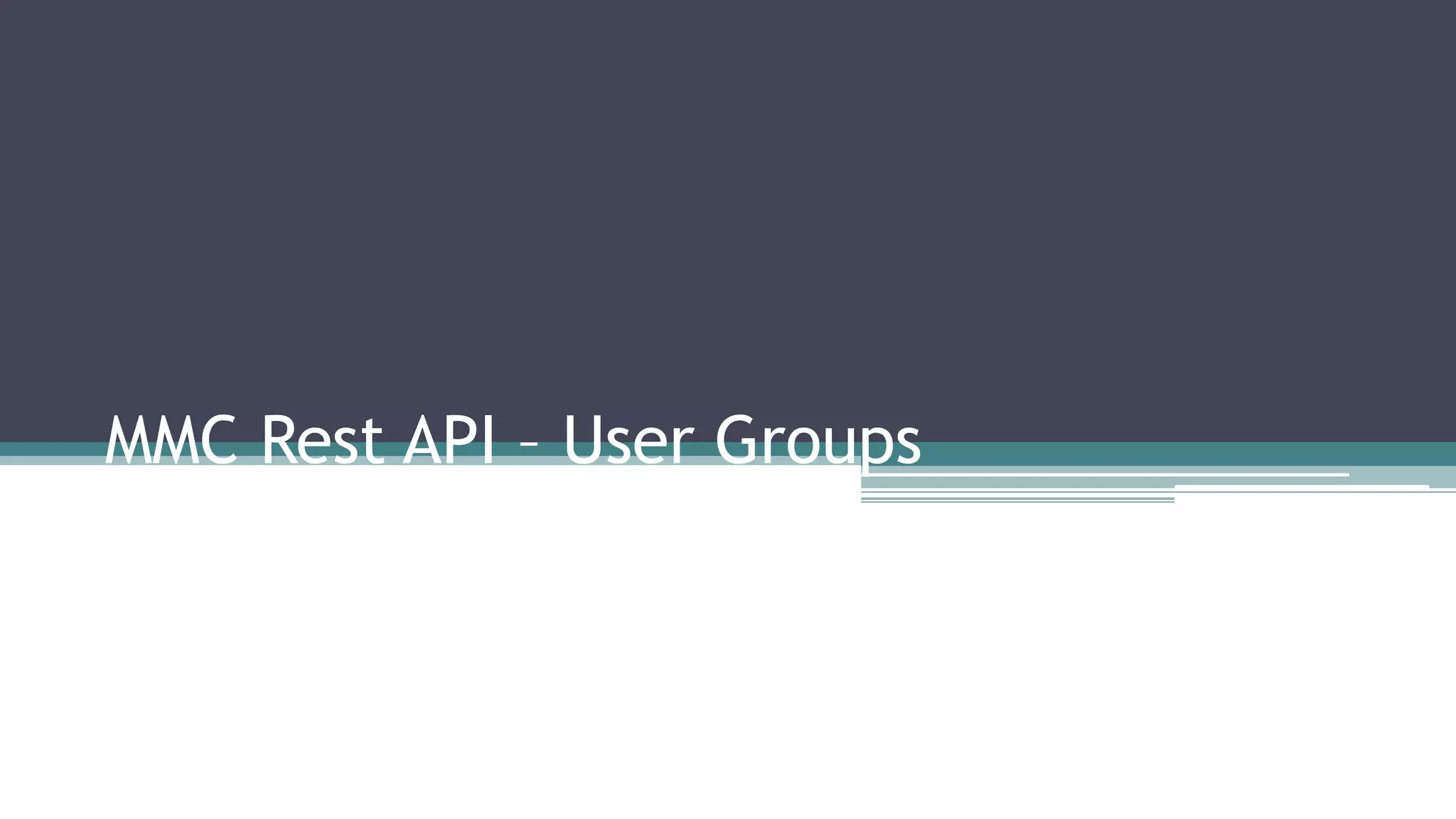

1. MMC Rest API – User Groups

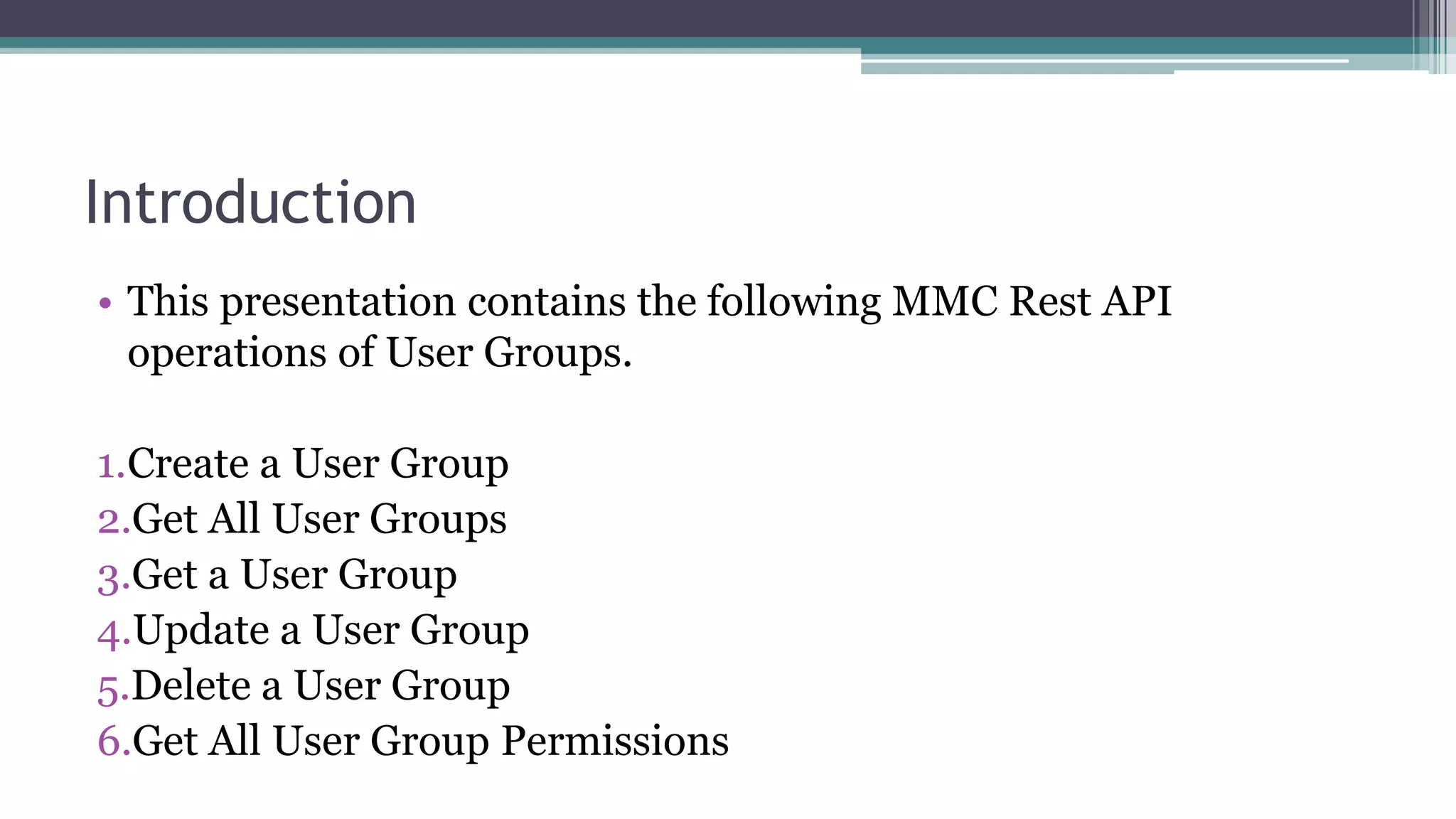

2. Introduction
• This presentation contains the following MMC Rest API
operations of User Groups.
1.Create a User Group
2.Get All User Groups
3.Get a User Group
4.Update a User Group
5.Delete a User Group
6.Get All User Group Permissions

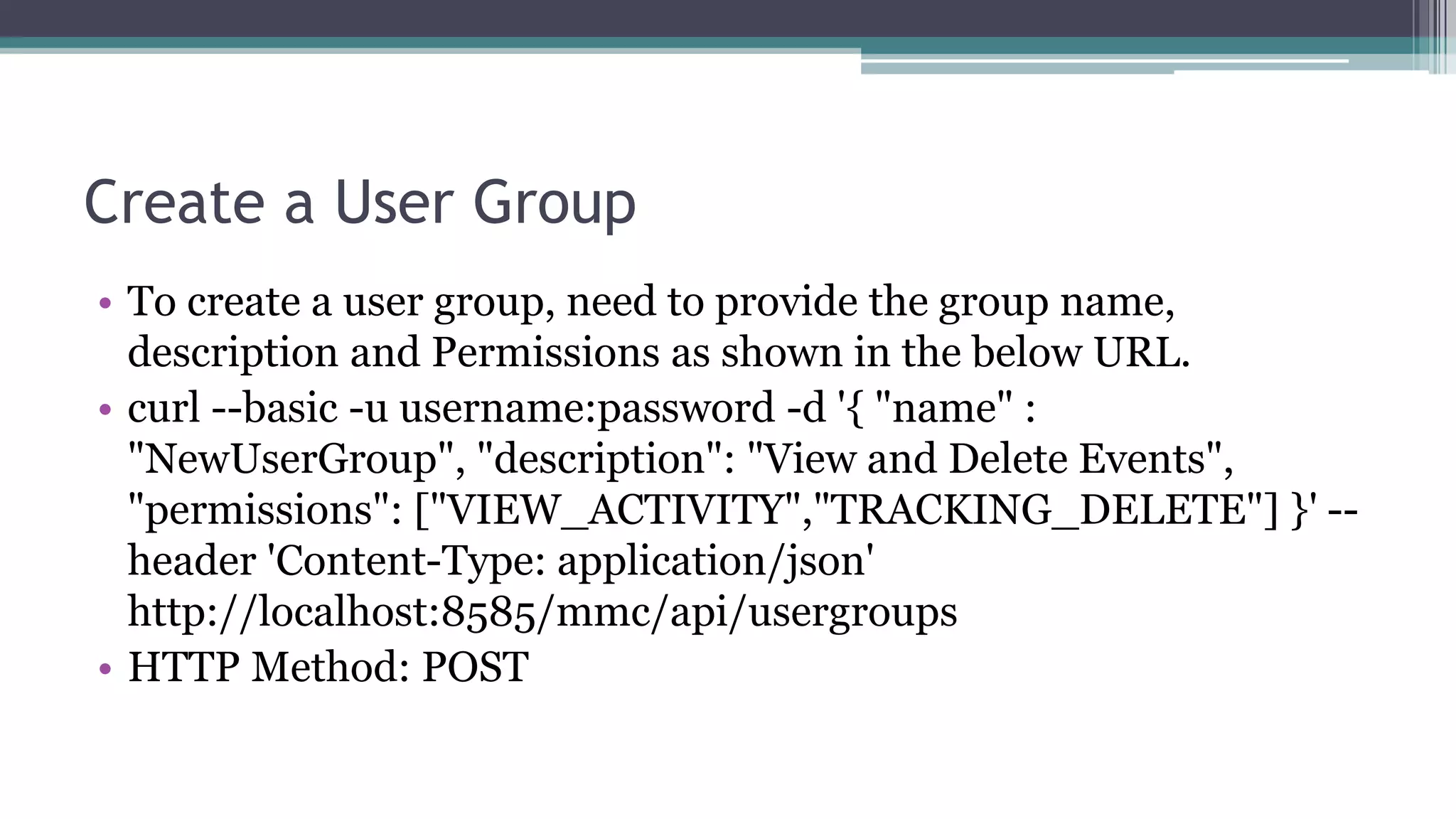

3. Create a User Group
• To create a user group, need to provide the group name,
description and Permissions as shown in the below URL.
• curl --basic -u username:password -d '{ "name" :
"NewUserGroup", "description": "View and Delete Events",
"permissions": ["VIEW_ACTIVITY","TRACKING_DELETE"] }' --
header 'Content-Type: application/json'
http://localhost:8585/mmc/api/usergroups
• HTTP Method: POST

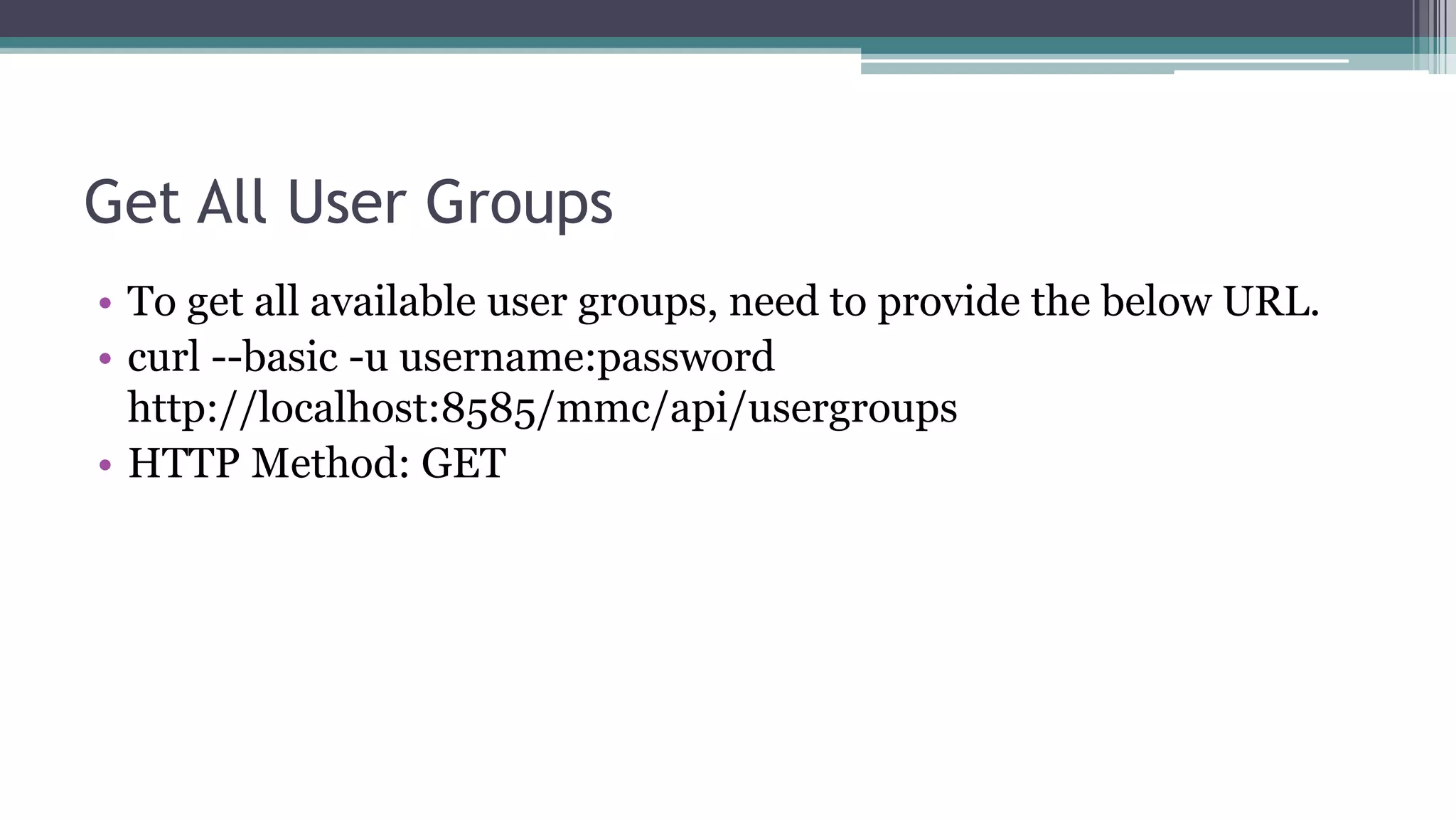

4. Get All User Groups
• To get all available user groups, need to provide the below URL.
• curl --basic -u username:password
http://localhost:8585/mmc/api/usergroups
• HTTP Method: GET

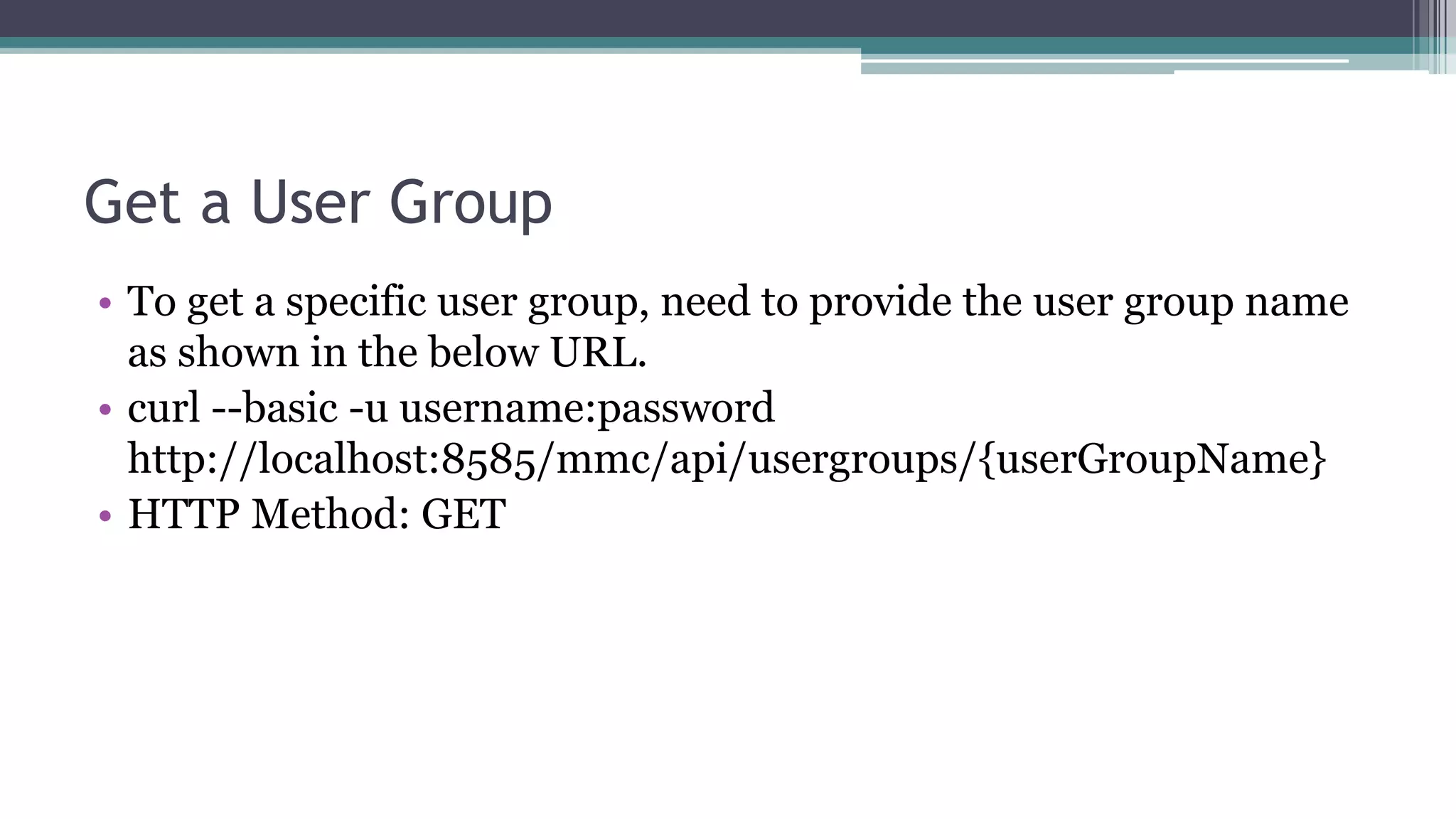

5. Get a User Group
• To get a specific user group, need to provide the user group name
as shown in the below URL.
• curl --basic -u username:password
http://localhost:8585/mmc/api/usergroups/{userGroupName}
• HTTP Method: GET

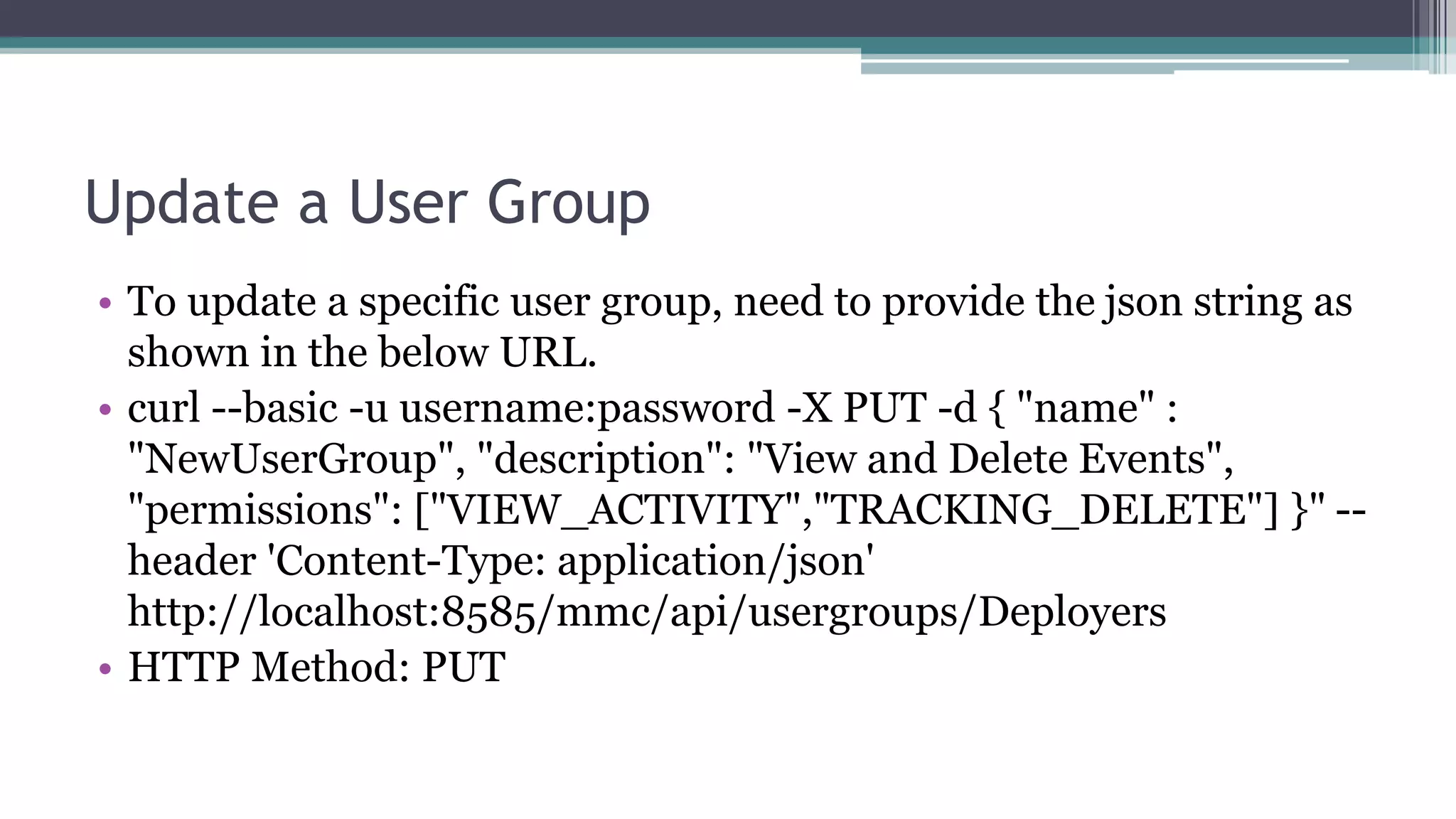

6. Update a User Group
• To update a specific user group, need to provide the json string as
shown in the below URL.
• curl --basic -u username:password -X PUT -d { "name" :
"NewUserGroup", "description": "View and Delete Events",
"permissions": ["VIEW_ACTIVITY","TRACKING_DELETE"] }" --
header 'Content-Type: application/json'
http://localhost:8585/mmc/api/usergroups/Deployers
• HTTP Method: PUT

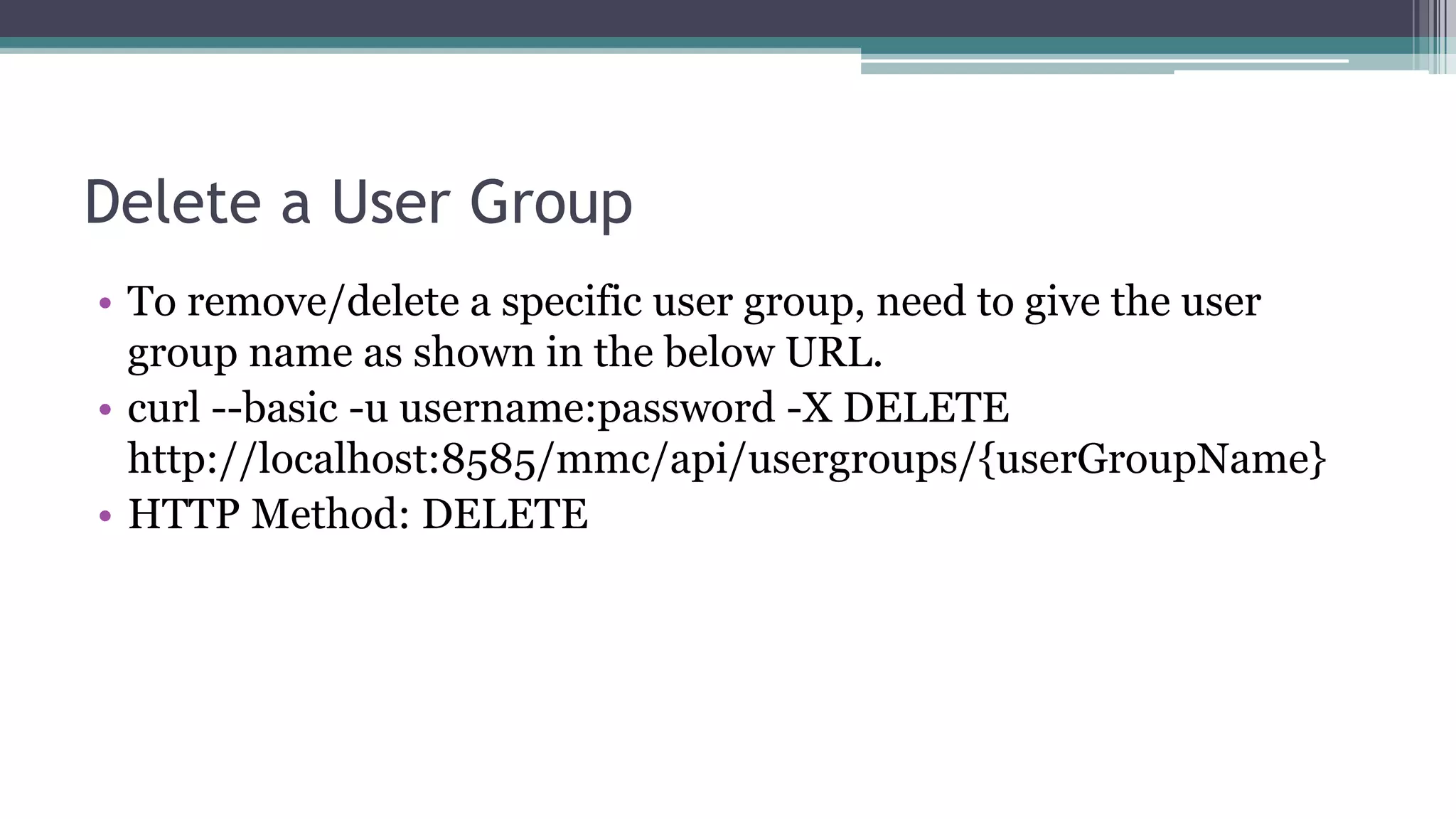

7. Delete a User Group
• To remove/delete a specific user group, need to give the user
group name as shown in the below URL.
• curl --basic -u username:password -X DELETE
http://localhost:8585/mmc/api/usergroups/{userGroupName}
• HTTP Method: DELETE

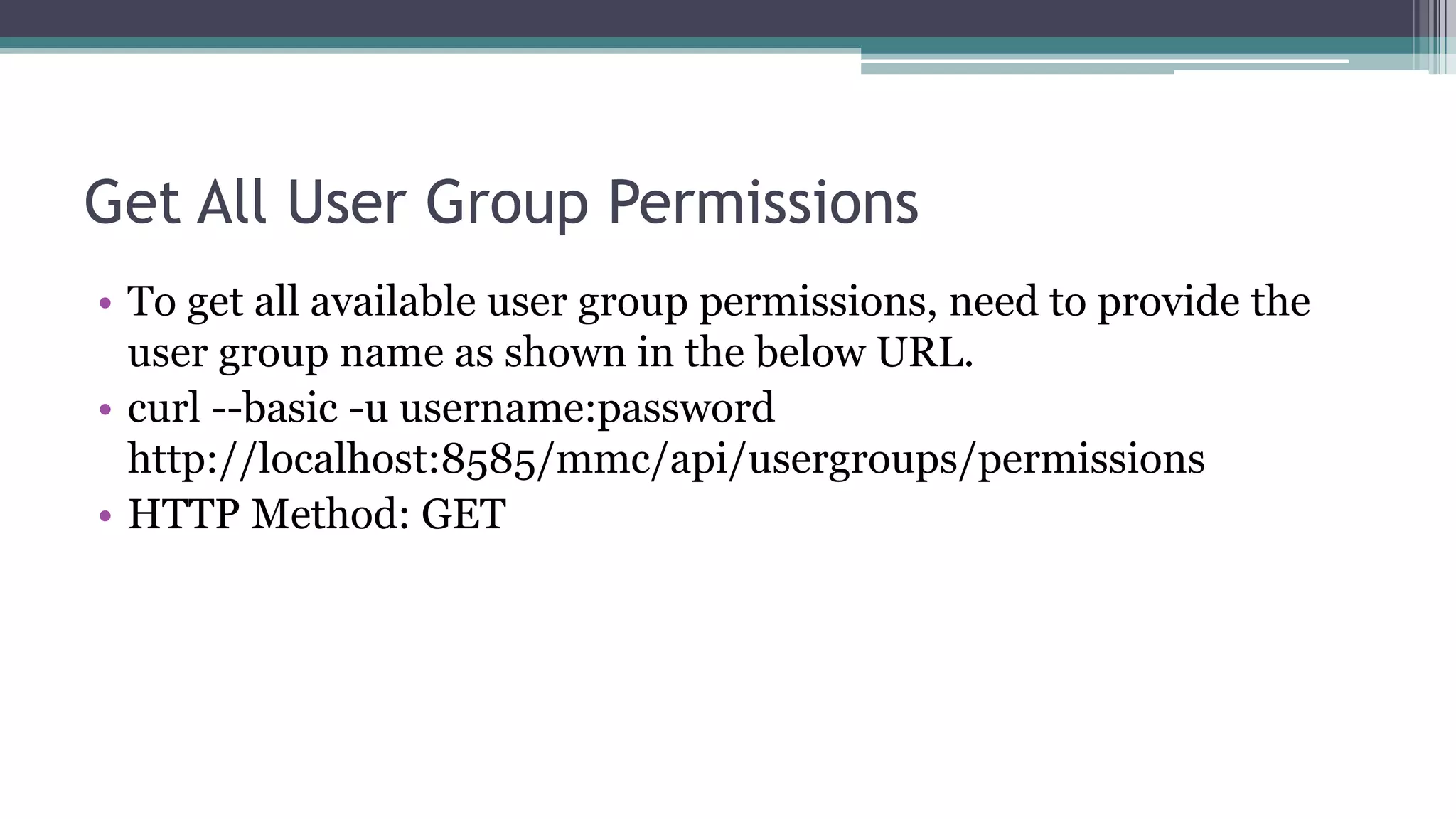

8. Get All User Group Permissions
• To get all available user group permissions, need to provide the
user group name as shown in the below URL.
• curl --basic -u username:password
http://localhost:8585/mmc/api/usergroups/permissions
• HTTP Method: GET

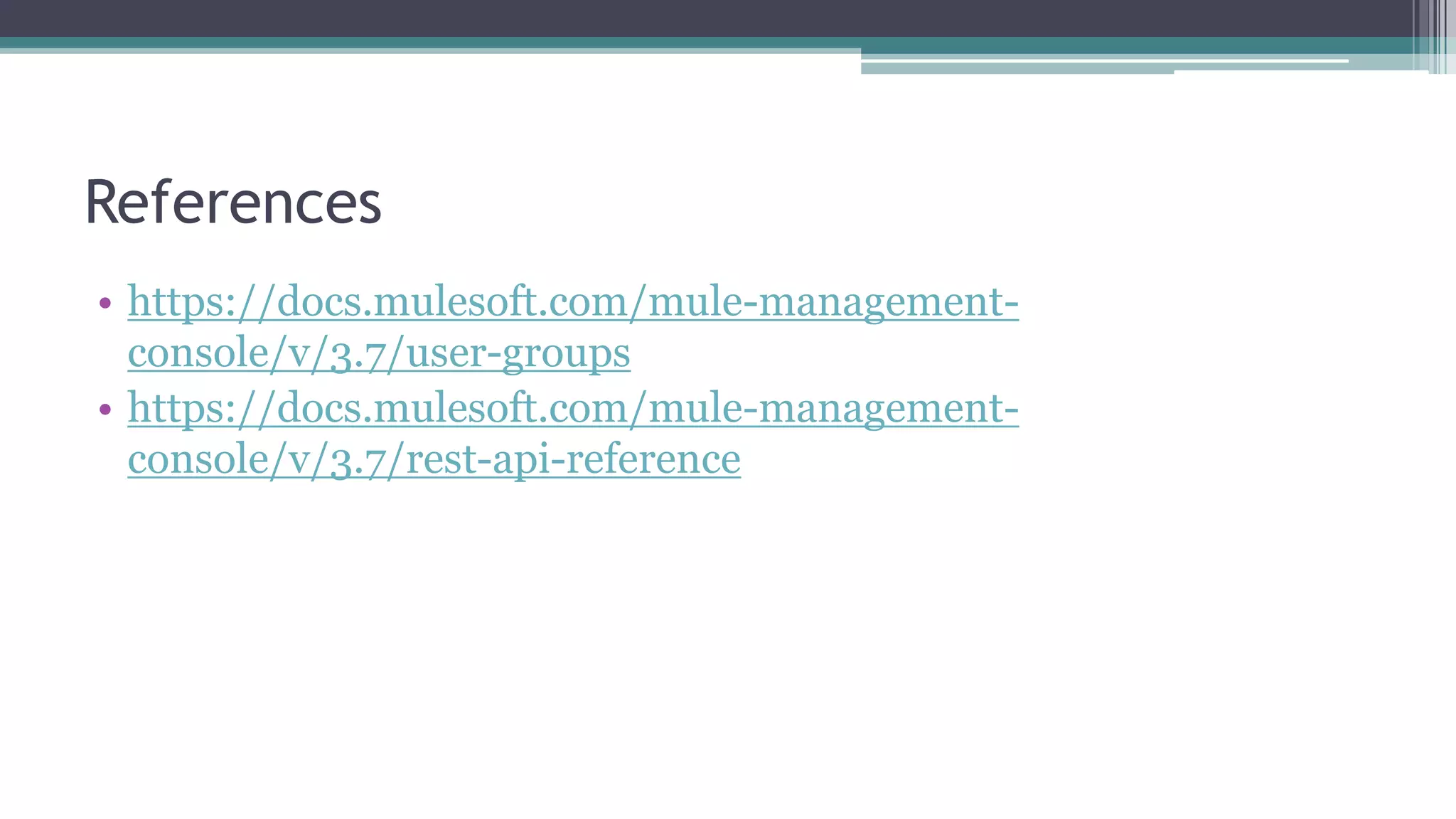

9. References
• https://docs.mulesoft.com/mule-management-
console/v/3.7/user-groups
• https://docs.mulesoft.com/mule-management-
console/v/3.7/rest-api-reference

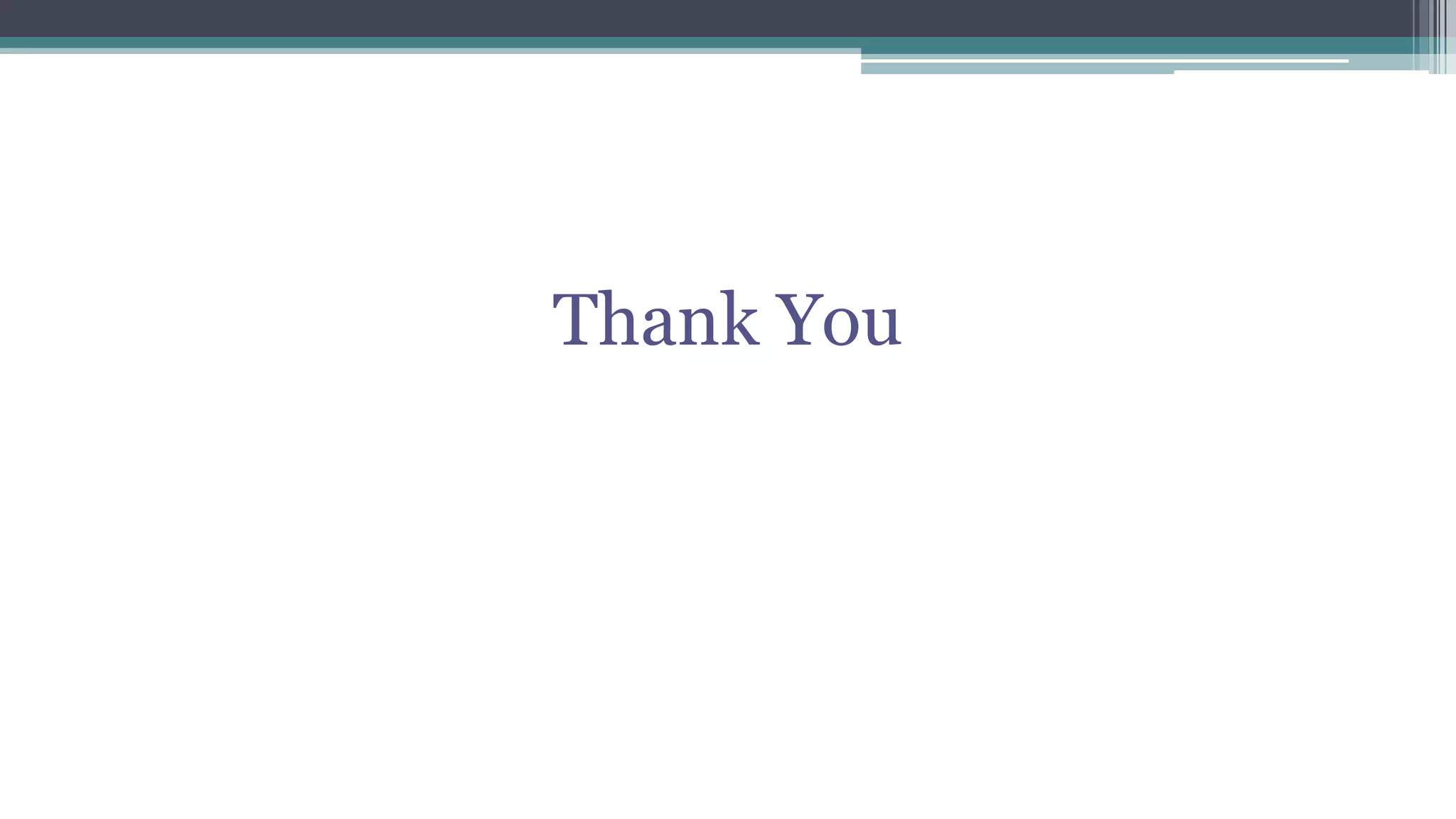

10. Thank You
