The document summarizes the key features and capabilities of the Mindray D60 patient monitor. It has a 9-inch high resolution screen for optimal visibility. It offers gesture controls and a flat UI for easy operation. The D60 provides graphical problem-solving support to help users address issues simply. It is lightweight at under 4.2kg and can perform many functions including defibrillation, ECG, SpO2, NIBP, EtCO2, IBP, pacing and more. Accessories are compatible with other Mindray monitors.

2. 9 inch
HD
Excellent Visual Experience
• See more with larger screen: 9” (D60)
• Higher resolution: 1200 x 1020 (D60), providing clearer
vision
• Wider viewing angle ≥170°
• Auto-brightness, adapt to varying ambient lighting for
optimal visibility

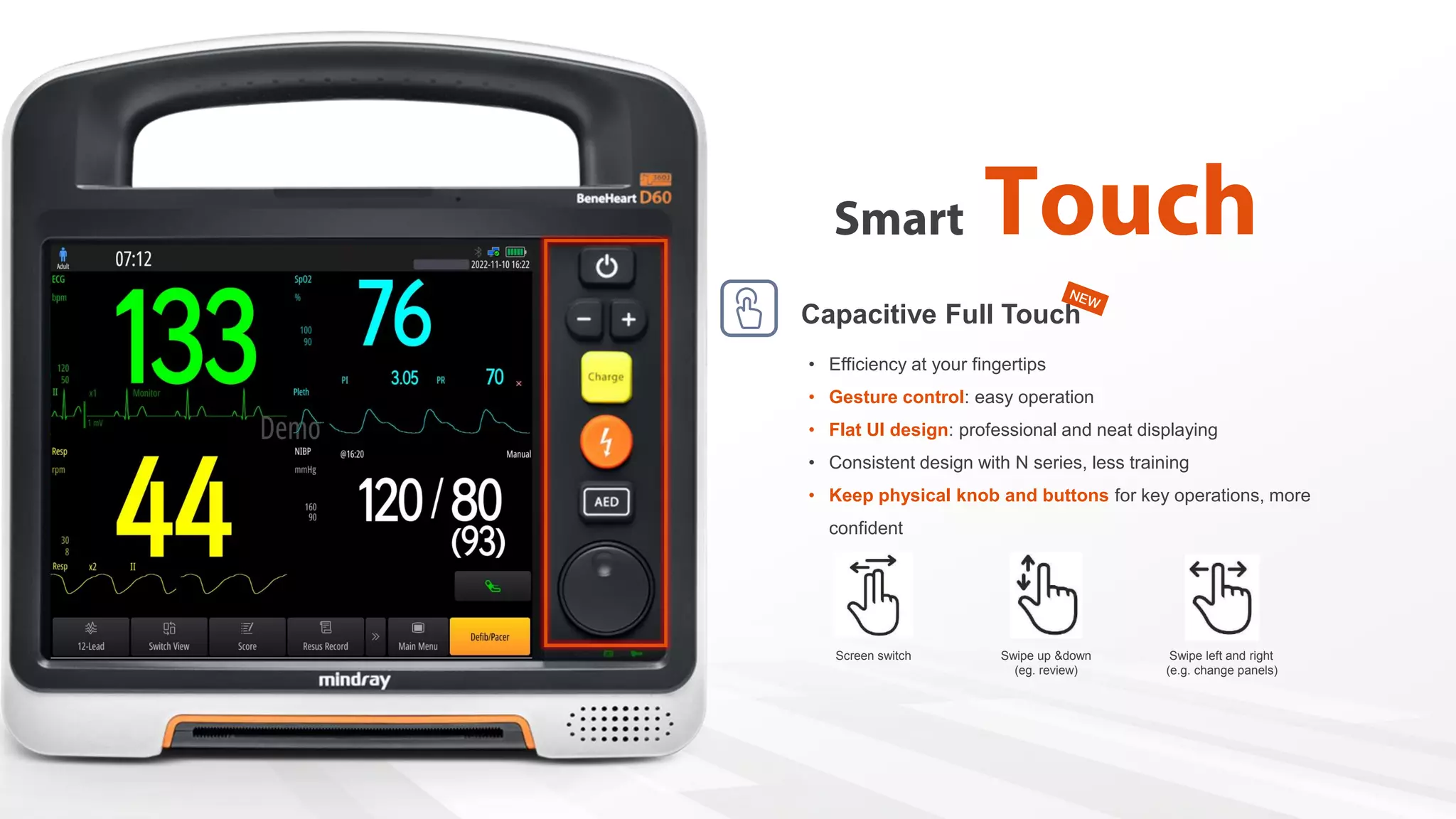

3. • Efficiency at your fingertips
• Gesture control: easy operation
• Flat UI design: professional and neat displaying
• Consistent design with N series, less training
• Keep physical knob and buttons for key operations, more
confident
Screen switch Swipe left and right
(e.g. change panels)
Swipe up &down
(eg. review)
Capacitive Full Touch

4. 2
D60 provides a series of problem-solving support with
graphical visualization, not only alerts you the problems, but
also shows you how to fix them simply.
1 3
If an ECG lead is off... If technical alarms occur... If the device test fails…

5. Ultra-light & Compact
• ≤ 4.2kg, with battery (D60) ， over
25% deduction
• All in one:
• manual defib /AED (360J BTE)
/pacing
• ECG /SpO2 /NIBP/ CO2
• IBP /TEMP (only for D60)
Defibrillation with Clear 1-2-3
• Color-coded, easy-to-use panel
• Displayed information is reduced to what
is necessary
Versatile External Paddles
• Energy select /charge /shock
• Integrated pediatric paddles
• Patient contact indicator
Compatible Accessories
• Parameter accessories are compatible with
Mindray monitors
• Therapy accessories are compatible with D3/D6
Magnetic connector*
• Automatically attracted to connect
DC power supply
• No precise alignment is required.
Status indicator
• Clear status at a glance with
comprehensive auto-test
* Magnetic connector is only for D60 DC version.

6. Manual
Defib
AED
Pacer
ECG
SpO2
NIBP
EtCO2
IBP
Synchronized
Cardioversion
Scoring
/Warning Tool
Ultrasound Infrared Ear
Thermometer
12-lead ECG
Analysis

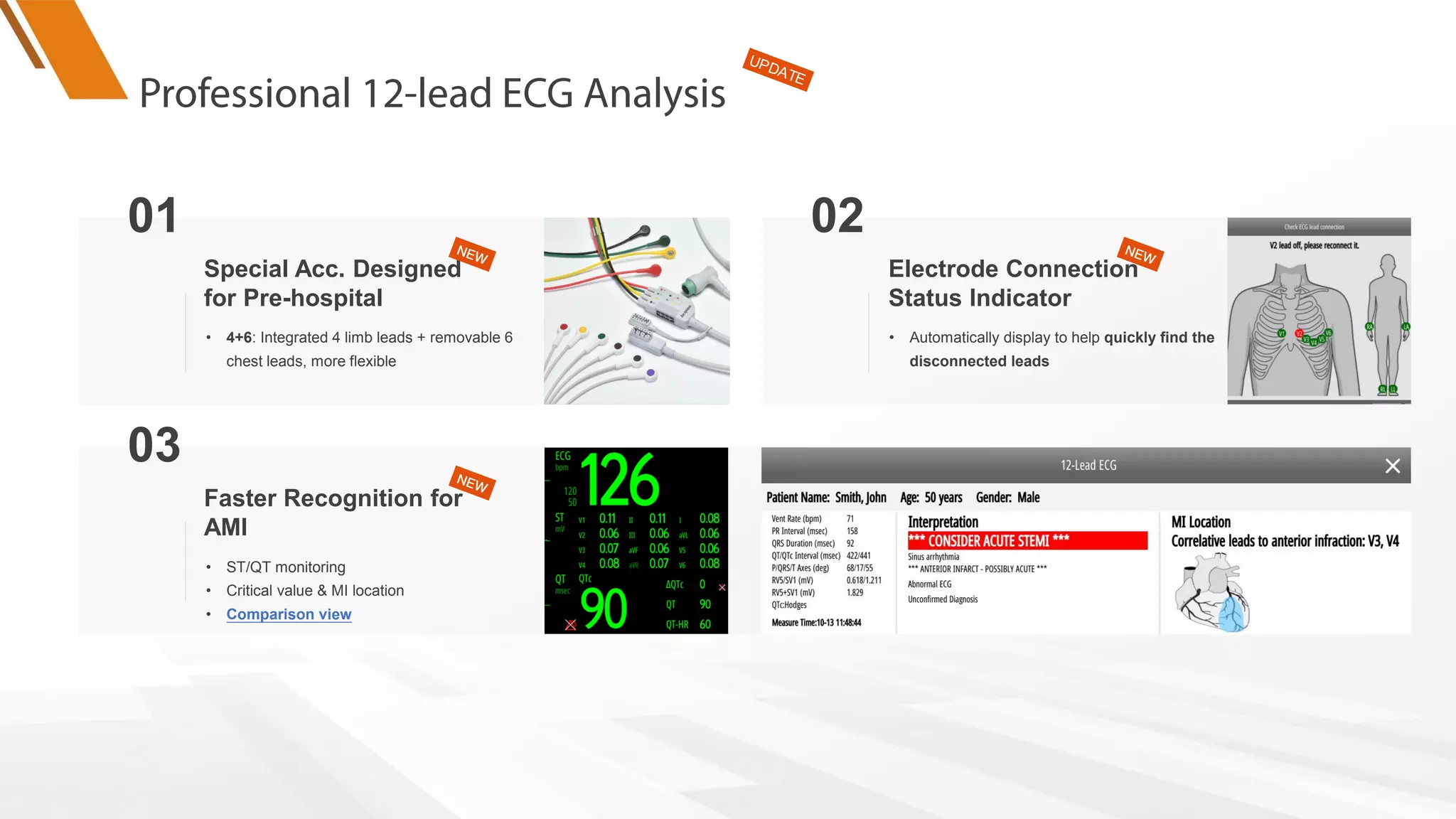

7. 院前12导附
件图
01
• 4+6: Integrated 4 limb leads + removable 6
chest leads, more flexible
Special Acc. Designed
for Pre-hospital
ST/QT界面
图
03
• ST/QT monitoring
• Critical value & MI location
• Comparison view
Faster Recognition for
AMI
12导导联脱
落界面图
02
• Automatically display to help quickly find the
disconnected leads
Electrode Connection
Status Indicator

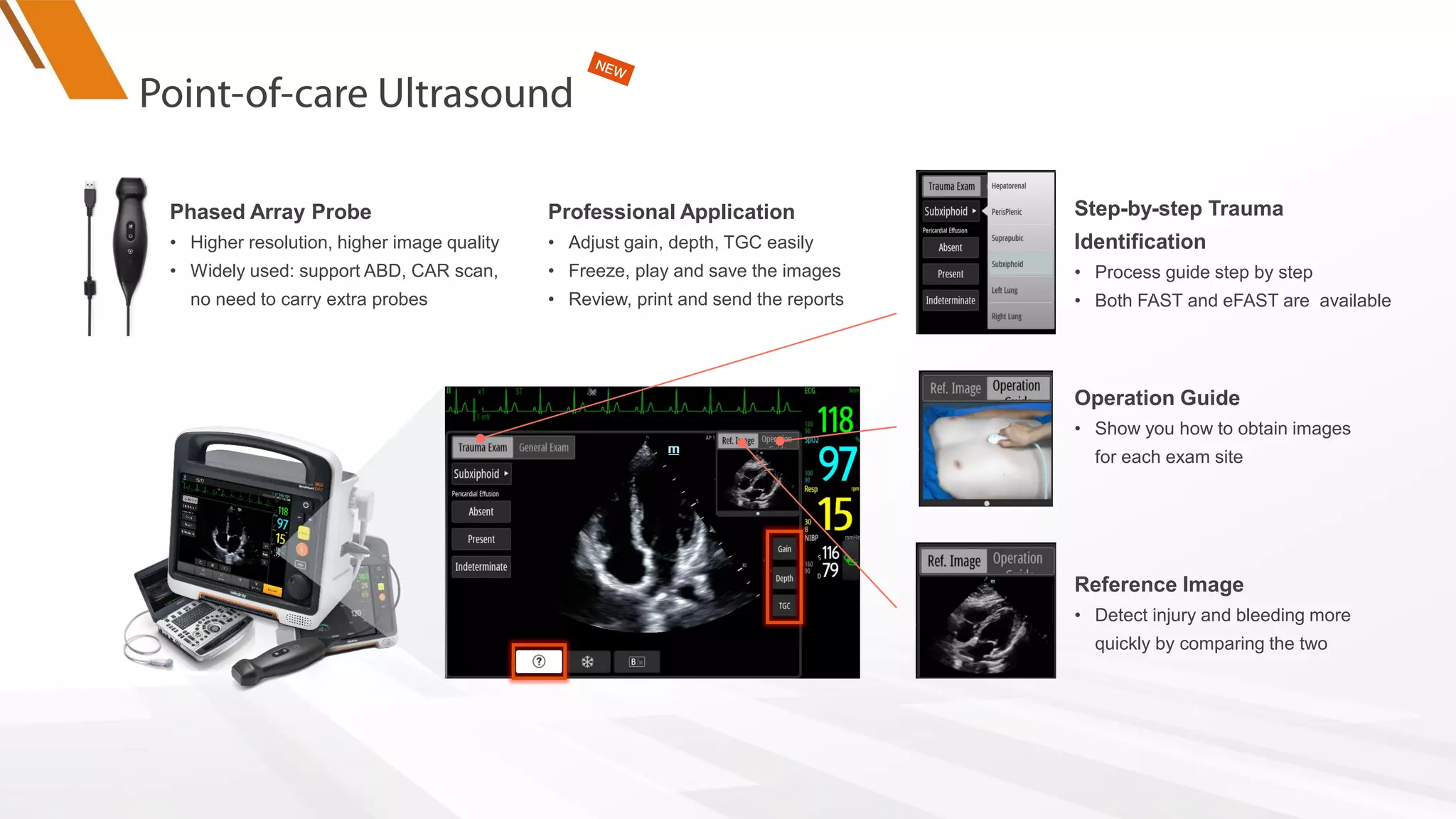

8. PEA
Phased Array Probe
• Higher resolution, higher image quality
• Widely used: support ABD, CAR scan,
no need to carry extra probes
Professional Application
• Adjust gain, depth, TGC easily
• Freeze, play and save the images
• Review, print and send the reports
Step-by-step Trauma
Identification
• Process guide step by step
• Both FAST and eFAST are available
Reference Image
• Detect injury and bleeding more
quickly by comparing the two
Operation Guide
• Show you how to obtain images
for each exam site

9. GCS
• Give a reliable and objective way of
recording the conscious state for initial as
well as subsequent assessment
EWS
• Help medical staff assess the severity of
patient quickly
• Supporting EWS / NEWS / MEWS
HEART
• For patients presenting with chest pain at the
emergency department
• Rapid and reliable prediction of the risk of
major adverse cardiac events

10. 1.5/ 3m
6-surface drop test (without/with carrycase)
• EN1789 Road Ambulance
• EN13718-1 Air Ambulance
• RTCA DO-160G Civil Aviation
• MIL-STD-810G Military Environment
IP55
Water-/dust-proof
49kinds
Disinfectants tolerated
400k+times / 100+kg
Defib cable bending / tension test

11. -20℃ 55℃
of any extreme temperature challenge

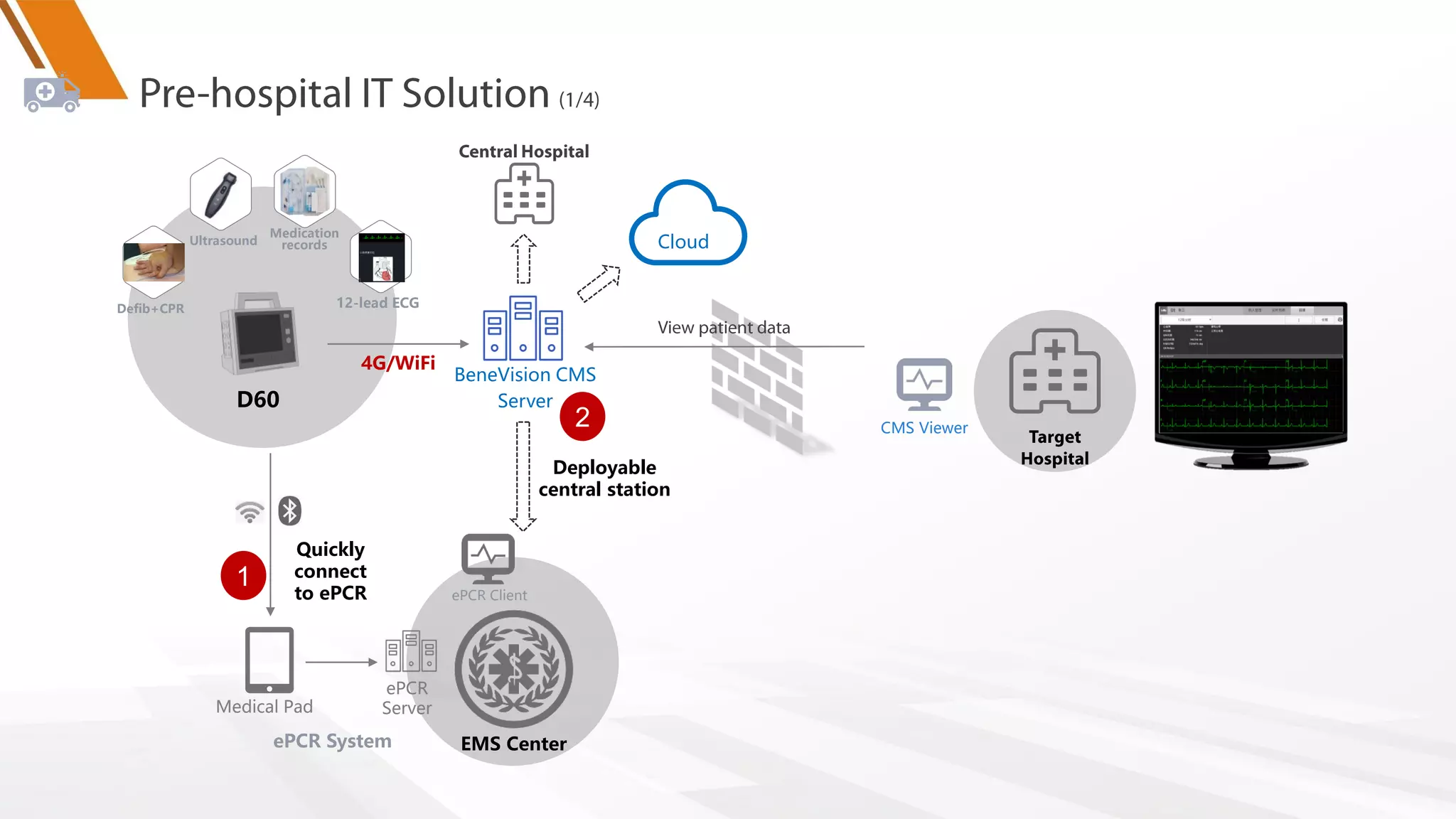

12. Medical Pad
EMS Center
ePCR Client
ePCR
Server
BeneVision CMS
Server
Quickly
connect
to ePCR
1
ePCR System
Cloud
CMS Viewer
2
Deployable
central station
D60
12-lead ECG
Ultrasound
Defib+CPR
Medication
records
4G/WiFi
