Micro frontends
Kleyson Prado, a coder from Brazil who works for SkipTheDishes, discusses micro frontends. Micro frontends allow independent implementations of different subdomains using the same or different technologies. They avoid sharing logic between subdomains and each is owned by a single team. Micro frontends are about breaking large, complex applications into smaller, independent pieces that can operate and evolve separately with minimal coordination. Integration approaches include server-side templating, runtime integration via web components or JavaScript, and build-time integration through a monorepo.
More Related Content
![[DevDay2019] Micro Frontends Architecture - By Thang Pham, Senior Software En...](https://cdn.slidesharecdn.com/ss_thumbnails/microfrontendsarchitectureedit-190410074045-thumbnail.jpg?width=640&height=640&fit=bounds)
Micro frontends
- 1. Micro frontends There isany valid reason to use it?

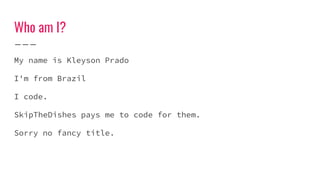

- 2. Who am I? Myname is Kleyson Prado I'm from Brazil I code. SkipTheDishes pays me to code for them. Sorry no fancy title.

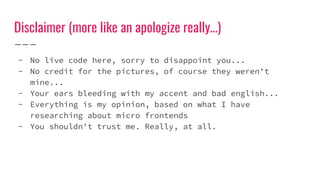

- 3. Disclaimer (more likean apologize really…) - No live code here, sorry to disappoint you... - No credit for the pictures, of course they weren't mine... - Your ears bleeding with my accent and bad english... - Everything is my opinion, based on what I have researching about micro frontends - You shouldn't trust me. Really, at all.

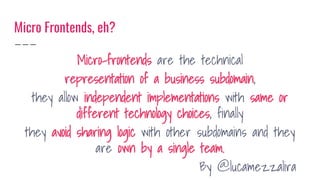

- 4. Micro Frontends, eh? Micro-frontendsare the technical representation of a business subdomain, they allow independent implementations with same or different technology choices, finally they avoid sharing logic with other subdomains and they are own by a single team. By @lucamezzalira
- 5.
- 7. What people sayabout it?

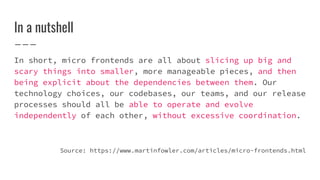

- 9. In a nutshell Inshort, micro frontends are all about slicing up big and scary things into smaller, more manageable pieces, and then being explicit about the dependencies between them. Our technology choices, our codebases, our teams, and our release processes should all be able to operate and evolve independently of each other, without excessive coordination. Source: https://www.martinfowler.com/articles/micro-frontends.html

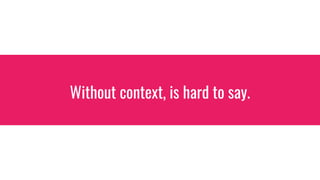

- 14. Without context, ishard to say.
- 15.
- 16. Integration approaches Server-side templatecomposition server { listen 8080; server_name localhost; root /usr/share/nginx/html; index index.html; ssi on; # Redirect / to /browse rewrite ^/$ http://localhost:8080/browse redirect; # Decide which HTML fragment to insert based on the URL location /browse { set $PAGE 'browse'; } location /order { set $PAGE 'order'; } location /profile { set $PAGE 'profile' } # All locations should render through index.html error_page 404 /index.html; }
- 17. Integration approaches Run-time integrationvia Web Components <html> <body> <!-- These scripts don't render anything immediately → <!-- Instead they each define a custom element type → <script src="https://browse.example.com/bundle.js"></script> <script src="https://order.example.com/bundle.js"></script> <script src="https://profile.example.com/bundle.js"></script> <div id="micro-frontend-root"></div> <script type="text/javascript"> // These element types are defined by the above scripts const webComponentsByRoute = { '/': 'micro-frontend-browse-restaurants', '/order-food': 'micro-frontend-order-food', '/user-profile': 'micro-frontend-user-profile', }; const webComponentType = webComponentsByRoute[window.location.pathname]; // Having determined the right web component custom element type, // we now create an instance of it and attach it to the document const root = document.getElementById('micro-frontend-root'); const webComponent = document.createElement(webComponentType); root.appendChild(webComponent); </script> </body> </html>
- 18. Integration approaches Run-time integrationvia JavaScript <html> <body> <!-- These scripts don't render anything immediately → <!-- Instead they attach entry-point functions to `window` → <script src="https://browse.example.com/bundle.js"></script> <script src="https://order.example.com/bundle.js"></script> <script src="https://profile.example.com/bundle.js"></script> <div id="micro-frontend-root"></div> <script type="text/javascript"> // These global functions are attached to window by the above scripts const mFrontendsByRoute = { '/': window.renderBrowseRestaurants, '/order-food': window.renderOrderFood, '/user-profile': window.renderUserProfile, }; const renderFunction = mFrontendsByRoute[window.location.pathname]; // Having determined the entry-point function, we now call it, // giving it the ID of the element where it should render itself renderFunction('micro-frontend-root'); </script> </body> </html>

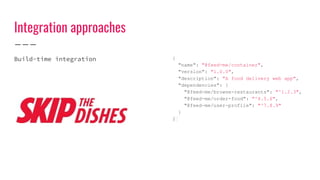

- 19. Integration approaches Build-time integration{ "name": "@feed-me/container", "version": "1.0.0", "description": "A food delivery web app", "dependencies": { "@feed-me/browse-restaurants": "^1.2.3", "@feed-me/order-food": "^4.5.6", "@feed-me/user-profile": "^7.8.9" } }

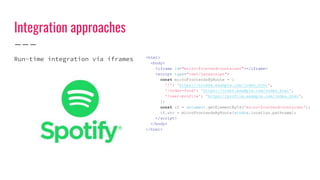

- 20. Integration approaches Run-time integrationvia iframes <html> <body> <iframe id="micro-frontend-container"></iframe> <script type="text/javascript"> const microFrontendsByRoute = { '/': 'https://browse.example.com/index.html', '/order-food': 'https://order.example.com/index.html', '/user-profile': 'https://profile.example.com/index.html', }; const if = document.getElementById('micro-frontend-container'); if.src = microFrontendsByRoute[window.location.pathname]; </script> </body> </html>
- 21. Libs and Frameworks https://single-spa.js.orghttps://frint.js.org https://github.com/ara-framework https://github.com/zalando/tailor
- 22. Scenario 1 Bigproduct and a big team!

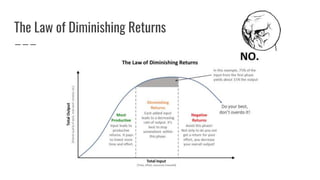

- 23. The Law ofDiminishing Returns
- 24. Scenario 2 Workingwith legacy code.

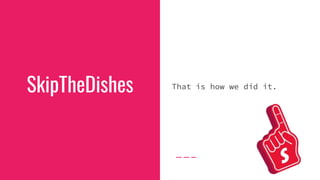

- 25. SkipTheDishes That ishow we did it.
- 26.
- 27.

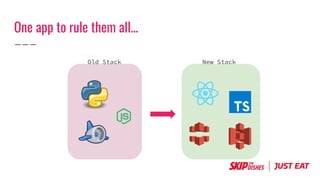

- 28. One app torule them all... Old Stack New Stack
- 29. But we havea problem...

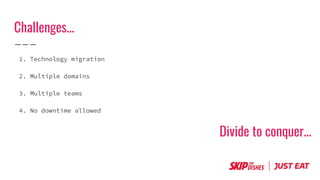

- 30. Challenges... 1. Technology migration 2.Multiple domains 3. Multiple teams 4. No downtime allowed Divide to conquer...

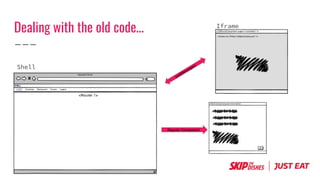

- 31. Dealing with theold code... Shell Iframe Regular Component
- 32. Teams that likeour approach... [Project] ├── README.md ├── bin ├── lerna.json ├── node_modules ├── package.json ├── packages │ ├── customer_feature │ ├── base │ ├── courier_feature │ ├── restaurant_feature │ ├── localization │ ├── components │ ├── theme │ └── shell ├── tsconfig.json └── yarn.lock And you get for free: 1. Theme 2. Component Library 3. All configuration done 4. A opinionated structure 5. API handling 6. Authentication

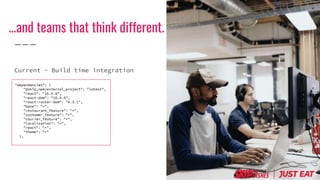

- 33. …and teams thatthink different. "dependencies": { "@skip_npm/external_project": "latest", "react": "16.8.6", "react-dom": "16.8.6", "react-router-dom": "4.3.1", "base": "*", "restaurant_feature": "*", "customer_feature": "*", "courier_feature": "*", "localization": "*", "react": "*", "theme": "*" }, Current - Build time integration

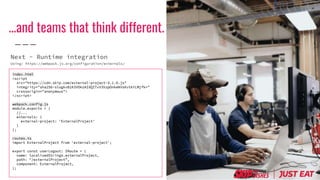

- 34. index.html <script src="https://cdn.skip.com/external-project-3.1.0.js" integrity="sha256-slogkvB1K3VOkzAI8QITxV3VzpOnkeNVsKvtkYLMjfk=" crossorigin="anonymous"> </script> webpack.config.js module.exports = { //... externals:{ external-project: 'ExternalProject' } }; routes.ts import ExternalProject from 'external-project'; export const userLogout: IRoute = { name: localizedStrings.externalProject, path: "/externalProject", component: ExternalProject, }; …and teams that think different. Next - Runtime integration Using: https://webpack.js.org/configuration/externals/
- 35.
