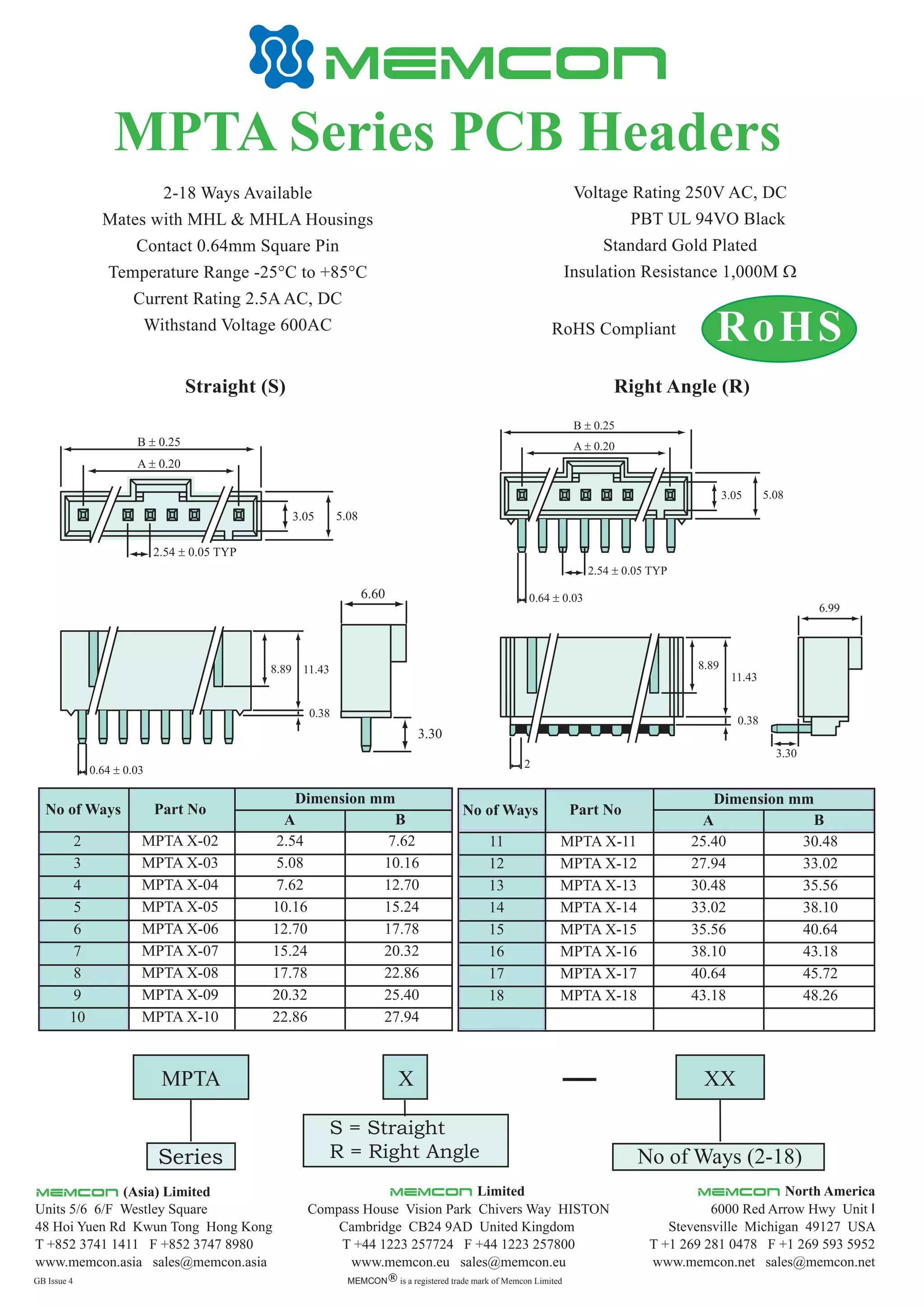

This document provides specifications for MPTA Series PCB headers that are available with 2-18 ways and mate with MHL and MHLA housings. The headers have 0.64mm square pins, operate from -25°C to +85°C, and are rated for 2.5A AC/DC with 600V AC withstand voltage and 250V AC/DC voltage rating. They have black PBT UL 94VO insulation, gold plating, and 1000MΩ insulation resistance, and are RoHS compliant. Dimensional drawings of straight and right-angle models are also provided.

1. MPTA Series PCB Headers
2-18 Ways Available
Mates with MHL & MHLA Housings
Contact 0.64mm Square Pin
Temperature Range -25°C to +85°C
Current Rating 2.5A AC, DC
Withstand Voltage 600AC
Voltage Rating 250V AC, DC
PBT UL 94VO Black
Standard Gold Plated
Insulation Resistance 1,000M 
RoHS Compliant
MPTA X-02
MPTA X-03
MPTA X-04
MPTA X-05
MPTA X-06
MPTA X-07
MPTA X-08
MPTA X-09
MPTA X-10
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
MPTA X-11
MPTA X-12
MPTA X-13
MPTA X-14
MPTA X-15
MPTA X-16
MPTA X-17
MPTA X-18
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
30.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
MPTA XX
Series No of Ways (2-18)
S = Straight
R = Right Angle
A 0.20
B  0.25
5.083.05
2.54  0.05 TYP
6.60
3.30
11.43
0.38
8.89
0.64  0.03
Straight (S) Right Angle (R)
A 0.20
B  0.25
5.083.05
2.54  0.05 TYP
0.64  0.03
11.43
0.38
8.89
2
6.99
3.30
No of Ways Part No
Dimension mm
A B
2
3
4
5
6
7
8
9
10
Part No
Dimension mm
A B
11
12
13
14
15
16
17
18
No of Ways
X
RoHS
