Getting Started
with Yugabyte
Gwenn Etourneau
Principal, Solution Architect

About me
2
https://github.com/shinji62
https://twitter.com/the_shinji62
Woven Planet
Pivotal (ac. By VMware)
Rakuten
IBM …
Etourneau Gwenn
Principal Solution Architect

About me (fun fact)
3

© 2020 All Rights Reserved 4

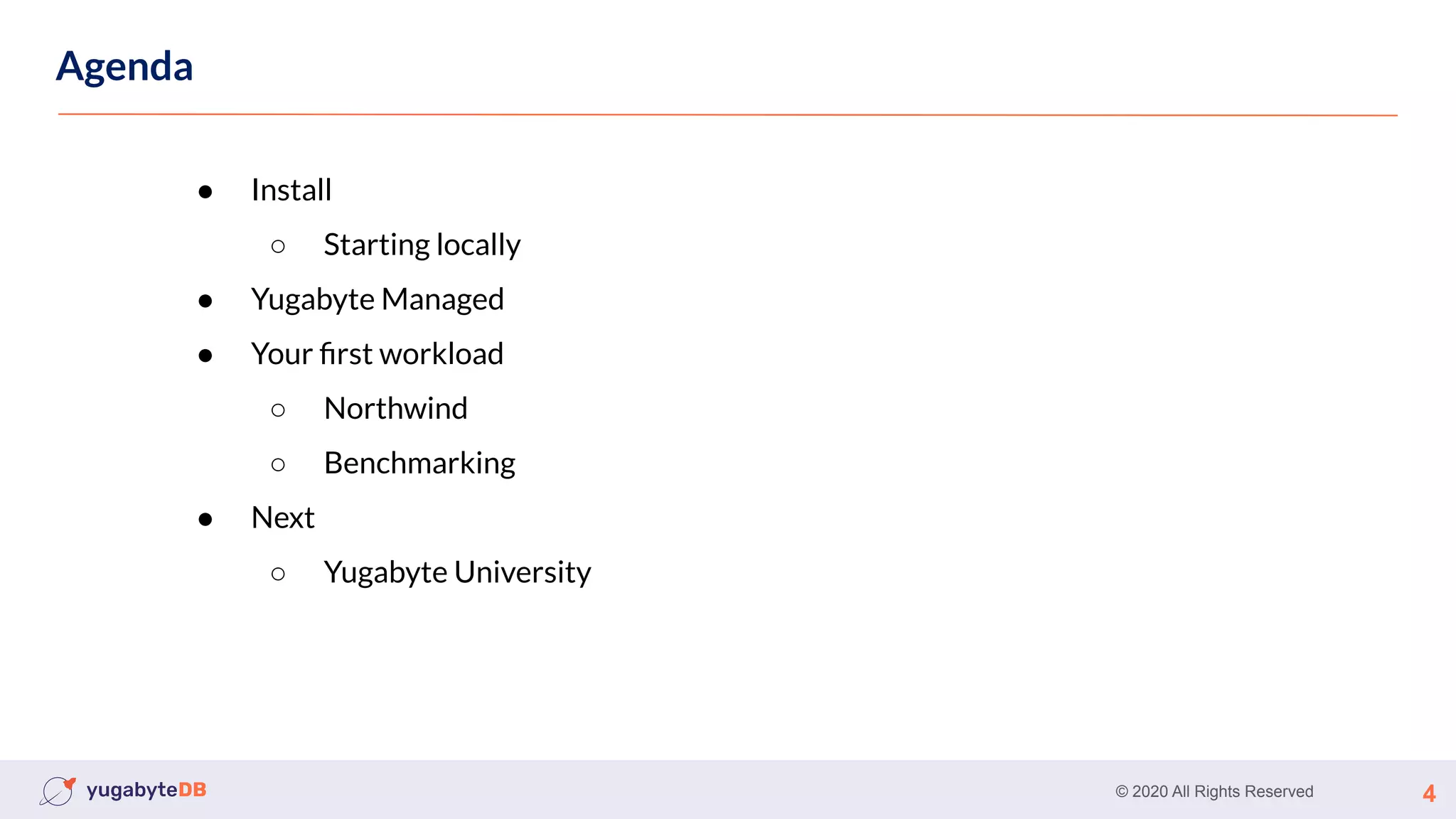

Agenda
● Install
○ Starting locally
● Yugabyte Managed
● Your ﬁrst workload
○ Northwind
○ Benchmarking
● Next
○ Yugabyte University

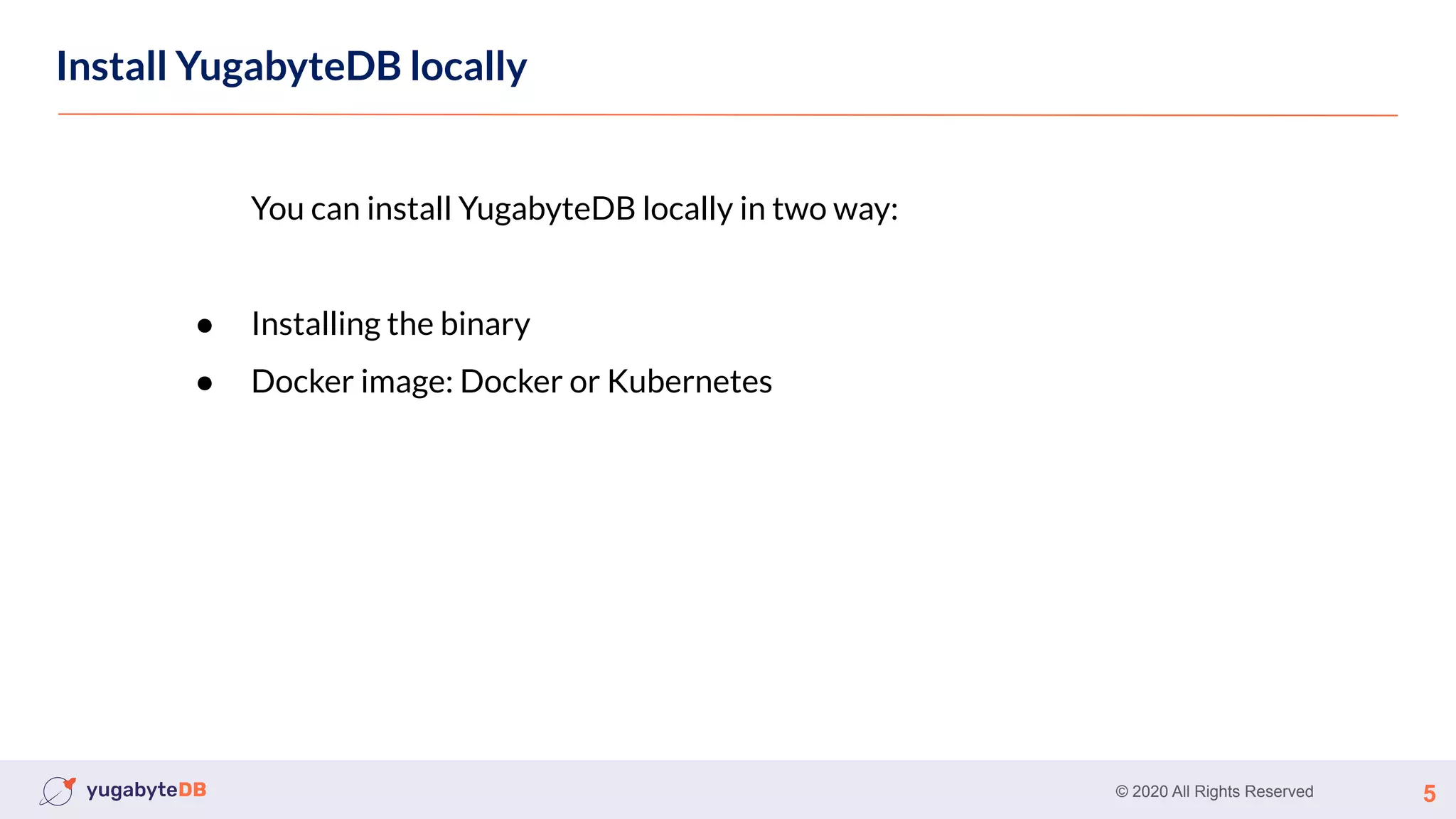

Install YugabyteDB locally
You can install YugabyteDB locally in two way:
● Installing the binary
● Docker image: Docker or Kubernetes

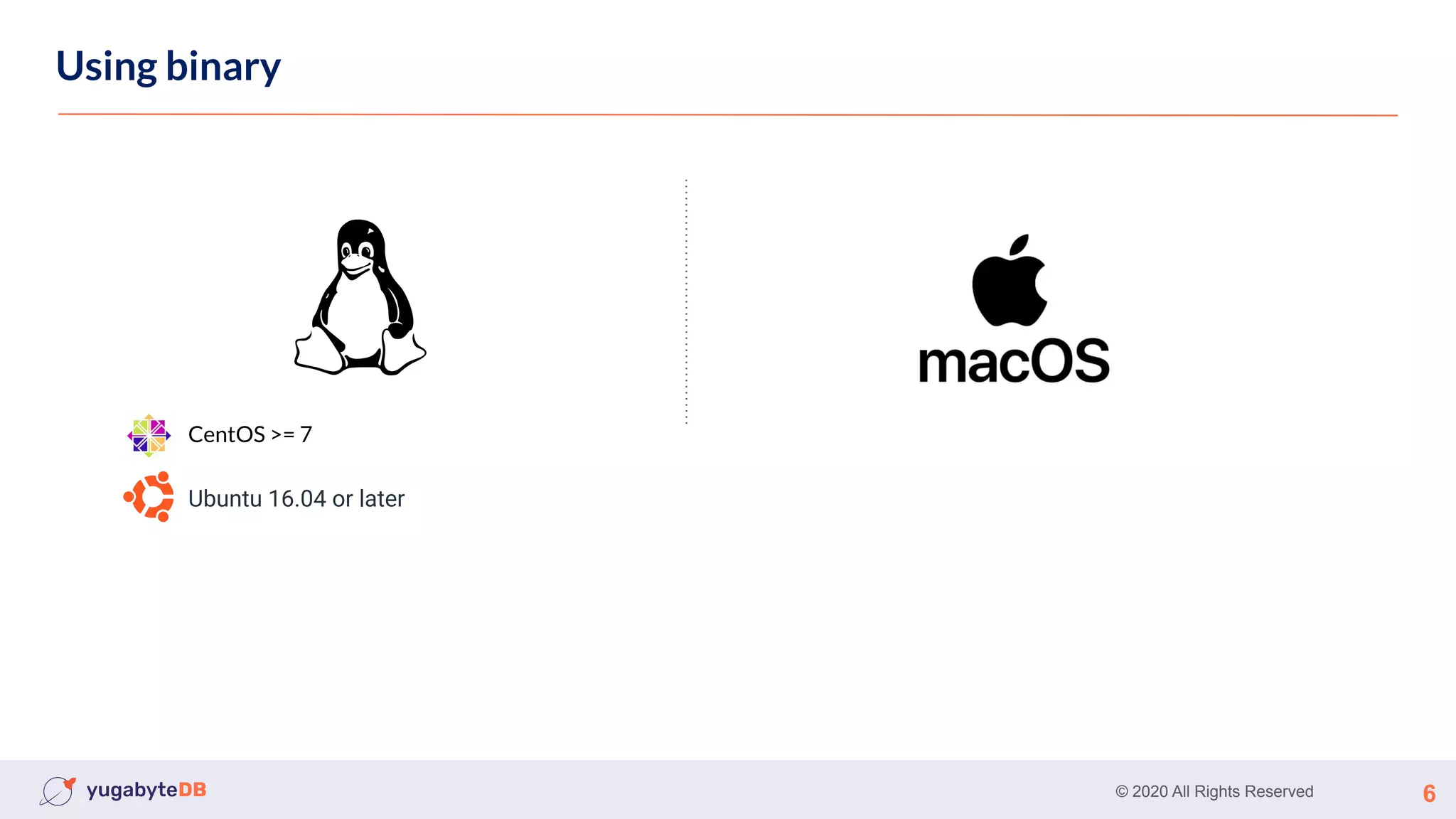

Using binary
CentOS >= 7
Ubuntu 16.04 or later

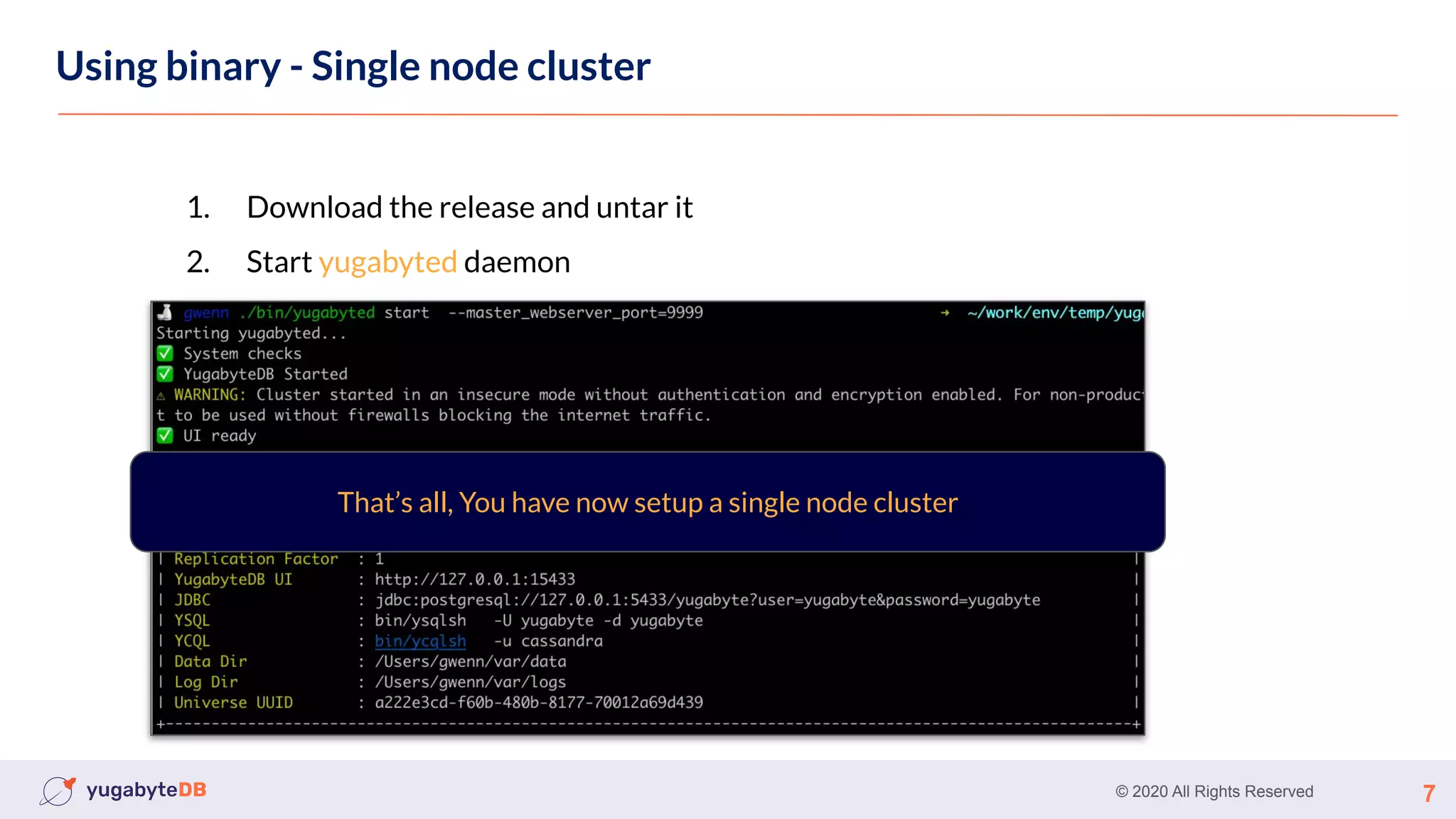

Using binary - Single node cluster
1. Download the release and untar it
2. Start yugabyted daemon
That’s all, You have now setup a single node cluster

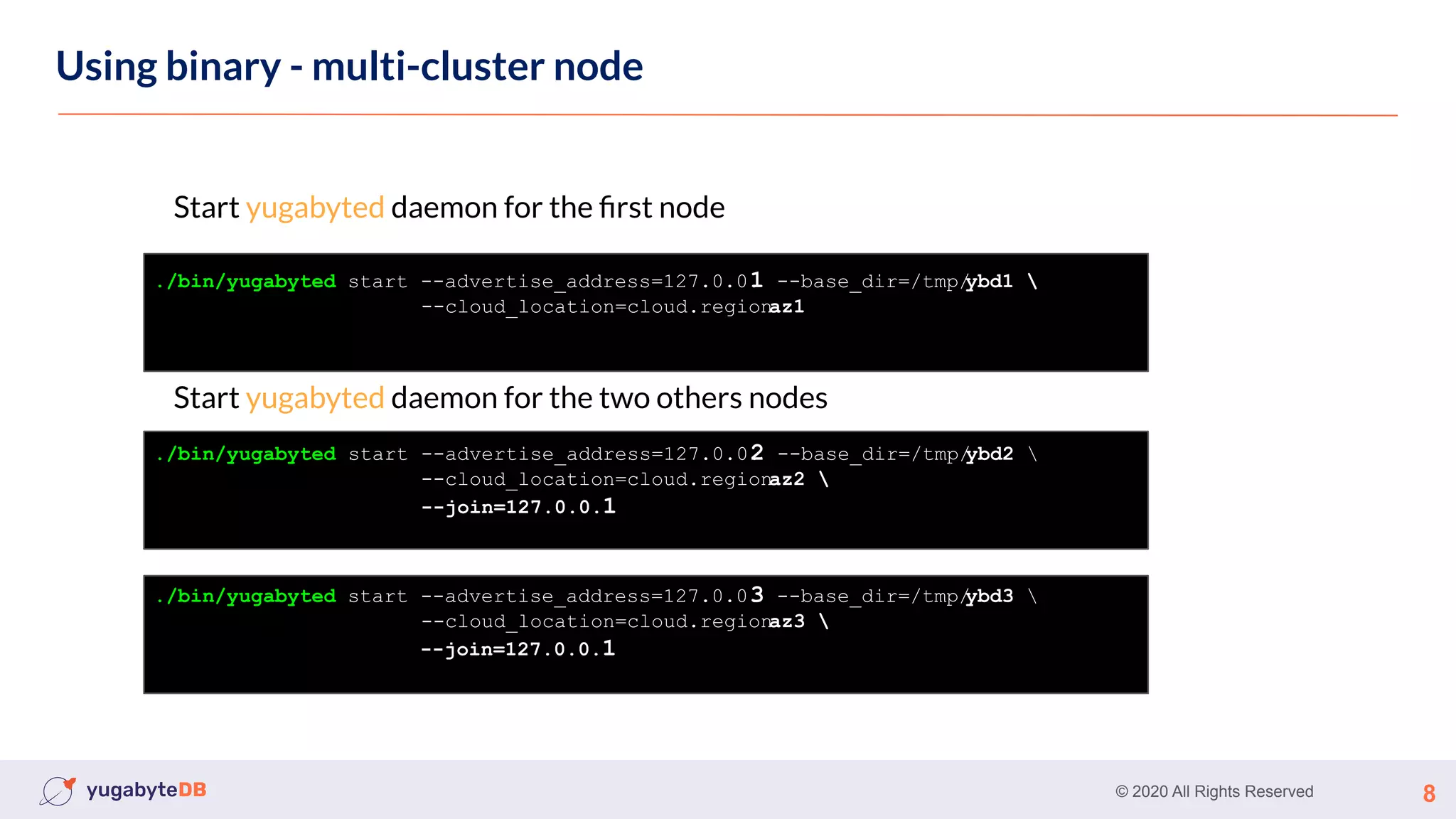

Using binary - multi-cluster node
Start yugabyted daemon for the ﬁrst node
Start yugabyted daemon for the two others nodes
./bin/yugabyted start --advertise_address=127.0.0.
1 --base_dir=/tmp/
ybd1
--cloud_location=cloud.region.
az1
2 --base_dir=/tmp/
ybd2
az2
--join=127.0.0.1
3 --base_dir=/tmp/
ybd3
az3
--join=127.0.0.1

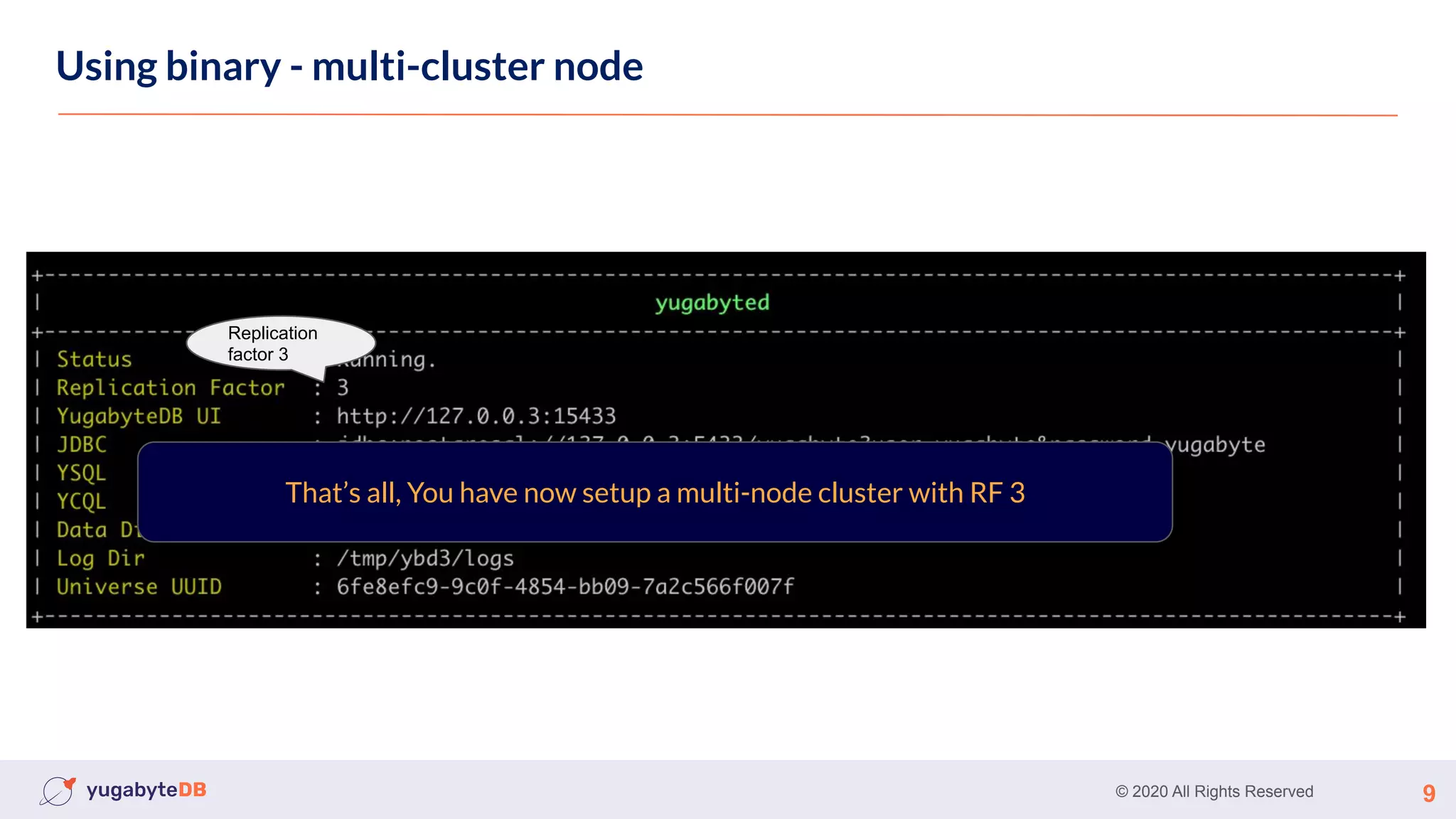

Using binary - multi-cluster node
Replication
factor 3
That’s all, You have now setup a multi-node cluster with RF 3

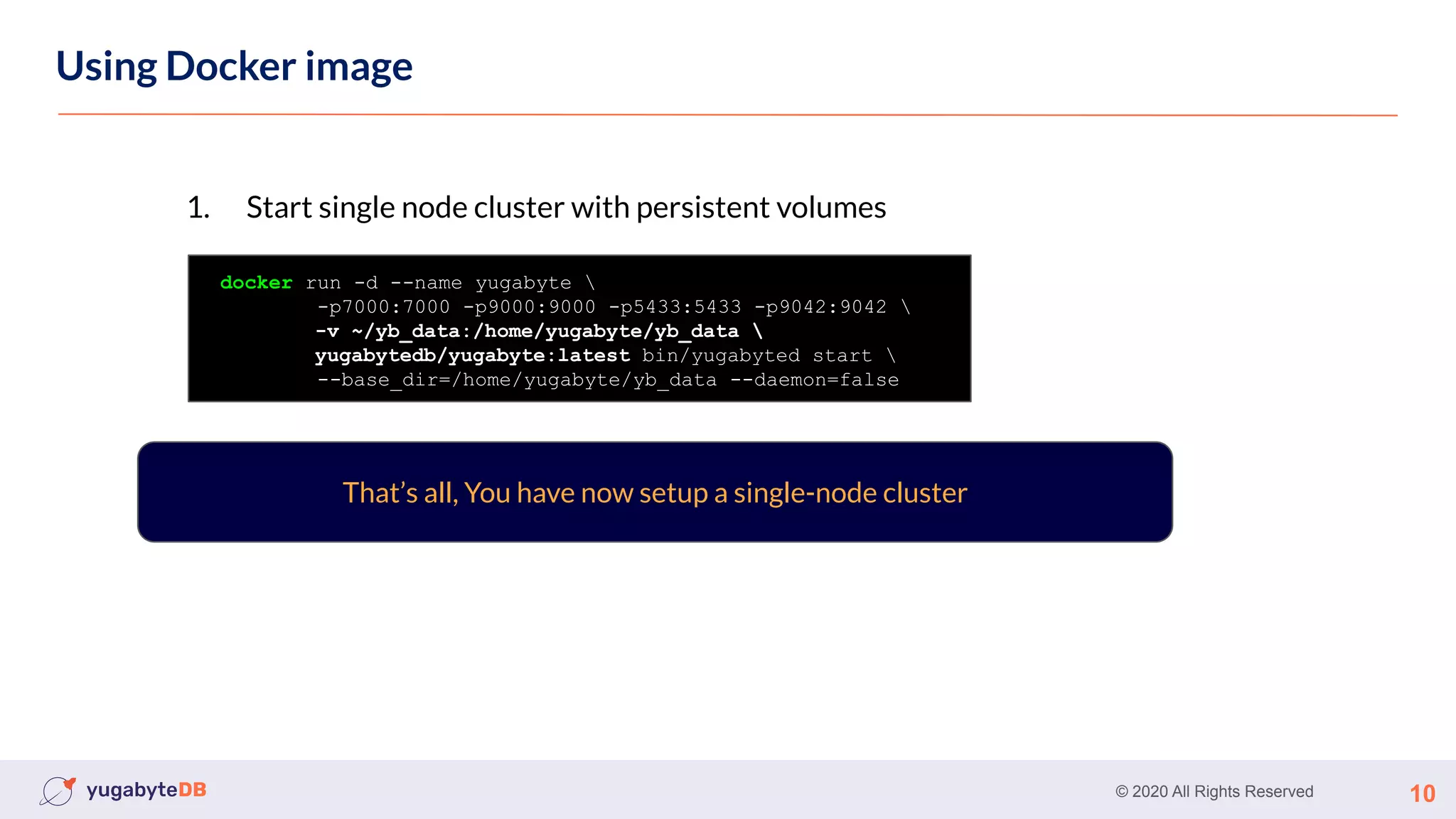

Using Docker image
docker run -d --name yugabyte
-p7000:7000 -p9000:9000 -p5433:5433 -p9042:9042
-v ~/yb_data:/home/yugabyte/yb_data
yugabytedb/yugabyte:latest bin/yugabyted start
--base_dir=/home/yugabyte/yb_data --daemon=false
1. Start single node cluster with persistent volumes
That’s all, You have now setup a single-node cluster

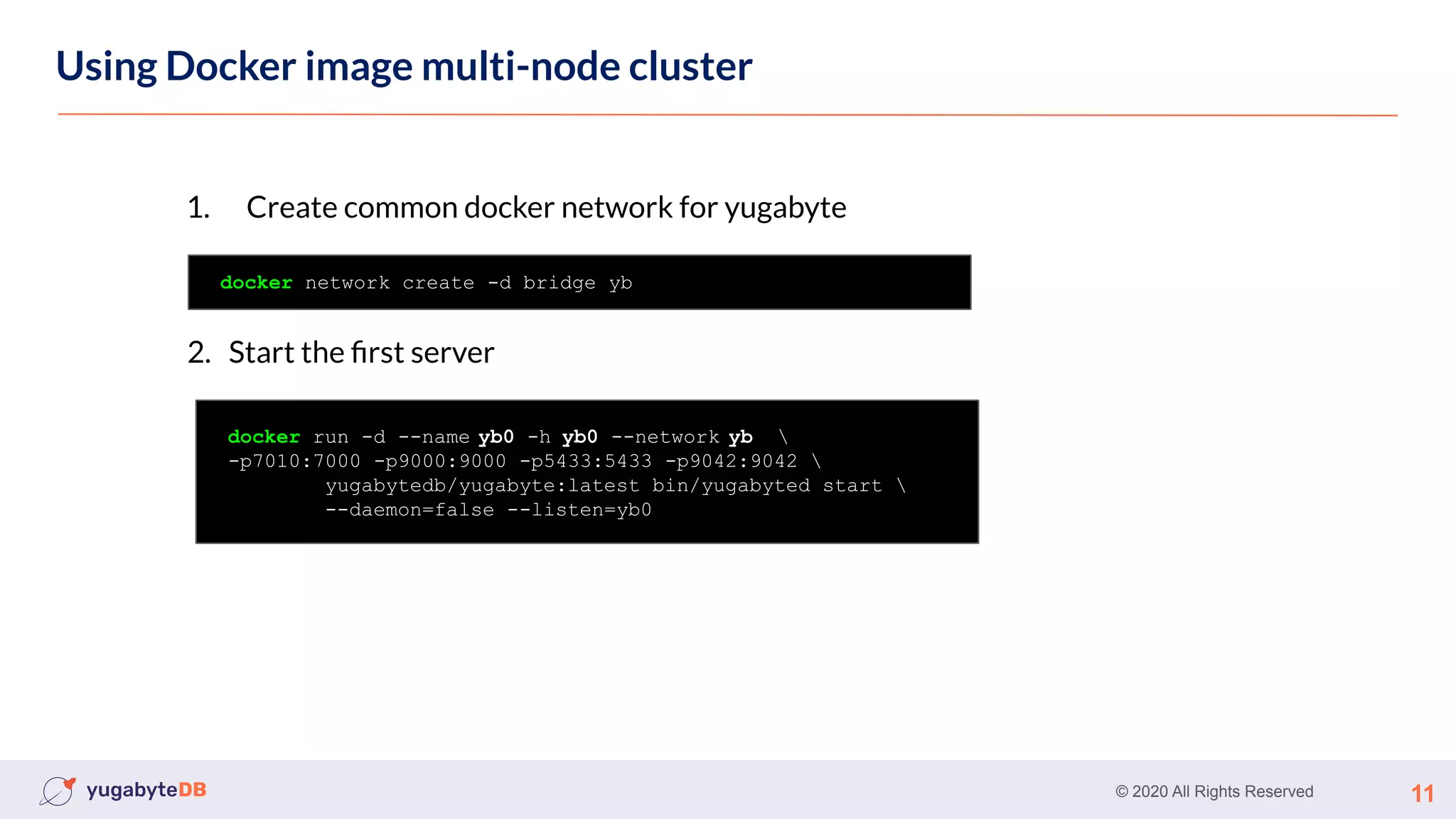

Using Docker image multi-node cluster
docker network create -d bridge yb
1. Create common docker network for yugabyte
docker run -d --name yb0 -h yb0 --network yb
-p7010:7000 -p9000:9000 -p5433:5433 -p9042:9042
--daemon=false --listen=yb0
2. Start the ﬁrst server

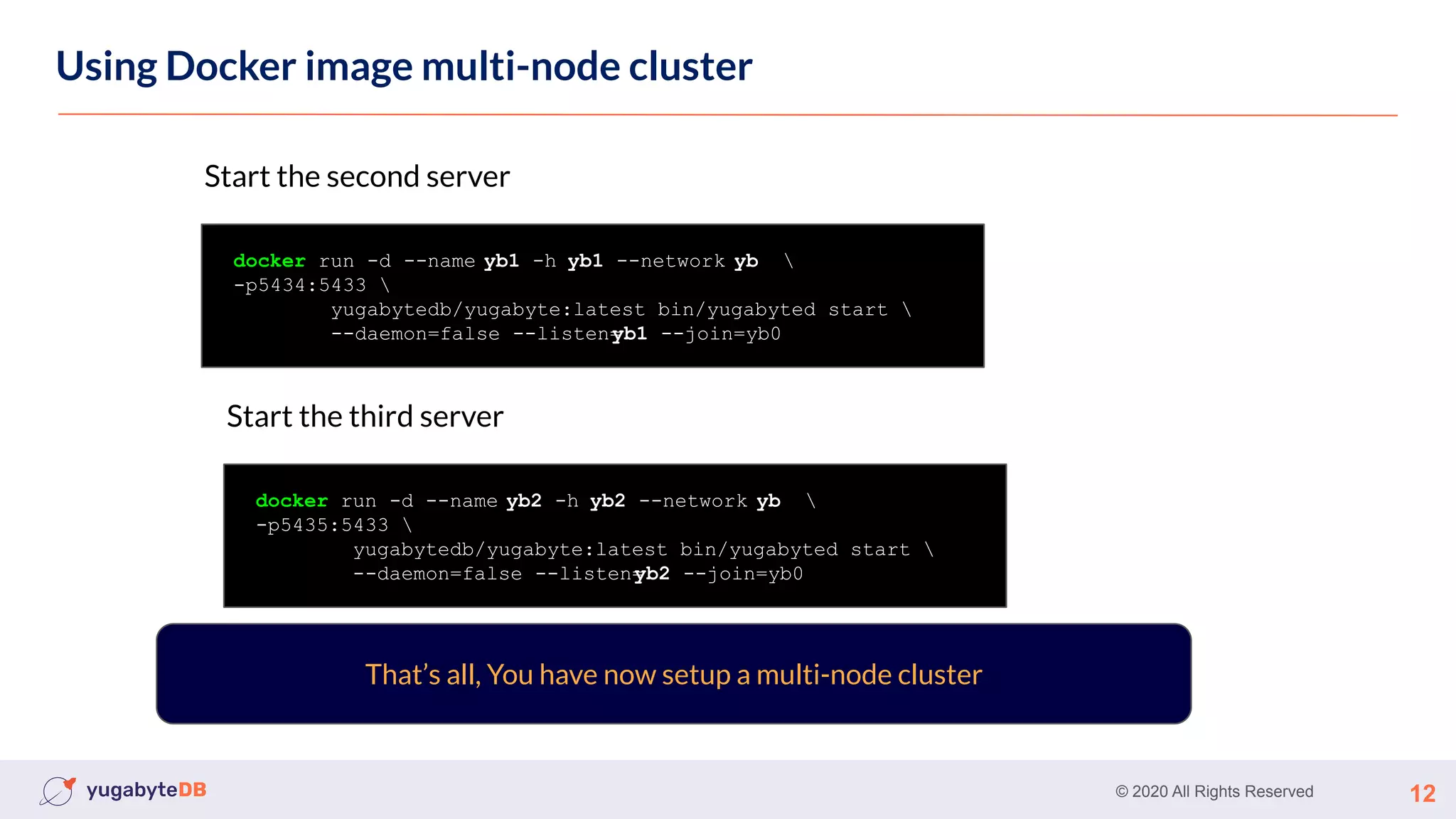

Using Docker image multi-node cluster
That’s all, You have now setup a multi-node cluster
-p5434:5433
--daemon=false --listen=
yb1 --join=yb0
Start the second server
-p5435:5433
--daemon=false --listen=
yb2 --join=yb0
Start the third server

Using Docker image
Demo

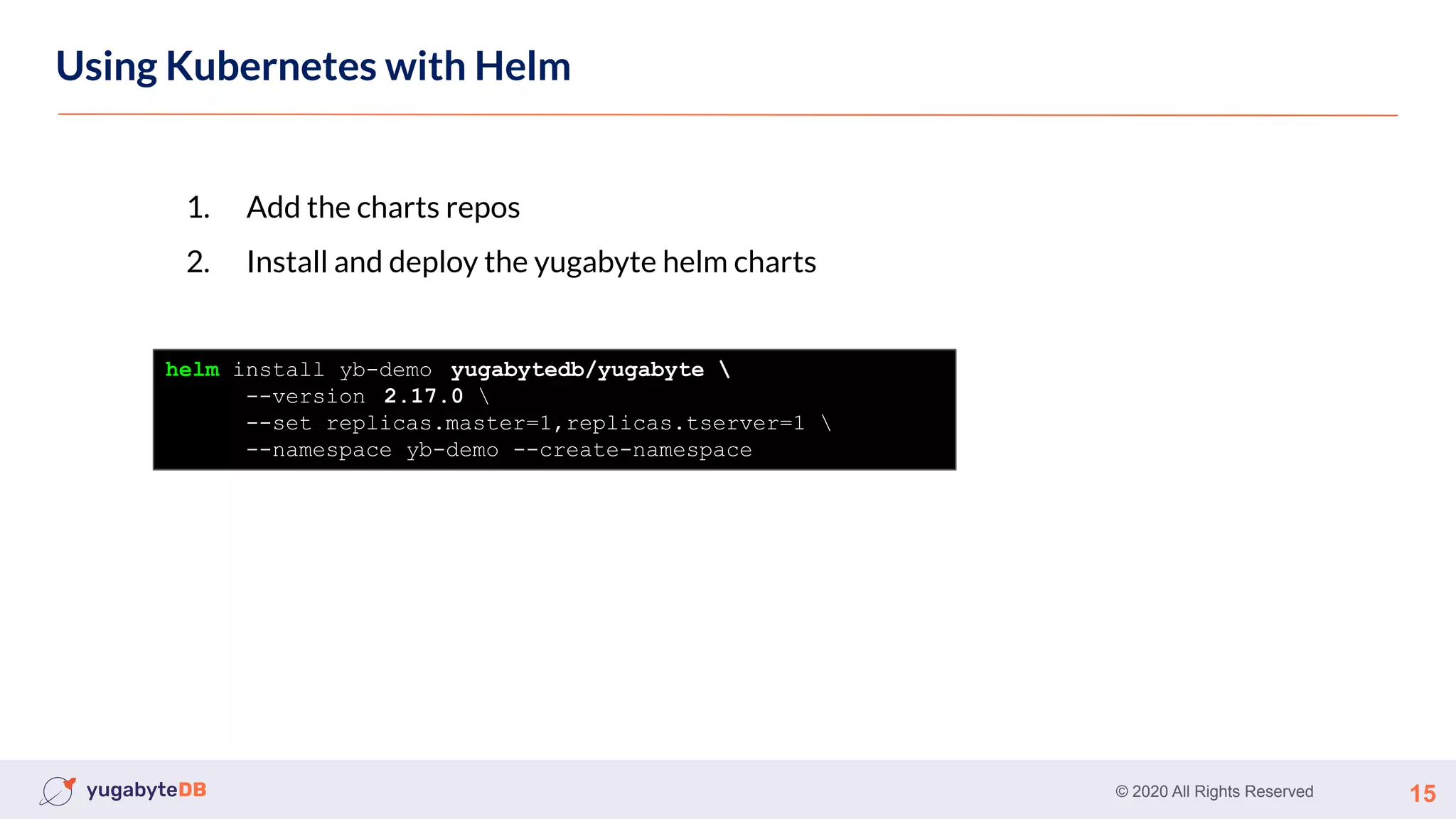

Using Kubernetes with Helm

Using Kubernetes
1. Add the charts repos
2. Install and deploy the yugabyte helm charts
helm install yb-demo yugabytedb/yugabyte
--version 2.17.0
--set replicas.master=1,replicas.tserver=1
--namespace yb-demo --create-namespace

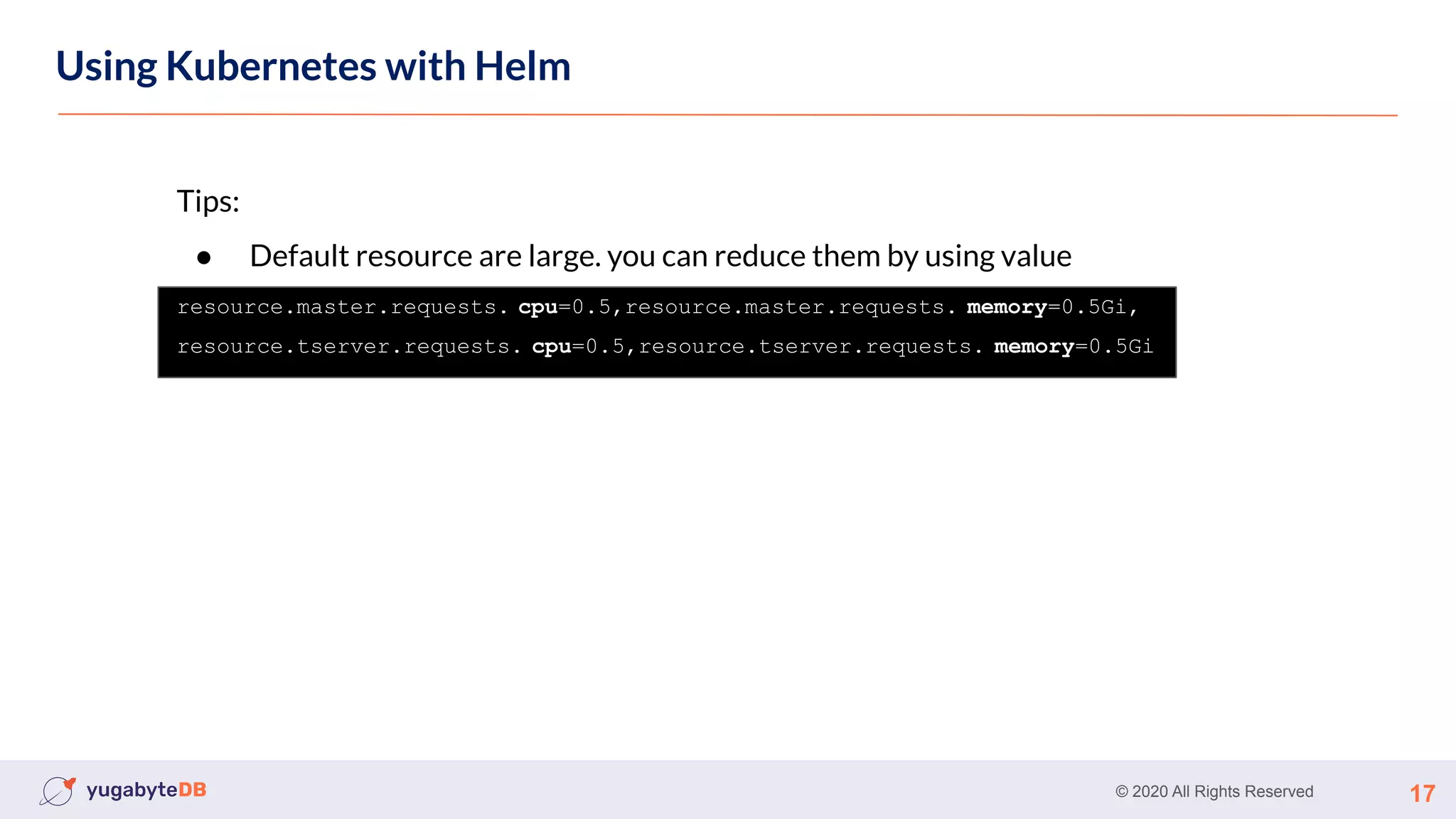

Using Kubernetes
Tips:
● Default resource are large. you can reduce them by using value
resource.master.requests. cpu=0.5,resource.master.requests. memory=0.5Gi,
resource.tserver.requests. cpu=0.5,resource.tserver.requests. memory=0.5Gi

Using Kubernetes
Demo

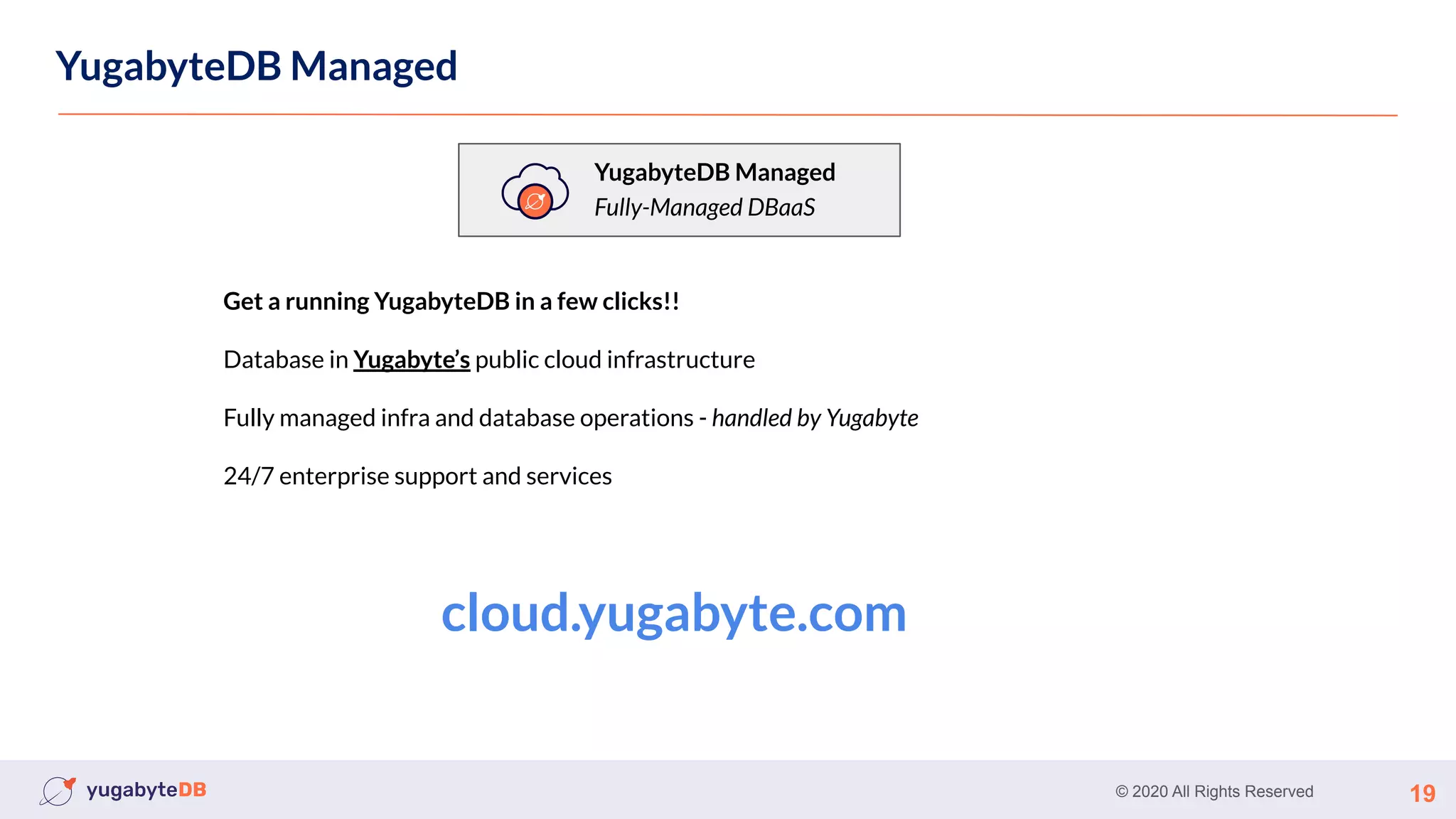

YugabyteDB Managed
YugabyteDB Managed
Fully-Managed DBaaS
Get a running YugabyteDB in a few clicks!!
Database in Yugabyte’s public cloud infrastructure
Fully managed infra and database operations - handled by Yugabyte
24/7 enterprise support and services
cloud.yugabyte.com

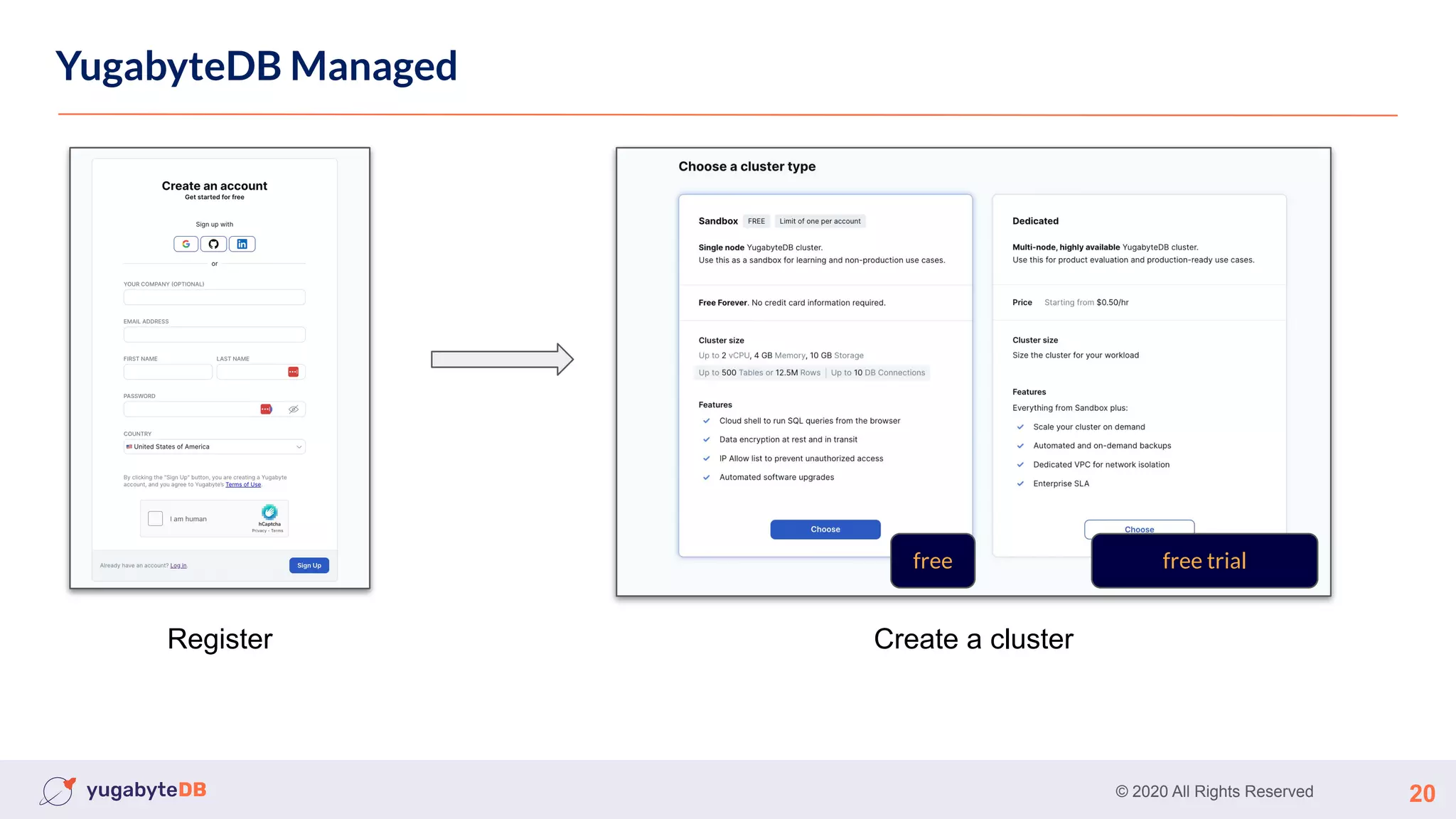

YugabyteDB Managed
Register Create a cluster
free trial
free

YugabyteDB Managed

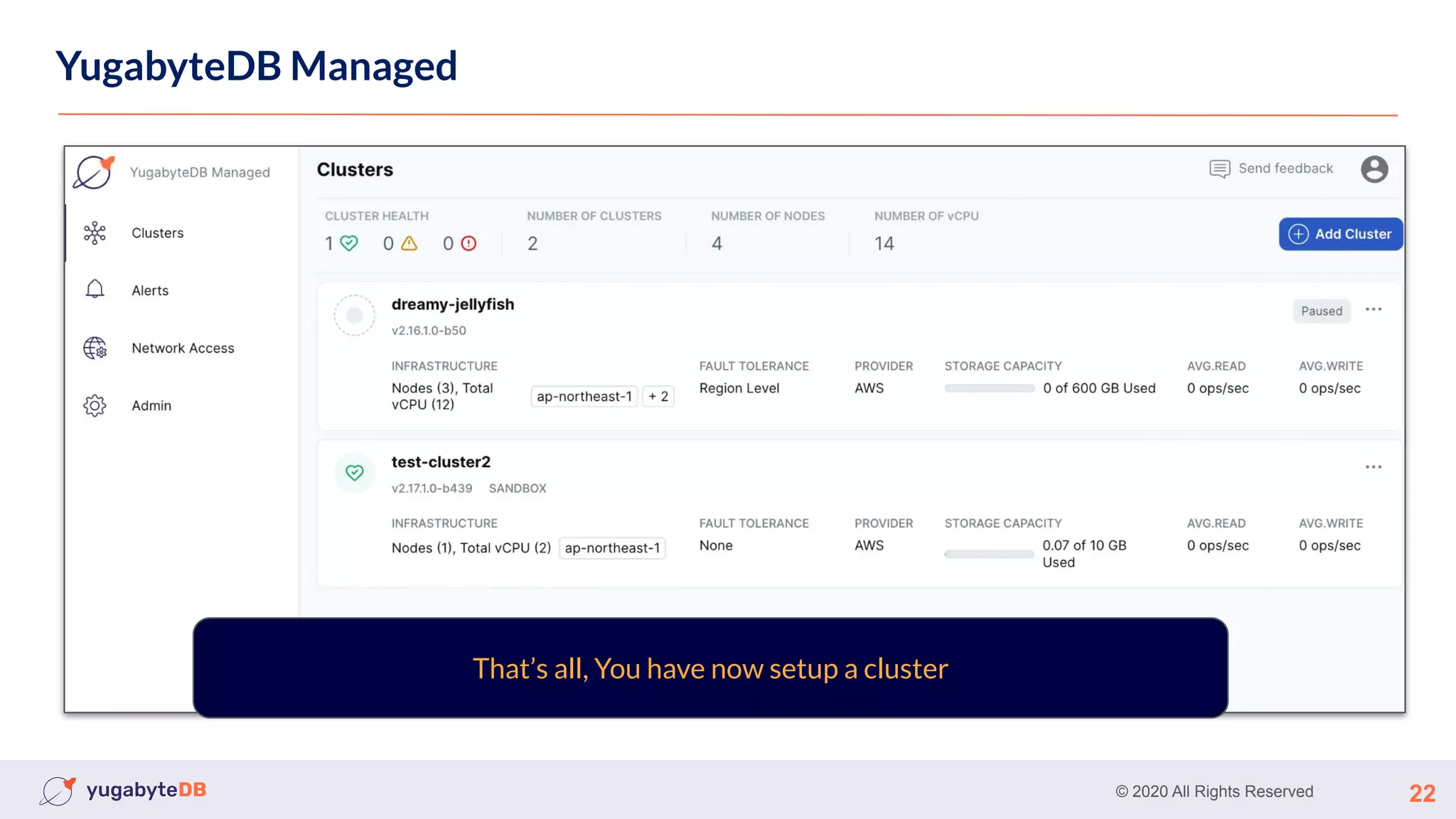

YugabyteDB Managed
That’s all, You have now setup a cluster

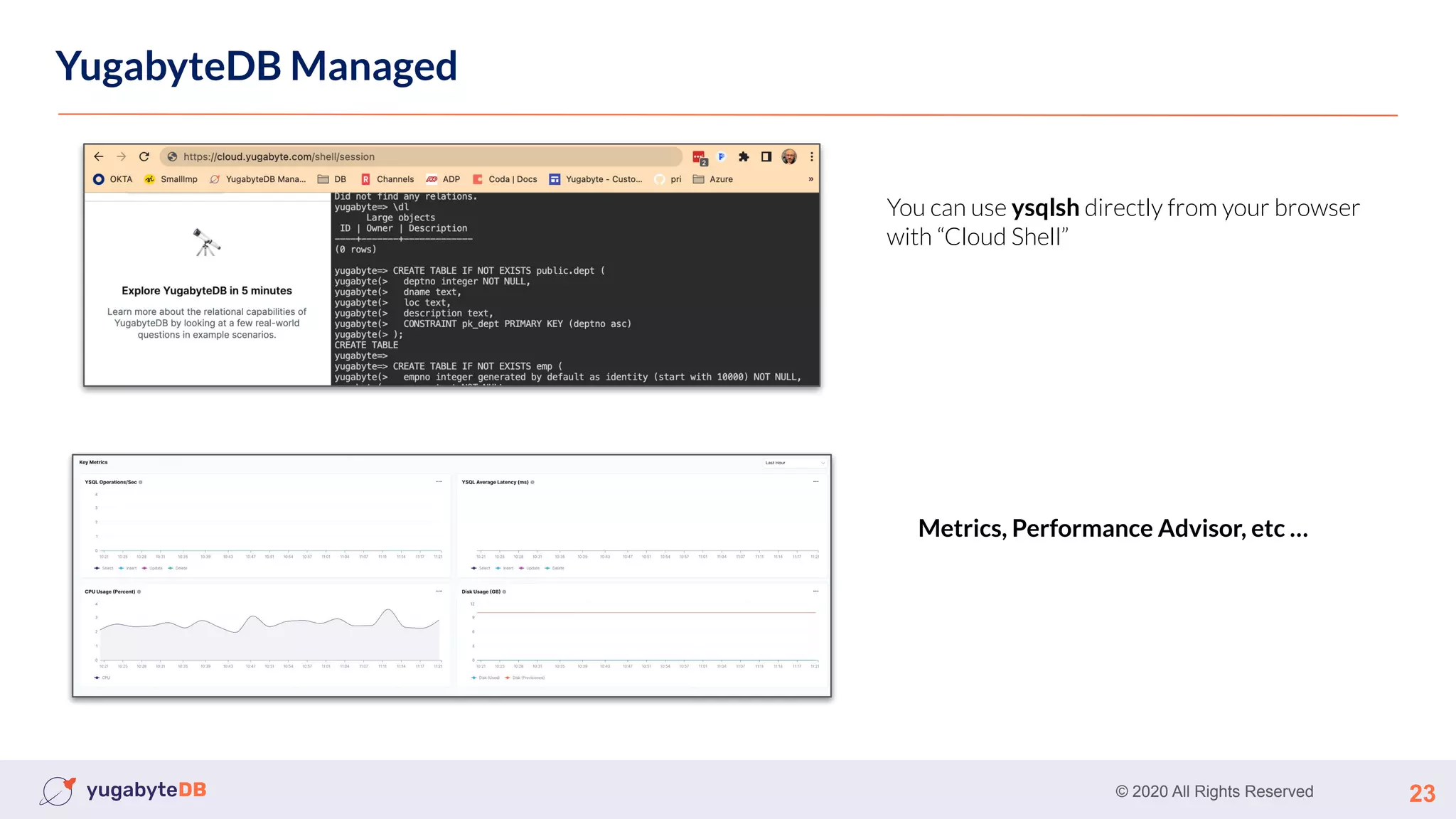

YugabyteDB Managed
You can use ysqlsh directly from your browser
with “Cloud Shell”
Metrics, Performance Advisor, etc …

Using Kubernetes
Demo

Your ﬁrst Workload

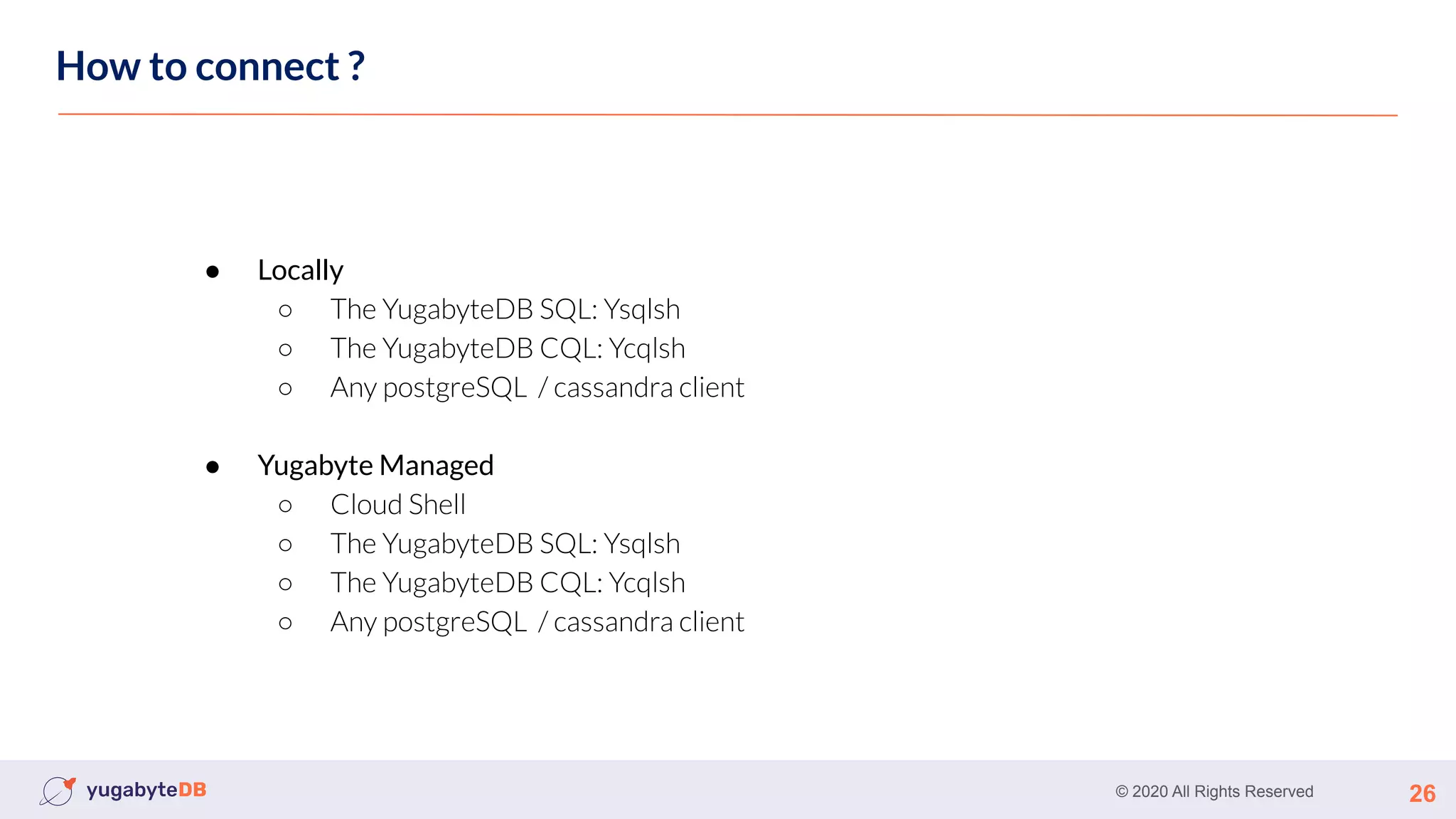

How to connect ?
● Locally
○ The YugabyteDB SQL: Ysqlsh
○ The YugabyteDB CQL: Ycqlsh
○ Any postgreSQL / cassandra client
● Yugabyte Managed
○ Cloud Shell
○ The YugabyteDB SQL: Ysqlsh
○ The YugabyteDB CQL: Ycqlsh
○ Any postgreSQL / cassandra client

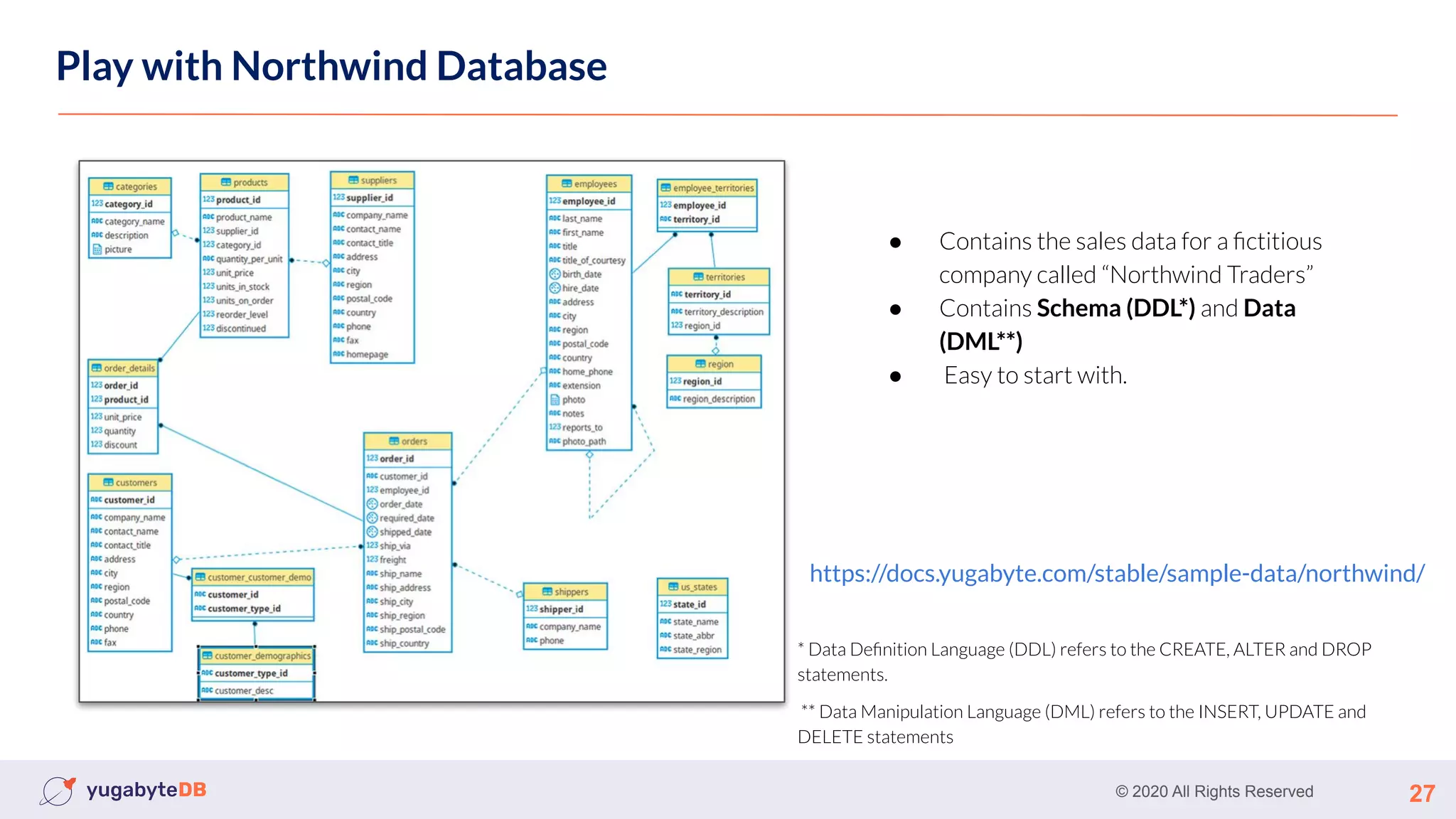

Play with Northwind Database
● Contains the sales data for a ﬁctitious
company called “Northwind Traders”
● Contains Schema (DDL*) and Data
(DML**)
● Easy to start with.
https://docs.yugabyte.com/stable/sample-data/northwind/
* Data Deﬁnition Language (DDL) refers to the CREATE, ALTER and DROP
statements.
** Data Manipulation Language (DML) refers to the INSERT, UPDATE and
DELETE statements

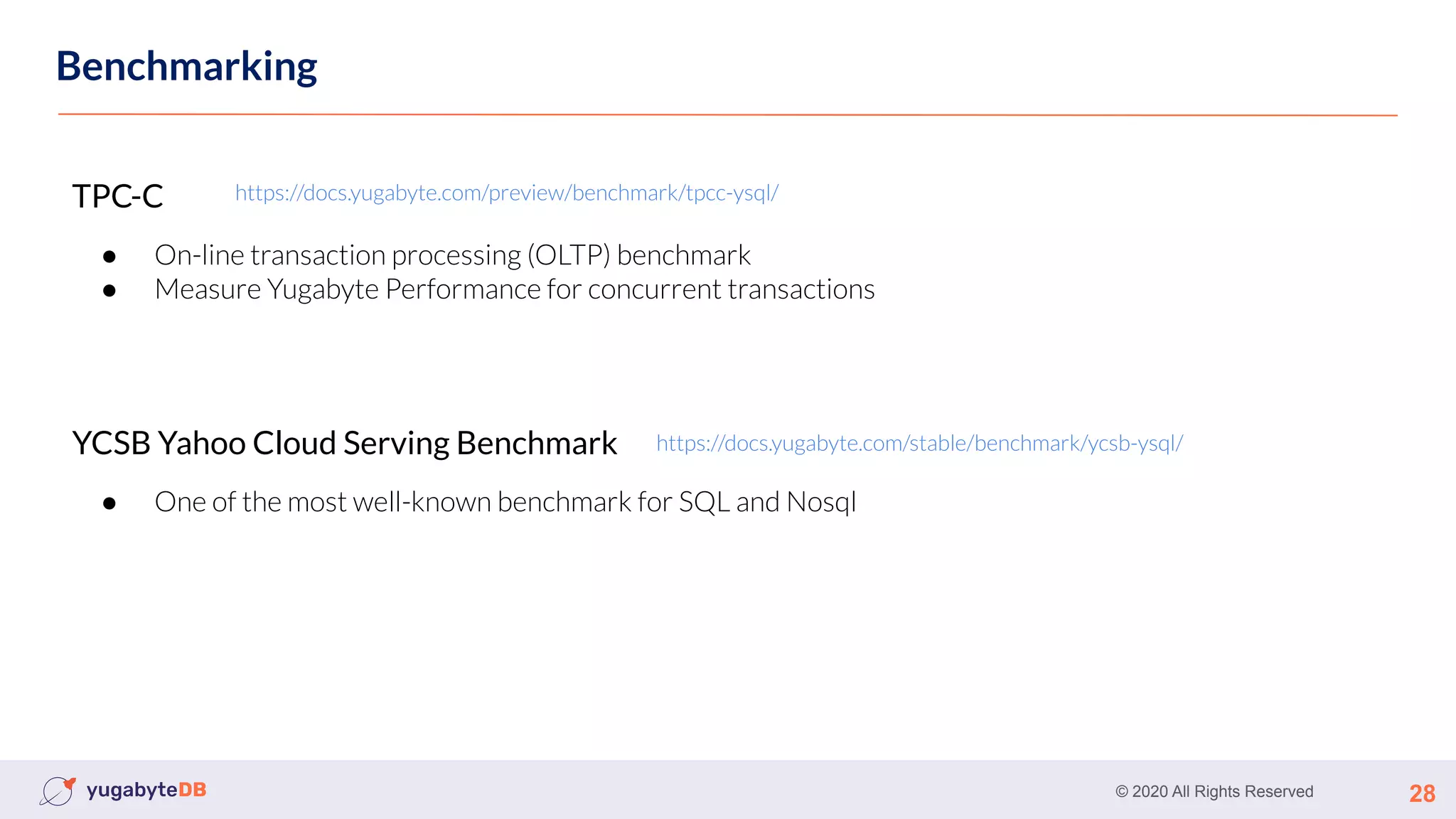

Benchmarking
TPC-C
● On-line transaction processing (OLTP) benchmark
● Measure Yugabyte Performance for concurrent transactions
YCSB Yahoo Cloud Serving Benchmark
● One of the most well-known benchmark for SQL and Nosql
https://docs.yugabyte.com/stable/benchmark/ycsb-ysql/
https://docs.yugabyte.com/preview/benchmark/tpcc-ysql/

Next …

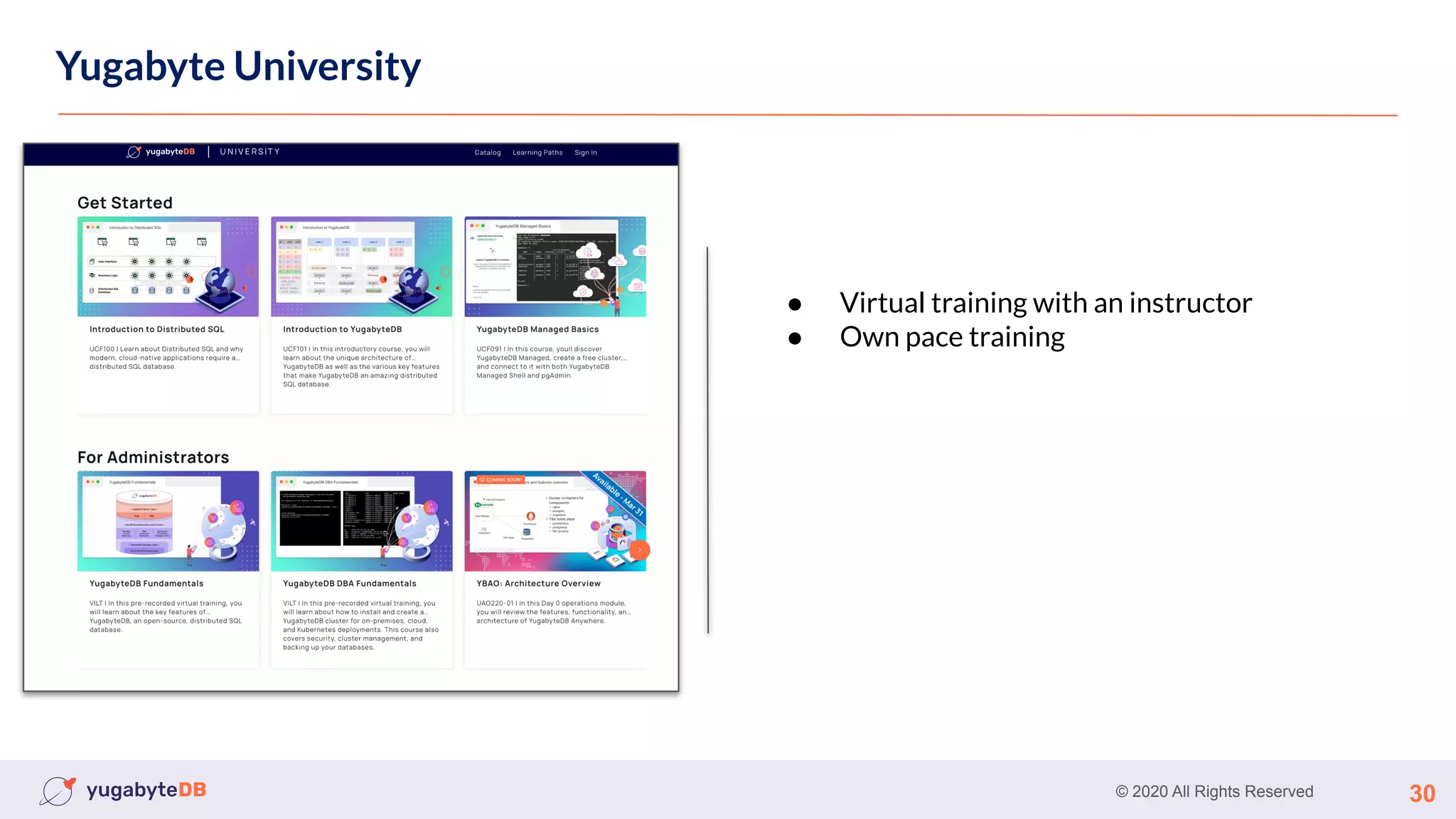

Yugabyte University
● Virtual training with an instructor
● Own pace training

Yugabyte University
● Validate your knowledge
● Get more visibility
● Show you learn YugabyteDB !
Certiﬁcation

Thank You
Join us on Slack:
www.yugabyte.com/slack
Star us on GitHub:
github.com/yugabyte/yugabyte-db
