Medical Multimedia Systems and Applications

Medical Multimedia
Systems and Applications
Steven Hicks1 / Michael Riegler1, Pål Halvorsen1, Klaus Schoeffmann2
2 Institute of Information Technology
Klagenfurt University, Austria
1 Simula Research Laboratory
Norway

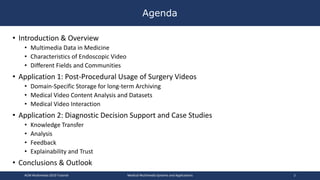

• Introduction & Overview
• Multimedia Data in Medicine
• Characteristics of Endoscopic Video
• Different Fields and Communities
• Application 1: Post-Procedural Usage of Surgery Videos
• Domain-Specific Storage for long-term Archiving
• Medical Video Content Analysis and Datasets
• Medical Video Interaction
• Application 2: Diagnostic Decision Support and Case Studies
• Knowledge Transfer
• Analysis
• Feedback
• Explainability and Trust
• Conclusions & Outlook
Agenda
ACM Multimedia 2019 Tutorial Medical Multimedia Systems and Applications 2

Notice
This presentation contains images and videos
from medical surgeries,
which you may find disturbing!

Introduction

Medical inspections/interventions produce many kinds of data
• Medical text
• OR reports, Patient records…
• Sensor signals
• ECG, EEG, vital signs
• Medical images (radiology)
• Ultrasound, x-ray
• CT, MRI, PET, …
• Medical video
• Screenings
• Surgery
Multimedia Data in Medicine
 Signal Processing
 Medical Imaging
 Robotics
 Multimedia
 Data Mining

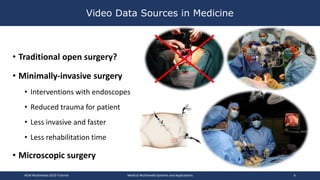

• Traditional open surgery?
• Minimally-invasive surgery
• Interventions with endoscopes
• Reduced trauma for patient
• Less invasive and faster
• Less rehabilitation time
• Microscopic surgery
Video Data Sources in Medicine

Therapeutic Endoscopy
• Rigid endoscope
• Small incisions
• Therapy / Surgery
• Laparoscopy
• Cholecystectomy
• Gynecological Surgery
• Urological Surgery
• …
• Arthroscopy
• …

Diagnostic Endoscopy
• Flexible endoscope
• Natural orifices
• Diagnosis / Inspections
• Gastroenterology (colonoscopy, gastroscopy)
• Bronchoscopy
• Hysteroscopy
• …

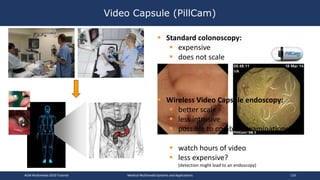

• WCE (Wireless capsule endoscopy)

Endoscopic Video Examples

Domain-specific Characteristics & Challenges
• Full HD or 4K (even stereo 3D)
• One shot recordings
• Up to multiple hours
• Homogenous color distribution
• Visually very similar content
• Circular content area
• Fast motion
• Geometric distortion
• Specular reflections
• Occlusions
• Smoke, motion blur, blood, flying particles
• Size!

Literature Overview
Münzer, Bernd, Klaus Schoeffmann, and Laszlo Böszörmenyi. "Content-based processing and analysis of endoscopic images and videos: A survey." Multimedia Tools and Applications (2017): 1-40.

Pre-Processing
• Image Enhancement
• Contrast enhancement, color misalignment
correction…
• Camera calibration and distortion correction
• Specular reflection removal
• Comb structure removal & super resolution
• …
• Information Filtering
• Frame filtering
• Image segmentation

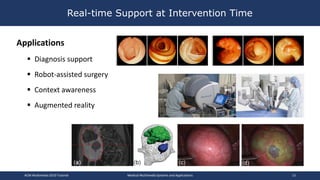

Real-time Support at Intervention Time
Applications
 Diagnosis support
 Robot-assisted surgery
 Context awareness
 Augmented reality

Post-Procedural Applications
Management and Retrieval
• Compression and storage
• Content-based retrieval
• Temporal video segmentation
• Video summarization
• Visualization & Interaction
Quality Assessment
 Skills assessment
 Education & Training
 Error Rating
 Assessment of intervention quality

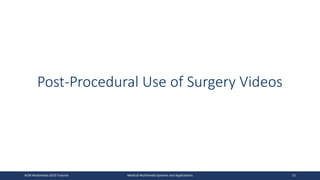

Post-Procedural Use of Surgery Videos

• Video documentation of endoscopic procedures is on the rise
• “a picture paints a thousand words“, a moving picture paints millions!
• In some countries even mandatory already
• Current documentation practice poses many problems
• Hard task to retrieve relevant information
• Huge amounts of storage space
• High ratio of irrelevant data (“rubbish”)
• Very inefficient encoding (especially for HD content)

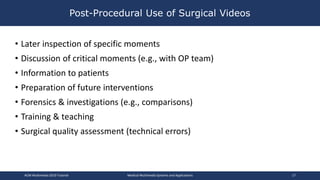

Motivation for Video Documentation

• Later inspection of specific moments
• Discussion of critical moments (e.g., with OP team)
• Information to patients
• Preparation of future interventions
• Forensics & investigations (e.g., comparisons)
• Training & teaching
• Surgical quality assessment (technical errors)
Post-Procedural Use of Surgical Videos

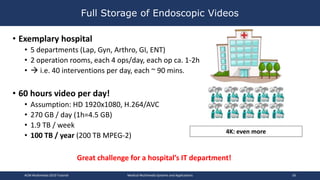

Full Storage of Endoscopic Videos
• Exemplary hospital
• 5 departments (Lap, Gyn, Arthro, GI, ENT)
• 2 operation rooms, each 4 ops/day, each op ca. 1-2h
•  i.e. 40 interventions per day, each ~ 90 mins.
• 60 hours video per day!
• Assumption: HD 1920x1080, H.264/AVC
• 270 GB / day (1h=4.5 GB)
• 1.9 TB / week
• 100 TB / year (200 TB MPEG-2)
4K: even more
Great challenge for a hospital’s IT department!

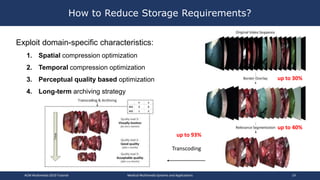

How to Reduce Storage Requirements?
Exploit domain-specific characteristics:
1. Spatial compression optimization
2. Temporal compression optimization
3. Perceptual quality based optimization
4. Long-term archiving strategy
Transcoding
up to 30%
up to 40%
up to 93%

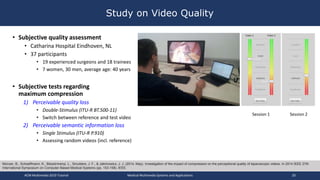

Study on Video Quality
• Subjective quality assessment
• Catharina Hospital Eindhoven, NL
• 37 participants
• 19 experienced surgeons and 18 trainees
• 7 women, 30 men, average age: 40 years
• Subjective tests regarding
maximum compression
1) Perceivable quality loss
• Double-Stimulus (ITU-R BT.500-11)
• Switch between reference and test video
2) Perceivable semantic information loss
• Single Stimulus (ITU-R P.910)
• Assessing random videos (incl. reference)
Münzer, B., Schoeffmann, K., Böszörmenyi, L., Smulders, J. F., & Jakimowicz, J. J. (2014, May). Investigation of the impact of compression on the perceptional quality of laparoscopic videos. In 2014 IEEE 27th
International Symposium on Computer-Based Medical Systems (pp. 153-158). IEEE.
Session 1 Session 2

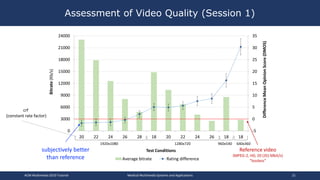

Assessment of Video Quality (Session 1)
-5
0
5
10
15
20
25
30
35
0
3000
6000
9000
12000
15000
18000
21000
24000
20 22 24 26 28 18 20 22 24 26 18 18
DifferenceMeanOpinionScore(DMOS)
Bitrate(Kb/s)
Test Conditions
Average bitrate Rating difference
1920x1080 1280x720 960x540 640x360
subjectively better
than reference
Reference video
(MPEG-2, HD, 20 (35) Mbit/s)
“lossless”
crf
(constant rate factor)

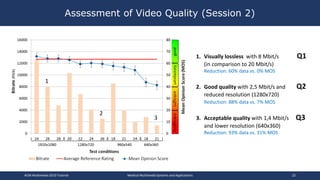

Assessment of Video Quality (Session 2)
1. Visually lossless with 8 Mbit/s Q1
(in comparison to 20 Mbit/s)
Reduction: 60% data vs. 0% MOS
2. Good quality with 2,5 Mbit/s and Q2
reduced resolution (1280x720)
3. Acceptable quality with 1,4 Mbit/s Q3
and lower resolution (640x360)
1
2
3

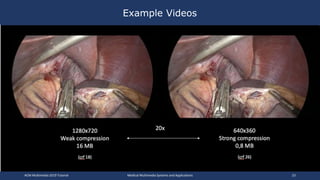

Example Videos
1280x720
Weak compression
16 MB
(crf 18)
640x360
Strong compression
0,8 MB
(crf 26)
20x

Medical Video Analysis

• With several hours of videos each day
• Manual search in archive becomes impractical!
• Automatic content analysis
• Filter for relevant scenes in the videos
• Anatomical structures
• Surgical actions
• Instruments
• Operation phases
• Irregular/Adverse events
• …
• Content classification (e.g., with neural networks)
• Video Retrieval/Interaction systems
Medical Videos
Suture
Cutting
Injection
Coagulation?
? ?
? ?

1000 frames
(sampled from
17min with 1fps)
2
6
ACM Multimedia 2019 Tutorial
Medical Multimedia Systems and Applications

Content Relevance Filtering / Instrument Recognition
Münzer, B., Schoeffmann, K., & Böszörmenyi, L. (2013, December). Relevance segmentation of laparoscopic videos. In Multimedia (ISM), 2013 IEEE International Symposium on (pp. 84-91). IEEE.
Primus, M. J., Schoeffmann, K., & Böszörmenyi, L. (2015, June). Instrument classification in laparoscopic videos. In Content-Based Multimedia Indexing (CBMI), 2015 13th International Workshop on (pp. 1-6). IEEE.
Instrument detection/segmentation
for better content understanding
(e.g., op phase segmentation, following
instruments in robot-assisted surgery)
Out-of-patient Scenes Blurry Scenes Border Area

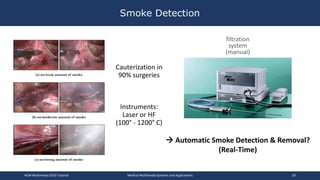

Smoke Detection

Smoke Detection
Cauterization in
90% surgeries
Instruments:
Laser or HF
(100° - 1200° C)
filtration
system
(manual)
 Automatic Smoke Detection & Removal?
(Real-Time)

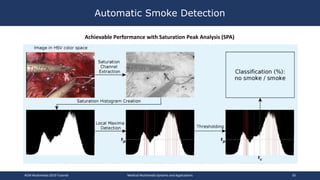

Automatic Smoke Detection
Achievable Performance with Saturation Peak Analysis (SPA)

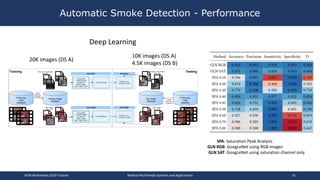

Automatic Smoke Detection - Performance
20K images (DS A)
10K images (DS A)
4.5K images (DS B)
SPA: Saturation Peak Analysis
GLN RGB: GoogLeNet using RGB images
GLN SAT: GoogLeNet using saturation channel only
Deep Learning

Real-Time Smoke Detection Prototype
Andreas Leibetseder, Manfred J. Primus, Stefan Petscharnig, and Klaus Schoeffmann. “Image-based Smoke Detection in Laparoscopic Videos“. Proceedings of Computer Assisted and Robotic Endoscopy and Clinical Image-Based
Procedures: 4th International Workshop, CARE 2017, and 6th International Workshop, CLIP 2017, held in Conjunction with MICCAI 2017, Quebec City, QC, Canada, September 14, 2017, pp. 70-87

Surgical Action Classification

Gynecologic Laparoscopy: Relevant Surgical Actions
Dissection– 58 Segs / 35.517 Pics Coagulation– 212 Segs / 84.786 Pics Cutting cold – 271 Segs / 26.388 Pics
Cutting– 106 Segs / 92.653 Pics Hysterectomy– 25 Segs / 68.466 Pics Injection– 52 Segs / 52.355 Pics
Suturing– 92 Segs / 321.851 PicsSuction & Irrigation – 173 Segs /
73.977 Pics
1.105 segments (823.000 frames)
9h annotated video of 111 interventions
10-fold cross-validation
Stefan Petscharnig and Klaus Schoeffmann. 2018. Learning
Laparoscopic Video Shot Classification for Gynecological Surgery.
Multimedia Tools and Applications (MTAP), 77, 7, Springer US, 8061-
8079.

Gynecologic Laparoscopy: Surgical Actions Classification
R...Recall P...Precision

• Early fusion
• Integrate motion information from consecutive frames
• Feed into CNN as additional input channel(s)
• Compare two approaches
• Block-Based Motion Estimation (BBME): using block matching
• Residual Motion (ResM): local motion
• Late fusion
• Assume we already know scene boundaries and classify all frames of segments
• Temporal aggregation of single-frame classifications
• Majority vote (maximum occurrence of class in frames of scene)
• Average confidence
Fusing Temporal Information with CNNs
S. Petscharnig, K. Schöffmann, J. Benois-Pineau, S. Chaabouni and J. Keckstein, "Early and Late Fusion of Temporal Information for Classification of Surgical Actions in Laparoscopic Gynecology," 2018 IEEE 31st
International Symposium on Computer-Based Medical Systems (CBMS), Karlstad, 2018, pp. 369-374.

Gynecologic Laparoscopy: Surgical Actions Classification
Petscharnig, S., & Schöffmann, K. (2017). Learning laparoscopic video shot classification for gynecological surgery. Multimedia Tools and Applications, 1-19.

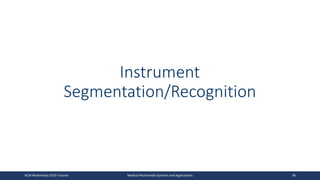

Instrument
Segmentation/Recognition

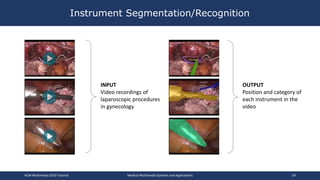

Instrument Segmentation/Recognition
INPUT
Video recordings of
laparoscopic procedures
in gynecology
OUTPUT
Position and category of
each instrument in the
video

• Use a region-based CNN for
1. Binary instrument segmentation
• distinguish between instrument instances and background
(without recognizing the actual instrument)
2. Multi-class instrument recognition
• Labeling different instrument segments
• We approach this task by using
• Mask R-CNN
• Very small dataset (only about 50 examples/instrument; 12 classes)
• Several data augmentation techniques
Surgical Instrument Segmentation/Recognition
Sabrina Kletz, Klaus Schoeffmann, Jenny Benois-Pineau, and Heinrich Husslein. 2019. Identifying Surgical Instruments in Laparoscopy Using Deep Learning Instance Segmentation. Proceedings of the International
Conference on Content-Based Multimedia Indexing (CBMI 2019). IEEE, Los Alamitos, CA, USA, 6 pages

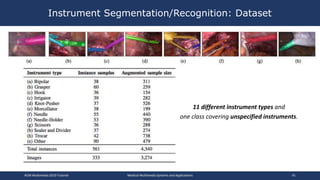

Instrument Segmentation/Recognition: Dataset
11 different instrument types and
one class covering unspecified instruments.

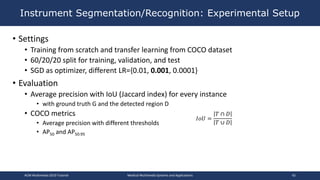

• Settings
• Training from scratch and transfer learning from COCO dataset
• 60/20/20 split for training, validation, and test
• SGD as optimizer, different LR={0.01, 0.001, 0.0001}
• Evaluation
• Average precision with IoU (Jaccard index) for every instance
• with ground truth G and the detected region D
• COCO metrics
• Average precision with different thresholds
• AP50 and AP50:95
Instrument Segmentation/Recognition: Experimental Setup
𝐼𝑜𝑈 =
𝑇 ∩ 𝐷
𝑇 ∪ 𝐷

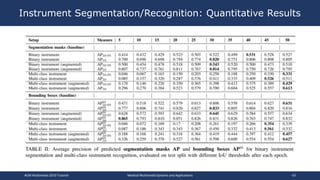

Instrument Segmentation/Recognition: Quantitative Results

Quantitative Results of Multi-Class Segmentation
Classification performance after 50th epoch

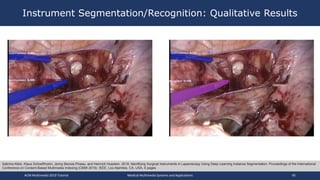

Instrument Segmentation/Recognition: Qualitative Results
Sabrina Kletz, Klaus Schoeffmann, Jenny Benois-Pineau, and Heinrich Husslein. 2019. Identifying Surgical Instruments in Laparoscopy Using Deep Learning Instance Segmentation. Proceedings of the International
Conference on Content-Based Multimedia Indexing (CBMI 2019). IEEE, Los Alamitos, CA, USA, 6 pages

Medical Video Datasets

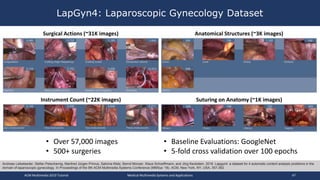

LapGyn4: Laparoscopic Gynecology Dataset
Surgical Actions (~31K images) Anatomical Structures (~3K images)
Andreas Leibetseder, Stefan Petscharnig, Manfred Jürgen Primus, Sabrina Kletz, Bernd Münzer, Klaus Schoeffmann, and Jörg Keckstein. 2018. Lapgyn4: a dataset for 4 automatic content analysis problems in the
domain of laparoscopic gynecology. In Proceedings of the 9th ACM Multimedia Systems Conference (MMSys '18). ACM, New York, NY, USA, 357-362.
Instrument Count (~22K images) Suturing on Anatomy (~1K images)
• Over 57,000 images
• 500+ surgeries
• Baseline Evaluations: GoogleNet
• 5-fold cross validation over 100 epochs

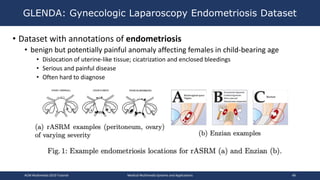

• Dataset with annotations of endometriosis
• benign but potentially painful anomaly affecting females in child-bearing age
• Dislocation of uterine-like tissue; cicatrization and enclosed bleedings
• Serious and painful disease
• Often hard to diagnose
GLENDA: Gynecologic Laparoscopy Endometriosis Dataset

• Many of which show endometriosis cases of varying severity
• Pathology: peritoneum, ovary, uterus, deep infiltrated endometriosis (DIE)
• No pathology
• Region-based and temporal
expert annotations
• hand-drawn sketches
GLENDA Dataset – 25682 Frames from 400+ Surgeries
Andreas Leibetseder, Sabrina Kletz, Klaus Schoeffmann, Simon Keckstein, and Jörg Keckstein. 2020. GLENDA: Gynecologic Laparoscopy Endometriosis Dataset. Proceedings of the 26th International Conference
on Multimedia Modeling 2020 (MMM2020). Lecture Notes in Computer Science, Springer International Publishing, Cham, 12 pages. to appear
http://www.itec.aau.at/ftp/datasets/GLENDA/

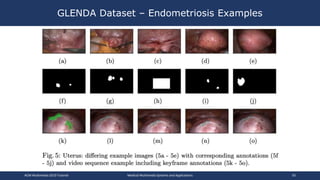

GLENDA Dataset – Endometriosis Examples

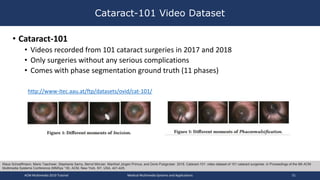

• Cataract-101
• Videos recorded from 101 cataract surgeries in 2017 and 2018
• Only surgeries without any serious complications
• Comes with phase segmentation ground truth (11 phases)
Cataract-101 Video Dataset
Klaus Schoeffmann, Mario Taschwer, Stephanie Sarny, Bernd Münzer, Manfred Jürgen Primus, and Doris Putzgruber. 2018. Cataract-101: video dataset of 101 cataract surgeries. In Proceedings of the 9th ACM
Multimedia Systems Conference (MMSys '18). ACM, New York, NY, USA, 421-425.
http://www-itec.aau.at/ftp/datasets/ovid/cat-101/

Classification of Cataract OP Phases
Manfred J. Primus, Doris Putzgruber-Adamitsch, Mario Taschwer, Bernd Münzer, Yosuf El-Shabrawi, Laszlo Böszörmenyi, and Klaus Schoeffmann. 2018. Frame-Based Classification of Operation Phases in
Cataract Surgery Videos. In Proceedings of the 24th International Conference on Multimedia Modeling 2018 (MMM2018). Lecture Notes in Computer Science, vol 10704, Springer, Cham, 241-253.

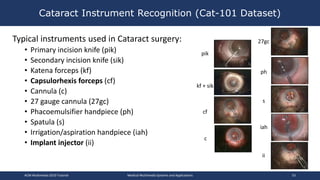

Typical instruments used in Cataract surgery:
• Primary incision knife (pik)
• Secondary incision knife (sik)
• Katena forceps (kf)
• Capsulorhexis forceps (cf)
• Cannula (c)
• 27 gauge cannula (27gc)
• Phacoemulsifier handpiece (ph)
• Spatula (s)
• Irrigation/aspiration handpiece (iah)
• Implant injector (ii)
Cataract Instrument Recognition (Cat-101 Dataset)
pik
kf + sik
cf
c
27gc
ph
s
iah
ii

• Classification Study
• 26 randomly selected videos
• Manually annotated 8000 frames for instrument usage (see next slide)
• 800 frames for each of the 10 instruments (balanced)
• Instrument classification (full frame) and generalization performance
• ResNet-50, Inception v3, NASNet Mobile
• Multi-label classification, loss=binary cross-entropy, bs=32, 50 epochs training from scratch
• Tested with different settings (Adam optimizer, SGD, lrinit=0.1/0.01/0.001)
Cataract Instrument Recognition (Cat-101 Dataset)
Natalia Sokolova, Klaus Schoeffmann, Mario Taschwer, Doris Putzgruber-Adamitsch, and Yosuf El-Shabrawi. 2020. Evaluating the Generalization Performance of Instrument Classification in Cataract Surgery
Videos. Proceedings of the 26th International Conference on Multimedia Modeling 2020 (MMM2020). Lecture Notes in Computer Science, Springer International Publishing, Cham, 11 pages. to appear

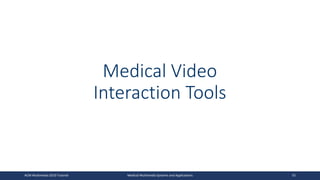

Medical Video
Interaction Tools

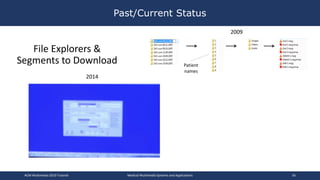

Past/Current Status
Patient
names
File Explorers &
Segments to Download
2014
2009

Desired Status
Bernd Münzer, Klaus Schoeffmann and Laszlo Boeszoermenyi. “EndoXplore: A Web-based Video Explorer for Endoscopic Videos“. Proceedings of the IEEE International Symposium on Multimedia 2017 (ISM
2017), Taipei, Taiwan, 2017, pp. 1-2

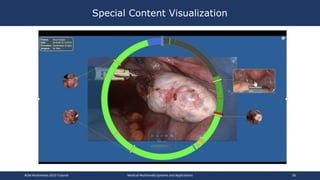

Special Content Visualization

• Clinicians check full video recordings for occurrence of technical errors:
• Errors are rated according to standardized schemes (e.g., OSATS, GERT)
and surgeons are made aware of them
• Studies have shown that this significantly improves surgical quality

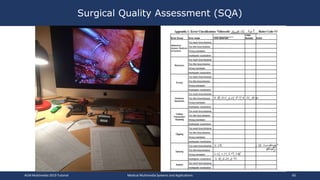

Surgical Quality Assessment (SQA)

Surgical Quality Assessment (SQA)

Surgical Quality Assessment (SQA) Software
• Integrating rating features
• More efficient video navigation/browsing
Marco A. Hudelist, Heinrich Husslein, Bernd Muenzer, Sabrina Kletz and Klaus Schoeffmann. “A Tool to Support Surgical Quality Assessment“, in Proceedings of the Third IEEE International Conference on
Multimedia Big Data (BigMM), Laguna Hills, CA, USA, 2017, pp. 238-239.

(Diagnostic) Decision Support

Challenges and Requirements

There is a Need for Complete Systems!
anomalies are
missed
detection depends
on experience
there is a lack of
medical personnel
for large scale
screening programs

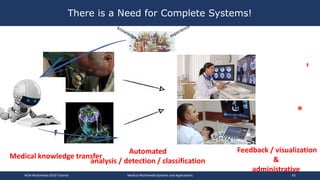

There is a Need for Complete Systems!
Medical knowledge transfer
Automated
analysis / detection / classification
Feedback / visualization
&
administrative

• Medical knowledge transfers – need DATA w/Ground Truth
• High detection accuracy
• Fast and efficient: real-time feedback and large scale
• Fit the normal examination procedures
• Assist administrative and report writing work
• Adhere to ethical, legal, privacy challenges & regulations
Key Challenges & Requirements

Gastrointestinal (GI) Case Study
(challenges, system support, datasets, diagnostic decision support, ...)

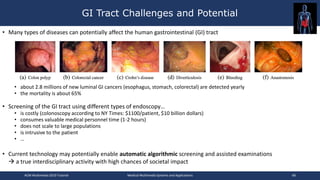

• Many types of diseases can potentially affect the human gastrointestinal (GI) tract
• about 2.8 millions of new luminal GI cancers (esophagus, stomach, colorectal) are detected yearly
• the mortality is about 65%
• Screening of the GI tract using different types of endoscopy…
• is costly (colonoscopy according to NY Times: $1100/patient, $10 billion dollars)
• consumes valuable medical personnel time (1-2 hours)
• does not scale to large populations
• is intrusive to the patient
• …
• Current technology may potentially enable automatic algorithmic screening and assisted examinations
 a true interdisciplinary activity with high chances of societal impact
GI Tract Challenges and Potential

Colorectal Cancer
Women
Men
Colorectal cancer is the third most common cause of cancer
mortality for both women and men, and it is a condition
where early detection is important for survival,
i.e., a 5-year survival probability of
going from a low 10-30% if detected in later stages
to a high 90% survival probability in early stages.
Colonoscopy is not the ideal screening test.
Related to the cancer example, on average
20% of polyps (possible predecessors of cancer) are missed
or incompletely removed. The risk of getting cancer largely
depend on the endoscopists ability to detect and remove polyps.
Large inter- and intra-clinician variations.
A 1% increase in detection can decrease the risk of cancer with 3%.

Automatic Detection of
Anomalies
Colonoscopy & Gastroscopy

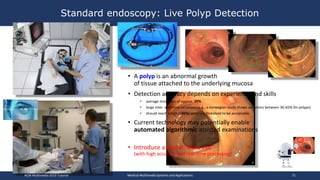

• A polyp is an abnormal growth
of tissue attached to the underlying mucosa
• Detection accuracy depends on experience and skills
• average miss rates of approx. 20%
• large inter- and intra-variations (e.g., a norwegian study shows variations between 36-65% for polyps)
• should reach a high (>85%) accuracy threshold to be acceptable
• Current technology may potentially enable
automated algorithmic assisted examinations
• Introduce a digital “third eye”
(with high accuracy and real-time processing)
Standard endoscopy: Live Polyp Detection

A complete System

System Overview

Medical Knowledge Transfer
(Data Collection)

Available GI Datasets
Name Contain Annotation Size Type Usage
CVC-ClinicDB Polyps GT masks 12000 images (several
versions)
Trad. ©, by permission
ETIS-Larib Polyp DB Polyps, Normal GT masks 1500 images Trad. ©, by permission
ASU-Mayo Clinic DB Polyps, Normal GT masks 20 videos Trad. ©, by permission
Colonoscopy Videos DB Various Lesions Sorted 76 videos Trad. Academic
Capsule Endoscopy DB Various Lesions and Findings Sorted 3170 images, 47 videos VCE Academic, by request
GastroAtlas Various Lesions and Findings Sorted, Text
annotations
4449 videos Trad. Academic
WEO Atlas Various Lesions and Findings Sorted, Text
annotations
? Trad. Academic
GASTROLAB Various Lesions and Findings Sorted, Text
annotations
? Trad. Academic
Atlas of GE Various Lesions Sorted, Text
annotations
669 images Trad. ©, by permission
KID Various Lesions Sorted 2500 + 47 videos Trad. ©, by permission

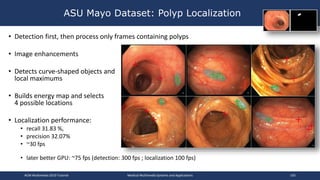

ASU-Mayo dataset: POLYPS
• 20 videos
• 10 with polyps, 10 without
• 8-64 seconds long
• varying resolution
• ~18.000 frames/images
• image mask of polyp (ground truth)
• (currently) restricted use
CVC: POLYPS
• CVC-356 – 356 polyp images, 1350 normal frames
• CVC-12K – 10025 polyp images, 1929 normal frames
• image mask of polyp (ground truth)
• (currently) restricted use
Need more data to transfer the medical knowledge, and thus tools …

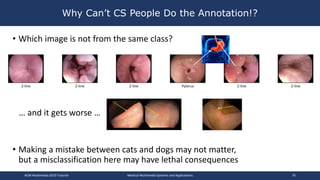

• Which image is not from the same class?
… and it gets worse …
• Making a mistake between cats and dogs may not matter,
but a misclassification here may have lethal consequences
Why Can’t CS People Do the Annotation!?
PylorusZ-line Z-line Z-line Z-line Z-line

Available time of the clinicians?

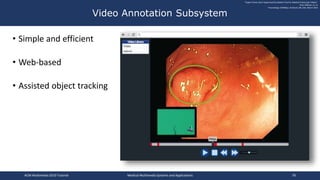

• Simple and efficient
• Web-based
• Assisted object tracking
Video Annotation Subsystem
"Expert Driven Semi-Supervised Elucidation Tool for Medical Endoscopic Videos"
Zeno Albisser, et. al.
Proceedings of MMSys, Portland, OR, USA, March 2015

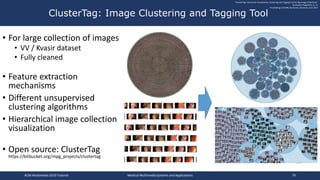

• For large collection of images
• VV / Kvasir dataset
• Fully cleaned
• Feature extraction
mechanisms
• Different unsupervised
clustering algorithms
• Hierarchical image collection
visualization
• Open source: ClusterTag
https://bitbucket.org/mpg_projects/clustertag
ClusterTag: Image Clustering and Tagging Tool
"ClusterTag: Interactive Visualization, Clustering and Tagging Tool for Big Image Collections"
Konstantin Pogorelov, et. al.
Proceedings of ICMR, Bucharest, Romania, June 2017

• Still need even more efficient tools and data of entire procedures
1. “Annotation” during examination
2. Video with bookmarks
3. Annotate bookmarks
4. Automatically annotate
neighboring frames using
object tracking – and verify
Next version of the annotation tool

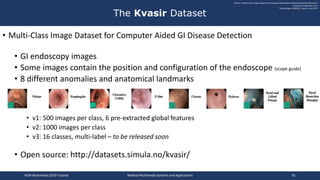

• Multi-Class Image Dataset for Computer Aided GI Disease Detection
• GI endoscopy images
• Some images contain the position and configuration of the endoscope (scope guide)
• 8 different anomalies and anatomical landmarks
• v1: 500 images per class, 6 pre-extracted global features
• v2: 1000 images per class
• v3: 16 classes, multi-label – to be released soon
• Open source: http://datasets.simula.no/kvasir/
The Kvasir Dataset
"Kvasir: A Multi-Class Image-Dataset for Computer Aided Gastrointestinal Disease Detection"
Konstantin Pogorelov, et al.
Proceedings of MMSYS, Taiwan, June 2017

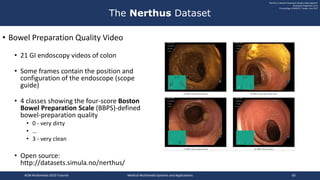

• Bowel Preparation Quality Video
• 21 GI endoscopy videos of colon
• Some frames contain the position and
configuration of the endoscope (scope
guide)
• 4 classes showing the four-score Boston
Bowel Preparation Scale (BBPS)-defined
bowel-preparation quality
• 0 - very dirty
• …
• 3 - very clean
• Open source:
http://datasets.simula.no/nerthus/
The Nerthus Dataset
"Nerthus: A Bowel Preparation Quality Video Dataset"
Konstantin Pogorelov, et al.
Proceedings of MMSYS, Taiwan, June 2017

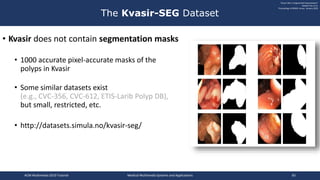

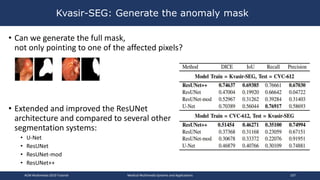

• Kvasir does not contain segmentation masks
• 1000 accurate pixel-accurate masks of the
polyps in Kvasir
• Some similar datasets exist
(e.g., CVC-356, CVC-612, ETIS-Larib Polyp DB),
but small, restricted, etc.
• http://datasets.simula.no/kvasir-seg/
The Kvasir-SEG Dataset
”Kvasir-SEG: A Segmented Polyp Dataset"
Debesh Jha, et al.
Proceedings of MMM, Korea, January 2020

GI Anomaly
Detection System

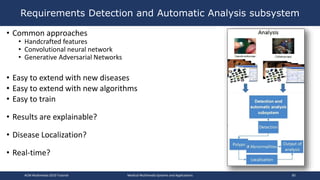

• Common approaches
• Handcrafted features
• Convolutional neural network
• Generative Adversarial Networks
• Easy to extend with new diseases
• Easy to extend with new algorithms
• Easy to train
• Results are explainable?
• Disease Localization?
• Real-time?
Requirements Detection and Automatic Analysis subsystem

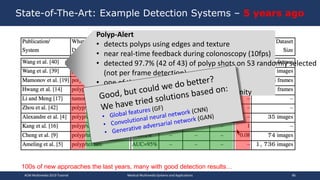

State-of-The-Art: Example Detection Systems – 5 years ago
Polyp-Alert
• detects polyps using edges and texture
• near real-time feedback during colonoscopy (10fps)
• detected 97.7% (42 of 43) of polyp shots on 53 randomly selected
(not per frame detection)
• one of the few end-to-end systems
• Wallapak Tavanapong – from MM community
100s of new approaches the last years, many with good detection results…

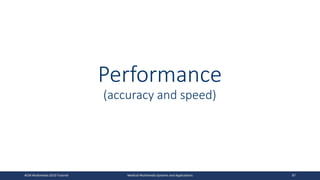

Performance
(accuracy and speed)

 Mayo dataset (18781 images/frames)
 masks for all polyps
• GF:
• JCD and Tamura
• recall 98.50%, precision 93.88%, fps ~300
• CNN:
• Modified Inception v3: recall 95.86%, precision 80.78%, fps: ~30
• Inception v3 + WEKA: recall: 88.87%, precision: 89.16%, fps: ~30
ASU Mayo Dataset: Polyp Detection
”EIR - Efficient Computer Aided Diagnosis Framework for Gastrointestinal Endoscopies"
Michael Riegler, et. al.
Proceedings of CBMI, Bucharest, Romania, June 2016

• Resource consumption and processing performance of GF:
• CNNs (also including GPU support)?
• tests so far: ~30 fps (same GPU as above)
• but adding layers, more networks, … !?? (newer GPU)
• Inception v3: 66 fps, plain CNN: ~40-45 fps
• GAN: ~12 fps (for 160x160)
ASU Mayo Dataset: Polyp Detection

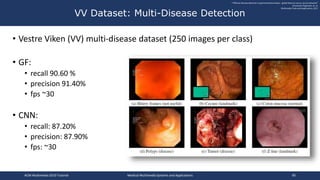

• Vestre Viken (VV) multi-disease dataset (250 images per class)
• GF:
• recall 90.60 %
• precision 91.40%
• fps ~30
• CNN:
• recall: 87.20%
• precision: 87.90%
• fps: ~30

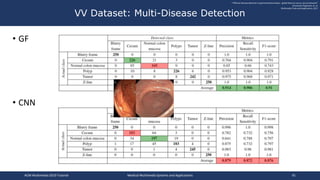

VV Dataset: Multi-Disease Detection
""Efficient disease detection in gastrointestinal videos - global features versus neural networks"
Multimedia Tools and Applications, 2017

• GF
• CNN
VV Dataset: Multi-Disease Detection
""Efficient disease detection in gastrointestinal videos - global features versus neural networks"
Multimedia Tools and Applications, 2017

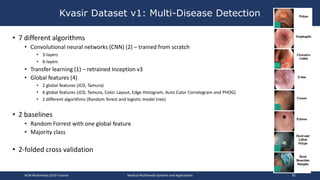

• 7 different algorithms
• Convolutional neural networks (CNN) (2) – trained from scratch
• 3-layers
• 6-layers
• Transfer learning (1) – retrained Inception v3
• Global features (4)
• 2 global features (JCD, Tamura)
• 6 global features (JCD, Tamura, Color Layout, Edge Histogram, Auto Color Correlogram and PHOG)
• 2 different algorithms (Random forest and logistic model tree)
• 2 baselines
• Random Forrest with one global feature
• Majority class
• 2-folded cross validation

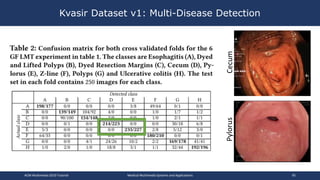

Kvasir Dataset v1: Multi-Disease Detection

DyedandLiftedPolypDyedResectionMargin

CecumPylorus

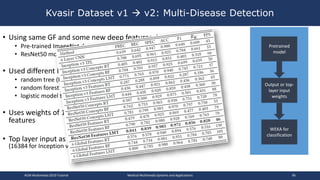

• Using same GF and some new deep features, i.e.,
• Pre-trained ImageNet dataset Inception v3
• ResNet50 models
• Used different ML classifications;
• random tree (RT)
• random forest (RF)
• logistic model tree (LMR) – performed best
• Uses weights of 1000 pre-defined concepts as
features
• Top layer input as features vector
(16384 for Inception v3 and 2048 for ResNet50)
Kvasir Dataset v1  v2: Multi-Disease Detection
Pretrained
model
Output or top-
layer input
weights
WEKA for
classification

• Multiclass: 16 classes of anomalies and landmarks
• Very varying dataset sizes for the different classes
• Combination of retrained networks
Kvasir Dataset v2  v3: Multi-Disease Detection

• MICCAI
• …
• Medico @ MediaEval
• BioMedia @ ACM MM
Competitions
Team Approaches F1 FPS
SCL-UMD Global-features and deep-features extraction,
Inception-V3 and VGGNet CNN models, followed by
machine-learning-based classification using RT, RF,
SVM and LMR classifiers
0.848 1.3
FAST-NU-DS Global and local features combined followed by data
size reduction by applying K-means clustering and
than using logistic regression model for the
classification
0.767 2.3
ITEC-AAU Two different custom Inception-like CNN models 0.755 1.4
HKBU A manifold learning method (bidirectional marginal
Fisher analysis) learning a compact representation of
the data, then machine-learning-based multi-class
support vector machine is used for the classification
0.703 2.2
SIMULA GF-features extraction, ResNet50 and Inception-V3
CNN models and followed by machine-learning-based
classification using RT, RF and LMR classifiers
0.826 46.0
Team and Run Name F1 MCC
Average Processing
Speed
HCMUS 0,934236452 0,931232439
Fastenough
S@M (Simula) 0,929733339 0,928383755
LesCats (Simula) 0,923640116 0,922827982
RUNE (Simula) 0,855590739 0,855590694
UMM-SIM_detection_InResV2-Van_3712 0,836795839 0,836636058
ParaNoMundo_detection_kt12dense201_3808 0,811417906 0,814635359
AAUITEC_detection_LSVM-comb2_5293 0,866259873 0,864100277
SIMULA_detection_run1_5293 0,814535427 0,811510687
FASTNUCES_detection_ver1_300 0,586802677 0,602579617
NOAT_detection_1_5293 0,391347034 0,390125827
HKBU_detection_1_5293 0,482962822 0,460894862

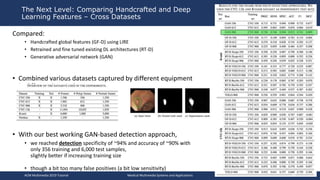

Compared:
• Handcrafted global features (GF-D) using LIRE
• Retrained and fine tuned existing DL architectures (RT-D)
• Generative adversarial network (GAN)
• Combined various datasets captured by different equipment
in different hospitals.
• With our best working GAN-based detection approach,
• we reached detection specificity of ~94% and accuracy of ~90% with
only 356 training and 6,000 test samples,
slightly better if increasing training size
• though a bit too many false positives (a bit low sensitivity)
The Next Level: Comparing Handcrafted and Deep
Learning Features – Cross Datasets

Detecting Bowel Cleanness
Levels

• 7 different algorithms
• Convolutional neural networks (CNN) (2) – trained from scratch
• 3-layers
• 6-layers
• Transfer learning (1) – retrained Inception v3
• Global features (4)
• 2 global features
(JCD, Tamura)
• 6 global features
(JCD, Tamura, Color Layout, Edge Histogram, Auto Color Correlogram and PHOG)
• 2 different algorithms (Random forest and logistic model tree)
• 2 baselines
• Random Forrest with one global feature
• Majority class
• 2-folded cross validation
Nerthus Dataset: Bowel Cleanness Level

Localization / Segmentation

• Detection first, then process only frames containing polyps
• Image enhancements
• Detects curve-shaped objects and
local maximums
• Builds energy map and selects
4 possible locations
• Localization performance:
• recall 31.83 %,
• precision 32.07%
• ~30 fps
• later better GPU: ~75 fps (detection: 300 fps ; localization 100 fps)
ASU Mayo Dataset: Polyp Localization

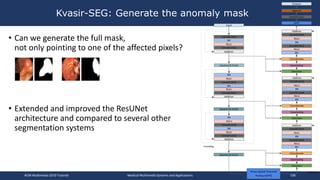

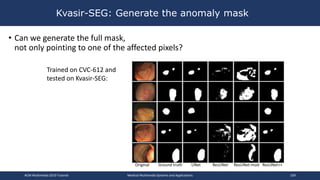

• Can we generate the full mask,
not only pointing to one of the affected pixels?
• Extended and improved the ResUNet
architecture and compared to several other
segmentation systems
Kvasir-SEG: Generate the anomaly mask
Input
Conv2D (3х3)
BN
ReLU
Conv2D (3х3)
Addition
Squeeze & Excite
Atrous Spatial Pyramidal
Pooling (ASPP)
BN
ReLU
Upsampling
Attention
Conv2D (3х3)
BN
ReLU
Conv2D (3х3)
Conv2D (3х3)
ReLU
Addition
Squeeze & Excite
BN
Conv2D (3х3)
ReLU
BN
Conv2D (3х3)
ReLU
Addition
Squeeze & Excite
BN
Conv2D (3х3)
ReLU
BN
ASPP
Outputs
Conv2D (1х1)
Sigmoid
Concatenate
Addition
BN
ReLU
Upsampling
Attention
Conv2D (3х3)
BN
ReLU
Conv2D (3х3)
Concatenate
Addition
BN
ReLU
Upsampling
Attention
Conv2D (3х3)
BN
ReLU
Conv2D (3х3)
Concatenate
Addition
Encoding
Decoding

• Extended and improved the ResUNet
architecture and compared to several other
segmentation systems:
• U-Net
• ResUNet
• ResUNet-mod
• ResUNet++

Trained and tested on Kvasir-SEG:
Original Ground truth UNet ResUNet ResUNet-mod ResUNet++

Trained on CVC-612 and
tested on Kvasir-SEG:
Original Ground truth UNet ResUNet ResUNet-mod ResUNet++

Preprocessing &
Augmentation

• Too little data!!
• Blurry images due to camera motion
• Objects too close to camera
• Under or over scene lighting
• Flares
• Artificial objects and natural “contaminations”
• Low resolution of capsular endoscopes
• …
Data Challenges: Preprocessing

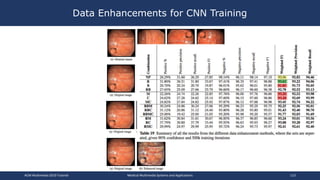

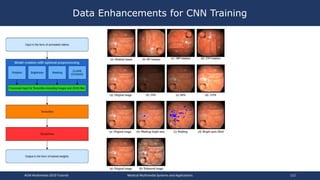

Data Enhancements for CNN Training

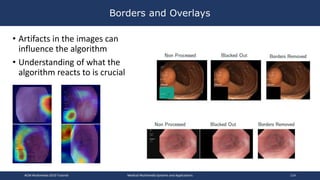

• Artifacts in the images can
influence the algorithm
• Understanding of what the
algorithm reacts to is crucial
Borders and Overlays

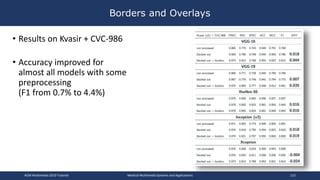

• Results on Kvasir + CVC-986
• Accuracy improved for
almost all models with some
preprocessing
(F1 from 0.7% to 4.4%)
Borders and Overlays

• Replacing artifacts in the video/image
• Different methods
• Clipping
• Autoencoders
• Contextencoder
• Context Conditional (CC)-GAN
• Some difference but marginal
GAN inpainting of Navigation Box

Automatic Detection of
Angiectasia
Video Capsule Endoscopy

Video Capsule (PillCam)
 Standard colonoscopy:
 expensive
 does not scale
 intrusive

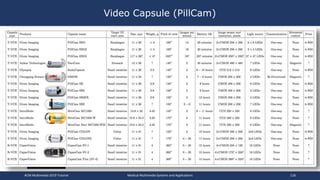

Video Capsule (PillCam)
 Standard colonoscopy:
 expensive
 does not scale
 intrusive
 Wireless Video Capsule endoscopy:
 better scale
 less intrusive
 possible to combine examinations!?
 watch hours of video
 less expensive?
(detection might lead to an endoscopy)

• Angiectasia is a vascular lesions that can cause of
GI bleedings
• Medical specialists reach a detection accuracy of about 69%
• Medical systems should reach an 85% threshold to be
acceptable in clinical use
Angiectasia Detection

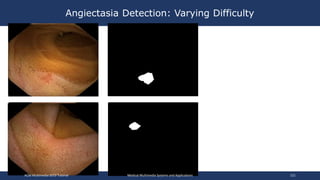

Angiectasia Detection: Varying Difficulty

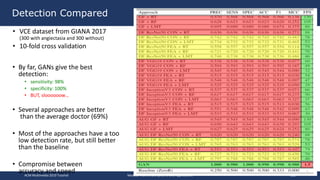

• By far, GANs give the best
detection:
• sensitivity: 98%
• specificity: 100%
• BUT, sloooooow…
• Several approaches are better
than the average doctor (69%)
• Most of the approaches have a too
low detection rate, but still better
than the baseline
• Compromise between
accuracy and speed
Detection Compared
• VCE dataset from GIANA 2017
(300 with angiectasia and 300 without)
• 10-fold cross validation

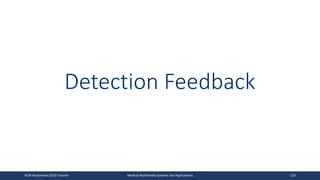

Detection Feedback

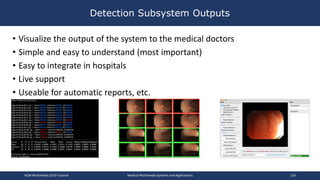

Detection Subsystem Outputs
• Visualize the output of the system to the medical doctors
• Simple and easy to understand (most important)
• Easy to integrate in hospitals
• Live support
• Useable for automatic reports, etc.

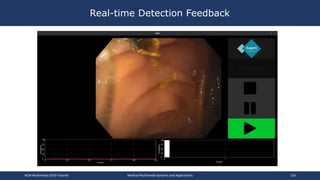

Real-time Detection Feedback

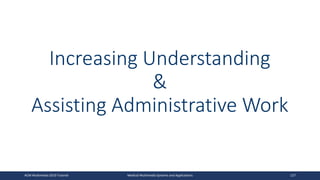

Increasing Understanding
&
Assisting Administrative Work

• Understanding:
A black box will not work – neither for patients nor clinicians
• Reporting:
Critical for communication and evidence, but a huge overhead
• Inconsistent descriptions of abnormalities
• Poor adoption of existing standards
• Time consuming (up to 15 minutes or more)
• Boring and reduced job satisfaction
Understanding and Reporting

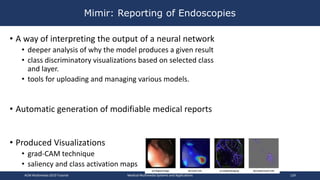

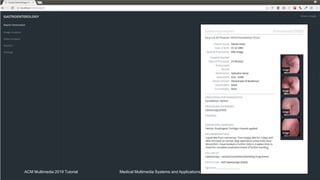

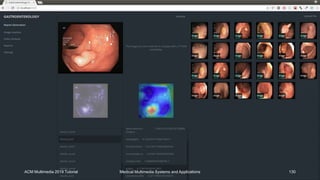

Mimir: Reporting of Endoscopies
• A way of interpreting the output of a neural network
• deeper analysis of why the model produces a given result
• class discriminatory visualizations based on selected class
and layer.
• tools for uploading and managing various models.
• Automatic generation of modifiable medical reports
• Produced Visualizations
• grad-CAM technique
• saliency and class activation maps

Human Reproduction Case
Study

Why semen analysis?
• Every year, over 45 million couples
experience involuntary childlessness,
with 40% of cases due in some part to
male fertility problems
• Semen analysis is one of the first
procures done when determining
infertility.
• Current methods are either time-
consuming and prone to human error,
or require expensive laboratory
equipment.

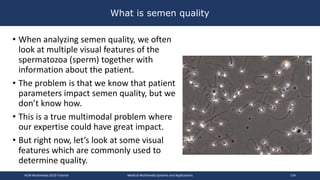

What is semen quality
• When analyzing semen quality, we often
look at multiple visual features of the
spermatozoa (sperm) together with
information about the patient.
• The problem is that we know that patient
parameters impact semen quality, but we
don’t know how.
• This is a true multimodal problem where
our expertise could have great impact.
• But right now, let’s look at some visual
features which are commonly used to
determine quality.

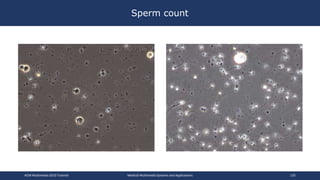

Sperm count

Morphology is used to assess the shape and size of a sperm,
focusing on the tail, midpiece and head.

Morphology Examples

Motility is used to assess the movements of each sperm, the can be
grouped into progressive, non-progressive and immotile.
Non-progressive ImmotileProgressive

Non-Progressive Example

Progressive Example

Immotile Example

VISEM – A Multimodal Video Dataset of Human Spermatozoa
• We have a dataset consisting of 85 microscopic
videos of human semen, all from different
participants.
• Each video comes with a preliminary semen
analysis done according to WHO standards.
• The dataset also contains information about each
participant (such as age and BMI), sex hormone
levels of the participant, and some parameters
extracted from existing sperm analysis machines.
• Data is open-source and available at
datasets.simula.no/visem.
Low Mid-
low
Mid-
high
High

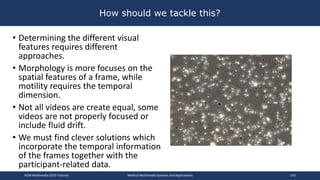

How should we tackle this?
• Determining the different visual
features requires different
approaches.
• Morphology is more focuses on the
spatial features of a frame, while
motility requires the temporal
dimension.
• Not all videos are create equal, some
videos are not properly focused or
include fluid drift.
• We must find clever solutions which
incorporate the temporal information
of the frames together with the
participant-related data.

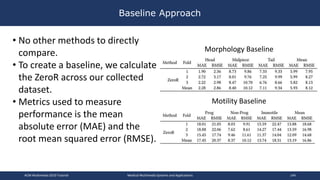

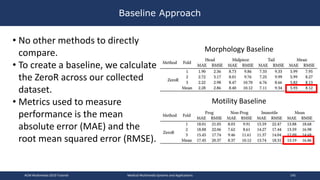

Baseline Approach
• No other methods to directly
compare.
• To create a baseline, we calculate
the ZeroR across our collected
dataset.
• Metrics used to measure
performance is the mean
absolute error (MAE) and the
root mean squared error (RMSE).
Morphology Baseline
Motility Baseline

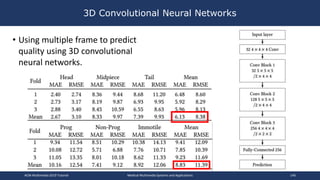

3D Convolutional Neural Networks
• Using multiple frame to predict
quality using 3D convolutional
neural networks.

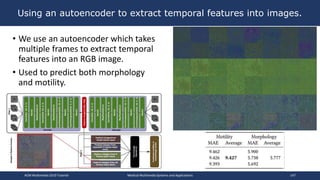

Using an autoencoder to extract temporal features into images.
• We use an autoencoder which takes
multiple frames to extract temporal
features into an RGB image.
• Used to predict both morphology
and motility.

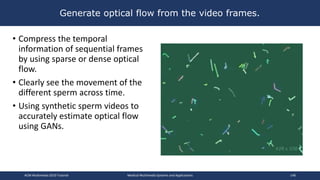

Generate optical flow from the video frames.
• Compress the temporal
information of sequential frames
by using sparse or dense optical
flow.
• Clearly see the movement of the
different sperm across time.
• Using synthetic sperm videos to
accurately estimate optical flow
using GANs.

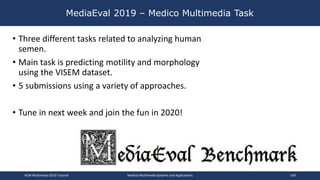

MediaEval 2019 – Medico Multimedia Task
• Three different tasks related to analyzing human
semen.
• Main task is predicting motility and morphology
using the VISEM dataset.
• 5 submissions using a variety of approaches.
• Tune in next week and join the fun in 2020!

Open challenges and future directions.
• How should we combine the patient
data with the visual features to
better predict semen quality?
• What data to use and how to include it.
• Tracking individual sperm cells to
find the “best” spermatozoon.
• Combining semen analysis with
embryo data to better understand
the relationship between sperm and
successful egg fertilization.
• Next step…

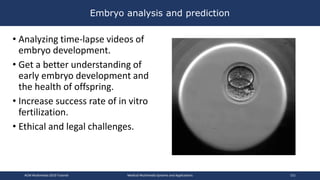

Embryo analysis and prediction
• Analyzing time-lapse videos of
embryo development.
• Get a better understanding of
early embryo development and
the health of offspring.
• Increase success rate of in vitro
fertilization.
• Ethical and legal challenges.

Predicting Performance of Soccer Players

Initial challenge: Logging and Monitoring

pmSys: Reporting using a mobile app

Coach Web Portal
 See team overviews
− all, averages
− planned load
 Send reminders
 See individual views
 Simple automatic “predictions”

Would like to perform proper predictions!

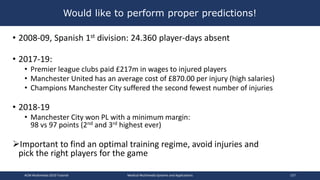

• 2008-09, Spanish 1st division: 24.360 player-days absent
• 2017-19:
• Premier league clubs paid £217m in wages to injured players
• Manchester United has an average cost of £870.00 per injury (high salaries)
• Champions Manchester City suffered the second fewest number of injuries
• 2018-19
• Manchester City won PL with a minimum margin:
98 vs 97 points (2nd and 3rd highest ever)
Important to find an optimal training regime, avoid injuries and
pick the right players for the game
Would like to perform proper predictions!

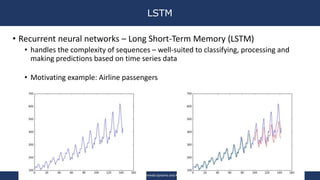

• Recurrent neural networks – Long Short-Term Memory (LSTM)
• handles the complexity of sequences – well-suited to classifying, processing and
making predictions based on time series data
• Motivating example: Airline passengers
LSTM

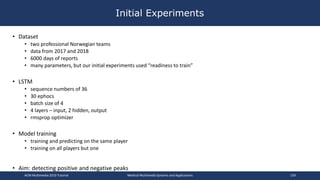

• Dataset
• two professional Norwegian teams
• data from 2017 and 2018
• 6000 days of reports
• many parameters, but our initial experiments used “readiness to train”
• LSTM
• sequence numbers of 36
• 30 ephocs
• batch size of 4
• 4 layers – input, 2 hidden, output
• rmsprop optimizer
• Model training
• training and predicting on the same player
• training on all players but one
• Aim: detecting positive and negative peaks
Initial Experiments

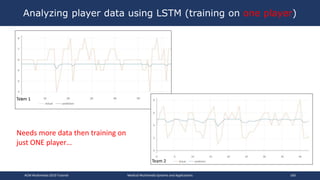

Analyzing player data using LSTM (training on one player)
Needs more data then training on
just ONE player…
Team 1
Team 2

Analyzing player data using LSTM (training on all but one players)
Predicting the positive and negative peaks with
a precision and recall above 90%

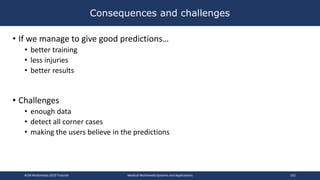

• If we manage to give good predictions…
• better training
• less injuries
• better results
• Challenges
• enough data
• detect all corner cases
• making the users believe in the predictions
Consequences and challenges

So, MEDICAL MULTIMEDIA -
all problems solved!!??

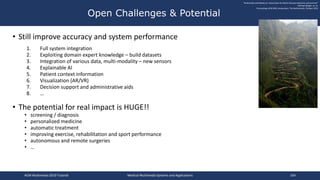

• Still improve accuracy and system performance
1. Full system integration
2. Exploiting domain expert knowledge – build datasets
3. Integration of various data, multi-modality – new sensors
4. Explainable AI
5. Patient context information
6. Visualization (AR/VR)
7. Decision support and administrative aids
8. …
• The potential for real impact is HUGE!!
• screening / diagnosis
• personalized medicine
• automatic treatment
• improving exercise, rehabilitation and sport performance
• autonomous and remote surgeries
• …
Open Challenges & Potential
"Multimedia and Medicine: Teammates for Better Disease Detection and Survival"
Michael Riegler, et. al.
Proceedings ACM MM, Amsterdam, The Netherlands, October 2016

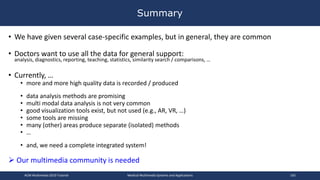

• We have given several case-specific examples, but in general, they are common
• Doctors want to use all the data for general support:
analysis, diagnostics, reporting, teaching, statistics, similarity search / comparisons, …
• Currently, …
• more and more high quality data is recorded / produced
• data analysis methods are promising
• multi modal data analysis is not very common
• good visualization tools exist, but not used (e.g., AR, VR, …)
• some tools are missing
• many (other) areas produce separate (isolated) methods
• …
• and, we need a complete integrated system!
 Our multimedia community is needed
Summary

ImageCLEF 2020
CLEF, 22-25 S eptem ber, Thes s aloniki, Greece
http://www.im ag eclef.org/2020
#ImageCLEFlifelog2020# (4th edition) An increasingly wide
range of personal devices that allow capturing pictures,
videos, and audio clips for every m om ent of our lives, are
becom ing available. In this context, the task addresses the
problem s oflifelogging data retrievaland sum m arization.
Organizers: Duc-Tien Dang -Nguyen (University of Bergen), Luca Piras
(Pluribus One & University of Cagliari), MichaelR ieg ler & PålHalvorsen
(S imula Research Laboratory), Minh-Triet Tran (University of S cience),
Cathal G urrin (Dublin City University), Mathias Lux (Klagenfurt
University).
#ImageCLEFcoral2020# (2nd edition) The increasing use of
structure-from -m otion photogram m etry for m odelling large-
scale environm ents from action cam eras has driven the next
generation of visualization techniques. The task addresses
the problem of autom atically segm enting and labeling a
collection of im ages that can be used in com bination to
create 3D m odels forthe m onitoring ofcoralreefs.
Organizers: Jon Cham berlain, Adrian Clark, & Alba G arcía Seco de
Herrera (University of Essex), Antonio Cam pello (Wellcome Trust).
#ImageCLEFmedical2020# (2nd edition) Medical im ages
can be used in a variety of scenarios and this task will
com bine the m ost popular m edicaltasks ofIm ageCLEF and
continue the last year idea of m ixing various applications,
nam ely: autom atic im age captioning and scene
understanding, m edical visual question answering and
decision support on tuberculosis. This allows to explore
synergies between tasks.
Organizers: Asm a Ben Abacha & Dina Dem ner-Fushm an (National
Library of Medicine), Sadid A. Hasan, V ivek Datla & Joey Liu (Philips
Research Cambridge), Obiom a Pelka & Christoph M. Friedrich (University
of Applied S ciences and Arts Dortmund), Alba G arcía Seco de Herrera
(University of Essex), Yashin Dicente Cid (University of Warwick), Serg e
Kozlovski, V itali Liauchuk, & V assili Kovalev (United Institute of
Informatics Problems), Henning Müller(HES -S O).
#ImageCLEFdrawnUI2020# (new) Enabling people to create
websites by drawing them on a piece of paper would m ake
the webpage building process m ore accessible. The task
addresses the problem of autom atically recognizing hand
drawn objects representing website UIs, which willbe further
translated into autom atic website code.
Organizers: PaulBrie & Fichou Dim itri (teleportHQ), Mihai Dogariu, Liviu
Daniel Ștefan, Mihai G abrielConstantin, & Bogdan Ionescu (University
Politehnica of Bucharest).
Contact on s ocial media
Facebook
https://www.facebook.com /Im ageClef
Twitter
https://twitter.com /im ageclef
Im ageCLEF 2020 is an evaluation
cam paign that is being organized as
part ofthe CLEF (Conference and Labs
ofthe Evaluation Forum ) labs.
The cam paign offers several research
tasks that welcom e participation from
team s around the world.
The results of the cam paign appear in
the working notes, published by CEUR
(CEUR -W S.org) and are presented in
the CLEFconference.
Selected contributions am ong the
participants will be invited for
publication in the following year in the
Springer Lecture Notes in Com puter
Science (LNCS), together with the
annuallab overviews.
Target com m unities involve (but are not
lim ited to): information retrieval (e.g.,
text, vision, audio, m ultim edia, social
m edia, sensor data), machine learning,
deep learning, data mining, natural
language processing, image and video
processing; with special em phasis on
the challenges of multi-modality, multi-
linguality, and interactive search.
Overall coordination
Bogdan Ionescu,
University Politehnica of Bucharest, R om ania
Henning Müller,
HES -S O, S ierre, Switzerland
R enaud Pé teri,
University of La Rochelle, France
Important Dates (depending on tasks)
end of April, 2020: registration closes;
beginning of May, 2020: runs due;
end of May, 2020: working notes due.
#imageclef20
#clef2020ACM Multimedia 2019 Tutorial Medical Multimedia Systems and Applications 166

The End…

Medical Multimedia Systems and Applications

More Related Content

What's hot

Similar to Medical Multimedia Systems and Applications

Recently uploaded

Medical Multimedia Systems and Applications

Editor's Notes
