Cooler with mechanical seals

1. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division
682 Seal Cooler
682 Seal Cooler
Product Roll Out
Product Roll Out
Regional Sales Meeting ‘98
Regional Sales Meeting ‘98

2. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

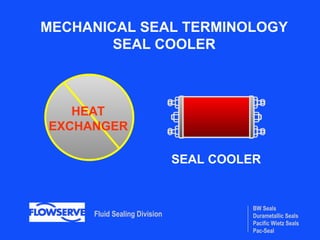

HEAT
EXCHANGER
SEAL COOLER
MECHANICAL SEAL TERMINOLOGY
SEAL COOLER

3. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division
682 SEAL COOLER
• API 682 standards covering “Shaft Sealing Systems for
Centrifugal and Rotary Pumps”, addresses the
specifications of the seal cooler to be used in
conjunction with mechanical seal.
• Flowserve 682 Seal Cooler meets & exceeds the
requirements with regards to seal cooler specifications
as stated in API 682 Standard First edition October
1994

4. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

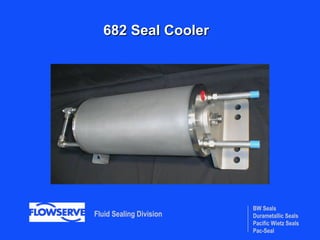

682 Seal Cooler
682 Seal Cooler

5. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

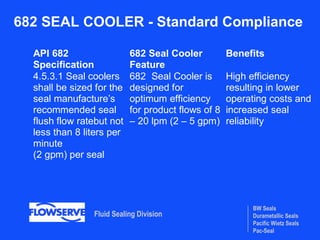

API 682
Specification
682 Seal Cooler
Feature
Benefits
4.5.3.1 Seal coolers
shall be sized for the
seal manufacture’s
recommended seal
flush flow ratebut not
less than 8 liters per
minute
(2 gpm) per seal
682 Seal Cooler is
designed for
optimum efficiency
for product flows of 8
– 20 lpm (2 – 5 gpm)
High efficiency
resulting in lower
operating costs and
increased seal
reliability
682 SEAL COOLER - Standard Compliance

6. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

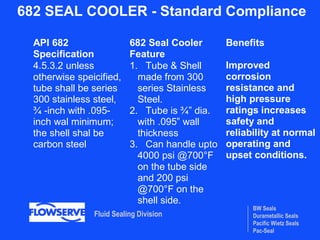

682 SEAL COOLER - Standard Compliance
API 682
Specification
682 Seal Cooler
Feature
Benefits
4.5.3.2 unless
otherwise speicified,
tube shall be series
300 stainless steel,
¾ -inch with .095-
inch wal minimum;
the shell shal be
carbon steel
1. Tube & Shell
made from 300
series Stainless
Steel.
2. Tube is ¾” dia.
with .095” wall
thickness
3. Can handle upto
4000 psi @700°F
on the tube side
and 200 psi
@700°F on the
shell side.
Improved
corrosion
resistance and
high pressure
ratings increases
safety and
reliability at normal
operating and
upset conditions.

7. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

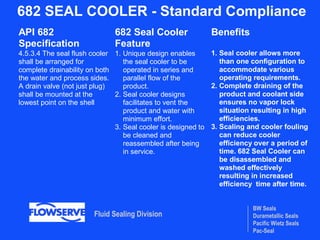

682 SEAL COOLER - Standard Compliance
API 682
Specification
682 Seal Cooler
Feature
Benefits
4.5.3.4 The seal flush cooler
shall be arranged for
complete drainability on both
the water and process sides.
A drain valve (not just plug)
shall be mounted at the
lowest point on the shell
1. Unique design enables
the seal cooler to be
operated in series and
parallel flow of the
product.
2. Seal cooler designs
facilitates to vent the
product and water with
minimum effort.
3. Seal cooler is designed to
be cleaned and
reassembled after being
in service.
1. Seal cooler allows more
than one configuration to
accommodate various
operating requirements.
2. Complete draining of the
product and coolant side
ensures no vapor lock
situation resulting in high
efficiencies.
3. Scaling and cooler fouling
can reduce cooler
efficiency over a period of
time. 682 Seal Cooler can
be disassembled and
washed effectively
resulting in increased
efficiency time after time.

8. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

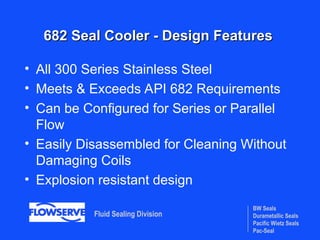

682 Seal Cooler - Design Features
682 Seal Cooler - Design Features
• All 300 Series Stainless Steel
• Meets & Exceeds API 682 Requirements
• Can be Configured for Series or Parallel
Flow
• Easily Disassembled for Cleaning Without
Damaging Coils
• Explosion resistant design

9. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

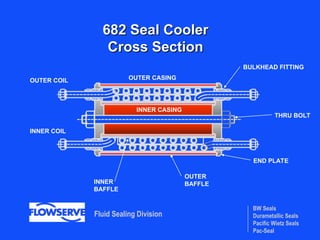

682 Seal Cooler
682 Seal Cooler
Cross Section
Cross Section
OUTER COIL
INNER COIL
BULKHEAD FITTING
OUTER CASING
INNER CASING
END PLATE
THRU BOLT
OUTER
BAFFLE
INNER
BAFFLE

10. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

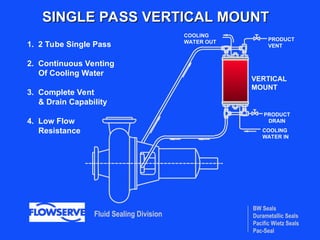

SINGLE PASS VERTICAL MOUNT
SINGLE PASS VERTICAL MOUNT
1. 2 Tube Single Pass
2. Continuous Venting
Of Cooling Water
3. Complete Vent
& Drain Capability
4. Low Flow
Resistance COOLING
WATER IN
PRODUCT
DRAIN
PRODUCT
VENT
COOLING
WATER OUT
VERTICAL
MOUNT

11. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

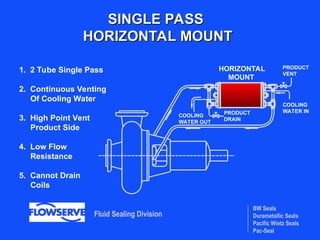

SINGLE PASS
SINGLE PASS
HORIZONTAL MOUNT
HORIZONTAL MOUNT
COOLING
WATER OUT
PRODUCT
DRAIN
PRODUCT
VENT
COOLING
WATER IN
HORIZONTAL
MOUNT
1. 2 Tube Single Pass
2. Continuous Venting
Of Cooling Water
3. High Point Vent
Product Side
4. Low Flow
Resistance
5. Cannot Drain
Coils

12. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

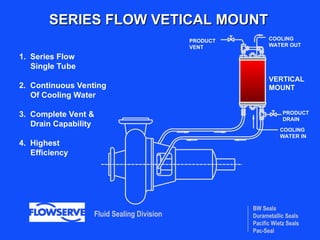

SERIES FLOW VETICAL MOUNT
SERIES FLOW VETICAL MOUNT
COOLING
WATER IN
PRODUCT
DRAIN
PRODUCT
VENT
COOLING
WATER OUT
VERTICAL
MOUNT
1. Series Flow
Single Tube
2. Continuous Venting
Of Cooling Water
3. Complete Vent &
Drain Capability
4. Highest
Efficiency

13. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

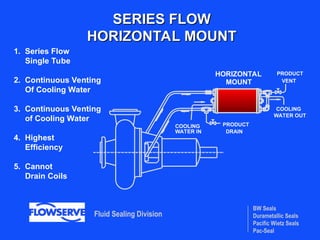

SERIES FLOW
SERIES FLOW
HORIZONTAL MOUNT
HORIZONTAL MOUNT
COOLING
WATER IN
PRODUCT
DRAIN
PRODUCT
VENT
COOLING
WATER OUT
HORIZONTAL
MOUNT
1. Series Flow
Single Tube
2. Continuous Venting
Of Cooling Water
3. Continuous Venting
of Cooling Water
4. Highest
Efficiency
5. Cannot
Drain Coils

14. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

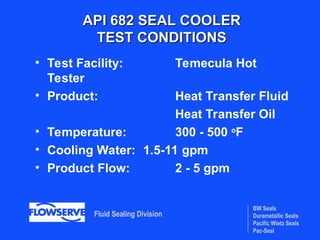

API 682 SEAL COOLER
API 682 SEAL COOLER
TEST CONDITIONS
TEST CONDITIONS
• Test Facility: Temecula Hot
Tester
• Product: Heat Transfer Fluid
Heat Transfer Oil
• Temperature: 300 - 500 o
F
• Cooling Water: 1.5-11 gpm
• Product Flow: 2 - 5 gpm

15. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division
682 Seal Cooler
682 Seal Cooler
TEST SET-UP
TEST SET-UP

16. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

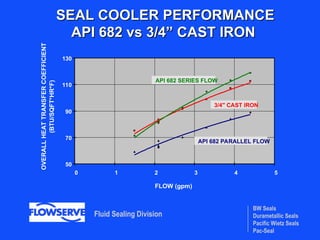

SEAL COOLER PERFORMANCE
SEAL COOLER PERFORMANCE
API 682 vs 3/4” CAST IRON
API 682 vs 3/4” CAST IRON
50
70
90
110
130
0 1 2 3 4 5
FLOW (gpm)
OVERALL
HEAT
TRANSFER
COEFFICIENT
(BTU/SQFT*HR*F)
API 682 PARALLEL FLOW
API 682 SERIES FLOW
3/4" CAST IRON

17. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

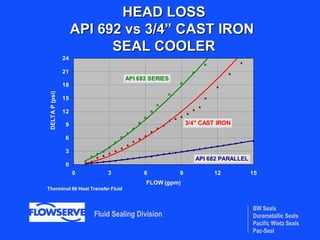

HEAD LOSS
HEAD LOSS
API 692 vs 3/4” CAST IRON
API 692 vs 3/4” CAST IRON
SEAL COOLER
SEAL COOLER
0
3
6
9
12
15
18
21
24
0 3 6 9 12 15
FLOW (gpm)
DELTA
P
(psi)
Therminol 66 Heat Transfer Fluid
3/4" CAST IRON
API 682 SERIES
API 682 PARALLEL

18. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

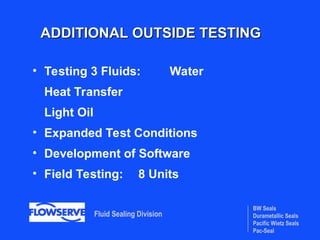

ADDITIONAL OUTSIDE TESTING
ADDITIONAL OUTSIDE TESTING
• Testing 3 Fluids: Water
Heat Transfer
Light Oil
• Expanded Test Conditions
• Development of Software
• Field Testing: 8 Units

19. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

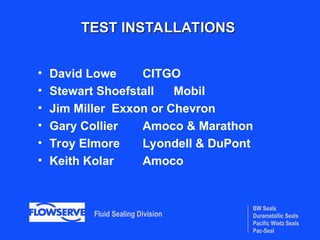

TEST INSTALLATIONS
TEST INSTALLATIONS
• David Lowe CITGO
• Stewart Shoefstall Mobil
• Jim Miller Exxon or Chevron
• Gary Collier Amoco & Marathon
• Troy Elmore Lyondell & DuPont
• Keith Kolar Amoco

20. BW Seals
Durametallic Seals
Pacific Wietz Seals
Pac-Seal
Fluid Sealing Division

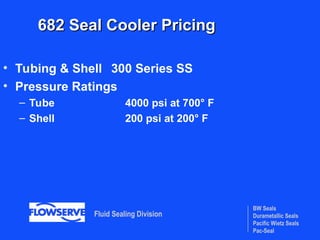

682 Seal Cooler Pricing
682 Seal Cooler Pricing
• Tubing & Shell 300 Series SS
• Pressure Ratings
– Tube 4000 psi at 700° F
– Shell 200 psi at 200° F
