My slides from Shoppingtoday 2014.. About why your users don't like to wait and the impact on user engagement... 5 insights to align content and speed to create a fast user experience... For you, as a business owner, a speed(y) way to experiment with at your own website

1. User Experience vs. Conversion Optimization
@jeroentjepkema
Shoppingtoday 2014

2. Twinkle100: How fast are we?

3. 1,49Mb
average
pagesize
Twinkle100 data collected with webpagetest.org with Chrome, IE11, Firefox & Safari (10Mbs down/1,5Mbs up)
4.59s
average
page load time
130
requests on
average
86%
slower than
3 sec.
Desktop Performance

4. 1,2Mb
average
pagesize
4.27s
via wifi
8.57s
via 3G
Mobile Performance
41% of
Twinkle100 have
optimized site
Twinkle100 data colelcted with webpagetest.org on both Android & iPhone (WiFi (10Mbs down/1,5Mbs up) & 3G (2000Kbps Down, 764Kbps Up))

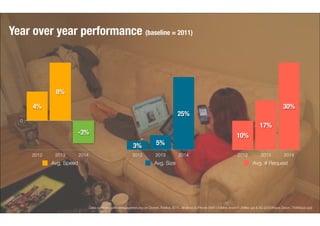

5. Year over year performance (baseline = 2011)
-3%
25%
3% 5%
30%
17%
10%
Data collected with webpagetest.org on Crome, Firefox, IE11, Android & iPhone (WiFi (10Mbs down/1,5Mbs up) & 3G (2000Kbps Down, 764Kbps Up))
8%
4%
2012 2013 2014
2012 2013 2014
2012 2013 2014
0
Avg. Speed Avg. Size Avg. # Request

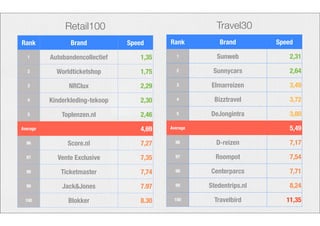

6. Retail100 Travel30
Rank Brand Speed
1 Autobandencollectief 1,35
2 Worldticketshop 1,75
3 NRClux 2,29
4 Kinderkleding-tekoop 2,30
5 Toplenzen.nl 2,46
Average 4,69
96 Score.nl 7,27
97 Vente Exclusive 7,35
98 Ticketmaster 7,74
99 Jack&Jones 7.97
100 Blokker 8.30
Rank Brand Speed
1 Sunweb 2,31
2 Sunnycars 2,64
3 Elmarreizen 3,49
4 Bizztravel 3,72
5 DeJongintra 3,80
Average 5,49
96 D-reizen 7,17
97 Roompot 7,54
98 Centerparcs 7,71
99 Stedentrips.nl 8,24
100 Travelbird 11,35

7. Why is this important?

15. “Both offline and online consumers
associate long wait times with
poor customer service”

16. Click away slide Performance tolerance

17. Complaints Top 5 topics
21%
6%
41%
32%
Delivery Ordering UX Other
Downtime
Mobile
Speed
Login
Forms 5%
6%
21%
19%
36%
Research from MeasureWorks, Social and More & Obi4Wan. Social mentions collected about Twinkle100 webshops only between March 1 - August 31 2014

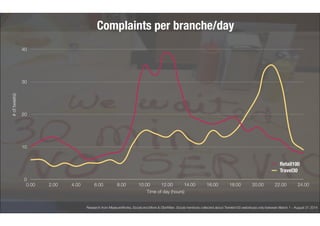

18. 40
30
20
10
0
0.00 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00
Time of day (hours)
# of tweets)
Complaints per branche/day
Retail100
Travel30
Research from MeasureWorks, Social and More & Obi4Wan. Social mentions collected about Twinkle100 webshops only between March 1 - August 31 2014

19. Purpose vs. Context

20. Online users often lack context for delays...

21. ...and see no other option than to click away

22. User Experience vs. Conversion

23. 100
90
80
70
60
50
40
30
20
10
0
Bouncerate per pagetype/session
0 1 2 3 4 5 6 7 8 9 10
Bouncerate (%)
Page load time (sec.)
Median Campaign Product search
Real User Monitoring data collected by MeasureWorks for several eCommerce webshops, anonymized and grouped per pagetype

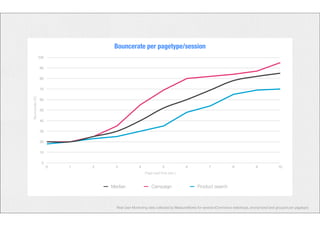

24. 100
90
80
70
60
50
40
30
20
10
0
Bouncerate per pagetype/session
0 1 2 3 4 5 6 7 8 9 10
Bouncerate (%)
Page load time (sec.)
Median Campaign Product search
Real User Monitoring data collected by MeasureWorks for several eCommerce webshops, anonymized and grouped per pagetype

25. Back in a second....

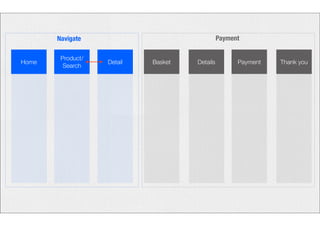

26. Navigate Payment
Home Product/
Search Detail Basket Details Payment Thank you

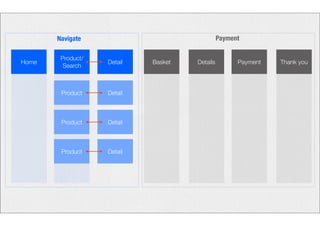

27. Navigate Payment
Home Product/
Search Detail Basket Details Payment Thank you
Detail
Detail
Product
Detail
Product
Product

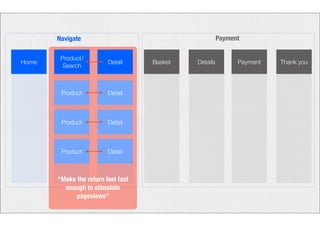

28. Navigate Payment
Home Product/
Search Detail Basket Details Payment Thank you
Detail
Detail
Product
Detail
Product
Product
“Make the return feel fast
enough to stimulate
pageviews”

29. “Speed is at it’s best when it creates the feeling
that you don’t have to work to achieve your goal”

30. The waiting experience

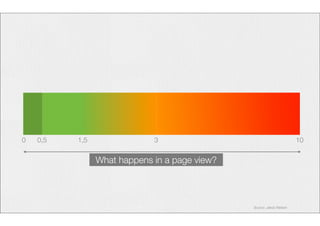

31. 0 0,5 1,5 3 10
What happens in a page view?
Source: Jakob Nielsen

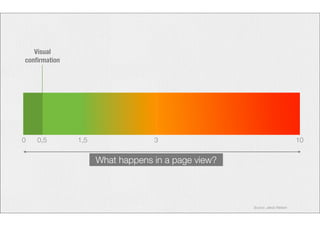

32. Visual
confirmation
0 0,5 1,5 3 10
What happens in a page view?
Source: Jakob Nielsen

33. Visual
confirmation
Understand
Navigation
0 0,5 1,5 3 10
What happens in a page view?
Source: Jakob Nielsen

34. Visual
confirmation
Understand
Navigation
Relevant
Content?
0 0,5 1,5 3 10
What happens in a page view?
Source: Jakob Nielsen

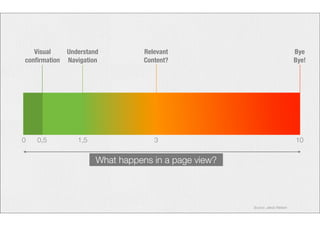

35. Visual
confirmation
Understand
Navigation
Relevant
Content?
Bye
Bye!
0 0,5 1,5 3 10
What happens in a page view?
Source: Jakob Nielsen

36. Purpose vs. Context
Standing in line for iPhone6 launch - London 2014

37. 5 insights for speed(y) experiments

38. 1. Speed-up your perception

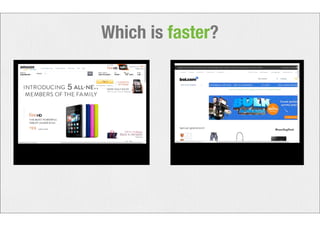

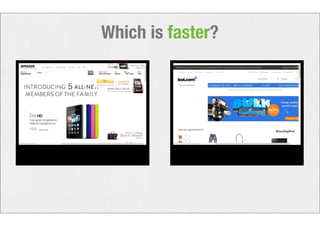

39. Which is faster?

40. Which is faster?

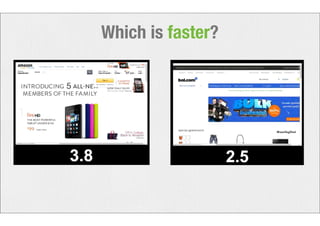

41. Which is faster?

42. Which is faster?

43. Fast response = Fast Experience

44. http://www.fastcodesign.com/1669788/the-3-white-lies-behind-instagrams-lightning-speed

45. “The faster you can visualize your priority content,
the more engaged your visitors will become”

46. 2. Increase perceived value

47. Navigate Payment
Home Product/
Search Detail Basket Details Payment Thank you
Detail
Detail
Product
Detail
Product
Product

48. Flow

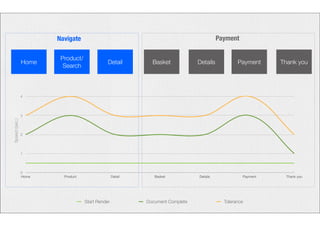

49. Navigate Payment
Home Product/
Search Detail Basket Details Payment Thank you
4
3
2
1
0
Home Product Detail Basket Details Payment Thank you
Start Render Document Complete Tolerance
Speed (sec.)

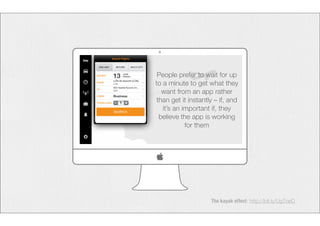

50. People prefer to wait for up
to a minute to get what they
want from an app rather
than get it instantly – if, and
it’s an important if, they
believe the app is working
The kayak effect: http://bit.ly/UgTneD
for them

51. Show effort,
provide specific feedback,
build trust

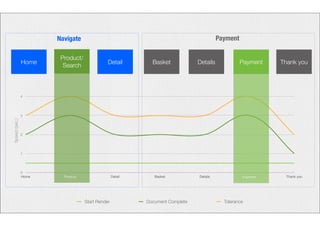

52. Navigate Payment
Product/
Search Payment
Home Detail Basket Details Thank you
4
3
2
1
0
Home Product Detail Basket Details Payment
Thank you
Start Render Document Complete Tolerance
Speed (sec.)

53. 3. Do I need that carousel?

56. 83% of all Twinkle100 sites loads menu
before content...

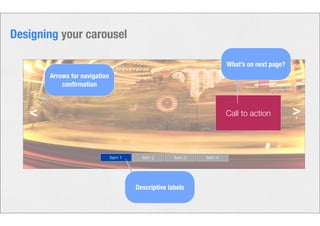

57. < Call to action >
Item 1 Item 2 Item 3 Item 4
Descriptive labels
What’s on next page?
Designing your carousel
Arrows for navigation
confirmation

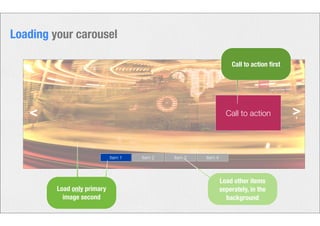

58. Loading your carousel
< Call to action >
Item 1 Item 2 Item 3 Item 4
Descriptive labels
Call to action first
Load other items
seperately, in the
background
Load only primary
image second

59. 4. Recognizable navigation

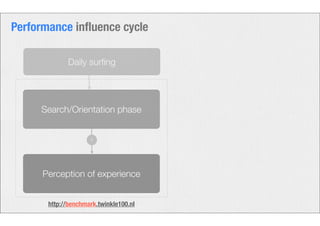

60. Performance influence cycle
Daily surfing
Search/Orientation phase
1
Perception of experience
http://benchmark.twinkle100.nl

61. Delivered
experience
3
Your website
5
2
Stimulate content/
conversion
4
Performance influence cycle
Daily surfing
Search/Orientation phase
1
Perception of experience
http://benchmark.twinkle100.nl

62. Don’t interrupt the flow...

63. Homepage Search Product
overview
Product
Detail Basket

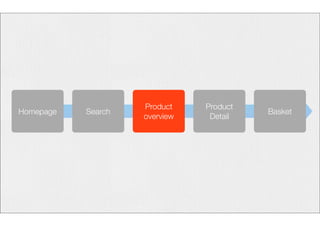

64. Homepage Search Product
overview
Product
Detail Basket

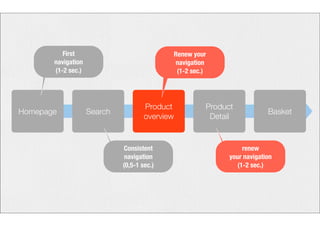

65. Homepage Search Product
overview
Product
Detail Basket
First
navigation
(1-2 sec.)
Consistent
navigation
(0,5-1 sec.)
Renew your
navigation
(1-2 sec.)
renew
your navigation
(1-2 sec.)

66. Consistent, simple & recognizable navigation

68. 5. Let the device work...

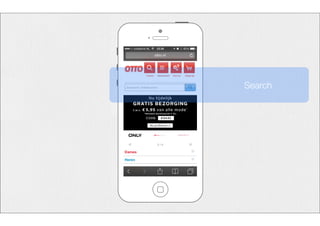

70. Search

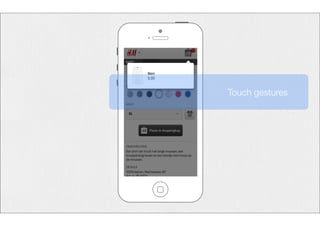

71. Touch gestures

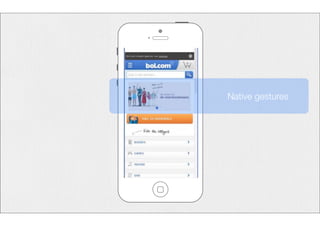

72. Native gestures

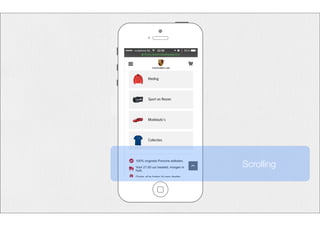

73. Scrolling

74. Questions so far?

75. Good Design
+
Fast Experience
=
Great User Experience

76. Paint your #UX canvas

77. 3 (user experience) design questions to ask...

78. Above the fold?

79. Which priority?

80. Improving which metrics?

81. Optimize your website...

82. Homepage
Above the fold
Below the fold
Logo Menu
Carousel
Tekst 1 Tekst 2 Tekst 3
Advert 1 Advert 2 Advert 3
1
Top 10
Nieuw
Overig
3
2
4 4 4
Logo Menu
Banner(s)
2 3
Advert
1
Tekst 1 Tekst 2
Content Advert 3
1
Top 10
1
5 5
Advert 3
Advert 2 Advert 3 Advert 3
Advert 2 Advert 3 Advert 3
Top 10
5
2
2
Eerder
bekeken
Product
beschrijving
Logo 1
Menu
Product images
1
2 3
Tekst 1 Tekst 2
Ook
gekocht
1
Ook
gekocht
2
Ook
gekocht
3
4
5
Eerder
bekeken
Eerder
bekeken
Product
Overview
Product
detail

83. Will it work?

84. Bol.com: Speed vs. Engagement per month
Data presented by MeasureWorks at Velocity Conference London 2013: http://bit.ly/MW-VEUrum
100
87,5
75
62,5
50
37,5
25
12,5
0
0-0,5 0,5-1 1-1,5 1,5-2 2-2,5 2,5-3 3-3,5 3,5-4 4-5 5-6 6-7 7-8 8-9 9-10 >10
Non-Bounce rate (%)
Categorienaam
Pageviews (#)
Bouncerate # Pageviews

85. 100
87,5
75
62,5
50
37,5
25
12,5
0

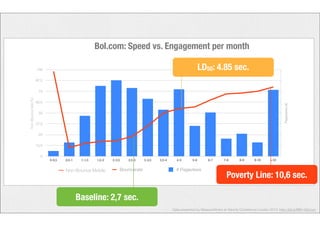

Bol.com: Speed vs. Engagement per month
0-0,5 0,5-1 1-1,5 1,5-2 2-2,5 2,5-3 3-3,5 3,5-4 4-5 5-6 6-7 7-8 8-9 9-10 >10
Non-Bounce rate (%)
Categorienaam
Pageviews (#)
Bouncerate # Pageviews
Non-Bounce Mobile
LD50: 4.85 sec.
Baseline: 2,7 sec.
Poverty Line: 10,6 sec.
Data presented by MeasureWorks at Velocity Conference London 2013: http://bit.ly/MW-VEUrum

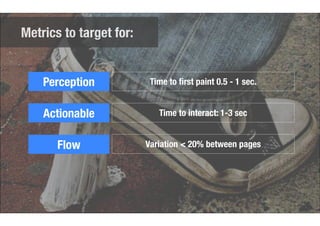

86. Metrics to target for:
Perception
Actionable
Flow
Time to first paint 0.5 - 1 sec.
Time to interact: 1-3 sec
Variation < 20% between pages

87. Deliver before it
turns green!

88. Expert review...

89. View slides: bit.ly/MW-shopping14
Thanks! More questions?
M: jtjepkema@measureworks.nl
T: @jeroentjepkema
W: www.measureworks.nl
