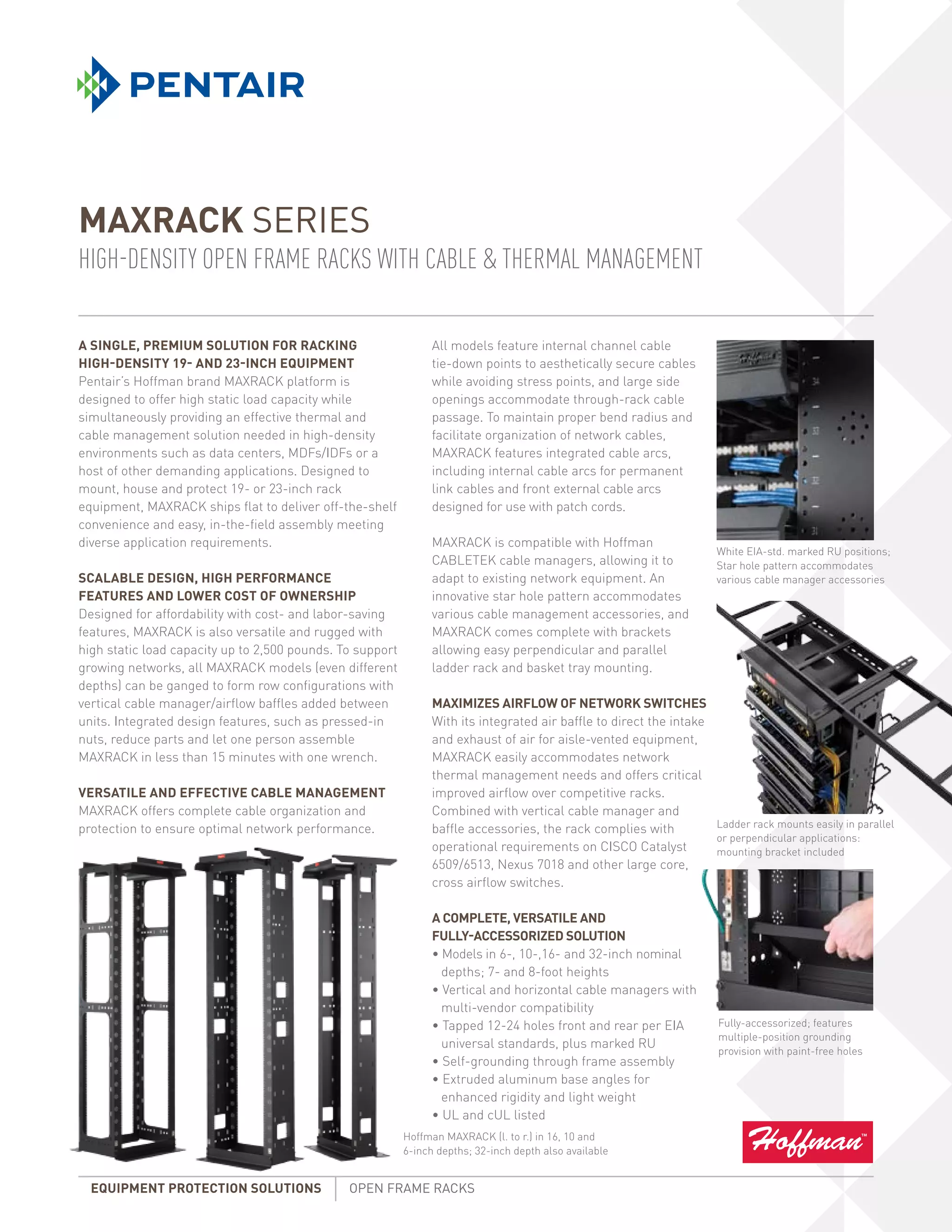

1. MAXRACK SERIES
HIGH-DENSITY OPEN FRAME RACKS WITH CABLE & THERMAL MANAGEMENT
A single, PREMIUM solution for racking All models feature internal channel cable
high-density 19- and 23-inch equipment tie-down points to aesthetically secure cables
Pentair’s Hoffman brand MAXRACK platform is while avoiding stress points, and large side
designed to offer high static load capacity while openings accommodate through-rack cable
simultaneously providing an effective thermal and passage. To maintain proper bend radius and
cable management solution needed in high-density facilitate organization of network cables,
environments such as data centers, MDFs/IDFs or a MAXRACK features integrated cable arcs,
host of other demanding applications. Designed to including internal cable arcs for permanent
mount, house and protect 19- or 23-inch rack link cables and front external cable arcs
equipment, MAXRACK ships flat to deliver off-the-shelf designed for use with patch cords.
convenience and easy, in-the-field assembly meeting
diverse application requirements. MAXRACK is compatible with Hoffman
White EIA-std. marked RU positions;
CABLETEK cable managers, allowing it to Star hole pattern accommodates
SCALABLE DESIGN, HIGH PERFORMANCE adapt to existing network equipment. An various cable manager accessories
FEATURES AND LOWER COST OF OWNERSHIP innovative star hole pattern accommodates
Designed for affordability with cost- and labor-saving various cable management accessories, and
features, MAXRACK is also versatile and rugged with MAXRACK comes complete with brackets
high static load capacity up to 2,500 pounds. To support allowing easy perpendicular and parallel
growing networks, all MAXRACK models (even different ladder rack and basket tray mounting.
depths) can be ganged to form row configurations with
vertical cable manager/airflow baffles added between MAXIMIZES AIRFLOW OF NETWORK SWITCHES
units. Integrated design features, such as pressed-in With its integrated air baffle to direct the intake
nuts, reduce parts and let one person assemble and exhaust of air for aisle-vented equipment,
MAXRACK in less than 15 minutes with one wrench. MAXRACK easily accommodates network
thermal management needs and offers critical
VERSATILE AND EFFECTIVE CABLE MANAGEMENT improved airflow over competitive racks.
MAXRACK offers complete cable organization and Combined with vertical cable manager and
protection to ensure optimal network performance. baffle accessories, the rack complies with Ladder rack mounts easily in parallel
or perpendicular applications:
operational requirements on CISCO Catalyst mounting bracket included
6509/6513, Nexus 7018 and other large core,
cross airflow switches.
A COMPLETE, VERSATILE AND
FULLY-ACCESSORIZED SOLUTION
• Models in 6-, 10-,16- and 32-inch nominal
depths; 7- and 8-foot heights
• Vertical and horizontal cable managers with
multi-vendor compatibility
• Tapped 12-24 holes front and rear per EIA Fully-accessorized; features
multiple-position grounding
universal standards, plus marked RU
provision with paint-free holes
• Self-grounding through frame assembly
• Extruded aluminum base angles for
enhanced rigidity and light weight
• UL and cUL listed
Hoffman MAXRACK (l. to r.) in 16, 10 and
6-inch depths; 32-inch depth also available
EQUIPMENT PROTECTION SOLUTIONS OPEN FRAME RACKS

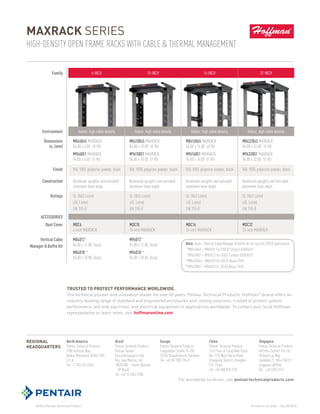

2. MAXRACK SERIES
HIGH-DENSITY OPEN FRAME RACKS WITH CABLE & THERMAL MANAGEMENT
Family 6-inch 10-inch 16-inch 32-inch
Environment Indoor, high cable density Indoor, high cable density Indoor, high cable density Indoor, high cable density
Dimensions M846B45 MAXRACK M8410B45 MAXRACK M8416B45 MAXRACK M8432B45 MAXRACK
in. (mm) 84.00 x 6.00 45 RU 84.00 x 10.00 45 RU 84.00 x 16.00 45 RU 84.00 x 32.00 45 RU
M966B51 MAXRACK M9610B51 MAXRACK M9616B51 MAXRACK M9632B51 MAXRACK
96.00 x 6.00 51 RU 96.00 x 10.00 51 RU 96.00 x 16.00 51 RU 96.00 x 32.00 51 RU
Finish RAL 9005 polyester powder; black RAL 9005 polyester powder; black RAL 9005 polyester powder; black RAL 9005 polyester powder; black
Construction Aluminum uprights and extruded Aluminum uprights and extruded Aluminum uprights and extruded Aluminum uprights and extruded
aluminum base angle aluminum base angle aluminum base angle aluminum base angle
Ratings UL 1863 Listed UL 1863 Listed UL 1863 Listed UL 1863 Listed
cUL Listed cUL Listed cUL Listed cUL Listed
EIA 310-D EIA 310-D EIA 310-D EIA 310-D
Accessories
Dust Cover MDC6 MDC10 MDC16 MDC32
6-inch MAXRACK 10-inch MAXRACK 16-inch MAXRACK 32-inch MAXRACK
Vertical Cable M84D12* M96D12*
84.00 x 12.00; black 96.00 x 12.00; black Note: Rack + Vertical Cable Manager & Baffle Kit for specific CISCO applications
Manager & Baffle Kit
*M8416B45 + M84D12 For CISCO Catalyst 6509/6513
M84D18** M96D18**
*M9616B51 + M96D12 For CISCO Catalyst 6509/6513
84.00 x 18.00; black 96.00 x 18.00; black
**M8432B45 + M84D18 For CISCO Nexus 7018
**M9632B51 + M96D18 For CISCO Nexus 7018
