Mastering WordPress
Custom Post Types
By Mike Schinkel – @mikeschinkel
For WordCamp Atlanta Feb 2012

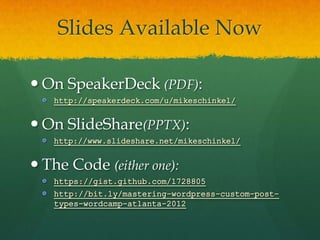

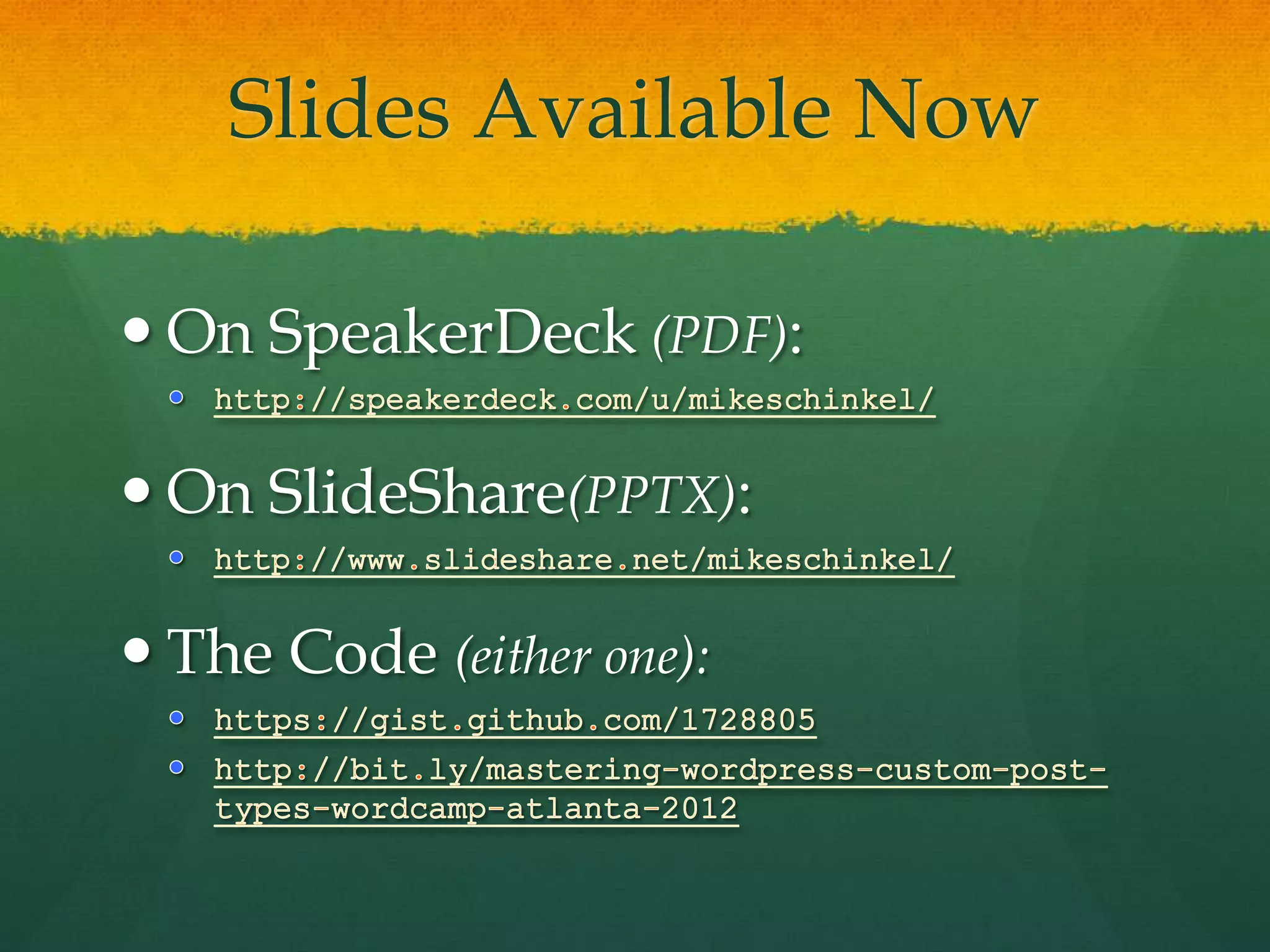

Slides Available Now

 On SpeakerDeck (PDF):

 On SlideShare(PPTX):

 The Code (either one):

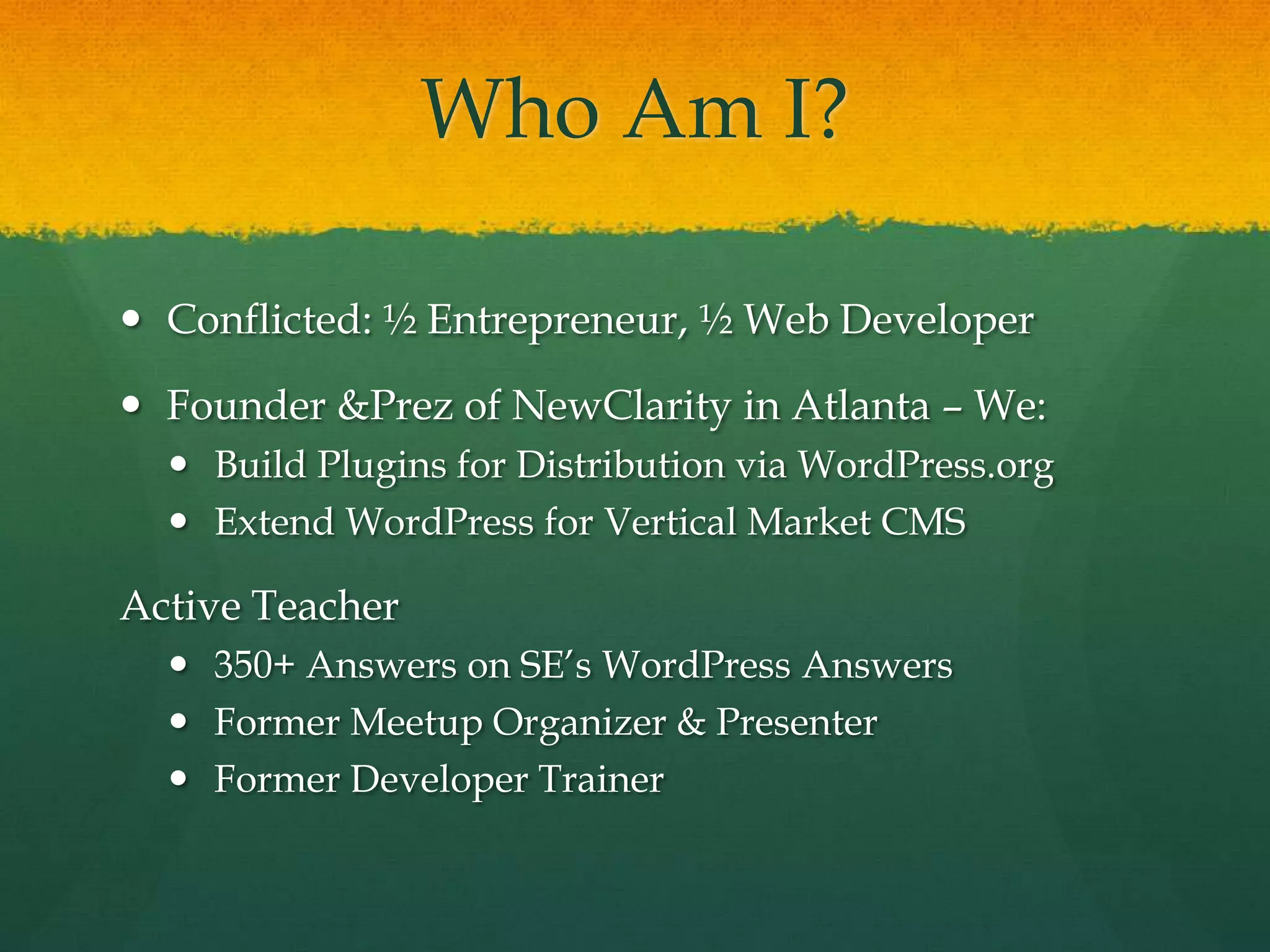

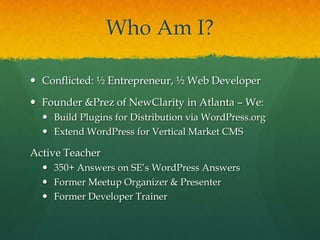

Who Am I?

 Conflicted: ½ Entrepreneur, ½ Web Developer

 Founder &Prez of NewClarity in Atlanta – We:
 Build Plugins for Distribution via WordPress.org
 Extend WordPress for Vertical Market CMS

Active Teacher
 350+ Answers on SE’s WordPress Answers
 Former Meetup Organizer & Presenter
 Former Developer Trainer

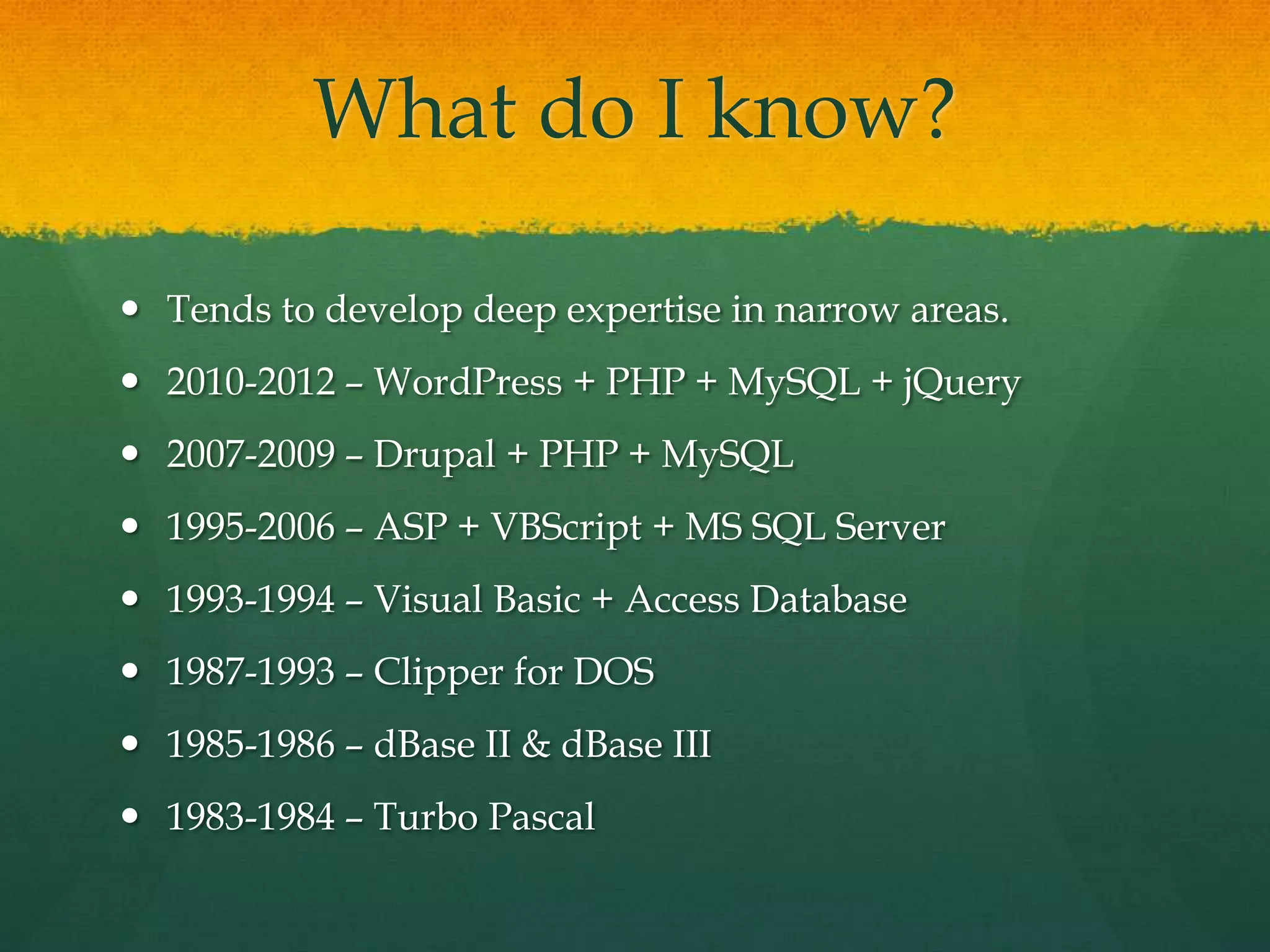

What do I know?

 Tends to develop deep expertise in narrow areas.
 2010-2012 – WordPress + PHP + MySQL + jQuery
 2007-2009 – Drupal + PHP + MySQL
 1995-2006 – ASP + VBScript + MS SQL Server
 1993-1994 – Visual Basic + Access Database
 1987-1993 – Clipper for DOS
 1985-1986 – dBase II & dBase III
 1983-1984 – Turbo Pascal

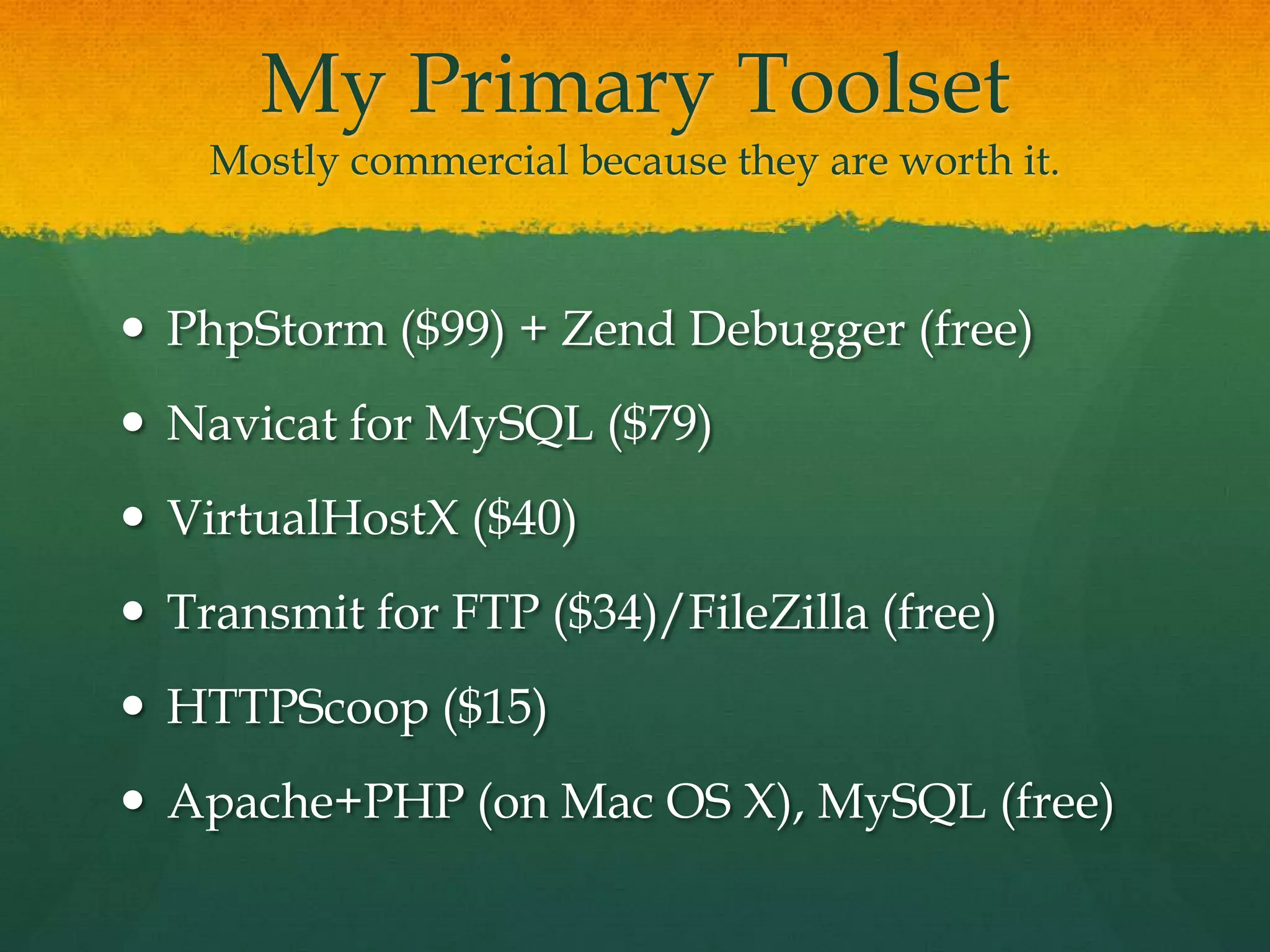

My Primary Toolset
Mostly commercial because they are worth it.

 PhpStorm ($99) + Zend Debugger (free)
 Navicat for MySQL ($79)
 VirtualHostX ($40)
 Transmit for FTP ($34)/FileZilla (free)
 HTTPScoop ($15)
 Apache+PHP (on Mac OS X), MySQL (free)

What We’ll Cover Today
Everything will be in PHP

1. Define a Custom Post Type in PHP
2. Custom Form ("MetaBox") + Custom Fields
3. Theme Template for Custom Post Type
4. Custom Columns in Admin Post List
5. Custom Taxonomies for any Post Type

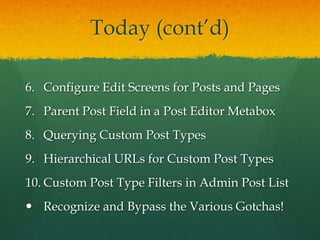

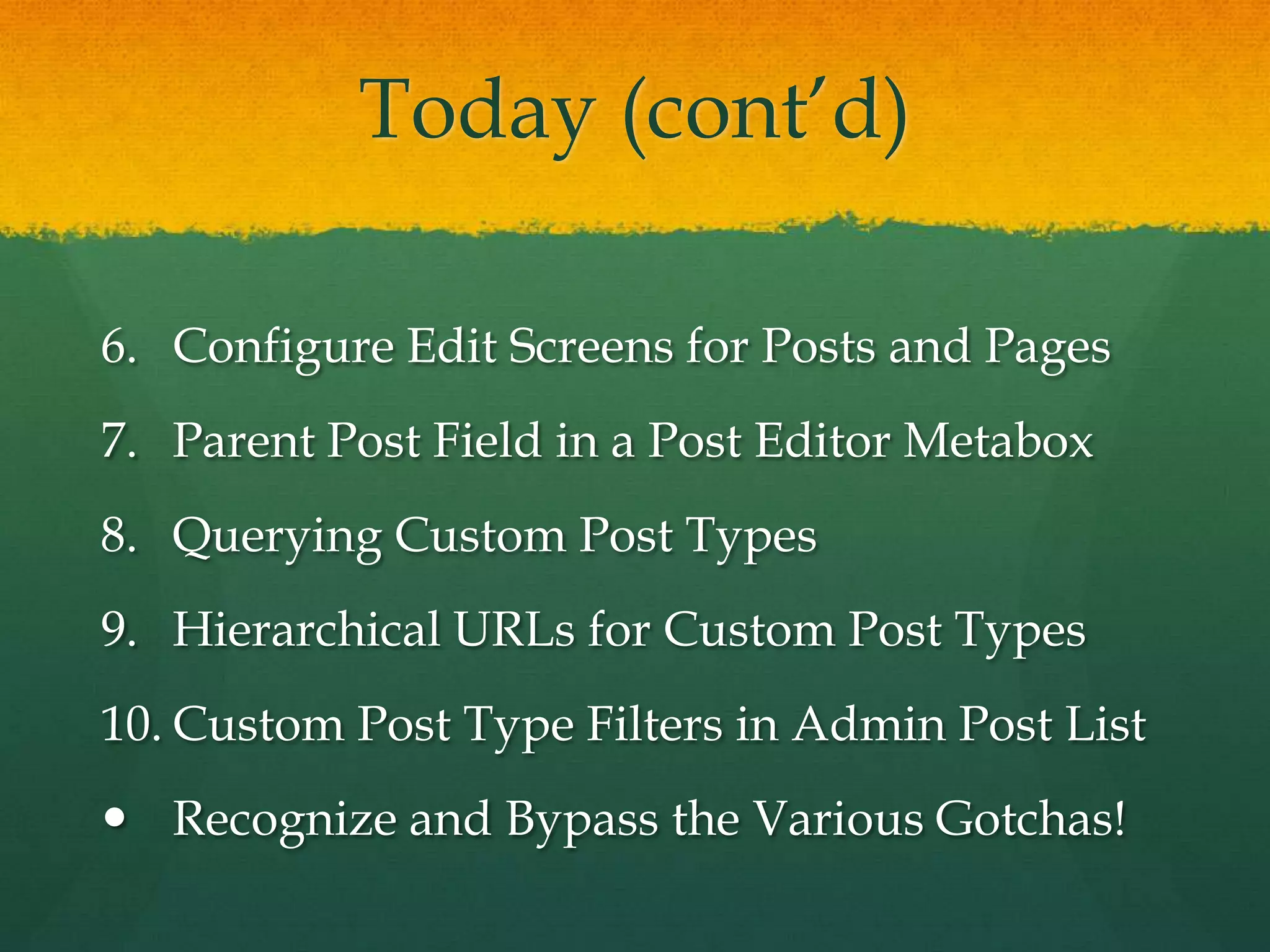

Today (cont’d)

6. Configure Edit Screens for Posts and Pages
7. Parent Post Field in a Post Editor Metabox
8. Querying Custom Post Types
9. Hierarchical URLs for Custom Post Types

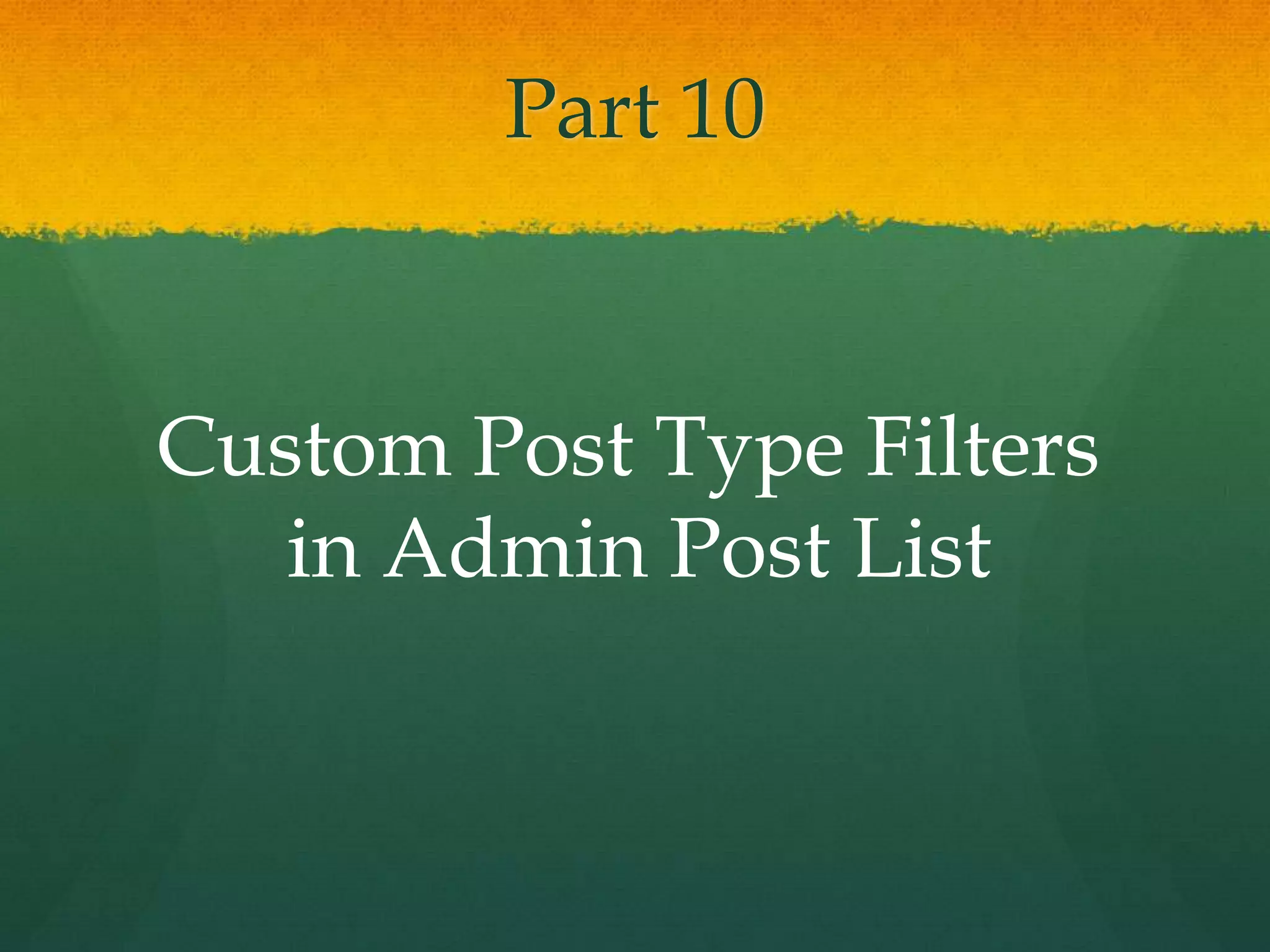

10. Custom Post Type Filters in Admin Post List
 Recognize and Bypass the Various Gotchas!

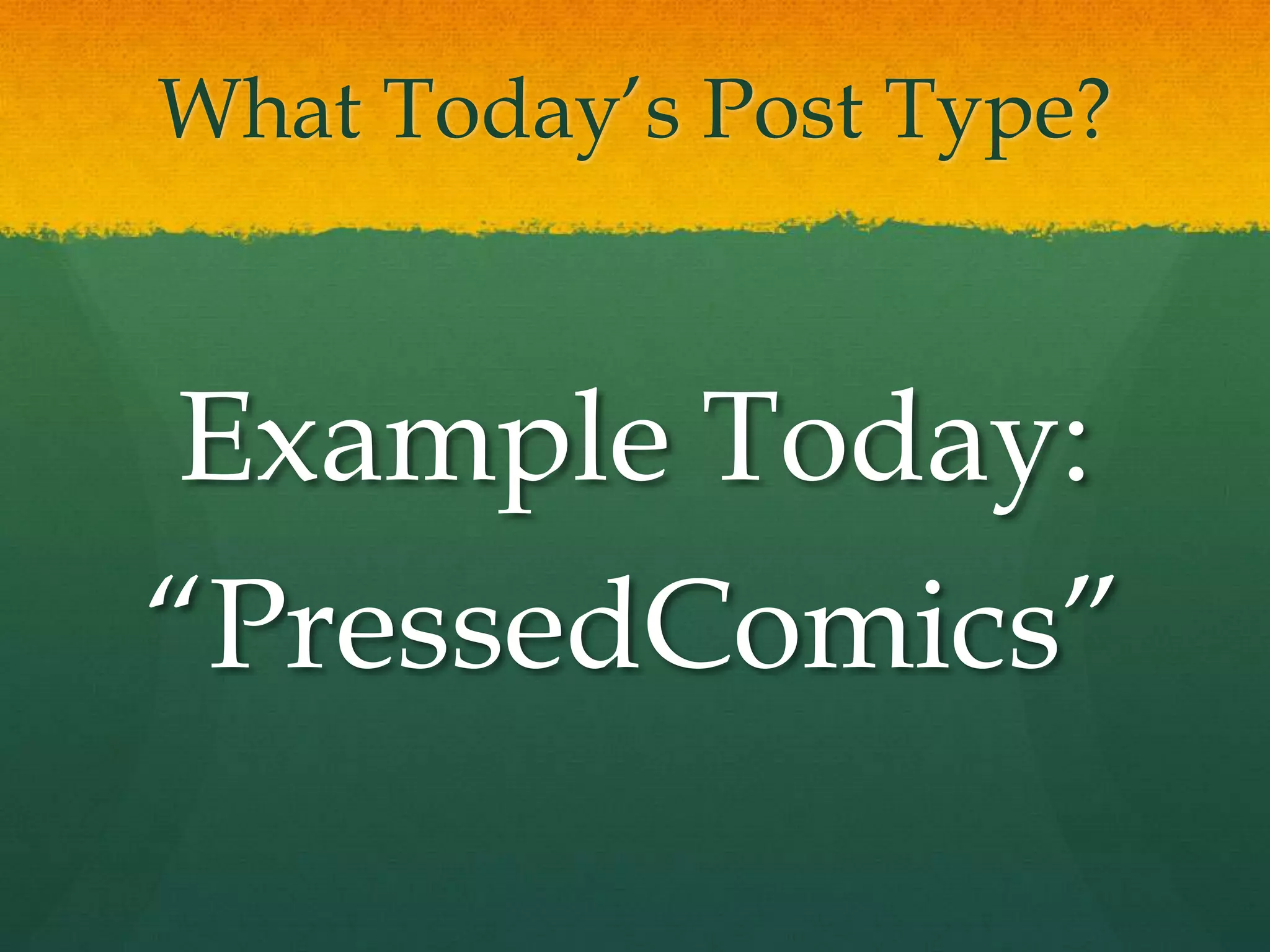

What Today’s Post Type?

Example Today:
“PressedComics”

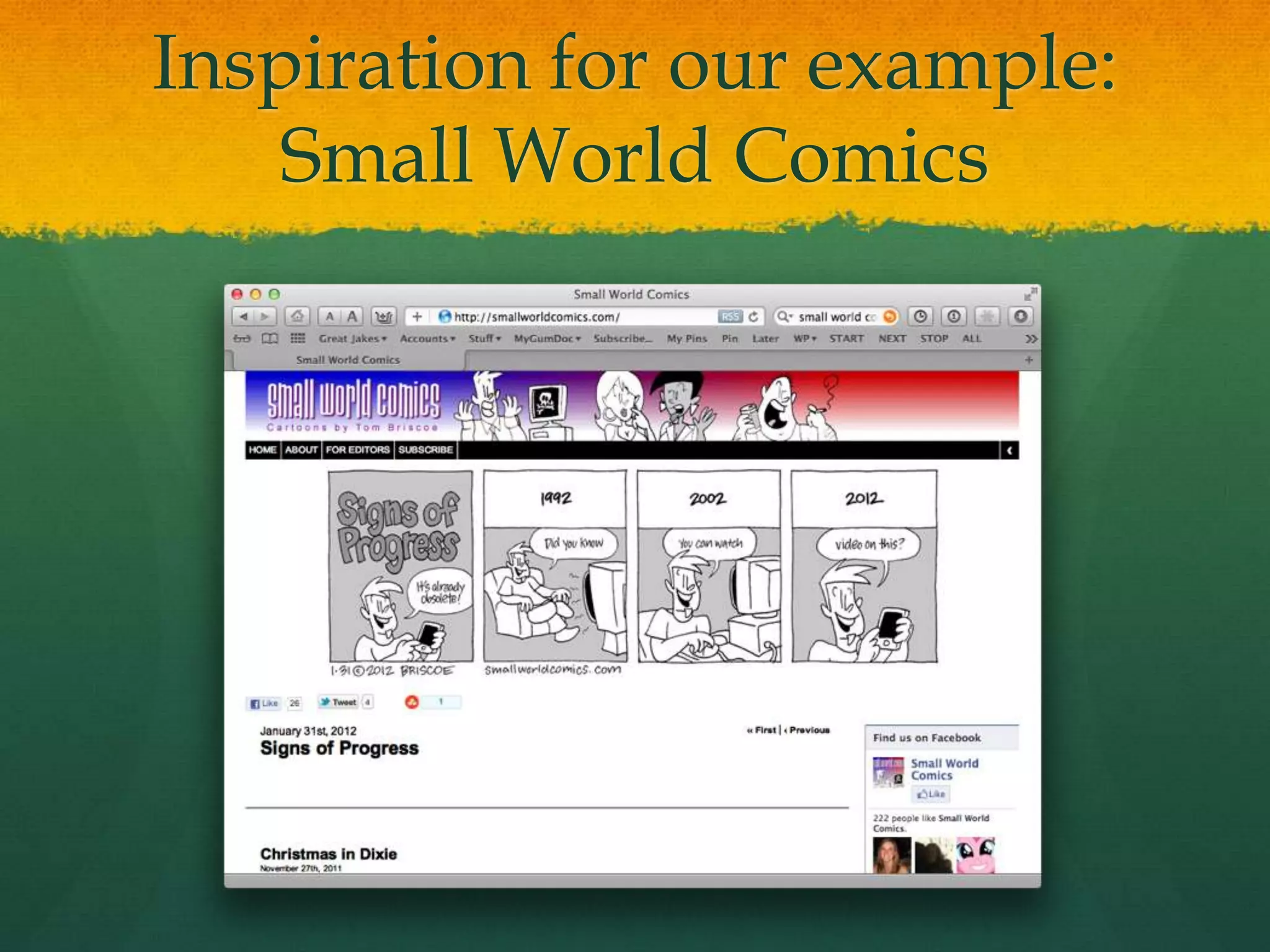

Inspiration for our example:
Small World Comics

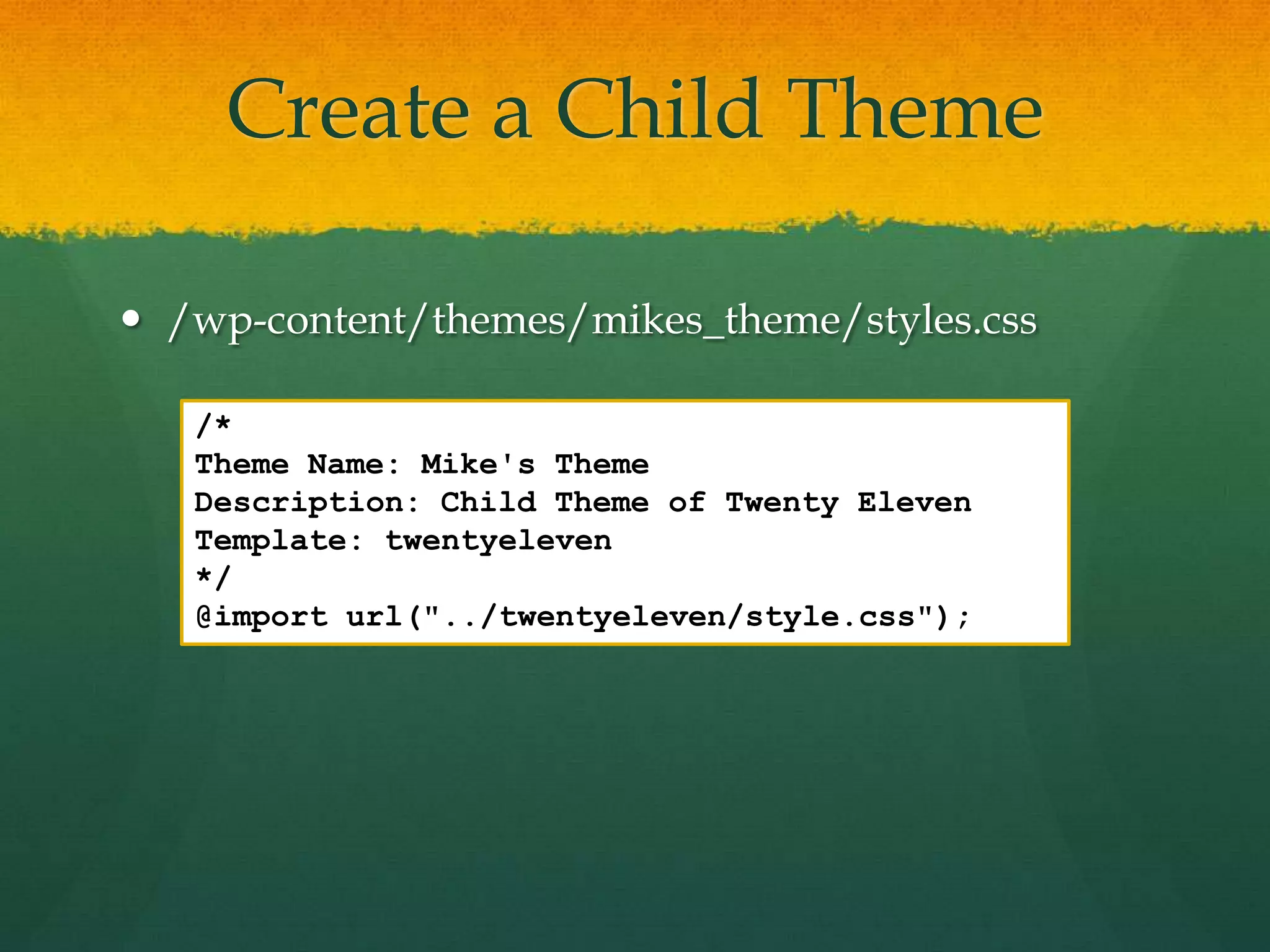

Create a Child Theme

 /wp-content/themes/mikes_theme/styles.css

/*
Theme Name: Mike's Theme
Description: Child Theme of Twenty Eleven
Template: twentyeleven
*/
@import url("../twentyeleven/style.css");

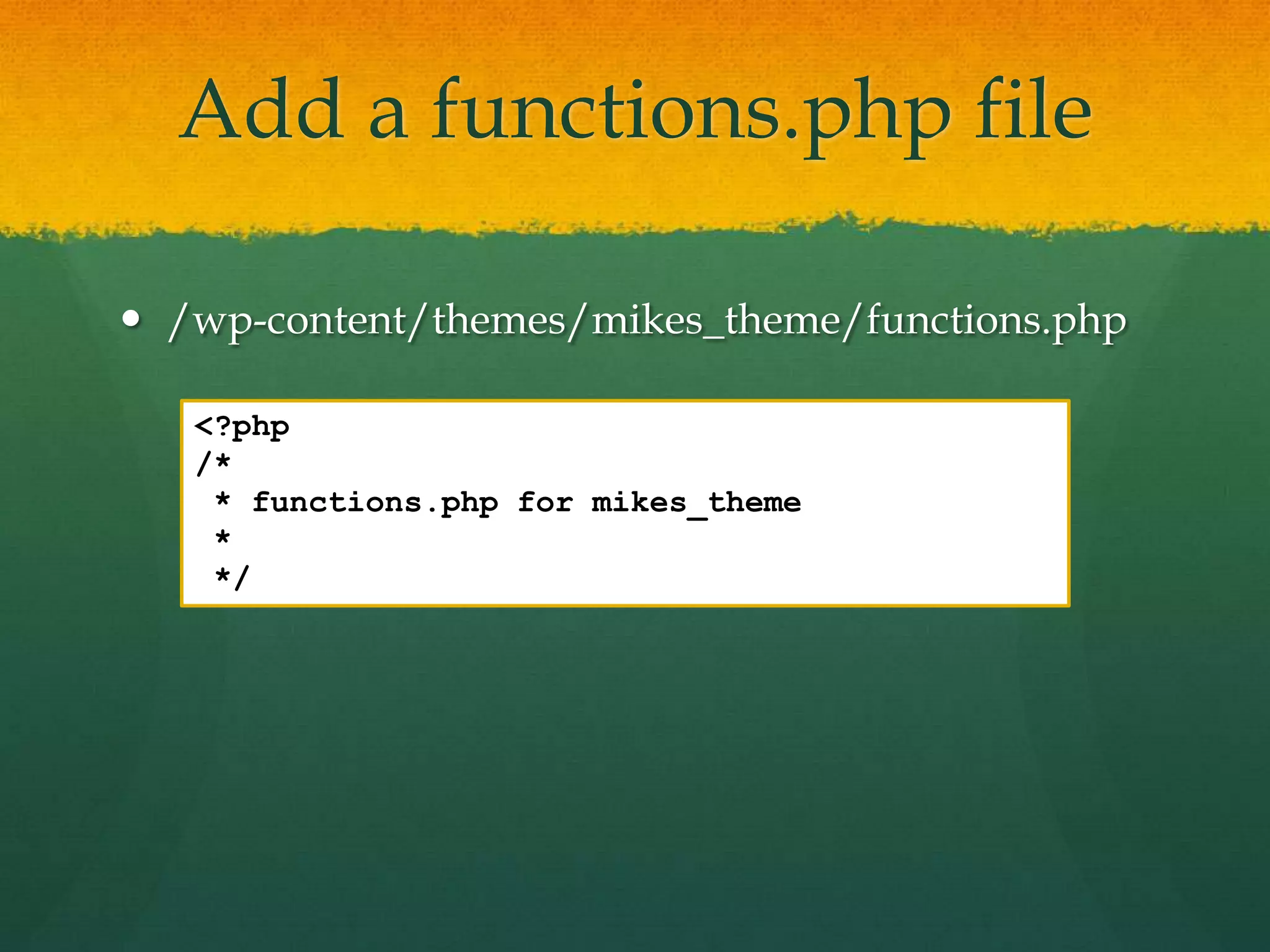

Add a functions.php file

 /wp-content/themes/mikes_theme/functions.php

<?php
/*
* functions.php for mikes_theme
*
*/

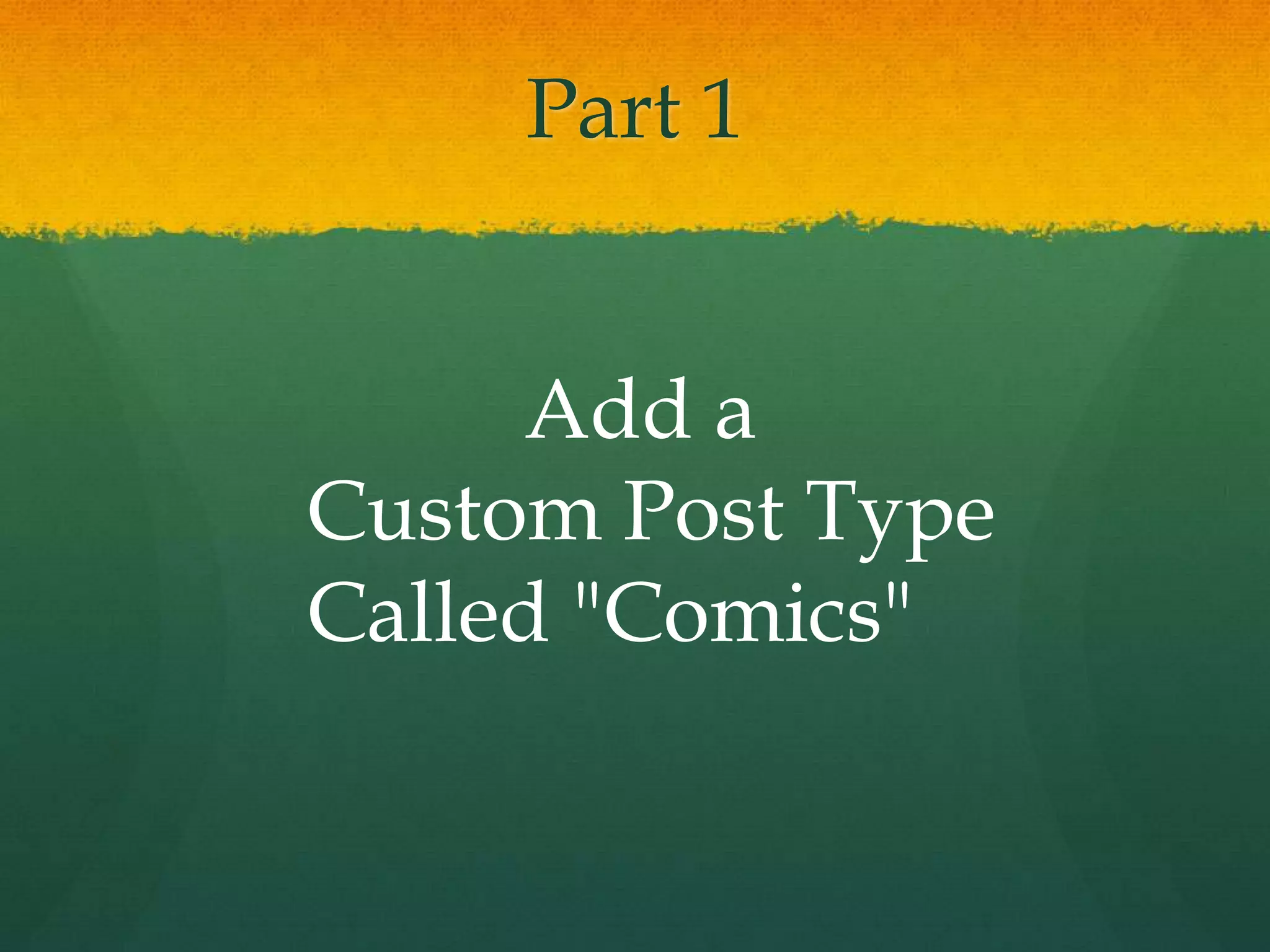

Part 1

Add a
Custom Post Type
Called "Comics"

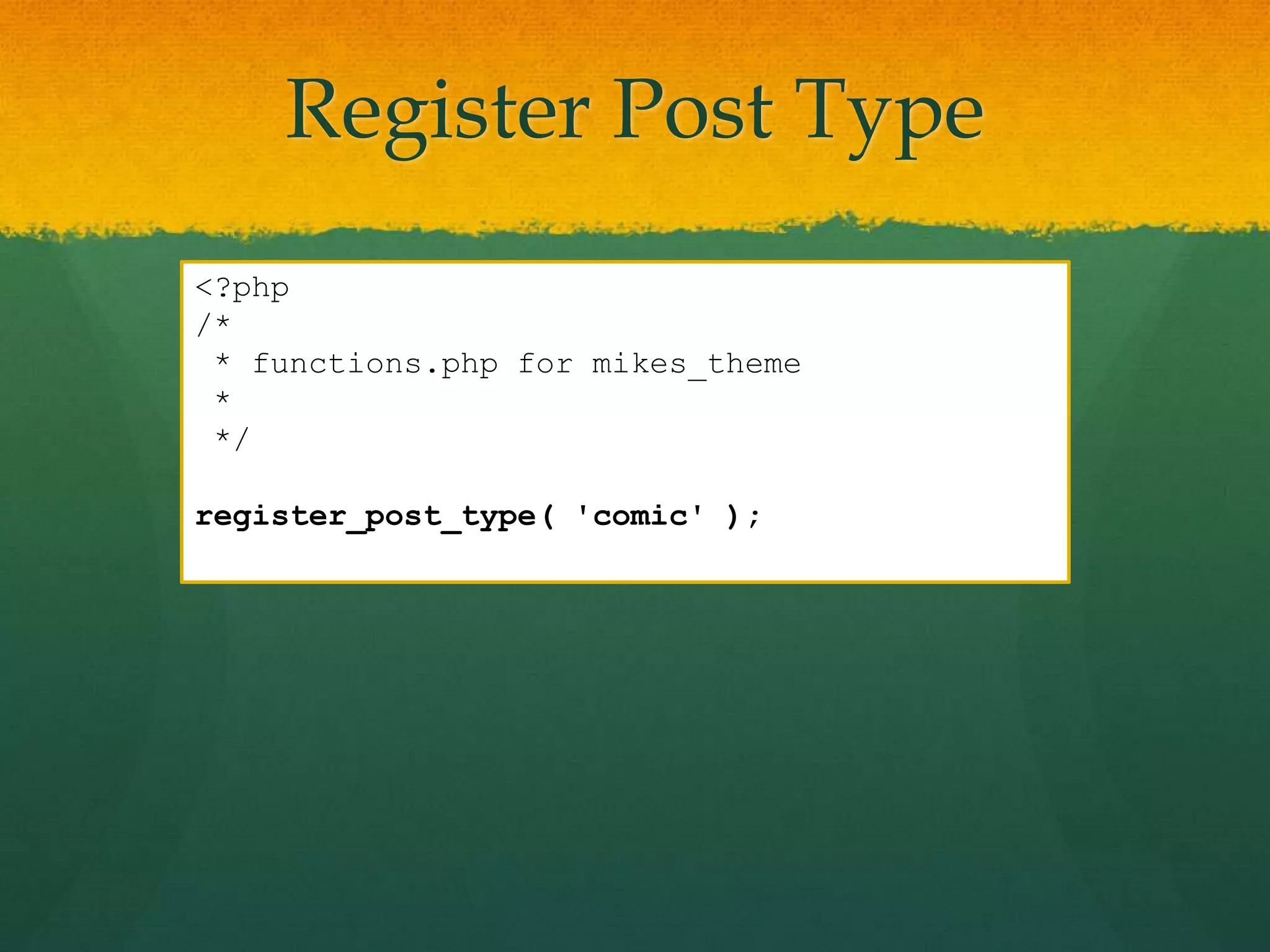

Register Post Type
<?php
/*
* functions.php for mikes_theme
*
*/

register_post_type( 'comic' );

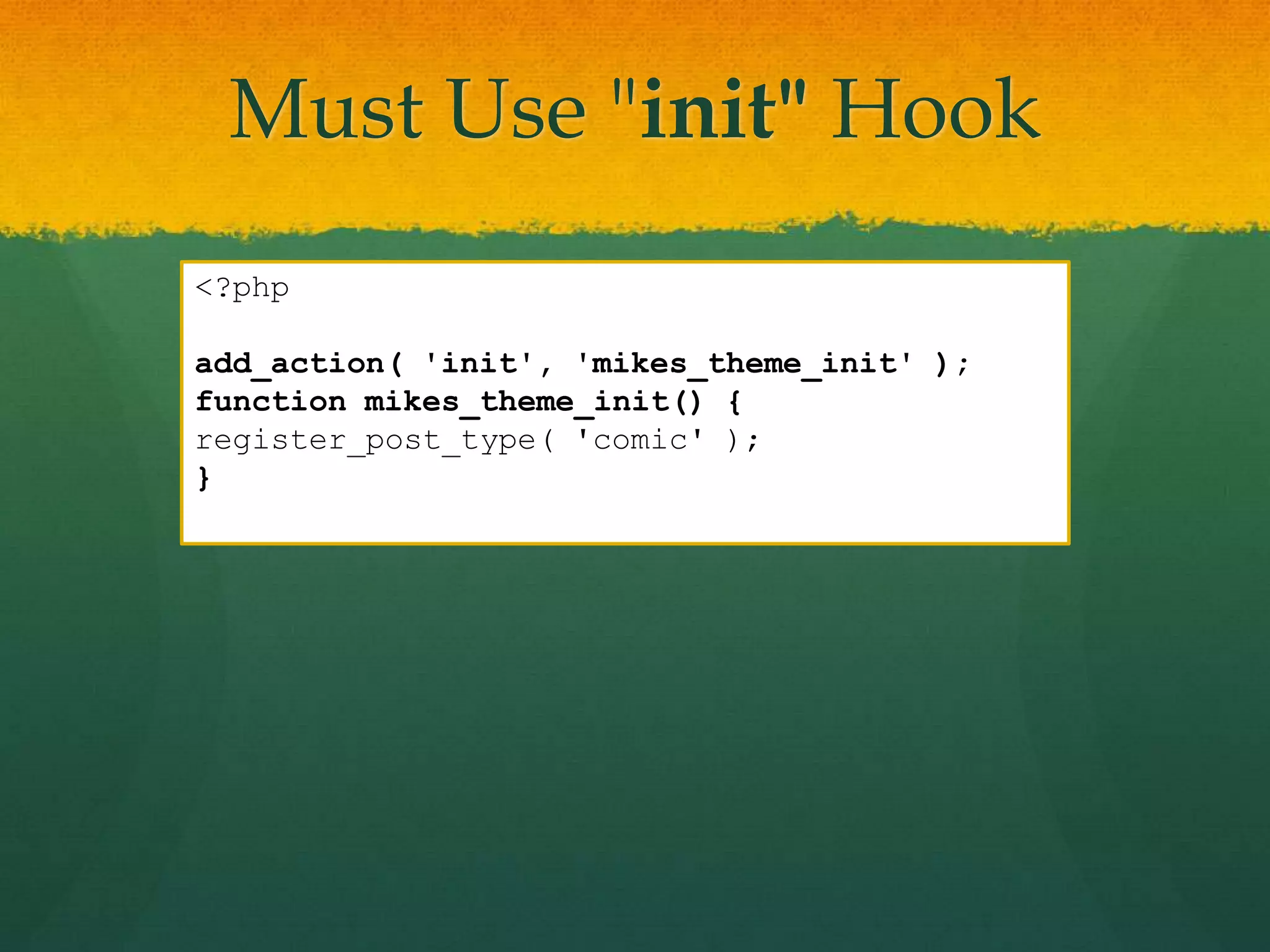

Must Use "init" Hook
<?php

add_action( 'init', 'mikes_theme_init' );
function mikes_theme_init() {
register_post_type( 'comic' );
}

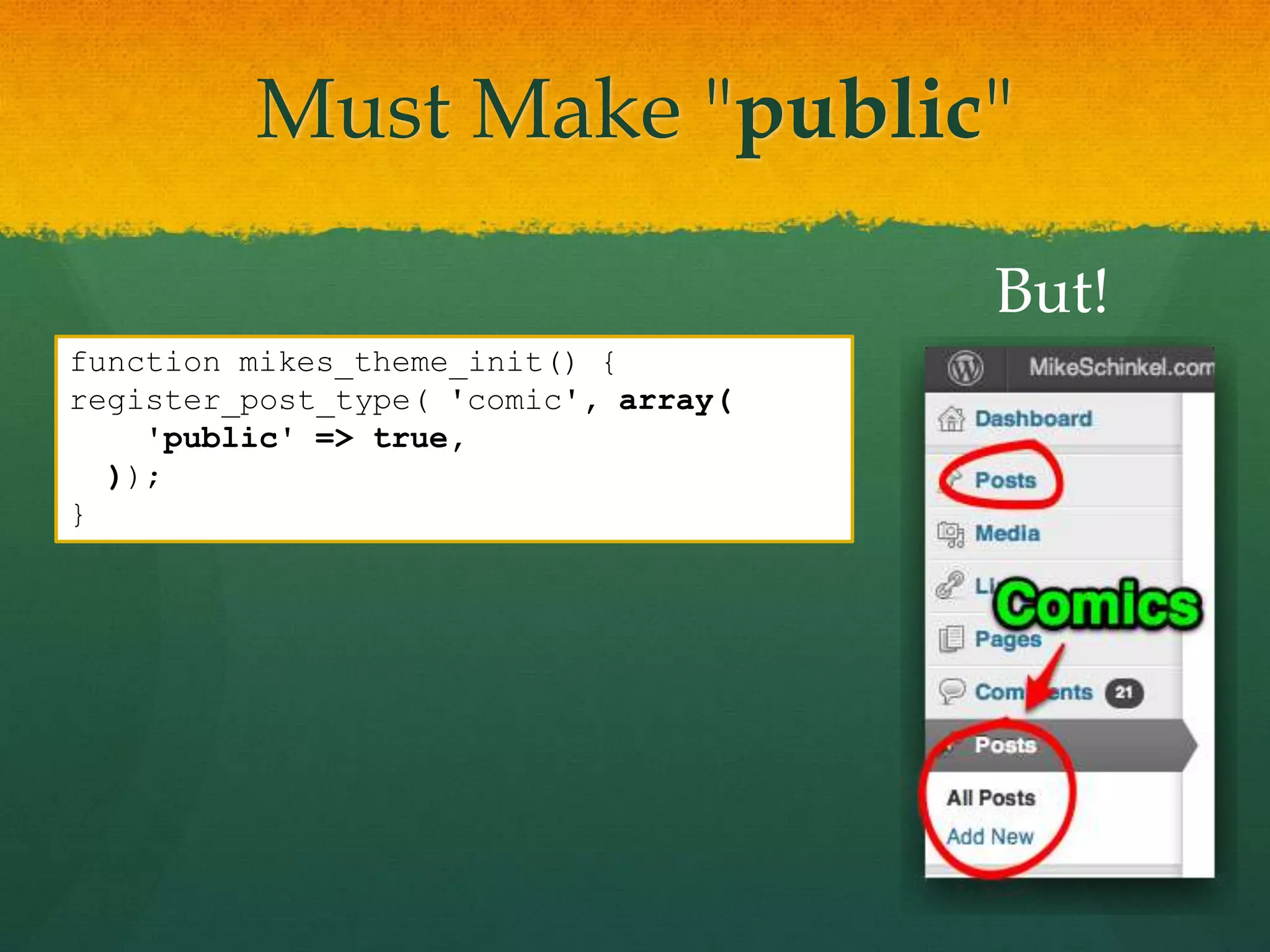

Must Make "public"

But!
register_post_type( 'comic', array(
'public' => true,
));
}

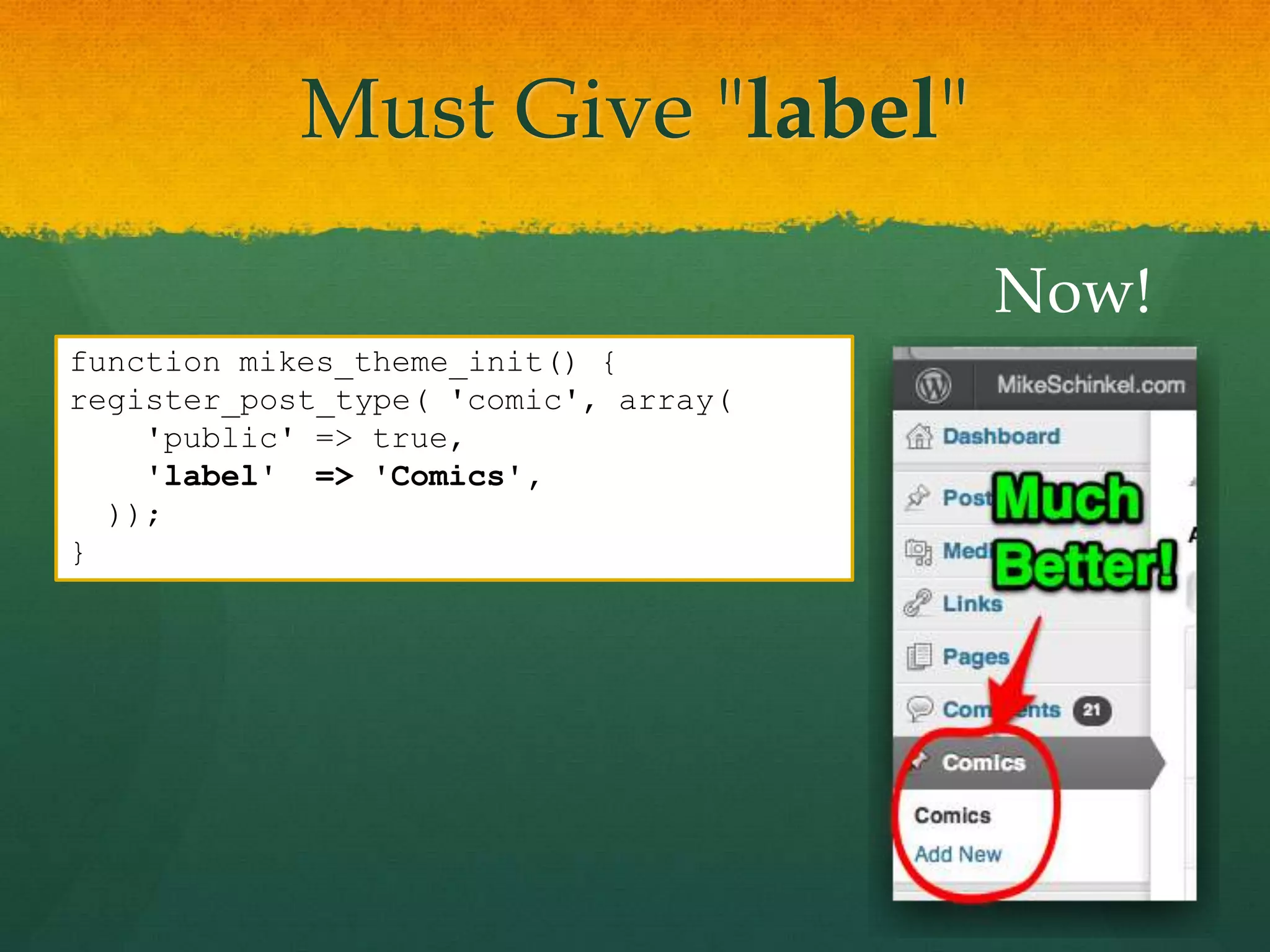

Must Give "label"

Now!
'public' => true,
'label' => 'Comics',
));
}

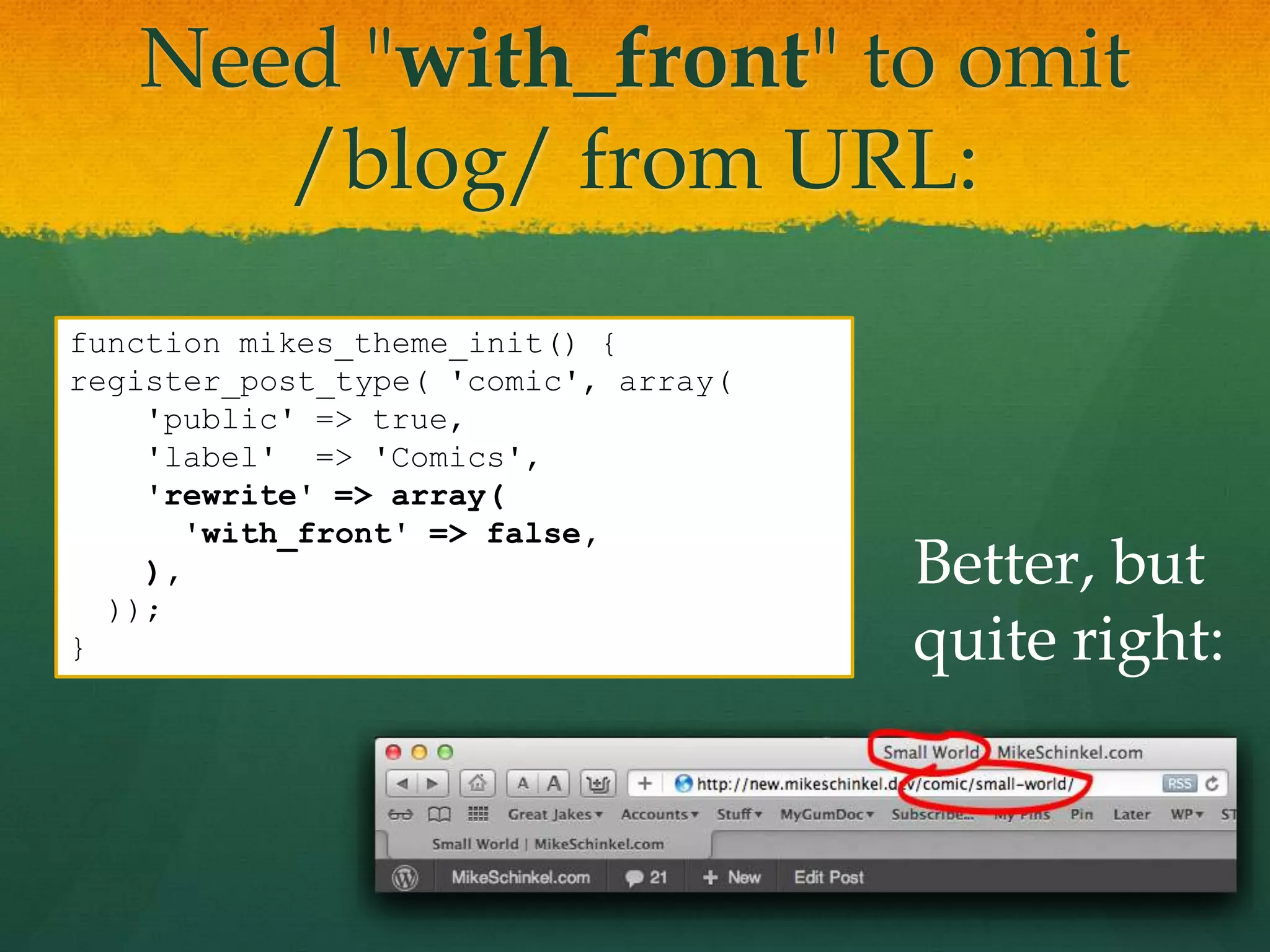

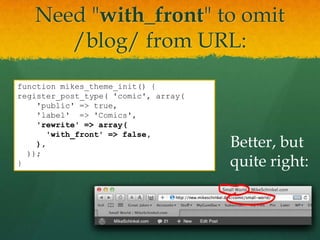

Need "with_front" to omit
/blog/ from URL:
'public' => true,
'rewrite' => array(
'with_front' => false,
), Better, but
));
} quite right:

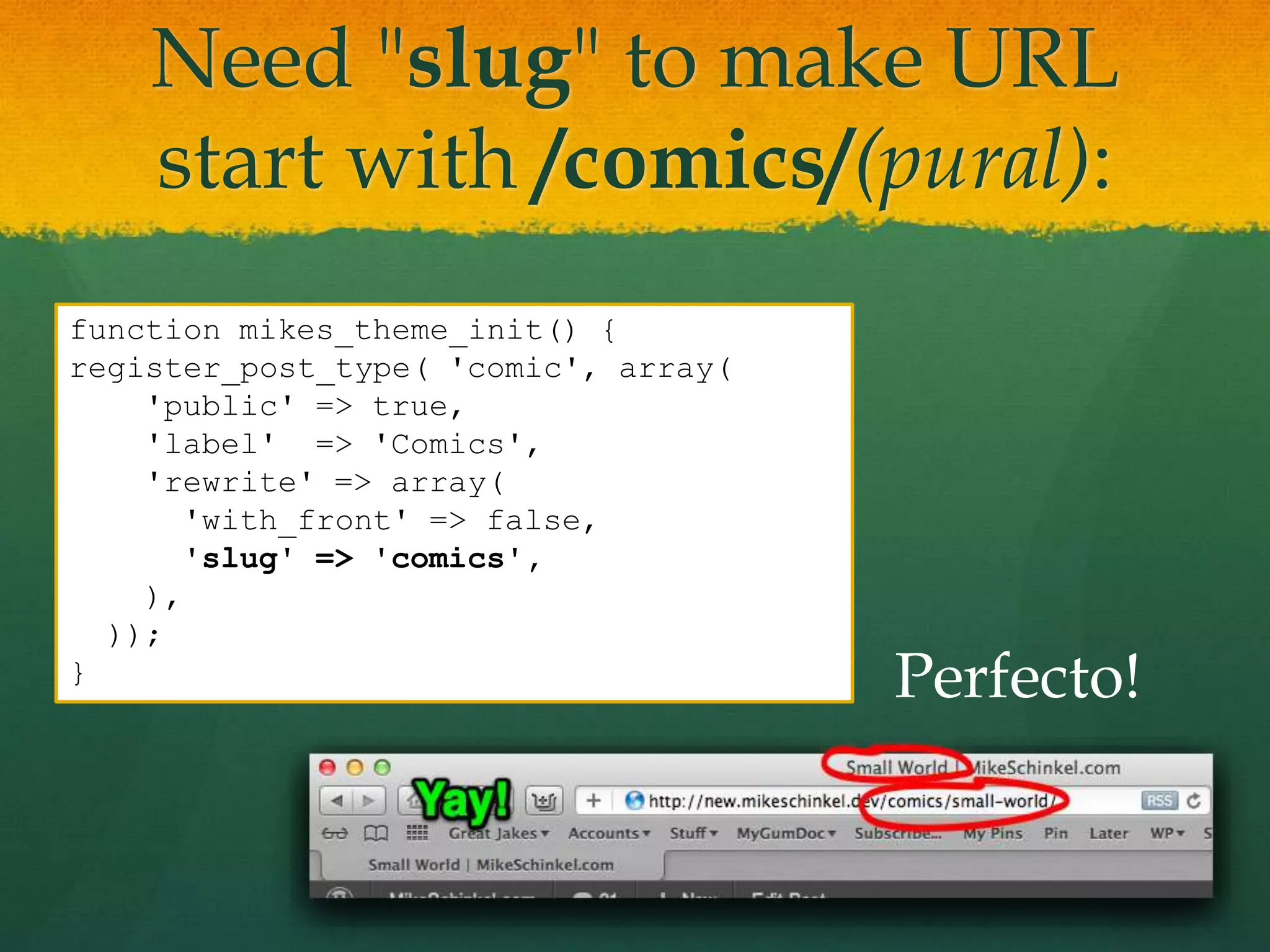

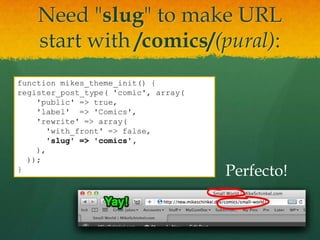

Need "slug" to make URL
start with /comics/(pural):
'public' => true,
'rewrite' => array(
'with_front' => false,
'slug' => 'comics',
),
));
} Perfecto!

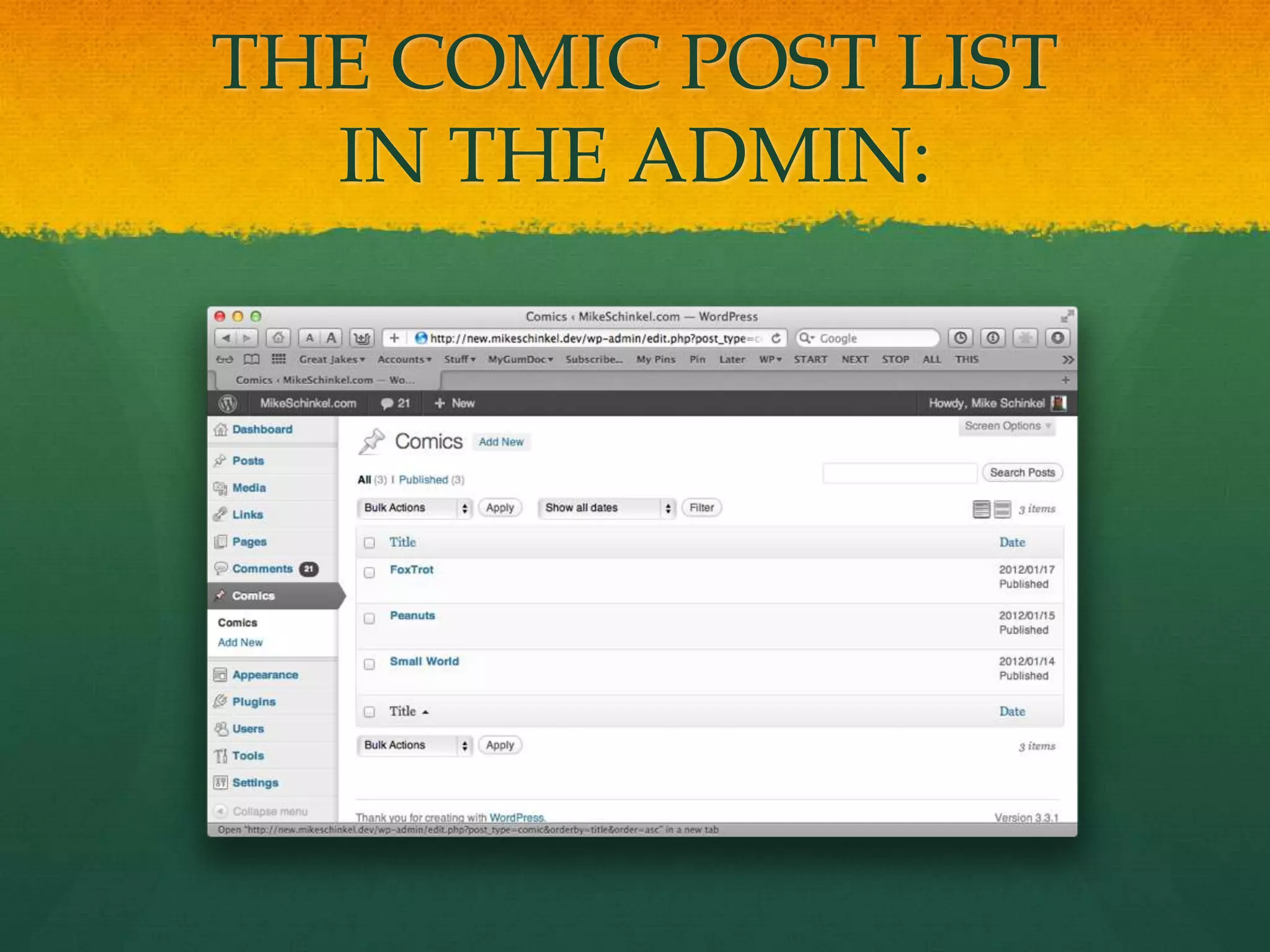

THE COMIC POST LIST
IN THE ADMIN:

Part 2

Add a
Custom Form
(a "Metabox")
and
Custom Fields

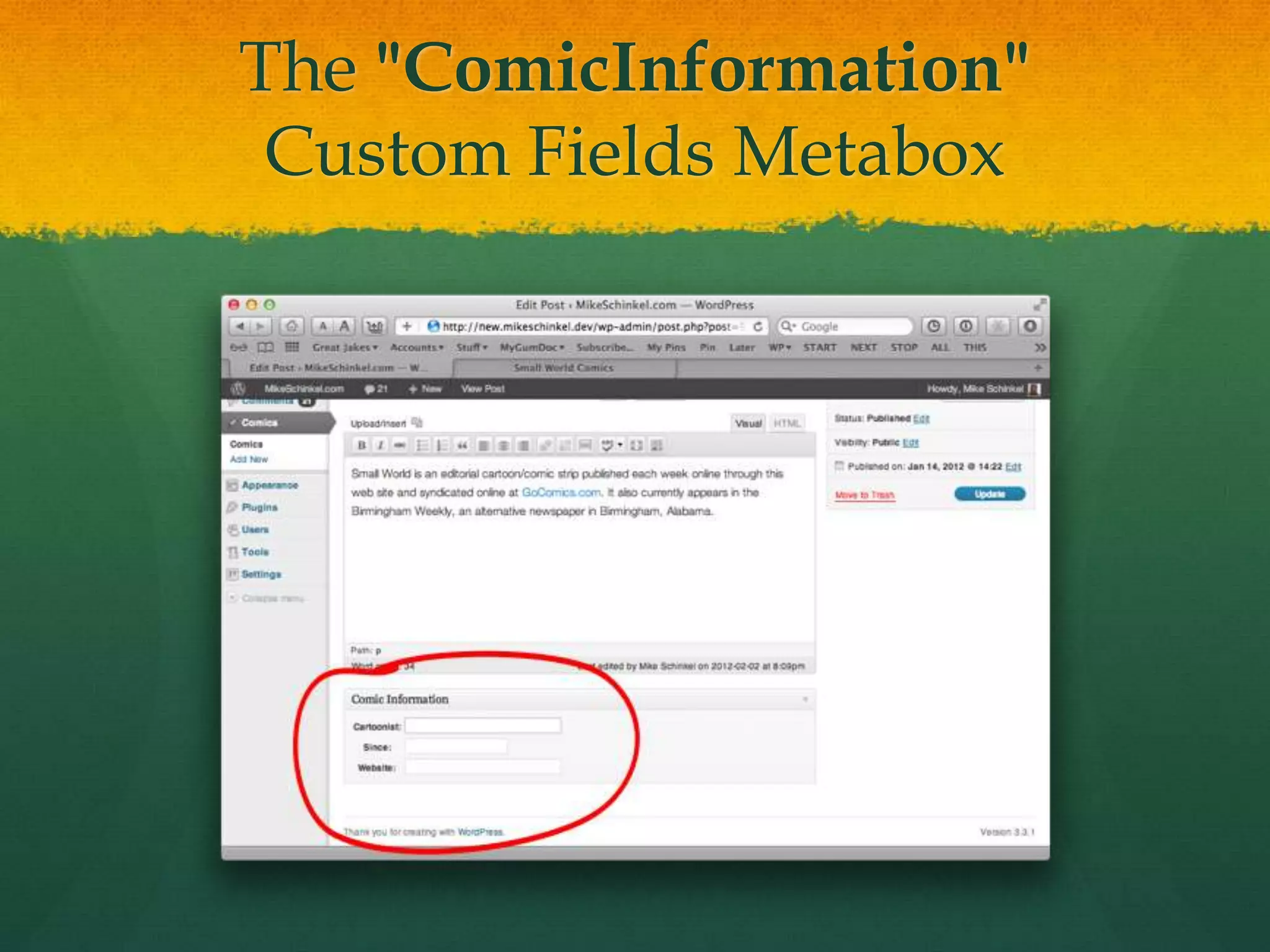

The "ComicInformation"
Custom Fields Metabox

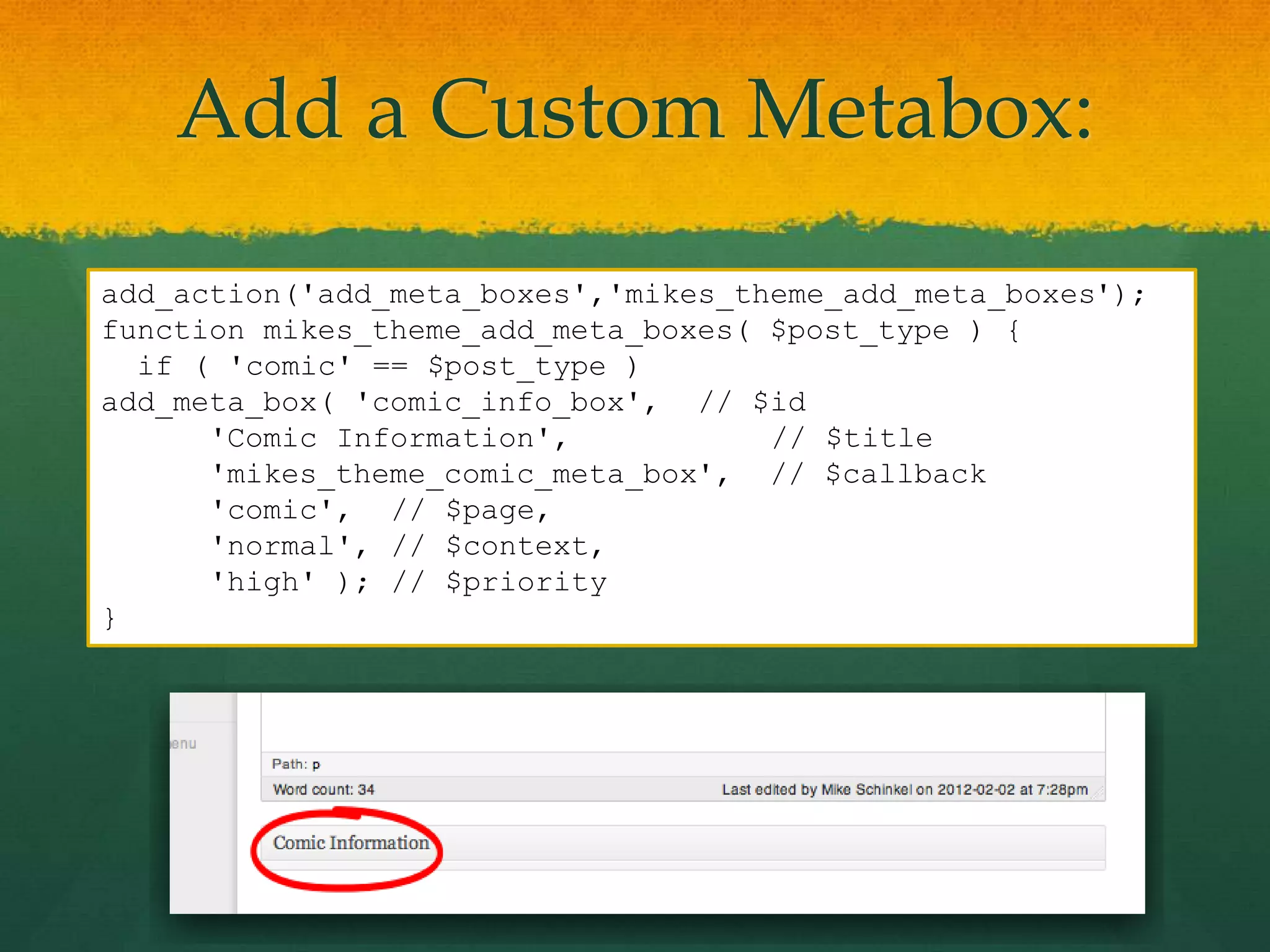

Add a Custom Metabox:
add_action('add_meta_boxes','mikes_theme_add_meta_boxes');
function mikes_theme_add_meta_boxes( $post_type ) {
if ( 'comic' == $post_type )
add_meta_box( 'comic_info_box', // $id
'Comic Information', // $title
'mikes_theme_comic_meta_box', // $callback
'comic', // $page,
'normal', // $context,
'high' ); // $priority
}

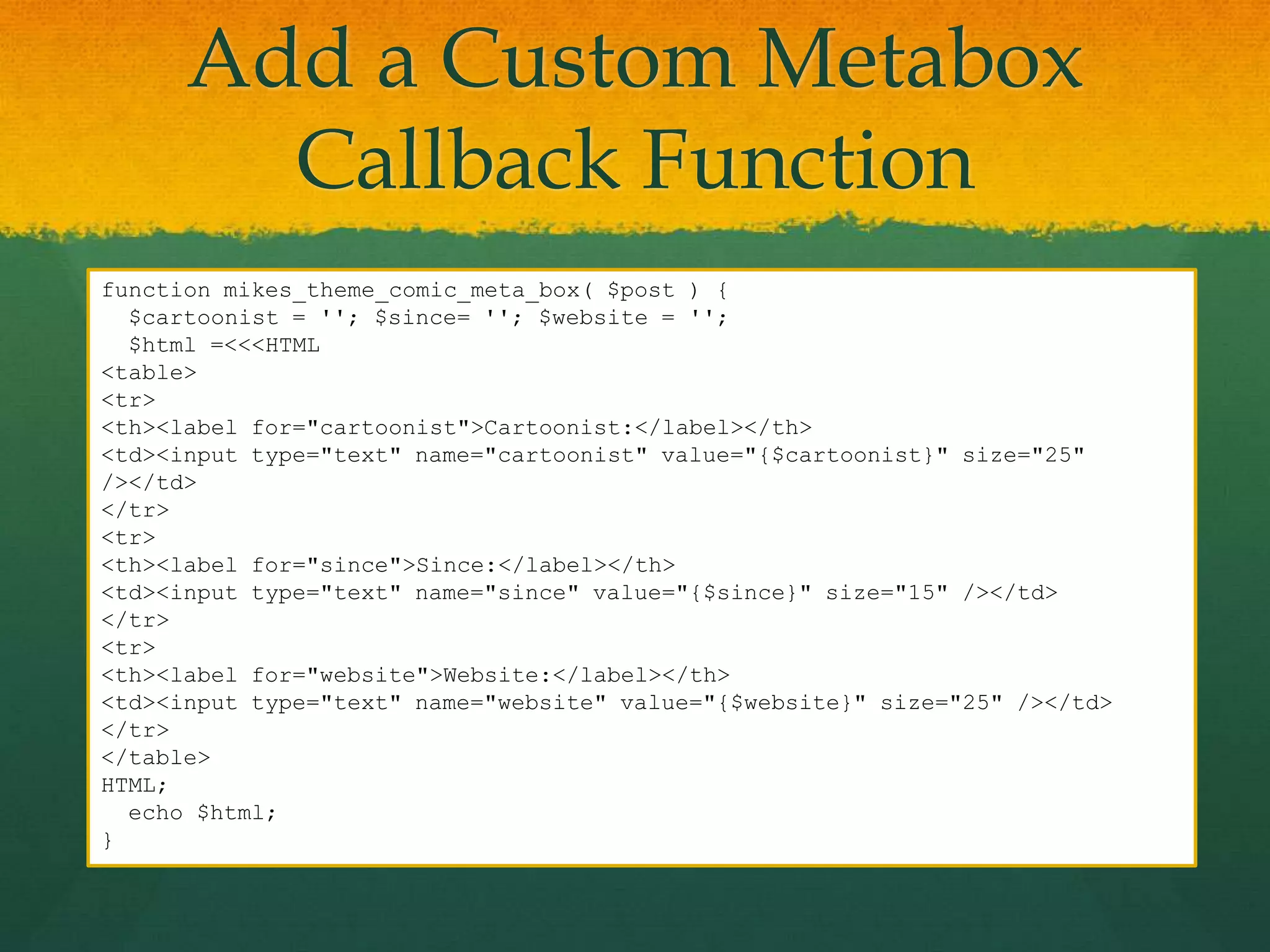

Add a Custom Metabox
Callback Function
function mikes_theme_comic_meta_box( $post ) {
$cartoonist = ''; $since= ''; $website = '';
$html =<<<HTML
<table>
<tr>
<th><label for="cartoonist">Cartoonist:</label></th>
<td><input type="text" name="cartoonist" value="{$cartoonist}" size="25"
/></td>
</tr>
<tr>
<th><label for="since">Since:</label></th>
<td><input type="text" name="since" value="{$since}" size="15" /></td>
</tr>
<tr>
<th><label for="website">Website:</label></th>
<td><input type="text" name="website" value="{$website}" size="25" /></td>
</tr>
</table>
HTML;
echo $html;
}

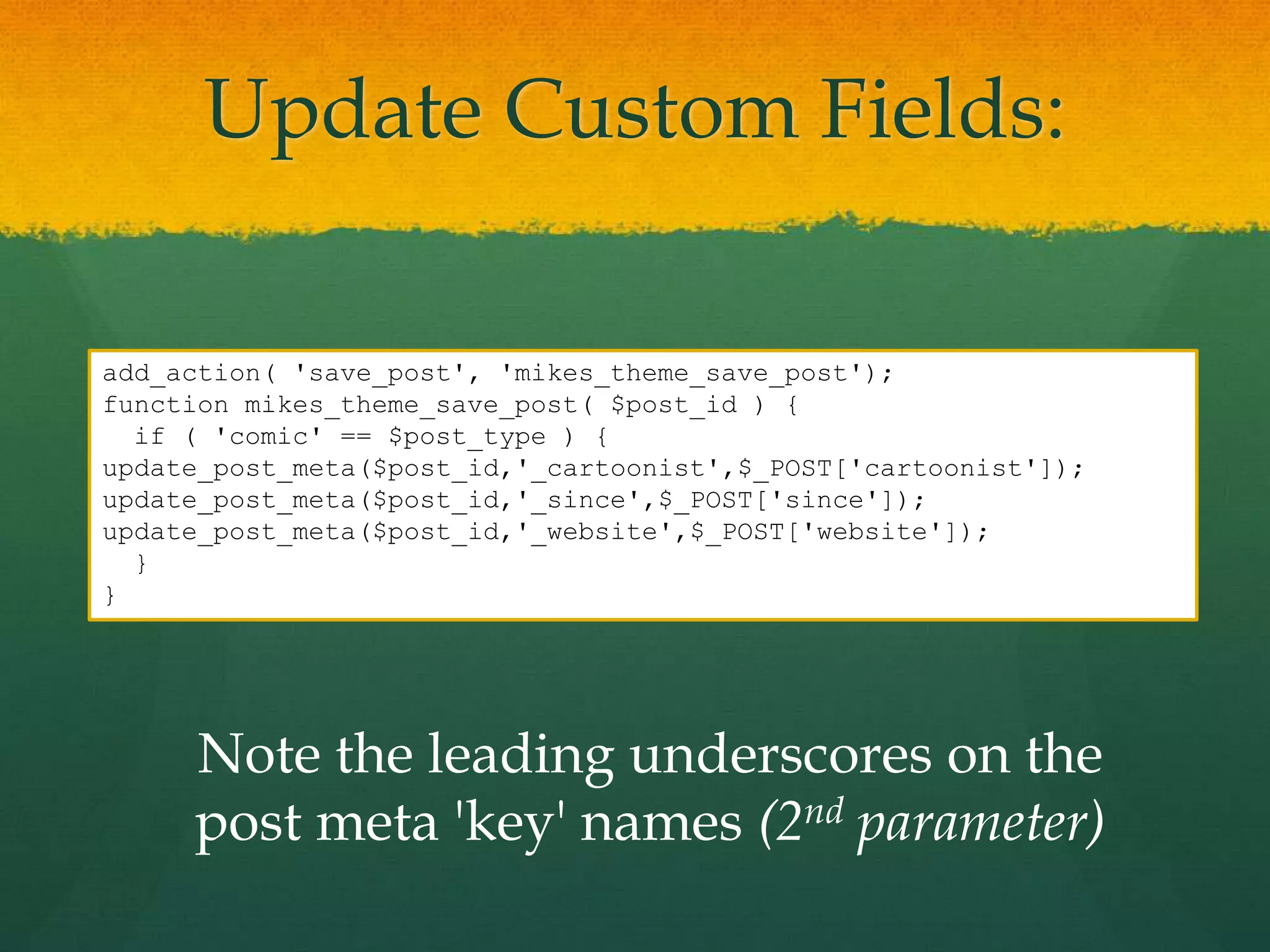

Update Custom Fields:

add_action( 'save_post', 'mikes_theme_save_post');
function mikes_theme_save_post( $post_id ) {
if ( 'comic' == $post_type ) {
update_post_meta($post_id,'_cartoonist',$_POST['cartoonist']);
update_post_meta($post_id,'_since',$_POST['since']);
update_post_meta($post_id,'_website',$_POST['website']);
}
}

Note the leading underscores on the
post meta 'key' names (2nd parameter)

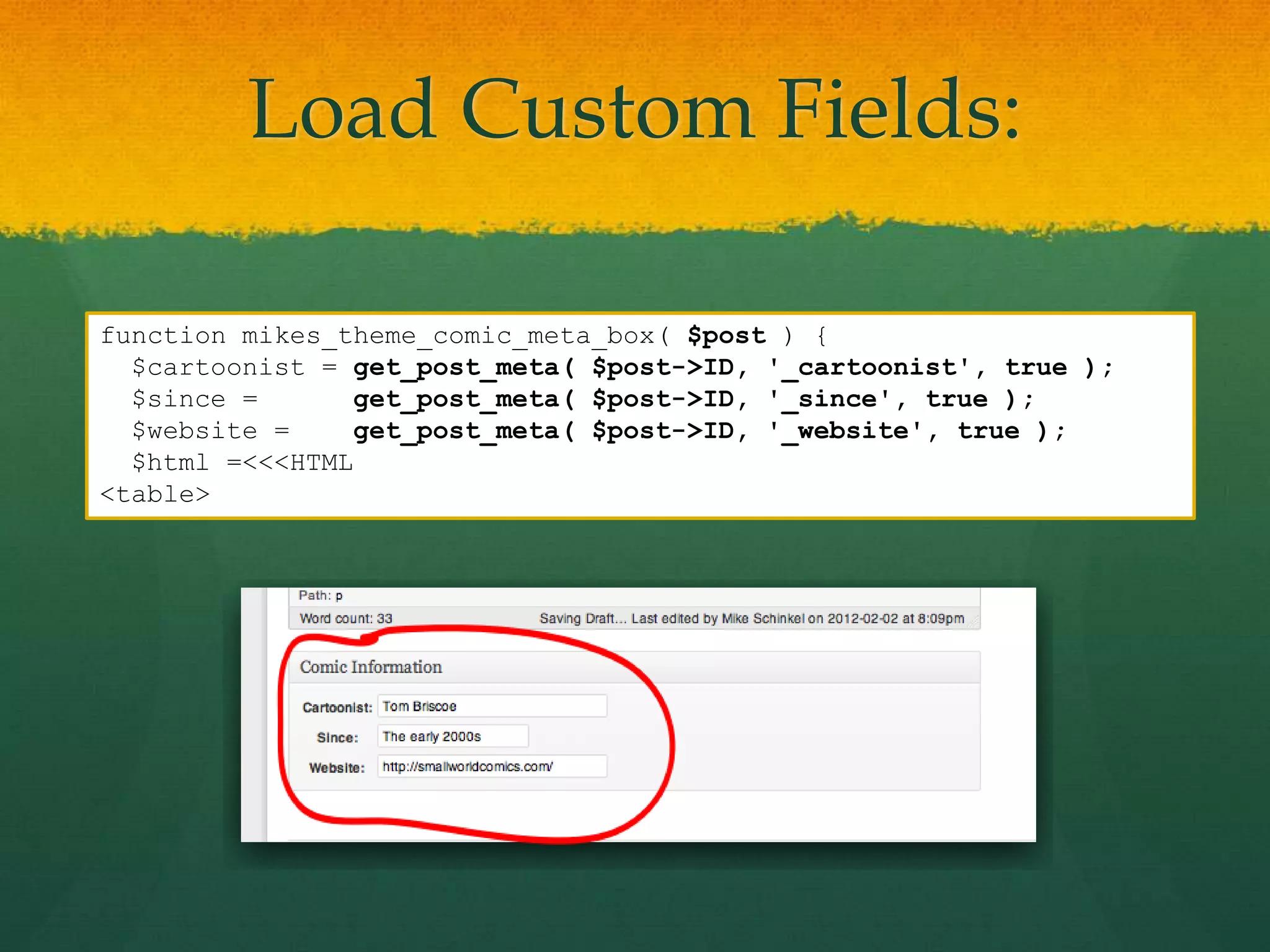

Load Custom Fields:

function mikes_theme_comic_meta_box( $post ) {
$cartoonist = get_post_meta( $post->ID, '_cartoonist', true );
$since = get_post_meta( $post->ID, '_since', true );
$website = get_post_meta( $post->ID, '_website', true );
$html =<<<HTML
<table>

Part 3

Create a
Theme Template File
for a
Custom Post Type

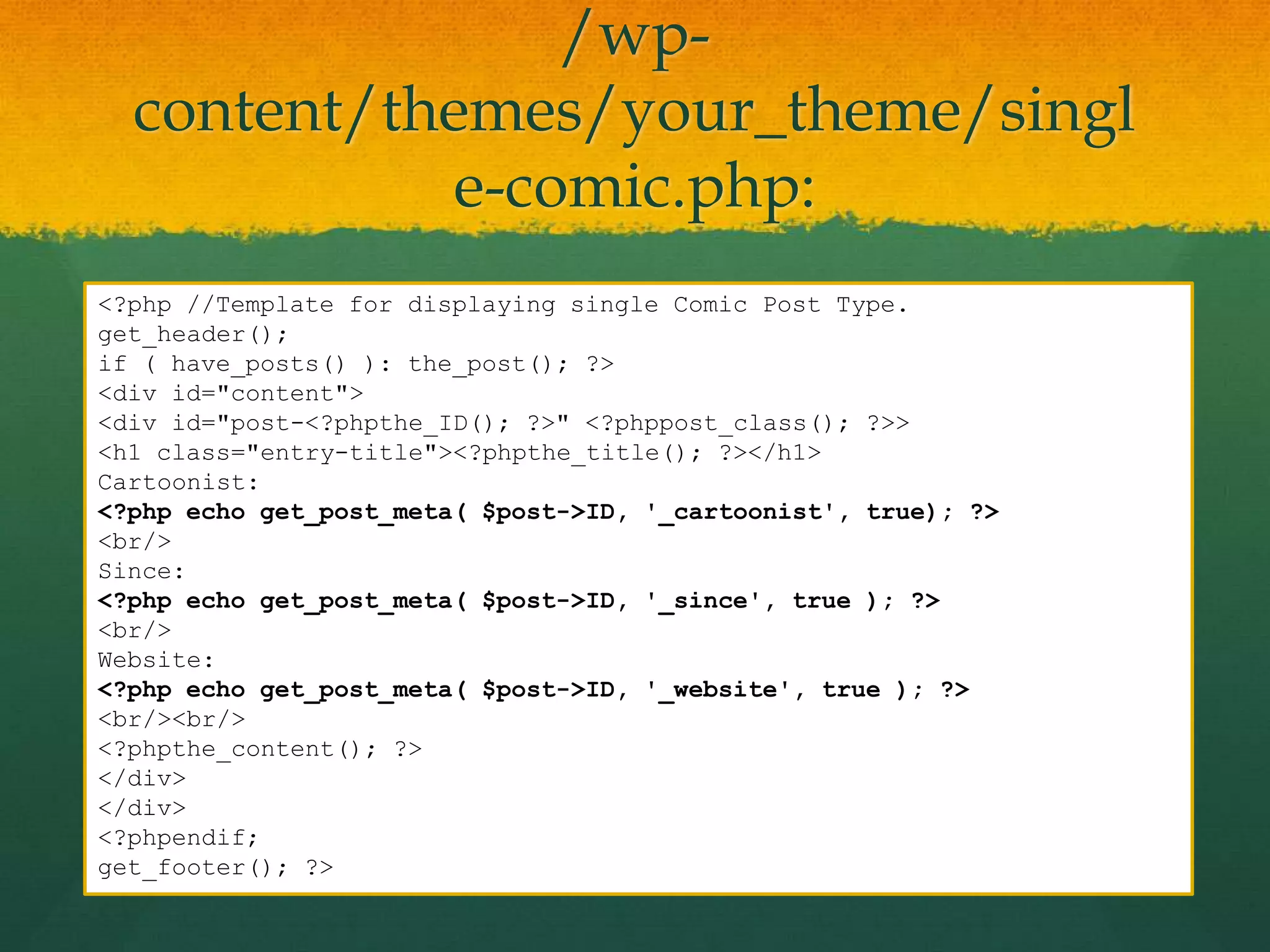

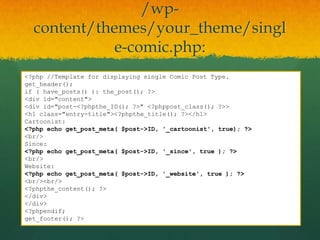

Simple Example Theme
Template for Custom Post Type

/wp-
content/themes/your_theme/singl
e-comic.php:
<?php //Template for displaying single Comic Post Type.
get_header();
if ( have_posts() ): the_post(); ?>
<div id="content">
<div id="post-<?phpthe_ID(); ?>" <?phppost_class(); ?>>
<h1 class="entry-title"><?phpthe_title(); ?></h1>
Cartoonist:
<?php echo get_post_meta( $post->ID, '_cartoonist', true); ?>
<br/>
Since:
<?php echo get_post_meta( $post->ID, '_since', true ); ?>
<br/>
Website:
<?php echo get_post_meta( $post->ID, '_website', true ); ?>
<br/><br/>
<?phpthe_content(); ?>
</div>
</div>
<?phpendif;
get_footer(); ?>

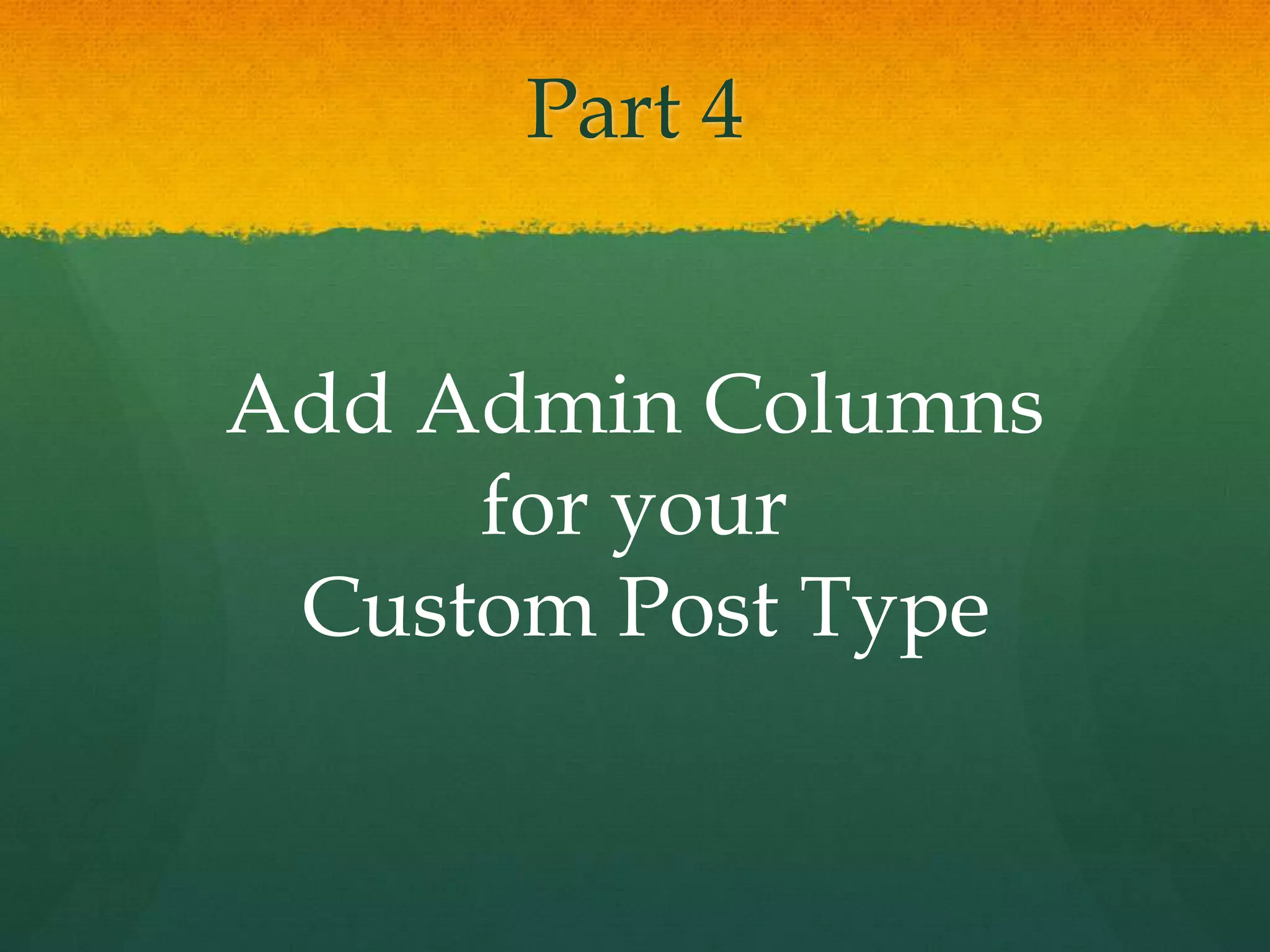

Part 4

Add Admin Columns
for your
Custom Post Type

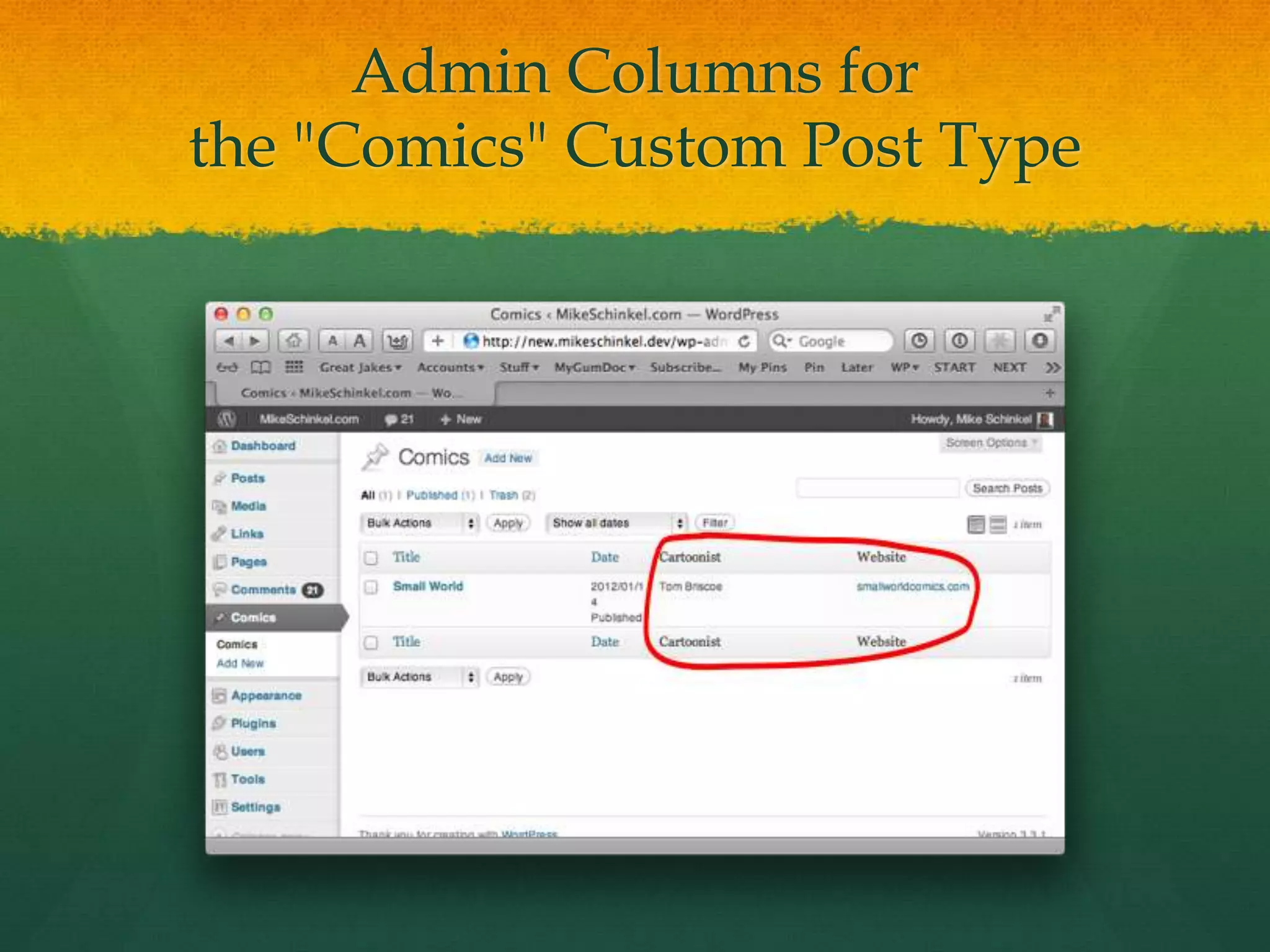

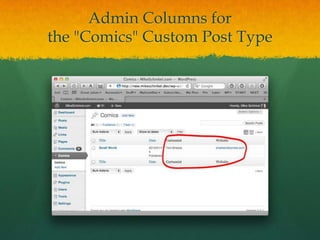

Admin Columns for
the "Comics" Custom Post Type

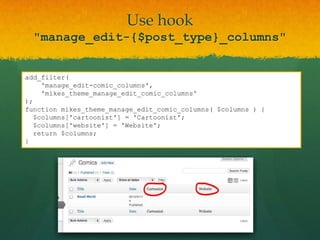

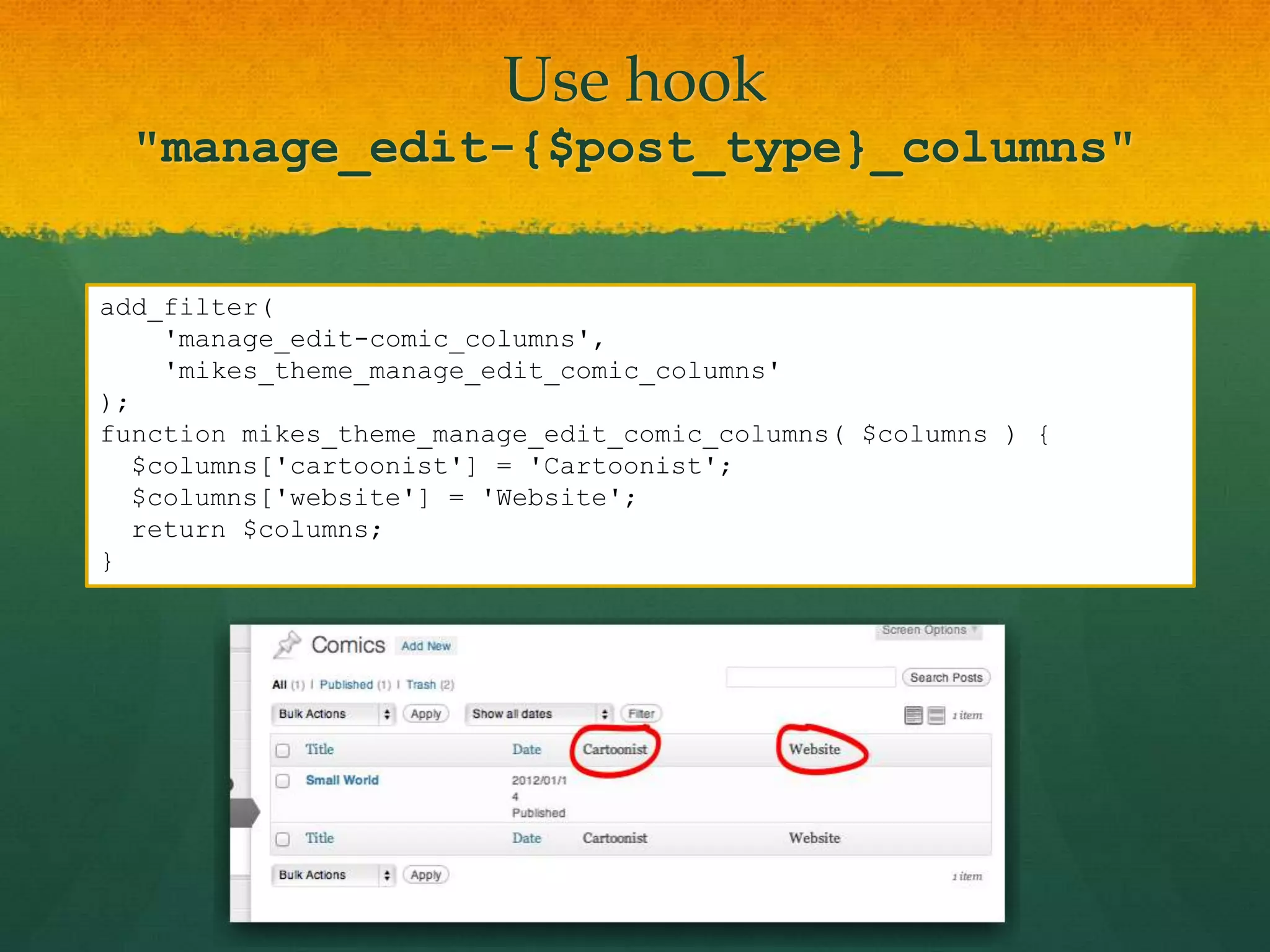

Use hook
"manage_edit-{$post_type}_columns"

add_filter(
'manage_edit-comic_columns',
'mikes_theme_manage_edit_comic_columns'
);
function mikes_theme_manage_edit_comic_columns( $columns ) {
$columns['cartoonist'] = 'Cartoonist';
$columns['website'] = 'Website';
return $columns;
}

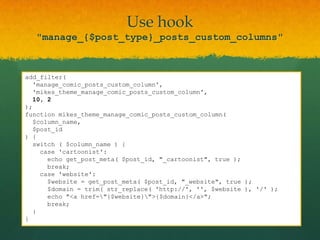

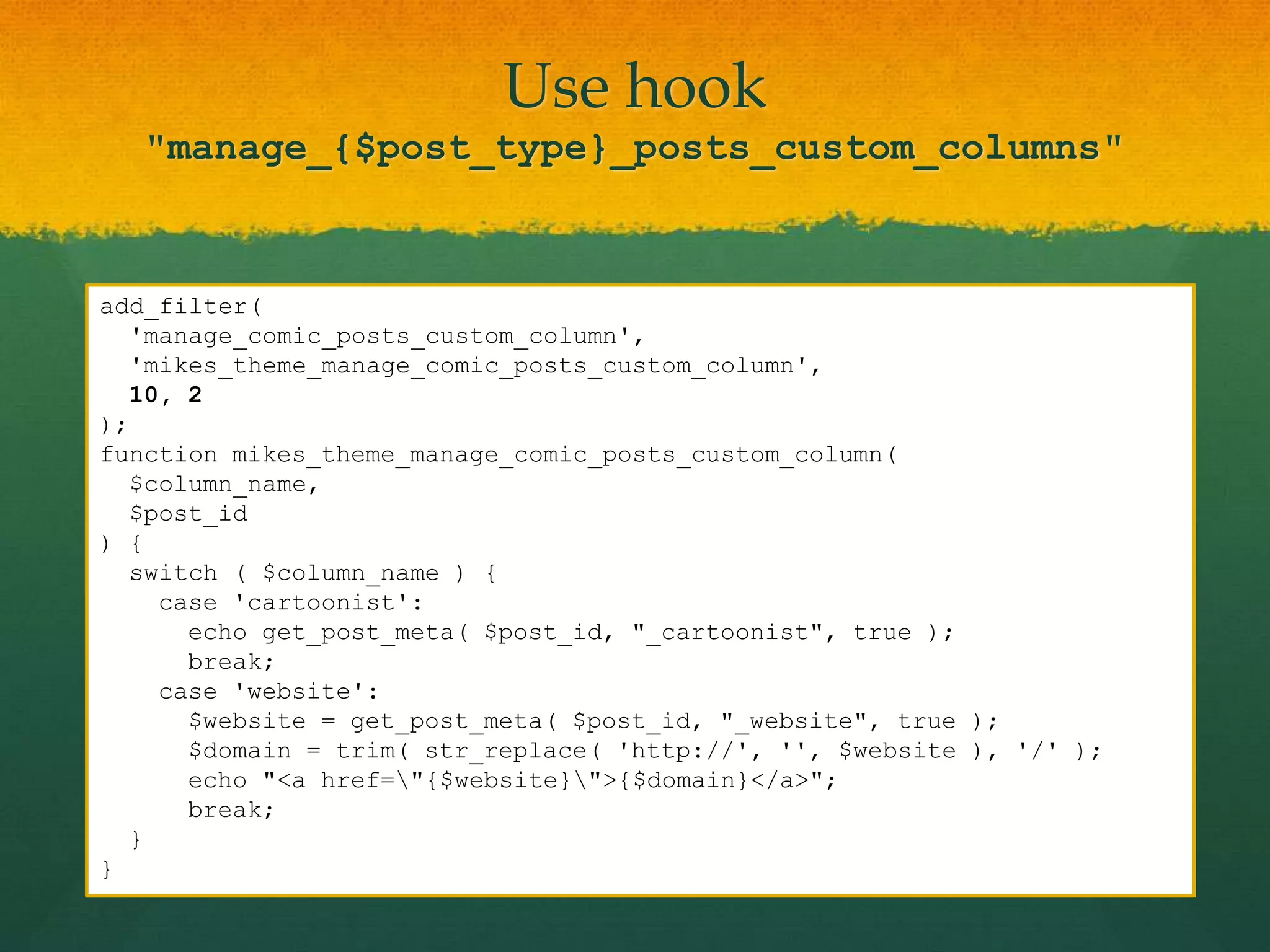

Use hook
"manage_{$post_type}_posts_custom_columns"

add_filter(
'manage_comic_posts_custom_column',
'mikes_theme_manage_comic_posts_custom_column',
10, 2
);
function mikes_theme_manage_comic_posts_custom_column(
$column_name,
$post_id
) {
switch ( $column_name ) {
case 'cartoonist':
echo get_post_meta( $post_id, "_cartoonist", true );
break;
case 'website':
$website = get_post_meta( $post_id, "_website", true );
$domain = trim( str_replace( 'http://', '', $website ), '/' );
echo "<a href="{$website}">{$domain}</a>";
break;
}
}

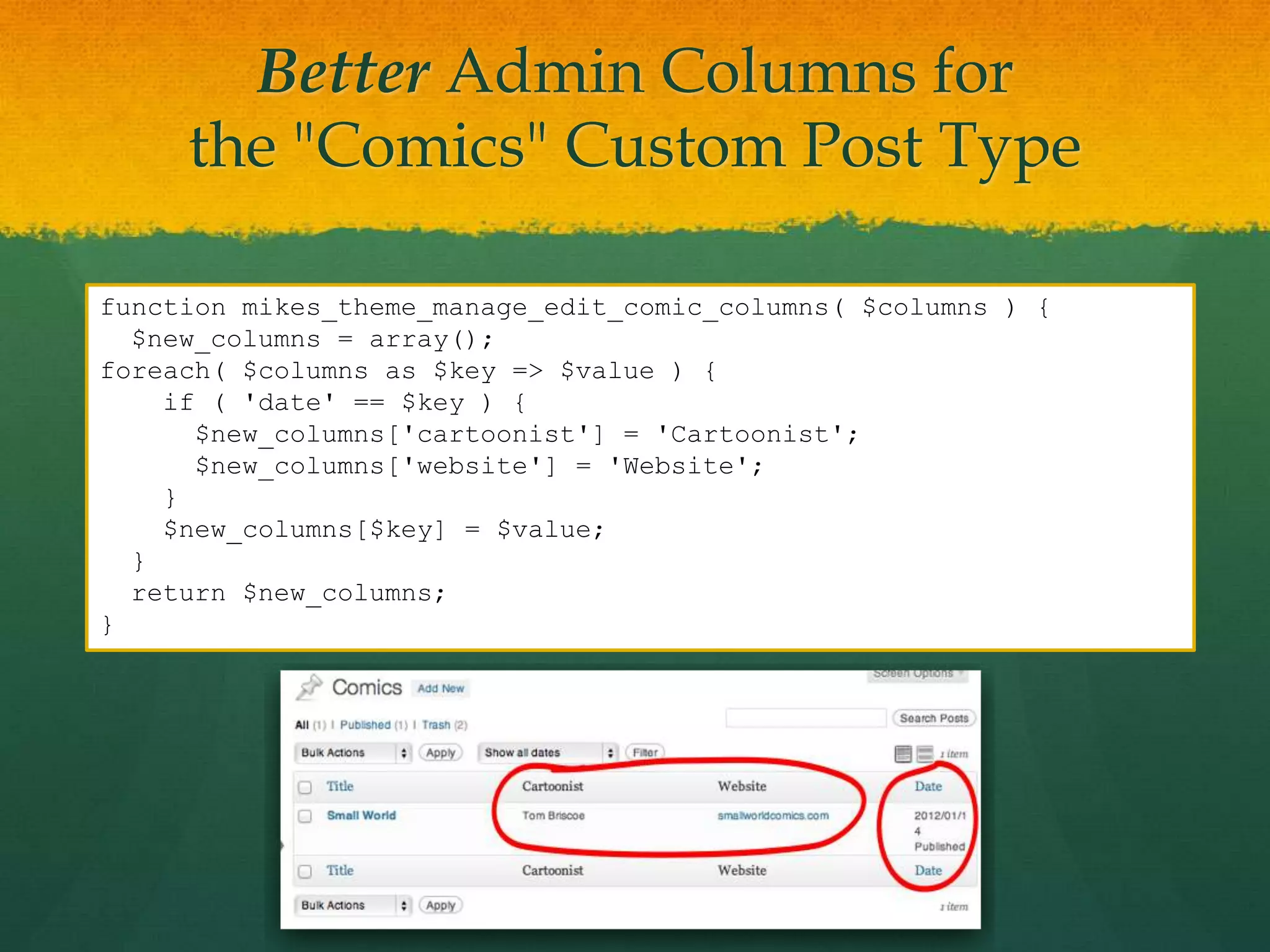

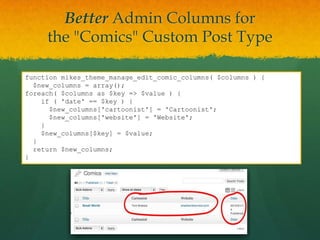

Better Admin Columns for
the "Comics" Custom Post Type

function mikes_theme_manage_edit_comic_columns( $columns ) {
$new_columns = array();
foreach( $columns as $key => $value ) {
if ( 'date' == $key ) {
$new_columns['cartoonist'] = 'Cartoonist';
$new_columns['website'] = 'Website';
}
$new_columns[$key] = $value;
}
return $new_columns;
}

Part 5

Adding a
Custom Taxonomy
to a Post Type

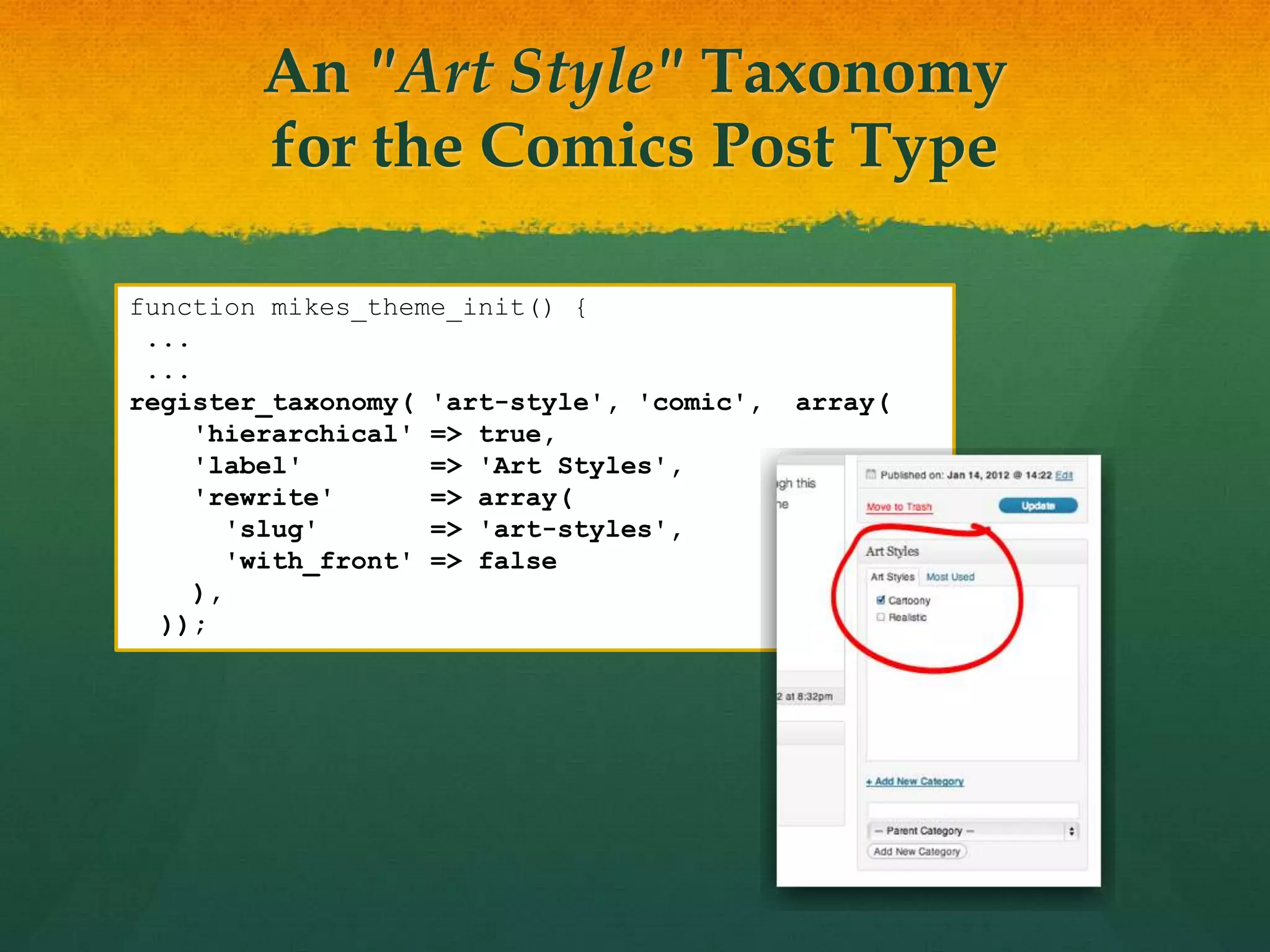

An "Art Style" Taxonomy
for the Comics Post Type

...
...
register_taxonomy( 'art-style', 'comic', array(
'hierarchical' => true,
'label' => 'Art Styles',
'rewrite' => array(
'slug' => 'art-styles',
'with_front' => false
),
));

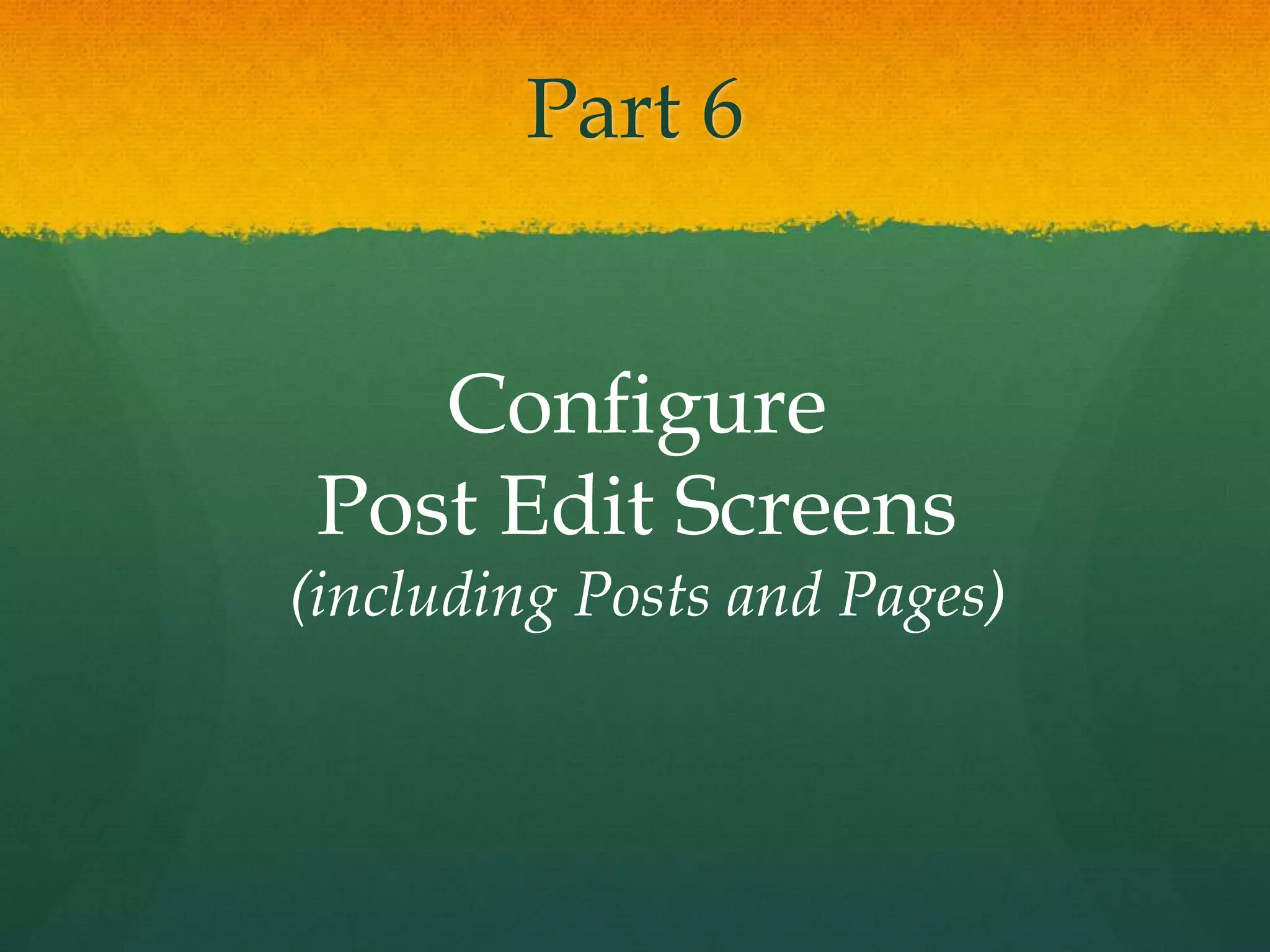

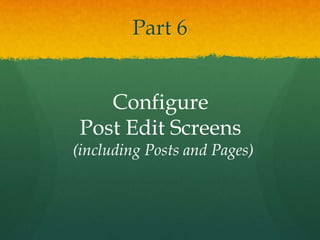

Part 6

Configure
Post Edit Screens
(including Posts and Pages)

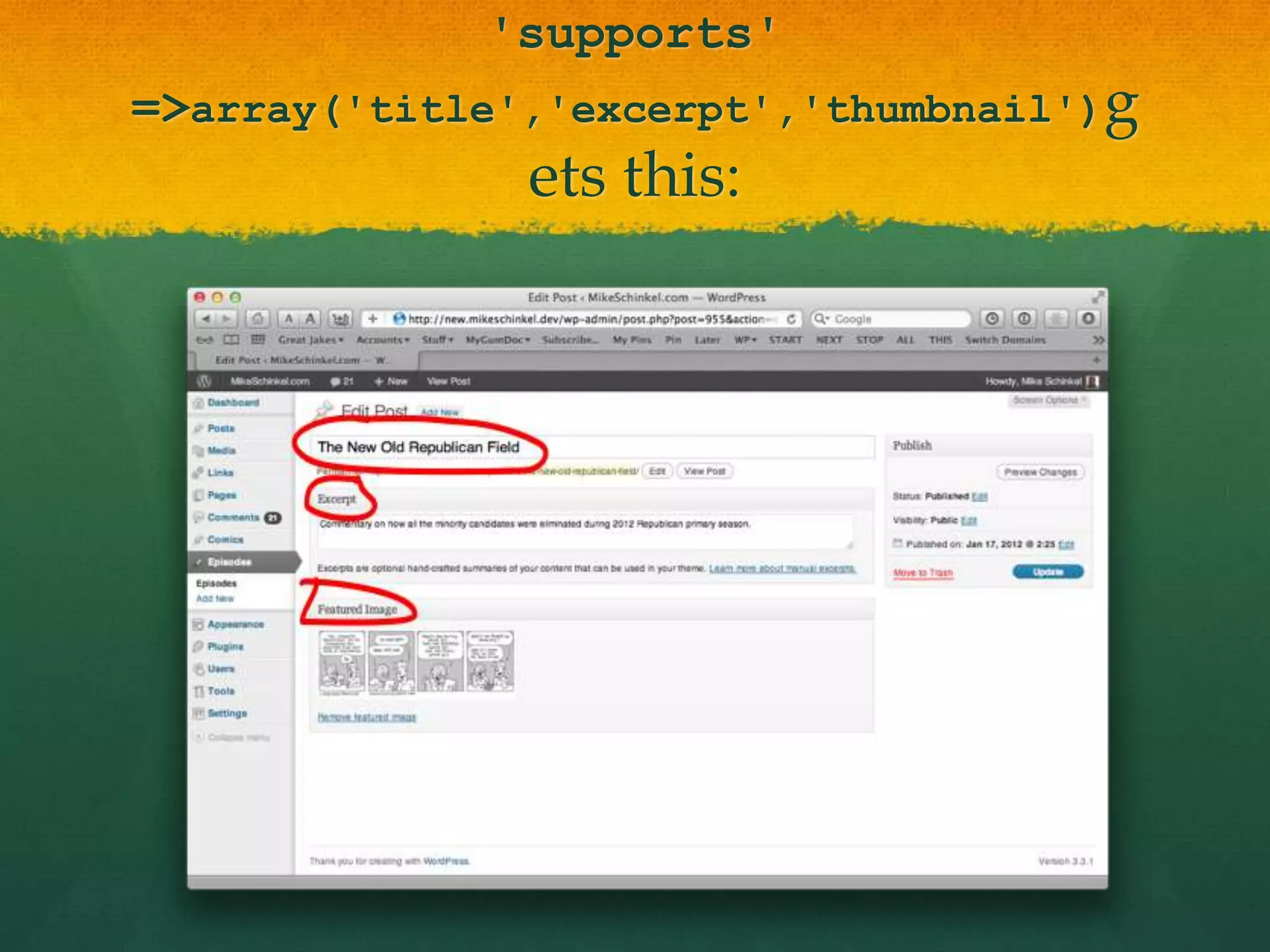

'supports'
=>array('title','excerpt','thumbnail')g
ets this:

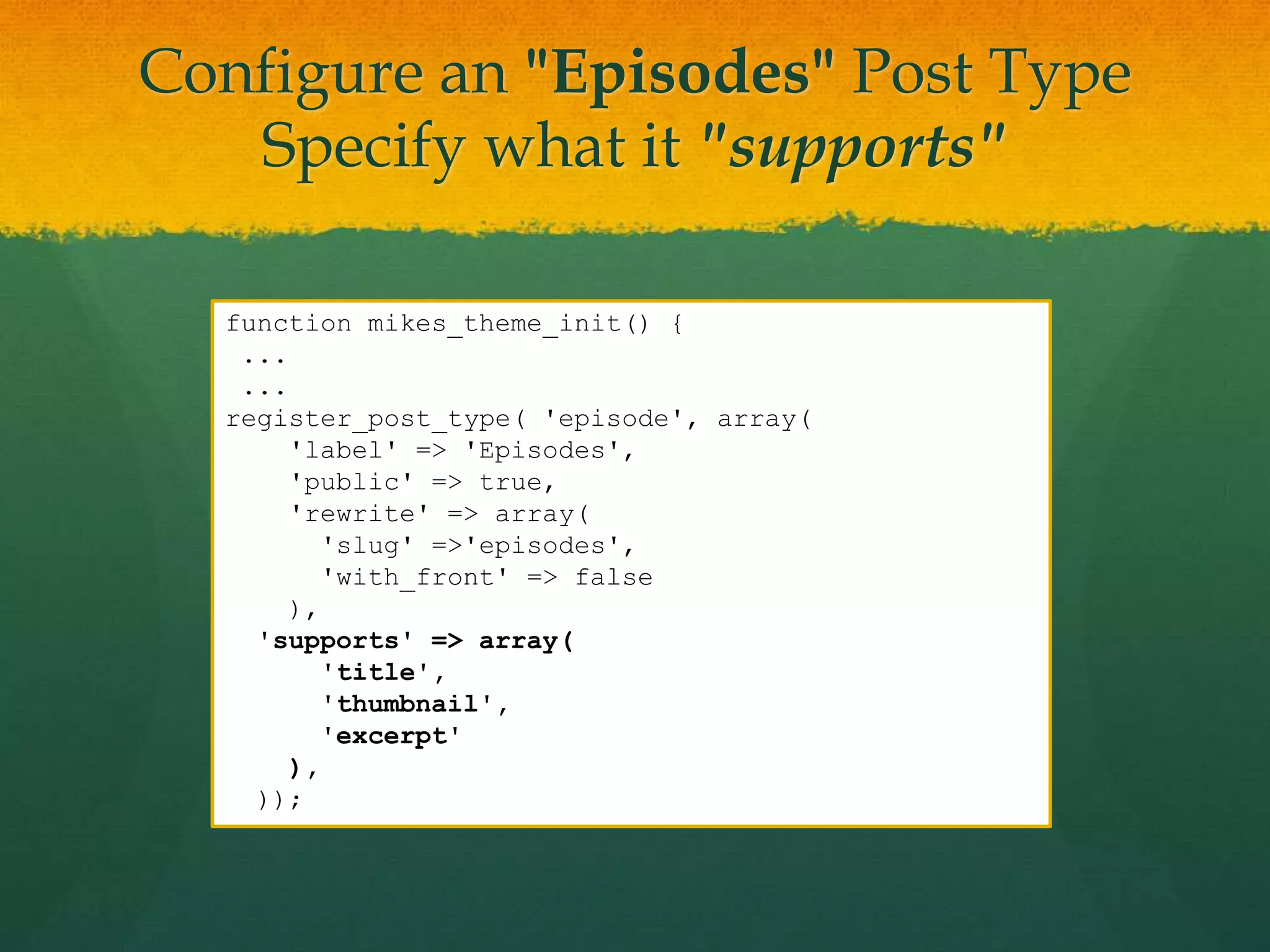

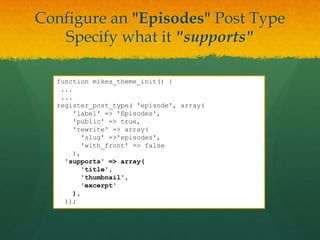

Configure an "Episodes" Post Type
Specify what it "supports"

...
...
register_post_type( 'episode', array(
'label' => 'Episodes',
'public' => true,
'rewrite' => array(
'slug' =>'episodes',
'with_front' => false
),
'supports' => array(
'title',
'thumbnail',
'excerpt'
),
));

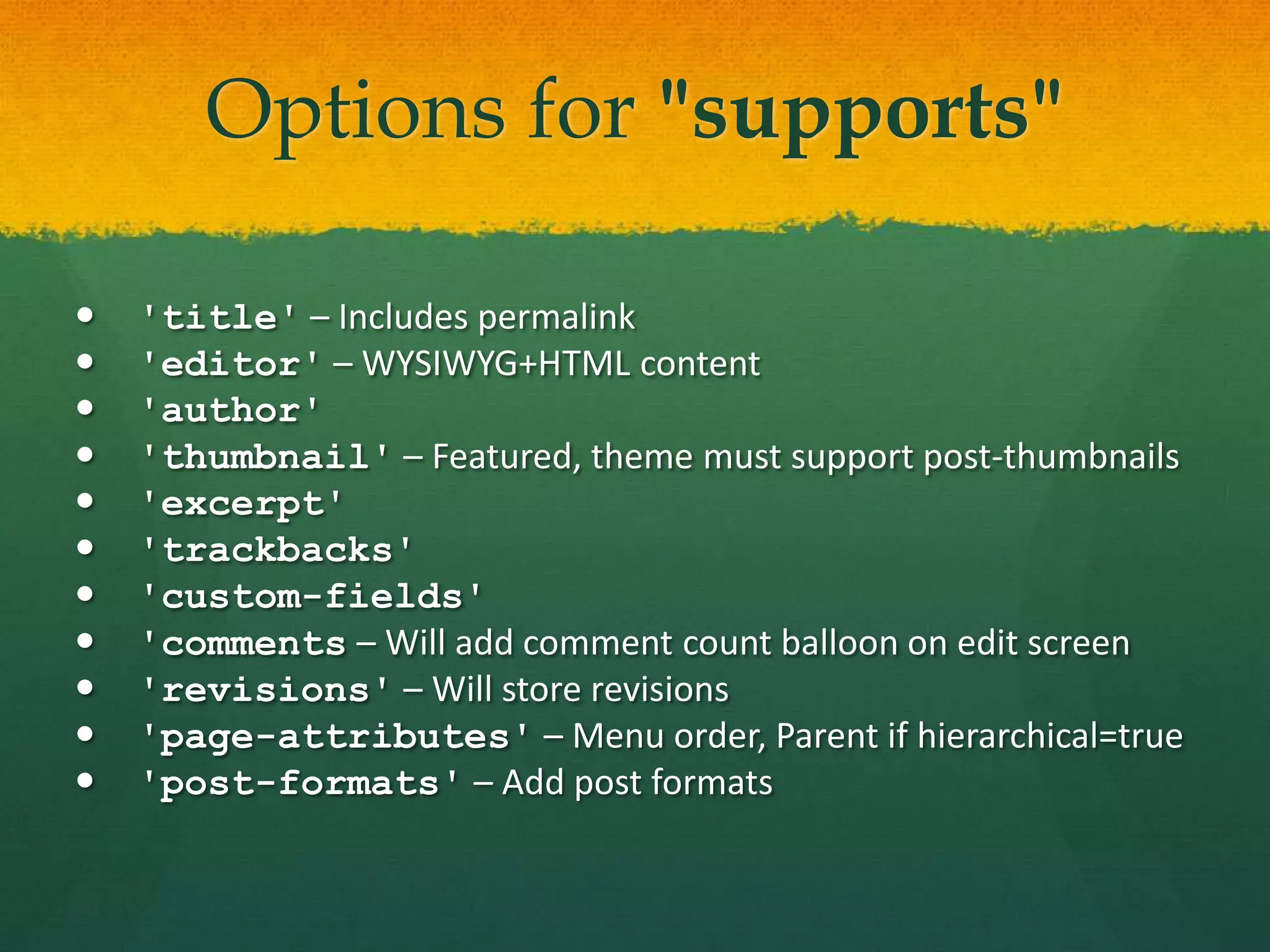

Options for "supports"

 'title' – Includes permalink
 'editor' – WYSIWYG+HTML content
 'author'
 'thumbnail' – Featured, theme must support post-thumbnails
 'excerpt'
 'trackbacks'
 'custom-fields'
 'comments – Will add comment count balloon on edit screen
 'revisions' – Will store revisions
 'page-attributes' – Menu order, Parent if hierarchical=true
 'post-formats' – Add post formats

Part 7

Parent Post Field in a
Post Editor Metabox
(useful for non-same post types)

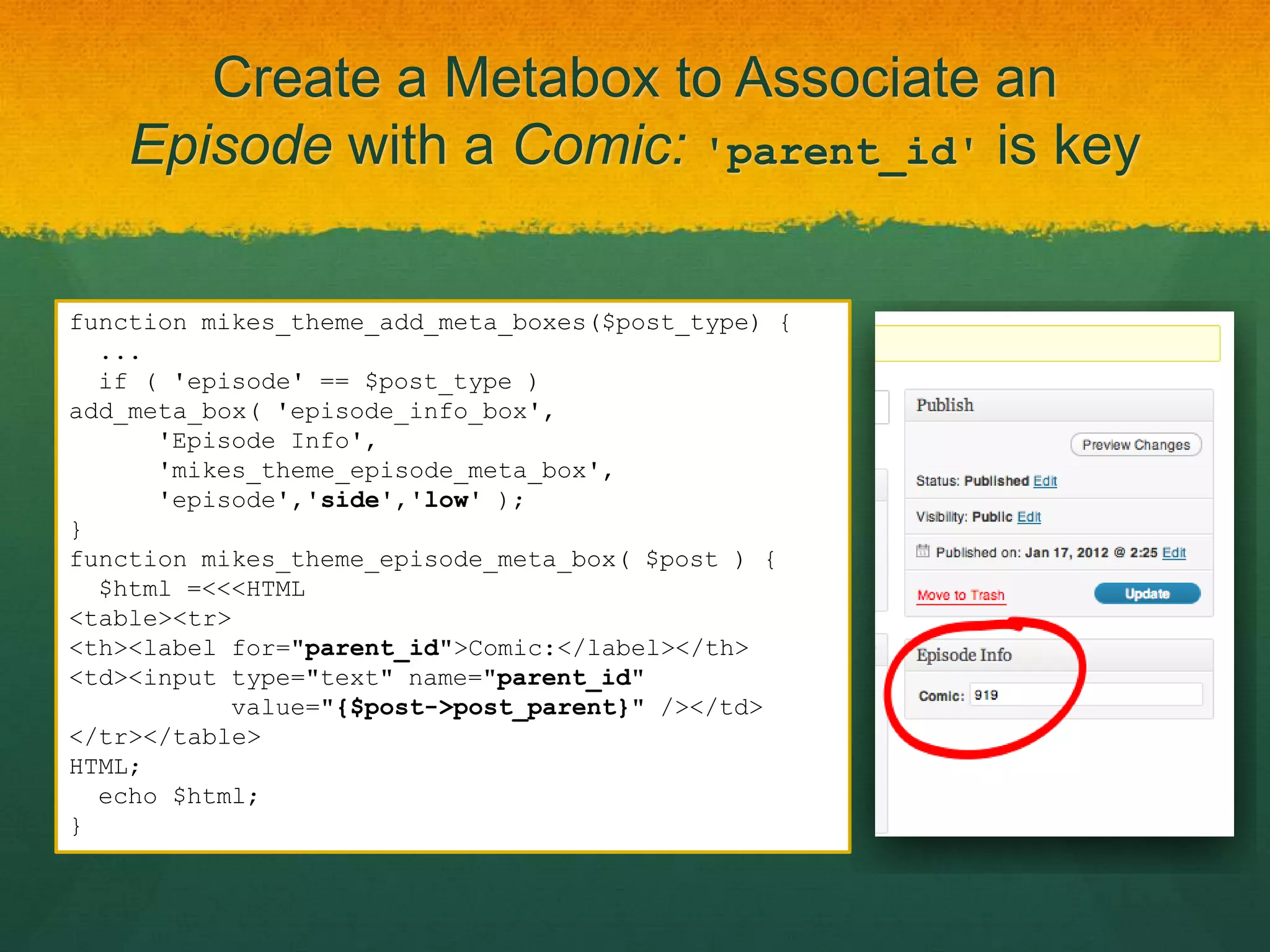

Create a Metabox to Associate an
Episode with a Comic: 'parent_id' is key

function mikes_theme_add_meta_boxes($post_type) {
...
if ( 'episode' == $post_type )
add_meta_box( 'episode_info_box',
'Episode Info',
'mikes_theme_episode_meta_box',
'episode','side','low' );
}
function mikes_theme_episode_meta_box( $post ) {
$html =<<<HTML
<table><tr>
<th><label for="parent_id">Comic:</label></th>
<td><input type="text" name="parent_id"
value="{$post->post_parent}" /></td>
</tr></table>
HTML;
echo $html;
}

Part 8

Querying
Custom Post
Types

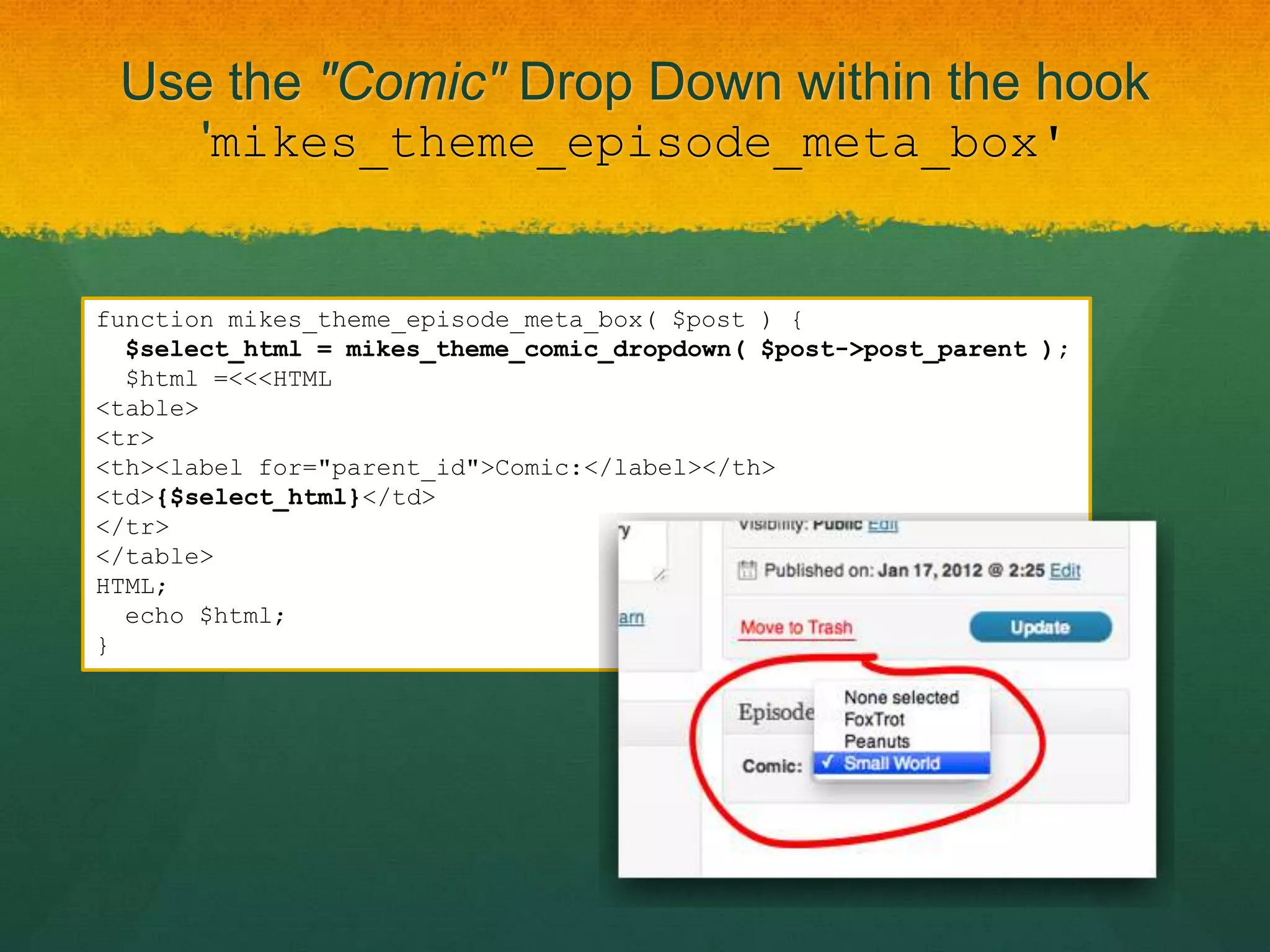

Use the "Comic" Drop Down within the hook
'mikes_theme_episode_meta_box'

function mikes_theme_episode_meta_box( $post ) {
$select_html = mikes_theme_comic_dropdown( $post->post_parent );
$html =<<<HTML
<table>
<tr>
<th><label for="parent_id">Comic:</label></th>
<td>{$select_html}</td>
</tr>
</table>
HTML;
echo $html;
}

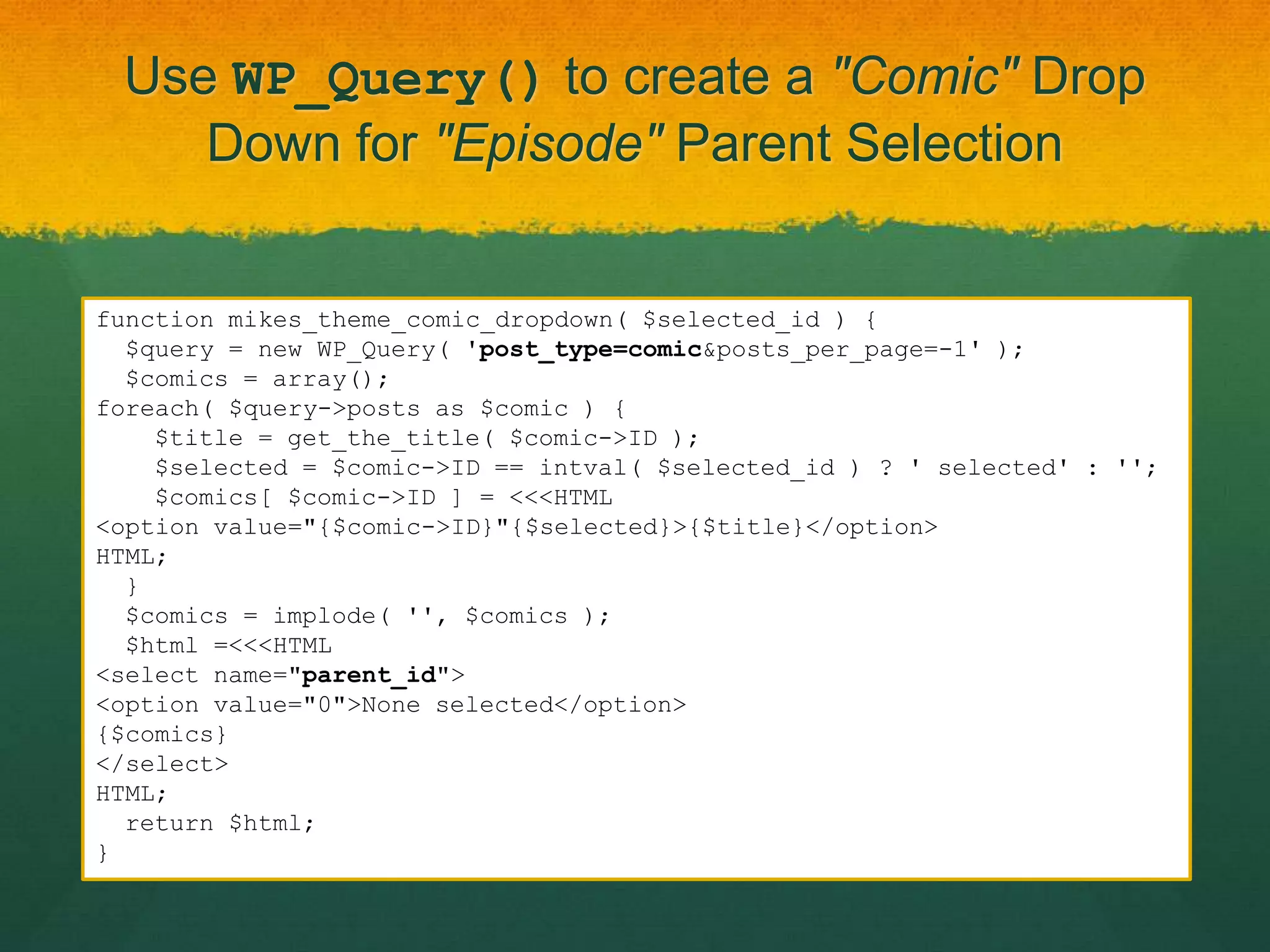

Use WP_Query() to create a "Comic" Drop
Down for "Episode" Parent Selection

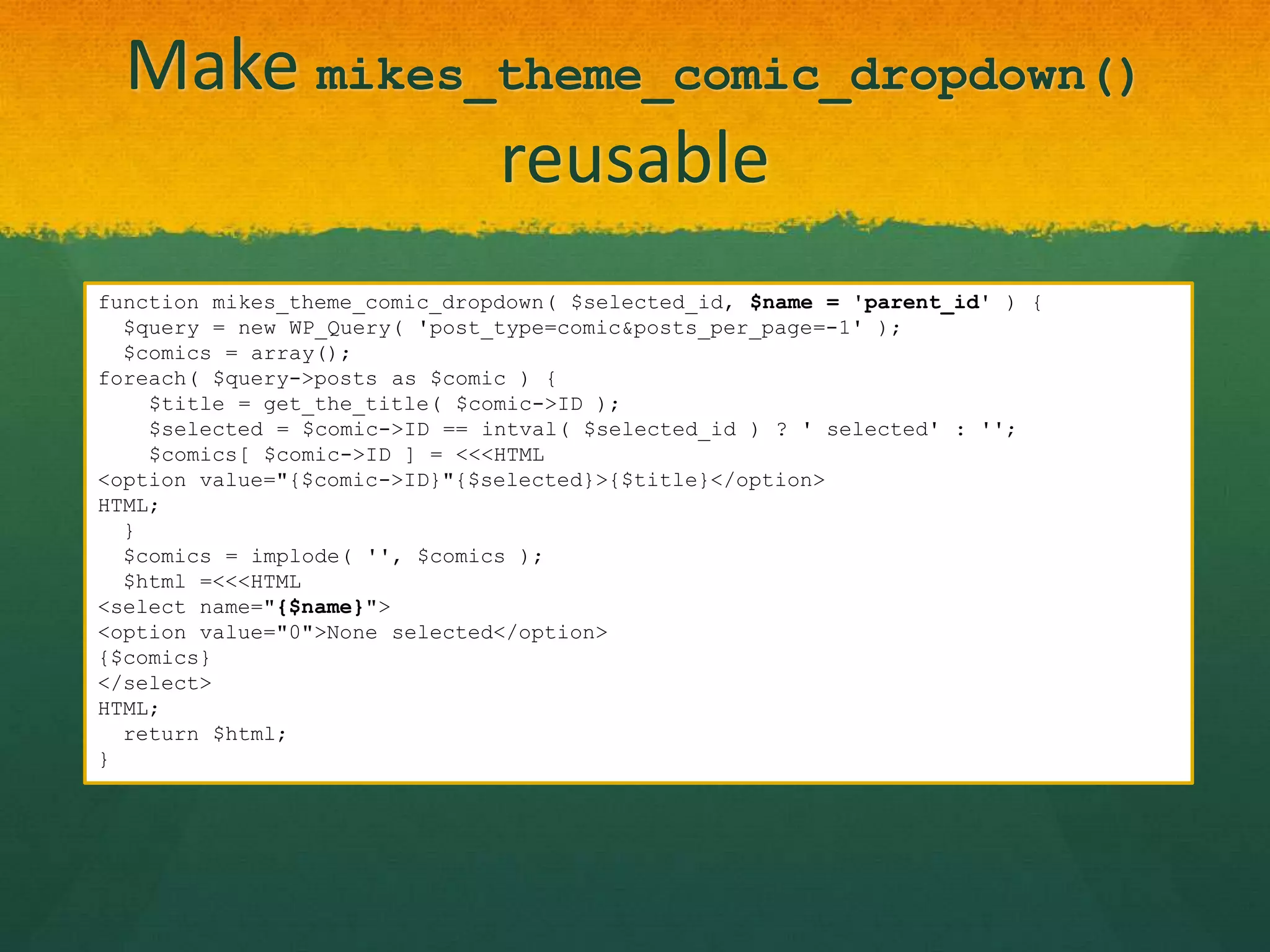

function mikes_theme_comic_dropdown( $selected_id ) {
$query = new WP_Query( 'post_type=comic&posts_per_page=-1' );
$comics = array();
foreach( $query->posts as $comic ) {
$title = get_the_title( $comic->ID );
$selected = $comic->ID == intval( $selected_id ) ? ' selected' : '';
$comics[ $comic->ID ] = <<<HTML
<option value="{$comic->ID}"{$selected}>{$title}</option>
HTML;
}
$comics = implode( '', $comics );
$html =<<<HTML
<select name="parent_id">
<option value="0">None selected</option>
{$comics}
</select>
HTML;
return $html;
}

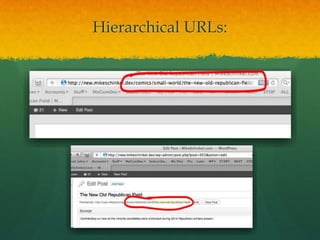

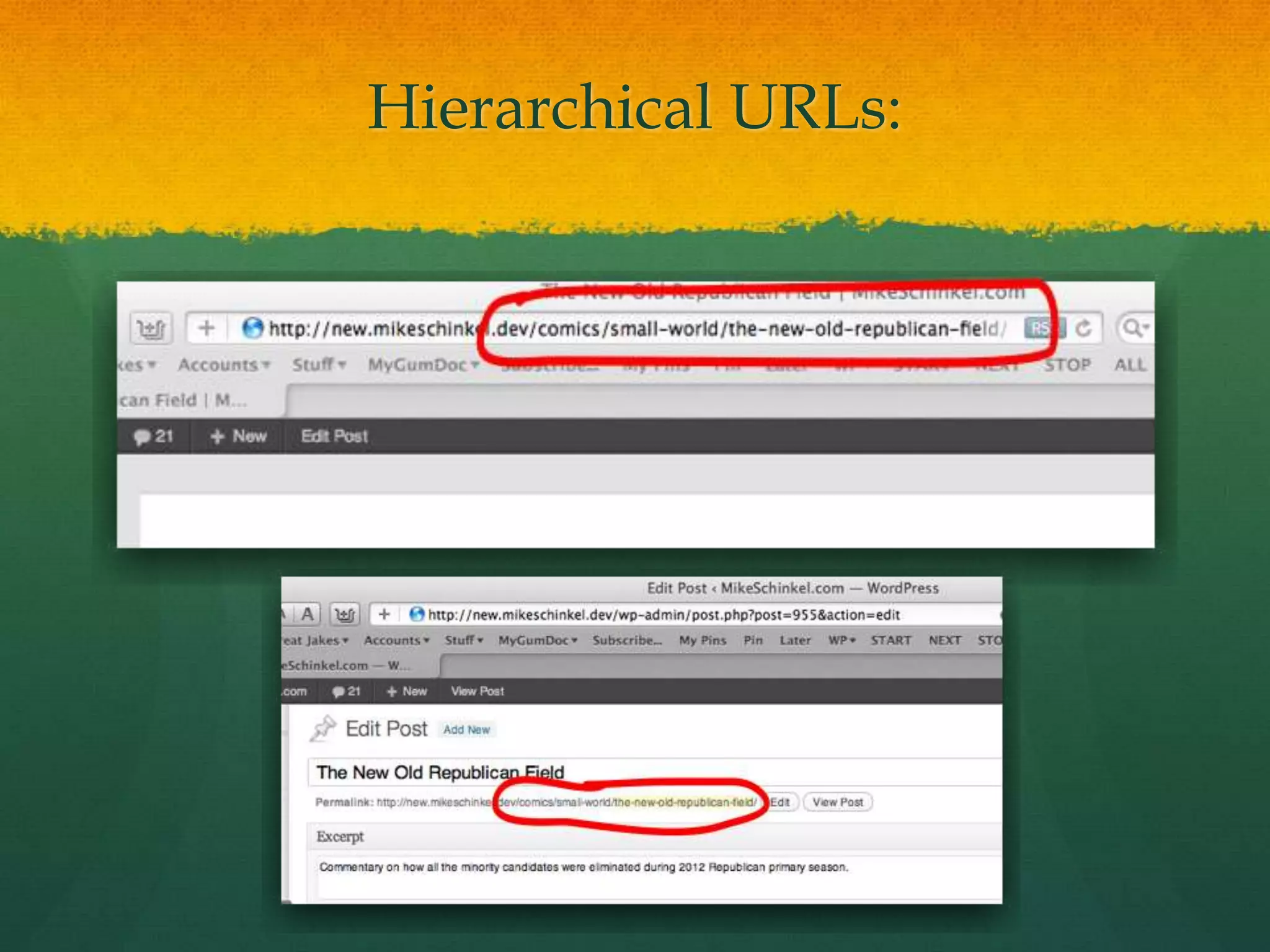

Part 9

Hierarchical URLs for
Custom Post Types

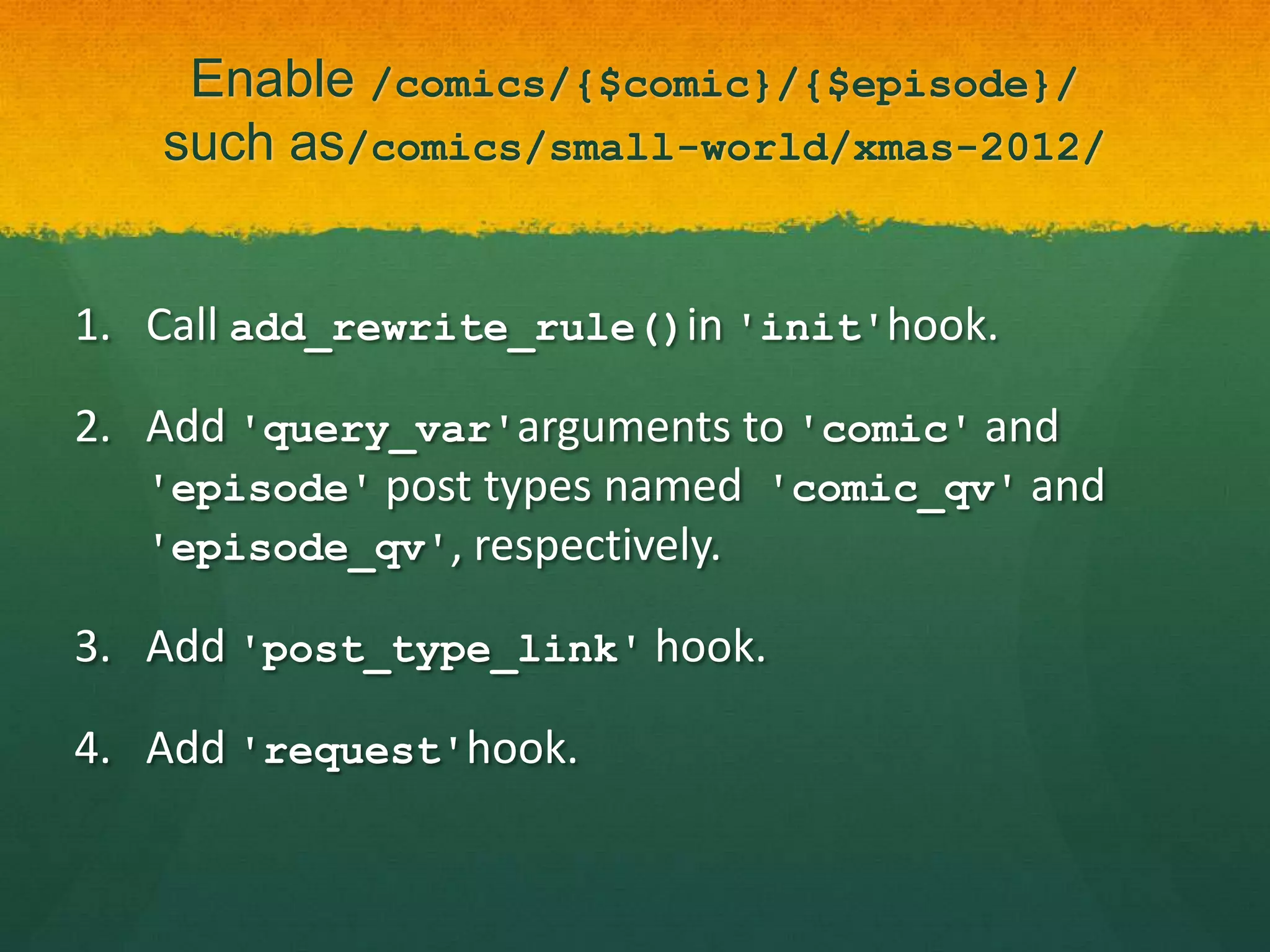

Enable /comics/{$comic}/{$episode}/
such as/comics/small-world/xmas-2012/

1. Call add_rewrite_rule()in 'init'hook.

2. Add 'query_var'arguments to 'comic' and
'episode' post types named 'comic_qv' and
'episode_qv', respectively.

3. Add 'post_type_link' hook.

4. Add 'request'hook.

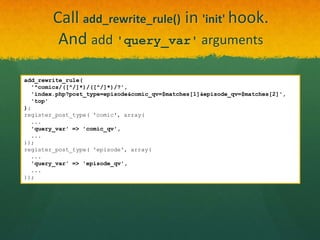

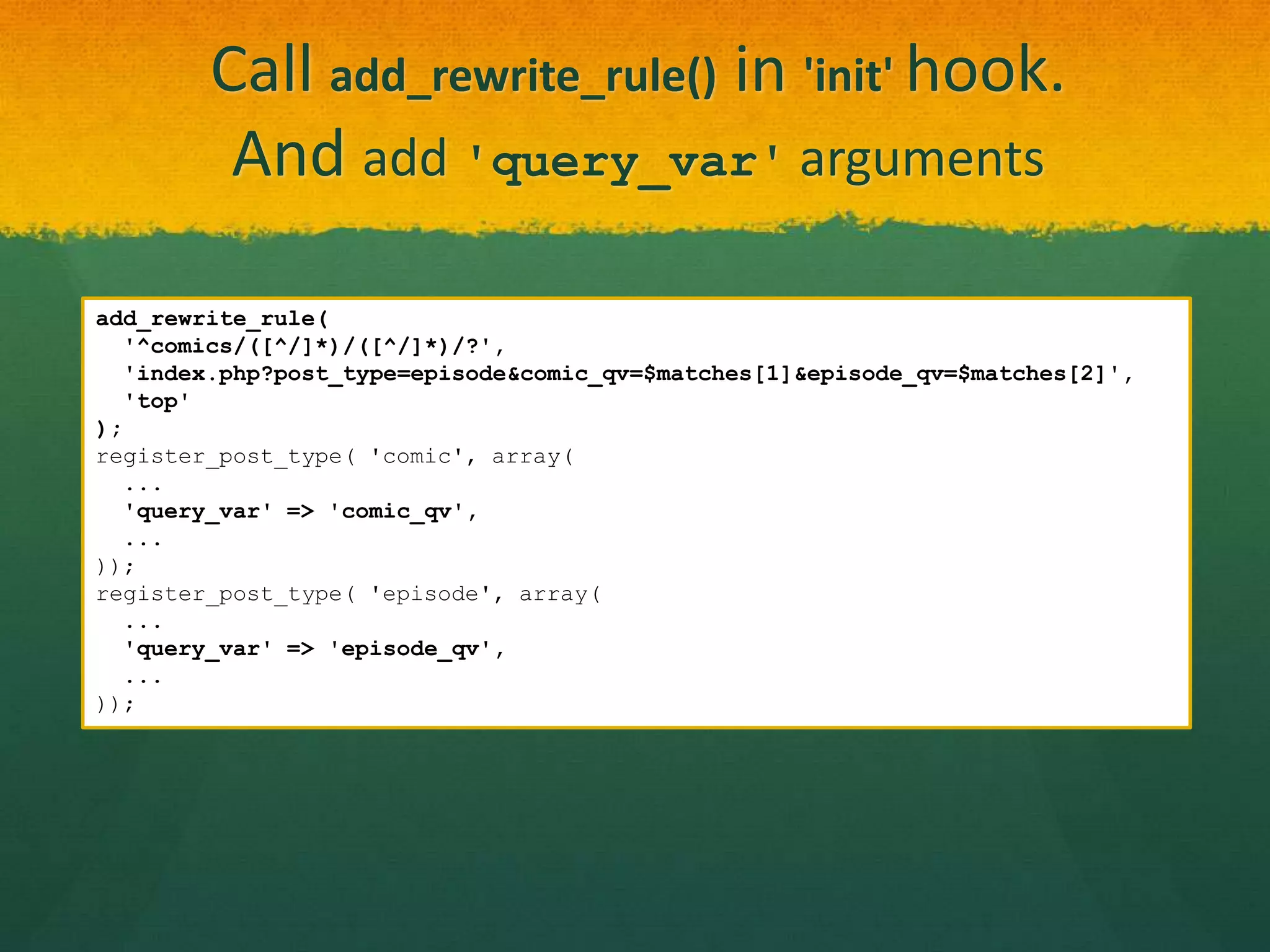

Call add_rewrite_rule() in 'init' hook.
And add 'query_var' arguments

add_rewrite_rule(
'^comics/([^/]*)/([^/]*)/?',
'index.php?post_type=episode&comic_qv=$matches[1]&episode_qv=$matches[2]',
'top'
);
...
'query_var' => 'comic_qv',
...
));
register_post_type( 'episode', array(
...
'query_var' => 'episode_qv',
...
));

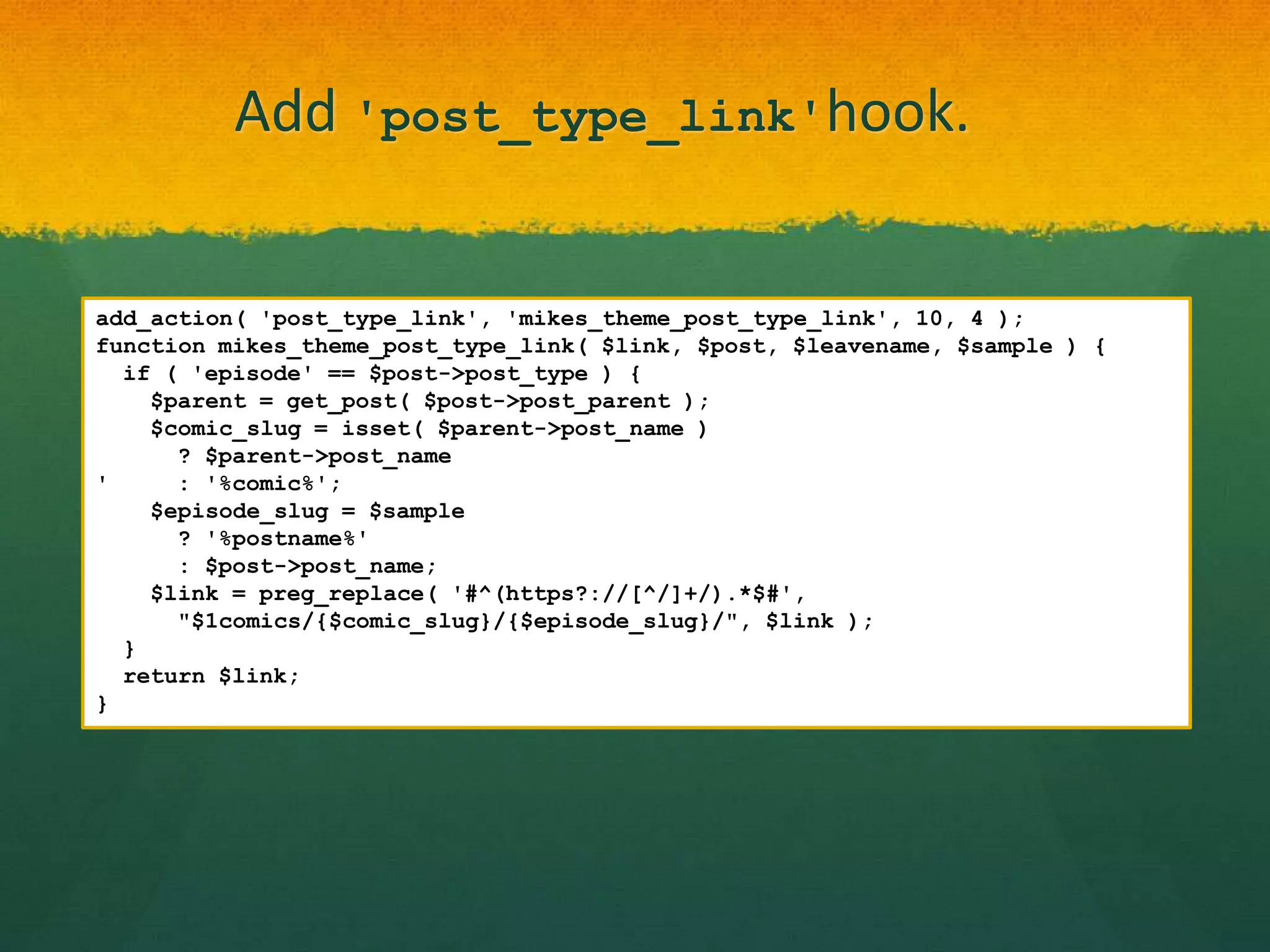

Add 'post_type_link'hook.

add_action( 'post_type_link', 'mikes_theme_post_type_link', 10, 4 );
function mikes_theme_post_type_link( $link, $post, $leavename, $sample ) {
if ( 'episode' == $post->post_type ) {
$parent = get_post( $post->post_parent );
$comic_slug = isset( $parent->post_name )
? $parent->post_name
' : '%comic%';
$episode_slug = $sample
? '%postname%'
: $post->post_name;
$link = preg_replace( '#^(https?://[^/]+/).*$#',
"$1comics/{$comic_slug}/{$episode_slug}/", $link );
}
return $link;
}

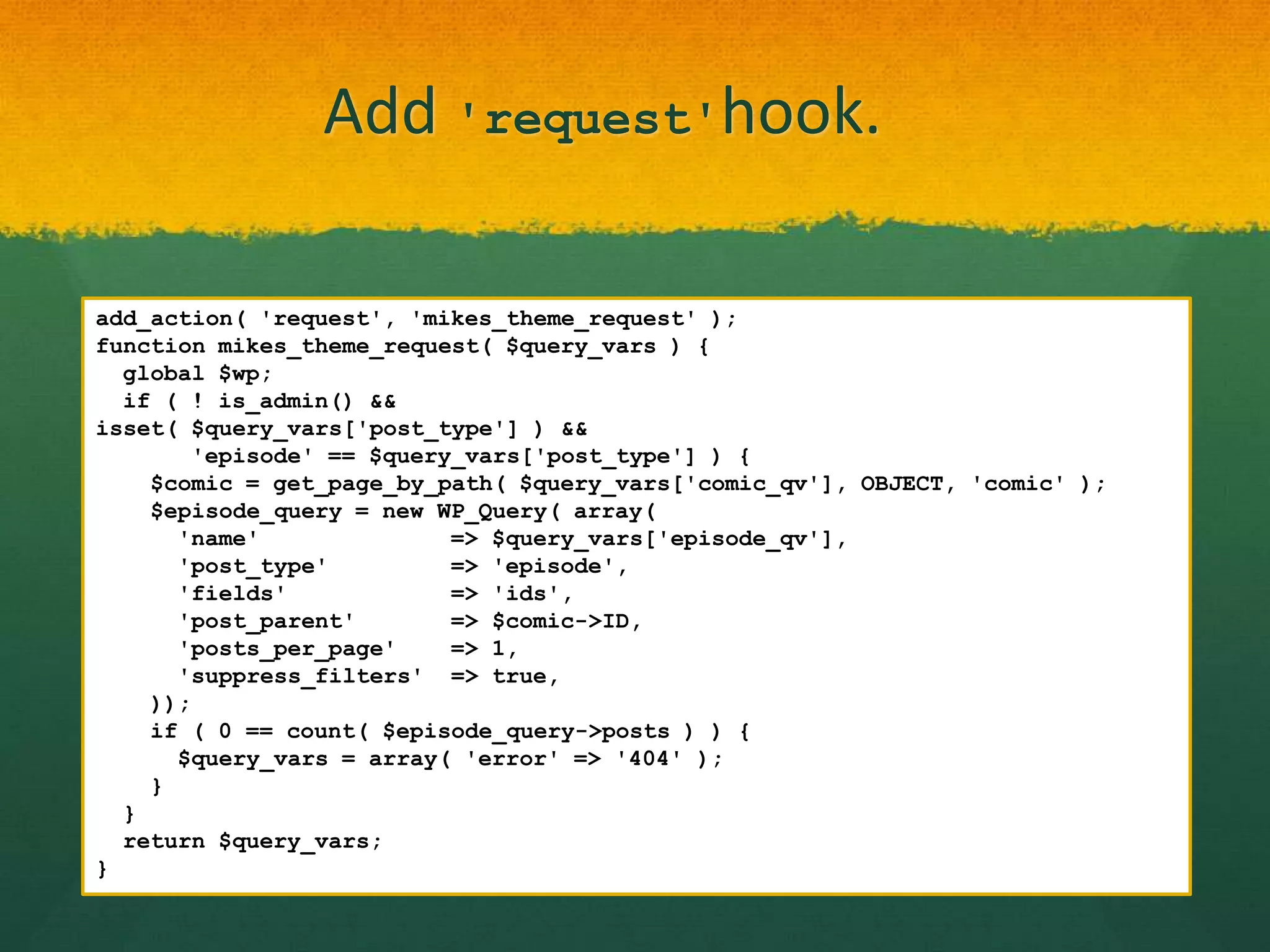

Add 'request'hook.

add_action( 'request', 'mikes_theme_request' );
function mikes_theme_request( $query_vars ) {
global $wp;
if ( ! is_admin() &&
isset( $query_vars['post_type'] ) &&
'episode' == $query_vars['post_type'] ) {
$comic = get_page_by_path( $query_vars['comic_qv'], OBJECT, 'comic' );
$episode_query = new WP_Query( array(
'name' => $query_vars['episode_qv'],
'post_type' => 'episode',
'fields' => 'ids',
'post_parent' => $comic->ID,
'posts_per_page' => 1,
'suppress_filters' => true,
));
if ( 0 == count( $episode_query->posts ) ) {
$query_vars = array( 'error' => '404' );
}
}
return $query_vars;
}

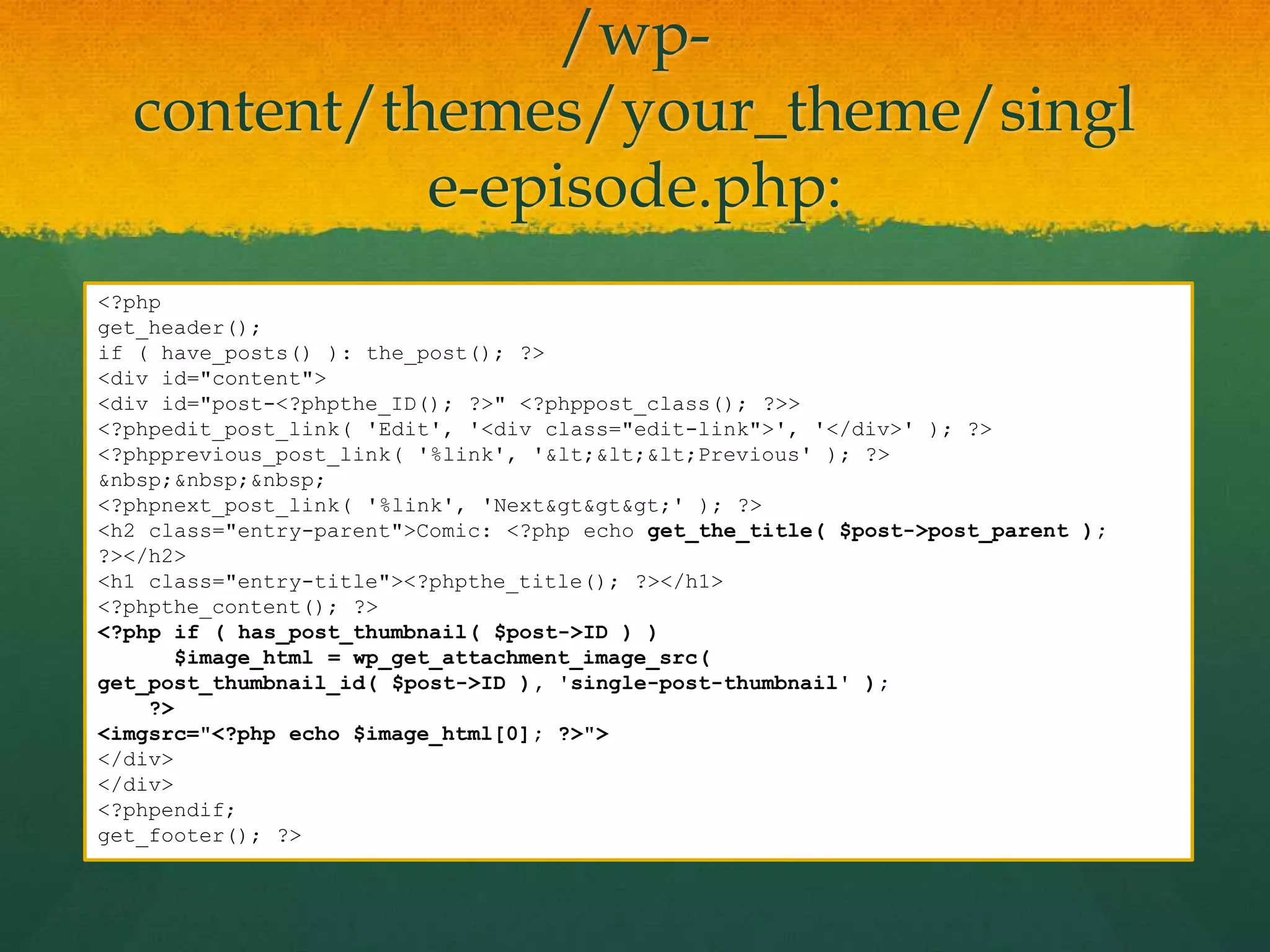

/wp-
content/themes/your_theme/singl
e-episode.php:
<?php
get_header();
if ( have_posts() ): the_post(); ?>
<div id="content">
<div id="post-<?phpthe_ID(); ?>" <?phppost_class(); ?>>
<?phpedit_post_link( 'Edit', '<div class="edit-link">', '</div>' ); ?>
<?phpprevious_post_link( '%link', '<<<Previous' ); ?>

<?phpnext_post_link( '%link', 'Next&gt&gt>' ); ?>
<h2 class="entry-parent">Comic: <?php echo get_the_title( $post->post_parent );
?></h2>
<h1 class="entry-title"><?phpthe_title(); ?></h1>
<?phpthe_content(); ?>
<?php if ( has_post_thumbnail( $post->ID ) )
$image_html = wp_get_attachment_image_src(
get_post_thumbnail_id( $post->ID ), 'single-post-thumbnail' );
?>
<imgsrc="<?php echo $image_html[0]; ?>">
</div>
</div>
<?phpendif;
get_footer(); ?>

Part 10

Custom Post Type Filters
in Admin Post List

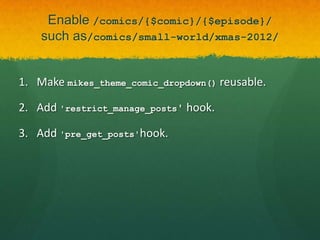

Enable /comics/{$comic}/{$episode}/
such as/comics/small-world/xmas-2012/

1. Make mikes_theme_comic_dropdown() reusable.

2. Add 'restrict_manage_posts' hook.

3. Add 'pre_get_posts'hook.

Make mikes_theme_comic_dropdown()
reusable
function mikes_theme_comic_dropdown( $selected_id, $name = 'parent_id' ) {
$query = new WP_Query( 'post_type=comic&posts_per_page=-1' );
$comics = array();
foreach( $query->posts as $comic ) {
$title = get_the_title( $comic->ID );
$selected = $comic->ID == intval( $selected_id ) ? ' selected' : '';
$comics[ $comic->ID ] = <<<HTML
<option value="{$comic->ID}"{$selected}>{$title}</option>
HTML;
}
$comics = implode( '', $comics );
$html =<<<HTML
<select name="{$name}">
<option value="0">None selected</option>
{$comics}
</select>
HTML;
return $html;
}

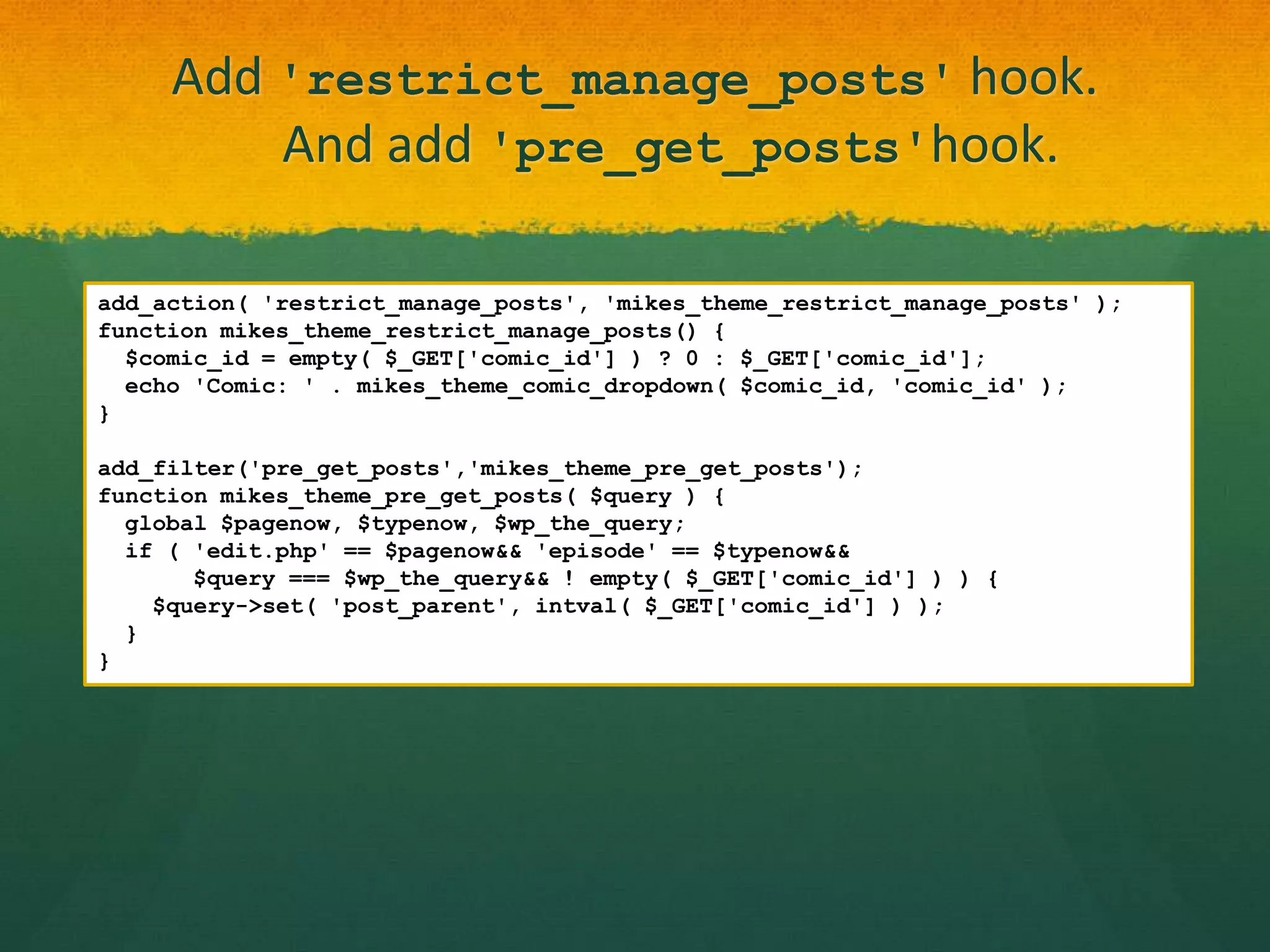

Add 'restrict_manage_posts' hook.
And add 'pre_get_posts'hook.

add_action( 'restrict_manage_posts', 'mikes_theme_restrict_manage_posts' );
function mikes_theme_restrict_manage_posts() {
$comic_id = empty( $_GET['comic_id'] ) ? 0 : $_GET['comic_id'];
echo 'Comic: ' . mikes_theme_comic_dropdown( $comic_id, 'comic_id' );
}

add_filter('pre_get_posts','mikes_theme_pre_get_posts');
function mikes_theme_pre_get_posts( $query ) {
global $pagenow, $typenow, $wp_the_query;
if ( 'edit.php' == $pagenow&& 'episode' == $typenow&&
$query === $wp_the_query&& ! empty( $_GET['comic_id'] ) ) {
$query->set( 'post_parent', intval( $_GET['comic_id'] ) );
}
}

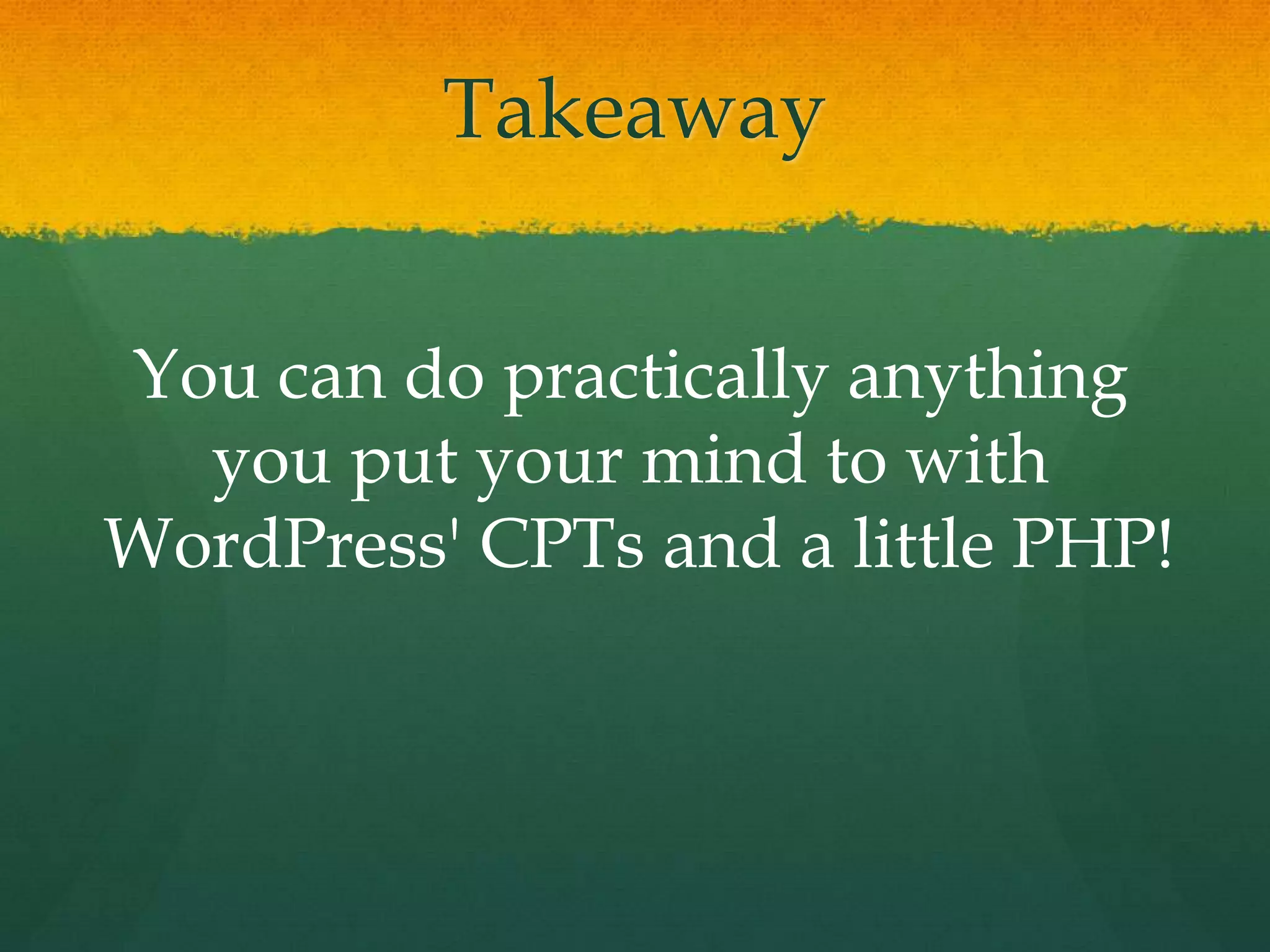

Takeaway

You can do practically anything
you put your mind to with
WordPress' CPTs and a little PHP!

Look for “Sunrise”

 A Platform Extension for WordPress
 Targeting needs of Professional Site Builders
 To be GPL and freely distributed
 Designed to be Modular
 Goal: To Have Community of Module Contributors
 Timeline:
 Pre-Alpha now
 Closed Beta – Q1 2012
 Open Beta – Q2 2012
 Release – Hmm…

Thank You

 To Contact Me:
 Twitter: @mikeschinkel
 http://about.me/mikeschinkel

Mastering Custom Post Types - WordCamp Atlanta 2012

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (8)

Similar to Mastering Custom Post Types - WordCamp Atlanta 2012

Similar to Mastering Custom Post Types - WordCamp Atlanta 2012 (20)

Recently uploaded

Recently uploaded (20)

Mastering Custom Post Types - WordCamp Atlanta 2012
