TokuDB, Spider, and CONNECT are storage engines that provide additional functionality beyond InnoDB in MariaDB. TokuDB offers improved performance through fractal tree indexing and compression. Spider provides horizontal partitioning and sharding across multiple database servers. CONNECT enables querying of external data sources like files, ODBC, XML, and JSON without needing to import the data.

1. © MariaDB Corporation Ab
MariaDB
Storage Engines
Serge Frezefond, Cloud Solution Architect
serge.frezefond@mariadb.com
@sfrezefond
http://serge.frezefond.com
* *23/02/2015 1

2. © MariaDB Corporation Ab
Agenda
• TokuDB
• Spider
• CONNECT
• Conclusion
23/02/2015 2

3. © MariaDB Corporation Ab
TokuDB - Better Performance
• TokuDB® uses Fractal Tree® technology:
– Internal nodes are similar to B-trees, but they also have
message buffers
– Large block size (4M) enables better compression performance
and range queries.
– Basement nodes support point queries
o Default size 128K
– Optimal I/O utilization:
o Reads: highly compressed data
o Writes: aggregation of multiple operations + high compression.

4. © MariaDB Corporation Ab

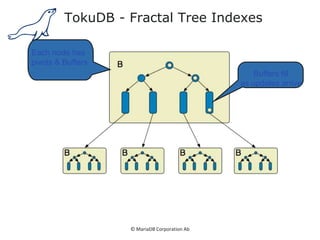

TokuDB - Fractal Tree Indexes
Each node has
pivots & Buffers
Buffers fill
as updates arrive

5. © MariaDB Corporation Ab
Fractal Tree Indexes
Each node
has pivots & Buffers
Buffers fill
as updates arrive
Flush a buffer
when it fills
A flush might take an I/O,
but it does lots of useful work
More changes per write ➔
fewer changes for same write load ➔
less SSD wear

6. © MariaDB Corporation Ab
Better Indexing Improves Performance
•
• High performance during INSERT/UPDATE/DELETE operations

7. © MariaDB Corporation Ab
Typical Strategies
• Partitioning
– Adds complexity
– Table scans, when needed, are slower
• Covering indexes
– Secondary keys require additional PK lookup
– Slows down write operations
• InnoDB compression
– Affects performance
• Read-only slaves
– Adds complexity
– Slave delays
• SSD

8. © MariaDB Corporation Ab
Using TokuDB
• Partitioning
– Better performance w/ bigger partitions
• CLUSTERING KEY
– Better secondary key insertion
– Less indexes overall
• TokuDB compression
– Always on
– Compression alternatives: quicklz, zlib, lzma
• Read-only slaves
– Upsert / Insert optimization
• SSD
– Compression == better utilization

9. © MariaDB Corporation Ab
Spider Storage Engine
• Developed by Kentoku Shiba
• Storage Engine „partitions“ tables
across multiple Database Server instances
• Based on Partitions with integrated Sharding
• Virtual view on tables distributed
across Instances
• Supports XA transactions
• Transactional Storage Engine
• Provides Scale-Out
in Combination with HA
9
Application
Customer
A-H
I-P
Q-Z
Spider
Customet
A-H
Shard 1
Customer
I-P
Shard 2
Customer
Q-Z
Shard 3

10. © MariaDB Corporation Ab

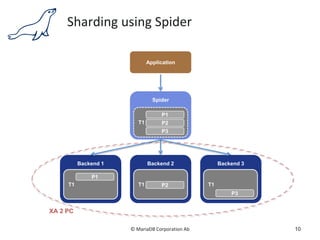

Sharding using Spider
10
Backend 2
Application
Spider
Backend 3
T1
P1
P2
P3
T1 P2 T1
P3
Backend 1
T1
P1
XA 2 PC

11. © MariaDB Corporation Ab
Sharding with Spider and HA
11
Backend 2
Application
Spider
Backend 3
T1
P1
P2
P3
T1 P2 T1
P3
Backend 1
T1
P1
XA 2 PC
P2
P3
P1

12. © MariaDB Corporation Ab
Spider Storage Engine
Installation
• Installation
• Spider will be shown as active Storage Engine
12
mysql -uroot -p < /usr/share/mysql/install_spider.sql
SELECT engine, support, transactions, xa FROM
information_schema.engines;
+--------------------+---------+--------------+------+
| engine | support | transactions | xa |
+--------------------+---------+--------------+------+
| SPIDER | YES | YES | YES |
| CSV | YES | NO | NO |

13. © MariaDB Corporation Ab
Spider Storage Engine
Installation
• Spider creates tables in Schema „mysql“
13
MariaDB [mysql]> show tables like 'spider%';
+---------------------------+
| Tables_in_mysql (spider%) |
+---------------------------+
| spider_link_failed_log |
| spider_link_mon_servers |
| spider_tables |
| spider_xa |
| spider_xa_failed_log |
| spider_xa_member |
+---------------------------+
6 rows in set (0.00 sec)

14. © MariaDB Corporation Ab
Spider Storage Engine
Installation
• 93 Spider System-Variables will be added
• 4 Spider Status-Values will be added
• More Spider Variables related to tables using CREATE
TABLE
• In MariaDB use COMMENT
• In MySQL use CONNECTION
14
MariaDB [mysql]> show global variables like 'spider%’;
MariaDB [mysql]> show global status like 'spider%’;

15. © MariaDB Corporation Ab

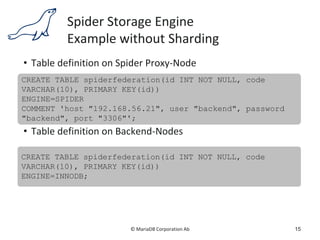

Spider Storage Engine
Example without Sharding
• Table definition on Spider Proxy-Node
• Table definition on Backend-Nodes
15
CREATE TABLE spiderfederation(id INT NOT NULL, code
VARCHAR(10), PRIMARY KEY(id))
ENGINE=SPIDER
COMMENT 'host "192.168.56.21", user "backend", password
"backend", port "3306"';
CREATE TABLE spiderfederation(id INT NOT NULL, code
VARCHAR(10), PRIMARY KEY(id))
ENGINE=INNODB;

16. © MariaDB Corporation Ab
Spider Storage Engine
Example using Sharding
• Table definition on Spider Proxy-Node
16
CREATE TABLE sharding(id INT NOT NULL, code VARCHAR(10),
PRIMARY KEY(id))
ENGINE=SPIDER COMMENT='user "backend", password
"backend", port "3306", table "sharding"'
PARTITION BY RANGE(id)
(
PARTITION p1 VALUES LESS THAN (100000)
COMMENT 'host "192.168.56.21"',
PARTITION p2 VALUES LESS THAN (200000)
COMMENT 'host "192.168.56.22"',
PARTITION p3 VALUES LESS THAN MAXVALUE
COMMENT 'host "192.168.56.23"'
);

17. © MariaDB Corporation Ab
Spider Storage Engine
Installation
• Spider UDFs will be added
• SPIDER_DIRECT_SQL
• Execute SQL on Backend-Server
• SPIDER_BG_DIRECT_SQL
• Execute SQL on Backend-Server
• SPIDER_COPY_TABLES
• SPIDER_FLUSH_TABLE_MON_CACHE
• Reset Spider Monitoring Information
17

18. © MariaDB Corporation Ab
CONNECT Storage Engine
23/02/2015 18

19. © MariaDB Corporation Ab
Goal of the CONNECT Storage Engine :
BI on various targets
Most of the data in companies is in various
external datasources (many in non relational
database format) :
– relational databases: Oracle, SQL Server…
– Dbase, Firebird, SQlite
– Microsoft Access & Excel
– Distributed mysql servers
– DOS,FIX,BIN,CSV, XML
– stored per column...
Not targeted for OLTP
2014/02/02 19

20. © MariaDB Corporation Ab
The CONNECT Storage Engine
2014/02/02 20
MySQL Server / MariaDB
MyISA
M
InnoDB Memory Connect
Federate
d
Merge CSV ...
ODBC MySQL XML CSV DIR TBL JSON ...
XML CSV ODBC
MySQ
L
DIR ...

21. © MariaDB Corporation Ab

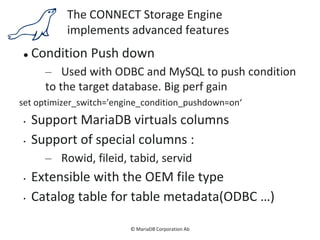

The CONNECT Storage Engine
implements advanced features
 Condition Push down
– Used with ODBC and MySQL to push condition
to the target database. Big perf gain
set optimizer_switch='engine_condition_pushdown=on‘
• Support MariaDB virtuals columns
• Support of special columns :
– Rowid, fileid, tabid, servid
• Extensible with the OEM file type
• Catalog table for table metadata(ODBC …)

22. © MariaDB Corporation Ab
CONECT
File table type
• DOS,FIX,BIN,FMT,CSV,INI,XML, JSON
• Support virtual tables (DIR)
• Large tables support (>2GB)
• Compression - gzlib format
• Memory file maping
• Add read optimized indexing to files
• Multiple CONNECT tables can be created on the
same underlying file
• Indexes can be shared between tables

23. © MariaDB Corporation Ab
CONNECT Storage Engine
ODBC table type
Allow to access to any ODBC datasource.
– Excel, Access, Firebird, SQLite
– SQL Server, Oracle, DB2
• Supports insert, update, delete and any other
commands
• Multi files ODBC: consolidated monthly excel
datasheet
• Access to ODBC and UnixODBC data sources
• WHERE conditions are push to the ODBC source

24. © MariaDB Corporation Ab
XML Table Type
<?xml version="1.0" encoding="ISO-8859-1"?>
<BIBLIO SUBJECT="XML">
<BOOK ISBN="9782212090819" LANG="fr" SUBJECT="applications">
<AUTHOR>
<FIRSTNAME>Jean-Christophe</FIRSTNAME>
<LASTNAME>Bernadac</LASTNAME>
</AUTHOR>
<TITLE>Construire une application XML</TITLE>
<PUBLISHER>
<NAME>Eyrolles</NAME> <PLACE>Paris</PLACE>
</PUBLISHER>
<DATEPUB>1999</DATEPUB>
</BOOK>
</BIBLIO>

25. © MariaDB Corporation Ab
XML Table Type
create table xsampall (
isbn char(15) field_format='@ISBN',
authorln char(20) field_format='AUTHOR/LASTNAME',
title char(32) field_format='TITLE',
translated char(32) field_format='TRANSLATOR/@PREFIX',
year int(4) field_format='DATEPUB')
engine=CONNECT table_type=XML file_name='Xsample.xml'
tabname='BIBLIO' option_list='rownode=BOOK,skipnull=1';

26. © MariaDB Corporation Ab

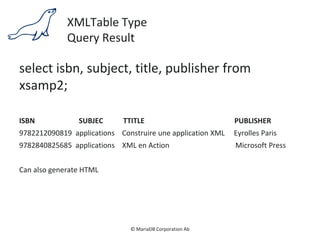

XMLTable Type
Query Result
select isbn, subject, title, publisher from
xsamp2;
ISBN SUBJEC TTITLE PUBLISHER
9782212090819 applications Construire une application XML Eyrolles Paris
9782840825685 applications XML en Action Microsoft Press
Can also generate HTML

27. © MariaDB Corporation Ab

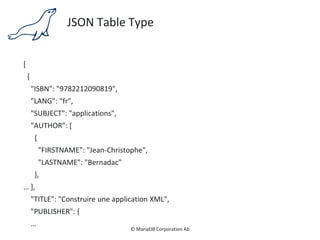

JSON Table Type
[
{
"ISBN": "9782212090819",
"LANG": "fr",
"SUBJECT": "applications",
"AUTHOR": [
{
"FIRSTNAME": "Jean-Christophe",
"LASTNAME": "Bernadac"
},
… ],
"TITLE": "Construire une application XML",
"PUBLISHER": {
…

28. © MariaDB Corporation Ab

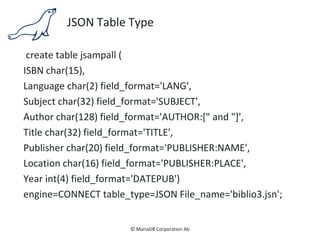

JSON Table Type
create table jsampall (
ISBN char(15),
Language char(2) field_format='LANG',
Subject char(32) field_format='SUBJECT',
Author char(128) field_format='AUTHOR:[" and "]',
Title char(32) field_format='TITLE',
Publisher char(20) field_format='PUBLISHER:NAME',
Location char(16) field_format='PUBLISHER:PLACE',
Year int(4) field_format='DATEPUB')
engine=CONNECT table_type=JSON File_name='biblio3.jsn';

29. © MariaDB Corporation Ab
JSON Table Type
Query Result
select title, author, publisher, location from jsampall;
The result is:
Title author publisher location
Construire application XML Jean Bernadac and François Knab Eyrolles Paris
XML en Action William J. Pardi Microsoft Press Paris

30. © MariaDB Corporation Ab
JSON Table Type
The Jpath Specification
Specification Array Type Description
[n] All Take the nth value of the array. Ignore it if n is 0.
[X] or [x] All Expand. Generate one row for each array value.
["string”] String Concatenate all values separated by the specified string.
[+] Numeric Make the sum of all the array values.
[*] Numeric Make the product of all array values.
[!] Numeric Make the average of all the array values.
[>] or [<] All Return the greatest or least value of the array.
[#] All Return the number of values in the array.
[] All Sum if numeric, else concatenation separated by “, “.
All Take the first value if an array.

31. © MariaDB Corporation Ab
