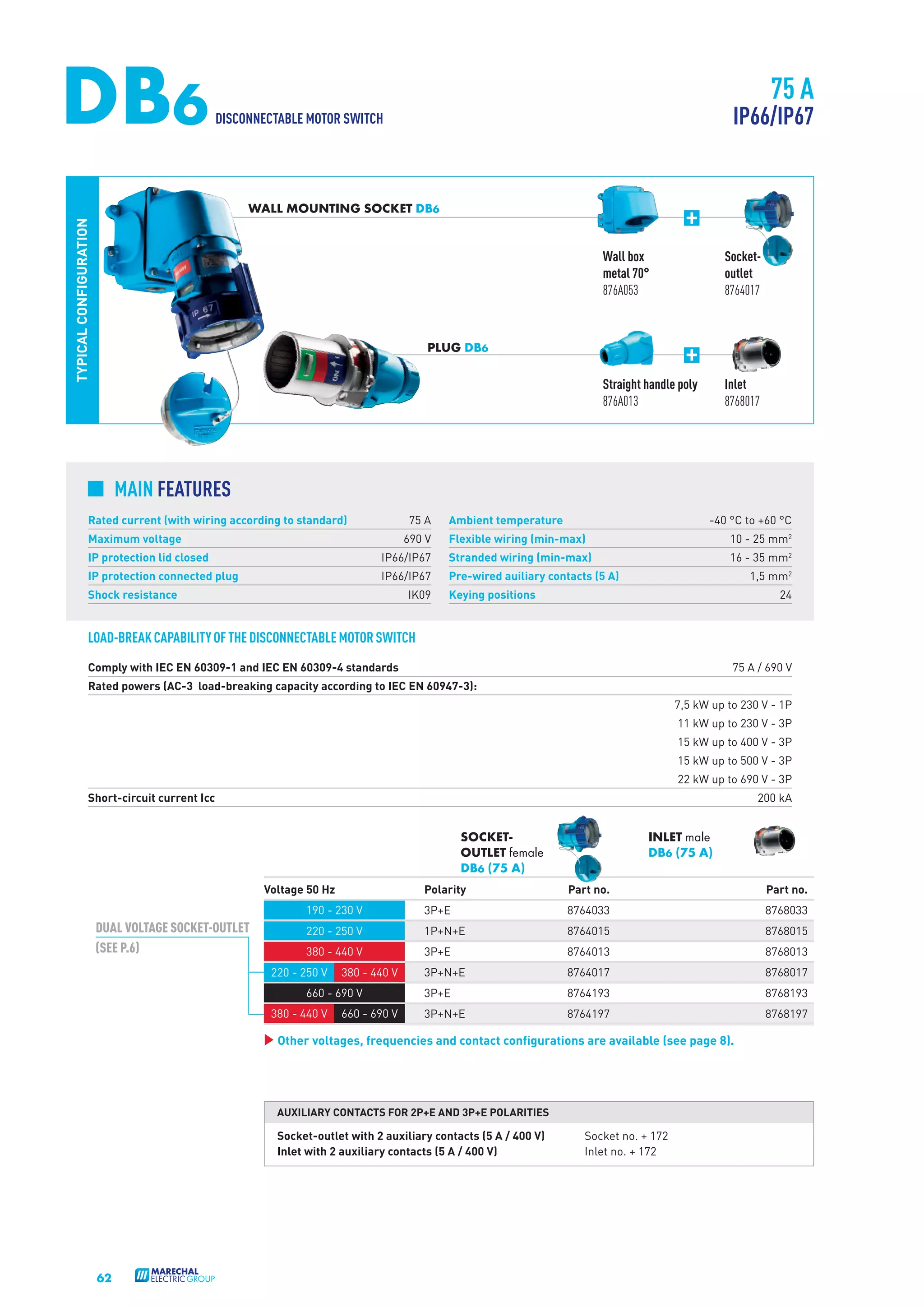

DB6
75 A
IP66/IP67
DISCONNECTABLE MOTOR SWITCH
TYPICAL CONFIGURATION
WALL MOUNTING SOCKET DB6
Wall box
metal 70°
876A053
Socketoutlet
8764017
Straight handle poly
876A013
Inlet
8768017
PLUG DB6
MAIN FEATURES
Rated current (with wiring according to standard)
75 A
Maximum voltage
690 V
Ambient temperature
-40 °C to +60 °C
Flexible wiring (min-max)
10 - 25 mm2
16 - 35 mm2
IP protection lid closed
IP66/IP67
Stranded wiring (min-max)
IP protection connected plug
IP66/IP67
Pre-wired auiliary contacts (5 A)
Shock resistance
IK09
1,5 mm2
Keying positions
24
LOAD-BREAK CAPABILITY OF THE DISCONNECTABLE MOTOR SWITCH
Comply with IEC EN 60309-1 and IEC EN 60309-4 standards
75 A / 690 V
Rated powers (AC-3 load-breaking capacity according to IEC EN 60947-3):
7,5 kW up to 230 V - 1P
11 kW up to 230 V - 3P
15 kW up to 400 V - 3P
15 kW up to 500 V - 3P
22 kW up to 690 V - 3P
Short-circuit current Icc
200 kA
INLET male
DB6 (75 A)
SOCKETOUTLET female
DB6 (75 A)
Voltage 50 Hz
Part no.
Part no.
190 - 230 V
DUAL VOLTAGE SOCKET-OUTLET
(SEE P.6)
Polarity
3P+E
8764033
8768033
220 - 250 V
1P+N+E
8764015
8768015
380 - 440 V
3P+E
8764013
8768013
220 - 250 V
380 - 440 V
660 - 690 V
380 - 440 V
660 - 690 V
3P+N+E
8764017
8768017
3P+E
8764193
8768193
3P+N+E
8764197
8768197
̈ Other voltages, frequencies and contact configurations are available (see page 8).
AUXILIARY CONTACTS FOR 2P+E AND 3P+E POLARITIES
Socket-outlet with 2 auxiliary contacts (5 A / 400 V)
Inlet with 2 auxiliary contacts (5 A / 400 V)
62
Socket no. + 172
Inlet no. + 172

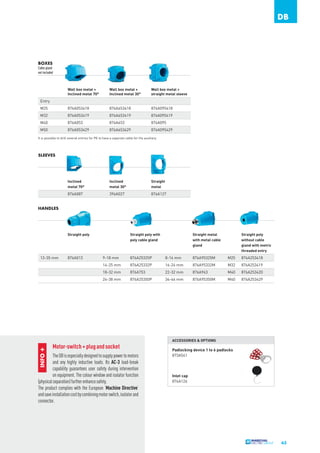

2. DB
BOXES
Cable gland
not included
Wall box metal +
Inclined metal 70°
Wall box metal +
Inclined metal 30°
Wall box metal +
straight metal sleeve
M25
876A053418
876A653418
876A095418
M32
876A053419
876A653419
876A095419
M40
876A053
876A653
876A095
M50
876A053429
876A653429
876A095429
Entry
It is possible to drill several entries for PE to have a separate cable for the auxiliary.
SLEEVES
Inclined
metal 70°
Inclined
metal 30°
Straight
metal
876A087
396A027
876A127
HANDLES
Straight poly
13-35 mm
876A013
Straight poly with
poly cable gland
Straight metal
with metal cable
gland
Straight poly
without cable
gland with metric
threaded entry
9-18 mm
876A25325P
8-16 mm
876A95325M
M25
876A253418
14-25 mm
876A25332P
16-24 mm
876A95332M
M32
876A253419
18-32 mm
876A753
22-32 mm
876A963
M40
876A253420
24-38 mm
876A25350P
34-44 mm
876A95350M
M40
876A253429
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk
INFO +
ACCESSORIES & OPTIONS
Motor-switch + plug and socket
The DB is especially designed to supply power to motors
and any highly inductive loads. Its AC-3 load-break
capability guarantees user safety during intervention
on equipment. The colour window and isolator function
(physical separation) further enhance safety.
The product complies with the European ‘Machine Directive’
and save installation cost by combining motor switch, isolator and
connector.
Padlocking device 1 to 6 padlocks
873A541
Inlet cap
876A126
