This document discusses different types of Magento patches including schema patches, data patches, version patches, and revertable patches. It explains where these patches are defined, the interfaces they implement, and how they are applied and reverted. It also introduces new CLI commands for generating patches and discusses uninstalling modules.

1. © 2019 Magento, Inc. Page | 1
Magento 2.3
Schema and Data
Patches

2. © 2019 Magento, Inc.
.
Page | 2
Technical Architect at BORN Group
Atish Goswami

3. © 2019 Magento, Inc. Page | 3
Agenda

4. © 2019 Magento, Inc. Page | 4

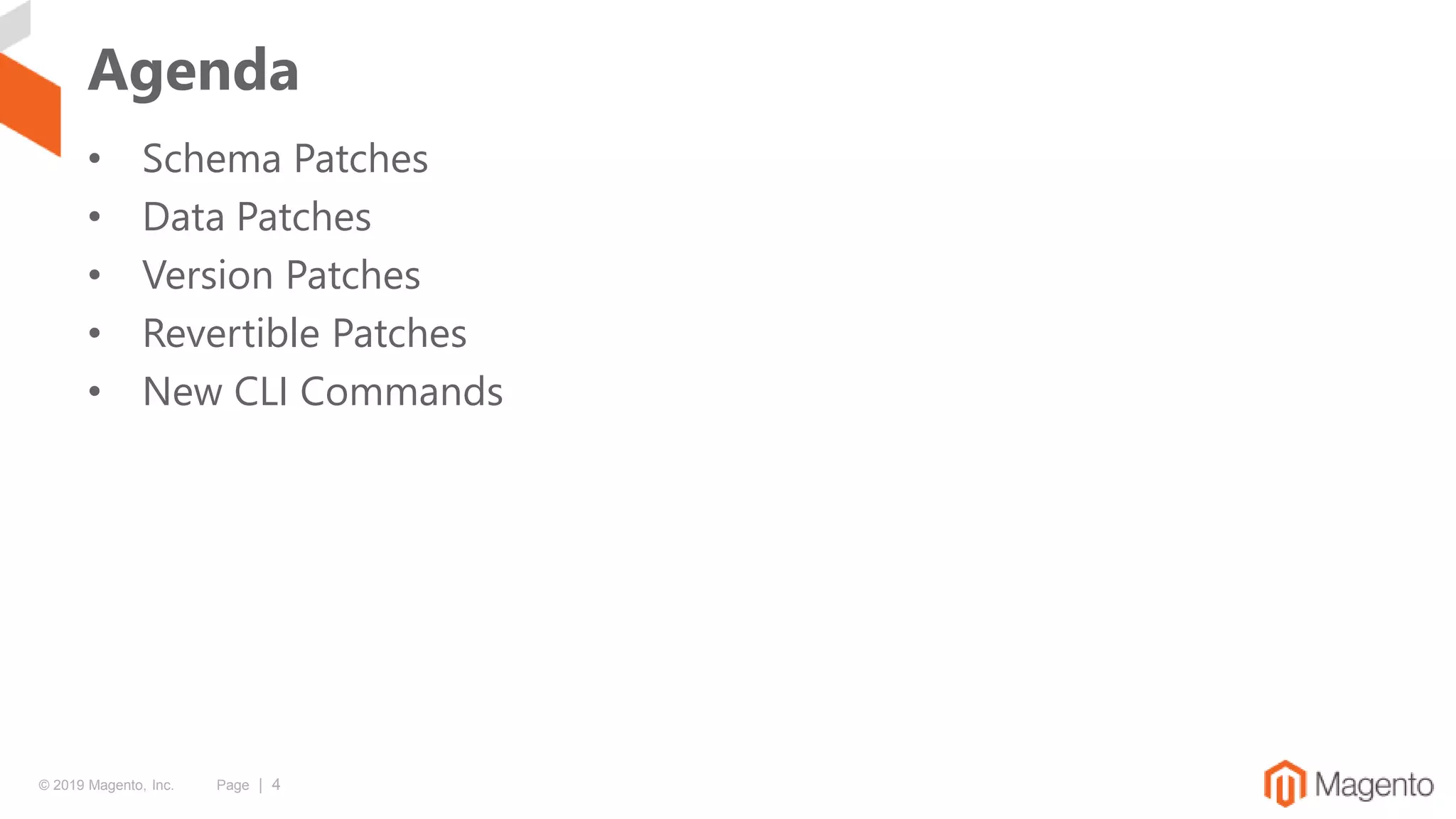

Agenda
• Schema Patches
• Data Patches
• Version Patches
• Revertible Patches
• New CLI Commands

5. © 2019 Magento, Inc. Page | 5

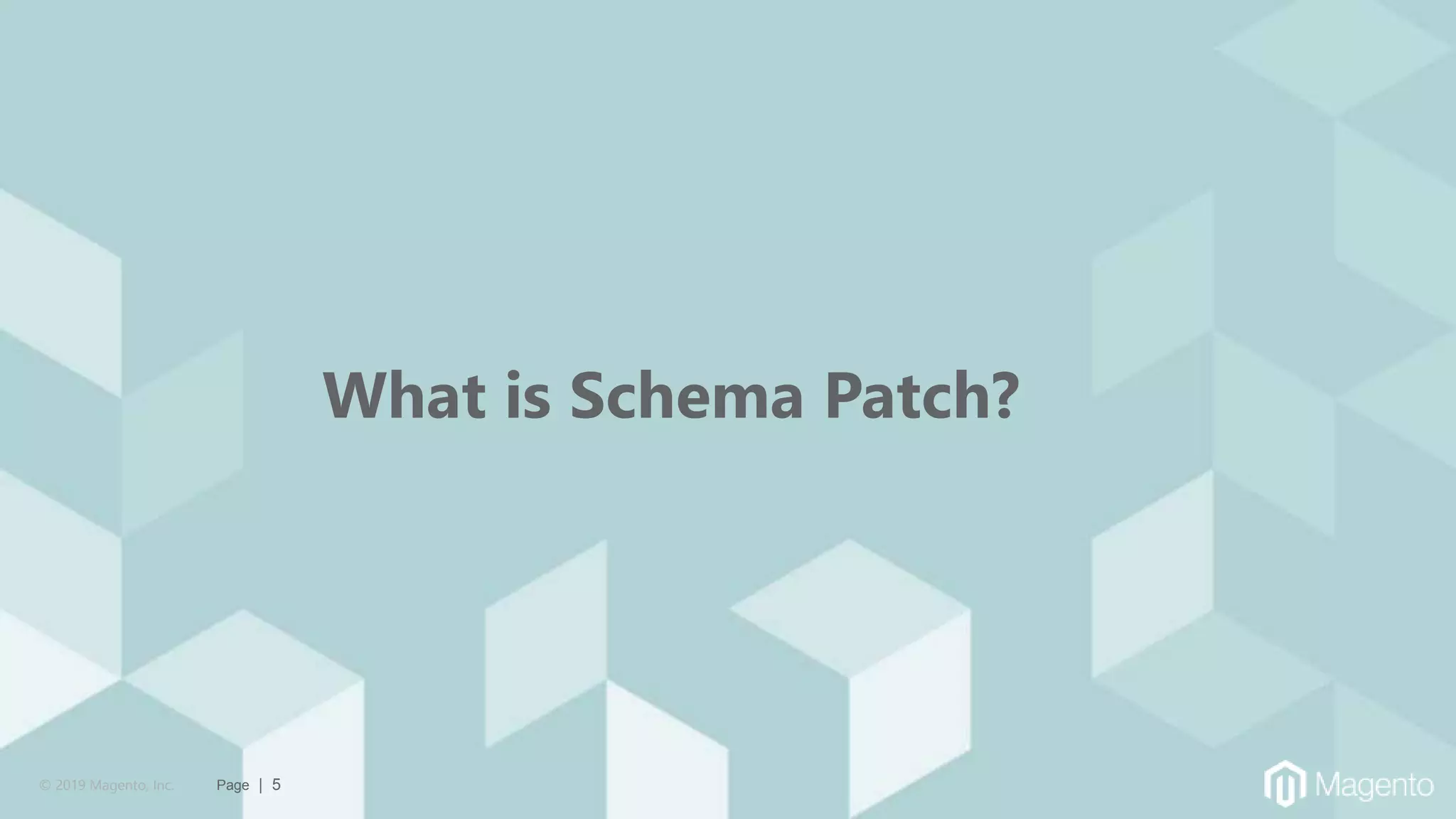

What is Schema Patch?

6. © 2019 Magento, Inc. Page | 6

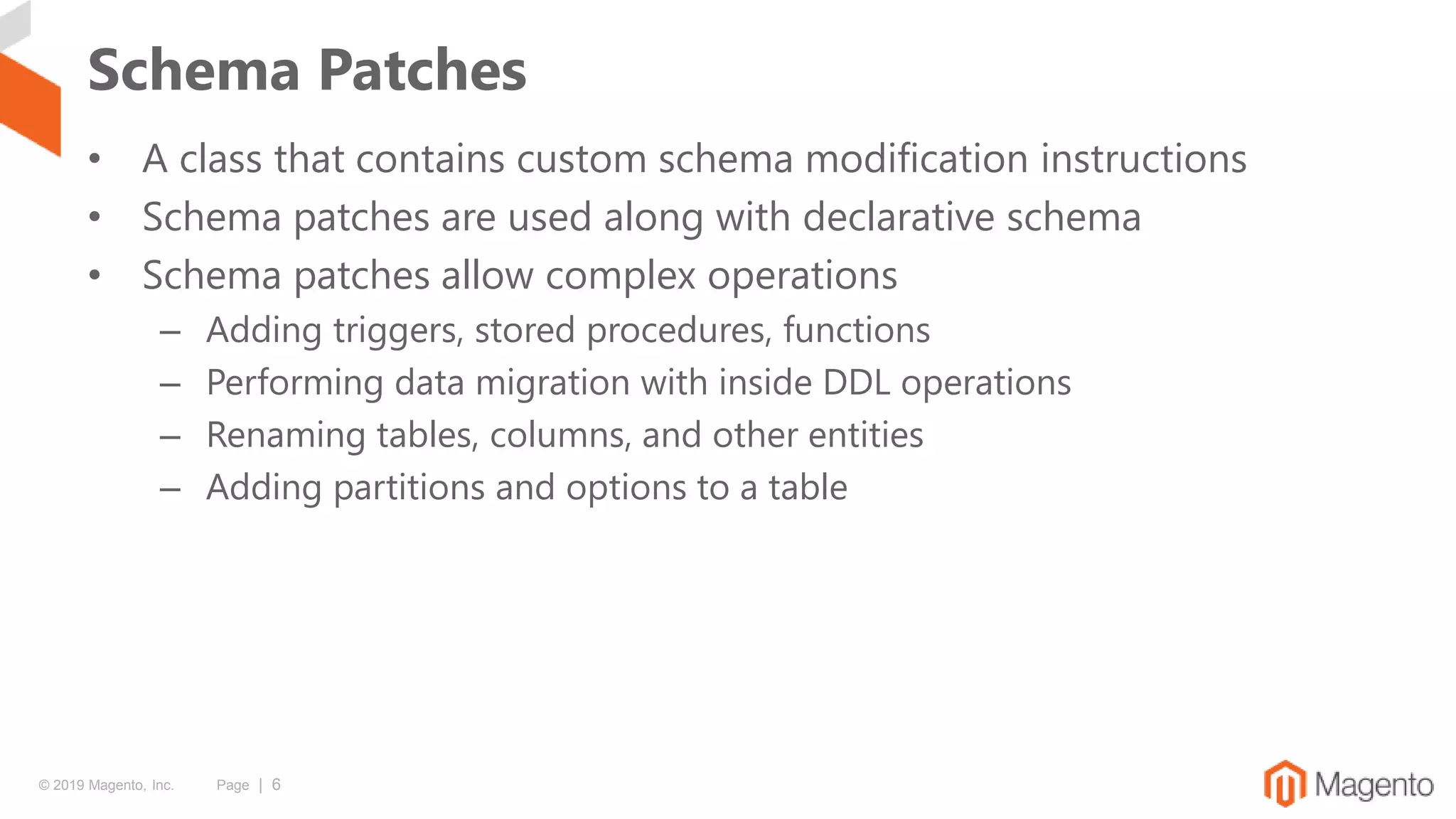

Schema Patches
• A class that contains custom schema modification instructions
• Schema patches are used along with declarative schema
• Schema patches allow complex operations
– Adding triggers, stored procedures, functions
– Performing data migration with inside DDL operations
– Renaming tables, columns, and other entities
– Adding partitions and options to a table

7. © 2019 Magento, Inc. Page | 7
Where do we define this
file ?

8. © 2019 Magento, Inc. Page | 8

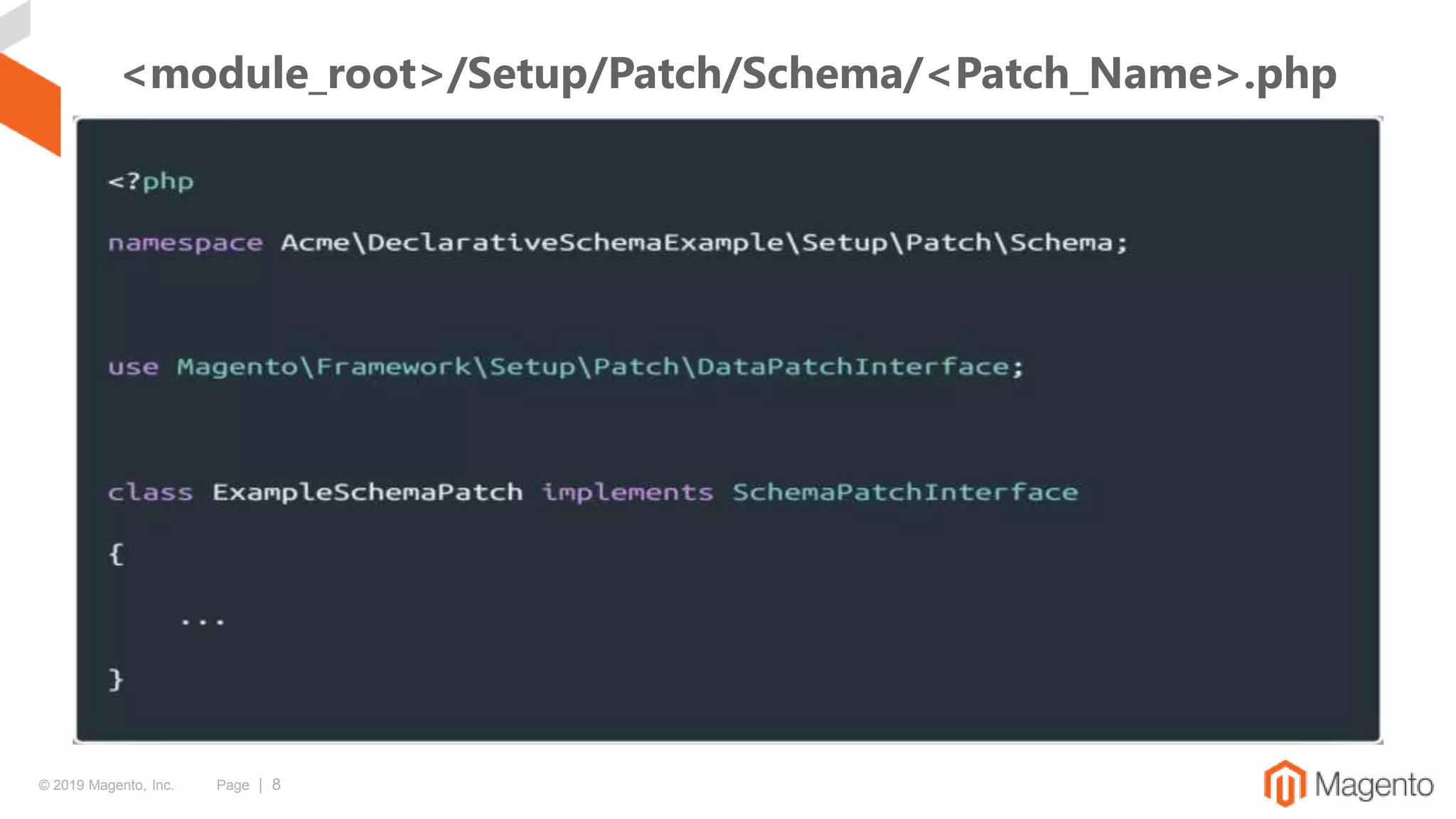

<module_root>/Setup/Patch/Schema/<Patch_Name>.php

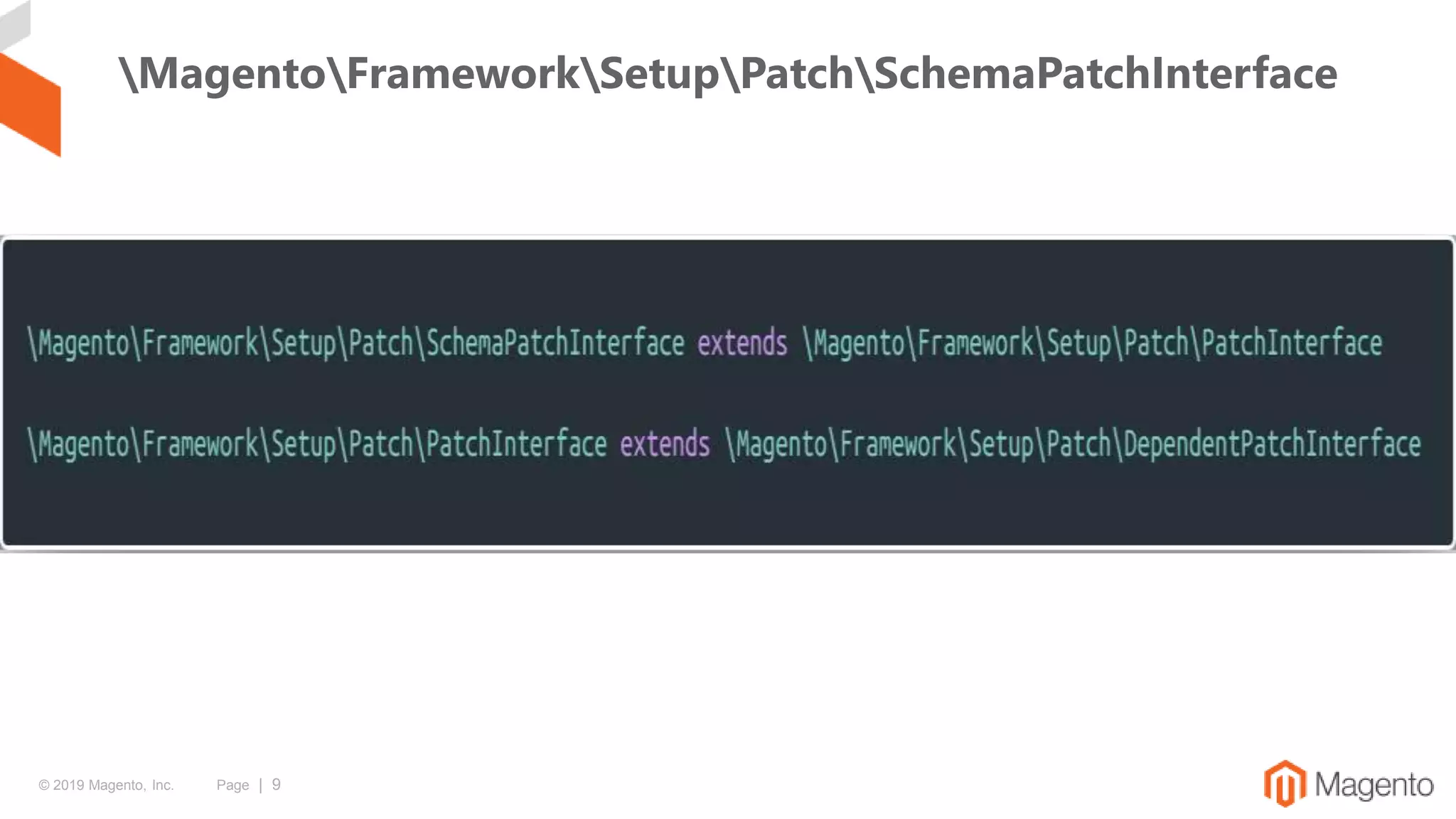

9. © 2019 Magento, Inc. Page | 9
MagentoFrameworkSetupPatchSchemaPatchInterface

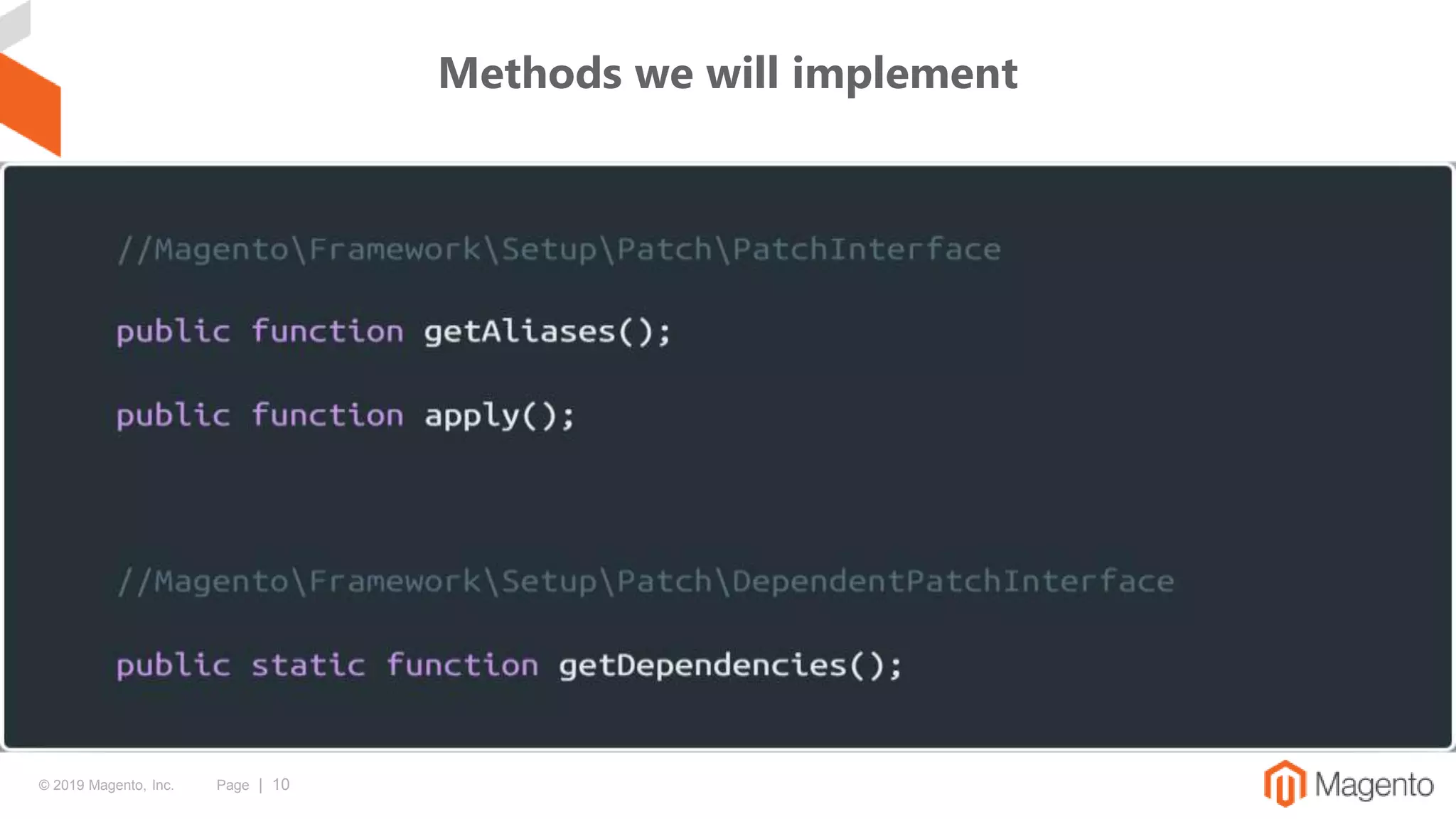

10. © 2019 Magento, Inc. Page | 10
Methods we will implement

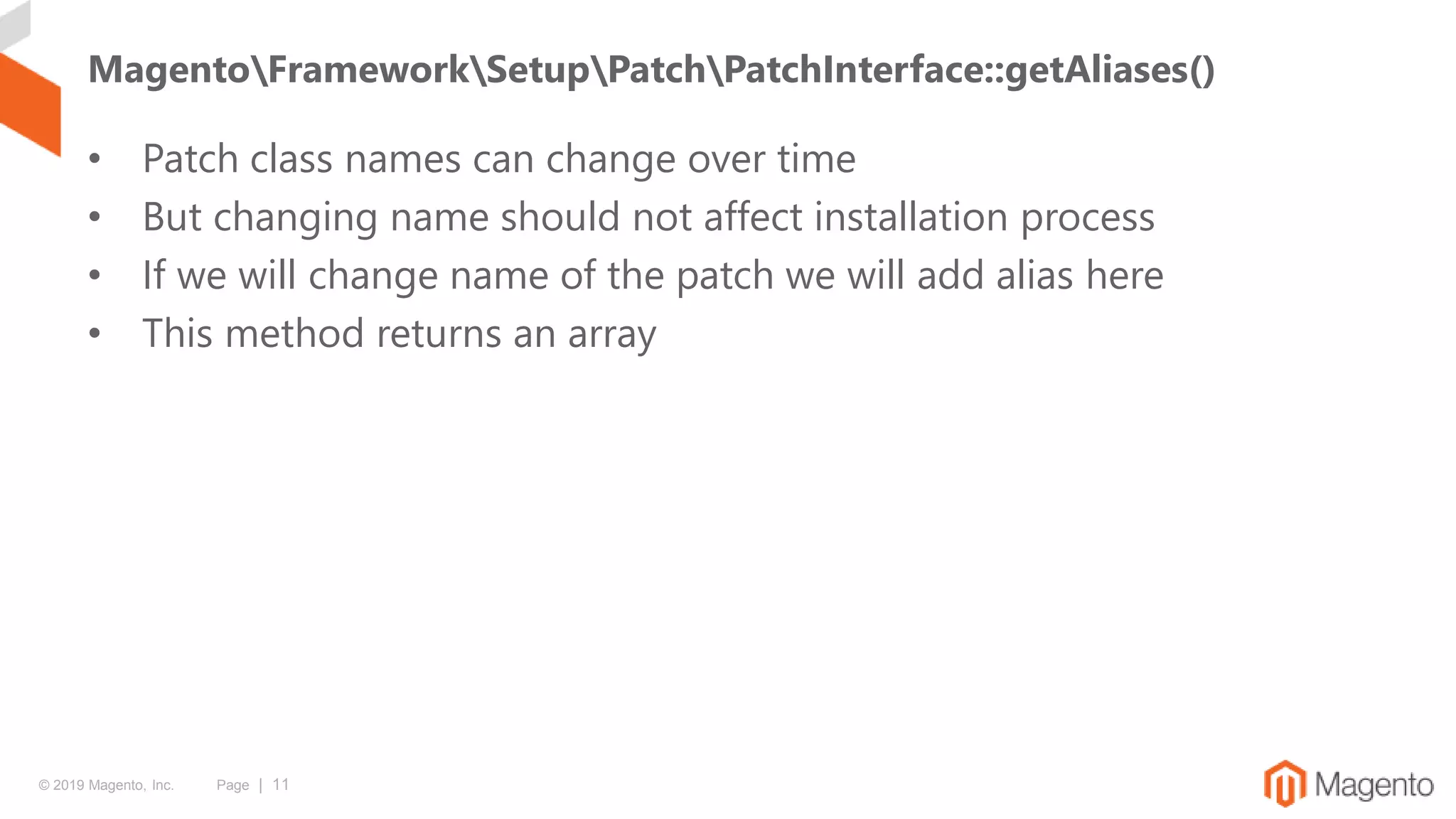

11. © 2019 Magento, Inc. Page | 11
MagentoFrameworkSetupPatchPatchInterface::getAliases()
• Patch class names can change over time
• But changing name should not affect installation process
• If we will change name of the patch we will add alias here
• This method returns an array

12. © 2019 Magento, Inc. Page | 12

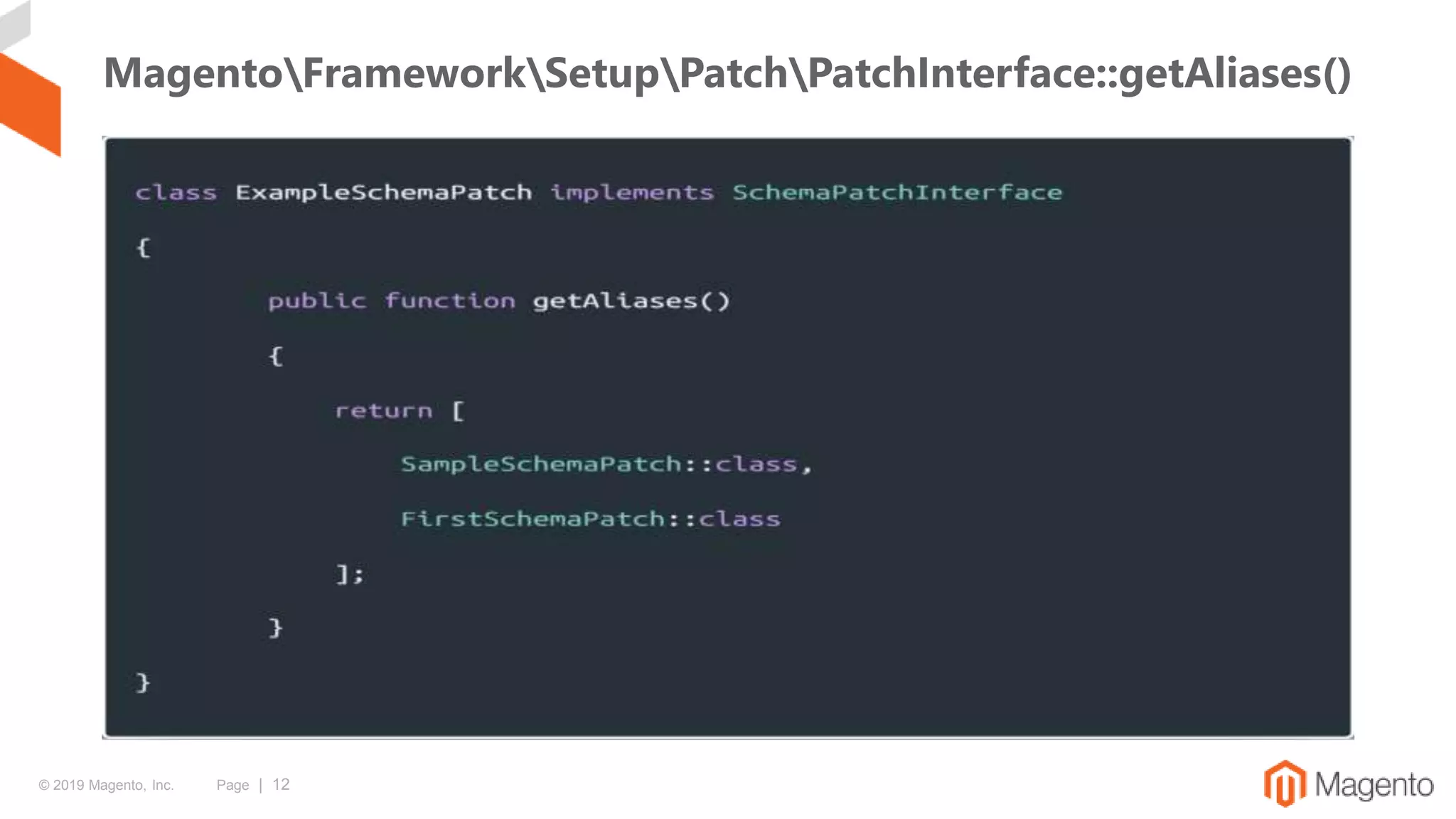

MagentoFrameworkSetupPatchPatchInterface::getAliases()

13. © 2019 Magento, Inc. Page | 13

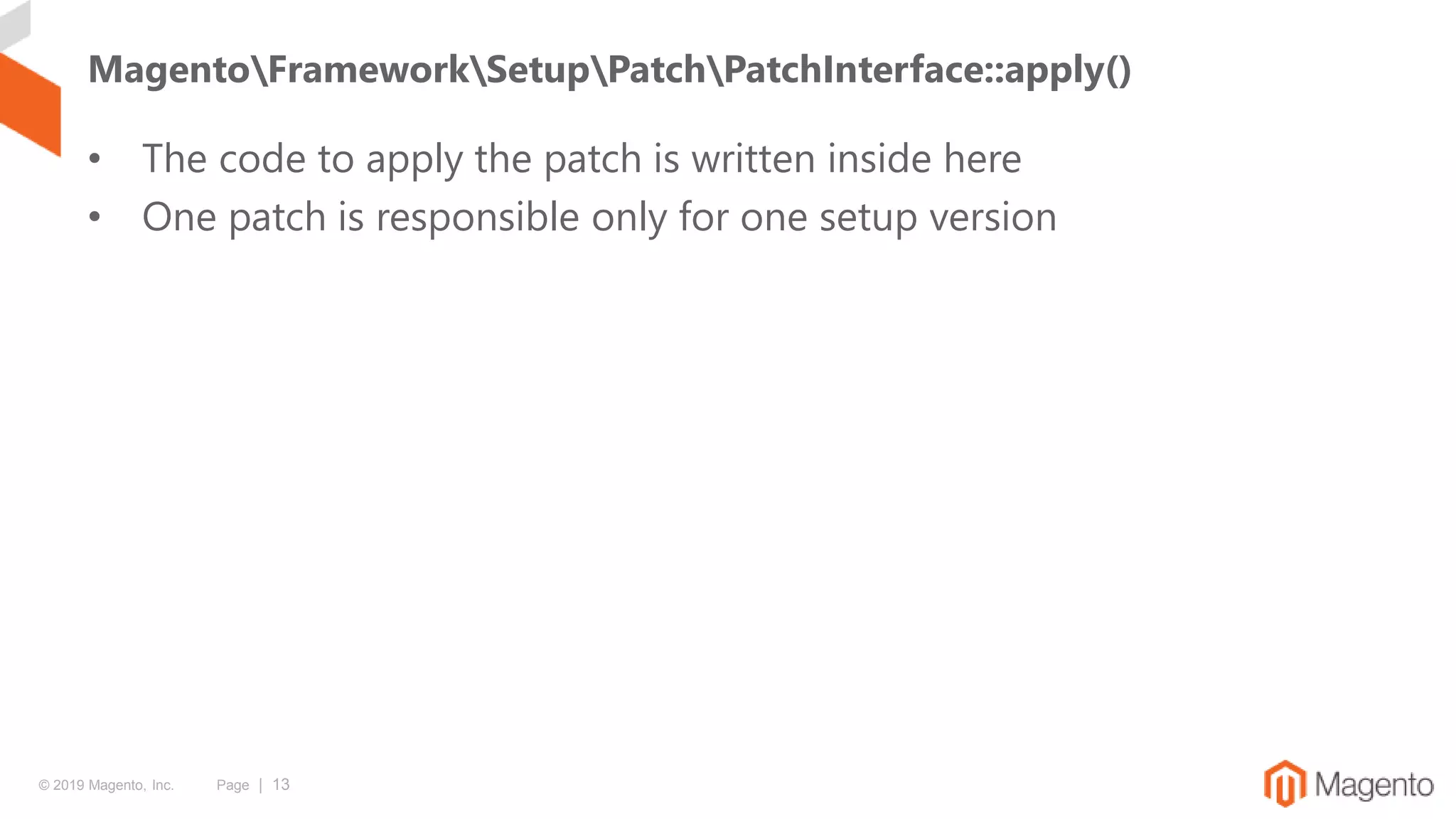

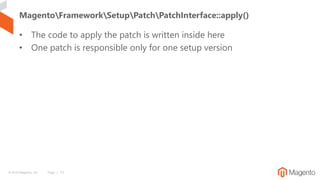

MagentoFrameworkSetupPatchPatchInterface::apply()
• The code to apply the patch is written inside here
• One patch is responsible only for one setup version

14. © 2019 Magento, Inc. Page | 14

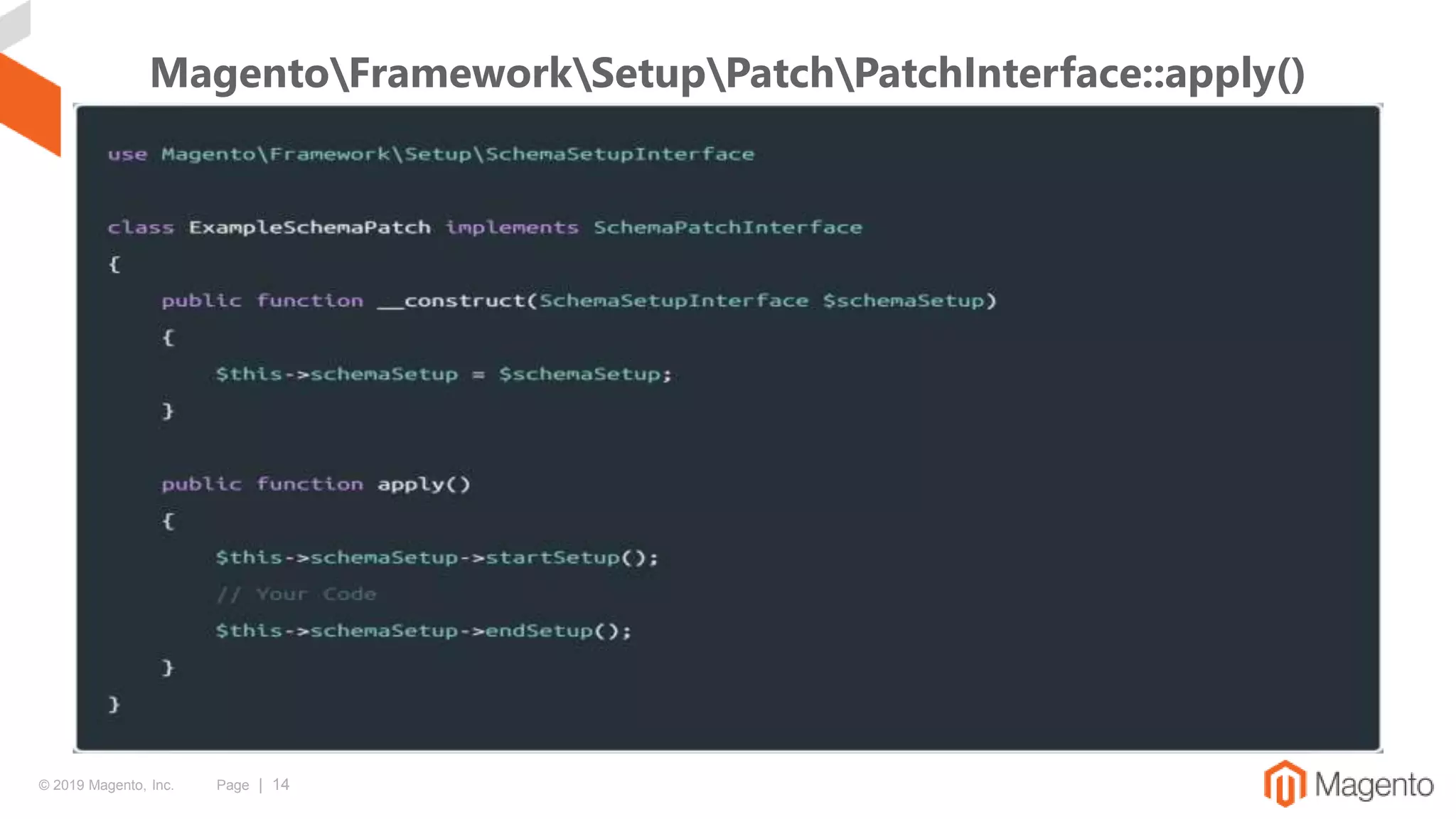

MagentoFrameworkSetupPatchPatchInterface::apply()

15. © 2019 Magento, Inc. Page | 15

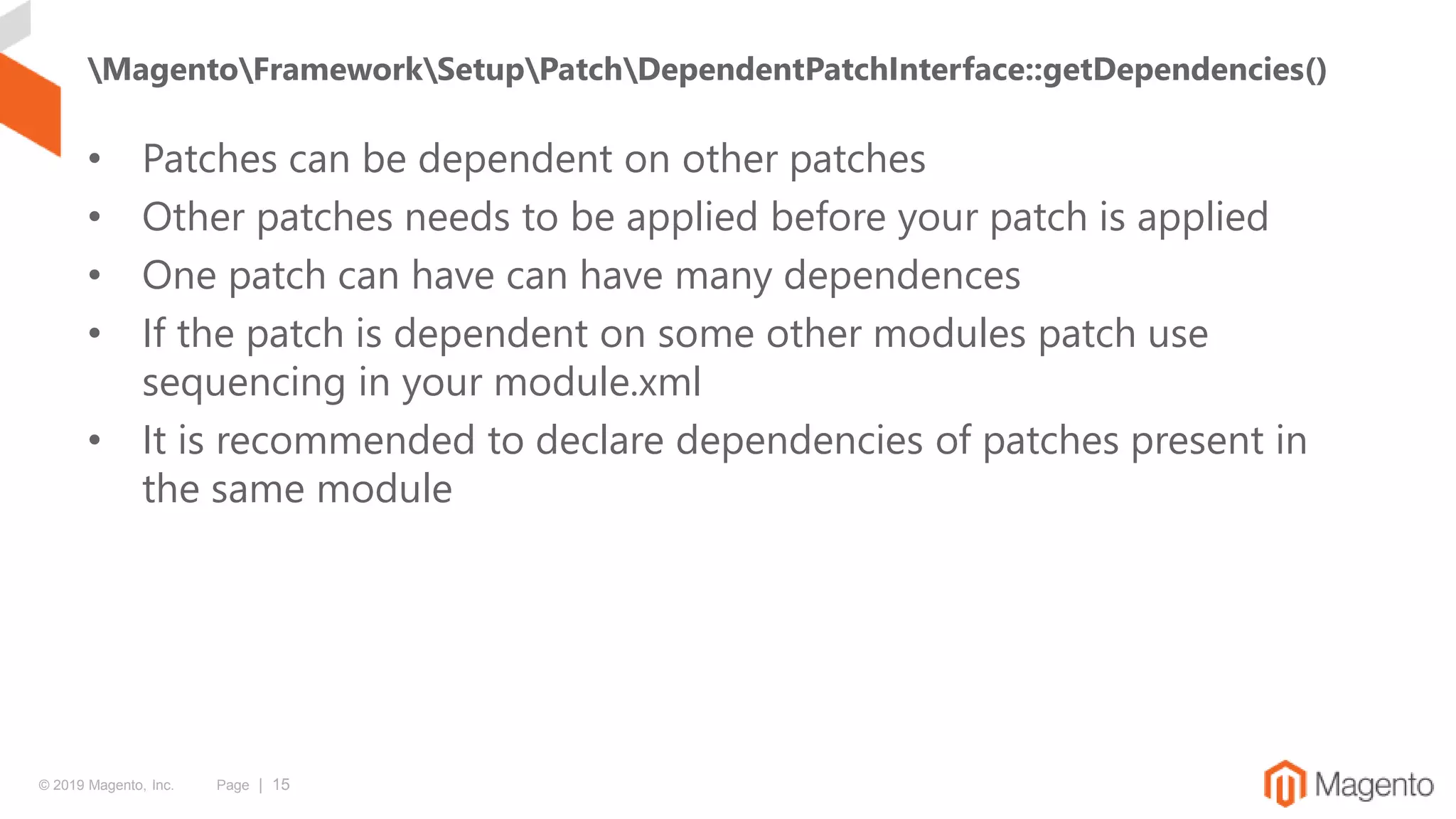

MagentoFrameworkSetupPatchDependentPatchInterface::getDependencies()
• Patches can be dependent on other patches
• Other patches needs to be applied before your patch is applied
• One patch can have can have many dependences
• If the patch is dependent on some other modules patch use
sequencing in your module.xml
• It is recommended to declare dependencies of patches present in
the same module

16. © 2019 Magento, Inc. Page | 16

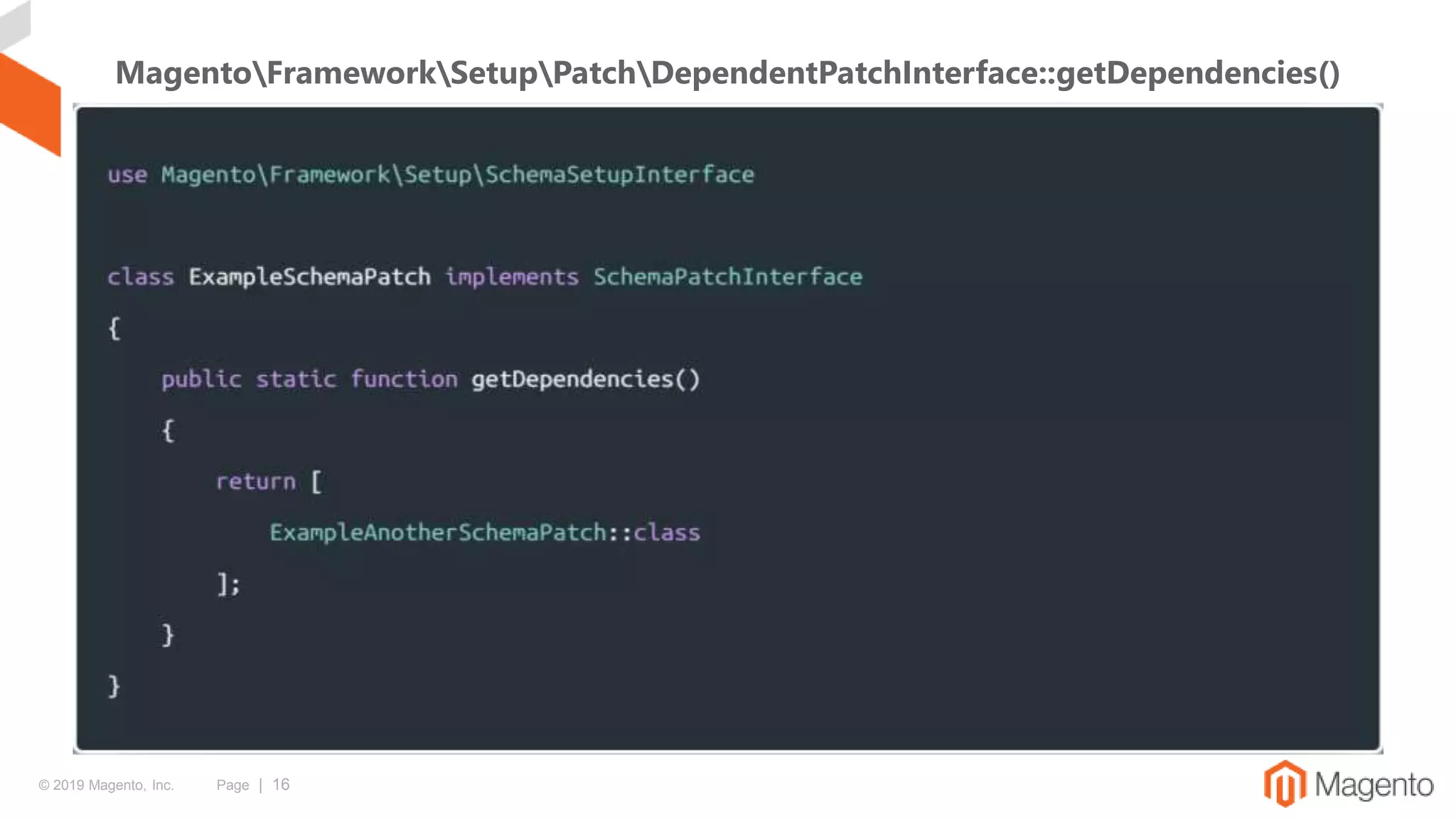

MagentoFrameworkSetupPatchDependentPatchInterface::getDependencies()

17. © 2019 Magento, Inc. Page | 17

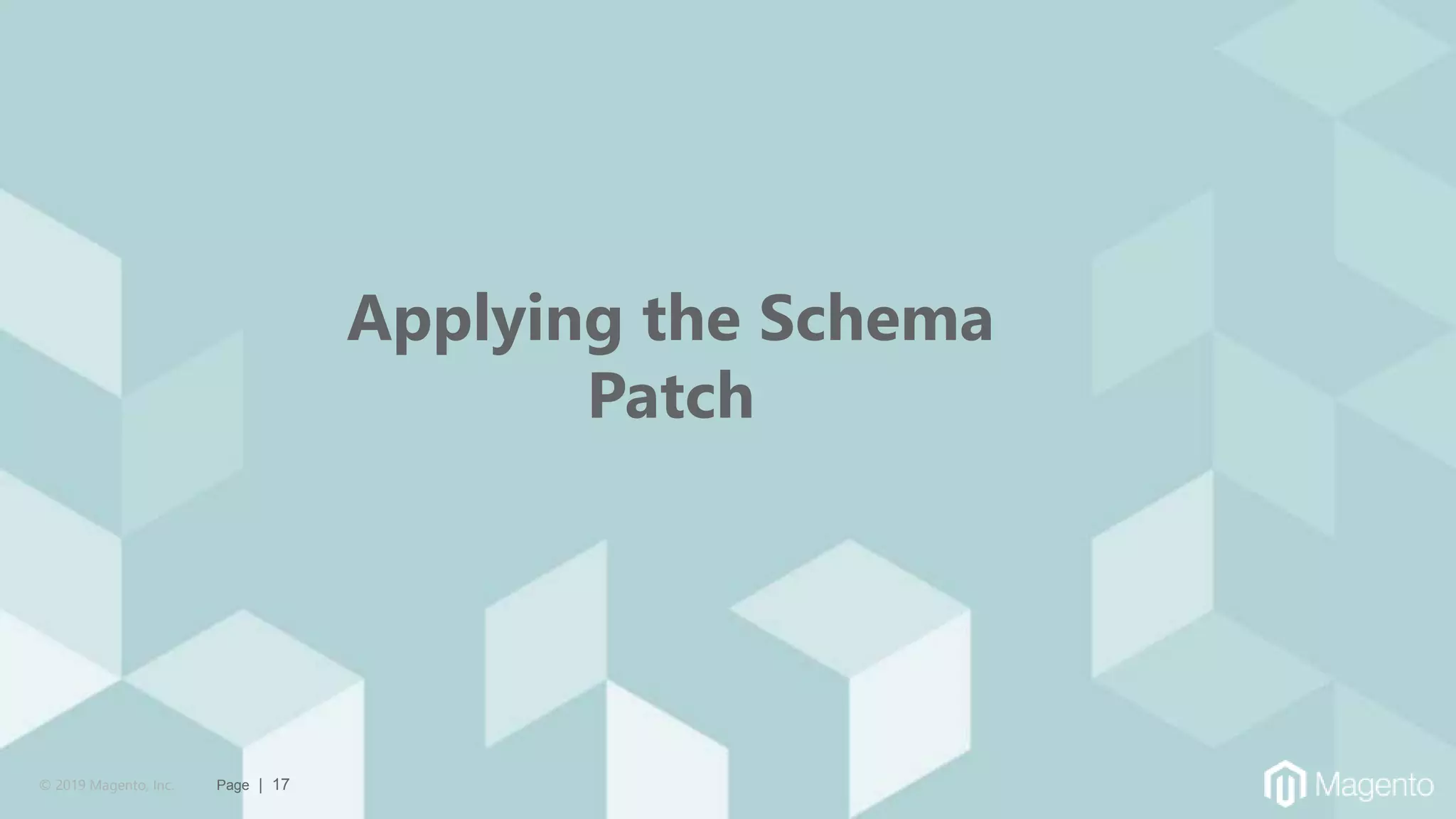

Applying the Schema
Patch

18. © 2019 Magento, Inc. Page | 18

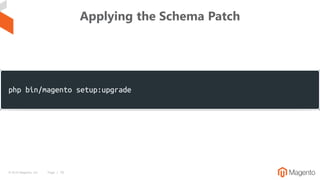

Applying the Schema Patch

19. © 2019 Magento, Inc. Page | 19
What happened behind
the scenes

20. © 2019 Magento, Inc. Page | 20

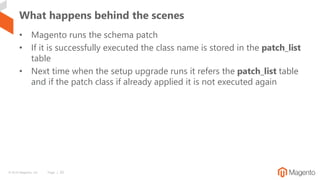

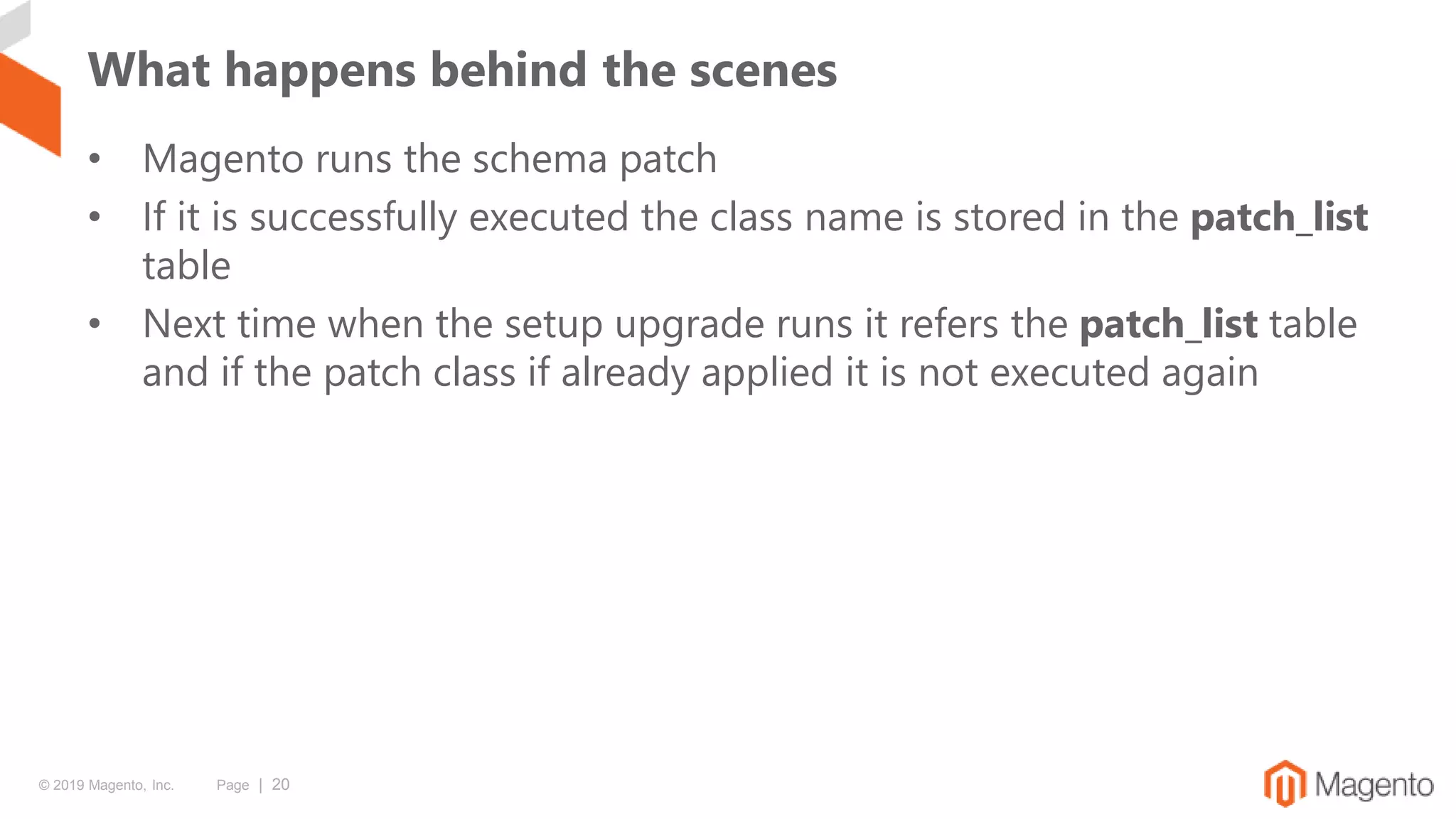

What happens behind the scenes
• Magento runs the schema patch
• If it is successfully executed the class name is stored in the patch_list
table
• Next time when the setup upgrade runs it refers the patch_list table
and if the patch class if already applied it is not executed again

21. © 2019 Magento, Inc. Page | 21

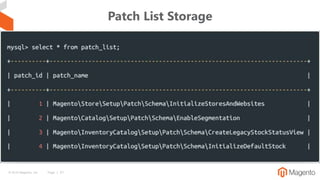

Patch List Storage

22. © 2019 Magento, Inc. Page | 22
What is Data Patch?

23. © 2019 Magento, Inc. Page | 23

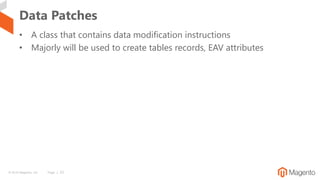

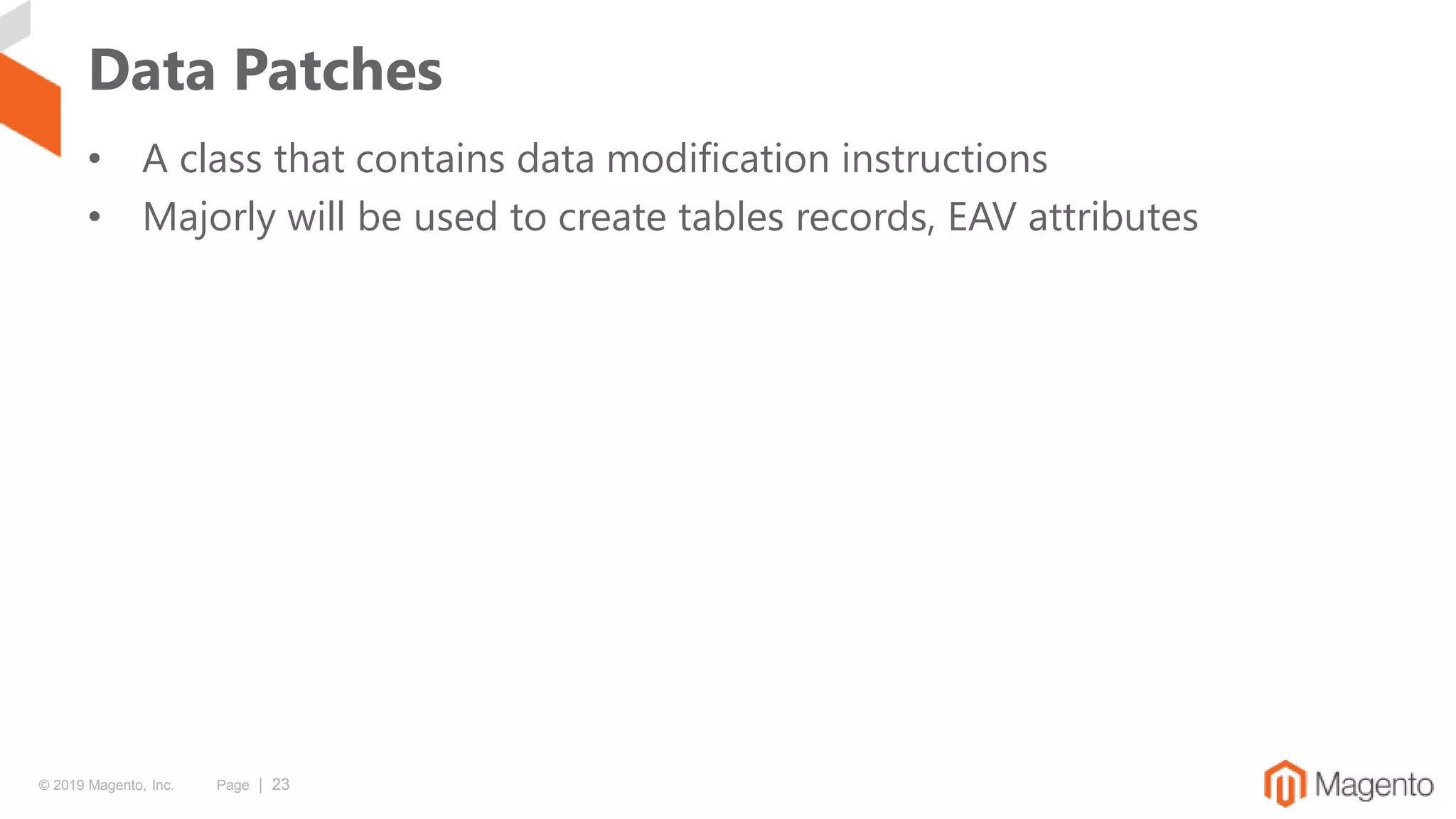

Data Patches
• A class that contains data modification instructions
• Majorly will be used to create tables records, EAV attributes

24. © 2019 Magento, Inc. Page | 24
Where do we define this
file ?

25. © 2019 Magento, Inc. Page | 25
<module_root>/Setup/Patch/Data/<Patch_Name>.php

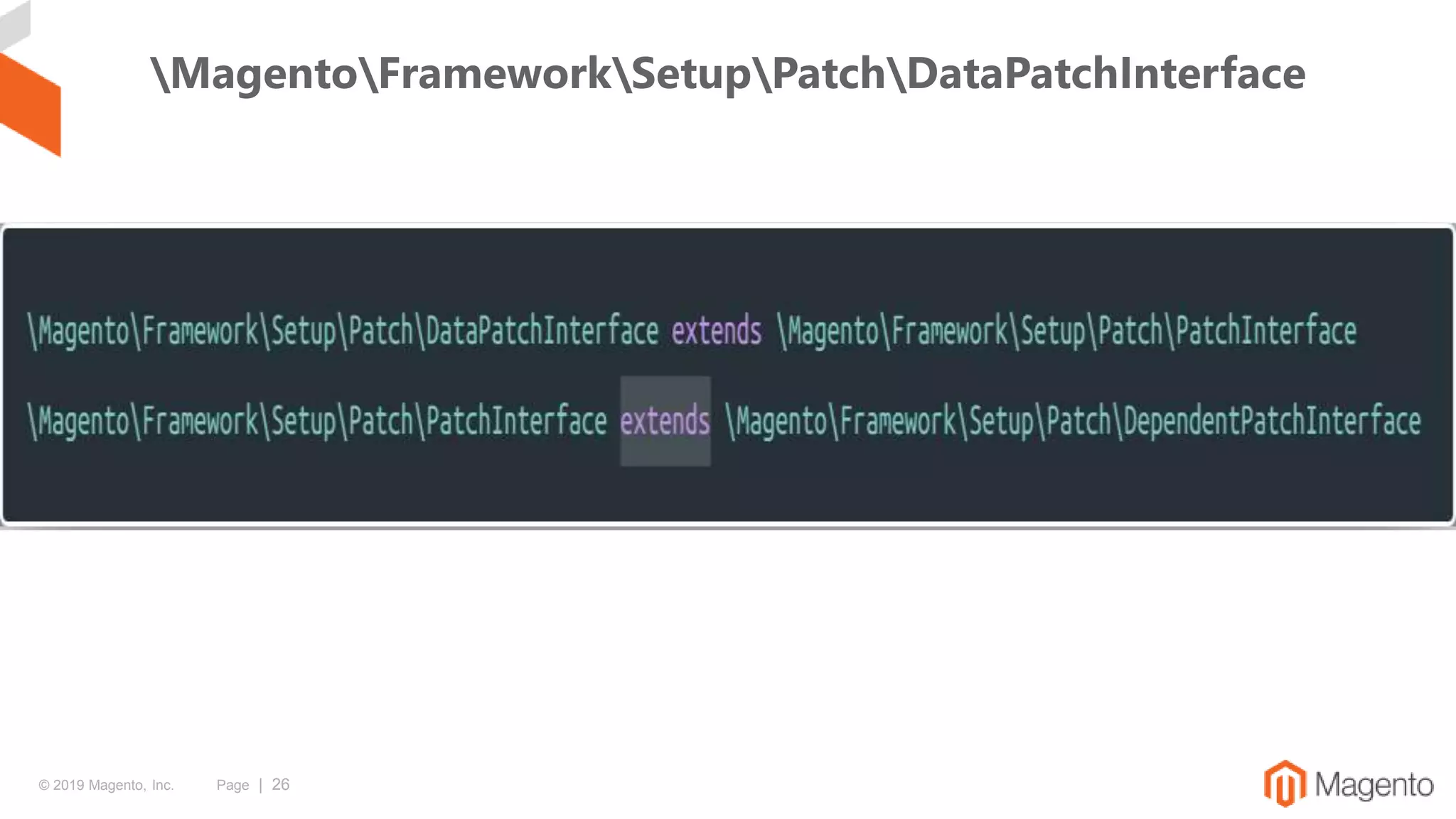

26. © 2019 Magento, Inc. Page | 26
MagentoFrameworkSetupPatchDataPatchInterface

27. © 2019 Magento, Inc. Page | 27
Methods we will implement

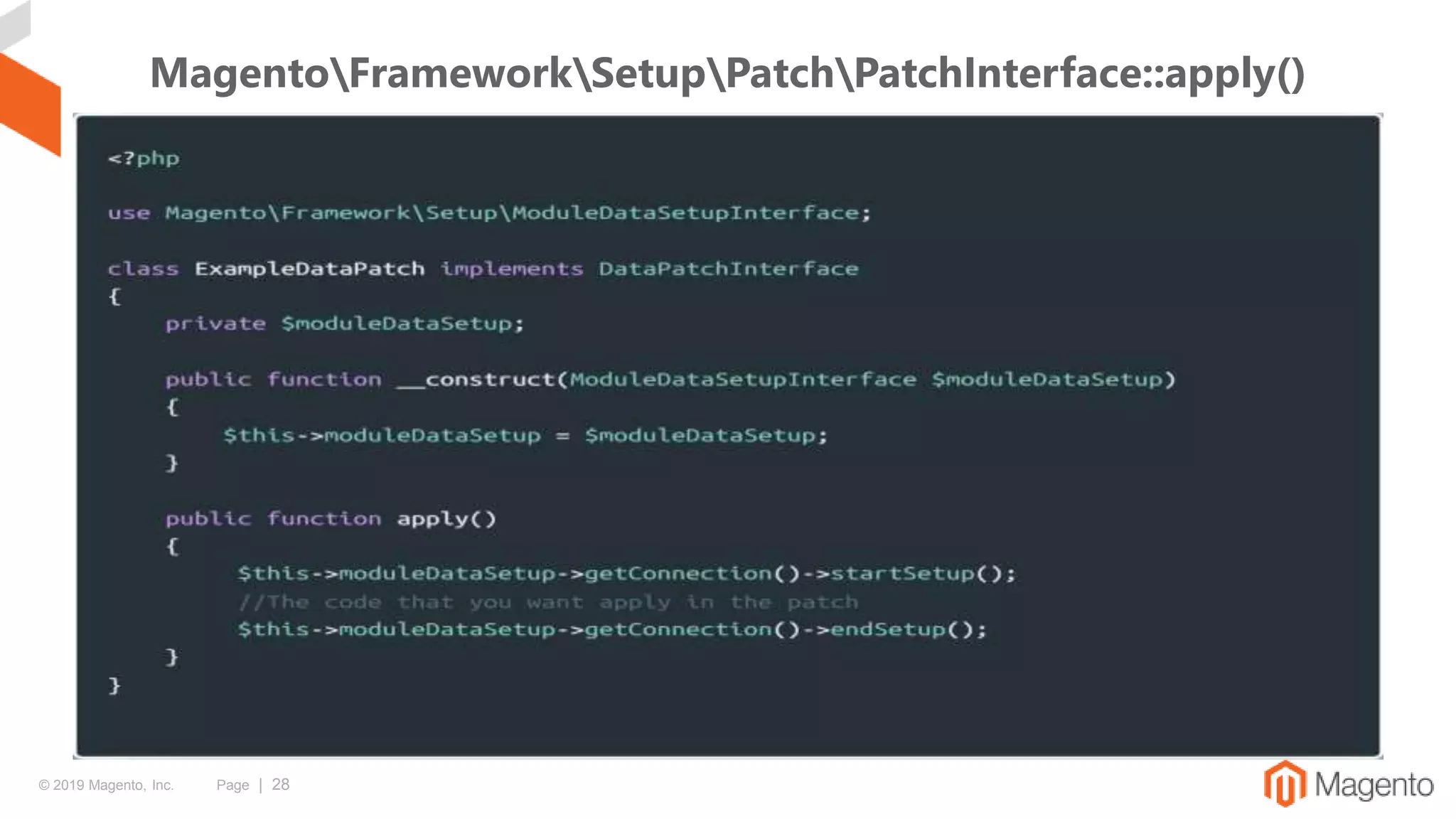

28. © 2019 Magento, Inc. Page | 28
MagentoFrameworkSetupPatchPatchInterface::apply()

29. © 2019 Magento, Inc. Page | 29
What is Version Patch?

30. © 2019 Magento, Inc. Page | 30

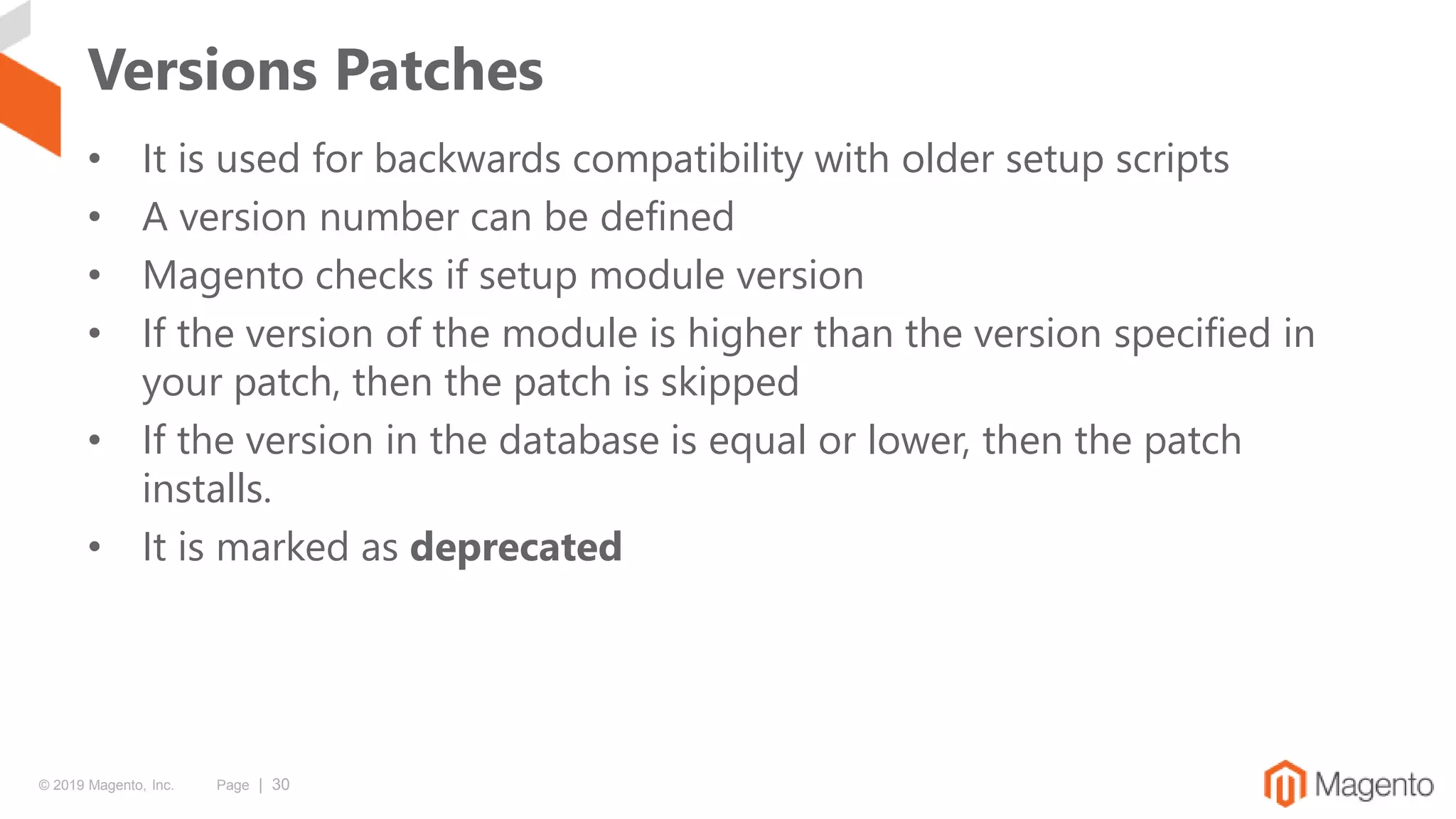

Versions Patches
• It is used for backwards compatibility with older setup scripts
• A version number can be defined
• Magento checks if setup module version
• If the version of the module is higher than the version specified in
your patch, then the patch is skipped
• If the version in the database is equal or lower, then the patch
installs.
• It is marked as deprecated

31. © 2019 Magento, Inc. Page | 31

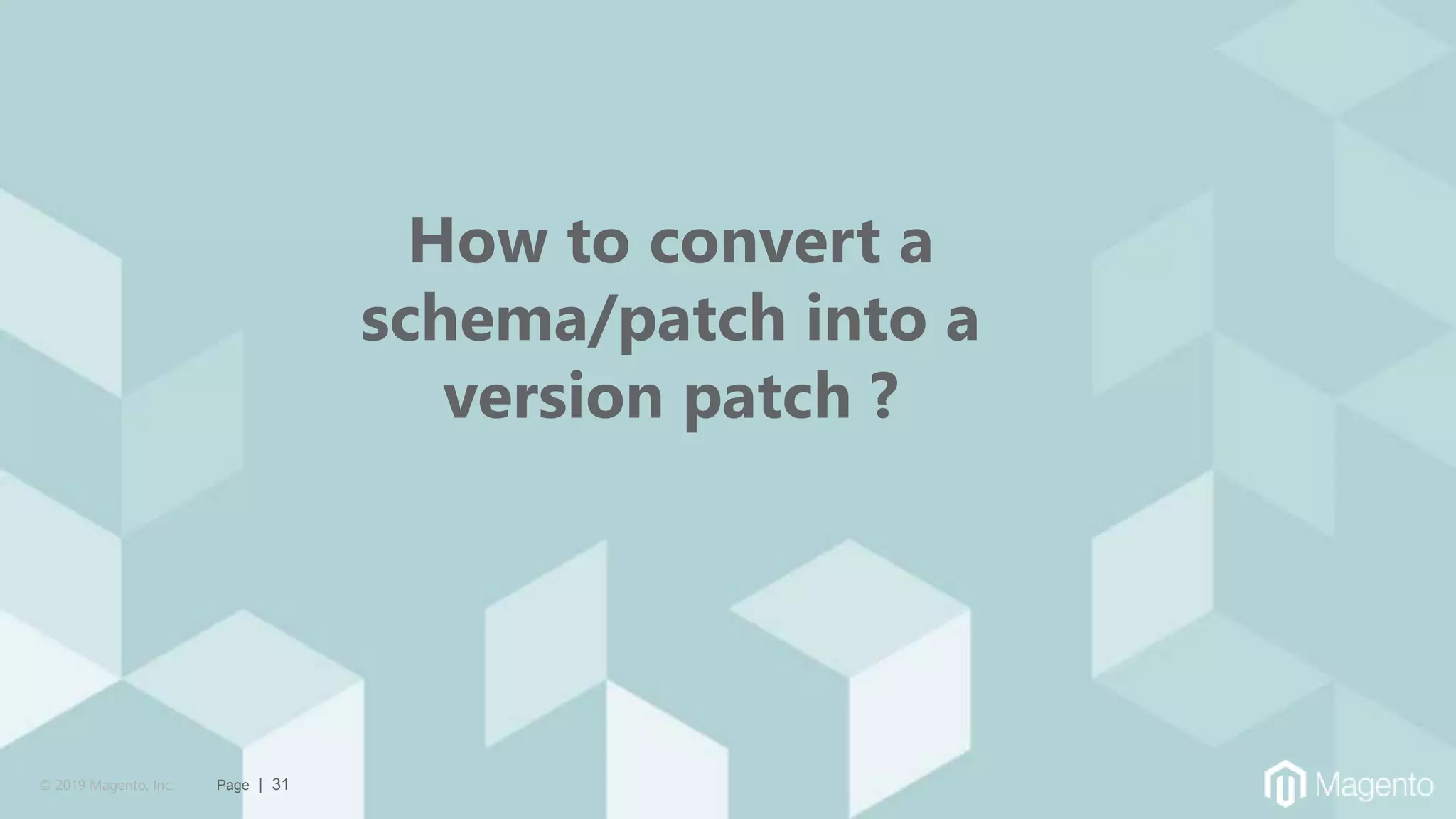

How to convert a
schema/patch into a
version patch ?

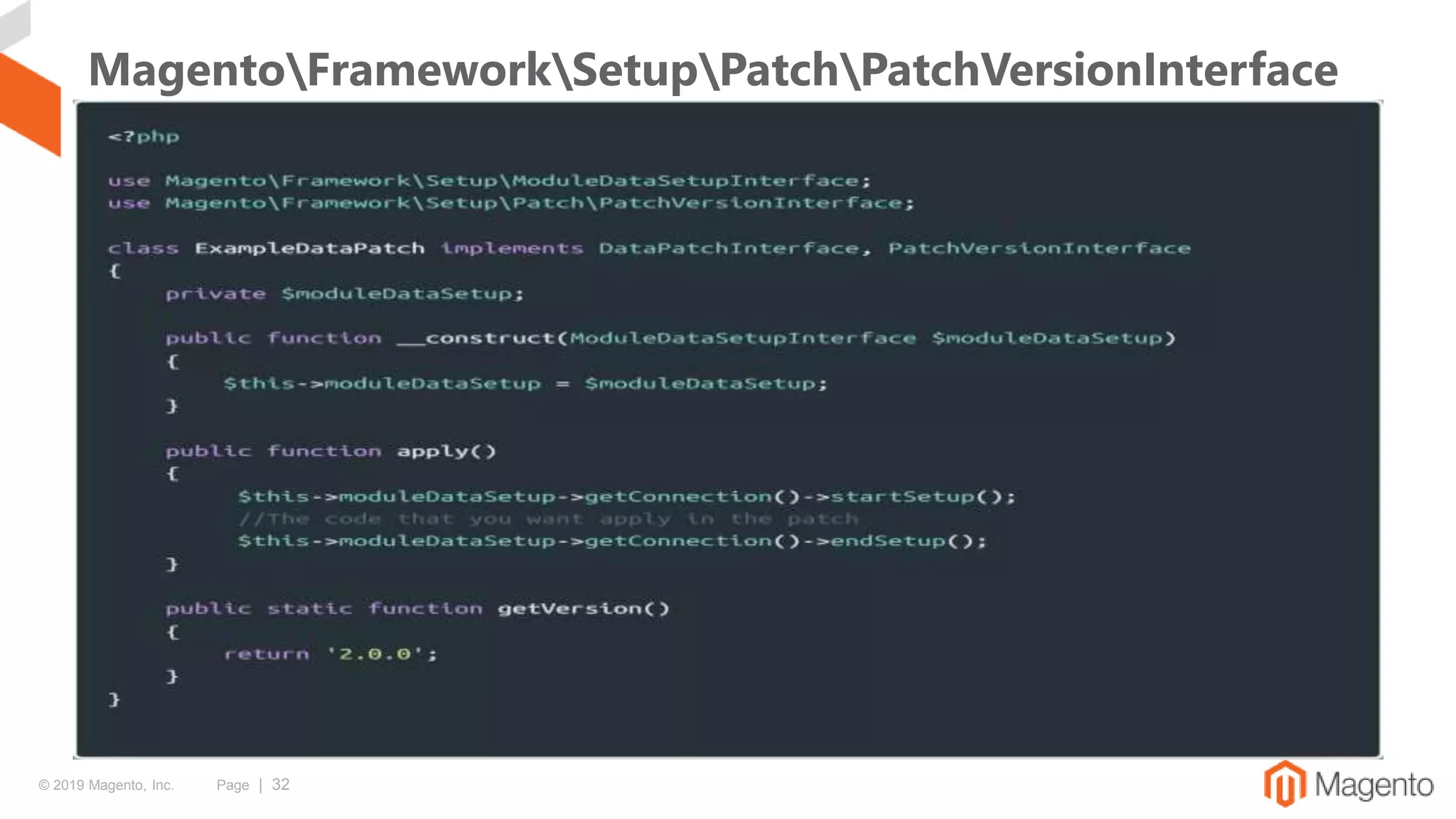

32. © 2019 Magento, Inc. Page | 32
MagentoFrameworkSetupPatchPatchVersionInterface

33. © 2019 Magento, Inc. Page | 33
What is Revertable
Patch?

34. © 2019 Magento, Inc. Page | 34

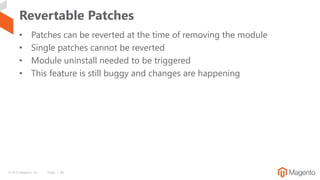

Revertable Patches
• Patches can be reverted at the time of removing the module
• Single patches cannot be reverted
• Module uninstall needed to be triggered
• This feature is still buggy and changes are happening

35. © 2019 Magento, Inc. Page | 35
How to convert a
schema/patch into a
revertable patch ?

36. © 2019 Magento, Inc. Page | 36

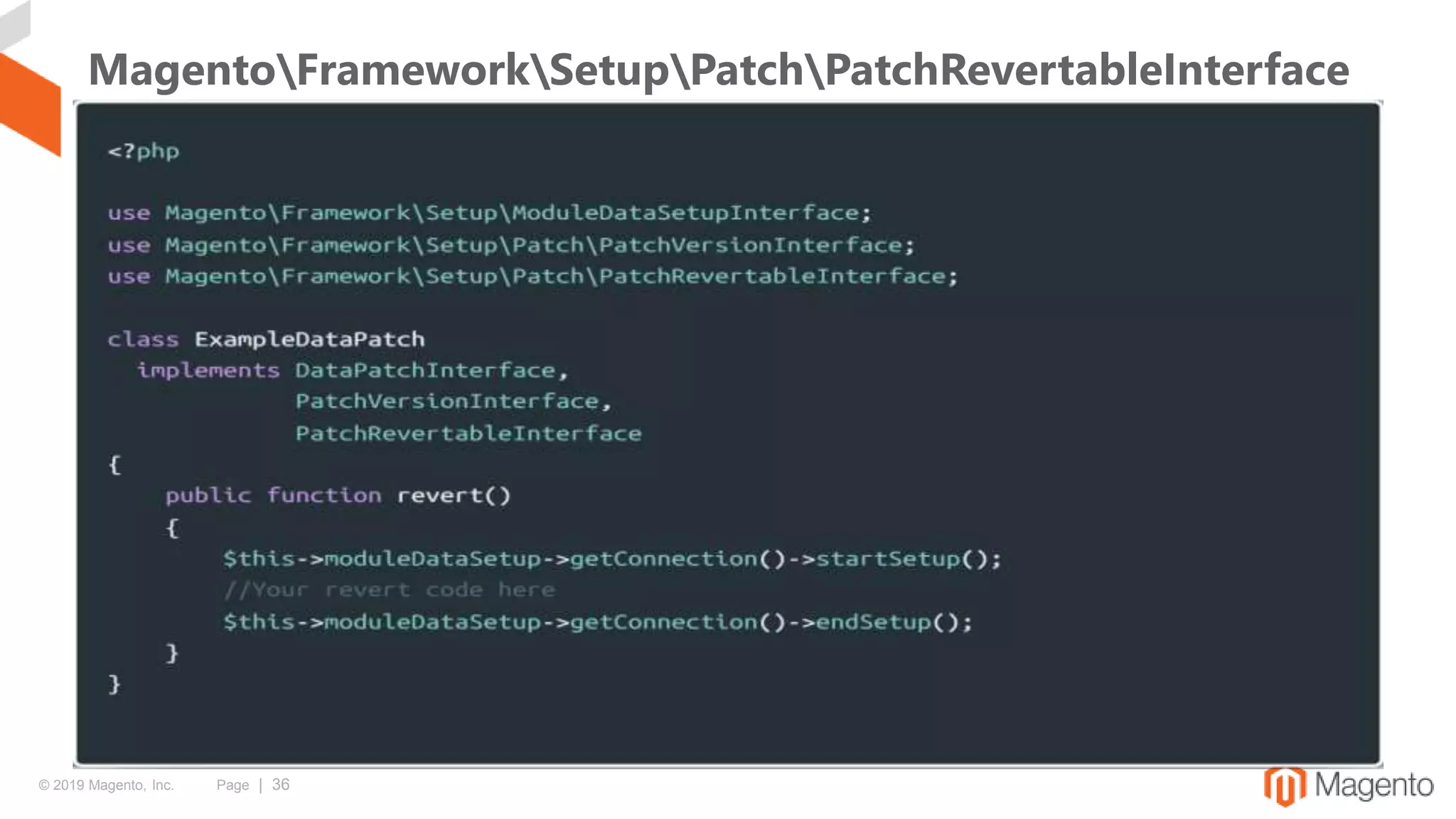

MagentoFrameworkSetupPatchPatchRevertableInterface

37. © 2019 Magento, Inc. Page | 37
How to uninstall a
module ?

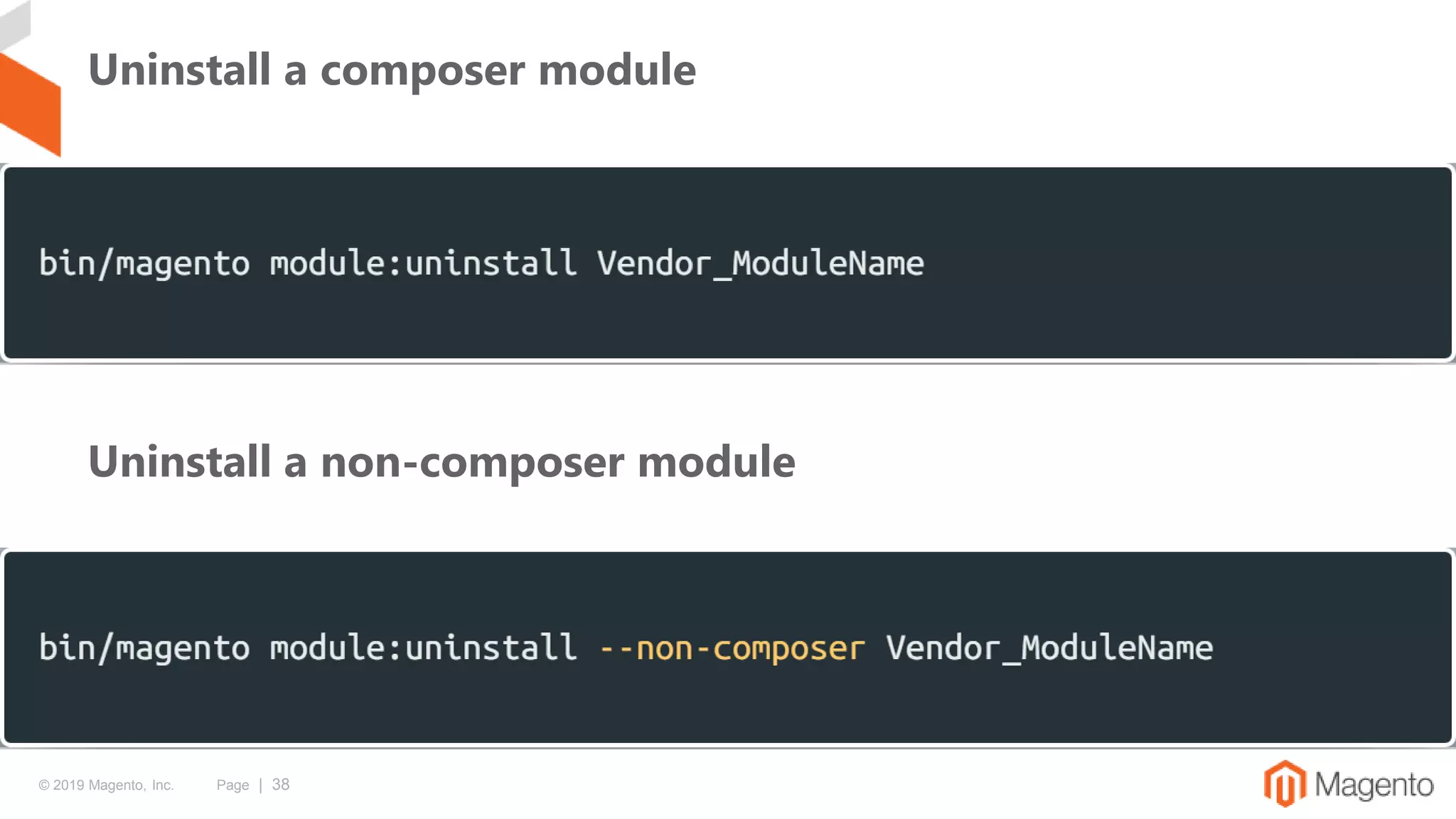

38. © 2019 Magento, Inc. Page | 38
Uninstall a composer module
Uninstall a non-composer module

39. © 2019 Magento, Inc. Page | 39
New CLI Command

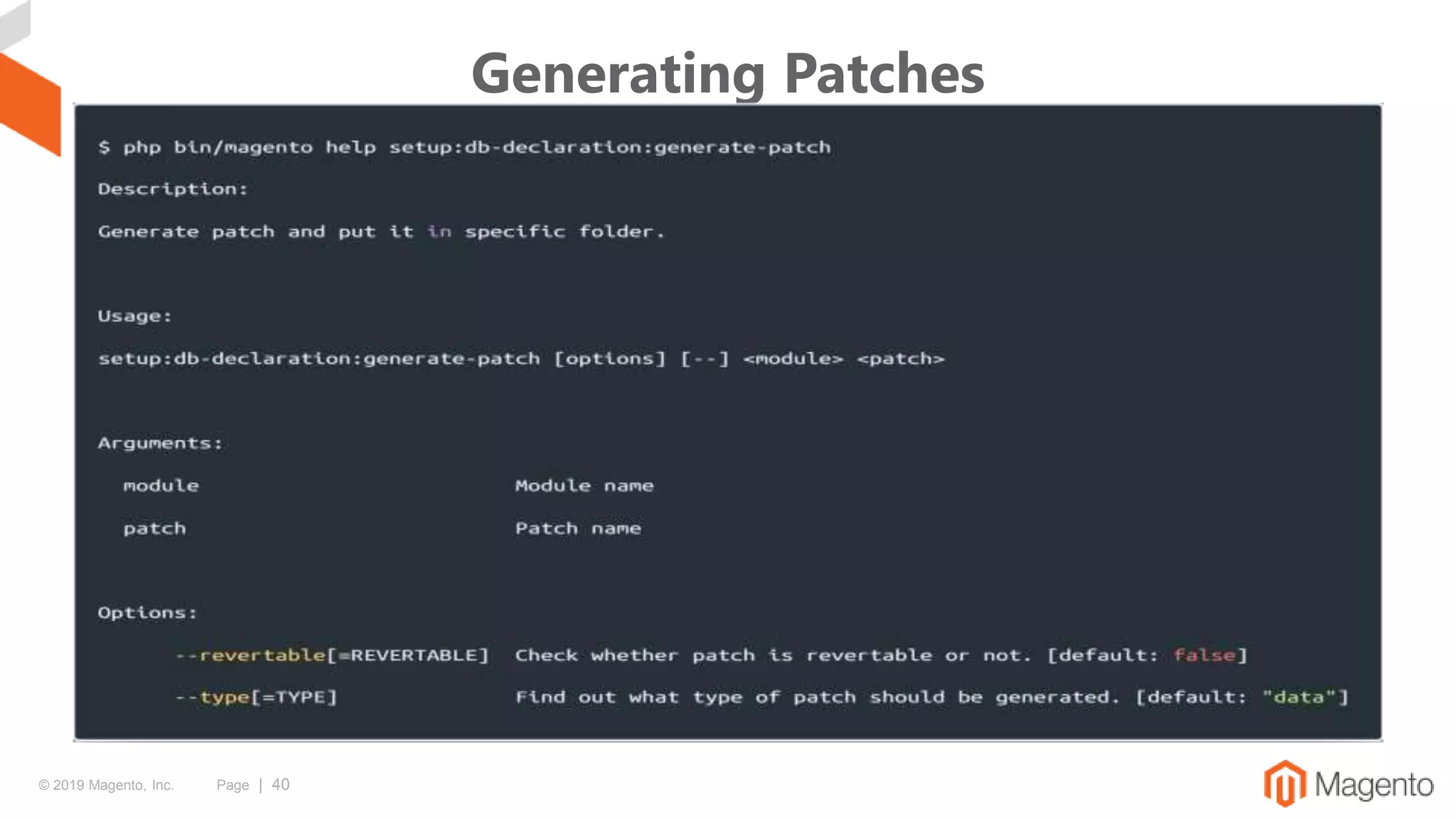

40. © 2019 Magento, Inc. Page | 40

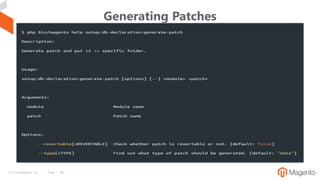

Generating Patches

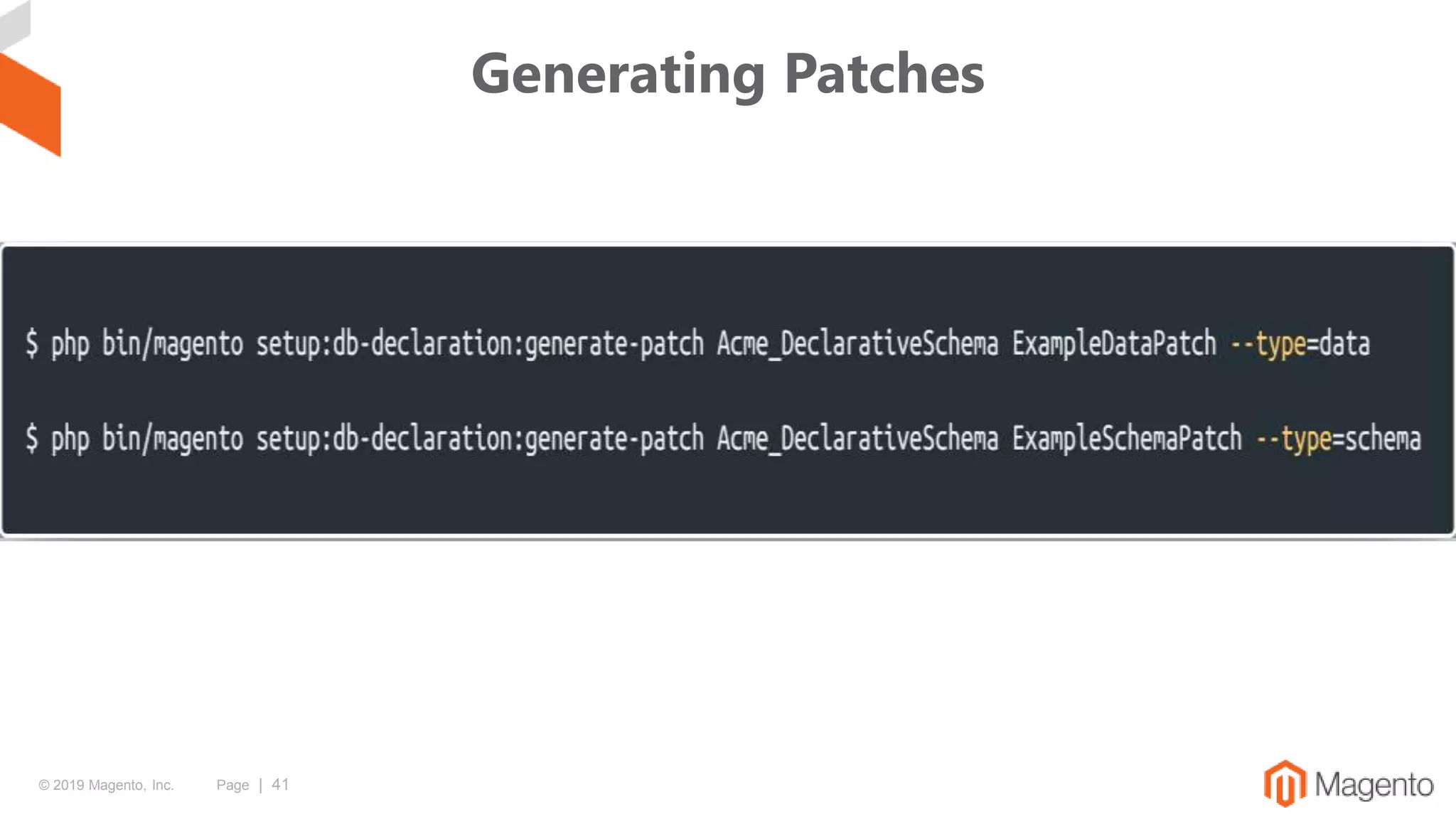

41. © 2019 Magento, Inc. Page | 41
Generating Patches

42. © 2019 Magento, Inc. Page | 42
Questions ?

43. © 2019 Magento, Inc. Page | 43
Thank You
