Logic Gates - Types, Universal gates, NAND & NOR Implementation
Read less
Read more
Engineering
Report
Share
Report
Share
1 of 8
Download now
Recommended
Logic gates
Logic gates
VijayakumarS65
Lic intro
Lic intro
RAMESHBABUA3
Addressing modes
Addressing modes
RAMESHBABUA3
Memory devices
Memory devices
RAMESHBABUA3
Electromyograph(EMG)
Electromyograph(EMG)
RAMESHBABUA3
Origin of biopotentials
Origin of biopotentials
RAMESHBABUA3
2024 State of Marketing Report – by Hubspot
2024 State of Marketing Report – by Hubspot
Marius Sescu
Everything You Need To Know About ChatGPT
Everything You Need To Know About ChatGPT
Expeed Software
Recommended
Logic gates
Logic gates
VijayakumarS65
Lic intro
Lic intro
RAMESHBABUA3
Addressing modes
Addressing modes
RAMESHBABUA3
Memory devices
Memory devices
RAMESHBABUA3
Electromyograph(EMG)
Electromyograph(EMG)
RAMESHBABUA3
Origin of biopotentials
Origin of biopotentials
RAMESHBABUA3
2024 State of Marketing Report – by Hubspot
2024 State of Marketing Report – by Hubspot
Marius Sescu
Everything You Need To Know About ChatGPT
Everything You Need To Know About ChatGPT
Expeed Software
Databricks Generative AI FoundationCertified.pdf
Databricks Generative AI FoundationCertified.pdf
VinayVadlagattu
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
Alexander Litvinenko
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Dr.Costas Sachpazis
21P35A0312 Internship eccccccReport.docx
21P35A0312 Internship eccccccReport.docx
rahulmanepalli02
Max. shear stress theory-Maximum Shear Stress Theory Maximum Distortional ...
Max. shear stress theory-Maximum Shear Stress Theory Maximum Distortional ...
ronahami
handbook on reinforce concrete and detailing
handbook on reinforce concrete and detailing
AshishSingh1301
Passive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.ppt
amrabdallah9
Introduction-to- Metrology and Quality.pptx
Introduction-to- Metrology and Quality.pptx
ProfASKolap
Maximizing Incident Investigation Efficacy in Oil & Gas: Techniques and Tools
Maximizing Incident Investigation Efficacy in Oil & Gas: Techniques and Tools
soginsider
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Er.Sonali Nasikkar
Augmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptx
Mustafa Ahmed
engineering chemistry power point presentation
engineering chemistry power point presentation
sj9399037128
一比一原版(Griffith毕业证书)格里菲斯大学毕业证成绩单学位证书
一比一原版(Griffith毕业证书)格里菲斯大学毕业证成绩单学位证书
c3384a92eb32
8th International Conference on Soft Computing, Mathematics and Control (SMC ...
8th International Conference on Soft Computing, Mathematics and Control (SMC ...
josephjonse
CLOUD COMPUTING SERVICES - Cloud Reference Modal
CLOUD COMPUTING SERVICES - Cloud Reference Modal
SwarnaSLcse
Developing a smart system for infant incubators using the internet of things ...
Developing a smart system for infant incubators using the internet of things ...
IJECEIAES
Independent Solar-Powered Electric Vehicle Charging Station
Independent Solar-Powered Electric Vehicle Charging Station
siddharthteach18
Filters for Electromagnetic Compatibility Applications
Filters for Electromagnetic Compatibility Applications
Mathias Magdowski
SLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptx
CHAIRMAN M
Signal Processing and Linear System Analysis
Signal Processing and Linear System Analysis
National Chung Hsing University
Product Design Trends in 2024 | Teenage Engineerings
Product Design Trends in 2024 | Teenage Engineerings
Pixeldarts
How Race, Age and Gender Shape Attitudes Towards Mental Health
How Race, Age and Gender Shape Attitudes Towards Mental Health
ThinkNow
More Related Content
Recently uploaded
Databricks Generative AI FoundationCertified.pdf
Databricks Generative AI FoundationCertified.pdf
VinayVadlagattu
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
Alexander Litvinenko
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Dr.Costas Sachpazis
21P35A0312 Internship eccccccReport.docx
21P35A0312 Internship eccccccReport.docx
rahulmanepalli02
Max. shear stress theory-Maximum Shear Stress Theory Maximum Distortional ...
Max. shear stress theory-Maximum Shear Stress Theory Maximum Distortional ...
ronahami
handbook on reinforce concrete and detailing
handbook on reinforce concrete and detailing
AshishSingh1301
Passive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.ppt
amrabdallah9
Introduction-to- Metrology and Quality.pptx
Introduction-to- Metrology and Quality.pptx
ProfASKolap
Maximizing Incident Investigation Efficacy in Oil & Gas: Techniques and Tools
Maximizing Incident Investigation Efficacy in Oil & Gas: Techniques and Tools
soginsider
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Er.Sonali Nasikkar
Augmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptx
Mustafa Ahmed
engineering chemistry power point presentation
engineering chemistry power point presentation
sj9399037128
一比一原版(Griffith毕业证书)格里菲斯大学毕业证成绩单学位证书
一比一原版(Griffith毕业证书)格里菲斯大学毕业证成绩单学位证书
c3384a92eb32
8th International Conference on Soft Computing, Mathematics and Control (SMC ...
8th International Conference on Soft Computing, Mathematics and Control (SMC ...
josephjonse
CLOUD COMPUTING SERVICES - Cloud Reference Modal
CLOUD COMPUTING SERVICES - Cloud Reference Modal
SwarnaSLcse
Developing a smart system for infant incubators using the internet of things ...
Developing a smart system for infant incubators using the internet of things ...
IJECEIAES
Independent Solar-Powered Electric Vehicle Charging Station
Independent Solar-Powered Electric Vehicle Charging Station
siddharthteach18
Filters for Electromagnetic Compatibility Applications
Filters for Electromagnetic Compatibility Applications
Mathias Magdowski
SLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptx
CHAIRMAN M
Signal Processing and Linear System Analysis
Signal Processing and Linear System Analysis
National Chung Hsing University
Recently uploaded
(20)
Databricks Generative AI FoundationCertified.pdf
Databricks Generative AI FoundationCertified.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
21P35A0312 Internship eccccccReport.docx
21P35A0312 Internship eccccccReport.docx
Max. shear stress theory-Maximum Shear Stress Theory Maximum Distortional ...
Max. shear stress theory-Maximum Shear Stress Theory Maximum Distortional ...
handbook on reinforce concrete and detailing
handbook on reinforce concrete and detailing
Passive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.ppt
Introduction-to- Metrology and Quality.pptx
Introduction-to- Metrology and Quality.pptx
Maximizing Incident Investigation Efficacy in Oil & Gas: Techniques and Tools
Maximizing Incident Investigation Efficacy in Oil & Gas: Techniques and Tools
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Augmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptx
engineering chemistry power point presentation
engineering chemistry power point presentation
一比一原版(Griffith毕业证书)格里菲斯大学毕业证成绩单学位证书
一比一原版(Griffith毕业证书)格里菲斯大学毕业证成绩单学位证书
8th International Conference on Soft Computing, Mathematics and Control (SMC ...
8th International Conference on Soft Computing, Mathematics and Control (SMC ...
CLOUD COMPUTING SERVICES - Cloud Reference Modal
CLOUD COMPUTING SERVICES - Cloud Reference Modal
Developing a smart system for infant incubators using the internet of things ...
Developing a smart system for infant incubators using the internet of things ...
Independent Solar-Powered Electric Vehicle Charging Station
Independent Solar-Powered Electric Vehicle Charging Station
Filters for Electromagnetic Compatibility Applications
Filters for Electromagnetic Compatibility Applications
SLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptx
Signal Processing and Linear System Analysis
Signal Processing and Linear System Analysis
Featured
Product Design Trends in 2024 | Teenage Engineerings
Product Design Trends in 2024 | Teenage Engineerings
Pixeldarts
How Race, Age and Gender Shape Attitudes Towards Mental Health
How Race, Age and Gender Shape Attitudes Towards Mental Health
ThinkNow
AI Trends in Creative Operations 2024 by Artwork Flow.pdf
AI Trends in Creative Operations 2024 by Artwork Flow.pdf
marketingartwork
Skeleton Culture Code
Skeleton Culture Code
Skeleton Technologies
PEPSICO Presentation to CAGNY Conference Feb 2024
PEPSICO Presentation to CAGNY Conference Feb 2024
Neil Kimberley
Content Methodology: A Best Practices Report (Webinar)
Content Methodology: A Best Practices Report (Webinar)
contently
How to Prepare For a Successful Job Search for 2024
How to Prepare For a Successful Job Search for 2024
Albert Qian
Social Media Marketing Trends 2024 // The Global Indie Insights
Social Media Marketing Trends 2024 // The Global Indie Insights
Kurio // The Social Media Age(ncy)
Trends In Paid Search: Navigating The Digital Landscape In 2024
Trends In Paid Search: Navigating The Digital Landscape In 2024
Search Engine Journal
5 Public speaking tips from TED - Visualized summary
5 Public speaking tips from TED - Visualized summary
SpeakerHub
ChatGPT and the Future of Work - Clark Boyd
ChatGPT and the Future of Work - Clark Boyd
Clark Boyd
Getting into the tech field. what next
Getting into the tech field. what next
Tessa Mero
Google's Just Not That Into You: Understanding Core Updates & Search Intent
Google's Just Not That Into You: Understanding Core Updates & Search Intent
Lily Ray
How to have difficult conversations
How to have difficult conversations
Rajiv Jayarajah, MAppComm, ACC
Introduction to Data Science
Introduction to Data Science
Christy Abraham Joy
Time Management & Productivity - Best Practices
Time Management & Productivity - Best Practices
Vit Horky
The six step guide to practical project management
The six step guide to practical project management
MindGenius
Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...
Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...
RachelPearson36
Unlocking the Power of ChatGPT and AI in Testing - A Real-World Look, present...
Unlocking the Power of ChatGPT and AI in Testing - A Real-World Look, present...
Applitools
12 Ways to Increase Your Influence at Work
12 Ways to Increase Your Influence at Work
GetSmarter
Featured
(20)
Product Design Trends in 2024 | Teenage Engineerings
Product Design Trends in 2024 | Teenage Engineerings
How Race, Age and Gender Shape Attitudes Towards Mental Health
How Race, Age and Gender Shape Attitudes Towards Mental Health
AI Trends in Creative Operations 2024 by Artwork Flow.pdf
AI Trends in Creative Operations 2024 by Artwork Flow.pdf
Skeleton Culture Code
Skeleton Culture Code
PEPSICO Presentation to CAGNY Conference Feb 2024
PEPSICO Presentation to CAGNY Conference Feb 2024
Content Methodology: A Best Practices Report (Webinar)
Content Methodology: A Best Practices Report (Webinar)
How to Prepare For a Successful Job Search for 2024
How to Prepare For a Successful Job Search for 2024
Social Media Marketing Trends 2024 // The Global Indie Insights
Social Media Marketing Trends 2024 // The Global Indie Insights
Trends In Paid Search: Navigating The Digital Landscape In 2024
Trends In Paid Search: Navigating The Digital Landscape In 2024
5 Public speaking tips from TED - Visualized summary
5 Public speaking tips from TED - Visualized summary
ChatGPT and the Future of Work - Clark Boyd
ChatGPT and the Future of Work - Clark Boyd
Getting into the tech field. what next
Getting into the tech field. what next
Google's Just Not That Into You: Understanding Core Updates & Search Intent
Google's Just Not That Into You: Understanding Core Updates & Search Intent
How to have difficult conversations
How to have difficult conversations
Introduction to Data Science
Introduction to Data Science
Time Management & Productivity - Best Practices
Time Management & Productivity - Best Practices
The six step guide to practical project management
The six step guide to practical project management
Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...
Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...
Unlocking the Power of ChatGPT and AI in Testing - A Real-World Look, present...
Unlocking the Power of ChatGPT and AI in Testing - A Real-World Look, present...
12 Ways to Increase Your Influence at Work
12 Ways to Increase Your Influence at Work
Logic gates
1.
LOGIC GATES Mr.A.Rameshbabu AP/ECE Ramco
Institute of Technology Academic Year 2017 – 2018 (Odd)
2.

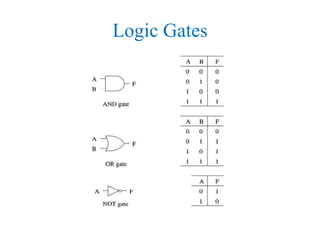

Logic Gates
3.
4.
Universal Gates NAND
and NOR gates are called as Universal gates. Because we can use NAND and NOR gates to implement any Boolean functions.
5.
NAND gate implementation
6.

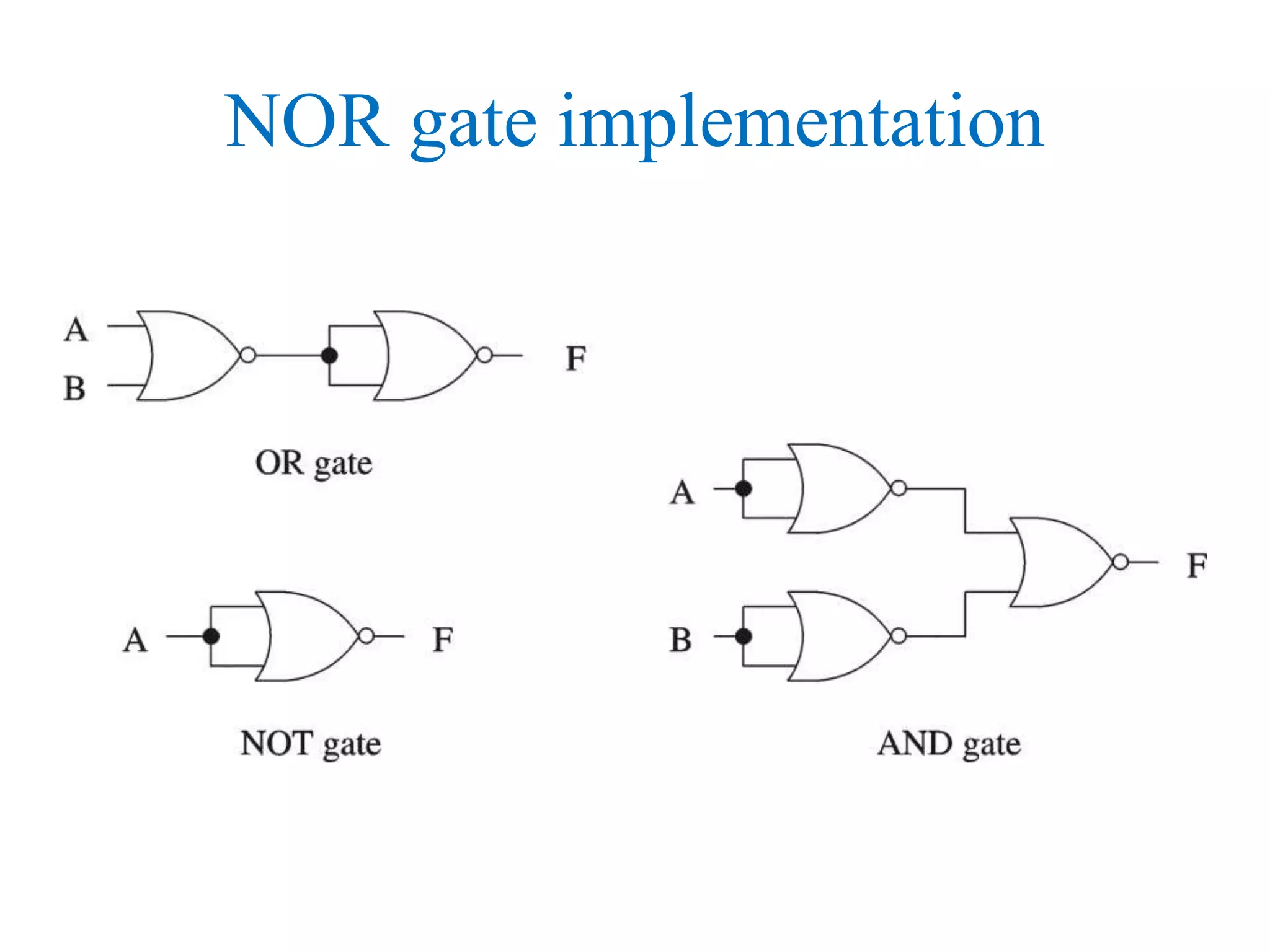

NOR gate implementation
7.

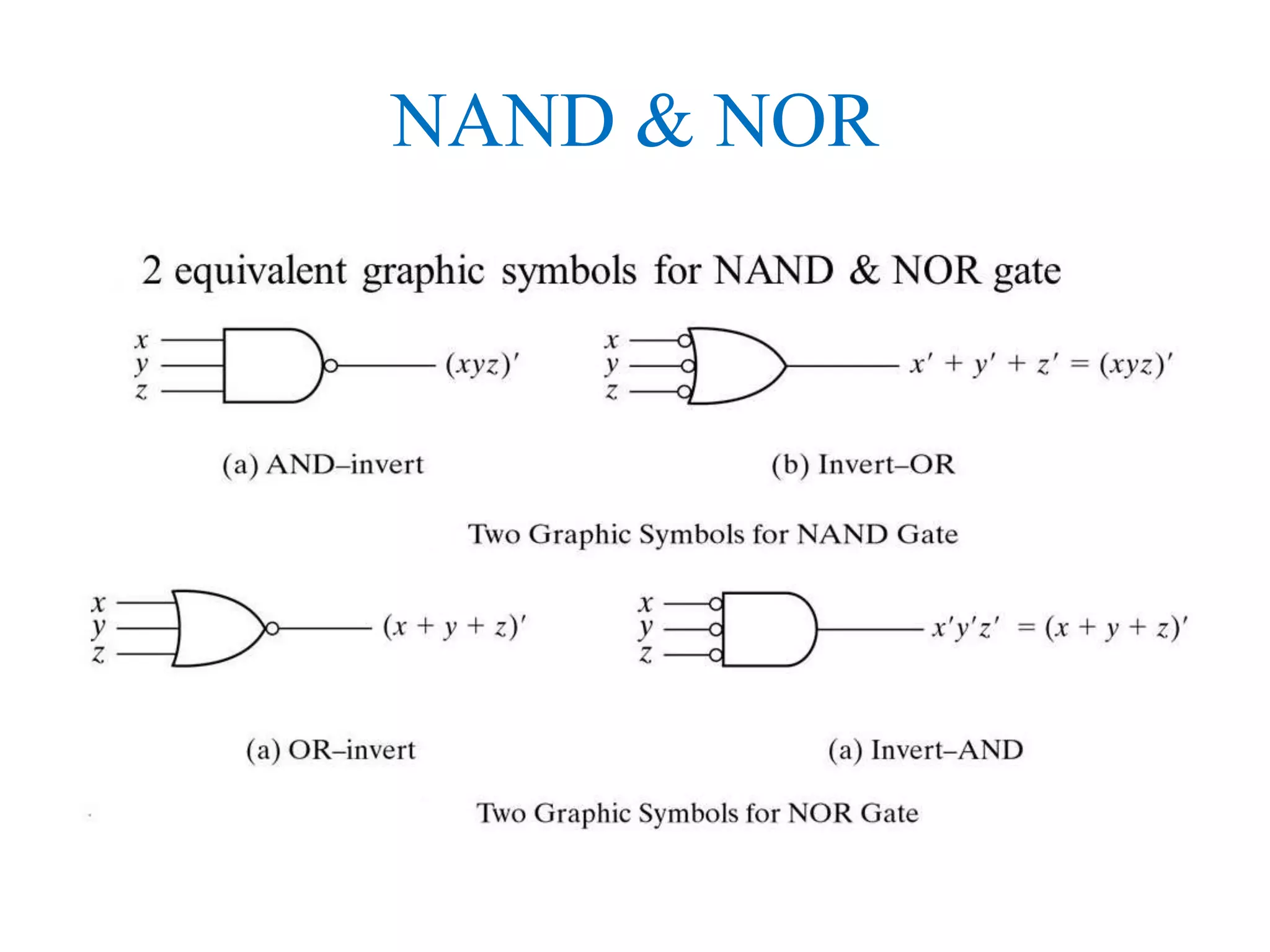

NAND & NOR
8.

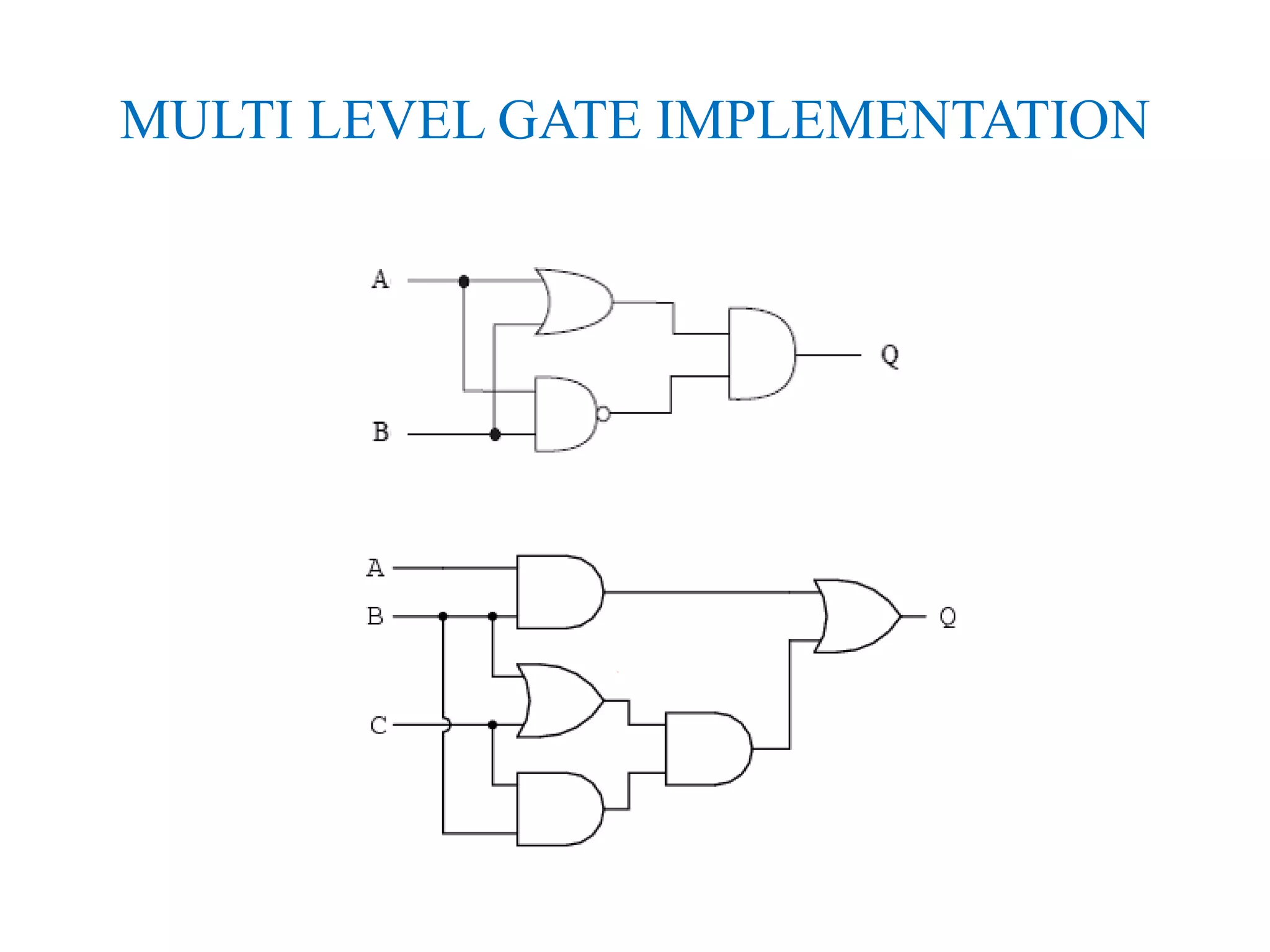

MULTI LEVEL GATE
IMPLEMENTATION
Download now
