This document discusses large-scale data processing enabled by new technologies. It notes that large data volumes from 100s of TBs to 10s of PBs can now be processed at low cost using distributed parallel frameworks like MapReduce. New data sources include sensors, devices, and unstructured data like text and images. These new technologies enable analyzing this data to answer questions and gain new insights about product popularity, best ads to serve, and detecting fraud.

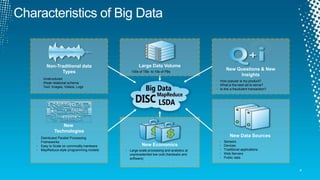

4. Large Data Volume
 100s of TBs to 10s of PBs
 Large scale processing and analytics at
unprecedented low cost (hardware and
software)
New Economics
 Distributed Parallel Processing
Frameworks
 Easy to Scale on commodity hardware
 MapReduce-style programming models
New
Technologies
 Unstructured
 Weak relational schema
 Text, Images, Videos, Logs
Non-Traditional data
Types
 Sensors
 Devices
 Traditional applications
 Web Servers
 Public data
New Data Sources
 How popular is my product?
 What is the best ad to serve?
 Is this a fraudulent transaction?
New Questions & New
Insights
4

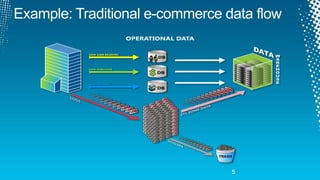

5. 5

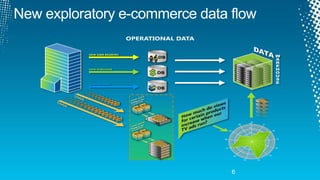

6. 6

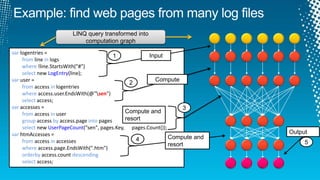

8. var logentries =
from line in logs
where !line.StartsWith("#")
select new LogEntry(line);
var user =
from access in logentries
where access.user.EndsWith(@"sen")
select access;
var accesses =
from access in user
group access by access.page into pages
select new UserPageCount(“sen", pages.Key, pages.Count());
var htmAccesses =
from access in accesses
where access.page.EndsWith(".htm")
orderby access.count descending
select access;
LINQ query transformed into
computation graph
Input
Compute
Compute and
resort
Compute and
resort
Output
2
1
3
4 5

9. Processing
vertices
Edges
(files)
Inputs
Outputs

10. Processing
vertices
Edges
(files)
Inputs
Outputs
Free Compute Resources

11. Application that
calls LINQ to HPC
APIs
HPC Head Node
DSC
Submit LINQ to
HPC Job
1
1
The LINQ to HPC job also
starts a set of parametric
sweep tasks across the rest
of the nodes as DVH
2b
A LINQ to HPC job
starts 1 basic task
assigning a node as the
DGM
2a
2a
LINQ to HPC Vertices
read and write files
3b
Graph Manager starts/stops
Vertices
3a
HPC Compute Nodes
3a
3b
2b
Graph Manager
Vertex Host

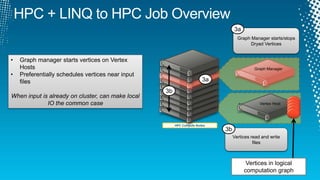

12. Vertices read and write
files
3b
Graph Manager starts/stops
Dryad Vertices
3a
HPC Compute Nodes
3a
3b
Graph Manager
Vertex Host
Vertices in logical
computation graph
• Graph manager starts vertices on Vertex
Hosts
• Preferentially schedules vertices near input
files
When input is already on cluster, can make local
IO the common case

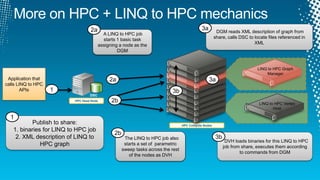

13. Application that
calls LINQ to HPC
APIs
HPC Head Node
DSC
Publish to share:
1. binaries for LINQ to HPC job
2. XML description of LINQ to
HPC graph
1
1
DVH loads binaries for this LINQ to HPC
job from share, executes them according
to commands from DGM
DGM reads XML description of graph from
share, calls DSC to locate files referenced in
XML
2a
3b
3a
HPC Compute Nodes
3a
3b
2b
LINQ to HPC Graph
Manager
LINQ to HPC Vertex
Host
The LINQ to HPC job also
starts a set of parametric
sweep tasks across the rest
of the nodes as DVH
2b
A LINQ to HPC job
starts 1 basic task
assigning a node as the
DGM
2a

14. DSC NODE ADD sen-cn1 /TEMPPATH:c:DryadHpcTemp /DATAPATH:c:DryadHpcData /SERVICE:sen-hn

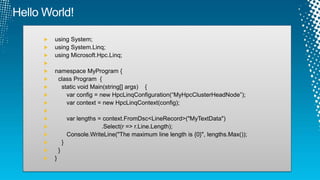

17. using System;
using System.Linq;
using Microsoft.Hpc.Linq;
namespace MyProgram {
class Program {
static void Main(string[] args) {
var config = new HpcLinqConfiguration(“MyHpcClusterHeadNode”);
var context = new HpcLinqContext(config);
var lengths = context.FromDsc<LineRecord>("MyTextData")
.Select(r => r.Line.Length);
Console.WriteLine("The maximum line length is {0}", lengths.Max());
}
}
}

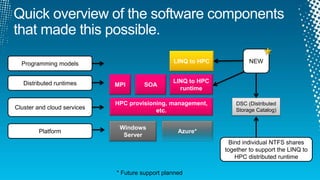

20. HPC provisioning, management,
etc.
MPI SOA
LINQ to HPC
runtime
Windows
Server
Azure*
Distributed runtimes
Cluster and cloud services
Platform
DSC (Distributed
Storage Catalog)
Bind individual NTFS shares
together to support the LINQ to
HPC distributed runtime
Programming models LINQ to HPC NEW
* Future support planned

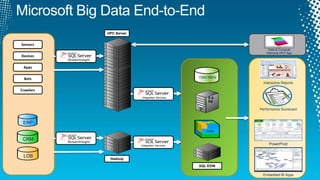

23. Microsoft Big Data End-to-End
Sensors
Devices
Apps
Bots
Crawlers
Data Marts
SSAS
ERP
CRM
LOB
HPC Server
SQL EDW
S S
RS
Data & Compute
Intensive HPC App
Interactive Reports
Performance Scorecard
PowerPivot
Embedded BI Apps
Hadoop
Integration Services
Integration Services

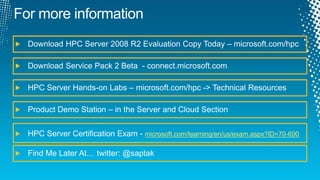

24. microsoft.com/learning/en/us/exam.aspx?ID=70-690
