1. Mindanao State University
Iligan Institute of Technology
College of Engineering
Distributed aLoads on Beams
Force
Gevelyn Bontilao Itao, MOE

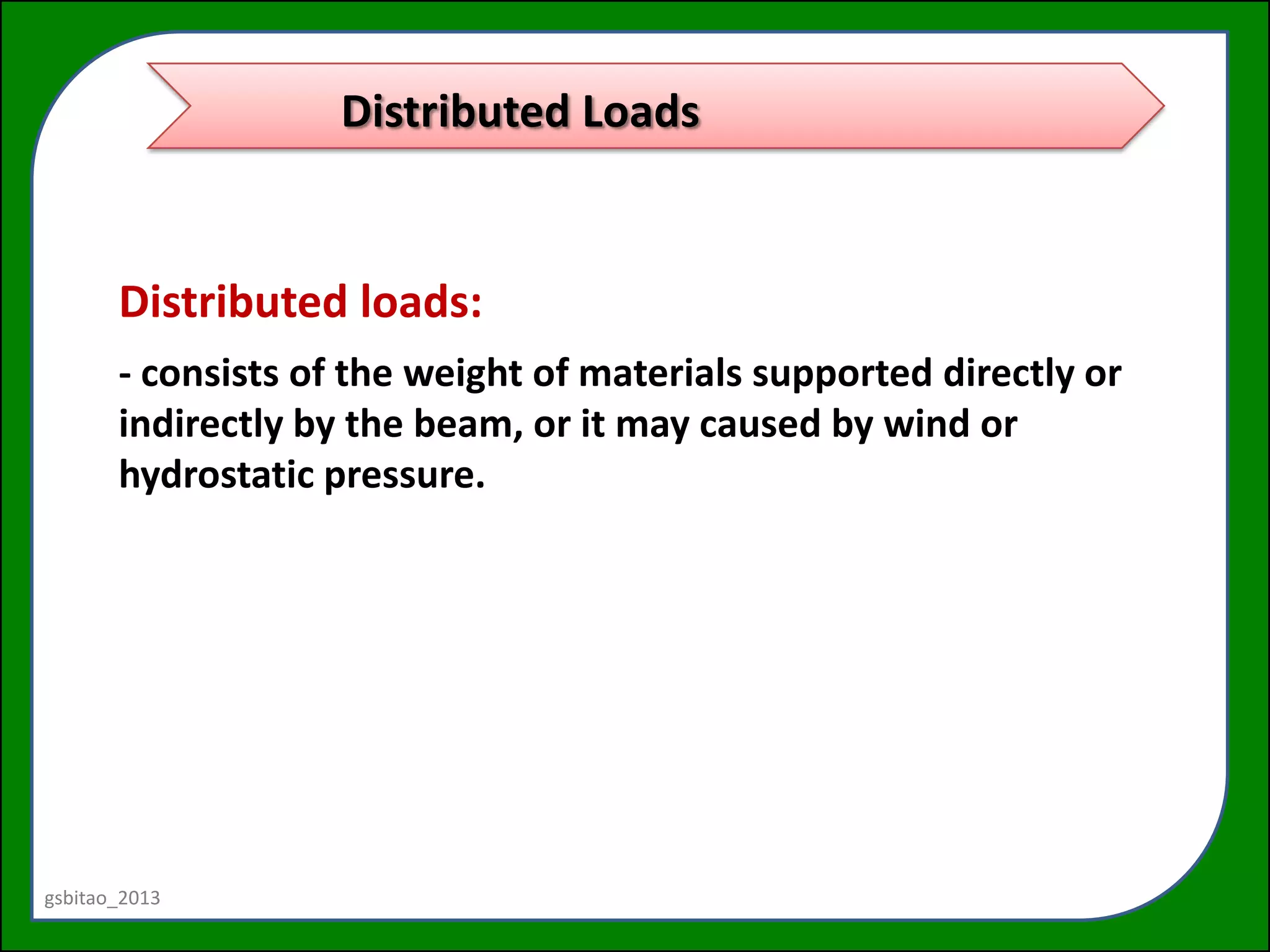

2. Distributed Loads
Distributed loads:
- consists of the weight of materials supported directly or
indirectly by the beam, or it may caused by wind or
hydrostatic pressure.
gsbitao_2013
3. Distributed Loads
It can be represented by plotting load w supported per
unit length L. It is expressed as N/m or lb/ft.
gsbitao_2013
4. Distributed Loads
- The direction of the intensity of the load is indicated by
arrows shown on the load intensity diagram.
- This system of forces can be simplified to a single force
W and its location x can be specified.
gsbitao_2013

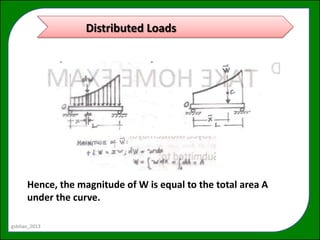

5. Distributed Loads
Hence, the magnitude of W is equal to the total area A
under the curve.
gsbitao_2013
6. Distributed Loads
Example 1:
Determine the magnitude and location of the equivalent
resultant force acting on the shaft.
gsbitao_2013
7. Distributed Loads
Example 2:
A beam supports a distributed load as shown. Determine
the equivalent concentrated load and its location, and the
reactions at the supports.
gsbitao_2013
8. Mindanao State University
Iligan Institute of Technology
College of Engineering
Centroid fora Force
Composite Bodies
Gevelyn Bontilao Itao, MOE

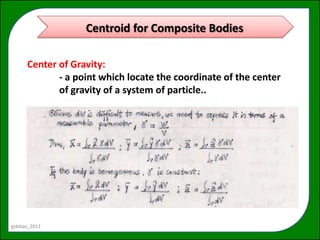

9. Centroid for Composite Bodies
Center of Gravity:
- a point which locate the coordinate of the center
of gravity of a system of particle..
gsbitao_2013
10. Centroid
Centroid:
- a point which defines the geometric center of the object.
It is independent of the body’s weight and dependent on
the bodies geometry
gsbitao_2013

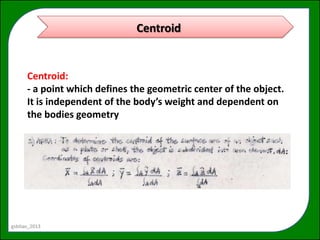

11. Centroid
Centroid:
- a point which defines the geometric center of the object.
It is independent of the body’s weight and dependent on
the bodies geometry
gsbitao_2013

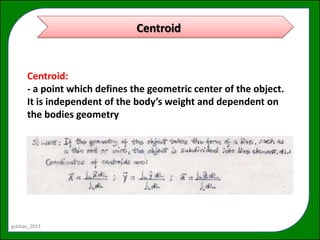

12. Centroid
Centroid:
- a point which defines the geometric center of the object.
It is independent of the body’s weight and dependent on
the bodies geometry
gsbitao_2013
