The document discusses the challenges of integrating audio and video in productions and describes how the Arkona Audio/Video Integration unit addresses these challenges by providing synchronized audio and video processing, format conversion, embedding and de-embedding across 8 SDI and 2 MADI I/O with frame synchronization and delay capabilities. Examples of applications of the unit in broadcast centers, multi-camera productions, and signal quality monitoring are also presented.

2. powered by arkona technologiesOctober 11th 2012

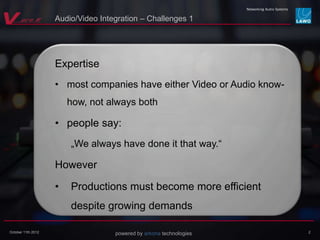

Expertise
• most companies have either Video or Audio know-
how, not always both
• people say:
„We always have done it that way.“
However
• Productions must become more efficient
despite growing demands
2
Audio/Video Integration – Challenges 1

3. powered by arkona technologies

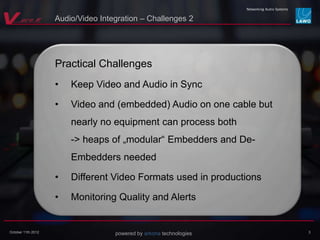

Audio/Video Integration – Challenges 2
October 11th 2012
Practical Challenges
• Keep Video and Audio in Sync
• Video and (embedded) Audio on one cable but
nearly no equipment can process both
-> heaps of „modular“ Embedders and De-
Embedders needed
• Different Video Formats used in productions
• Monitoring Quality and Alerts
3

4. powered by arkona technologiesOctober 11th 2012
Now let us see how the
addresses these challenges
4
Audio/Video Integration

5. powered by arkona technologiesOctober 11th 2012

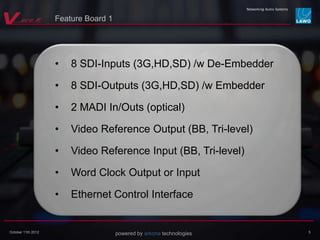

• 8 SDI-Inputs (3G,HD,SD) /w De-Embedder
• 8 SDI-Outputs (3G,HD,SD) /w Embedder
• 2 MADI In/Outs (optical)
• Video Reference Output (BB, Tri-level)
• Video Reference Input (BB, Tri-level)
• Word Clock Output or Input
• Ethernet Control Interface
5
Feature Board 1

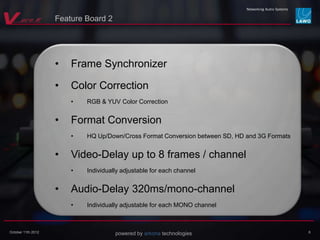

6. powered by arkona technologiesOctober 11th 2012
• Frame Synchronizer
• Color Correction
• RGB & YUV Color Correction
• Format Conversion
• HQ Up/Down/Cross Format Conversion between SD, HD and 3G Formats
• Video-Delay up to 8 frames / channel
• Individually adjustable for each channel
• Audio-Delay 320ms/mono-channel
• Individually adjustable for each MONO channel
6
Feature Board 2

7. powered by arkona technologiesOctober 11th 2012
• 2x Stereo DownMix in each output channel
• Sample Rate Converter (SRC)/channel
• Video-Thumbnail per output
• Monitoring:
QuadSplit, VectorScope, Waveform
(YRGB, YCbCr, TimeCode, PeakMeter)
7
Feature Board 3

8. powered by arkona technologiesOctober 11th 2012
Redundancy
• Power Supply
• MADI
• RAVENNA (future option)
8
Feature Board 4

9. powered by arkona technologiesOctober 11th 2012

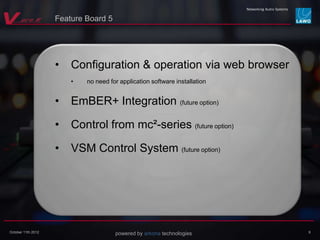

• Configuration & operation via web browser
• no need for application software installation
• EmBER+ Integration (future option)
• Control from mc²-series (future option)
• VSM Control System (future option)
9
Feature Board 5

10. powered by arkona technologiesOctober 11th 2012
Now let us see the
in detail and
… in application examples
10
Details & Applications

11. powered by arkona technologiesOctober 11th 2012
8 SDI Inputs
(3G/HD/SD)
8 SDI Outputs
(3G/HD/SD)
Quad-Split
Output
- 3G SDI
- Display
Port
MADI (optical)
- 2 Inputs
- 2 Outputs
(redundant MADI
ports on front)
Ethernet
Interface
(control,
streaming)
Ref-
In
Loop
Video
Reference
Out
(BB, Tri-
Level)
Word
Clock
Redundant
Power Supply
11
Unit Connectivity

12. powered by arkona technologiesOctober 11th 2012
8x
2x
De-Embedder
Frame-
Sync
Sample
-Rate
Convert
Video
Delay
Audio-
Delay
8x
8x8 Video Matrix
384x384 Audio Matrix
Video
Delay
Audio-
Delay
Video Conversion
(2x per V__pro8)
Color
Correct
Channel ID
Timecode
2x 5.1 to Stereo
DownMix
Test
Tone
Embedder
SDI
Input
SDI
Output
Audio-
Delay
MADI
Input
2x
Audio-
Delay
MADI
Output
Reference
Input
Reference
Output
Wordclock
Output
Quad-Split
Output
Ethernet
1 Video & 16 channels Audio 1 Video & 16 channels Audio
64 channels Audio
64 channels Audio
Sample-Rate
Convert
12
Blockdiagram

13. powered by arkona technologies

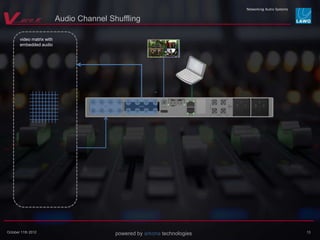

video matrix with
embedded audio
! " #
October 11th 2012 13
Audio Channel Shuffling

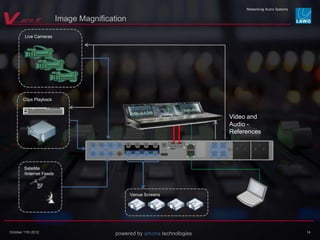

14. powered by arkona technologiesOctober 11th 2012
Video and
Audio -
References
Live Cameras
Clips Playback
Satellite
/Internet Feeds
Venue Screens
14
Image Magnification

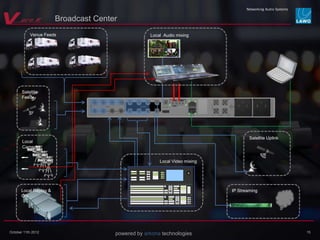

15. powered by arkona technologiesOctober 11th 2012
Local Replay &
Gfx
Local
Cameras
Satellite
Feeds
Venue Feeds
Satellite Uplink
Local Audio mixing
Local Video mixing
!
"
IP Streaming
15
Broadcast Center
! " #

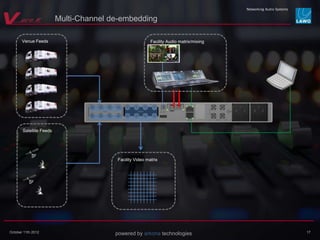

16. powered by arkona technologiesOctober 11th 2012
Satellite Feeds
Venue Feeds Facility Audio matrix/mixing
Facility Video matrix
17
Multi-Channel de-embedding
! " #

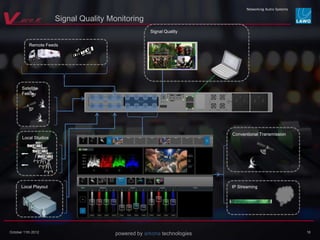

17. powered by arkona technologiesOctober 11th 2012
Local Playout
Local Studios
Satellite
Feeds
Remote Feeds
Conventional Transmission
Signal Quality
!
"
IP Streaming
18
Signal Quality Monitoring
! " #

18. powered by arkona technologiesOctober 11th 2012
Transmission
Audio matrix/mixing
Video mixer
Video matrix
Virtual Studio Manager
19
Emergency Switch
! " #

19. powered by arkona technologies
Satellite
Feeds
Remote Feeds
Video matrix
Transmission
October 11th 2012 20
Stereo-DownMix for transmission
! " #

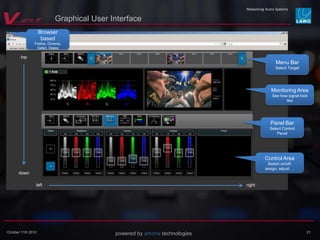

20. powered by arkona technologies
Graphical User Interface
October 11th 2012 21
Panel Bar
Select Control
Panel
Control Area
Switch on/off,
assign, adjust …
Menu Bar
Select Target
rightleft
down
top
Monitoring Area
See how signal look
like
Browser
based
Firefox, Chrome,
Safari, Opera

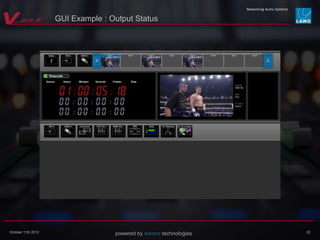

21. powered by arkona technologiesOctober 11th 2012 22
GUI Example : Output Status

22. powered by arkona technologiesOctober 11th 2012 30

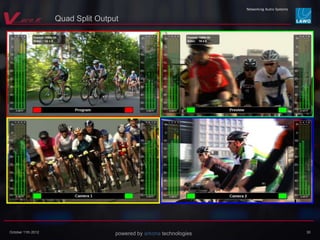

Quad Split Output

23. powered by arkona technologiesOctober 11th 2012 31

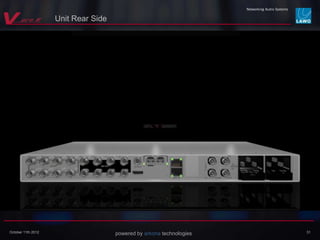

Unit Rear Side

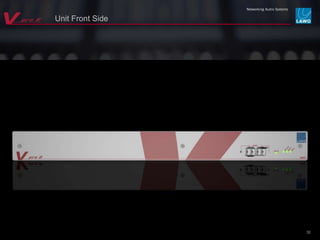

24. powered by arkona technologiesOctober 11th 2012 32

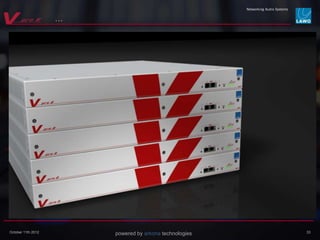

Unit Front Side

25. powered by arkona technologiesOctober 11th 2012 33
…

26. powered by arkona technologies
