This document discusses various types of laparoscopic instruments used in surgery including forceps, scissors, graspers, and hooks. It provides details on the features of each type of instrument such as their shaft length, jaw action, flush ports for cleaning, and optional electrocautery capabilities. The document also covers the proper cleaning and sterilization procedures for laparoscopic instruments, recommending the use of a neutral pH detergent for cleaning followed by high-level disinfection or sterilization using steam, chemicals like glutaraldehyde, or plasma.

1. By….
Muhammad Abdullah
3rd
yr. Surgical Tec. KEMU Lahore

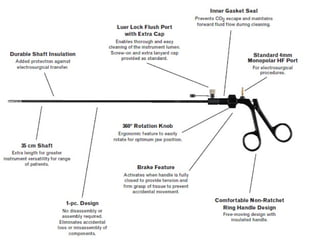

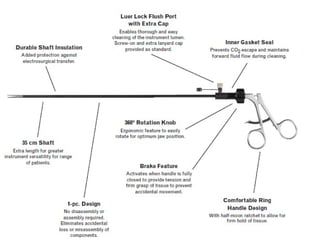

4.  Lightweight.
 Ratchet handle with 360º finger rotation knob.
 Rotation lock/brake feature engages when the handle is
in fully closed position to maintain firm control of
grasped tissue .
 5 mm OD and 35 cm shaft.
 Luer lock flush port for optimized cleaning of the inner
lumen.
 Extra screw-on and lanyard caps provided as standard .

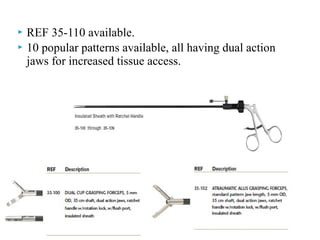

5.  REF 35-110 available.

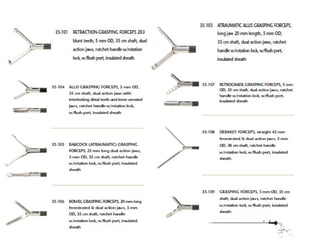

 10 popular patterns available, all having dual action
jaws for increased tissue access.

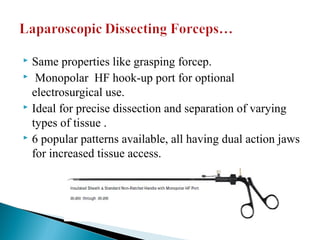

7.  Same properties like grasping forcep.
 Monopolar HF hook-up port for optional
electrosurgical use.
 Ideal for precise dissection and separation of varying
types of tissue .

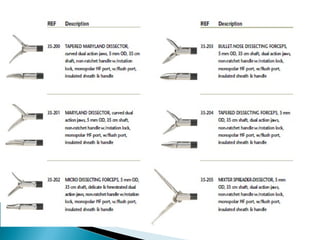

 6 popular patterns available, all having dual action jaws
for increased tissue access.

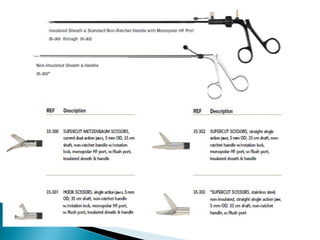

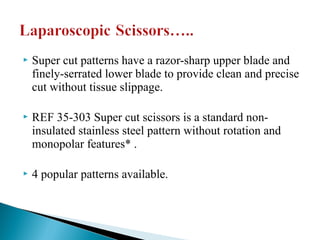

9.  Super cut patterns have a razor-sharp upper blade and
finely-serrated lower blade to provide clean and precise
cut without tissue slippage.
 REF 35-303 Super cut scissors is a standard non-
insulated stainless steel pattern without rotation and
monopolar features* .
 4 popular patterns available.

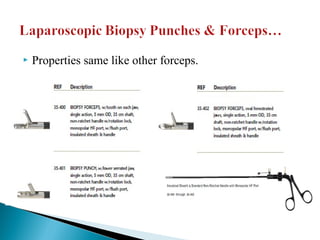

11.  Properties same like other forceps.

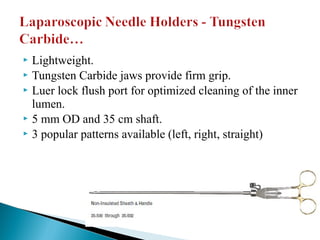

12.  Lightweight.
 Tungsten Carbide jaws provide firm grip.
 Luer lock flush port for optimized cleaning of the inner
lumen.
 5 mm OD and 35 cm shaft.
 3 popular patterns available (left, right, straight)

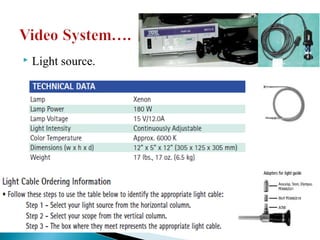

19.  Light source.

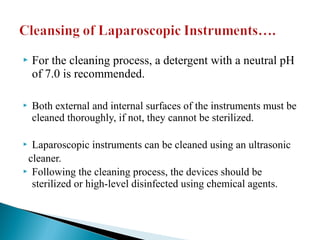

21.  For the cleaning process, a detergent with a neutral pH
of 7.0 is recommended.
 Both external and internal surfaces of the instruments must be
cleaned thoroughly, if not, they cannot be sterilized.
 Laparoscopic instruments can be cleaned using an ultrasonic
cleaner.
 Following the cleaning process, the devices should be
sterilized or high-level disinfected using chemical agents.

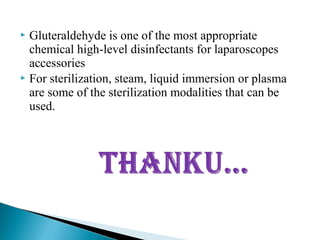

22.  Gluteraldehyde is one of the most appropriate
chemical high-level disinfectants for laparoscopes
accessories
 For sterilization, steam, liquid immersion or plasma
are some of the sterilization modalities that can be
used.
