The document provides specifications for a range of color and black & white multifunctional and single-function printers from Kyocera, detailing their functions, print speeds, resolutions, maximum paper sizes, memory capacities, and standard paper capacities. Models include the CS and FS series, with various configurations for document processing and optional features. All specifications are subject to change and highlight the versatile capabilities of these products for various printing needs.

1. * Interpolated Resolution
** At Reduced Speed
12-2016 v2
Color Multifunctional
Products CS 8052ci CS 7052ci CS 6052ci CS 5052ci CS 4052ci CS 3552ci CS 3252ci / 2552ci
Functions Standard Network Standard Network Standard Network Standard Network Standard Network Standard Network Standard Network
Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy &
Optional Fax Optional Fax Optional Fax Optional Fax Optional Fax Optional Fax Optional Fax
Print Speed (up to) 80/70 70/65 60/55 50/50 40/40 35/35 32/32 | 25/25
Document Processor Std. 270-Sheet DSDP Std. 270-Sheet DSDP Opt. 140-Sheet RADF Opt. 140-Sheet RADF Opt. 140-Sheet RADF Opt. 140-Sheet RADF Opt. 50/140-Sheet RADF
Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP
Resolution 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi
1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi
Maximum Paper Size 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays)
12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT)
Memory (Std/Max) 4.5GB 4.5GB 4GB 4GB 4GB 4GB 4GB
HDD Std. 320GB Std. 320GB Std. 320GB Std. 320GB Std. 320GB Std. 320GB Std. 320GB
Duplex Standard Standard Standard Standard Standard Standard Standard
Paper Capacity (Std/Max) 4150/7650 4150/7650 1150/7150 1150/7150 1150/7150 1150/7150 1150/7150
Color Multifunctional
Products CS 406ci CS 356ci CS 306ci
Functions Standard Network Standard Network Standard Network
Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy &
Optional Fax Optional Fax Optional Fax
Print Speed (up to) 42/42 37/37 32/32
Document Processor Opt. 75-Sheet RADF Opt. 75-Sheet RADF Std. 75-Sheet RADF
Opt. 75-Sheet DSDP Opt. 75-Sheet DSDP
Resolution 600 x 600 dpi; 600 x 600 dpi; 600 x 600 dpi
1200 x 1200dpi** 1200 x 1200dpi**
Maximum Paper Size 8.5” x 14” (Std. Tray) 8.5” x 14” (Std. Tray) 8.5” x 14” (Std. Tray)
8.5” x 48” (MPT) 8.5” x 48” (MPT) 8.5” x 14” (MPT)
Memory (Std/Max) 2GB 2GB 1GB/2GB
HDD Std. 320GB Std. 320GB Optional (SSD)
Duplex Standard Standard Standard
Paper Capacity (Std/Max) 600/3100 600/3100 600/3100
Black & White
Multifunctional
Products CS 8002i CS 7002i CS 6002i CS 5002i CS 4002i CS 3511i CS 3011i
Functions Standard Network Standard Network Standard Network Standard Network Standard Network Standard Network Standard Network
Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy & Print, Scan, Copy, & Print, Scan, Copy & Print, Scan, Copy &
Optional Fax Optional Fax Optional Fax Optional Fax Optional Fax Optional Fax Optional Fax
Print Speed (up to) 80 70 60 50 40 35 30
Document Processor Std. 270-Sheet DSDP Std. 270-Sheet DSDP Opt. 140-Sheet RADF Opt. 140-Sheet RADF Opt. 140-Sheet RADF Opt. 50/140-Sheet RADF Opt. 50/140-Sheet RADF
Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP Opt. 270-Sheet DSDP
Resolution 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi/8 Bit 600 x 600 dpi/8 Bit
1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi 1200 x 1200 dpi
Maximum Paper Size 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays) 12” x 18” (Trays) 11” x 17” 11” x 17”
12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT) 12” x 48” (MPT)
Memory (Std/Max) 4.5GB 4.5GB 4GB 4GB 4GB 2 GB 2 GB
HDD Std. 320GB Std. 320GB Std. 320GB Std. 320GB Std. 320GB Std. 320GB Std. 320GB
Duplex Standard Standard Standard Standard Standard Standard Standard
Paper Capacity (Std/Max) 4150/7650 4150/7650 1150/7150 1150/7150 1150/7150 1100/4100 1100/4100

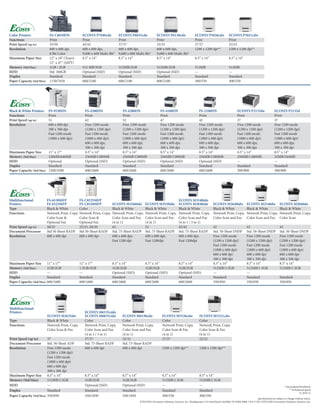

PRODUCT QUICK
REFERENCE GUIDE

2. Specifications are subject to change without notice.
KYOCERA Document Solutions America, Inc. Headquarters: 225 Sand Road, Fairfield, NJ 07004-0008, USA © 2017 KYOCERA Document Solutions America, Inc.
* Interpolated Resolution
** At Reduced Speed
12-2016 v2
Multifunctional FS-6530MFP FS-C8525MFP ECOSYS M3540idn
Printers FS-6525MFP FS-C8520MFP ECOSYS M3560idn ECOSYS M3550idn ECOSYS M3040idn ECOSYS M2640idw ECOSYS M2540dw ECOSYS M2040dn
Type Black & White Color Black & White Black & White Black & White Black & White Black & White Black & White
Functions Network Print, Copy, Network Print, Copy, Network Print, Copy, Network Print, Copy, Network Print, Copy, Network Print, Copy, Network Print, Copy, Network Print, Copy,
Color Scan & Color Scan & Color Scan and Fax Color Scan and Fax Color Scan and Fax Color Scan and Fax Color Scan and Fax Color Scan
Optional Fax Optional Fax (4 in 1) (4 in 1) (4 in 1 / 3 in 1)
Print Speed (up to) 30/25 25/25, 20/20 62 52 42/42 42 42 42
Document Processor Std 50-Sheet RADF Std 50-Sheet RADF Std. 75-Sheet RADF Std. 75-Sheet RADF Std. 75-Sheet RADF Std. 50-Sheet DSDP Std. 50-Sheet DSDP Std. 50-Sheet DSDP
Resolution 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi; 600 x 600 dpi; 600 x 600 dpi; Fine 1200 mode Fine 1200 mode Fine 1200 mode
Fast 1200 dpi Fast 1200dpi Fast 1200dpi (1200 x 1200 dpi) (1200 x 1200 dpi) (1200 x 1200 dpi)
Fast 1200 mode Fast 1200 mode Fast 1200 mode
(1800 x 600 dpi) (1800 x 600 dpi) (1800 x 600 dpi)
600 x 600 dpi 600 x 600 dpi 600 x 600 dpi
300 x 300 dpi 300 x 300 dpi 300 x 300 dpi
Maximum Paper Size 11” x 17” 11” x 17” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14”
Memory (Std/Max) 1GB/2GB 1.5GB/2GB 1GB/2GB 1GB/2GB 1GB/2GB 512MB/1.5GB 512MB/1.5GB 512MB/1.5GB
HDD — — Optional (SSD) Optional (SSD) Optional (SSD) — —
Duplex Standard Standard Standard Standard Standard Standard Standard Standard
Paper Capacity (Std/Max) 600/1600 600/1600 600/2600 600/2600 600/2600 350/850 350/850 350/850
Black & White Printers FS-9530DN FS-4300DN FS-4200DN FS-4100DN FS-2100DN ECOSYS P2135dn ECOSYS P2135d
Functions Print Print Print Print Print Print Print
Print Speed (up to) 51 62 52 47 42 37 37
Resolution 600 x 600 dpi Fine 1200 mode Fine 1200 mode Fine 1200 mode Fine 1200 mode Fine 1200 mode Fine 1200 mode
300 x 300 dpi (1200 x 1200 dpi) (1200 x 1200 dpi) (1200 x 1200 dpi) (1200 x 1200 dpi) (1200 x 1200 dpi) (1200 x 1200 dpi)
Fast 1200 mode Fast 1200 mode Fast 1200 mode Fast 1200 mode Fast 1200 mode Fast 1200 mode Fast 1200 mode
(1800 x 600 dpi) (1800 x 600 dpi) (1800 x 600 dpi) (1800 x 600 dpi) (1800 x 600 dpi) (1800 x 600 dpi) (1800 x 600 dpi)
600 x 600 dpi, 600 x 600 dpi, 600 x 600 dpi, 600 x 600 dpi, 600 x 600 dpi, 600 x 600 dpi,
300 x 300 dpi 300 x 300 dpi 300 x 300 dpi 300 x 300 dpi 300 x 300 dpi 300 x 300 dpi
Maximum Paper Size 11” x 17” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14”
Memory (Std/Max) 128MB/640MB 256MB/1280MB 256MB/1280MB 256MB/1280MB 256MB/1280MB 256MB/1280MB 32MB/544MB
HDD Optional Optional (SSD) Optional (SSD) Optional (SSD) Optional (SSD) — —
Duplex Standard Standard Standard Standard Standard Standard Standard
Paper Capacity (Std/Max) 1200/4200 600/2600 600/2600 600/2600 600/2600 300/800 300/800
Color Printers FS-C8650DN ECOSYS P7040cdn ECOSYS P6035cdn ECOSYS P6130cdn ECOSYS P5026cdw ECOSYS P5021cdw
Functions Print Print Print Print Print Print
Print Speed (up to) 55/50 42/42 37/37 32/32 27/27 22/22
Resolution 600 x 600 dpi 600 x 600 dpi, 600 x 600 dpi, 600 x 600 dpi, 1200 x 1200 dpi** 1200 x 1200 dpi**
8 Bit Color 9,600 x 600 Multi-Bit* 9,600 x 600 Multi-Bit* 9,600 x 600 Multi-Bit*
Maximum Paper Size 12” x 18” (Trays) 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14”
12” x 47” (MPT)
Memory (Std/Max) 1GB / 2GB 512 MB/2GB 512MB/2GB 512MB/2GB 512MB 512MB
HDD Std. 160GB Optional (SSD) Optional (SSD) Optional (SSD) — —
Duplex Standard Standard Standard Standard Standard Standard
Paper Capacity (Std/Max) 1150/7650 600/2100 600/2100 600/2100 300/550 300/550
Multifunctional
Printers ECOSYS M6535cidn
ECOSYS M2635dw ECOSYS M6035cidn ECOSYS M6530cdn ECOSYS M5526cdw ECOSYS M5521cdw
Type Black & White Color Color Color Color
Functions Network Print, Copy, Network Print, Copy, Network Print, Copy, Network Print, Copy, Network Print, Copy,
Color Scan & Fax Color Scan and Fax Color Scan and Fax Color Scan & Fax Color Scan & Fax
(4 in 1 / 3 in 1) (4 in 1) (4 in 1) (4 in 1)
Print Speed (up to) 37 37/37 32/32 27/27 22/22
Document Processor Std. 50-Sheet ADF Std. 75-Sheet RADF Std. 75-Sheet RADF
Resolution Fine 1200 mode 600 x 600 dpi 600 x 600 dpi 1200 x 1200 dpi** 1200 x 1200 dpi**
(1200 x 1200 dpi)
Fast 1200 mode
(1800 x 600 dpi)
600 x 600 dpi
300 x 300 dpi
Maximum Paper Size 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14” 8.5” x 14”
Memory (Std/Max) 512MB/1.5GB 1GB/2GB 1GB/2GB 512MB/1.5GB 512MB/1.5GB
HDD — Optional (SSD) Optional (SSD) — —
Duplex Standard Standard Standard Standard Standard
Paper Capacity (Std/Max) 350/850 350/1850 350/1850 300/550 300/550
