Canon ir 3170c

1) The Canon iR3170C is a desktop colour printer that can print up to A3 size pages at speeds of 31 ppm for black and white and 7 ppm for colour. 2) It has standard automatic duplexing and can hold up to 4,750 sheets of paper in its cassettes and optional paper deck. 3) Additional options include a colour multi-PDL print kit for higher resolution colour printing and network printing, as well as a colour universal send kit for networked scanning.

Education◦Technology◦Business◦
Download to read offline

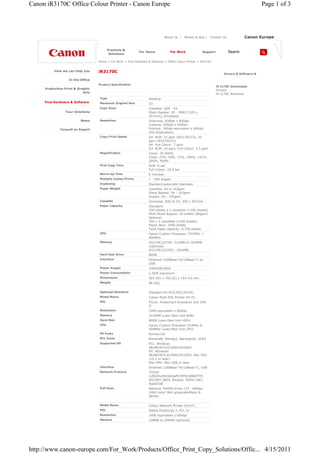

Canon iR3170C Office Colour Printer - Canon Europe Page 1 of 3 About Us | Where to Buy | Contact Us Canon Europe Products & For Home For Work Support Search Solutions Home > For Work > Find Hardware & Software > Office Colour Printer > iR3170C How we can help you iR3170C Drivers & Software In the Office Product Specification iR 3170C Downloads Production Print & Graphic Drivers Arts iR 3170C Brochure Type Desktop Find Hardware & Software Maximum Original Size A3 Copy Sizes Cassette: A5R - A3 Your Solutions Stack Bypass: A5 - SRA3 (320 x 457mm), Envelopes News Resolution Scanning: 600dpi x 600dpi Copying: 600dpi x 600dpi Consult an Expert Printing: 240dpi equivalent x 600dpi 256 Graduations Copy/Print Speed A4: B/W: 31 ppm (iR3170C/Ci), 25 ppm (iR2570C/Ci) A4: Full Colour: 7 ppm A3: B/W: 16 ppm, Full Colour: 3.5 ppm Magnification Zoom: 25-400% Fixed: 25%, 50%, 71%, 100%, 141%, 200%, 400% First Copy Time B/W: 8 sec Full Colour: 23.9 sec Warm-Up Time 6 minutes Multiple Copies/Prints 1 - 999 sheets Duplexing Standard automatic stackless Paper Weight Cassette: 64 to 163gsm Stack Bypass: 64 - 163gsm Duplex: 64 - 105gsm Cassette Universal: A5R to A3, 305 x 457mm Paper Capacity Standard: 550 sheets x 2 cassettes (1100 sheets) Multi Stack Bypass: 50 sheets (80gsm) Optional: 550 x 2 cassettes (1100 sheets) Paper deck: 2500 sheets Total Paper capacity: 4,750 sheets CPU Canon Custom Processor, 533MHz + 400MHz Memory iR3170C/2570C: 512MB to 1024MB (optional) iR3170Ci/2570Ci: 1024MB Hard Disk Drive 80GB Interface Ethernet (100Base-TX/10Base-T) by USB Power Supply 230V/6A/50Hz Power Consumption 1.5kW maximum Dimensions 565 (W) x 755 (D) x 754 (H) mm Weight 86.2Kg Optional/Standard Standard for iR3170Ci/2570Ci Model Name Colour Multi-PDL Printer Kit-D1 PDL PCL5c, Postscript3 Emulation and UFR II Resolution 2400 equivalent x 600dpi Memory 1024MB (uses Main Unit RAM) Hard Disk 80GB (uses Main Unit HDD) CPU Canon Custom Processor 533MHz & 400MHz (uses Main Unit CPU) PS Fonts Roman136 PCL Fonts Roman80, Bitmap1, Barcode30, OCR2 Supported OS PCL: Windows 98/ME/NT4.0/2000/XP/2003 PS: WIndows 98/ME/NT4.0/2000/XP/2003, Mac OSX (10.2 or later) Mac-PPD: Mac OS8 or later Interface Ethernet (100Base-TX/10Base-T), USB Network Protocol TCP/IP (LPD/Port9100/IpPP/IPPS/SMB/FTP) IPX/SPX (NDS, Bindery, NDPS-GW), AppleTalk Pull Scan Network TWAIN Driver (75 - 600dpi 24bit color/ 8bit grayscale/Black & White) Model Name Colour Network Printer Unit-F1 PDL Adobe PostScript 3, PCL 5c Resolution 2400 equivalent x 600dpi Memory 128MB to 256MB (optional) http://www.canon-europe.com/For_Work/Products/Office_Print_Copy_Solutions/Offic... 4/15/2011

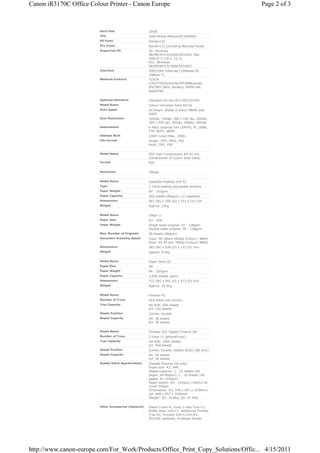

Canon iR3170C Office Colour Printer - Canon Europe Page 2 of 3 Hard Disk 20GB CPU Intel Mobile PentiumIII 850MHz PS Fonts Roman136 PCL Fonts Roman113 (including Barcode Fonts) Supported OS PS: Windows 98/ME/NT4.0/2000/XP/2003, Mac OS9.0/ X (10.2, 10.3) PCL: Windows 98/ME/NT4.0/2000/XP/2003 Interface IEEE1284, Ethernet (100Base-TX, 10Base-T) Network Protocol TCP/IP (LPD/FTP/Port9100/IPP/SMB/email) IPX/SPX (NDS, Bindery, NDPS-GW, AppleTalk Optional/Standard Standard for the iR3170Ci/2570Ci Model Name Colour Universal Send Kit-D1 Scan speed A4 44ipm 300dpi (Colour/ B&W) with DADF Scan Resolution 100dpi, 150dpi, 200 x 100 dpi, 200dpi, 200 x 400 dpi, 300dpi, 400dpi, 600dpi Destinations E-Mail/ Internet FAX (SMTP), PC (SMB, FTP, NCP), iWDM Address Book LDAP, Local (Max. 1800) File Format Single: TIFF, JPEG, PDF Multi: TIFF, PDF Model Name PDF High Compression Kit-A1 (for Compression of Colour Scan Data) Format PDF Resolution 300dpi Model Name Cassette Feeding Unit-Y2 Type 2 Front-loading adjustable drawers Paper Weight 64 - 163gsm Paper Capacity 550 sheets (80gsm) x 2 cassettes Dimensions 565 (W) x 700 (D) x 251.5 (H) mm Weight Approx. 23kg Model Name DADF-L1 Paper Size A3 - A5R Paper Weight Single sided original: 42 - 128gsm Double sided original: 50 - 128gsm Max. Number of Originals 50 sheets (80gsm) Document Scanning Speed Copy: A4 28ipm 600dpi (Colour / B&W) Scan: A4 44 ipm 300dpi (Colour/ B&W) Dimensions 565 (W) x 538 (D) x 122 (H) mm Weight Approx. 8.5kg Model Name Paper Deck-Q1 Paper Size A4 Paper Weight 64 - 105gsm Paper Capacity 2,500 sheets (gsm) Dimensions 372 (W) x 591 (H) x 473 (D) mm Weight Approx. 29.6kg Model Name Finisher-P1 Number of Trays One stack tray (Inner) Tray Capacity A4-A5R: 500 sheets A3: 250 sheets Staple Position Corner, Double Staple Capacity A4: 50 sheets A3: 30 sheets Model Name Finisher-Q3/ Saddle Finisher-Q4 Number of Trays 2 trays (+ optional tray) Tray Capacity A4-A5R: 1000 sheets A3: 500 sheets Staple Position Corner, Double, Saddle Stitch (Q4 only) Staple Capacity A4: 50 sheets A3: 30 sheets Saddle Stitch Specifications (Saddle Finisher-Q4 only) Paper size: A3, A4R Staple capacity: 1 - 15 sheets (60 pages, 64-80gsm), 1 - 10 sheets (40 pages, 81-105gsm) Paper weight: 64 - 105gsm (164m2 for Cover Sheet) Dimensions: Q3: 536 x 657 x 1036mm, Q4: 648 x 657 x 1036mm Weight: Q3: 39.6kg, Q4: 67.6kg Other Accessories (Optional) Platen Cover-H, Inner 2-way Tray-C1, Buffer Pass, Unit-C1, Additional Finisher Tray-A1, Puncher Unit-L1/N1/P1, iR3100C pedestal, Envelope Feeder http://www.canon-europe.com/For_Work/Products/Office_Print_Copy_Solutions/Offic... 4/15/2011

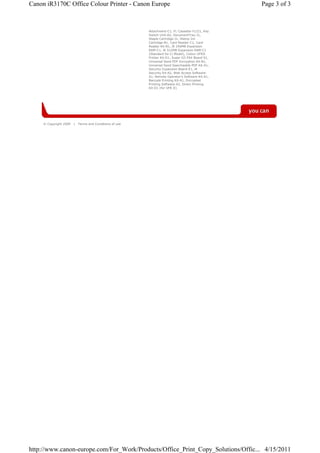

Canon iR3170C Office Colour Printer - Canon Europe Page 3 of 3 Attachment-C1, FL Cassette-Y1/Z1, Key Switch Unit-A2, DocumentTray-J1, Staple Cartridge-J1, Stamp Inc Cartridge-B1, Card Reader-C1, Card Reader Kit-B1, iR 256MB Expansion RAM-C1, iR 512MB Expansion RAM-C1 (Standard for Ci Model), Colour UFRII Printer Kit-D1, Super G3 FAX Board-S1, Universal Send PDF Encryption Kit-B1, Universal Send Searcheable PDF Kit-A1, Security Expansion Board-E1, iR Security Kit-A2, Web Access Software- A1, Remote Operator's Software Kit-A1, Barcode Printing Kit-A1, Encrypted Printing Software-A2, Direct Printing Kit-D1 (for UFR II) © Copyright 2009 | Terms and Conditions of use http://www.canon-europe.com/For_Work/Products/Office_Print_Copy_Solutions/Offic... 4/15/2011
