This document provides specifications for the HP Officejet 6500A Plus e-All-in-One Printer. It can print, copy, scan, fax and has a wireless connection. It can print up to 32 pages per minute for black and white pages and up to 31 pages per minute for color. It has a 250 sheet paper input tray and a 50 sheet output tray.

1. HP Officejet 6500A Plus e-All-in-One Printer - E710n (CN557A) specifications - HP Home & Home Office products Page 1
» Return%20to%20 original%
20page
Ready to buy » Technical Support
» Data sheets / Documents
Find an HP Reseller or Call HP
toll free: 1800 42 54 999 (From
MTNL/ BSNL in India)
Find an HP Reseller »
Enlarge | Product
image demo
Image is an approximate guide only
» Accessories , supplies &
Specifications
services
Functions
Functions Print, copy, scan, fax, Web
Multitasking supported Yes
Printing specifications
Print speed black (draft, Up to 32 ppm
A4 )
Print speed colour (draft , Up to 31 ppm
A4 )
Print speed black (ISO, Up to 10 ppm
laser comparable)
Print speed color ( ISO, laser Up to 7 ppm
comparable)
Print speed footnote Either after first page or after first set of ISO test pages. For details see http://
www.hp .com /go /printerclaims
First page out black ( A4 , As fast as 16 sec
ready)
First page out color (A 4, As fast as 18 sec
ready)
Duty cycle (monthly, A4 ) Up to 7000 pages
Recommended monthly 200 to 800
page volume
Recommended monthly HP recommends that the number of pages per month of imaged output be
page volume note within the stated range for optimum device performance, based on factors
including supplies replacement intervals and device life over an extended
warranty period.
Print technology HP Thermal Inkjet
Print quality black (best ) Up to 600 rendered dpi black ( when printing from a computer )
Print quality color (best ) Up to 4800 x 1200 dpi
Number of print cartridges 4 (1 each black, cyan, magenta, yellow )
Paper handling
Paper handling input, 250-sheet input tray, 35-sheet automatic document feeder (ADF)
standard
Paper handling output, 50-sheet output tray
standard
Envelope input capacity Up to 30 envelopes
Envelope feeder No
Duplex printing Automatic (standard )
Finished output handling Sheetfed, ADF
Media sizes supported ISO: A4 ; A5 ; A 6; B 5; B6 ; C6 ; JIS: B5 ; B6 ; B7 ; 76 x 127 to 216 x 355 mm
Media sizes, custom Windows does not support custom paper size. Mac : Tray 1 : 76.2 x 101.6 to
215.9 x 762 mm
http://www.hp.com/cgi-bin/pf-new.cgi?IN=http%3A%2F%2Fh10010.www1.hp.com/wwpc/in/en/ho/WF06b/18972-18972-238444-33... 05-03-2012 12:08:32

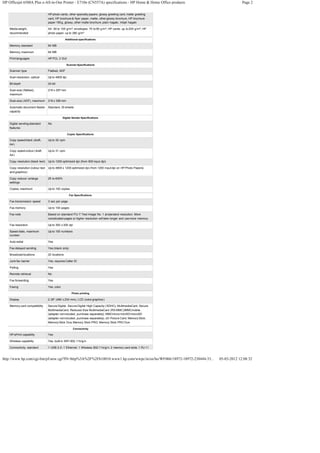

2. HP Officejet 6500A Plus e-All-in-One Printer - E710n (CN557A) specifications - HP Home & Home Office products Page 2
HP photo cards, other specialty papers, glossy greeting card, matte greeting
card, HP brochure & flyer paper, matte, other glossy brochure, HP brochure
paper 180 g, glossy, other matte brochure, plain hagaki, Inkjet hagaki
Media weight, A4 : 60 to 105 g/m²; envelopes: 75 to 90 g /m²; HP cards: up to 200 g/m²; HP
recommended photo paper: up to 280 g/m²
Additional specifications
Memory, standard 64 MB
Memory, maximum 64 MB
Print languages HP PCL 3 GUI
Scanner Specifications
Scanner type Flatbed, ADF
Scan resolution, optical Up to 4800 dpi
Bit depth 24-bit
Scan size ( flatbed), 216 x 297 mm
maximum
Scan size ( ADF), maximum 216 x 356 mm
Automatic document feeder Standard, 35 sheets
capacity
Digital Sender Specifications
Digital sending standard No
features
Copier Specifications
Copy speed black (draft , Up to 32 cpm
A4 )
Copy speed colour ( draft, Up to 31 cpm
A4 )
Copy resolution (black text) Up to 1200 optimized dpi (from 600 input dpi)
Copy resolution (colour text Up to 4800 x 1200 optimized dpi ( from 1200 input dpi on HP Photo Papers)
and graphics )
Copy reduce / enlarge 25 to 400%
settings
Copies, maximum Up to 100 copies
Fax Specifications
Fax transmission speed 3 sec per page
Fax memory Up to 100 pages
Fax note Based on standard ITU-T Test Image No. 1 at standard resolution. More
complicated pages or higher resolution will take longer and use more memory.
Fax resolution Up to 300 x 300 dpi
Speed dials, maximum Up to 100 numbers
number
Auto redial Yes
Fax delayed sending Yes ( black only)
Broadcast locations 20 locations
Junk fax barrier Yes, requires Caller ID
Polling Yes
Remote retrieval No
Fax forwarding Yes
Faxing Yes, color
Photo printing
Display 2.36" (480 x 234 mm), LCD (color graphics )
Memory card compatibility Secure Digital ; Secure Digital High Capacity ( SDHC); MultimediaCard; Secure
MultimediaCard; Reduced-Size MultimediaCard (RS-MMC)/MMCmobile
(adapter not included, purchase separately); MMCmicro/miniSD/microSD
(adapter not included, purchase separately); xD- Picture Card; Memory Stick;
Memory Stick Duo; Memory Stick PRO; Memory Stick PRO Duo
Connectivity
HP ePrint capability Yes
Wireless capability Yes, built-in WiFi 802 .11b /g /n
Connectivity, standard 1 USB 2.0; 1 Ethernet; 1 Wireless 802.11 b/g/n; 2 memory card slots; 1 RJ-11
http://www.hp.com/cgi-bin/pf-new.cgi?IN=http%3A%2F%2Fh10010.www1.hp.com/wwpc/in/en/ho/WF06b/18972-18972-238444-33... 05-03-2012 12:08:32

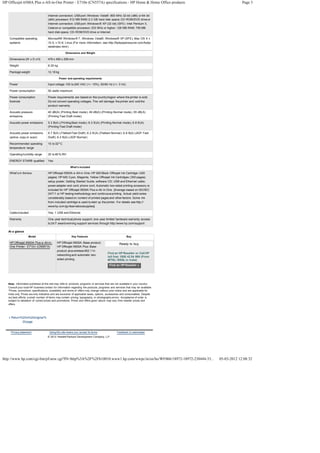

3. HP Officejet 6500A Plus e-All-in-One Printer - E710n (CN557A) specifications - HP Home & Home Office products Page 3
Internet connection; USB port; Windows Vista® : 800 MHz 32-bit ( x86) or 64- bit
(x64) processor; 512 MB RAM; 2 .0 GB hard disk space; CD -ROM /DVD drive or
Internet connection; USB port; Windows ® XP (32 -bit) (SP2 ): Intel Pentium II,
Celeron or compatible processor; 233 MHz or higher ; 128 MB RAM; 750 MB
hard disk space; CD- ROM/DVD drive or Internet
Compatible operating Microsoft® Windows ® 7 , Windows Vista®, Windows® XP (SP2 ); Mac OS X v
systems 10.5, v 10 .6 ; Linux (For more information, see http://hplipopensource .com /hplip-
web/index.html )
Dimensions and Weight
Dimensions (W x D x H) 476 x 450 x 258 mm
Weight 8.25 kg
Package weight 12.18 kg
Power and operating requirements
Power Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz)
Power consumption 50 watts maximum
Power consumption Power requirements are based on the country/region where the printer is sold.
footnote Do not convert operating voltages. This will damage the printer and void the
product warranty.
Acoustic pressure 40 dB(A) (Printing Best mode); 49 dB(A ) (Printing Normal mode) ; 55 dB( A)
emissions (Printing Fast Draft mode)
Acoustic power emissions 5.3 B(A ) ( Printing Best mode) ; 6 .3 B (A) (Printing Normal mode); 6 .8 B (A)
(Printing Fast Draft mode)
Acoustic power emissions 6.7 B(A ) ( Flatbed Fast Draft) ; 6 .2 B (A) (Flatbed Normal ); 6.6 B(A ) (ADF Fast
(active, copy or scan) Draft); 6.2 B(A ) ( ADF Normal )
Recommended operating 15 to 32 º C
temperature range
Operating humidity range 20 to 80 % RH
ENERGY STAR® qualified Yes
What's included
What' s in the box HP Officejet 6500A e -All-in -One; HP 920 Black Officejet Ink Cartridge ( 420
pages); HP 920 Cyan, Magenta, Yellow Officejet Ink Cartridges ( 300 pages);
setup poster; Getting Started Guide; software CD; USB and Ethernet cable;
power adapter and cord; phone cord. Automatic two-sided printing accessory is
included for HP Officejet 6500A Plus e-All -in-One . [Average based on ISO/IEC
24711 or HP testing methodology and continuous printing. Actual yield varies
considerably based on content of printed pages and other factors. Some ink
from included cartridge is used to start up the printer. For details see http ://
www.hp .com /go /learnaboutsupplies]
Cable included Yes, 1 USB and Ethernet
Warranty One- year technical phone support ; one -year limited hardware warranty; access
to 24 /7 award-winning support services through http://www.hp.com/support
At a glance
Model Key Features Buy
HP Officejet 6500A Plus e- All-in- HP Officejet 6500A : Base product; Ready to buy
One Printer - E710 n (CN557 A) HP Officejet 6500A Plus: Base
product plus wireless 802 .11n
Find an HP Reseller or Call HP
networking and automatic two-
toll free: 1800 42 54 999 (From
sided printing. MTNL/ BSNL in India)
Find an HP Reseller »
