1. Kubernetes and AWS Lambda can
play nicely together
Edward Wilde Core Contributor, Architect Form3
Serverless Practitioners Summit - 2019

2. • Extending OpenFaaS
• Integrating with AWS Lambda 🤨
• Combining Kubernetes with Lambda 🖖
The Session
Tweet @ewilde 🤳 📸

3. Top OpenFaaS providers
faas-netes
faas-nomad
faas-swarm
faas-fargate
🥇
available on GitHub

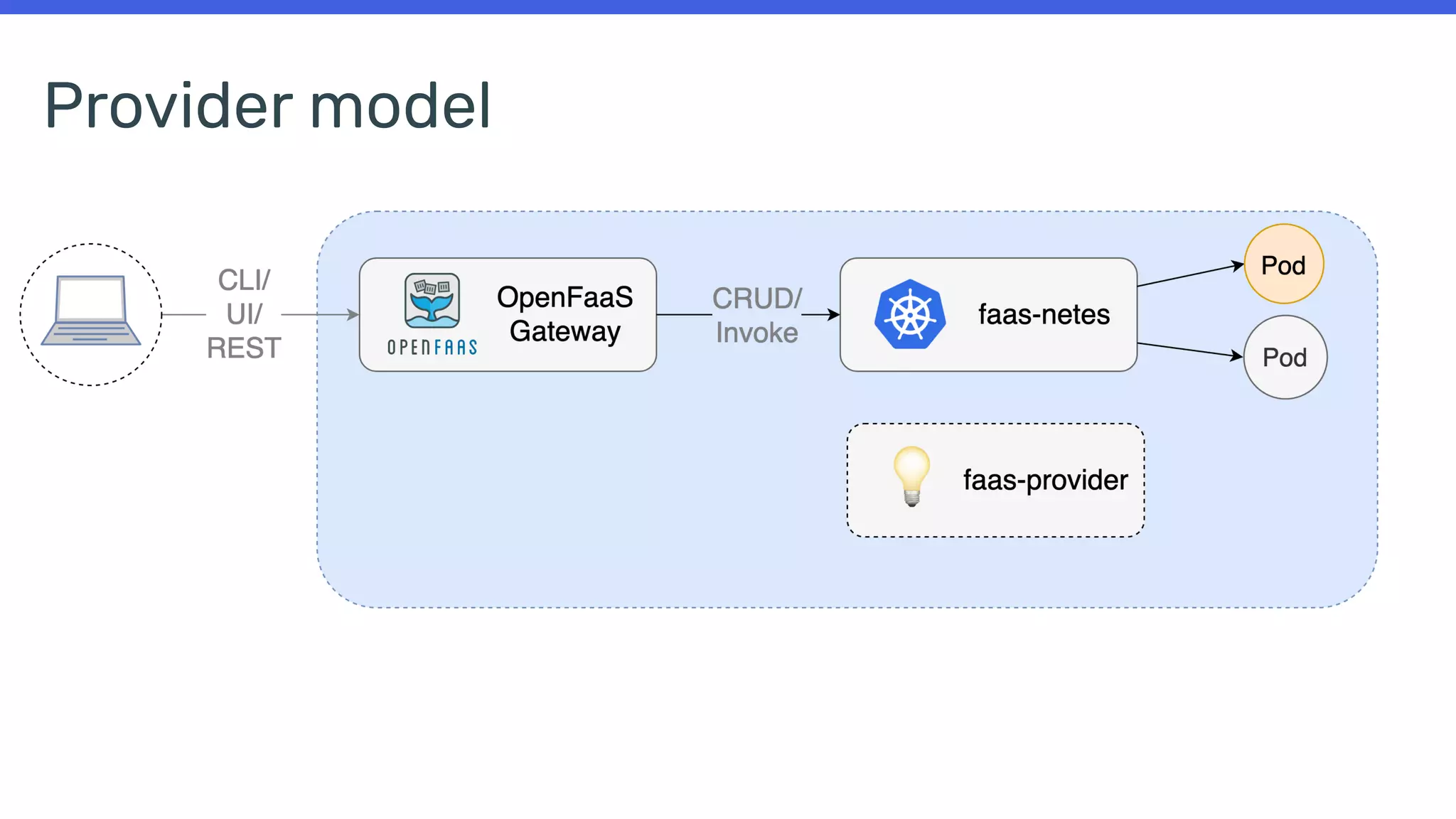

4. Provider model

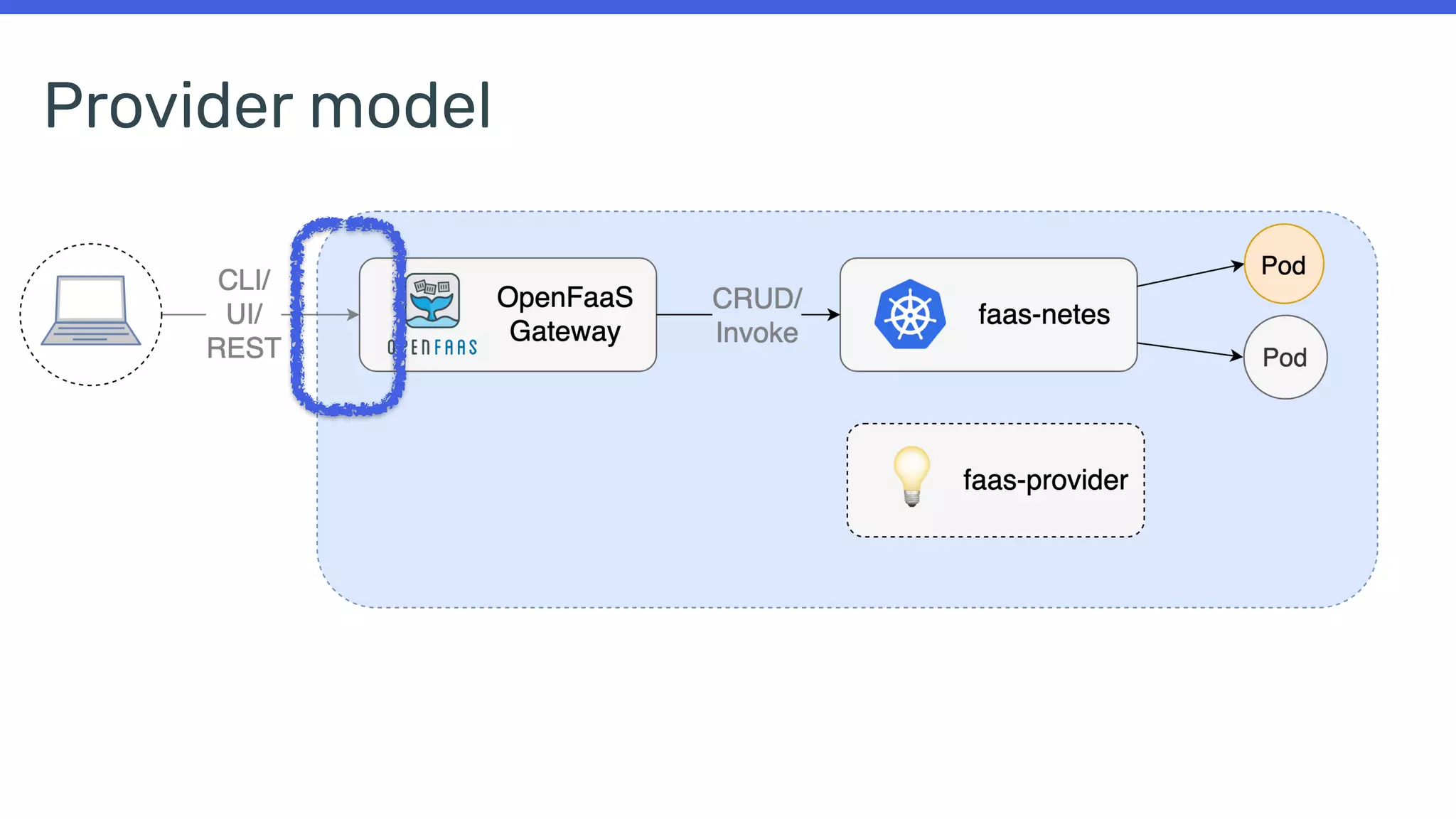

5. Provider model

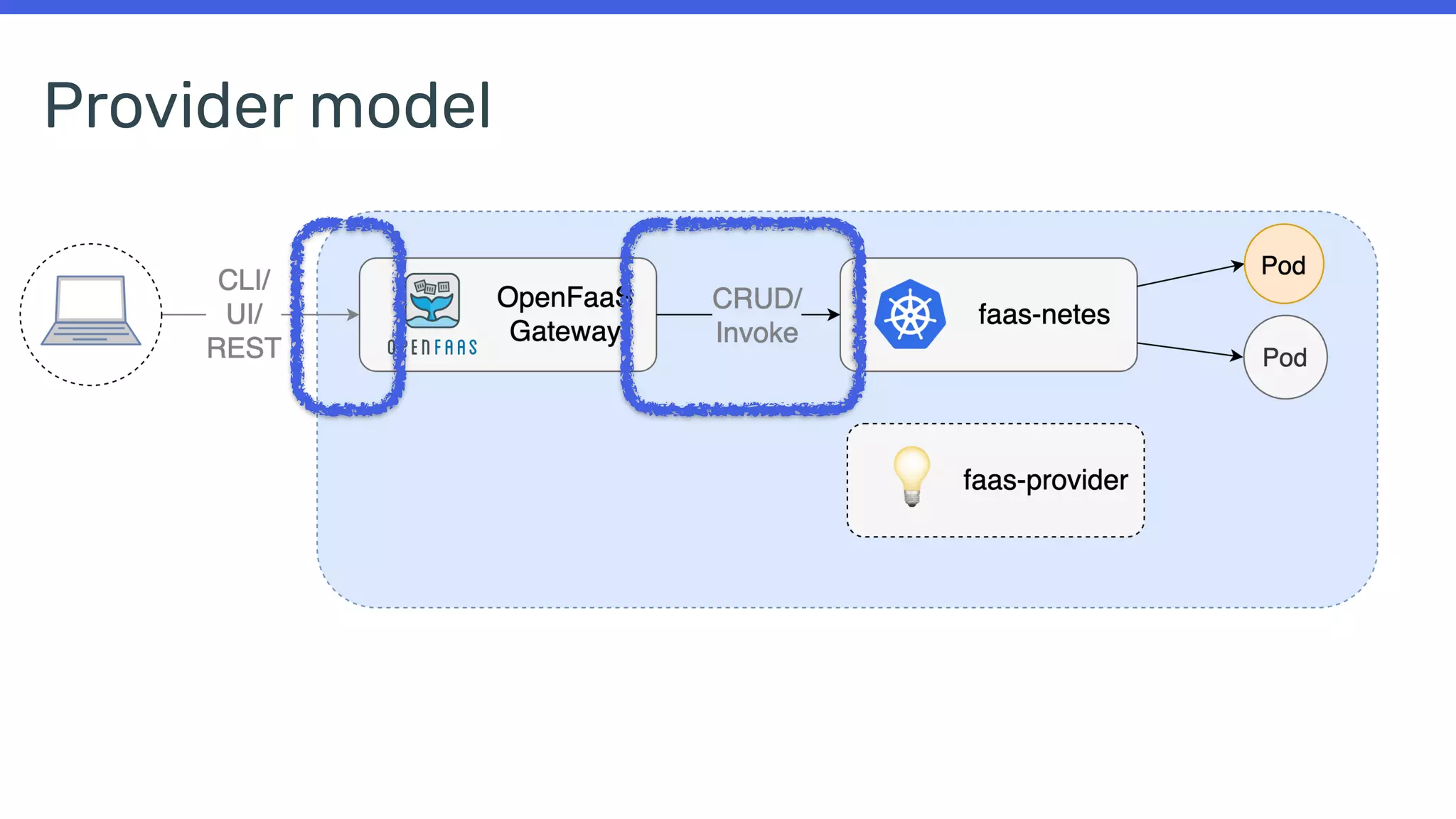

6. Provider model

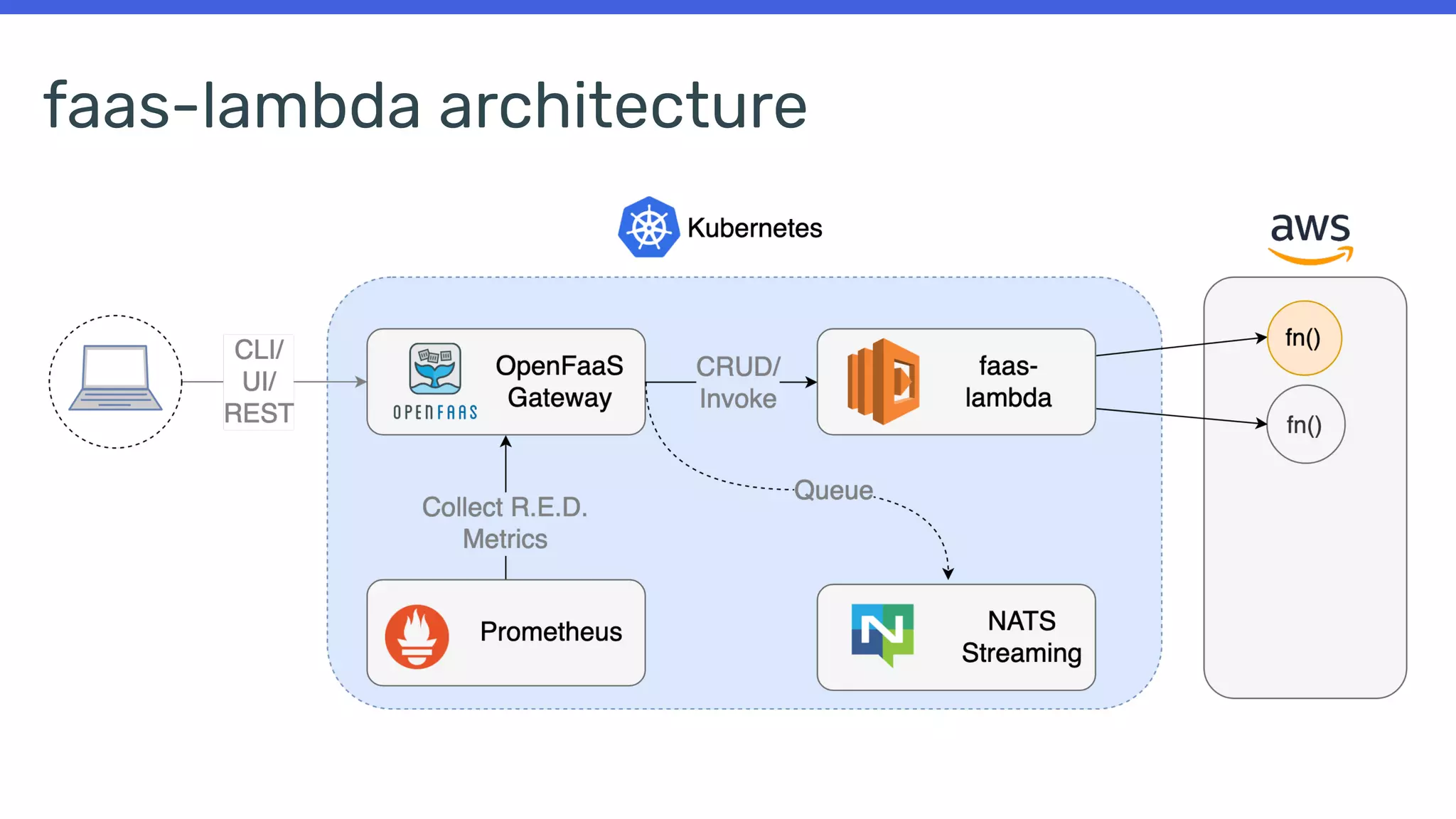

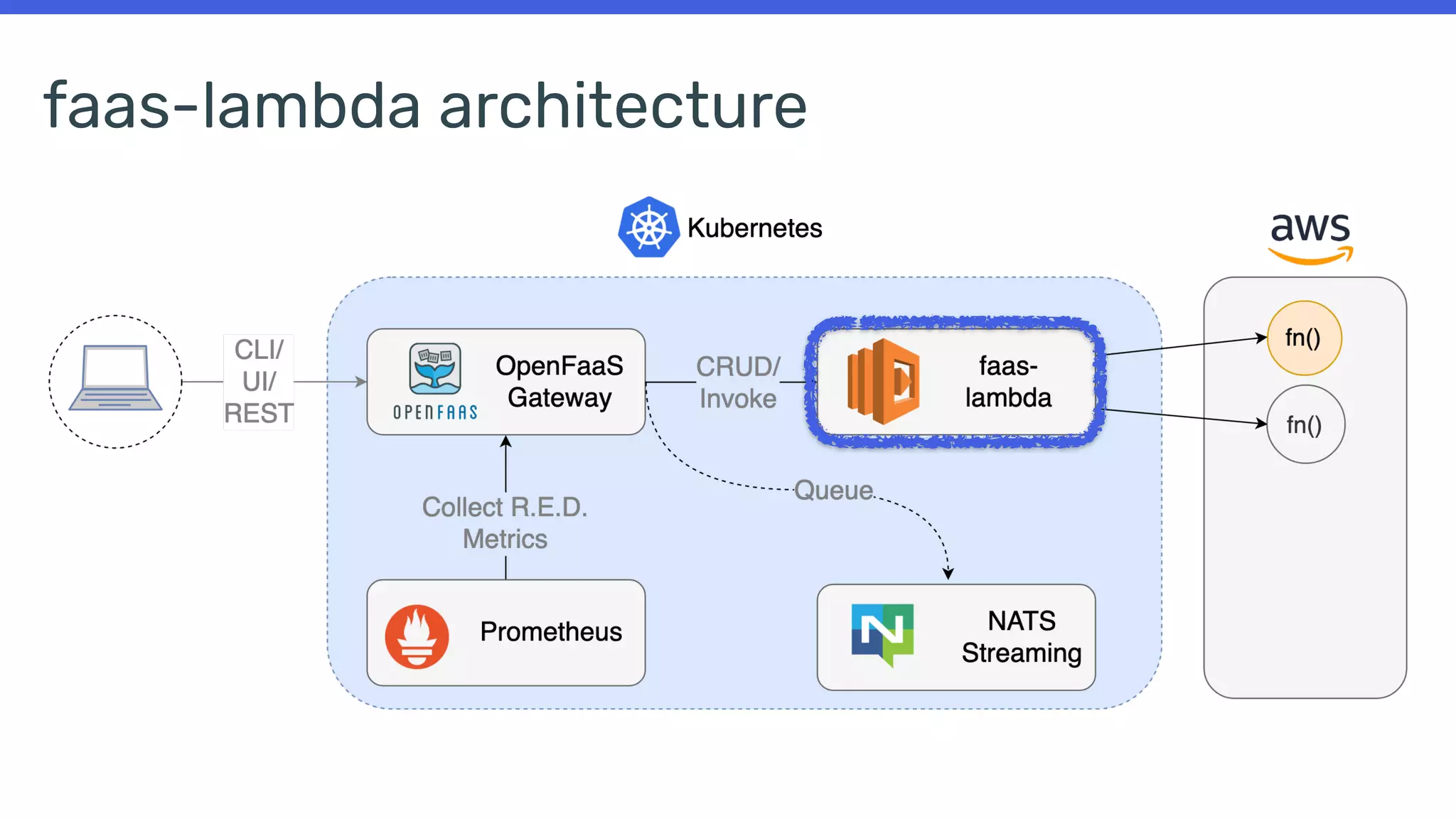

7. faas-lambda architecture

8. faas-lambda architecture

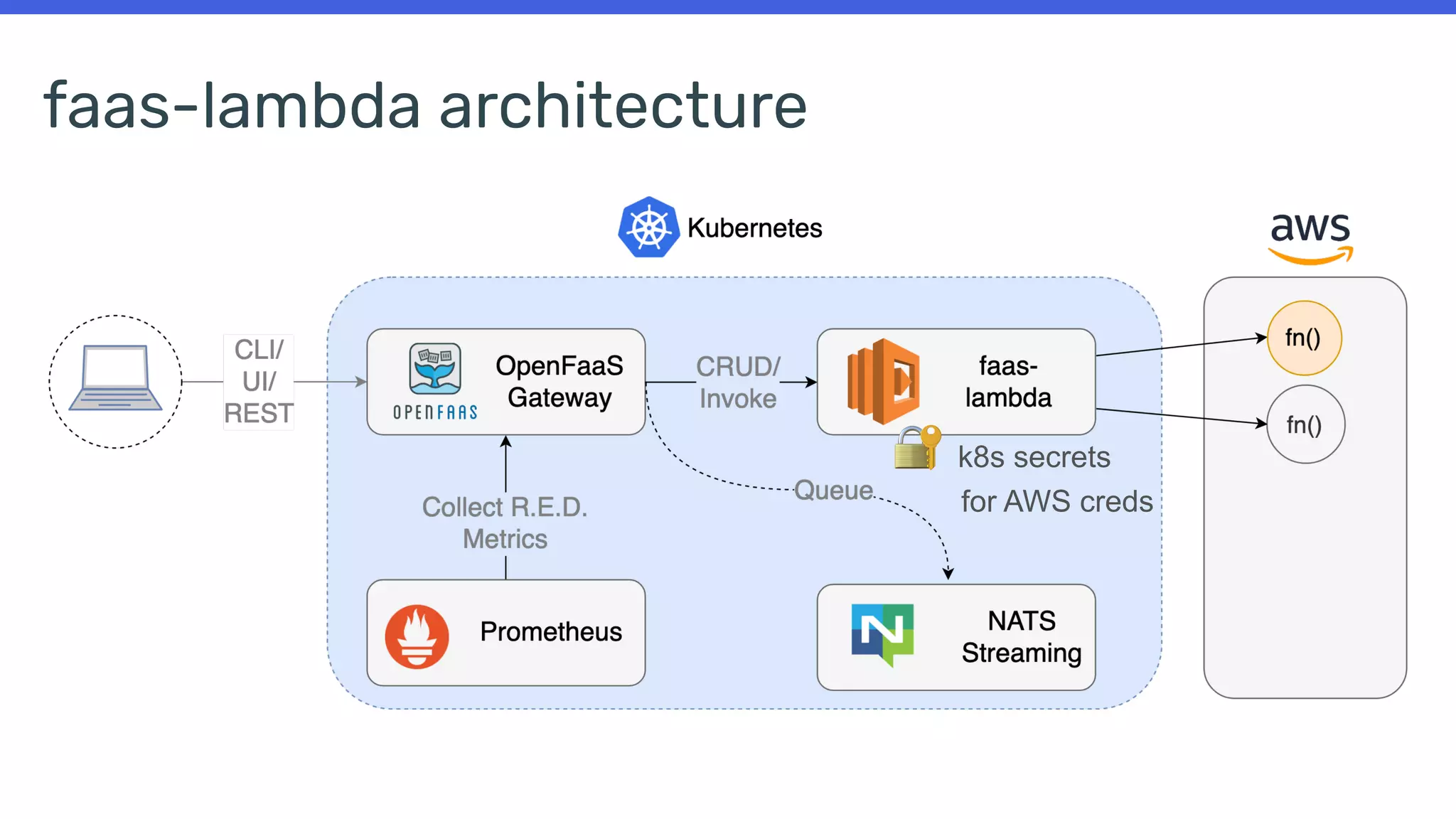

9. faas-lambda architecture
🔐 k8s secrets
for AWS creds

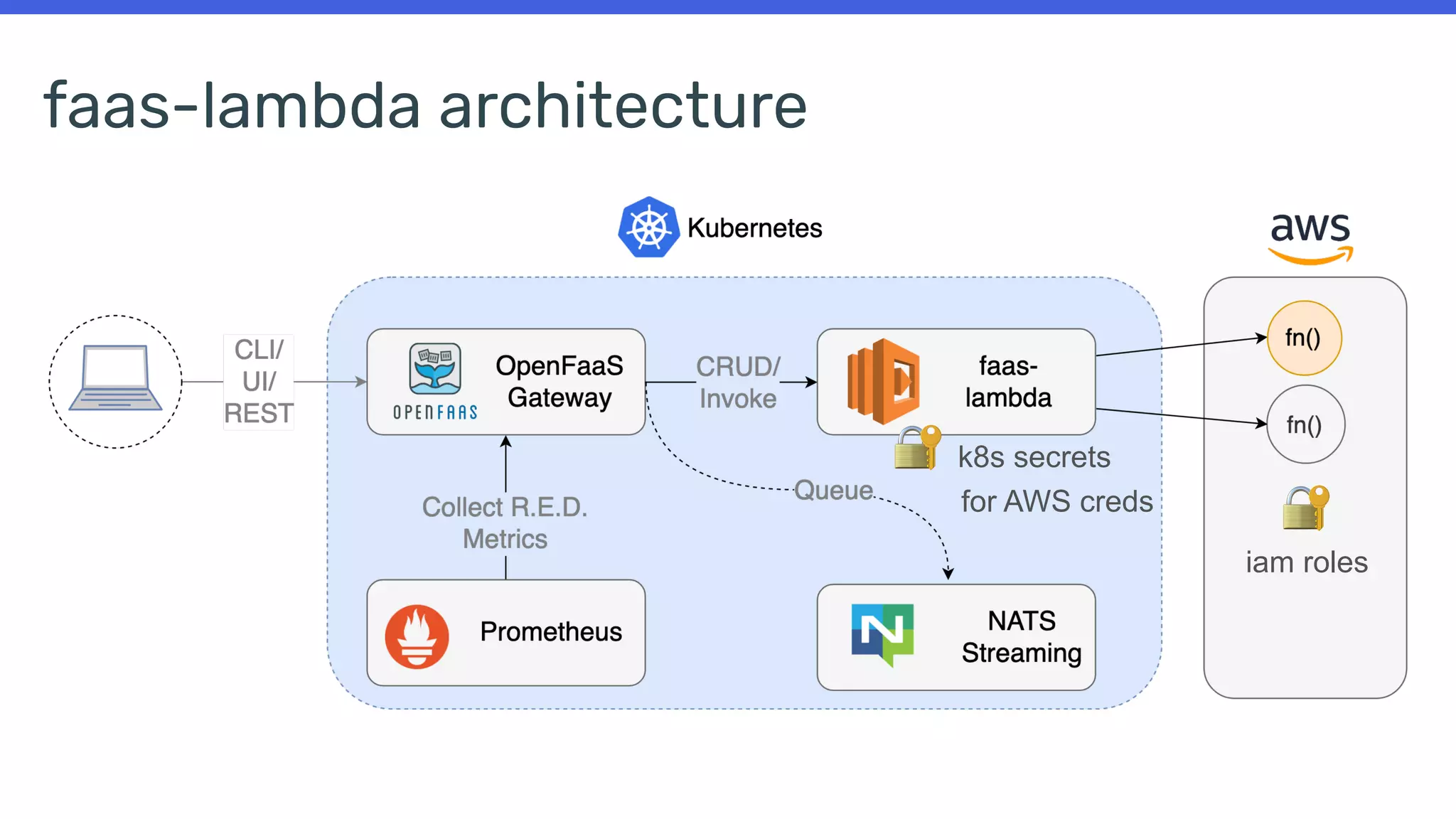

10. faas-lambda architecture
🔐 k8s secrets
for AWS creds
🔐
iam roles

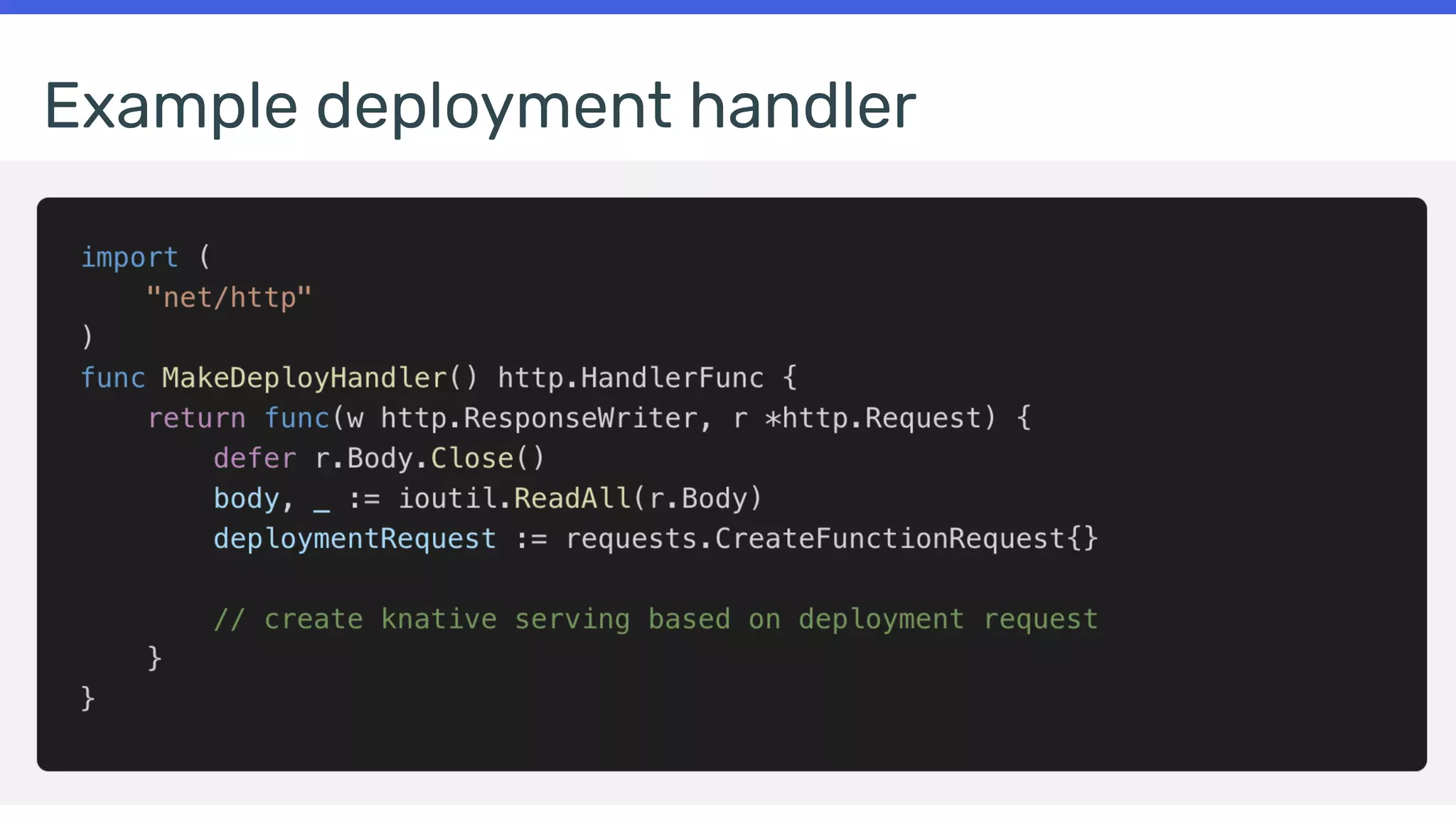

16. Example deployment handler

18. Why use OpenFaaS on Lambda?
• Migration path to k8s and multi-cloud
• Legacy integration with proprietary services
• Managed infrastructure
• Bursting / Free tier

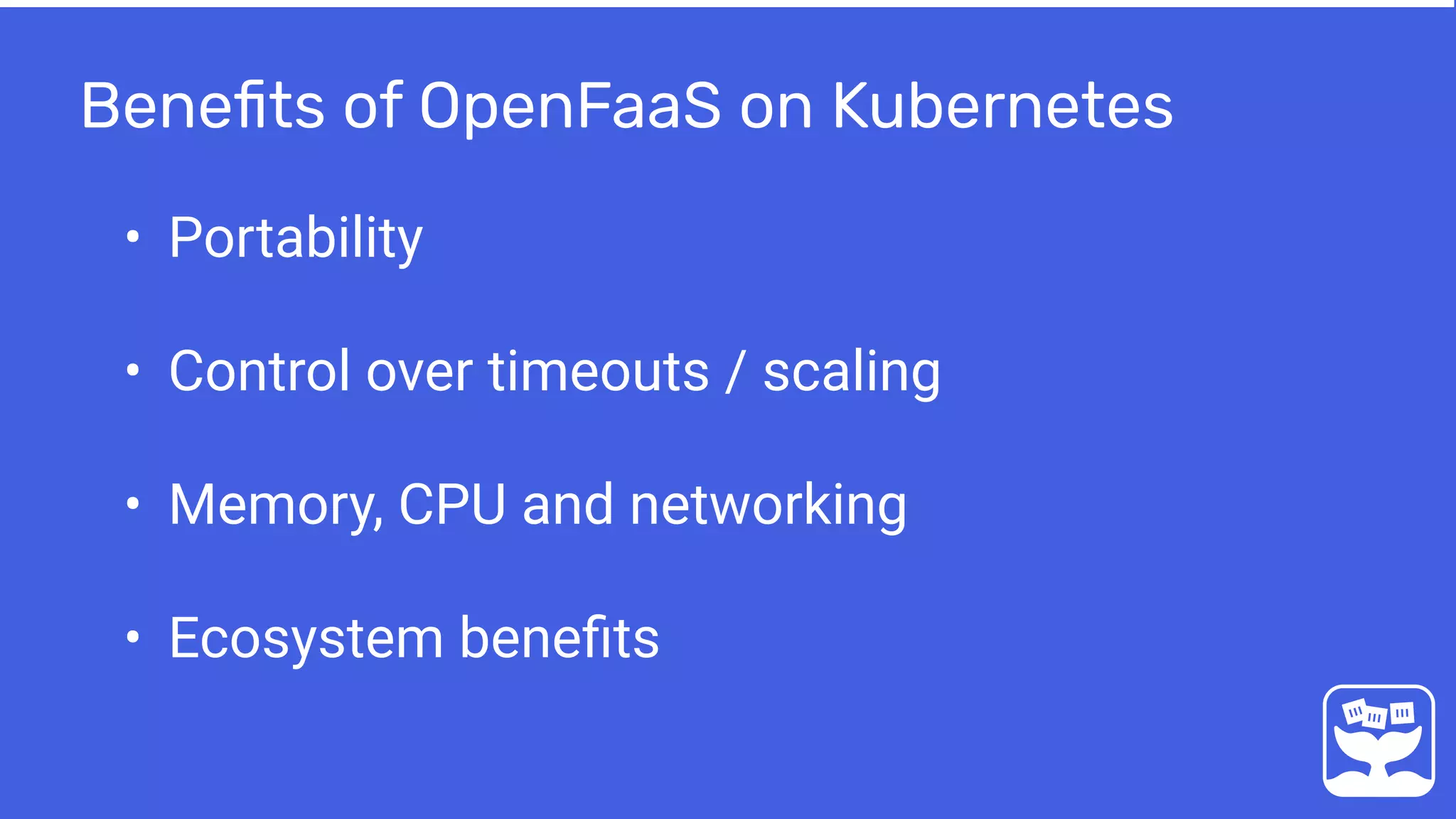

19. Benefits of OpenFaaS on Kubernetes
• Portability
• Control over timeouts / scaling
• Memory, CPU and networking
• Ecosystem benefits

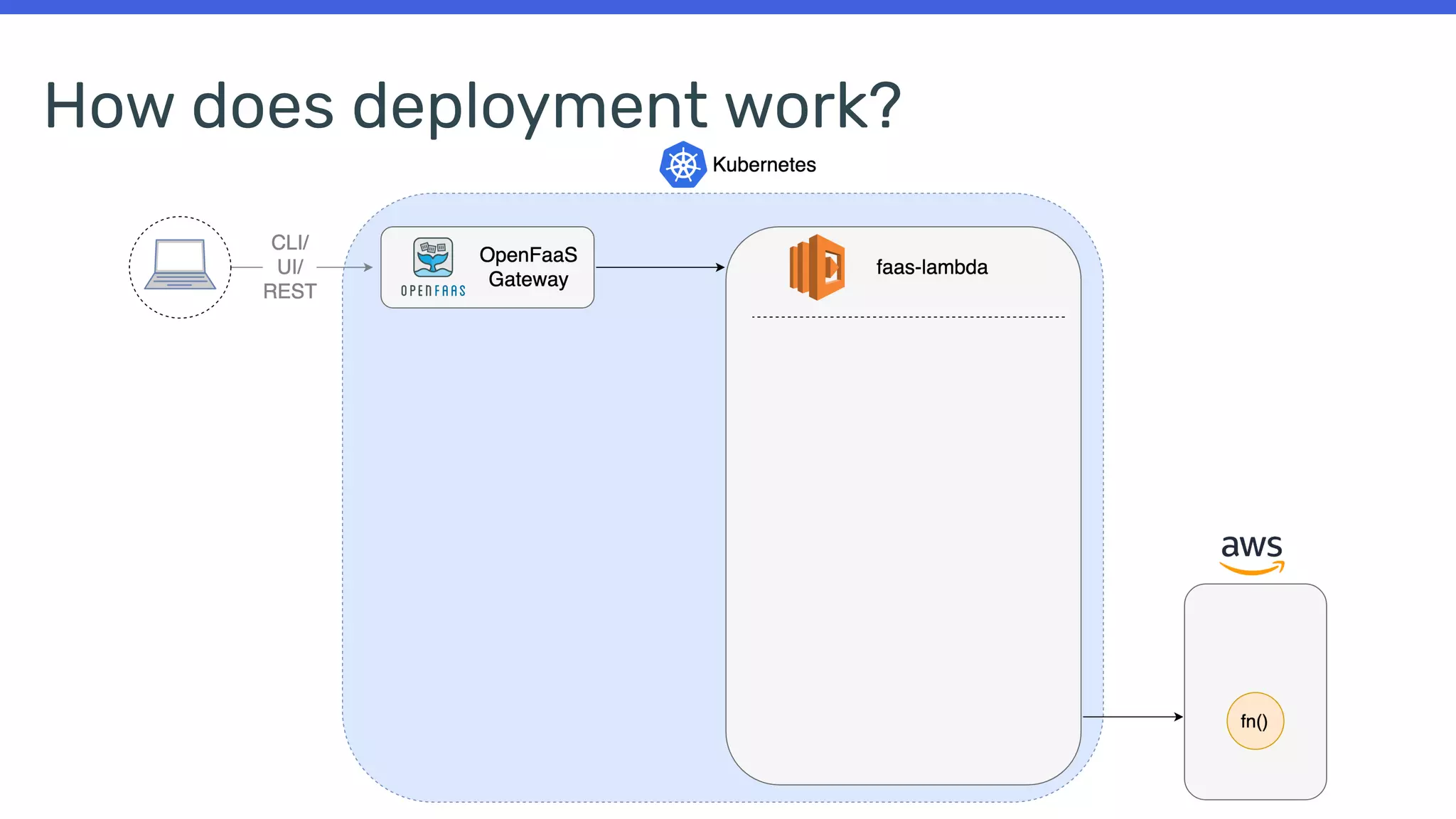

20. How does deployment work?

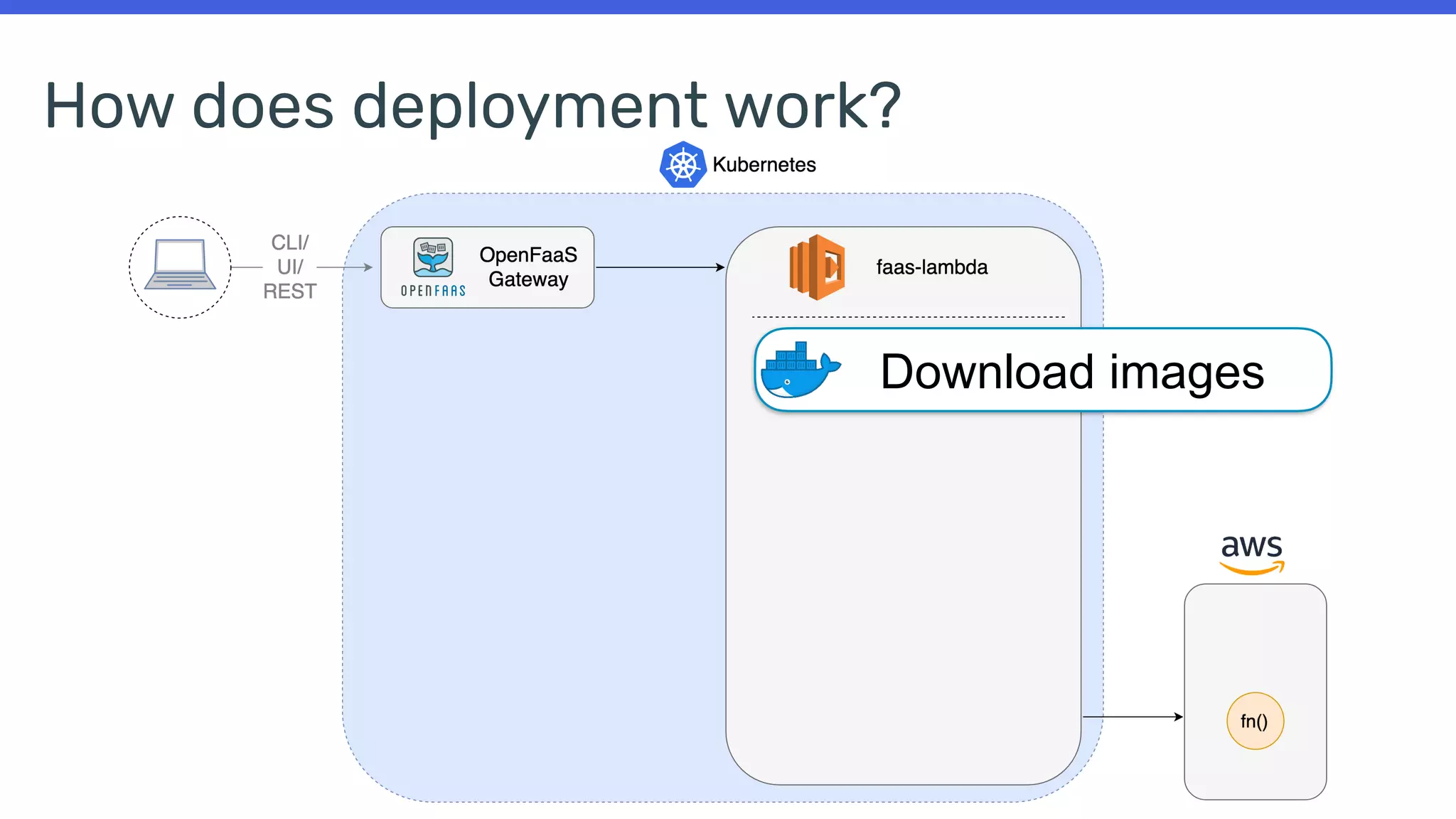

21. How does deployment work?
Download images

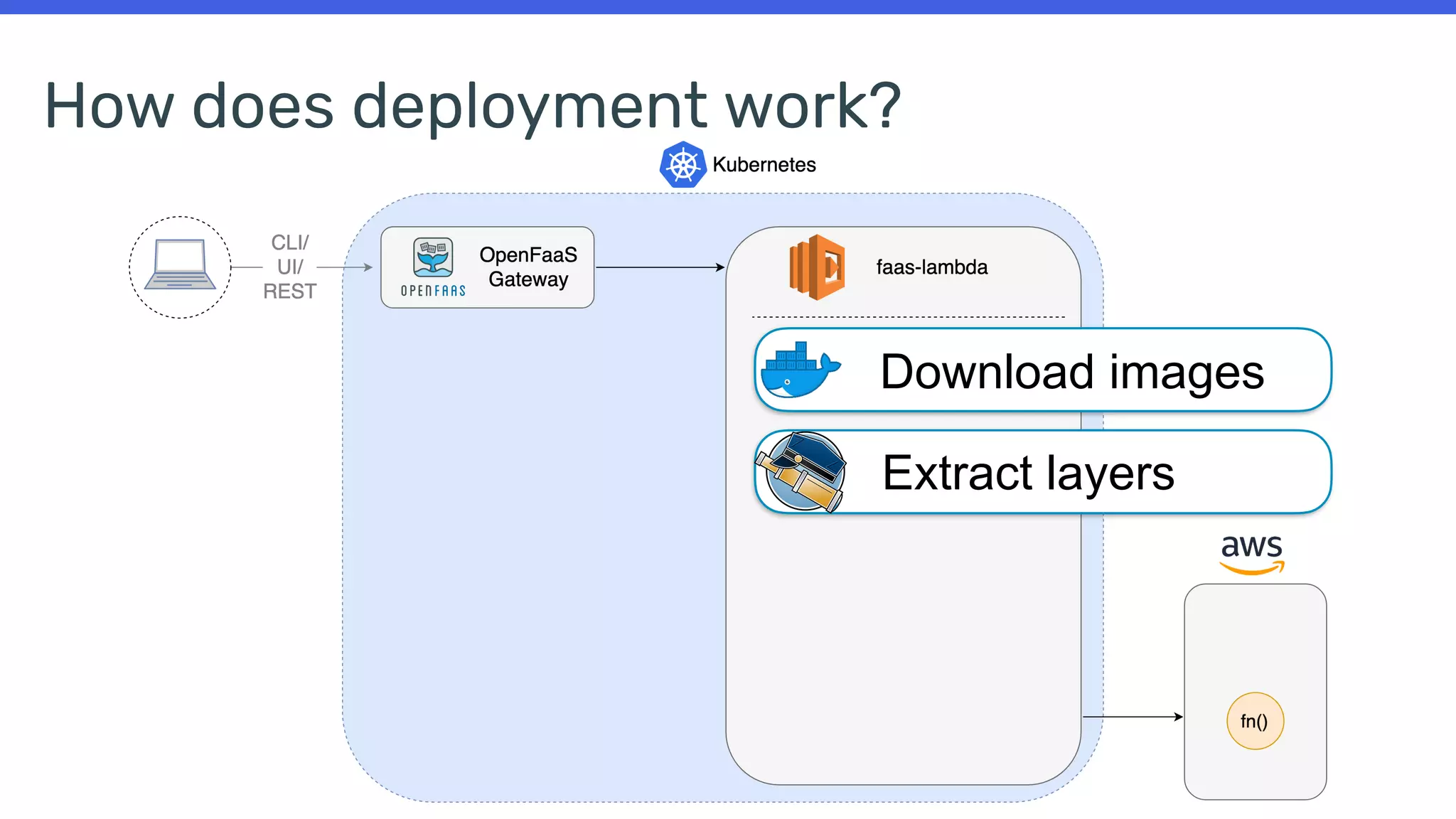

22. How does deployment work?
Download images
Extract layers

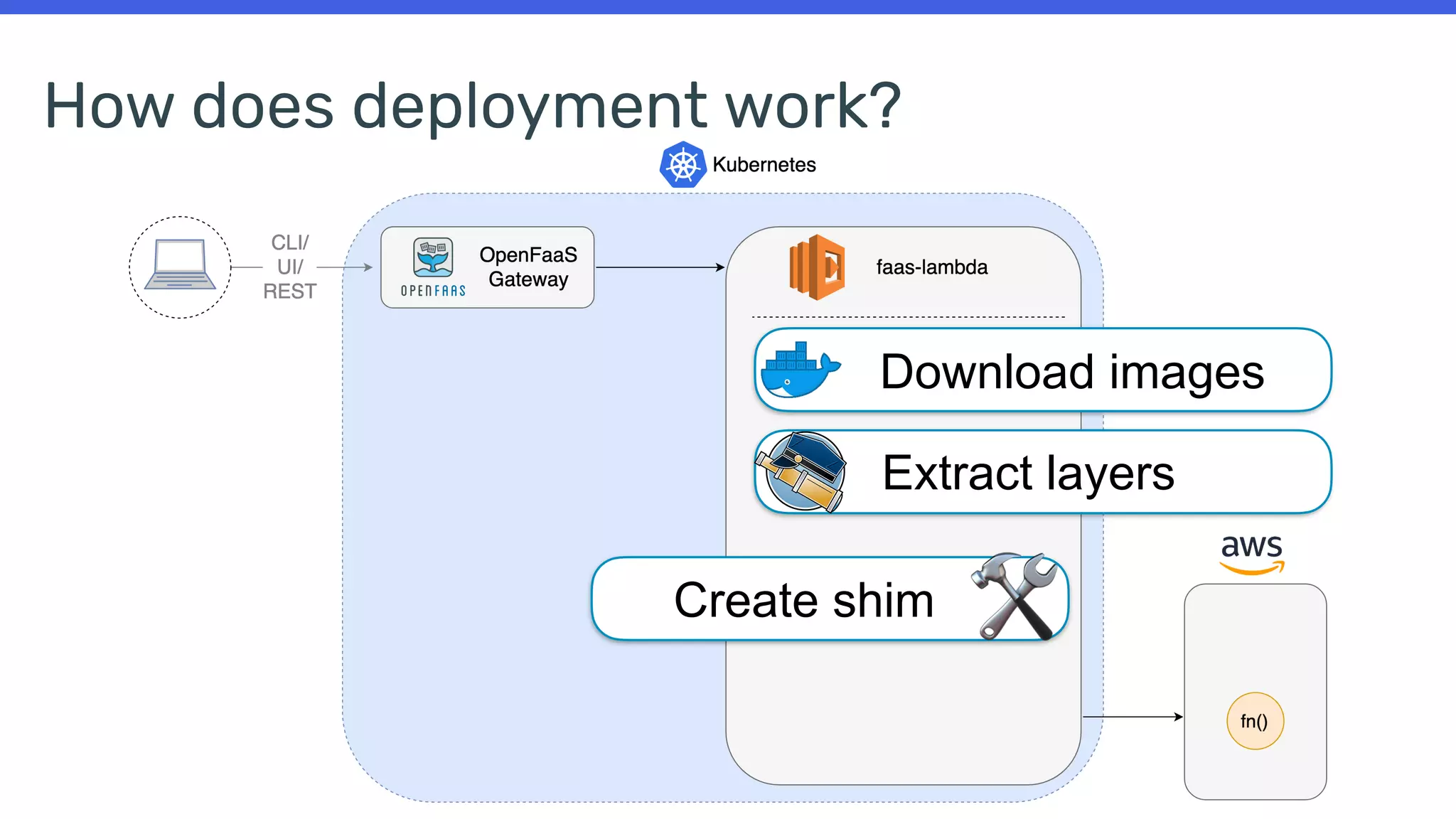

23. How does deployment work?
Download images
Extract layers
Create shim 🛠

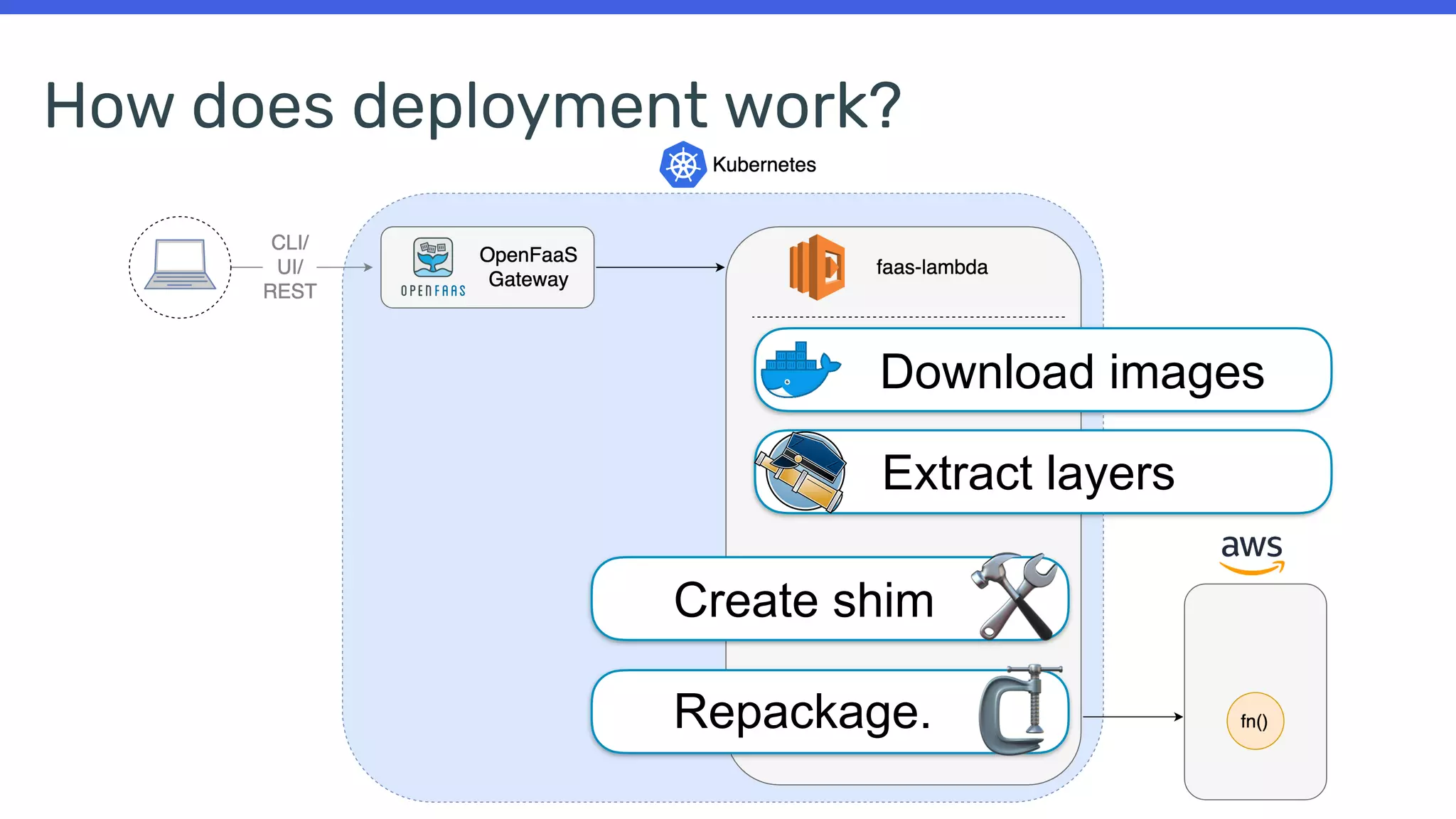

24. How does deployment work?
Download images
Extract layers
Create shim 🛠
Repackage. 🗜

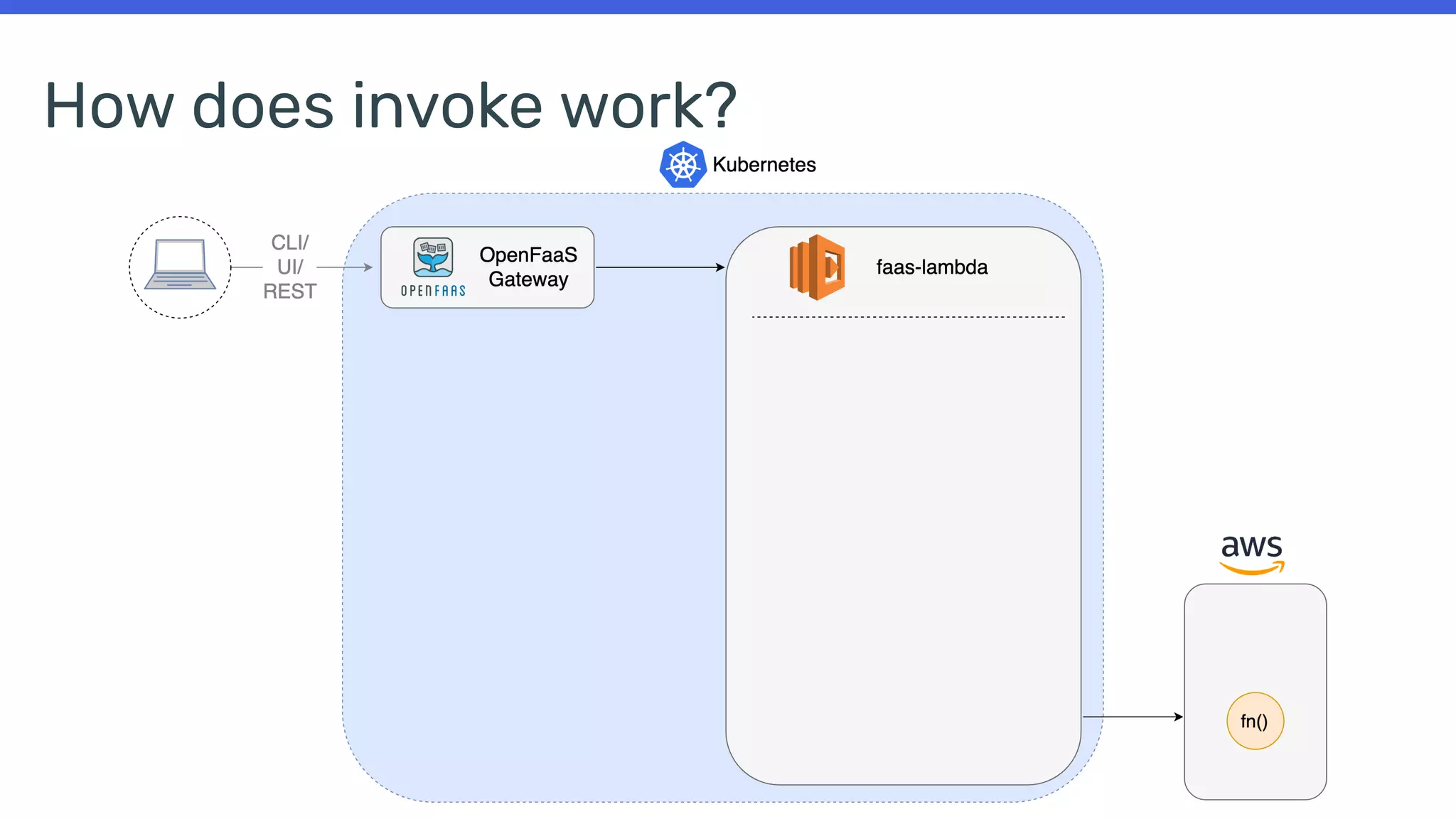

25. How does invoke work?

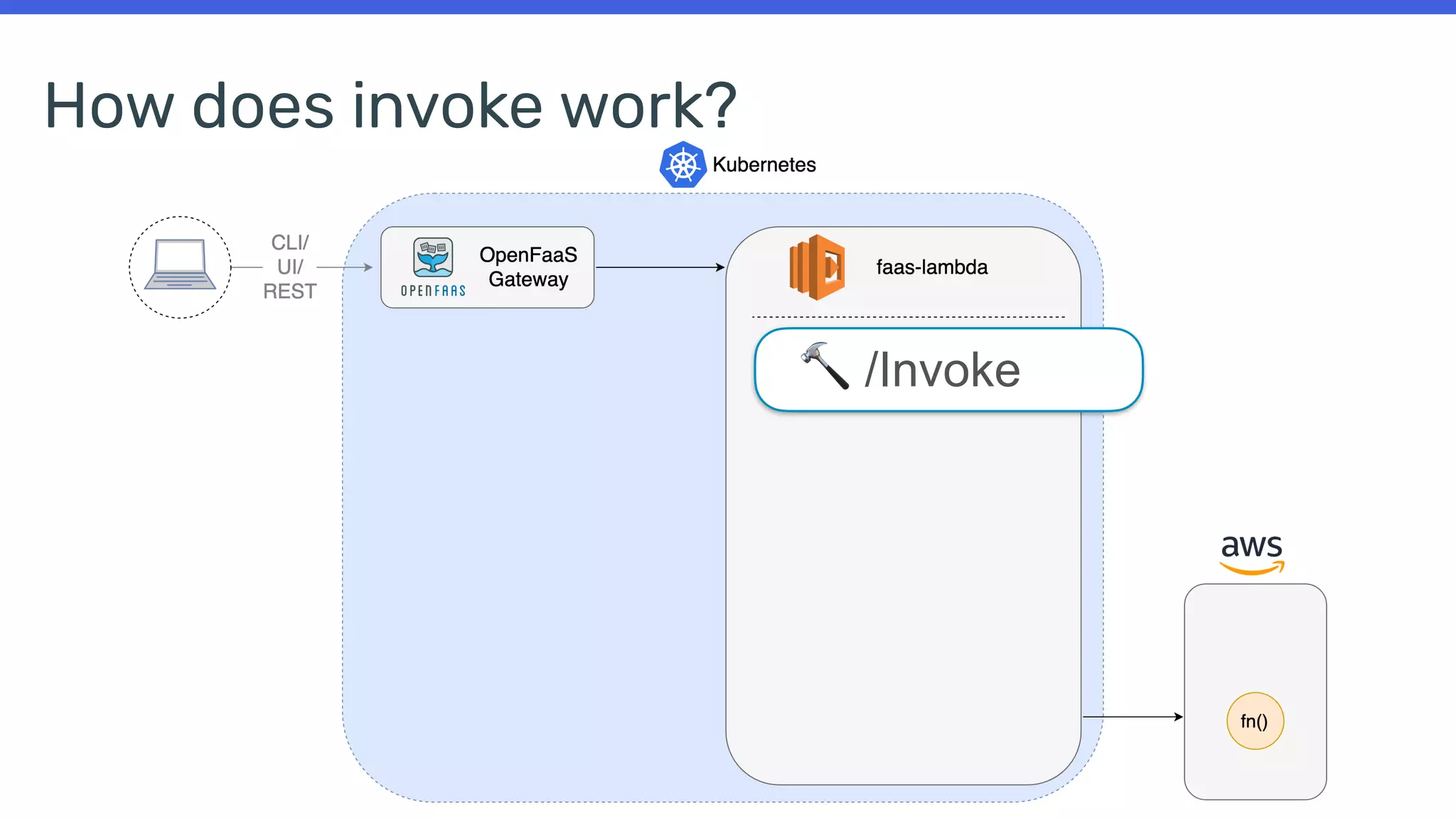

26. How does invoke work?
🔨 /Invoke

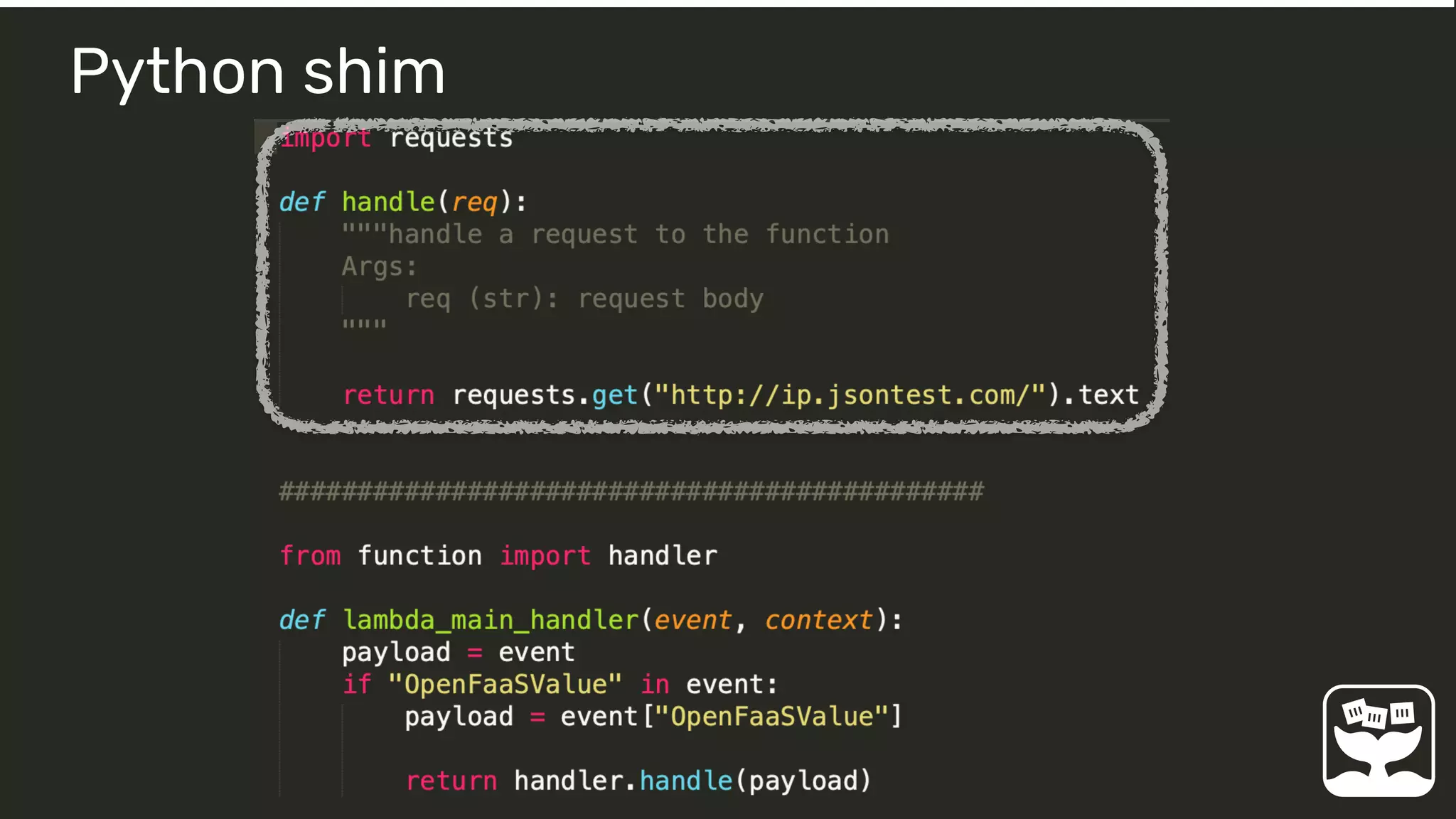

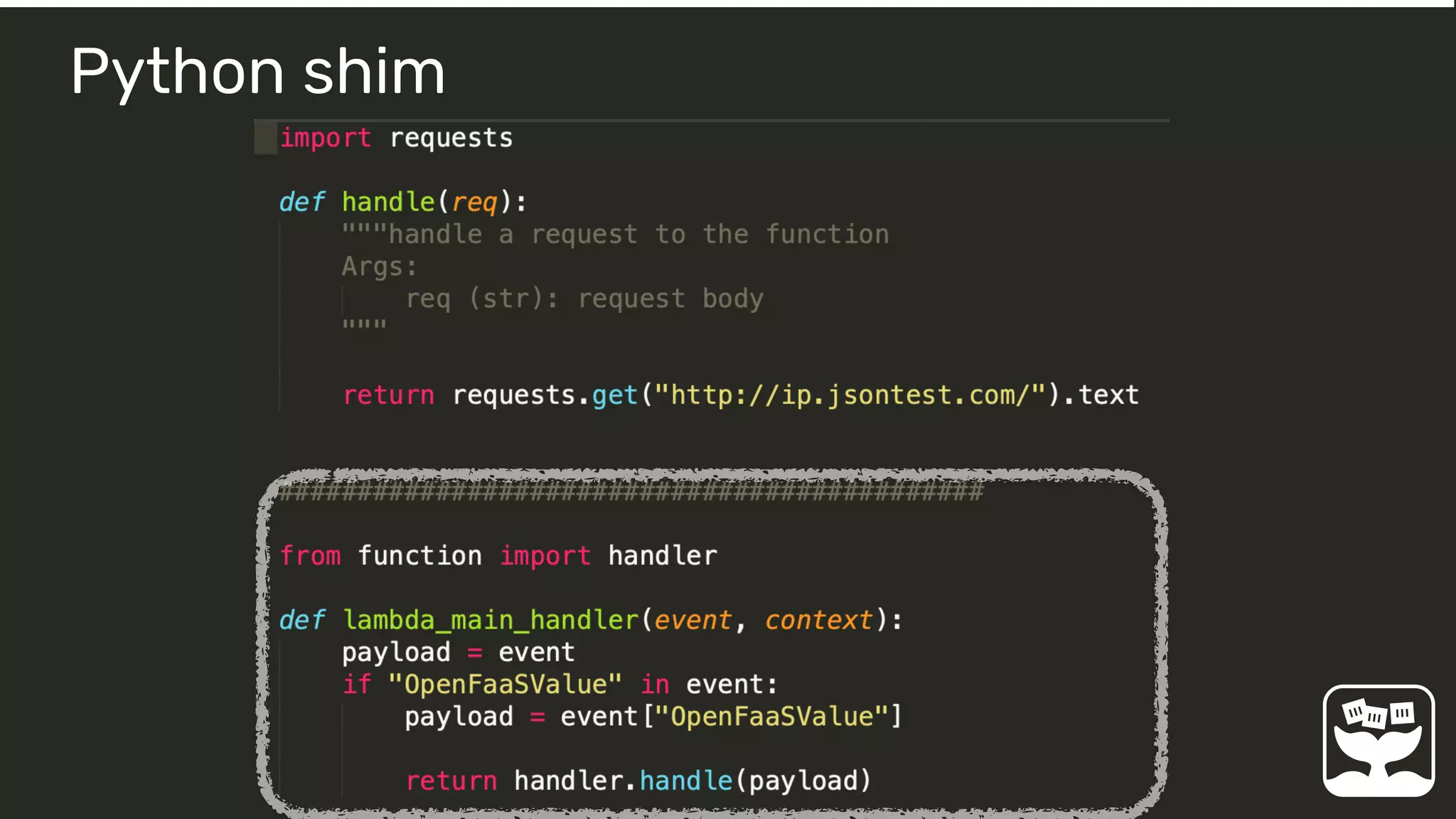

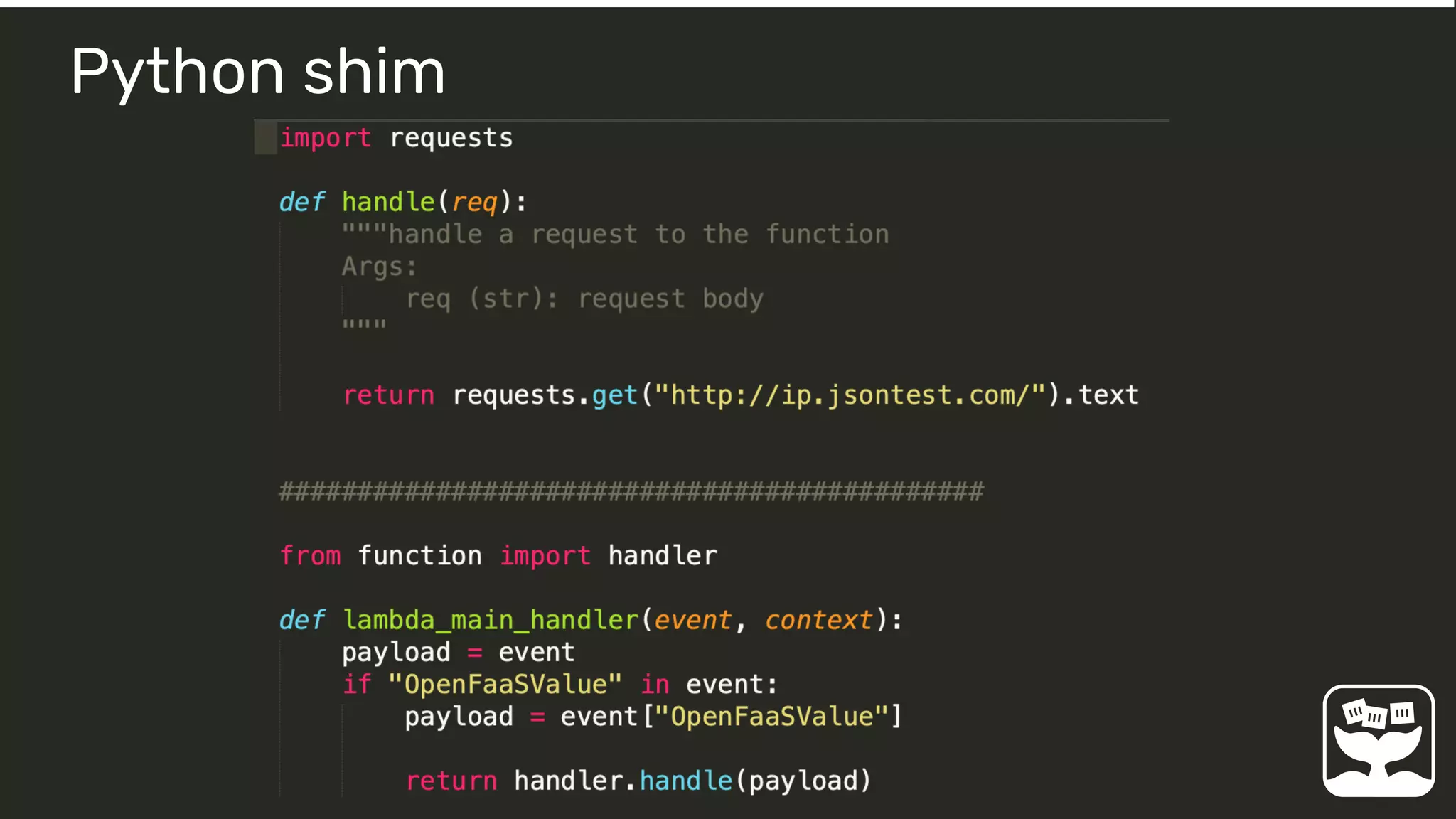

27. Python shim

28. Python shim

29. Python shim

30. • List
• List
• List
• List

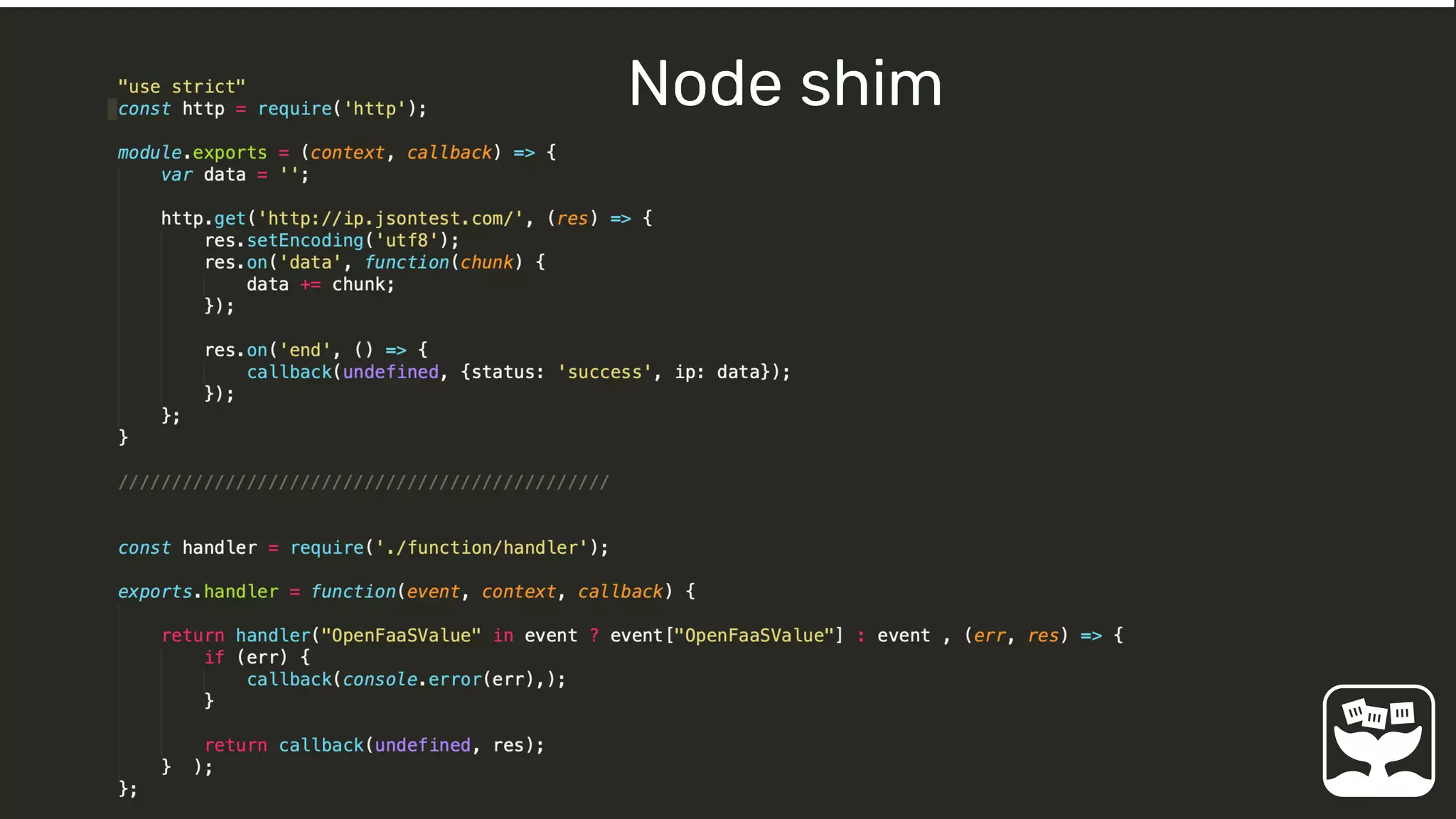

Node shim

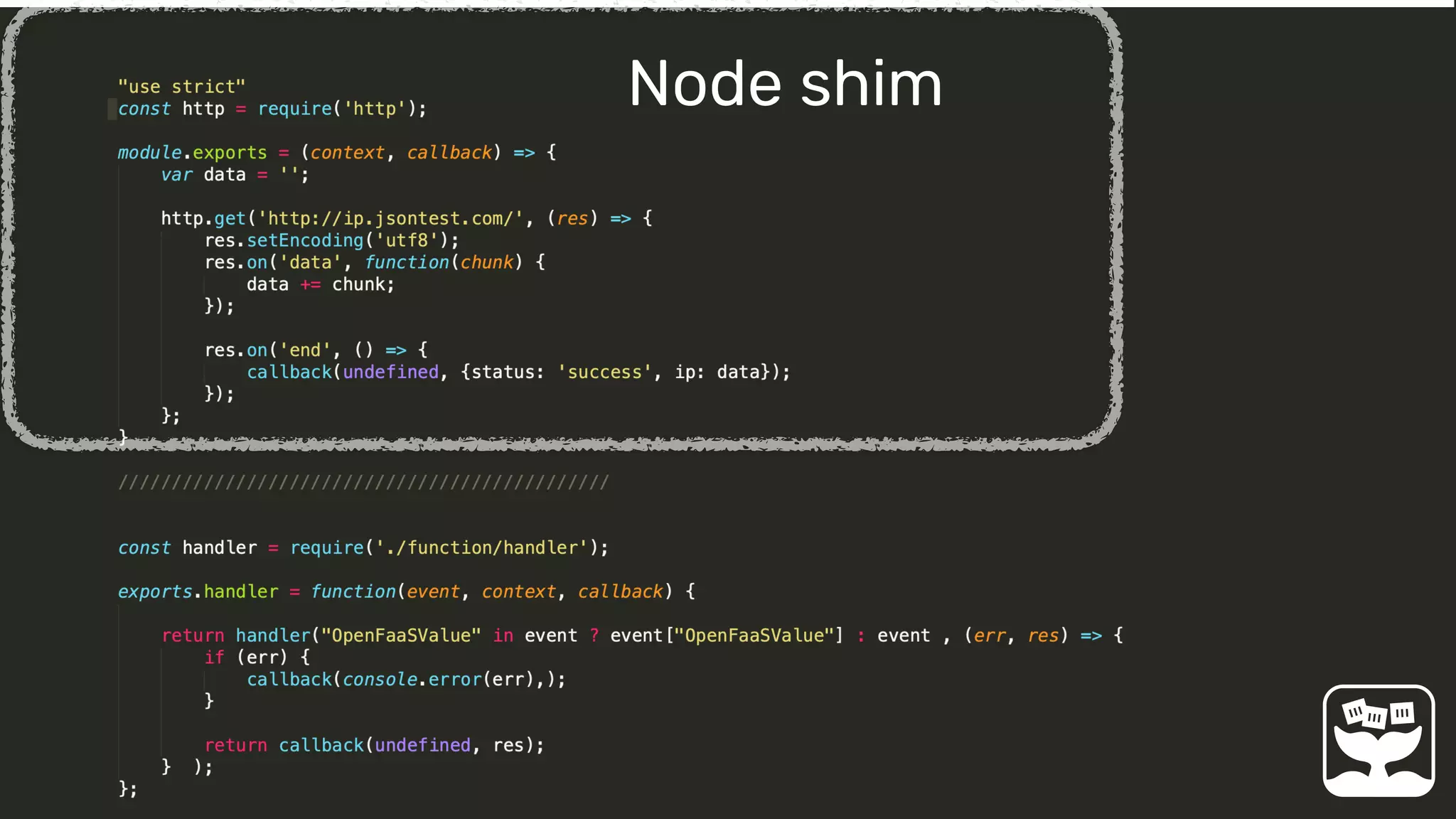

31. • List
• List
• List
• List
Node shim

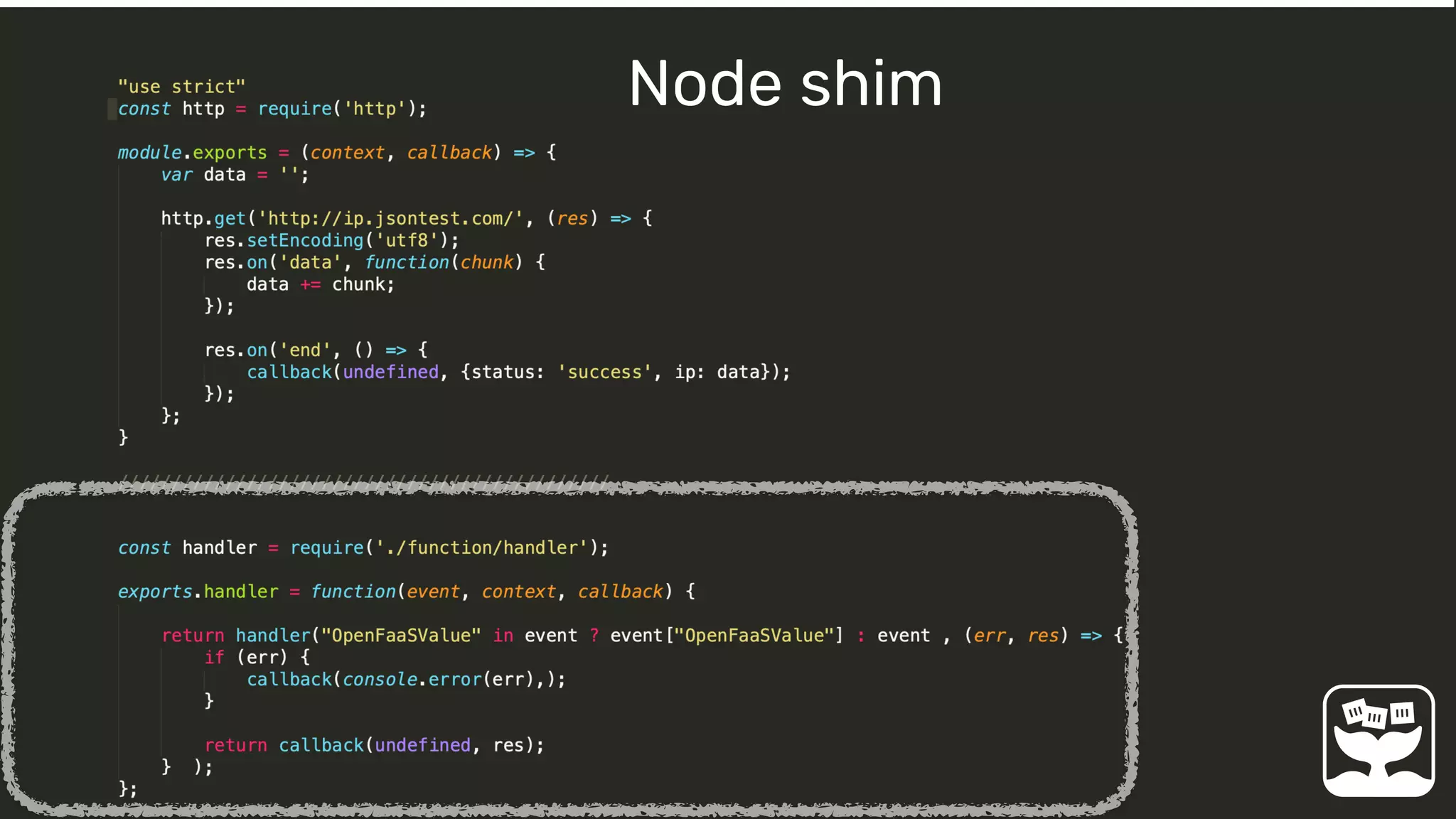

32. • List
• List
• List
• List
Node shim

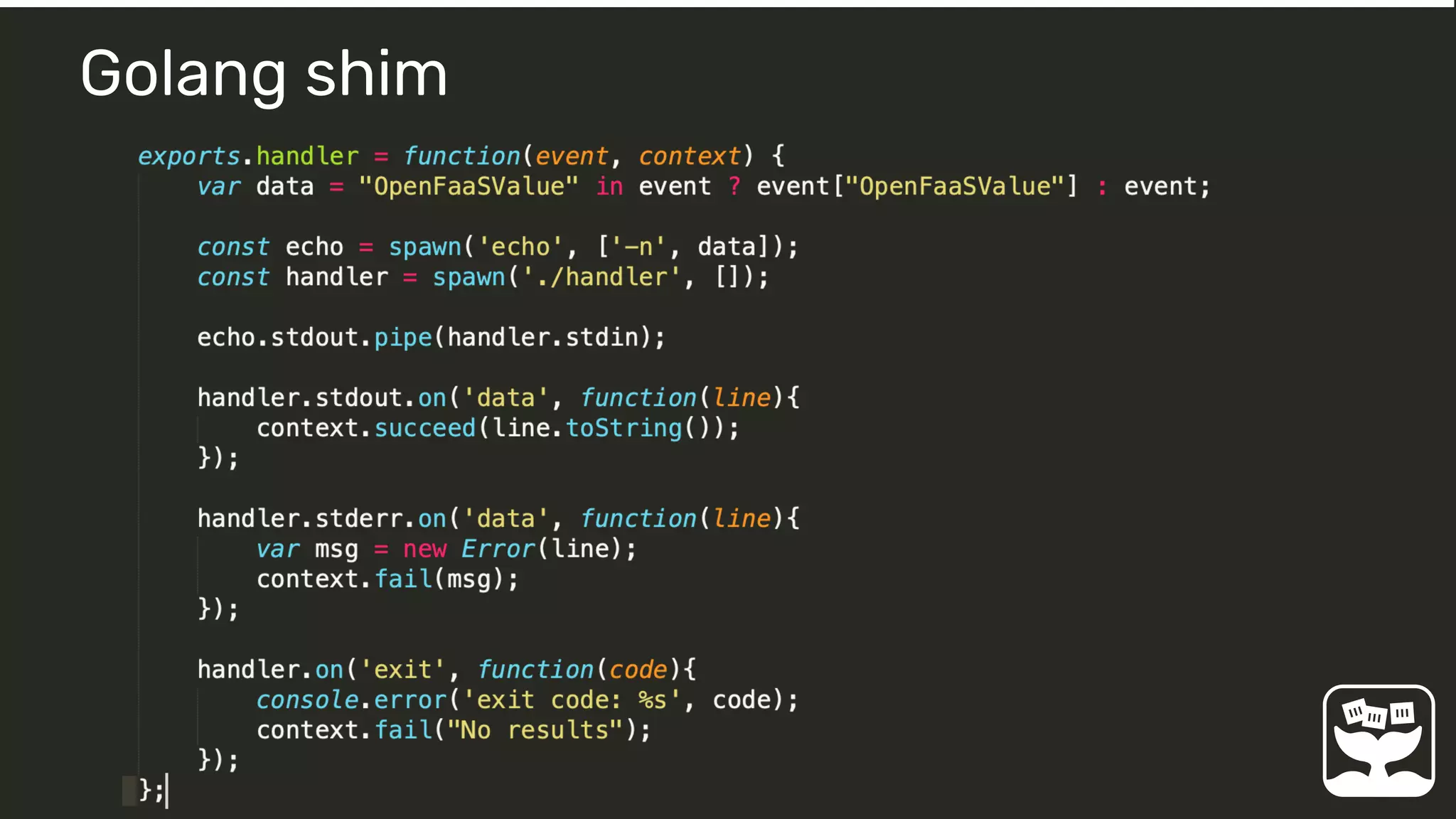

33. Golang shim
• List
• List
• List
• List

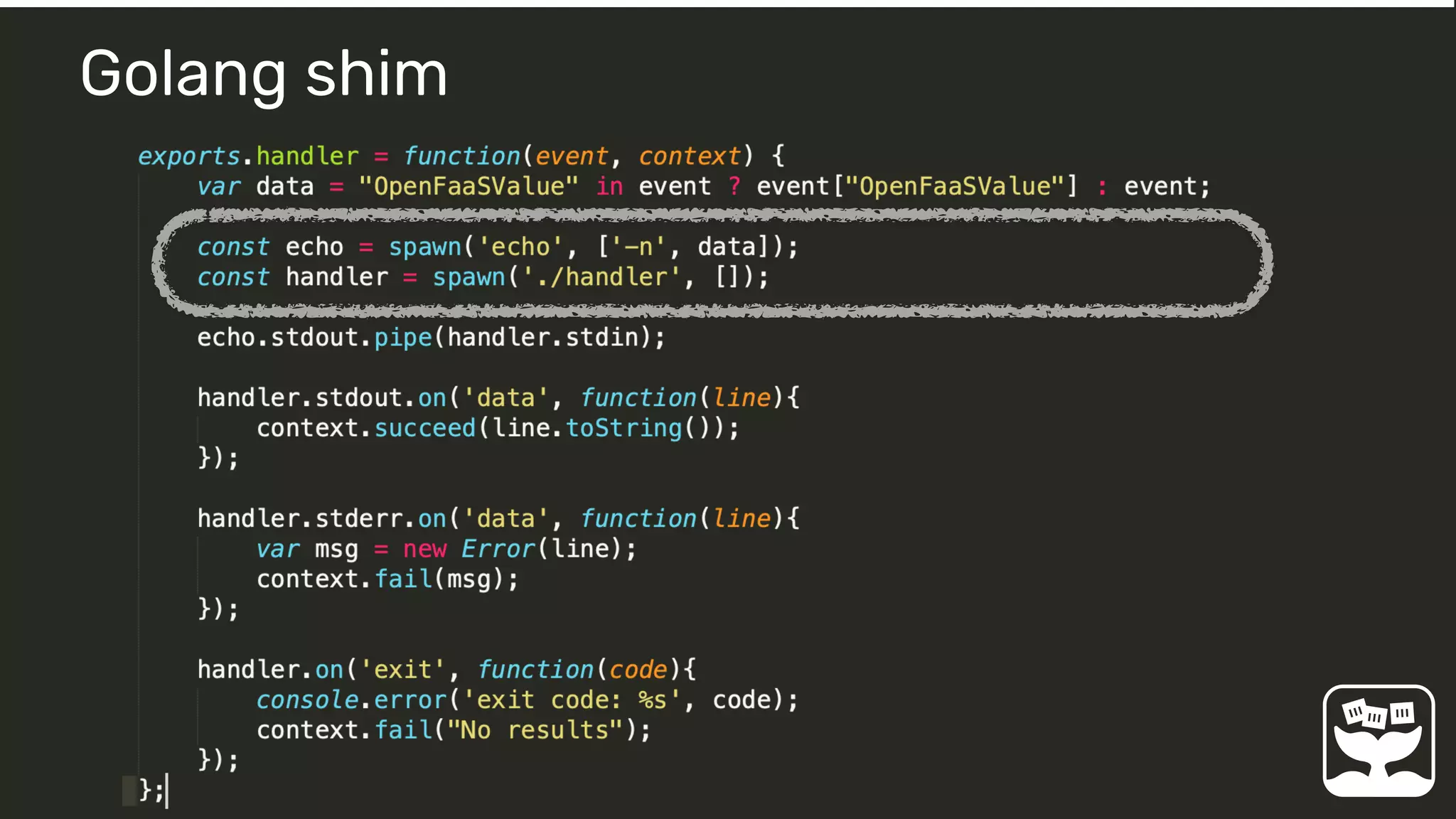

34. Golang shim
• List
• List
• List
• List

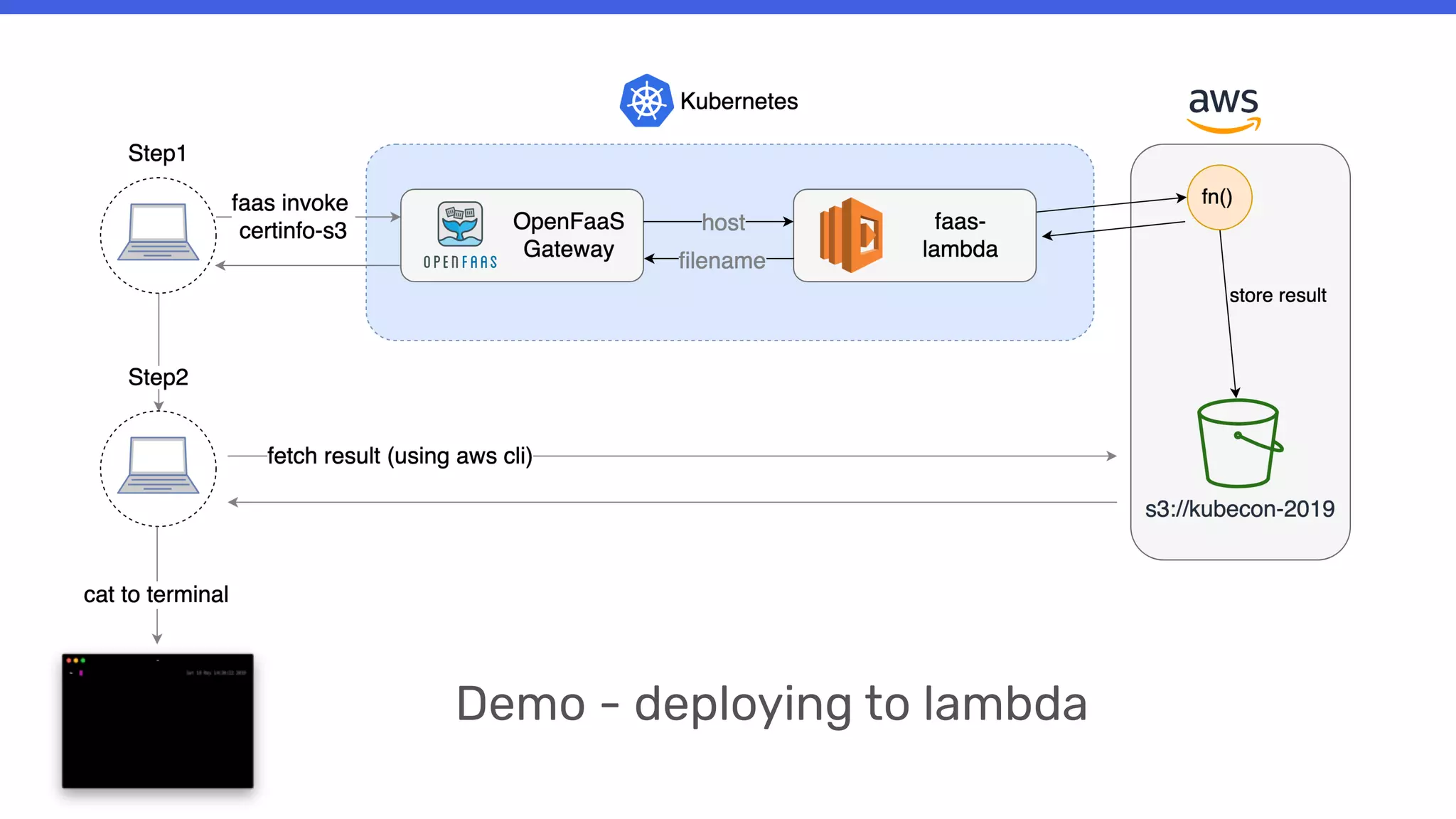

35. Demo - deploying to lambda

36. Demo - deploying to lambda
🔐
iam roles

37. Demo Time - faas-lambda with OpenFaaS

38. What you saw
• Deploying functions in containers
• Execution runtime on lambda
• Slow crypto 🐌 + 🔐 (4 - 9s)

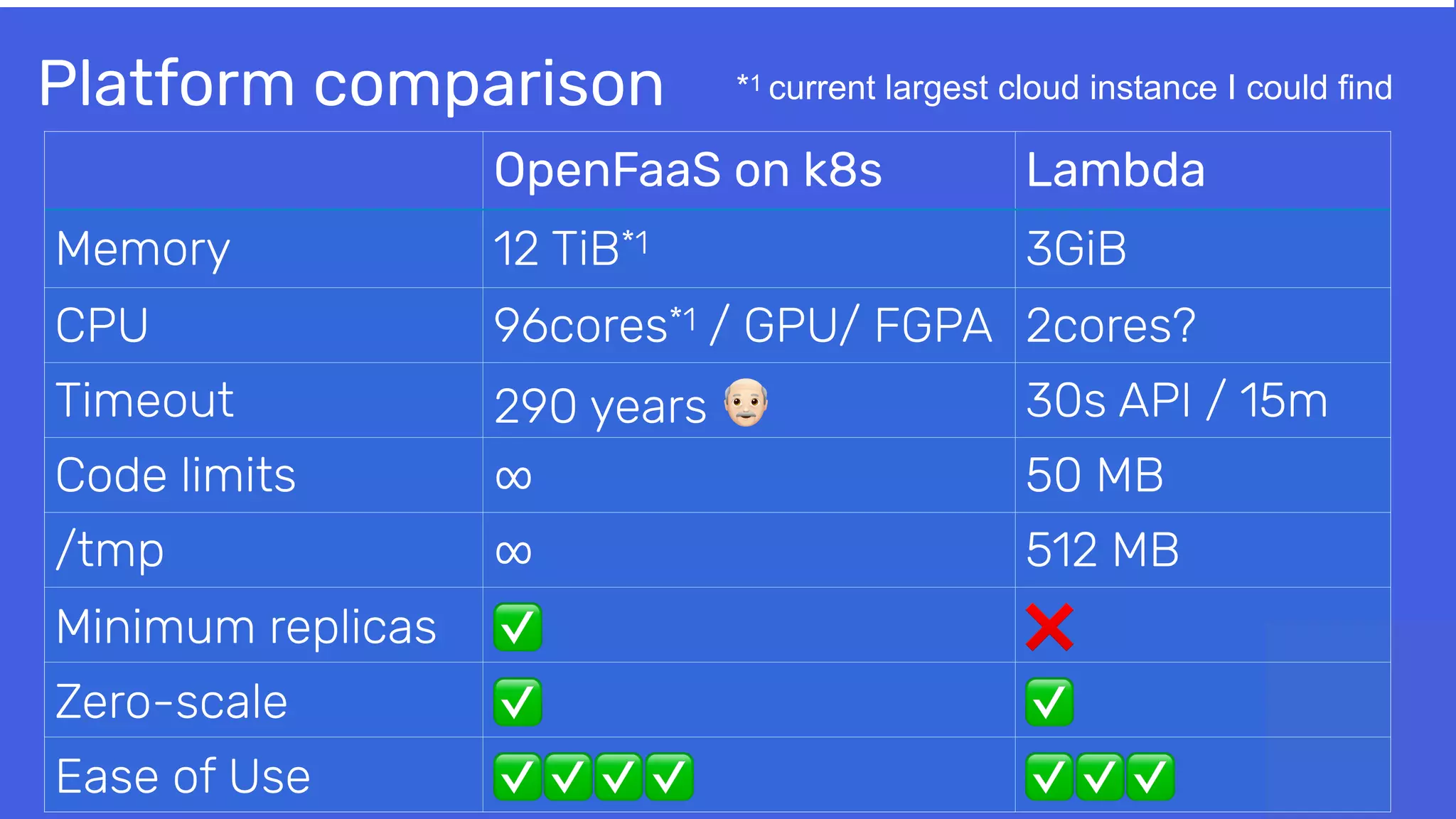

39. Platform comparison
OpenFaaS on k8s Lambda
Memory 12 TiB*1 3GiB
CPU 96cores*1 / GPU/ FGPA 2cores?
Timeout 290 years + 30s API / 15m
Code limits ∞ 50 MB
/tmp ∞ 512 MB
Minimum replicas ✅ ❌
Zero-scale ✅ ✅
Ease of Use ✅✅✅✅ ✅✅✅
*1 current largest cloud instance I could find

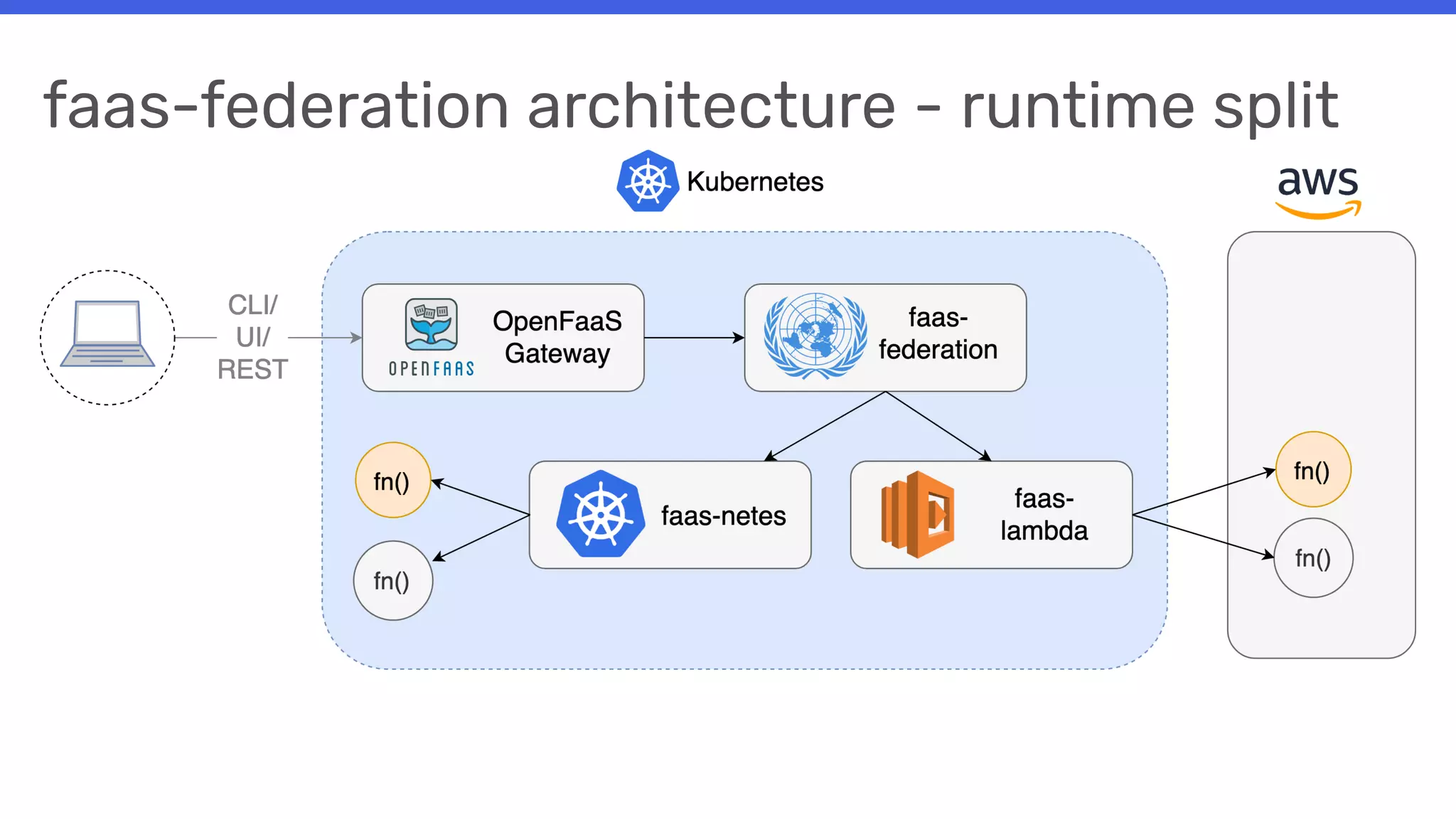

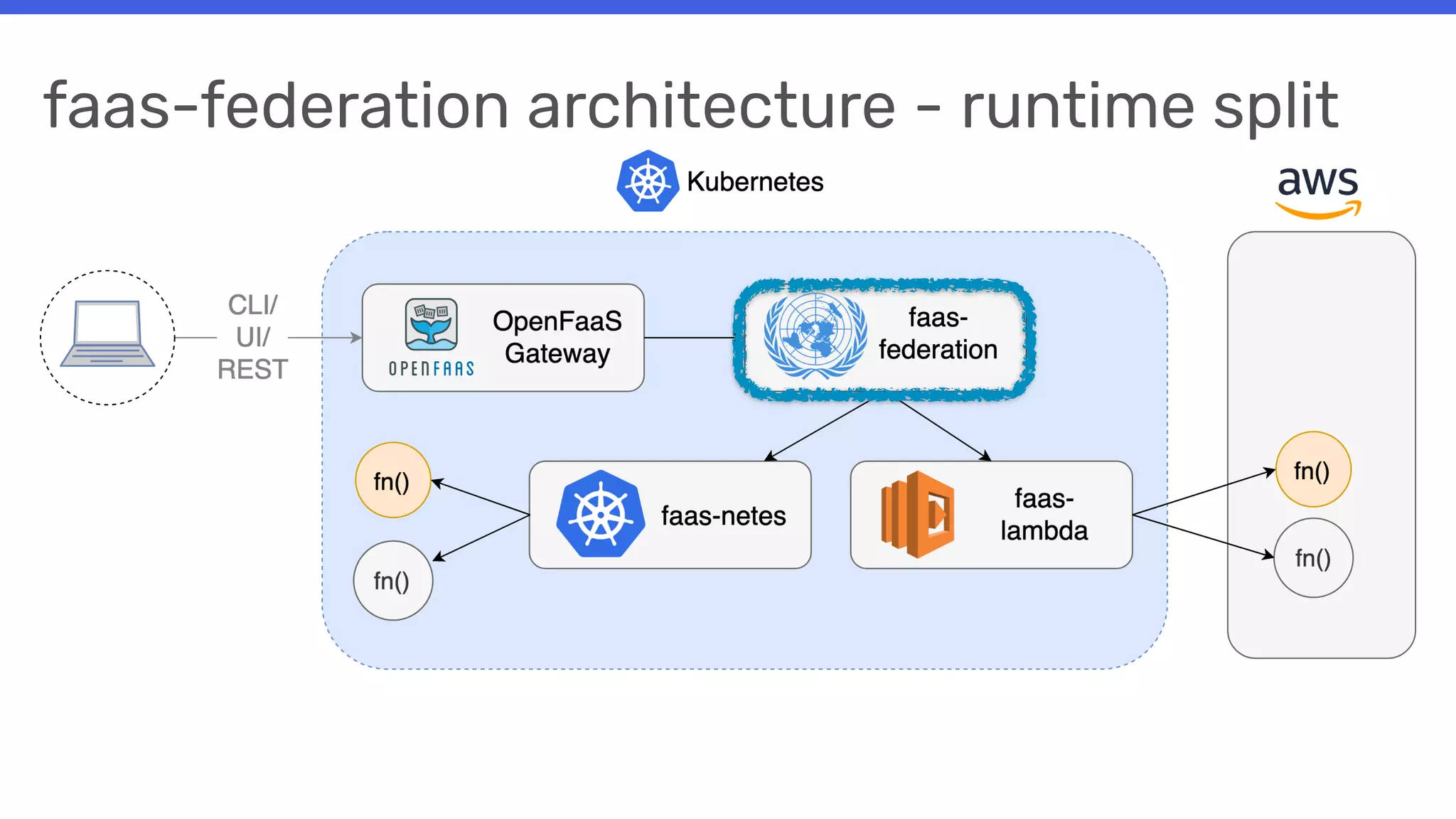

40. faas-federation architecture - runtime split

41. faas-federation architecture - runtime split

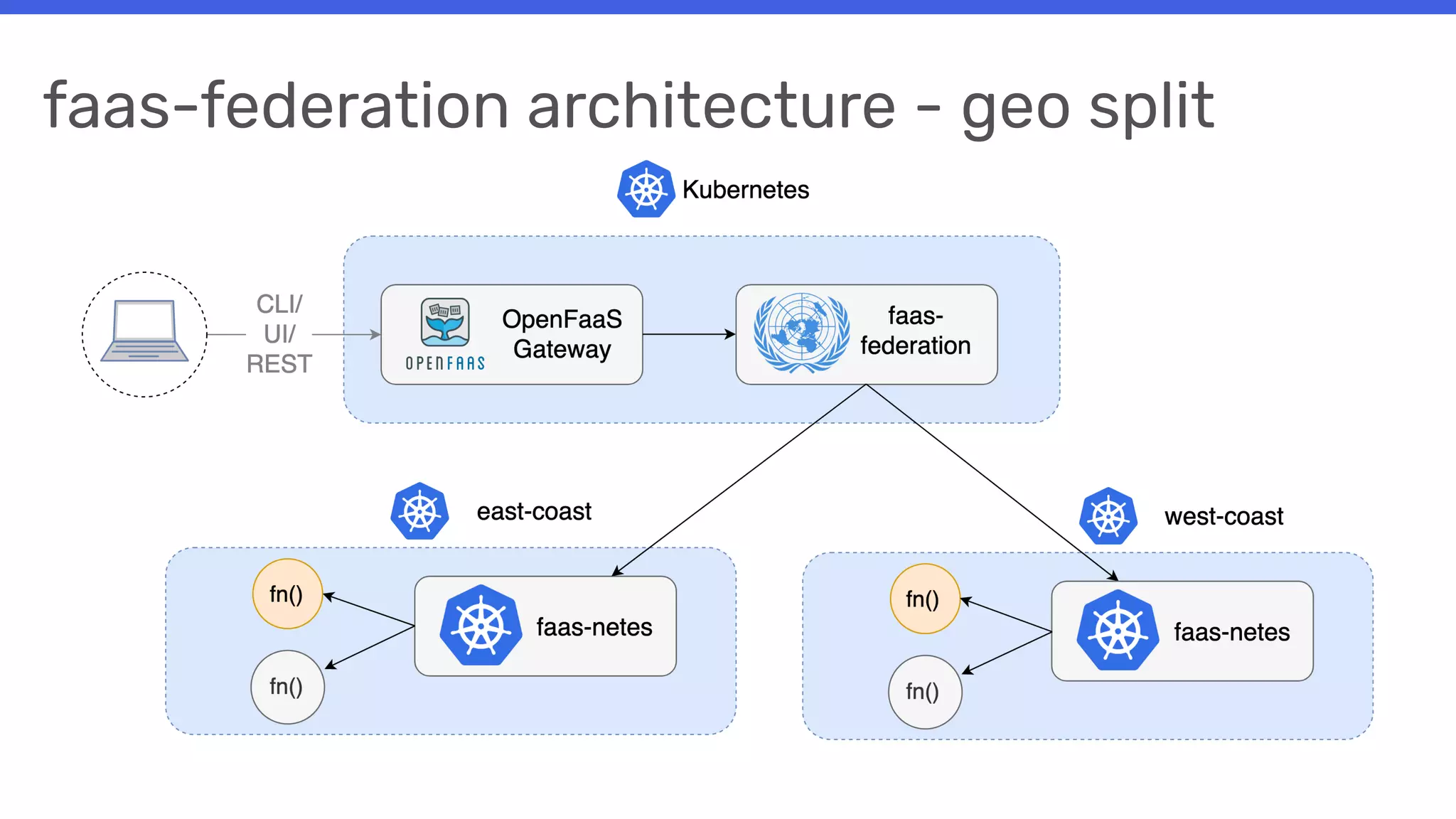

42. faas-federation architecture - geo split

43. faas-federation
• Single control plane
• Multiple execution runtimes
• Geo-location split
• Split deployment based on ‘platform name’
• Later on? CPU/Memory/Capacity

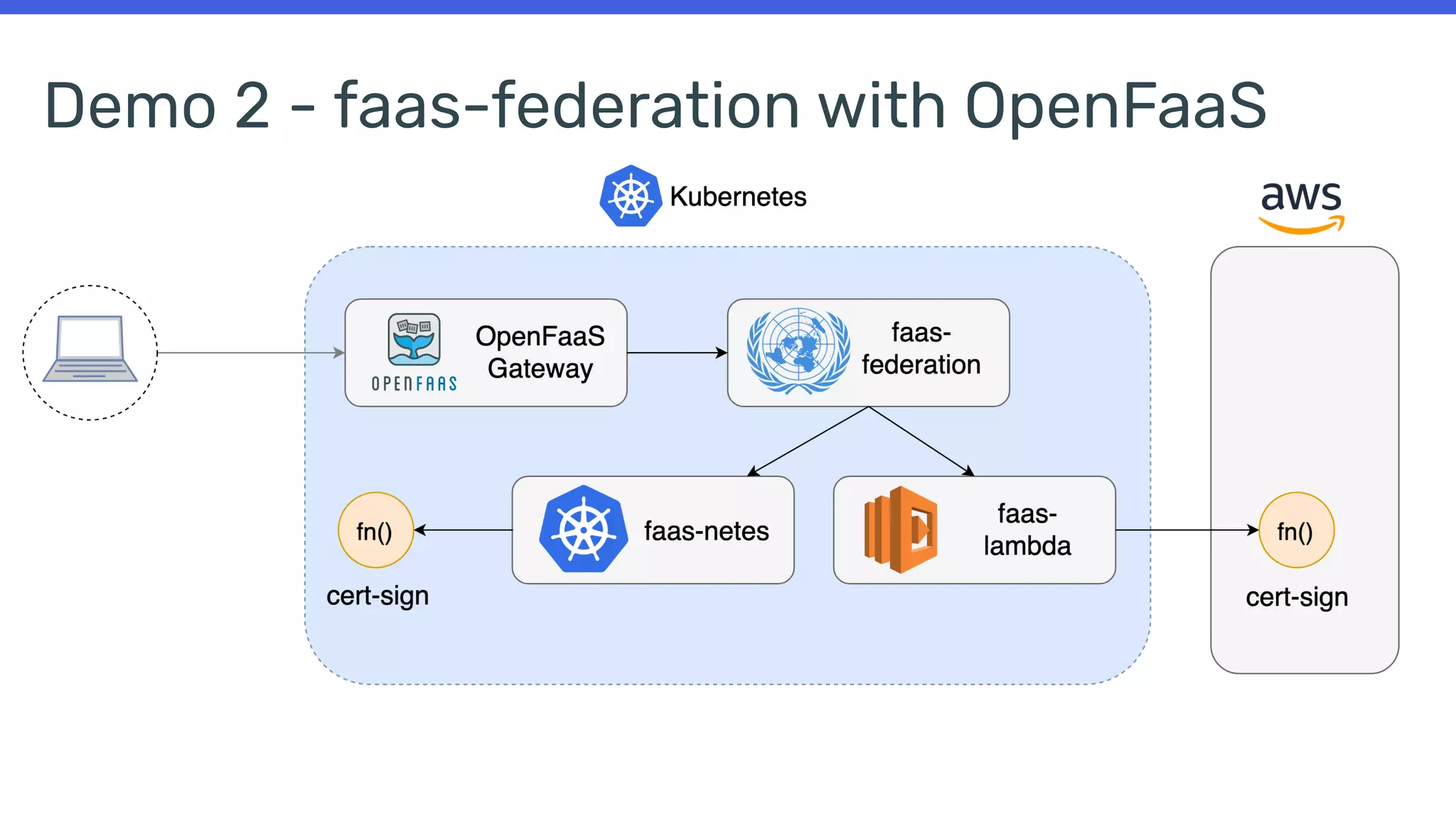

44. Demo 2 - faas-federation with OpenFaaS

45. Demo 2 - faas-federation with OpenFaaS
/cert-sign
Step 1

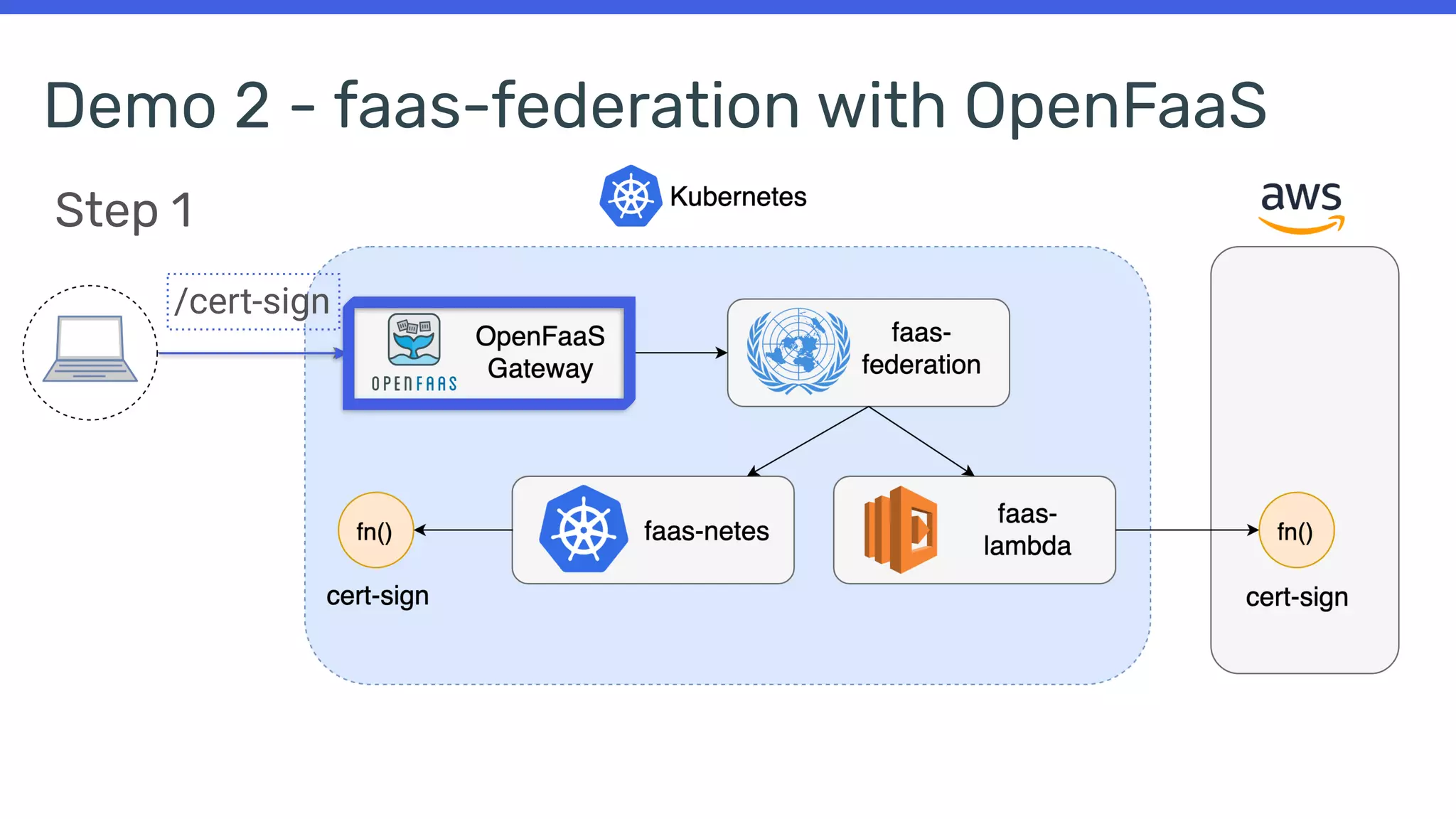

46. Demo 2 - faas-federation with OpenFaaS
/cert-sign
Step 1

47. Demo 2 - faas-federation with OpenFaaS
/cert-sign
Step 1

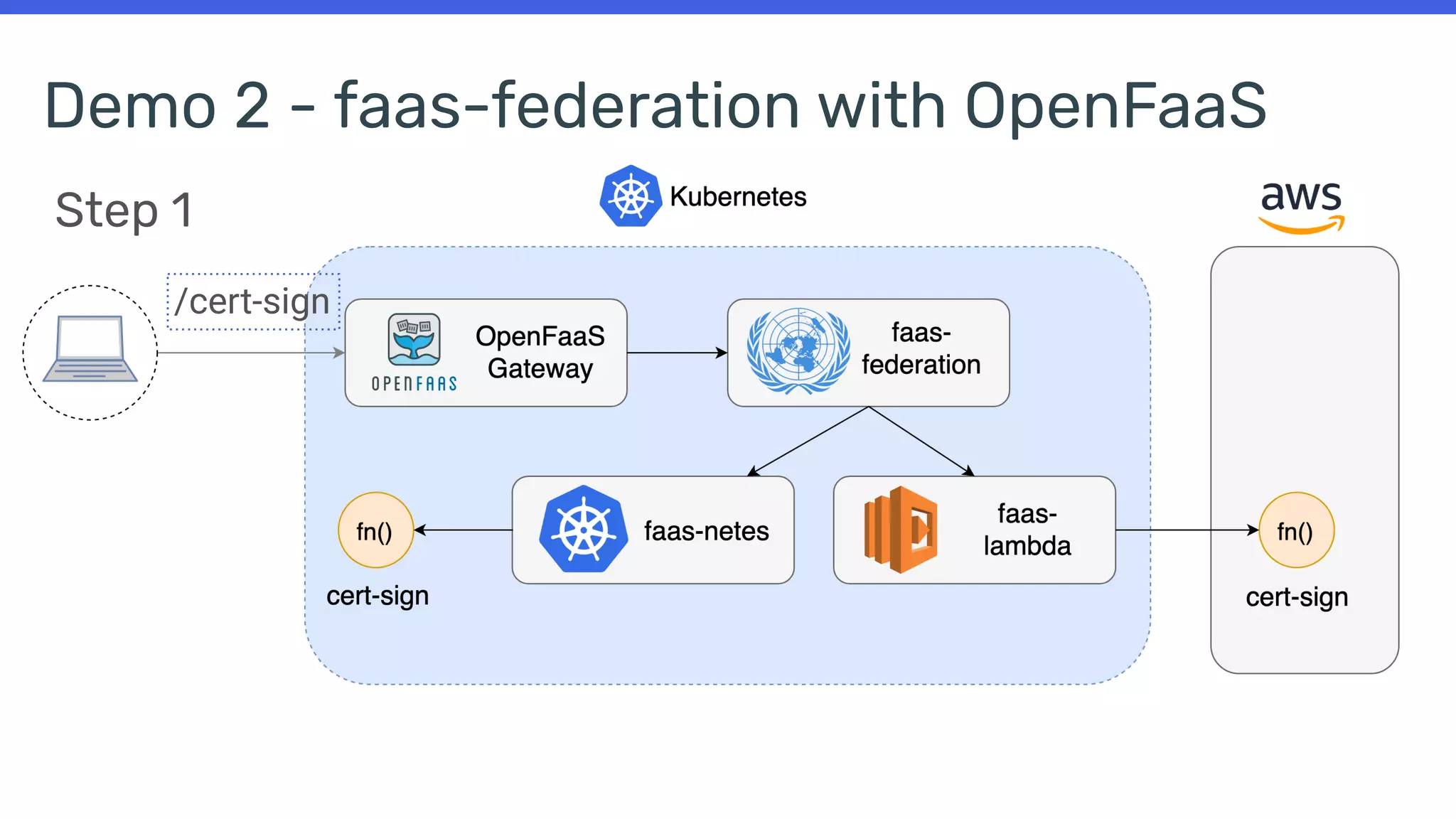

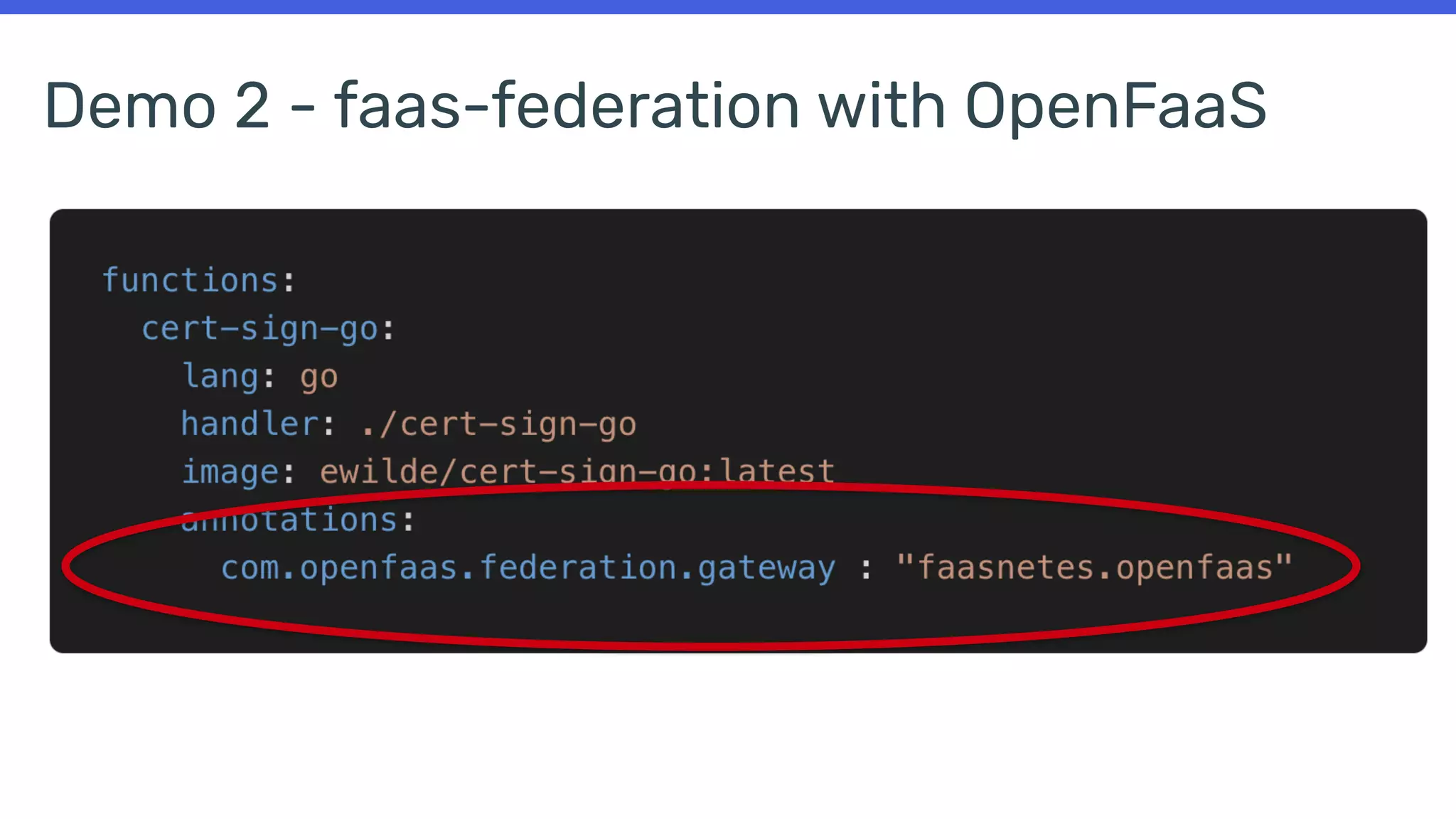

48. Demo 2 - faas-federation with OpenFaaS
/cert-sign
Step 1

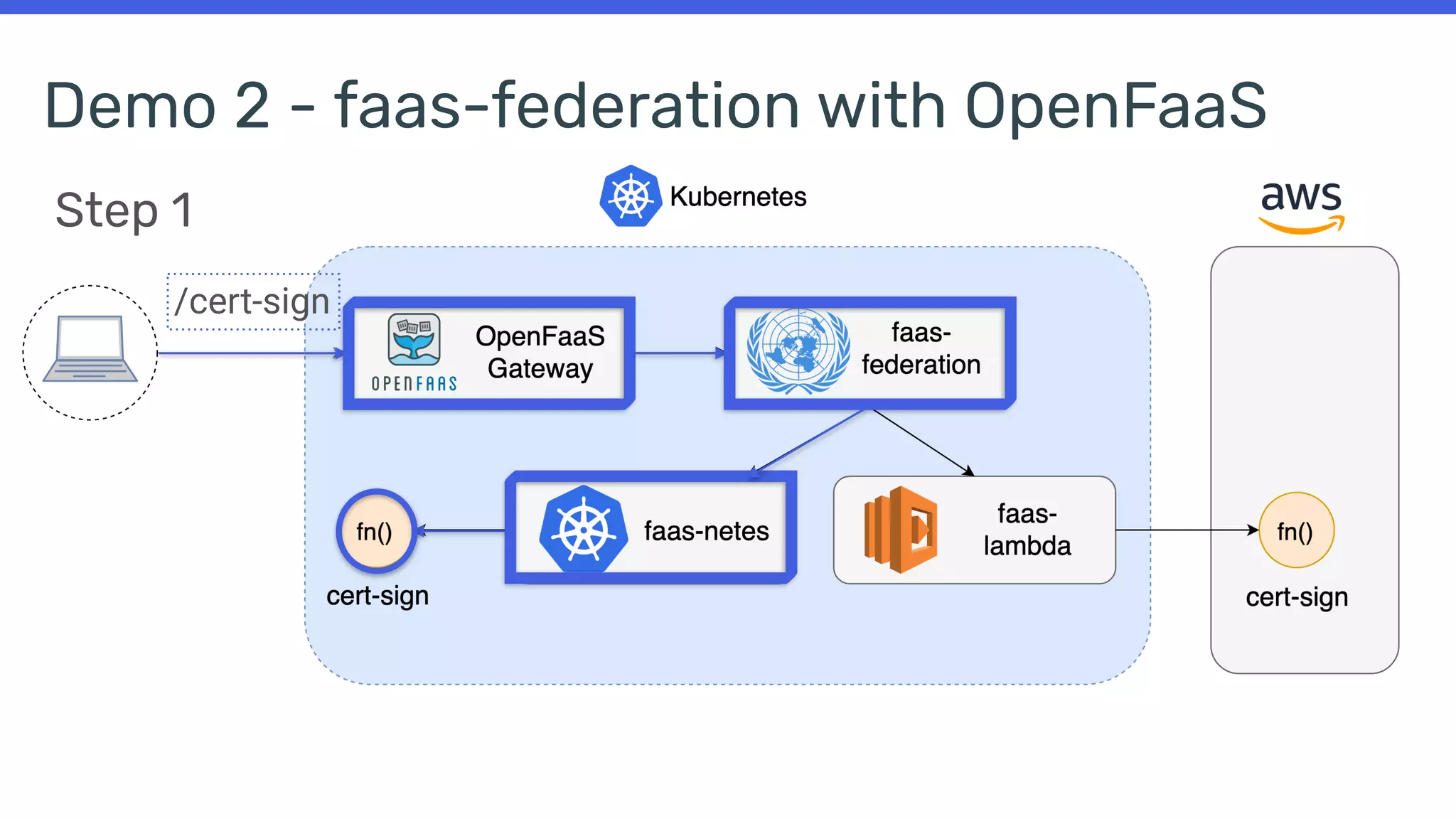

49. Demo 2 - faas-federation with OpenFaaS
/cert-sign
Step 1

50. Demo 2 - faas-federation with OpenFaaS

51. Demo 2 - faas-federation with OpenFaaS
/cert-info
Step 2

52. Demo 2 - faas-federation with OpenFaaS
/cert-info
Step 2

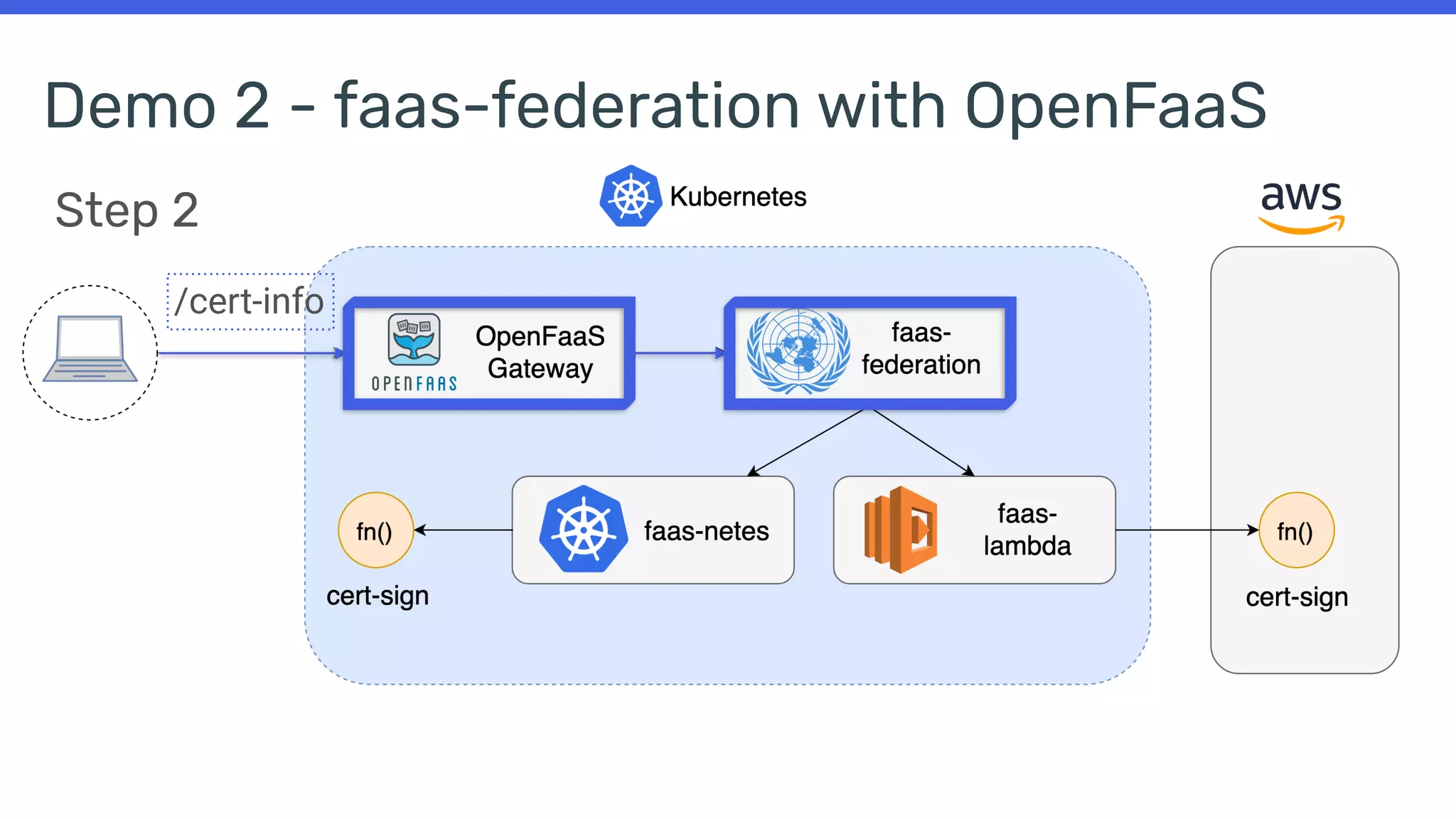

53. Demo 2 - faas-federation with OpenFaaS
/cert-info
Step 2

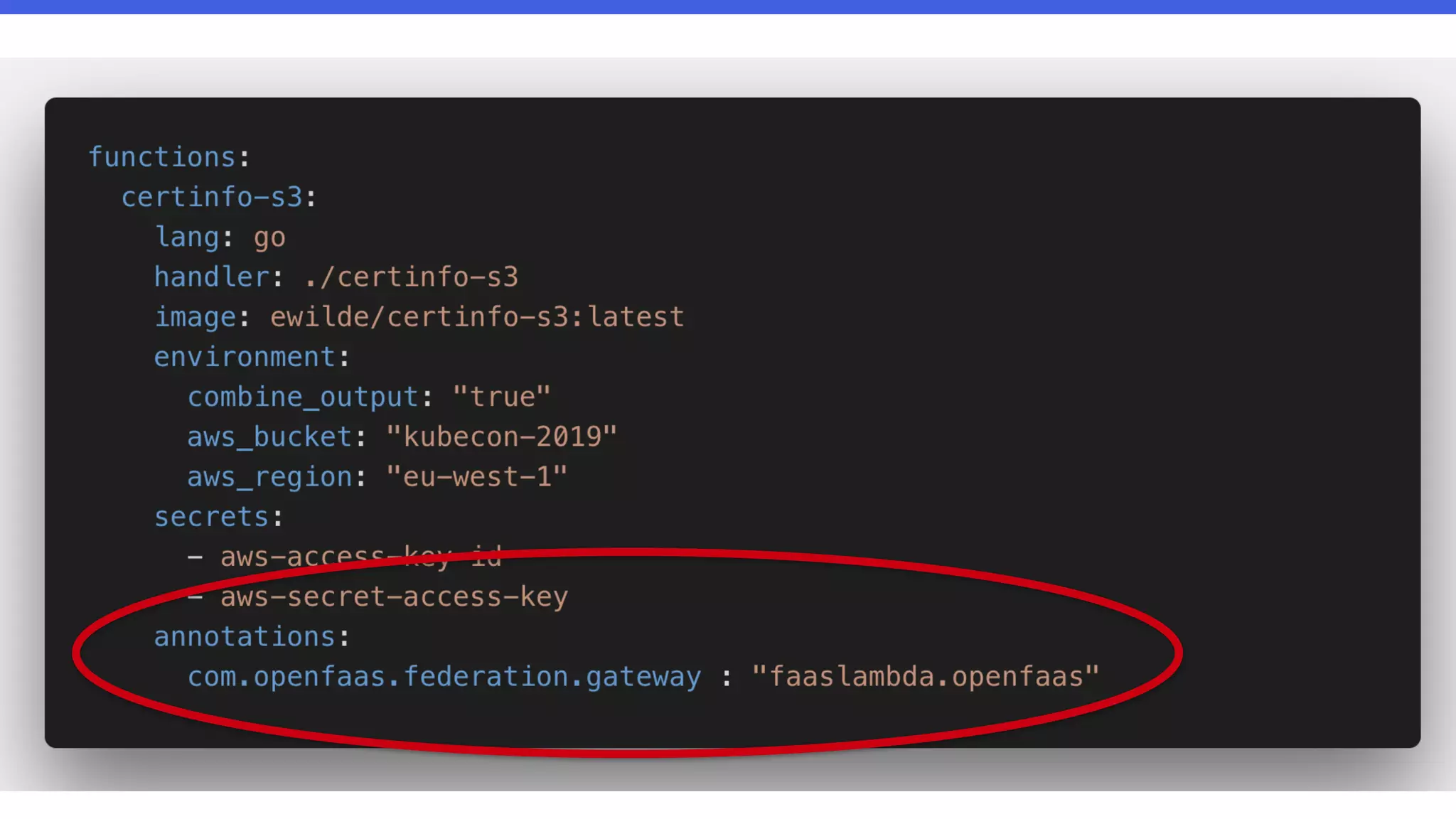

54. Demo 2 - faas-federation with OpenFaaS
/cert-info
Step 2

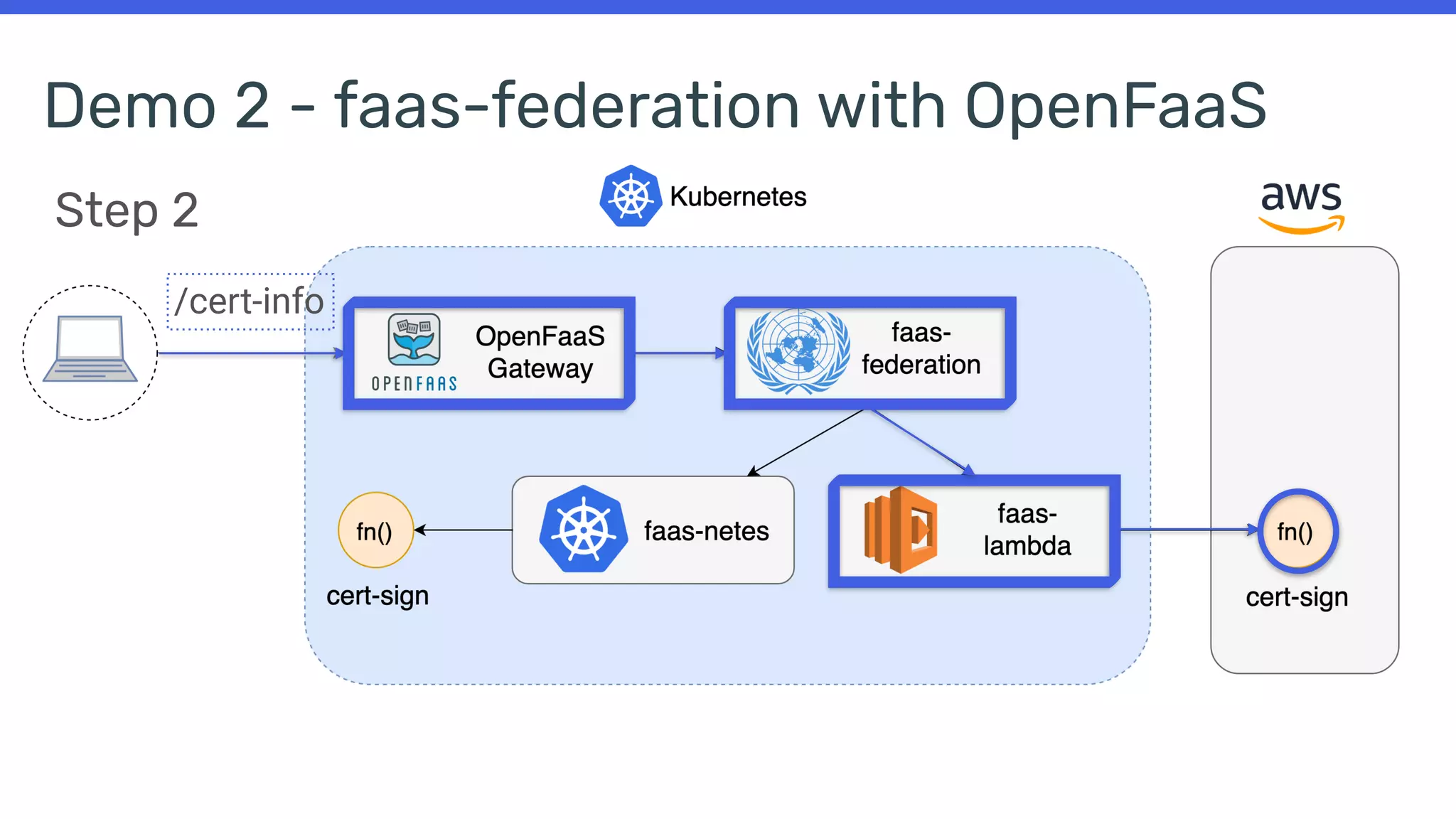

55. Demo 2 - faas-federation with OpenFaaS
/cert-info
Step 2

56. Demo Time - faas-federation with OpenFaaS

57. Summing up
• Multiple
• providers
• regions
• Same developer experience
• Three new OSS projects
• Lots of potential
🧮

58. What’s next?
• Open-source faas-lambda
• Increase template support
• Going to production

59. Thank You!
www.openfaas.com @ewilde

60. 1. Join Slack 👌
https://docs.openfaas.com/community
2. Try the self-paced workshop! 💻
https://github.com/openfaas/workshop
3. Meet up with the OpenFaaS team here at KubeCon
https://www.openfaas.com/blog/meet-us-at-barcelona/
Get involved
