Deep dive into SoapUI
The document provides a comprehensive overview of SoapUI and its functionalities, focusing on aspects such as project structure, property handling, assertions, scripting, and integration with tools like Postman and Maven. It includes details on various tools, test execution methods, and resources for further learning, as well as examples and documentation links. Key topics covered also involve data-driven testing, custom reporting, and authorization processes within SoapUI.
More Related Content
Similar to Deep dive into SoapUI
Deep dive into SoapUI
- 1. Deep dive intoSoapUI Andrii Olieinik Senior QA Automation Engineer
- 2. About me • SeniorQA Automation Engineer • About 10 years of work in Quality Assurance area • DataArt IT school in Odessa and Lublin • PhD, Theoretical physics 2
- 3. Agenda • SoapUI • Postman •SoapUI projects • Properties • Assertions • Groovy scripts • JavaScript scripts • Data Driven tests • Custom reporting • TestRunner • Logs • Authorization • Maven • Listeners 3
- 4. SoapUI 4 SoapUI is anopen-source web service testing application for service-oriented architectures(SOA) and representational state transfers (REST). SoapUI was developed by Eviware software. In 2011, SmartBear Software acquired Eviware.

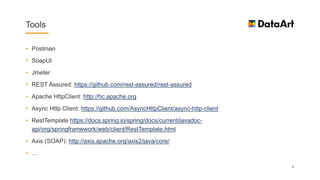

- 5. Tools • Postman • SoapUI •Jmeter • REST Assured: https://github.com/rest-assured/rest-assured • Apache HttpClient: http://hc.apache.org • Async Http Client: https://github.com/AsyncHttpClient/async-http-client • RestTemplate https://docs.spring.io/spring/docs/current/javadoc- api/org/springframework/web/client/RestTemplate.html • Axis (SOAP): http://axis.apache.org/axis2/java/core/ • … 5

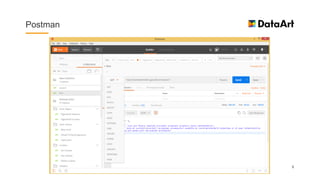

- 6.
- 7. Postman • REST requests •SOAP requests +/- • Collections (test sets) • Scripts • Variables • Execute from command line (with Newman) • Integration with CI (with Newman) • JUnit reports (with Newman) • Web Service Mocking 7
- 8.
- 9.
- 10. SoapUI • REST requests •SOAP requests • Tests • Test suits • Scripts • Variables • Execute from command line • Integration with CI • Integration with Maven • JUnit reports • Web Service Mocking 10
- 11.
- 12.
- 13. More details • Postmandocs: https://www.getpostman.com/docs/ • Scripts in Postman: https://www.getpostman.com/docs/postman/scripts/intro_to_scripts • Newman: https://github.com/postmanlabs/newman • SoapUI: https://www.soapui.org/downloads/soapui/alternate-platforms.html • Your First SoapUI Project: https://www.soapui.org/getting-started/your-first-soapui-project.html • Structuring and Running Tests (SoapUI): https://www.soapui.org/Functional-Testing/structuring- and-running-tests.html • Getting Started with REST Testing in SoapUI: https://www.soapui.org/rest-testing/getting- started.html 13
- 14. REST examples • JSONPlaceholder fake API: https://jsonplaceholder.typicode.com/ • National Digital Forecast Database (NDFD) REST Web Service: http://graphical.weather.gov/xml/rest.php • National Bank of Ukraine: http://www.bank.gov.ua/control/en/publish/article?art_id=25365630 • Narodowy Bank Polski: http://api.nbp.pl/en.html 14
- 15. WSDL examples • ISBNTest: http://webservices.daehosting.com/services/isbnservice.wso?WSDL • Country Information: http://webservices.oorsprong.org/websamples.countryinfo/CountryInfoService.wso?WSDL • Number Conversion: http://www.dataaccess.com/webservicesserver/numberconversion.wso?WSDL • Bankleitzahlen Service: http://www.thomas-bayer.com/axis2/services/BLZService?wsdl • National Digital Forecast Database (NDFD) SOAP Web Service: http://graphical.weather.gov/xml/ 15

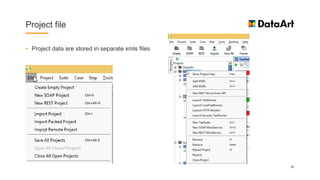

- 16. Project file • Projectdata are stored in separate xmls files 16
- 17. Properties • Project, TestSuiteand TestCase have properties 17
- 18.
- 19. Properties Transfer • TransferringProperty Values: https://www.soapui.org/functional-testing/properties/transferring- properties.html 19
- 20. Property Expansion • ${#Scope#Property-name[#xpath-expression]} •${#Project#Property-name}refers to a Project Property • ${#TestSuite#Property-name} refers to a TestSuite Property • ${#TestCase#Property-name} refers to a TestCase Property • ${TestStep-name#Property-name} refers to a property in a named TestStep. 20
- 21. Assertions (Property Content) •Contains • Not Contains • JsonPath Count • JsonPath Existance Match • JsonPath Match • JsonPath RegEx Match • XPath Match • XQuery Math 21
- 22.

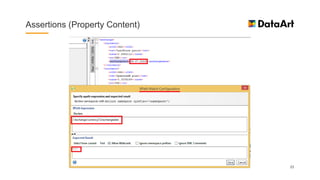

- 23.

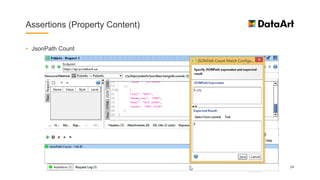

- 24. Assertions (Property Content) •JsonPath Count 24
- 25. Assertions (Property Content) •JsonPath Match 25

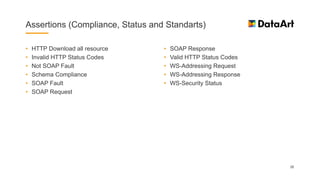

- 26. Assertions (Compliance, Statusand Standarts) • HTTP Download all resource • Invalid HTTP Status Codes • Not SOAP Fault • Schema Compliance • SOAP Fault • SOAP Request • SOAP Response • Valid HTTP Status Codes • WS-Addressing Request • WS-Addressing Response • WS-Security Status 26
- 27.
- 28.
- 29. Other assertions • SLA •JMS • JDBC • Security 29
- 30.
- 31.
- 32.

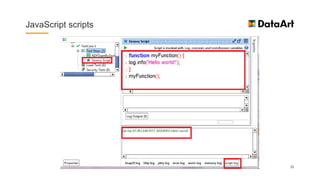

- 33.
- 34. Setup/TearDown scripts • SuiteSetup/TearDown • TestCase Setup/TearDown 34
- 35.
- 36.

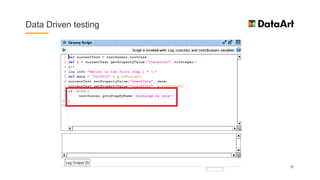

- 37.
- 38.
- 39.
- 40.
- 41. More details (Groovy) •Groovy Documentation: http://groovy-lang.org/documentation.html • Groovy JDK API Documentation: http://groovy-lang.org/gdk.html • SoapUI Tips & Tricks: https://www.soapui.org/scripting-properties/tips-tricks.html • 10 Groovy scripts on your finger tips – soapUI: https://learnsoapui.wordpress.com/2011/07/17/10- groovy-scripts-on-your-finger-tips-soapui/ • SoapUI Groovy: Slurping JSON in Script Assertions: https://thetestsuite.wordpress.com/2013/09/30/soapui-groovy-slurping-json-in-script-assertions/ • XML Parsing in soapUI: http://www.robert-nemet.com/2011/11/groovy-xml-parsing-in-soapui.html 41
- 42.
- 43. TestRunner (options) • ..SoapUI-5.4.0bintestrunner.bat •testrunner.bat -s"TestSuite 1" -r -j D:REST-Project-1-soapui-project.xml -f D:SoapUI-5.4.0report • a : Turns on exporting of all test results, not only errors • c : The TestCase to run, used to narrow down the tests to run • e : The endpoint to use when invoking test-requests, overrides the endpoint set in the project file • f : Specifies the root folder to which test results should be exported • j : Turns on exporting of JUnit-compatible reports, see below • P : Sets project property with name=value, e.g. -Pendpoint=Value1 -PsomeOtherProperty=value2 • s : The TestSuite to run, used to narrow down the tests to run 43
- 44. SoapUI logs • Bydefault in ..SoapUI-5.4.0bin • soapui-log4j.xml • soapui.log • soapui-errors.log • global-groovy.log 44
- 45. Authorization • Steps torun Twitter API with SoapUI: http://acodediary.com/twitter-api-with-soapui/ 45
- 46. Authorization (generate bearertoken) 46
- 47. Authorization (get accesstoken) 47
- 48.

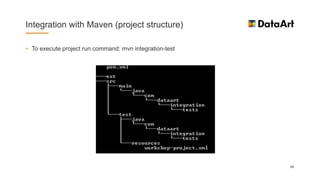

- 49. Integration with Maven(project structure) • To execute project run command: mvn integration-test 49
- 50. Integration with Maven(project structure) 50
- 51. Integration with Maven(execution result) 51

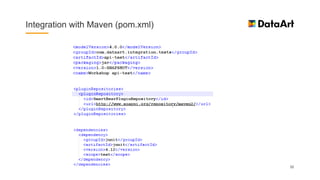

- 52. Integration with Maven(pom.xml) 52
- 53. Integration with Maven(pom.xml) 53
- 54. Integration with Maven(extensions) • Put additional jars into ext folder • Or add new module to the project 54
- 55. Listeners • Create my-listeners.xmlfile in SoapUI-5.2.1binlisteners • Create MyListener.java, compile it in jar file and put in SoapUI-5.2.1binext • Create a directory build • Run java compilation from the command line: • javac -cp soapui-5.2.1.jar com/dataart/api/listeners/MyListener.java -d ./build • Go to the build folder (cd build) and create a jar • jar cvf YourJar.jar * 55
- 56.
- 57.
- 58. More details • RupertAnderson SoapUI Cookbook • Charitha Kankanamge Web Services Testing with soapUI 58

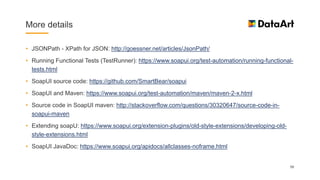

- 59. More details • JSONPath- XPath for JSON: http://goessner.net/articles/JsonPath/ • Running Functional Tests (TestRunner): https://www.soapui.org/test-automation/running-functional- tests.html • SoapUI source code: https://github.com/SmartBear/soapui • SoapUI and Maven: https://www.soapui.org/test-automation/maven/maven-2-x.html • Source code in SoapUI maven: http://stackoverflow.com/questions/30320647/source-code-in- soapui-maven • Extending soapU: https://www.soapui.org/extension-plugins/old-style-extensions/developing-old- style-extensions.html • SoapUI JavaDoc: https://www.soapui.org/apidocs/allclasses-noframe.html 59
- 60. More details • Customreport: https://github.com/a-oleynik/SoapUI/blob/master/CustomReport.groovy • Maven project with SoapUI example: https://github.com/a-oleynik/SoapUI/tree/master/api-test • Listener code example: https://github.com/a-oleynik/SoapUI/tree/master/Listener 60
- 61. Possible task • Createcustom report into an xml file. • Create a Data Driven test and read data from excel file. • Create a Maven project for your SoapUI project. Set the project up and execute it from the command line. 61
- 62.
