Kerui Petroleum is a global provider of oil and gas equipment and services, employing over 8,000 staff and operating numerous research and development centers worldwide. The company focuses on customer-oriented customized solutions while adhering to international standards for quality management and production processes. With a comprehensive marketing and service network, Kerui serves over 5,000 clients across more than 80 countries, backed by a reliable supply chain and technological innovation.

1. KRYZ-A5-EN1701
24-hour free service hotline：
86-4008-129003
86-4008-129005
www.keruigroup.com
COPY RIGHT BY SHANDONG KERUI PETROLEUM CO., LTD.
Due to the continuous progress of technology, technical parameters may be changed in later times, please understand for all the inconvenience caused by it.
The information explanation right belongs to Kerui Petroleum, all graphic information contained herein is the property of Kerui Petroleum. No part of this
publication may be reproduced or used for any purpose without written permission of Kerui Petroleum.
C
The Global Professional Power Products Supplier
KERUI POWER PRODUCTS
Address : No.233 Naner Road, Dongying, Shandong, China
P.C : 257067
Fax : +86-546-8179681
E-mail : sales@keruigroup.com
Search for KERUI PETROLEUM

2. KERUI Group has 8000 employees including 3000 technical engineers, 1200 after-sales service
engineers, 600 hand-over experts worldwide to make unremitting efforts for meeting the
customers’ needs. With the help of KERUI GROUP’s global marketing and service network, We
can effectively integrate the global resources, rapid response to customers’ needs and provide
optimal solutions.
For customer demand-oriented, KERUI customized the solution based on the customers’
requirement. By the using of professional performance calculation software, KERUI can optimize
the design of the unit and provide more reasonable solutions to meet the requirements of
different working conditions.
KERUI implements the Project Management system in order to control the whole operation
process strictly. Each equipment can only be delivered after drawing review, material procure-
ment, self inspection during manufacture, buyer supervision, the third party inspection, ex-facto-
ry test and 72-hour field running test.
Outstanding global service network
Personalization Solution Customization
Quality control of the whole process
ABOUT KERUI
By virtue of its perfect process, quality management system and strict compliance with interna-
tional mainstream standards, KERUI has established a quality management system that satisfies
international standard, passed API 、ASME 、 EU CE 、 CU-TR 、3C 、CNAS, etc.
With an area of 2.4 million square meters, our high-end oil equipment industrial park is a
production and manufacture base that covers the entire industrial chain including oil & gas
exploration and development, oil &gas gathering, transportation and treatment, and marine
equipment.
High-end oil equipment R&D manufacturer across the indus-
trial chain
GLOBAL TECHNOLOGY R&D SYSTEM
Our development outlook on innovation is to establish a perfect
technology development system and a professional team in the
world. We are committed to providing more practical and more
efficient customized solutions, thus helping you solve various
complex issues.16
Scientific Research
Laboratories
16
Technology
R&D Centers
Rigorous quality management system
A unique discrete thinking, which is the guarantee for us to
keep leading and forward-looking technology. With global
research institutions, 1000+ pieces of patented technologies,
and 1500+ pieces of research outcomes, we can focus on the
R&D of future oil and gas technology and offer a guarantee in
offering you quality and efficient products and service.
Extensive and stable strategic partners are the guarantee that KERUI PETROLEUM continuously offers quality service to
our customers. With 1800+ suppliers and partners in the world,We provides quality services and practical products to
over 5000 customers in more than 80 countries across the world. Including Saudi Aramco, Dalma, PDVSA, YPF,
Weatherford, Lukoil, Pertamina, Arrow,Saipem， OGDCL, KCAD, and ENTP, etc, thereby implementing the sales and
service of our products.
1800+ customers
5000+Suppliers and Partners
GLOBAL PARTNERS
www.keruigroup.com1 2
KERUI PETROLEUM has a complete technology R&D system. We
have established 16 technology R&D centers and 16 scientific
research laboratories in many regions including China, US,
Singapore and Canada, focusing on the solution of difficult oil
and gas exploration & development and utilization of global
resources.

3. www.keruigroup.com3 4
Spain
France
Croatia
Italy
Romania
Holland
Poland
Hungary
Azerbaijan
Nigeria
Ethiopia
South Sudan
Kenya
57
33
7
8000+
57 Global Branches
33 Local Service
Centers Worldwide
7 Technical Support
Centers
Over 8,000 Employees
WORLDWIDE MARKETING & SERVICE NETWORK
Canada
U.S.A
Mexico
Colombia
Bolivia
Ecuador
Venezuela
Peru
Brazil
Argentina
Trinidad and Tobago
Suriname
Algeria
Egypt
Congo (Brazzaville)
Gabon
UAE
Iraq
Kuwait
Saudi Arabia
Oman
Turkey
Russia
Ukraine
Germany
Moldova
Albania
Serbia
Kyrgyzstan
Kazakhstan
Uzbekistan
Turkmenistan
Tajikistan
Bangladesh
India
Thailand
Myanmar
Pakistan
Brunei
Malaysia
Indonesia
Singapore
Australia
Beijing
Dongying
Shanghai
Tianjin
Liaohe
Xinjiang
Qinghai
Sichuan
Daqing
Xi’an
Zhanjiang

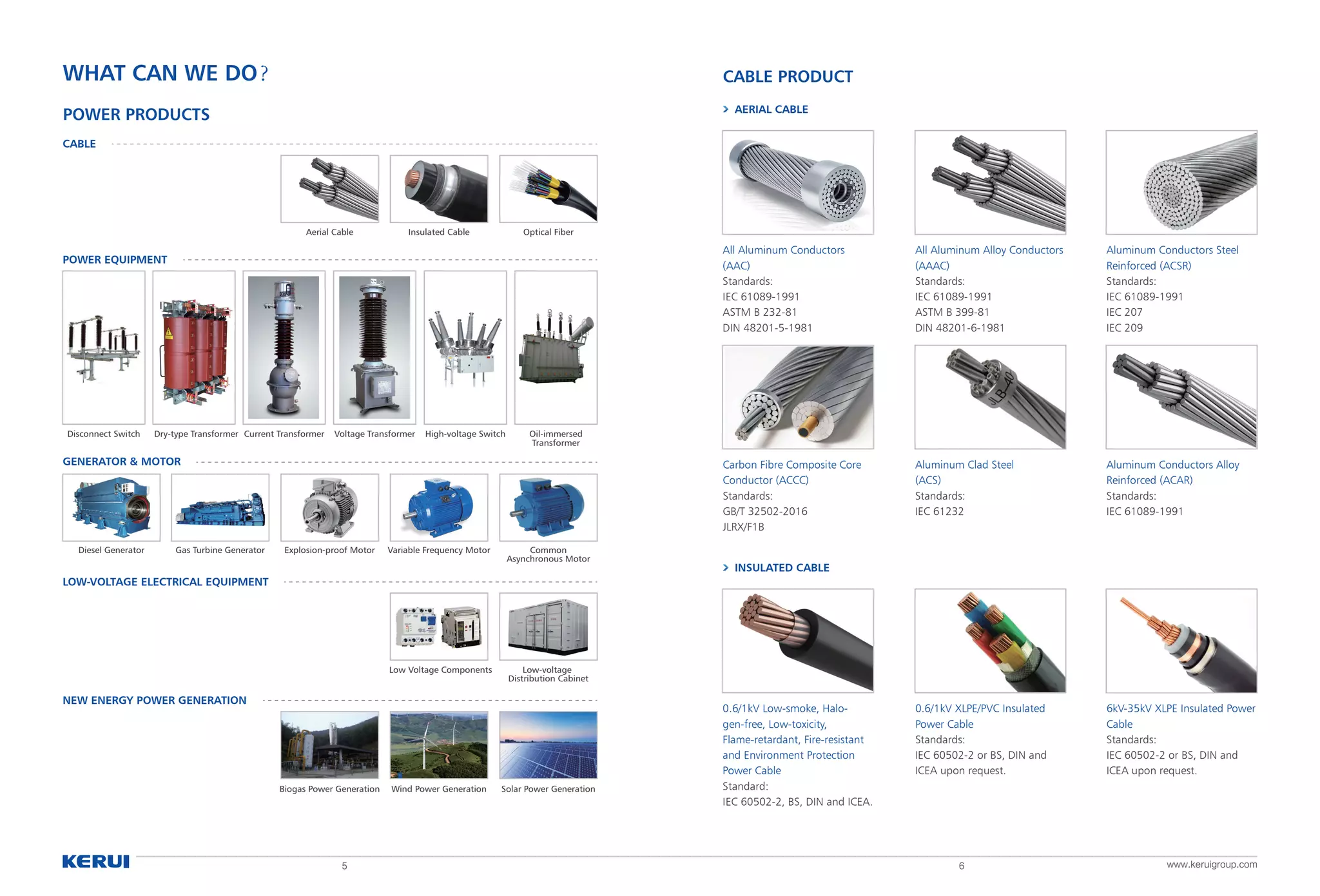

4. www.keruigroup.com5 6
POWER PRODUCTS
CABLE
POWER EQUIPMENT
GENERATOR & MOTOR
LOW-VOLTAGE ELECTRICAL EQUIPMENT
NEW ENERGY POWER GENERATION
All Aluminum Conductors
(AAC)
Standards:
IEC 61089-1991
ASTM B 232-81
DIN 48201-5-1981
WHAT CAN WE DO？
Aerial Cable Insulated Cable Optical Fiber
Oil-immersed
Transformer
Dry-type Transformer Current Transformer Voltage TransformerDisconnect Switch High-voltage Switch
Diesel Generator
Low Voltage Components
Biogas Power Generation Wind Power Generation Solar Power Generation
Low-voltage
Distribution Cabinet
Gas Turbine Generator Explosion-proof Motor Variable Frequency Motor Common
Asynchronous Motor
CABLE PRODUCT
AERIAL CABLE
All Aluminum Alloy Conductors
(AAAC)
Standards:
IEC 61089-1991
ASTM B 399-81
DIN 48201-6-1981
Aluminum Conductors Steel
Reinforced (ACSR)
Standards:
IEC 61089-1991
IEC 207
IEC 209
0.6/1kV Low-smoke, Halo-
gen-free, Low-toxicity,
Flame-retardant, Fire-resistant
and Environment Protection
Power Cable
Standard:
IEC 60502-2, BS, DIN and ICEA.
INSULATED CABLE
0.6/1kV XLPE/PVC Insulated
Power Cable
Standards:
IEC 60502-2 or BS, DIN and
ICEA upon request.
6kV-35kV XLPE Insulated Power
Cable
Standards:
IEC 60502-2 or BS, DIN and
ICEA upon request.
Carbon Fibre Composite Core
Conductor (ACCC)
Standards:
GB/T 32502-2016
JLRX/F1B
Aluminum Clad Steel
(ACS)
Standards:
IEC 61232
Aluminum Conductors Alloy
Reinforced (ACAR)
Standards:
IEC 61089-1991

5. www.keruigroup.com7 8
66-220kV XLPE Insulated
Power Cable
Standard:
IEC 60840,
IEC 60840-1999
64/110kV XLPE Insulated Power
Cable
Standard:
IEC 60840-1999,
IEC 60840
220kV XLPE Insulated Power
Cable
Standards:
GB/Z 18890-2002,or also
according to IEC, BS, VDE, ICEA
as requested by customers.
6-10kV Oil-immersed Transformer
1. Rated capacity (kVA): 30 ~ 2500
2. Rate voltage (kV): 11 (10.5, 10, 6.3, 6), 0.4
3. Connection symbol: Dyn11
4. Short-circuit impedance: 4.0% ~ 4.5%
35kV, 38.5kV Oil-immersed Transformer
1. Rated capacity (kVA): 50 ~ 31500
2. Rate voltage (kV): 35 (38.5), 11,10.5, 6.6, 6.3, 3.15
3. Connection symbol: YNd11 / Yd11 /Yyn0 / Dyn11
4. Short-circuit impedance: 6.5% ~ 8%
POWER EQUIPMENT PRODUCT
OIL-IMMERSED TRANSFORMER
110kV Oil-immersed Transformer
1. Rated capacity (kVA): 6300 ~ 90000
2. Rate voltage (kV): 110 (121), 38.5, 10.5 (11, 6.6, 6.3)
3. Connection symbol: YNyd0d11
4. Short-circuit impedance: HV-LV:18%; HV-MV:10.5%; MV-LV:6.5%
220kV Oil-immersed Transformer
1. Rated capacity (kVA): 63000 ~ 240000
2. Rate voltage (kV): 220 (230), 121 (115, 110), 38.5 (35, 10.5)
3. Connection symbol: YNyn0d11
4. Short-circuit impedance: HV-LV:23%; HV-MV:13%; MV-LV:8%
500kV Oil-immersed Transformer
1. Rated capacity (kVA): 25K / 25K / 80K
2. Rate voltage (kV): 525, √3, (230, √3±2*2.5% ), 36
3. Connection symbol: Ia0i0
4. Short-circuit impedance: HV-MV:16%; HV-LV50%; MV-LV:30
Outdoor Optical Cable
GYXTW / JET / GYXY / GYFXY /
GYTA / GYTS / GYTY53 /
GYTA53 / GYFTY / GYHTY /
GYFTA / GYFTY53 / GYFTA53
OPTICAL FIBER AND CABLE
Outdoor Optical Cable
All Dielectric Self-supporting
Aerial Cable
Standard:
IEEE P 1222 / IEC60794-1
Indoor Optical Cable -
Tight Buffered Fiber
Fiber Simplex/duplex Indoor Cable
Multi Purpose Distribution Cable
Standard:
YD/T 1258.2-2003
ICEA-596, GR-409, IEC794
FTTH Cable -
FTTH Indoor Cable
FTTH Drop Cable
FTTH Cable (GYXTPY)
Optical Fiber Composite
Ground Wire (OPGW)
Standard:
DL/TB 32-2003

6. Note: It can be customized upon your requirements.
www.keruigroup.com9 10
6 ~ 10kV SC(B)10 Series of Resin Cu Winding Cast
Dry-type Non-excitation Adjustable Voltage Distribution
Transformer
Rated capacity (kVA): 30 ~ 5000
Tapping range: ±2*2.5, ±5
DRY-TYPE TRANSFORMER
35kV SC(B)10 Series of Resin Cu Winding Cast Dry-type
Non-excitation Adjustable Voltage Distribution Transformer
Rated capacity (kVA): 800 ~ 25000
Tapping range: ±2*2.5, ±5
Connection symbol: Dyn11, Yd11, Yyn0
6 ~ 10kV SCZ10 Series of Resin Cast Dry-type On-load
Adjustable Voltage Distribution Transformer
Rated capacity (kVA): 315 ~ 2500
Tapping range: ±4*2.5
Connection symbol: Dyn11, Yyn0
35kV SCZ10 Series of Resin Cast Dry-type On-load Adjust-
able Voltage Distribution Transformer
Rated capacity (kVA): 5000 ~ 25000
Tapping range: ±4*2.5
Connection symbol: Dyn11, Yd11
6 ~ 10kV SCBH Energy Efficiency Dry-type Amorphous
Alloy Transformer
Rated capacity (kVA): 50 ~ 2500
Tapping range: ±2*2.5, ±5
Connection symbol: Dyn11, Yd11
Double Column Horizontal Rotary Type Outdoor HV. AC. Disconnector
Rated voltage (kV): 40.5, 72.5, 126, 145, 170, 252
Rated current (A): 1250, 2000, 3150, 4000
Earthing types: Unearthing, Left earthing, Right earthing, Double earthing
DISCONNECT SWITCH
Double Column Horizontal Retractable V Type Outdoor HV. AC. Disconnector
Rated voltage (kV): 40.5, 72.5, 126
Rated current (A): 1250, 2000, 3150
Earthing types: Unearthing, Left earthing, Right earthing, Double earthing
Single Column Double Arms Vertical Retractable Type Outdoor HV.AC. Disconnector
Rated voltage (kV): 126, 145, 170, 252, 363, 420, 550
Rated current (A): 2000, 3150, 4000, 5000
Earthing types: Unearthing, Earthing
Three-column Horizontal Rotary Type Outdoor HV. AC. Disconnector
Rated voltage (kV): 126, 145, 170, 252, 363, 420, 550
Rated current (A): 2000, 3150, 4000, 5000
Earthing types: Unearthing, Left earthing, Right earthing, Double earthing
Outdoor HV AC Earthing Switch
Rated voltage (kV): 40.5, 72.5, 126, 145, 170, 252, 363, 420, 550
Bus arrangement direction: grounding knife gate direction parallel to the upper
bus arrangement, grounding knife gate direction vertical to the upper bus
arrangement
Neutral Point Disconnector
Rated voltage (kV): 40.5, 72.5, 126, 145
Operator: CS17A type manual institutions; CJTKB electric institutions

7. www.keruigroup.com11 12
Dead Tank Circuit Breakers
Rated voltage (kV): 72.5, 126, 145, 252, 550, 800
Rated current (A): 2000, 3150, 4000, 5000, 6300
The product at the national center for quality supervision,
inspection and high voltage electrical, authoritative testing
institutions, such as the Netherlands KEMA has completed a full
set of type test.
HV CIRCUIT BREAKERS
Oil-immersed Hair-pin Type
Current Transformer
Rated voltage (kV): 35, 66,
110, 145, 220, 330
Oil-immersed Top Core Type
Current Transformer
Rated voltage (kV): 35, 66,
110, 220
Dry Organic Composite
Insulation Current Transformer
Rated voltage (kV): 35, 66,
110, 220
CURRENT TRANSFORMER AND BUSHING
POTENTIAL TRANSFORMER AND ARRESTER
SF6 Gas Insulation Current
Transformer
Rated voltage (kV): 35, 66,
110, 220
Organic Composite Insulation
Dry Type Wall Bushing
Rated voltage (kV): 35, 66,
110, 220
Glass Fiber Reinforced Dry Type
Wall Bushing
Rated voltage (kV): 40.5, 72.5,
126, 252
Oil-immersed Electromagnetic
Voltage Transformer
Rated voltage (kV): 35, 66,
110, 145, 220
Oil-immersed Capacitor
Voltage Transformer
Rated voltage (kV): 35, 66,
110, 145, 220
SF6 Gas Insulation Voltage
Transformer
Rated voltage (kV): 66, 110,
220
Live Tank Circuit Breakers
Rated voltage (kV): 72.5, 126, 145, 252
Rated current (A): 2000, 3150, 4000, 5000
The product at the national center for quality supervision,
inspection and high voltage electrical, authoritative testing
institutions, such as the Netherlands KEMA has completed a full
set of type test.
Gas Insulated Switchgear (GIS)
Rated voltage (kV): 72.5, 126, 145, 252, 550, 800
Rated current (A): 2000, 3150, 4000, 5000, 6300
Standard: IEC60517:1990

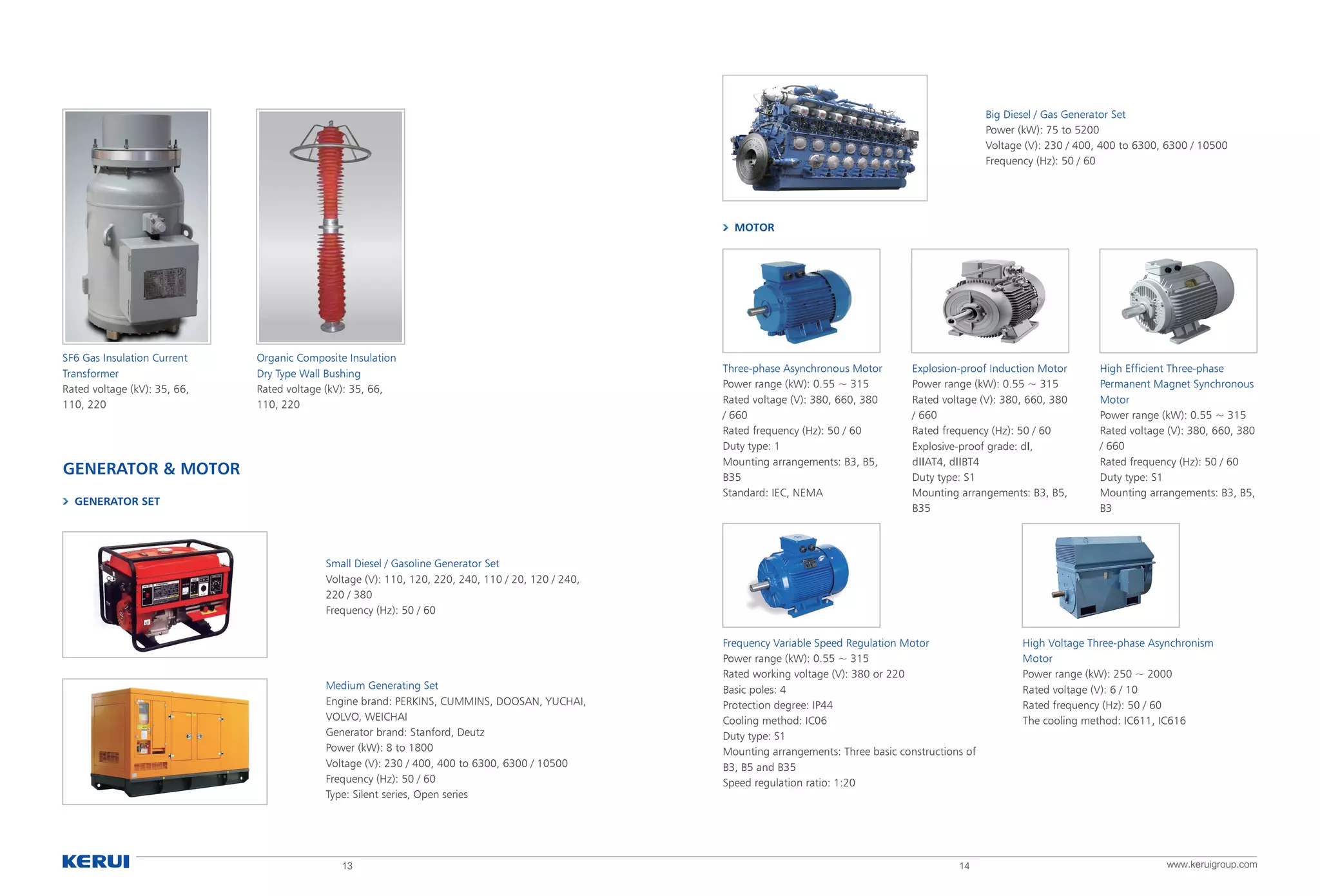

8. Three-phase Asynchronous Motor
Power range (kW): 0.55 ~ 315
Rated voltage (V): 380, 660, 380
/ 660
Rated frequency (Hz): 50 / 60
Duty type: 1
Mounting arrangements: B3, B5,
B35
Standard: IEC, NEMA
MOTOR
Explosion-proof Induction Motor
Power range (kW): 0.55 ~ 315
Rated voltage (V): 380, 660, 380
/ 660
Rated frequency (Hz): 50 / 60
Explosive-proof grade: dI,
dIIAT4, dIIBT4
Duty type: S1
Mounting arrangements: B3, B5,
B35
Frequency Variable Speed Regulation Motor
Power range (kW): 0.55 ~ 315
Rated working voltage (V): 380 or 220
Basic poles: 4
Protection degree: IP44
Cooling method: IC06
Duty type: S1
Mounting arrangements: Three basic constructions of
B3, B5 and B35
Speed regulation ratio: 1:20
High Voltage Three-phase Asynchronism
Motor
Power range (kW): 250 ~ 2000
Rated voltage (V): 6 / 10
Rated frequency (Hz): 50 / 60
The cooling method: IC611, IC616
High Efficient Three-phase
Permanent Magnet Synchronous
Motor
Power range (kW): 0.55 ~ 315
Rated voltage (V): 380, 660, 380
/ 660
Rated frequency (Hz): 50 / 60
Duty type: S1
Mounting arrangements: B3, B5,
B3
Small Diesel / Gasoline Generator Set
Voltage (V): 110, 120, 220, 240, 110 / 20, 120 / 240,
220 / 380
Frequency (Hz): 50 / 60
GENERATOR & MOTOR
GENERATOR SET
Medium Generating Set
Engine brand: PERKINS, CUMMINS, DOOSAN, YUCHAI,
VOLVO, WEICHAI
Generator brand: Stanford, Deutz
Power (kW): 8 to 1800
Voltage (V): 230 / 400, 400 to 6300, 6300 / 10500
Frequency (Hz): 50 / 60
Type: Silent series, Open series
Big Diesel / Gas Generator Set
Power (kW): 75 to 5200
Voltage (V): 230 / 400, 400 to 6300, 6300 / 10500
Frequency (Hz): 50 / 60
www.keruigroup.com13 14
SF6 Gas Insulation Current
Transformer
Rated voltage (kV): 35, 66,
110, 220
Organic Composite Insulation
Dry Type Wall Bushing
Rated voltage (kV): 35, 66,
110, 220

9. GCS Low-voltage Withdrawable Switchgear
Rated voltage (V): AC 440 / 415 / 460 / 380 ± 10%
Rated frequency (Hz): 60 / 50
Installation: Install on the ground
Ambient temperature: -10℃ ~ 50℃
GGD AC Low Voltage Distribution Cabinet
Rated voltage (V): AC 440 / 415 / 460 / 380 ± 10%
Rated frequency (Hz): 60 / 50
Installation: Install on the ground
Ambient temperature: -10℃ ~ 50℃
KYN28A-12 Indoor Armored Away AC Metal-enclosed Switchgear
Rated voltage (kV): AC 4 / 6 / 6.6 / 10 / 12
Rated current (A): 630, 1250, 1600
Rated frequency (Hz): 60 / 50
Installation: Install on the ground
Ambient temperature: -10℃ ~ 50℃
Kyn61-40.5 (Z) Type Armored Away AC Metal-enclosed Switchgear
Rated voltage (kV): AC 40.5
Rated current (A): 630, 1250, 1600
Rated frequency (Hz): 60 / 50
Installation: Install on the ground
Ambient temperature: -10℃ ~ 50℃
HV, LV SWITCHGEAR ASSEMBLY-FOR DISTRIBUTION
Only listed following products of low voltage electrical components, brand covers the international famous
brand ABB, Siemens, Schneider, etc.
The function of power distribution cabinet can design according to customer requirements or the drawings,
internal main components can be selected according to the customer request the international brand, for
example, ABB, Schneider, Siemens.
Miniature Circuit Breaker
MCB
Indoor Distribution Box Moulded Case Circuit
Breaker MCCB
Switch Disconnector Fuse
LOW-VOLTAGE ELECTRICAL EQUIPMENT PRODUCT
LV ELECTRIC EQUIPMENT COMPONENTS AND PARTS
Connection Terminal Terminal Board Industrial Plug Sensor
Automatic Transfer
Switching Equipment
A.C. Contactor Frequency Converter Intermediate Relay
Control Transformer Capacitor Thermal Overload Relay Switching Power
Air Circuit Breaker ACB Soft Starter Indicator Light Button
Energy Meter Displaying Meter Universal Change-over
Switch
Time Relay
www.keruigroup.com15 16

10. NEW ENERGY POWER GENERATION
LANDFILL GAS GENERATION
WIND POWER GENERATION
Pumping Units Common Control Cabinet CDK Series
Rated voltage (V): AC 440 / 415 / 460 / 380 ± 10%
Rated input frequency (Hz): 60 / 50
Installation: Floor mount
Ambient temperature: -10℃ ~ 50℃
When users have special requirements, can be customized. Pretreatment of purification
Collection Evaluation(*)
Landfill gas upgrading
1. Wind 2. Generate electricity 3. Send to power station
Flare incineration
Frequency Conversion Control Cabinet Dedicated Pumping Units
Rated voltage (V): AC 440 / 415 / 460 / 380 ± 10%
Rated input frequency (Hz): 60 / 50
Rated output frequency (Hz): 0 ~ 60
Installation: Floor mount
Ambient temperature: -10℃ ~ 50℃
When users have special requirements, can be customized.
Reactive Power Compensation System
It not only the power factor of each phase can be made
up to 1, and can be active current of each phase so that
the equilibrium state.
Prefabricated Substation
ZBW series outdoor box-type substation consists of high and
low voltage switchgears, power distribution transformer, power
metering and so on, which is a compact integrated power
distribution equipment connected by a specific circuit. It is
applied in three phase AC electric system with rated voltage 10 /
0.4KV, as a whole set substation of receiving and distributing
electric energy, and fit for all kinds of electro-occasion. Our
product meets with GB and IEC standard.
How to select wind turbines
On the condition of the same wind farm, the same wind turbine capacity, the same blade diameter, and the
same tower height:
1. The lower the cut-in wind speed, the better.
2. The lower the rated wind speed, the better.
3. The higher the wind turbine availability, the better.
4. The less the annual maintenance cost, the better.
Only the wind turbines which meet the above four criterions at the same time can be the best equipment, or the
most suitable ones for the owners.
HV, LV SWITCHGEAR ASSEMBLY-FOR OIL FIELD
www.keruigroup.com17 18
Collection and Utilization
of Landfill Gas

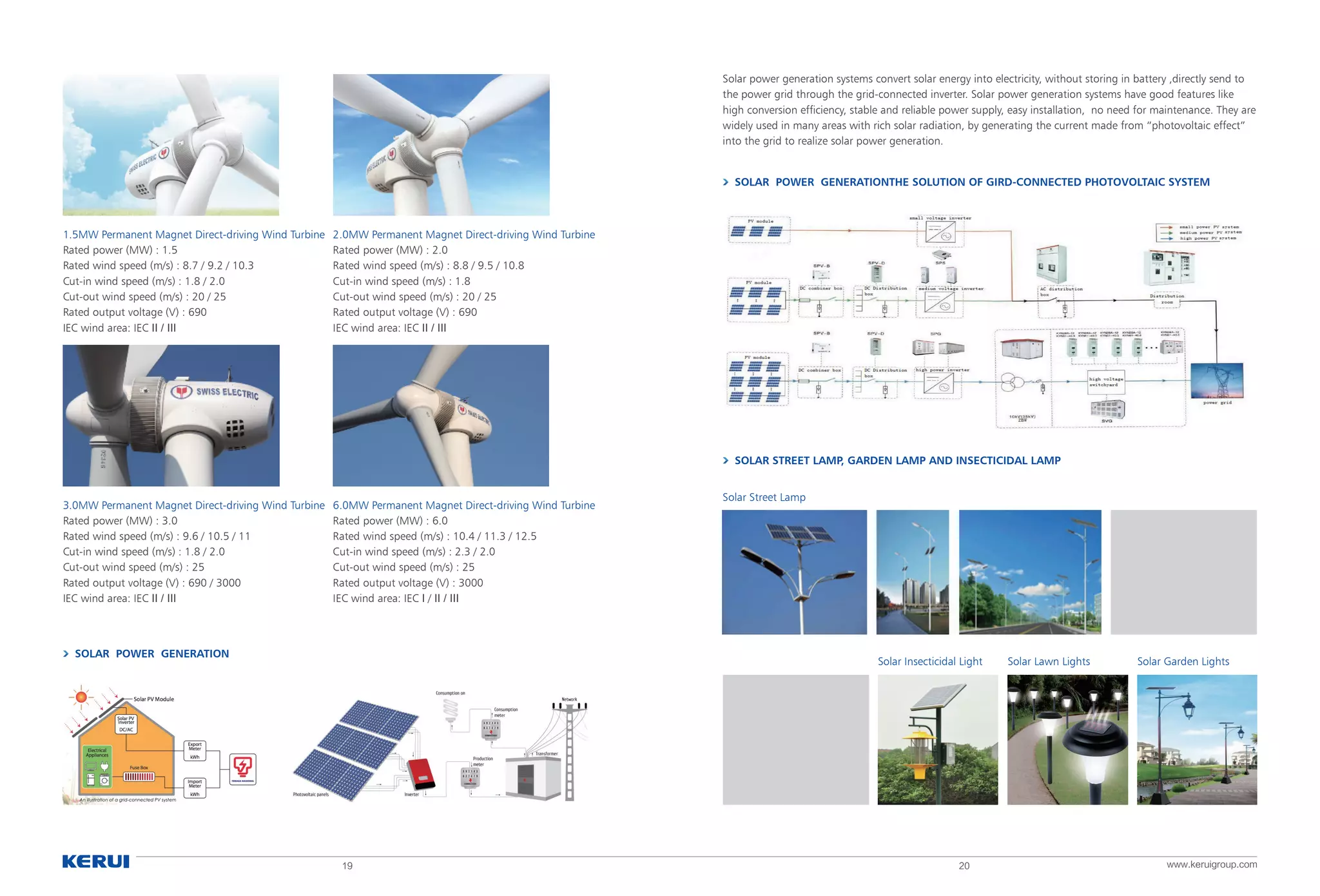

11. Solar power generation systems convert solar energy into electricity, without storing in battery ,directly send to
the power grid through the grid-connected inverter. Solar power generation systems have good features like
high conversion efficiency, stable and reliable power supply, easy installation, no need for maintenance. They are
widely used in many areas with rich solar radiation, by generating the current made from “photovoltaic effect”
into the grid to realize solar power generation.
SOLAR POWER GENERATION
SOLAR POWER GENERATIONTHE SOLUTION OF GIRD-CONNECTED PHOTOVOLTAIC SYSTEM
SOLAR STREET LAMP, GARDEN LAMP AND INSECTICIDAL LAMP
www.keruigroup.com19 20
1.5MW Permanent Magnet Direct-driving Wind Turbine
Rated power (MW) : 1.5
Rated wind speed (m/s) : 8.7 / 9.2 / 10.3
Cut-in wind speed (m/s) : 1.8 / 2.0
Cut-out wind speed (m/s) : 20 / 25
Rated output voltage (V) : 690
IEC wind area: IEC II / III
2.0MW Permanent Magnet Direct-driving Wind Turbine
Rated power (MW) : 2.0
Rated wind speed (m/s) : 8.8 / 9.5 / 10.8
Cut-in wind speed (m/s) : 1.8
Cut-out wind speed (m/s) : 20 / 25
Rated output voltage (V) : 690
IEC wind area: IEC II / III
3.0MW Permanent Magnet Direct-driving Wind Turbine
Rated power (MW) : 3.0
Rated wind speed (m/s) : 9.6 / 10.5 / 11
Cut-in wind speed (m/s) : 1.8 / 2.0
Cut-out wind speed (m/s) : 25
Rated output voltage (V) : 690 / 3000
IEC wind area: IEC II / III
6.0MW Permanent Magnet Direct-driving Wind Turbine
Rated power (MW) : 6.0
Rated wind speed (m/s) : 10.4 / 11.3 / 12.5
Cut-in wind speed (m/s) : 2.3 / 2.0
Cut-out wind speed (m/s) : 25
Rated output voltage (V) : 3000
IEC wind area: IEC I / II / III
Solar Street Lamp
Solar Insecticidal Light Solar Lawn Lights Solar Garden Lights

12. LED Street Lamp
Rated power (W): 18 ~ 180
IP Grade: IP65
Luminous efficacy (Lm/W):130
Irritation angle: 60-180
Color temperature (K): 2700 ~ 6500
Lifetime (h): ≥ 25000
Material: Aluminum alloy Corrosion resistant
Applied range: High speed and ordinary road, stadium, square, landscape engineering and yard.
LED LAMP
LED Landscape Lamp
Rated power (W): 18 ~ 180
IP Grade: IP65
Luminous efficacy (Lm/W): 130
Irritation angle: 360
Color temperature (K): 2700 ~ 6500
Lifetime (h): ≥ 25000
Material: Aluminum alloy Corrosion resistant
Applied range: Park, lawn, stadiums, squares, sidewalks, courtyards, landscape engineering.
LED Globular Bulb
Rated power (W): 2 ~ 10
IP Grade: IP60
Lamp flux (Lm): 270 ~ 300
Color temperature (K): 2800 ~ 6500
Lifetime (h): ≥ 25000
Material: Aluminum alloy Corrosion resistant
Lamp cap: E27, E26, R14, B22
LED Fluorescent Lamp
Rated power (W): 7 ~ 18
IP Grade: IP56
Lamp flux (Lm): 1700 ~ 1800
Color temperature (K): 2800 ~ 6500
Lifetime (h): ≥ 25000
Material: Aluminum alloy Corrosion resistant
Lamp cap: G13
LED Tunnel Lamp
Rated power (W): 18 ~ 180
IP Grade: IP65
Luminous efficacy (Lm/W): 130
Irritation angle: 60-120
Color temperature (K): 2700 ~ 6500
Lifetime (h): ≥ 25000
Material: Aluminum alloy Corrosion resistant
Applied range: The highway tunnel, square, landscape engineering, building, gymnasium.
LED Underground Lamp
Rated power (W): 1 ~ 18
IP Grade: IP65
Luminous efficacy (Lm/W): 130
Irritation angle: 20-120
Color temperature (K): 2700 ~ 6500
Lifetime (h): ≥ 25000
Material: Aluminum alloy Corrosion resistant
Applied range: Lawn, stadiums, squares, sidewalks, courtyards, landscape engineering.
www.keruigroup.com21 22
