This document provides information about an Andrew RCT5-WBC-1X-RNA product, including how to purchase it, specifications, and warranty. It is a RADIAX coaxial radiating cable for frequencies between 50-2800 MHz with a black PE jacket. The document describes payment options, same-day shipping, and Launch 3 Telecom's repair and installation services.

2. Andrew RCT5-WBC-1X-RNA
RCT5 RADIAX Coaxial Radiating…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/rct5wbc1xrna.html

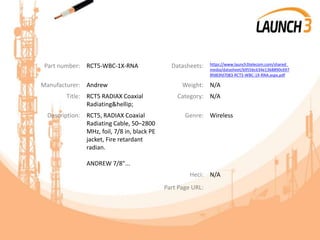

3. Part number: RCT5-WBC-1X-RNA Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/b9556c634e1368890c697
8fd83fd7083-RCT5-WBC-1X-RNA.aspx.pdf
Manufacturer: Andrew Weight: N/A
Title: RCT5 RADIAX Coaxial
Radiating…
Category: N/A
Description: RCT5, RADIAX Coaxial
Radiating Cable, 50–2800
MHz, foil, 7/8 in, black PE
jacket, Fire retardant
radian.
ANDREW 7/8"...
Genre: Wireless
Heci: N/A
Part Page URL:

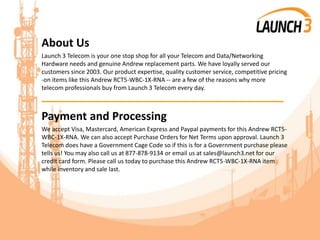

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew RCT5-WBC-1X-RNA -- are a few of the reasons why more
telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew RCT5-
WBC-1X-RNA. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew RCT5-WBC-1X-RNA item
while inventory and sale last.

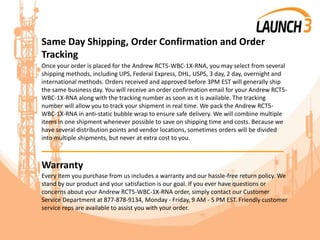

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew RCT5-WBC-1X-RNA, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew RCT5-
WBC-1X-RNA along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the Andrew RCT5-
WBC-1X-RNA in anti-static bubble wrap to ensure safe delivery. We will combine multiple
items in one shipment whenever possible to save on shipping time and costs. Because we
have several distribution points and vendor locations, sometimes orders will be divided
into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew RCT5-WBC-1X-RNA order, simply contact our Customer
Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer
service reps are available to assist you with your order.

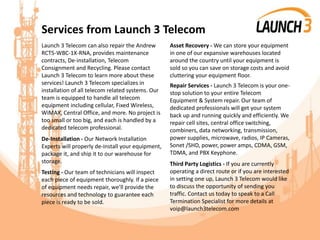

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
RCT5-WBC-1X-RNA, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

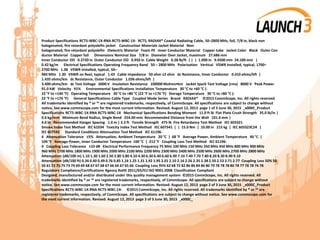

7. Product Specifications RCT5-WBC-1X-RNA RCT5-WBC-1X- RCT5, RADIAX® Coaxial Radiating Cable, 50–2800 MHz, foil, 7/8 in, black non
halogenated, fire retardant polyolefin jacket Construction Materials Jacket Material Non-
halogenated, fire retardant polyolefin Dielectric Material Foam PE Inner Conductor Material Copper tube Jacket Color Black Outer Con
ductor Material Copper foil Dimensions Nominal Size 7/8 in Diameter Over Jacket, maximum 27.686 mm
Inner Conductor OD 0.3720 in Outer Conductor OD 0.950 in Cable Weight 0.28 lb/ft | | | 1.090 in 9.4500 mm 24.100 mm |
0.42 kg/m Electrical Specifications Operating Frequency Band 50 – 2800 MHz Polarization Vertical VSWR Installed, typical, 1700–
2700 MHz 1.38 VSWR Installed, typical, 50–
960 MHz 1.30 VSWR on Reel, typical 1.43 Cable Impedance 50 ohm ±2 ohm dc Resistance, Inner Conductor 0.410 ohms/kft |
1.435 ohms/km dc Resistance, Outer Conductor 1.036 ohms/kft |
3.400 ohms/km dc Test Voltage 6000 V Insulation Resistance 100000 Mohms•km Jacket Spark Test Voltage (rms) 8000 V Peak Power
91.0 kW Velocity 91% Environmental Specifications Installation Temperature 30 °C to +60 °C (-
22 °F to +140 °F) Operating Temperature 30 °C to +80 °C (22 °F to +176 °F) Storage Temperature 30 °C to +80 °C (-
22 °F to +176 °F) General Specifications Cable Type Coupled Mode Series Brand RADIAX® ©2015 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: August 12, 2013 page 1 of 3 June 30, 2015 _x000C_Product
Specifications RCT5-WBC-1X-RNA RCT5-WBC-1X Mechanical Specifications Bending Moment 11.0 ft lb Flat Plate Crush Strength 35.0 lb/in |
0.6 kg/mm Minimum Bend Radius, Single Bend 254.00 mm Recommended Distance from the Wall 101.6 mm |
4.0 in Recommended Hanger Spacing 1.0 m | 3.3 ft Tensile Strength 475 lb Fire Retardancy Test Method IEC 603321
Smoke Index Test Method IEC 61034 Toxicity Index Test Method IEC 607541 | | 15.0 Nm | 10.00 in 215 kg | IEC 603323C24 |
IEC 607542 Standard Conditions Attenuation Test Method IEC 61196-
4 Attenuation Tolerance ±5% Attenuation, Ambient Temperature 20 °C | 68 °F Average Power, Ambient Temperature 40 °C |
104 °F Average Power, Inner Conductor Temperature 100 °C | 212 °F Coupling Loss Test Method IEC 61196-
4 Coupling Loss Tolerance ±10 dB Electrical Performance Frequency 75 MHz 100 MHz 150 MHz 350 MHz 450 MHz 800 MHz 900 MHz
960 MHz 1700 MHz 1800 MHz 1900 MHz 2000 MHz 2100 MHz 2200 MHz 2300 MHz 2400 MHz 2500 MHz 2600 MHz 2700 MHz 2800 MHz
Attenuation (dB/100 m) 1.10 1.30 1.60 2.50 2.80 3.80 4.10 4.30 6.30 6.40 6.60 6.90 7.10 7.40 7.70 7.80 8.20 8.30 8.90 9.10
Attenuation (dB/100 ft) 0.34 0.40 0.49 0.76 0.85 1.16 1.25 1.31 1.92 1.95 2.01 2.10 2.16 2.26 2.35 2.38 2.50 2.53 2.71 2.77 Coupling Loss 50% 56
56 61 72 75 75 73 74 69 69 68 67 67 68 67 66 66 67 65 66 Coupling Loss 95% 62 68 72 82 86 86 84 86 80 79 78 78 78 80 78 77 78 78 76 78
Regulatory Compliance/Certifications Agency RoHS 2011/65/EU ISO 9001:2008 Classification Compliant
Designed, manufactured and/or distributed under this quality management system ©2015 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: August 12, 2013 page 2 of 3 June 30, 2015 _x000C_Product
Specifications RCT5-WBC-1X-RNA RCT5-WBC-1X- ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are
registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for
the most current information. Revised: August 12, 2013 page 3 of 3 June 30, 2015 _x000C_
