Katalog parts 2014 small

ZADOVOLJSTVO BICIKLIRANJA
Pri dizajniranju bicikala tokom svih 18 godi-
na rada naša prevashodna težnja je da strast
koju osećamo dok razvijamo svoje proizvode
jednako osete i biciklisti dok ih voze. Razlog
zašto tokom svih ovih godina sa jednakom
posvećenošću širimo svoj asortiman proiz-
voda jeste verovanje da je svaki biciklista je-
dinstven. Bez obzira da li vam je potrebno
planinsko biciklo, sklopivo biciklo, biciklo za
grad, BMX ili neki od dečijih modela, Capriolo
je rešenje.
PURE SPEED WHATEVER THE TERRAIN
During our 18-year-long bicycle designing
practice our primary aspiration was to share
with our cyclists the passion we feel when
we develop our products. The reason why
we keep expanding our portfolio with equal
dedication during all these years is that we
believe that every cyclist is unique. No matter
what you need, a mountain bike, a foldable
bike, a city bike, BMX bike or some model for
children, Capriolo is the answer.
HANDMADE BICYCLES www.capriolo.com

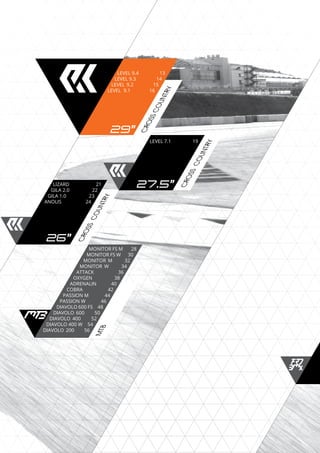

CROSSCOUNTRY
MTB
CROSSCOUNTRY
CROSSCOUNTRY
LEVEL 9.4 13
LEVEL 9.3 14
LEVEL 9.2 15
LEVEL 9.1 16
LEVEL 7.1 19

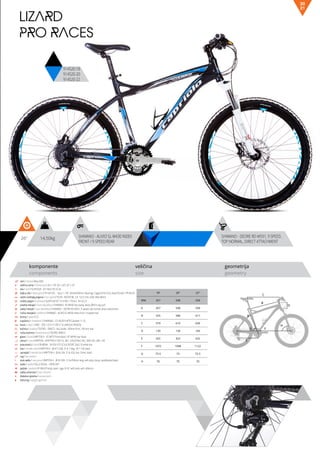

LIZARD 21

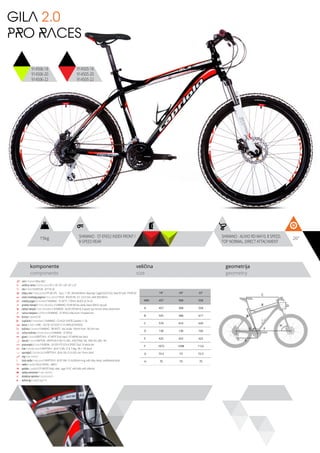

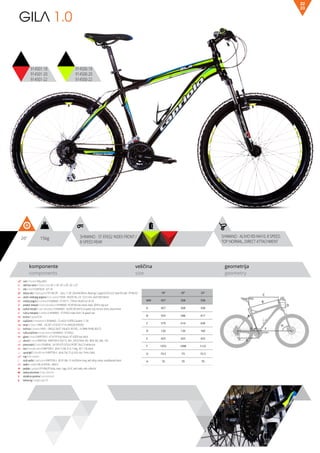

GILA 2.0 22
GILA 1.0 23

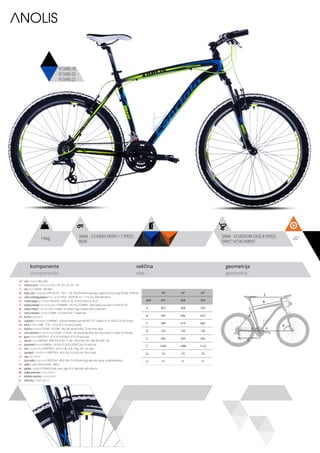

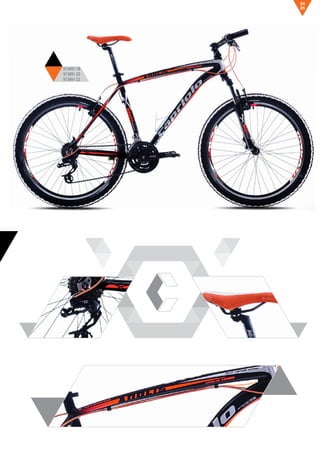

ANOLIS 24

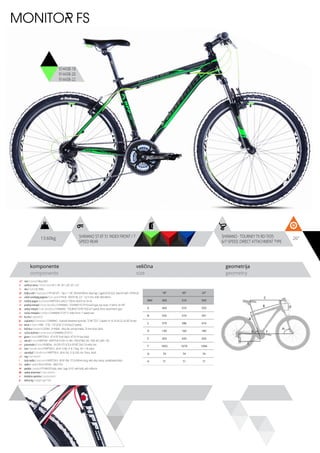

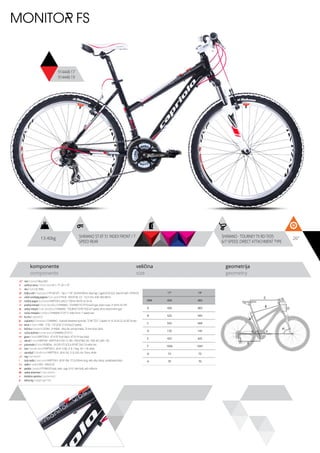

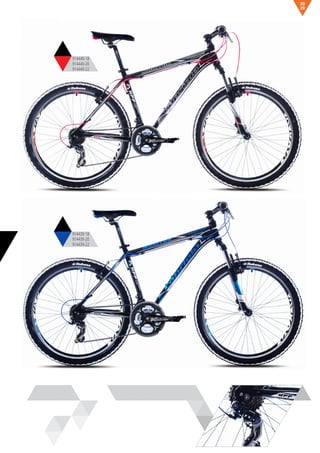

MONITOR FS M 28
MONITOR FS W 30
MONITOR M 32

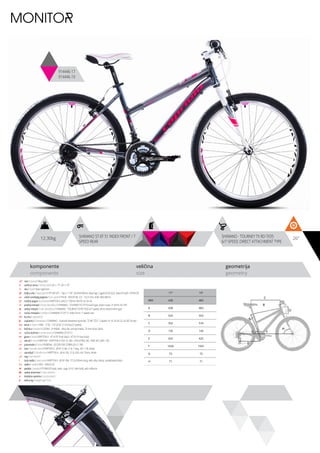

MONITOR W 34

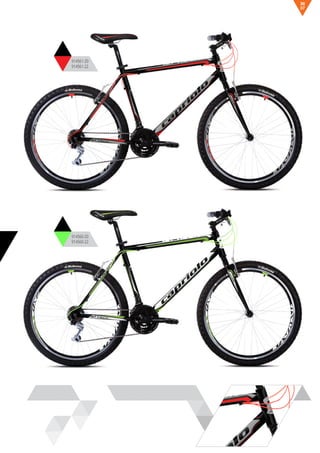

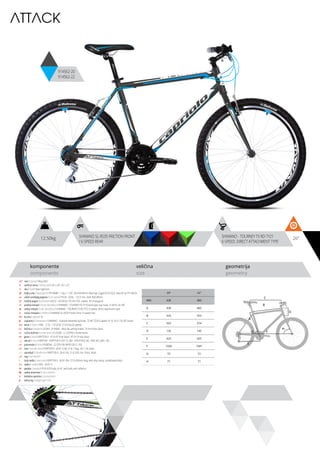

ATTACK 36

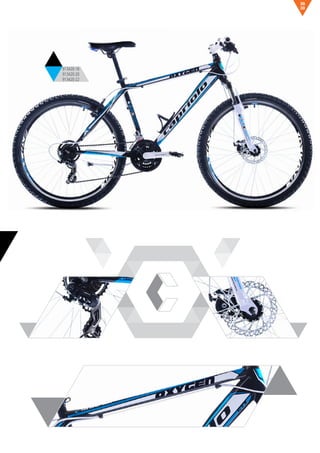

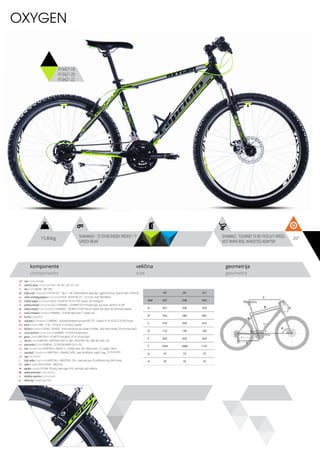

OXYGEN 38

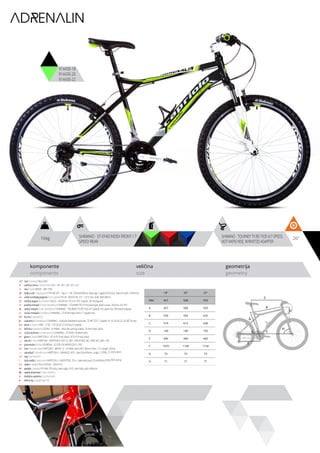

ADRENALIN 40

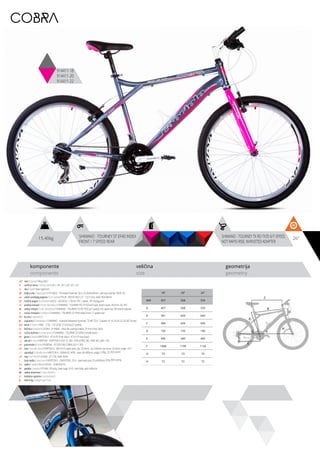

COBRA 42

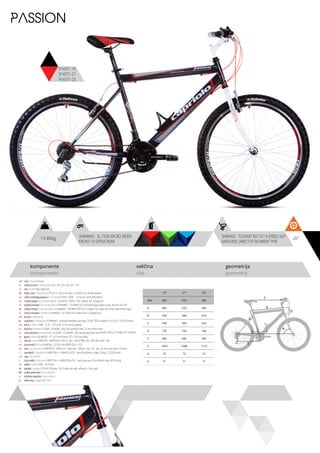

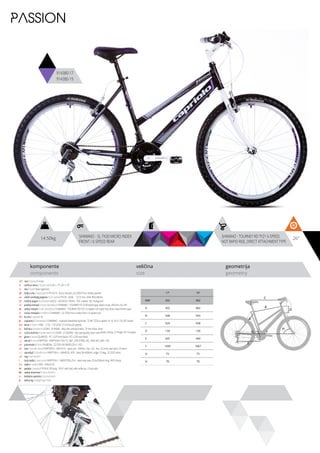

PASSION M 44
PASSION W 46

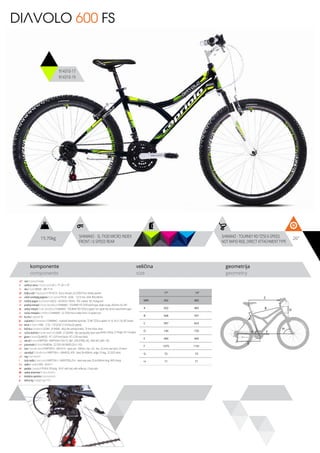

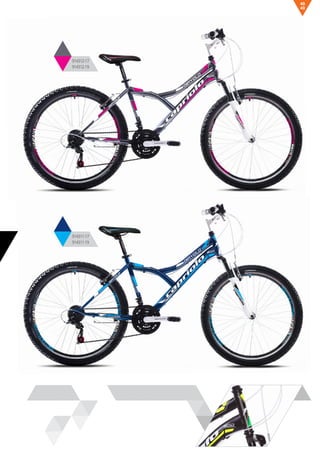

DIAVOLO 600 FS 48

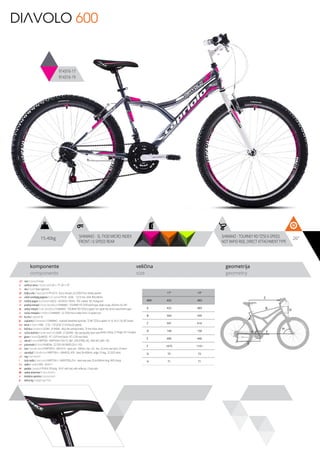

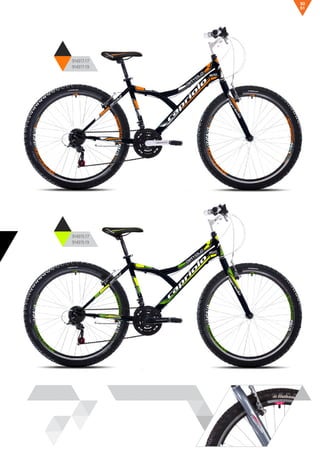

DIAVOLO 600 50

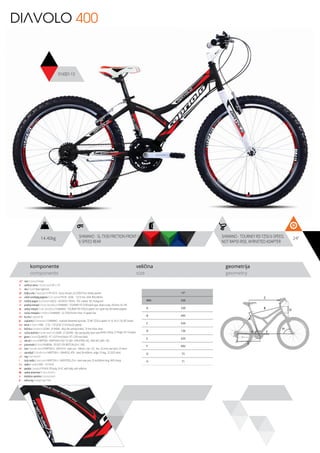

DIAVOLO 400 52

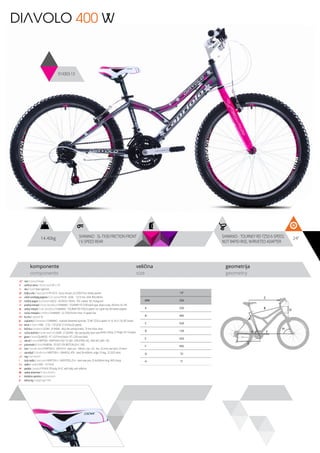

DIAVOLO 400 W 54

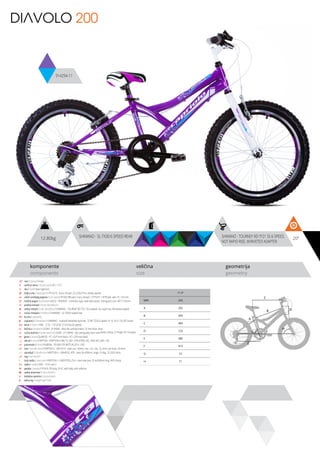

DIAVOLO 200 56
29”
26”
27.5”

FREERIDEBMX
ROADRACE
FULLSUSPENSION

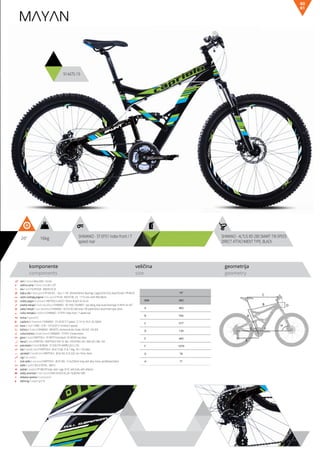

MAYAN 60
GTX 62

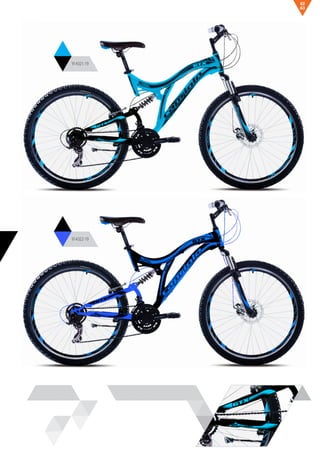

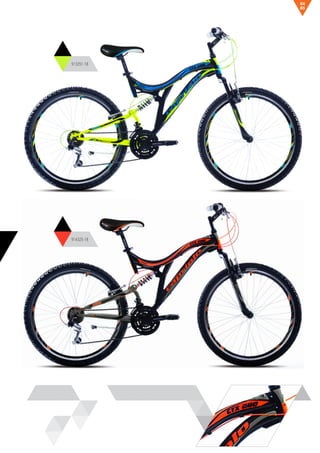

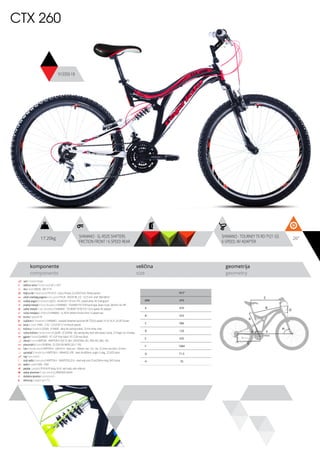

CTX 260 64

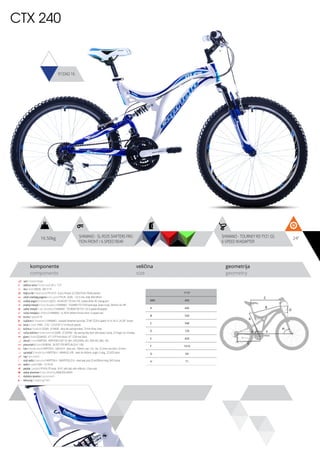

CTX 240 66

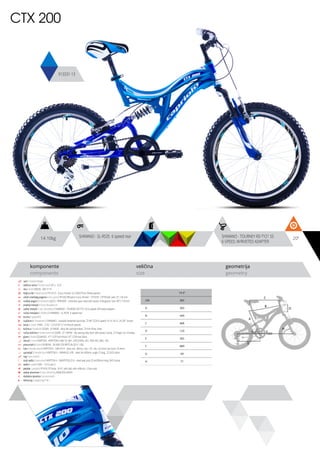

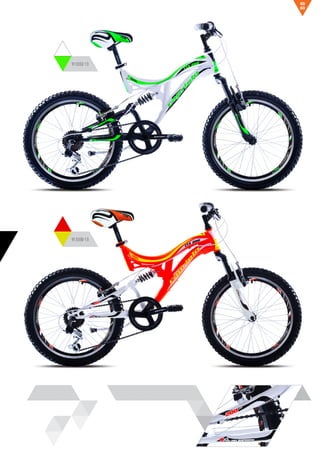

CTX 200 68

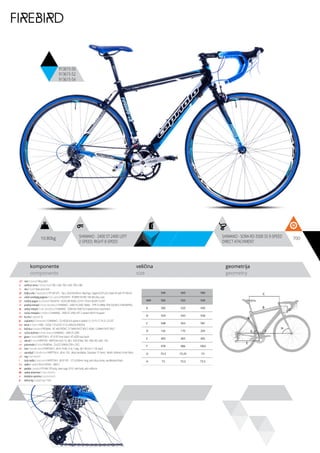

FIREBIRD 72

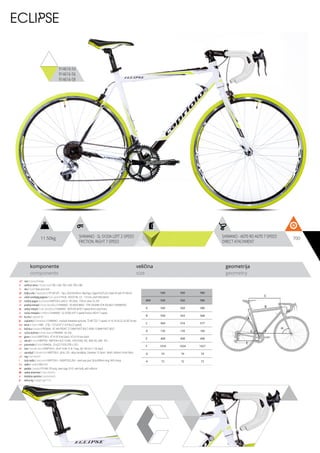

ECLIPSE 74
SPEEDSTER 75
SINGLE 76
TOURING
COMFORT

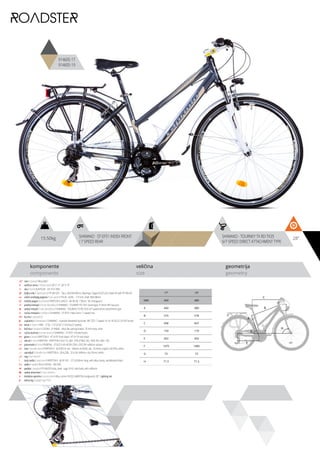

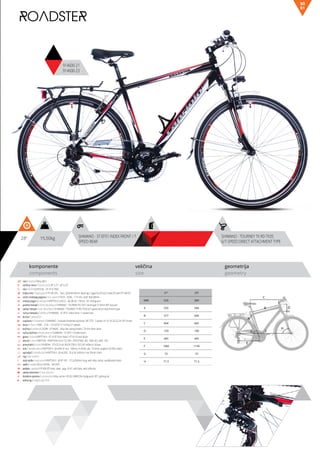

ROADSTER M 91
ROADSTER W 92

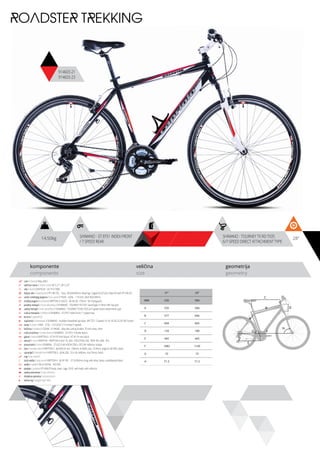

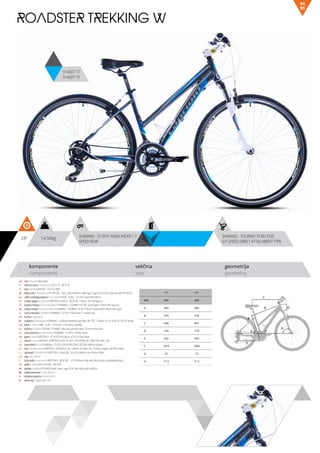

ROADSTER TREKK 94

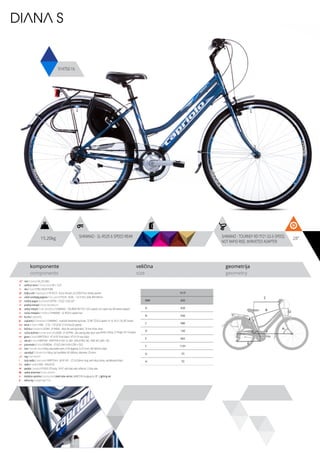

DIANA S 96

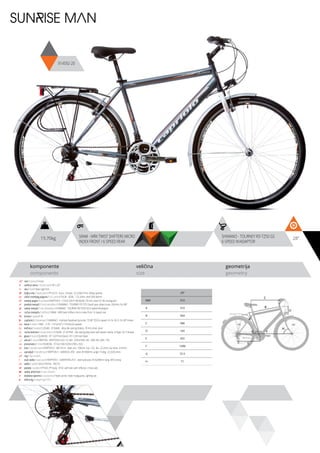

SUNRISE M 98

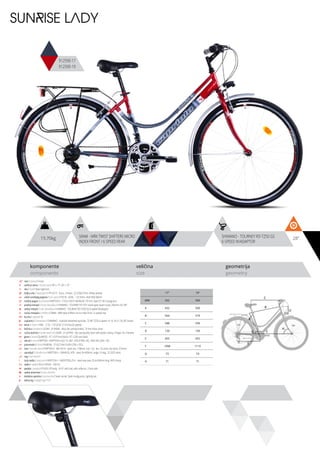

SUNRISE W 100

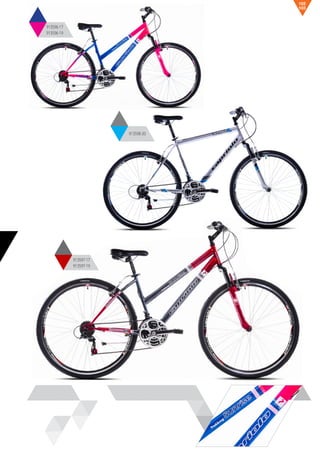

SUNRISE TREKK 102

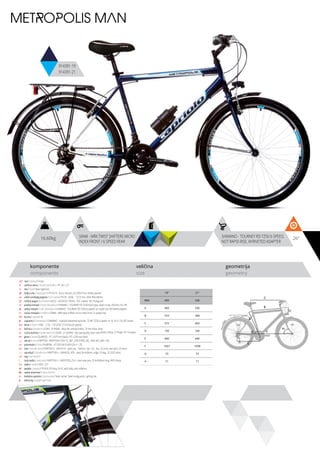

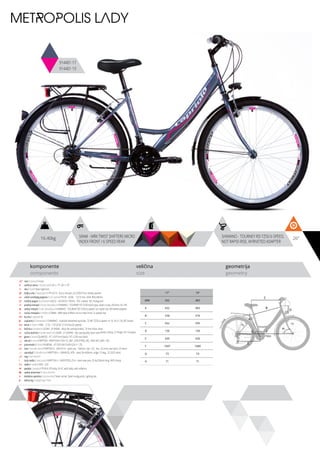

METROPOLIS M 104
METROPOLIS W 106

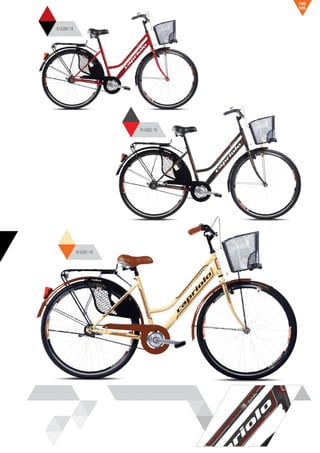

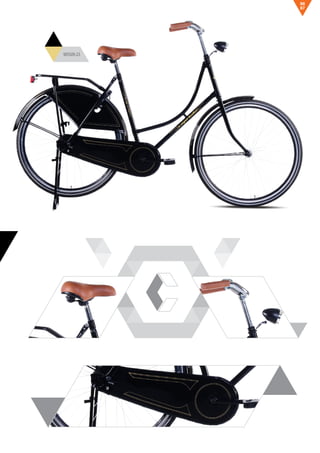

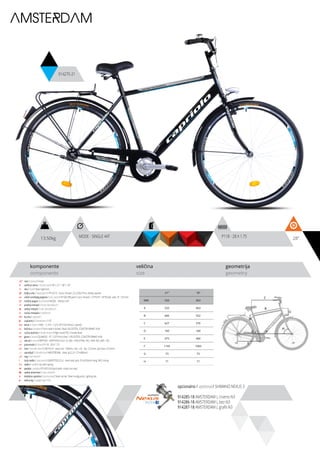

AMSTERDAM 108

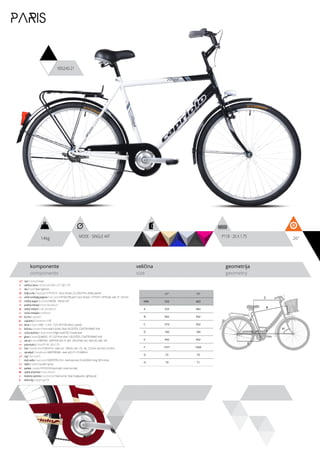

PARIS 110

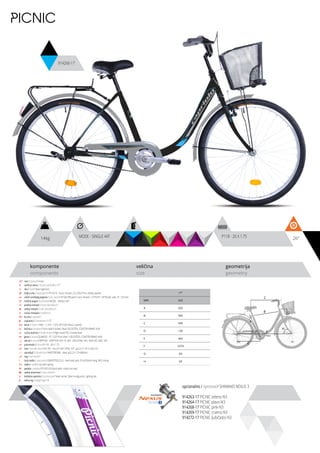

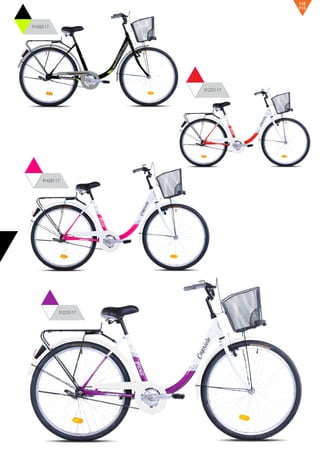

PICNIC 112

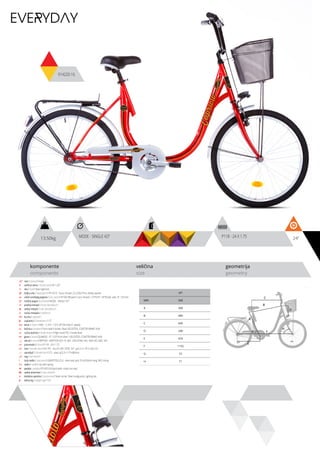

EVERYDAY 114

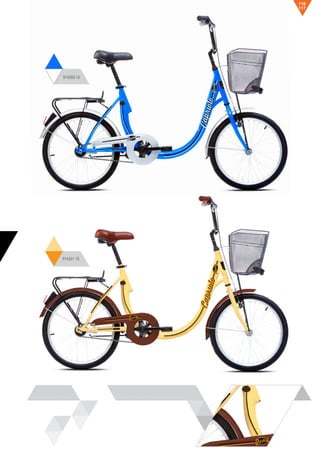

PONY 116

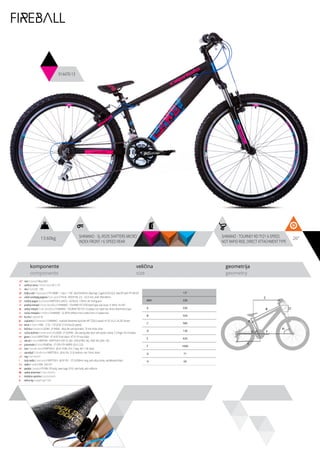

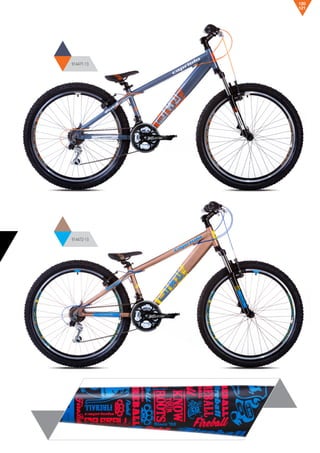

FIREBALL 120

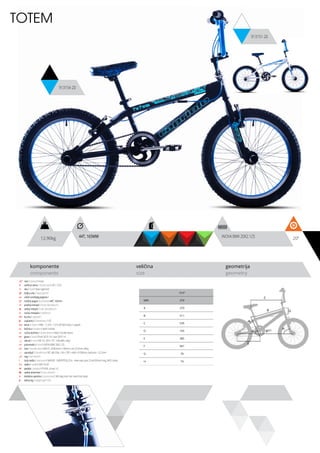

TOTEM 122

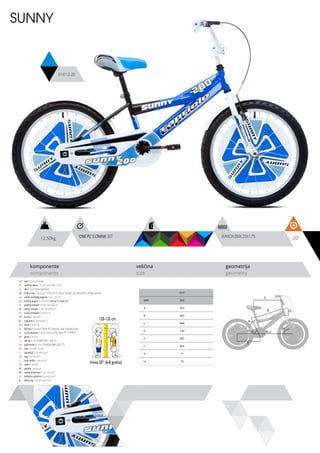

SUNNY 124

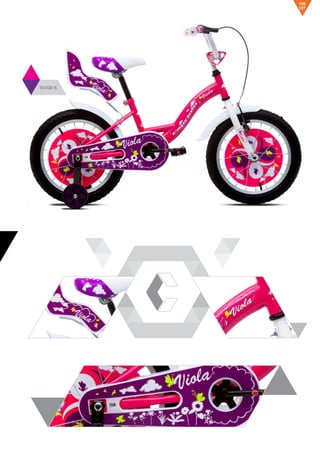

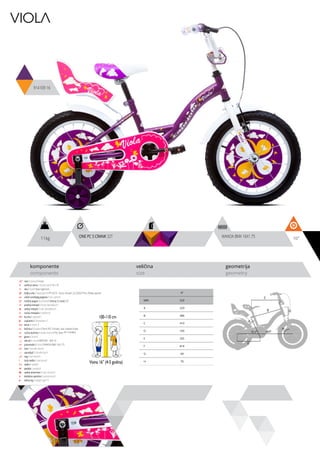

VIOLA 126

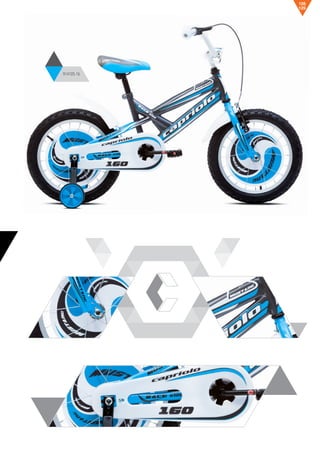

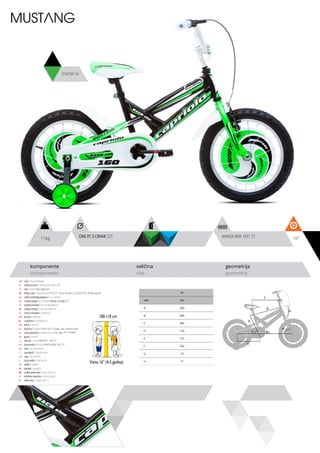

MUSTANG 128

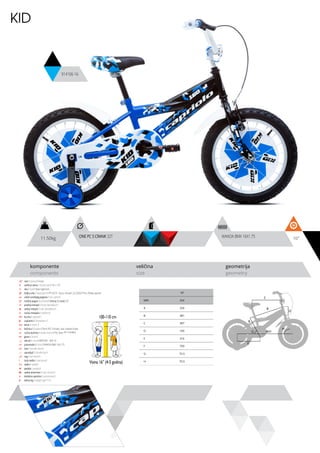

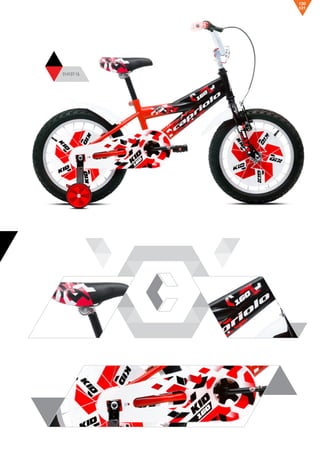

KID 130

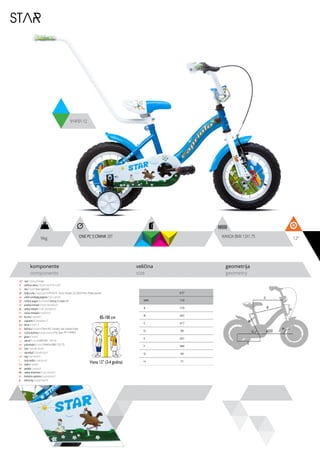

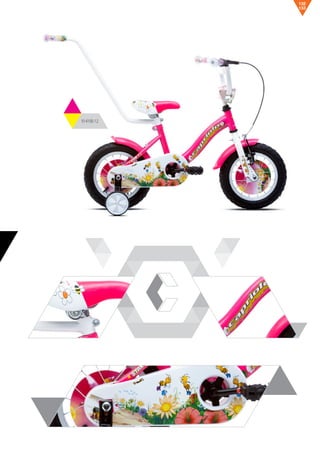

STAR 132

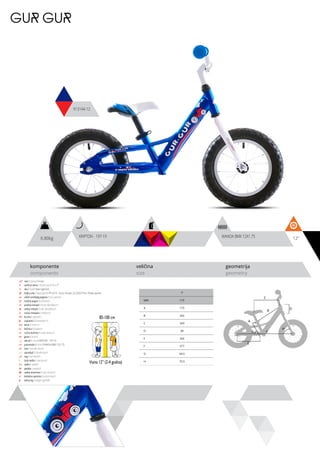

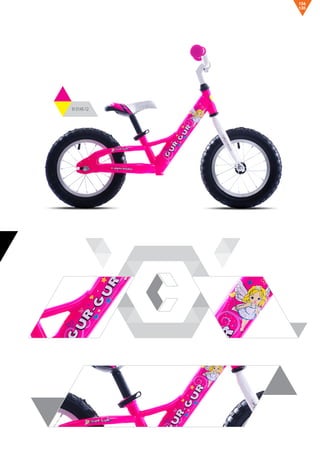

GUR GUR 134

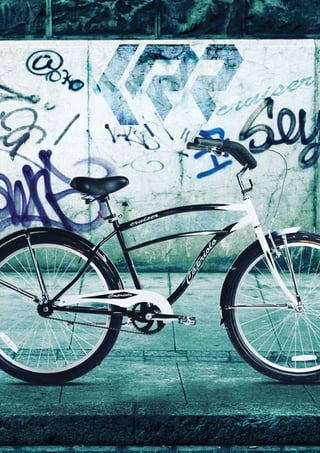

CRUISER
KANGEE 80

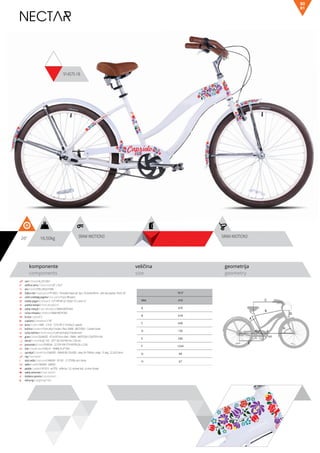

NECTAR 81
MALIBU 82

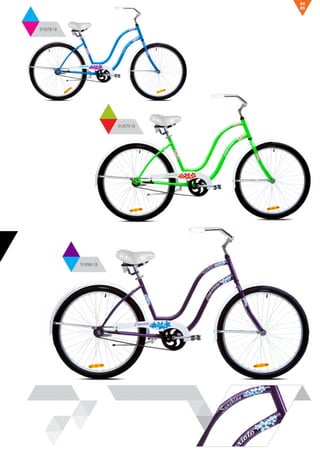

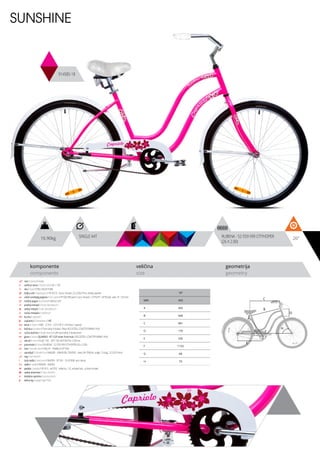

SUNSHINE 84
O’MA BIKE 86

CROSSCOUNTRYPreciznost, laganost i spremnost da daju sve od sebe bez obzira na vrstu terena jesu tri stvari
koje su nam na umu kada je reč o suštini bicikala sa maksimalnim performansama koja smo
dizajnirali za vas. Naša planinska bicikla s vrhunskim performansama predstavljaju Capriolov
najjači asortiman koji se iz godine u godinu razvija obnavljajući se. Odgovaraju na svim tipov-
ima terena za prave cross country trke koje se odigravaju na tehnički veoma komplikovanim
stazama, najbržim stazama, ali i na najvrtoglavijim nizbrdicama.
Preciseness, lightness and readiness to give its best whatever the terrain is are three things
that we had in mind when it comes to the essence of bicycles with top performances we de-
signed for you. Our mountain bikes with top performances represent Capriolo’s best assort-
ment which is being developed every year and at the same time regenerated. The charge
on all types of terrain in true Cross Country racing style. From most technically complicated
tracks and the fastest of paths to the most vertiginous downhill.

PRUŽITE IM ŠANSU
Želimo vam dobrodošlicu u novom svetu planinskih
bicikala pošto smo obnovili i proširili asortiman
29-inčnih Capriolo bicikala. Cilj nam je da ovaj oblik
biciklizma približimo sportistima na svim nivoima i
sa svim zahtevima. Otkrijte neograničenu kontrolu i
brzinu sa našim 29-inčnim biciklima.
PUNA BRZINA BEZ OBZIRA NA TEREN
Asortiman naših 29-inčnih bicikala proširen je kako bi
zadovoljio sve ukuse. Od sada su dostupna i tri nova
aluminijumska modela. Jačanju pozicije Capriola u
oblasti trkačkih bicikala, koja se izuzetno brzo razvi-
ja, doprinose naš profesionalizam i timski duh uz već
dobro poznate aluminijumske modele.
GIVE THEM A TRY
Welcome to a new way of enjoing mountain bikes. We
have renewed and enlarged our range of 29-inch Cap-
riolo bikes to draw this form of cycling closer to sports
people of all levels and requirements. Discover unlim-
ited traction and speed with our 29-inch bikes.
PURE SPEED WHATEVER THE TERRAIN
We have extended our 29-inch bicycle range with op-
tions for all tastes. We have added three new alumin-
ium models. Pro and team, to our well established
aluminium Racing cycle, strengthening our position
in fast-growing sector
LEVEL 29”

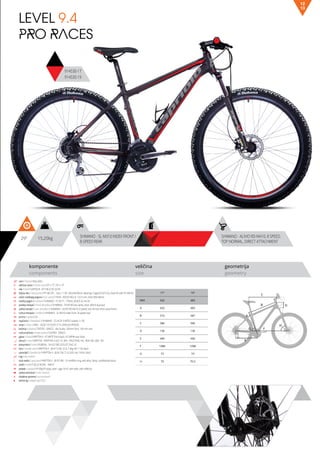

15,20kg29” SHIMANO - ALIVIO RD-M410, 8 SPEED,
TOP NORMAL, DIRECT ATTACHMENT
SHIMANO - SL-M310 INDEX FRONT /
8-SPEED REAR
komponente
components
veličina
size
geometrija
geometry
LEVEL 9.4
PRO RACES
C
DB
A
F
H
G
E
914530-17
914530-19
13
12
ram / frame / Alloy 6061
veličina rama / frame size / 29” x 17”; 29” x 19”
vila / fork / SUNTOUR - XCT-MLO-DS 29-V4
šoljica vile / head parts / FP-H812PL - 7pcs, 1-1/8”, 28.6/44/30mm, Bearings: Caged (5/32”x22), Steel ED with FP-HW-03
uložci srednjeg pogona / b.b. parts / THUN - ROCKY ML2.0- 122.5 mm, shell: BSA 68mm
srednji pogon /crankset / SHIMANO - FC-M171, 170mm, BLACK 42-34-24
prednji menjač / front derailleur / SHIMANO - FD-M190 low clamp, silver, Ø34.9 dual pull
zadnji menjač / rear derailleur / SHIMANO - ALIVIO RD-M410, 8 speed, top normal, direct attachment
ručica menjača / shifters / SHIMANO - SL-M310 index front / 8-speed rear
brzina / speed / 24
zupčanici / freewheel / SHIMANO - CS-HG31 8 MTB Cassette 11-30
lanac / chain / KMC - HG50 1/2”x3/32” (114 LINKS) (8 SPEEDS)
kočnica / brakes / TEKTRO - DRACO - disc brake, 160mm front, 160 mm rear
ručica kočnice / brake levers / TEKTRO - DRACO
glave / hubs / KRIPTON X - KT-MP7F front black / KT-MP4R rear black
obruči / rims / KRIPTON - KRYPTON-X 622-19, 36H , EYELETING: NO, RDA: NO, GBS: NO
pneumatici / tires / RUBENA - 54-622 V85 OCELOT 29x2.10
lula / handle stem / KRIPTON X - JB-A112-8A, 31.8, 7 deg, 90 1-1/8, black
upravljač / handle bar / KRIPTON X - JB-AL104, 31.8, 620, rise 15mm, black
rog / bar ends / -
stub sedla / seat post / KRIPTON X - JB-SP-306 - 31.6x400m long, with alloy clamp, sandblasted black
sedlo / sadle / SELLE ROYAL - MACH
pedale / pedals / FP-906,PP body, steel cage, 9/16”, with balls, with reflector
zadnji amortizer / rear shock / -
dodatna oprema / accesories / -
težina kg / weight kg / 15.2
17” 19”
MM 432 483
A 432 483
B 572 587
C 586 596
D 130 130
E 440 440
F 1086 1098
G 73 73
H 70 70.5

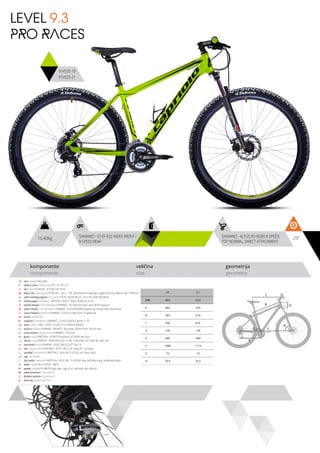

15,40kg 29”SHIMANO - ST-EF 652 INDEX FRONT /
8-SPEED REAR
SHIMANO - ALTUS RD-M280 8 SPEED,
komponente
components
veličina
size
geometrija
geometry
LEVEL 9.3
PRO RACES
C
DB
A
F
H
G
E
914535-19
914535-21
vila / fork / SUNTOUR - XCT-MLO-DS 29-V4
šoljica vile / head parts / FP-H812PL - 7pcs, 1-1/8”, 28.6/44/30mm, Bearings: Caged (5/32”x22), Steel ED with -FPHW-03
uložci srednjeg pogona / b.b. parts / THUN - ROCKY ML2.0- 122.5 mm, shell: BSA 68mm
srednji pogon /crankset / , KRIPTON X LASCO 170mm, BLACK 42-34-24
prednji menjač / front derailleur / SHIMANO - FD-TX50 low clamp, silver, Ø34.9 dual pull
zadnji menjač / rear derailleur / SHIMANO - ALTUS RD-M280 8 speed, top normal, direct attachment
ručica menjača / shifters / SHIMANO - ST-EF 652 index front / 8-speed rear
brzina / speed / 24
kočnica / brakes / SHIMNAO - BR-M375 - disc brake, 160mm front, 160 mm rear
ručica kočnice / brake levers / SHIMANO - ST-EF 652
rog / bar ends / -
19” 21”
MM 483 533
A 483 533
B 587 610
C 596 635
D 130 130
E 440 440
F 1098 1119
G 73 73
H 70.5 70.5

29”
komponente
components
veličina
size
geometrija
geometry
LEVEL 9.2
TEAM
C
DB
A
F
H
G
E
15,30kg SHIMANO - ALTUS RD-M280, 8 SPEED,
SHIMANO - ST-EF 652 INDEX FRONT /
8-SPEED REAR
914540-19
914540-21
15
14
vila / fork / SUNTOUR - M3020-A 29”
uložci srednjeg pogona / b.b. parts / THUN - ROCKY ML 2.0- 122.5 mm, shell: BSA 68mm
srednji pogon /crankset / KRIPTON X LASCO 170mm, BLACK 42-34-24
prednji menjač / front derailleur / SHIMANO - FD-TX50 low clamp, silver, Ø34.9 dual pull
zadnji menjač / rear derailleur / SHIMANO - ALTUS RD-M280, 8 speed, top normal, direct attachment
ručica menjača / shifters / SHIMANO - ST-EF 652 index front / 8-speed rear
brzina / speed / 24
kočnica / brakes / LOGAN - JY-935AE - V-brake
glave / hubs / KRIPTON X - KT-A15F front black / KT-AZER rear black
obruči / rims / KRIPTON - KRYPTON-X 622-19, 36H , EYELETING: NO, RDA: NO, GBS: YES
rog / bar ends / -
19” 21”
MM 483 533
A 483 533
B 587 610
C 596 635
D 130 130
E 440 440
F 1098 1119
G 73 73
H 70.5 70.5

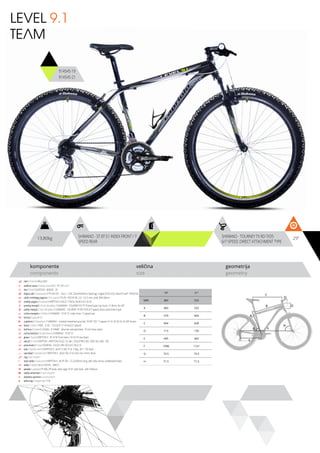

13,80kg 29”SHIMANO - ST-EF 51 INDEX FRONT / 7
SPEED REAR
SHIMANO - TOURNEY TX RD-TX35
6/7-SPEED, DIRECT ATTACHMENT TYPE
komponente
components
veličina
size
geometrija
geometry
C
DB
A
F
H
G
E
914545-19
914545-21
LEVEL 9.1
TEAM
vila / fork / SUNTOUR - M3020 - 29
prednji menjač / front derailleur / SHIMANO - TOURNEY FD-TY10 band type, top-route, 31.8mm, for 44T
zadnji menjač / rear derailleur / SHIMANO - TOURNEY TX RD-TX35 6/7-speed, direct attachment type
ručica menjača / shifters / SHIMANO - ST-EF 51 index front / 7 speed rear
brzina / speed / 21
zupčanici / freewheel / SHIMANO - multiple freewheel sprocket, TZ MF-TZ21 7-speed 14-16-18-20-22-24-28T brown
lanac / chain / KMC - Z-50 - 1/2”x3/32” (114 links) (7 speed)
kočnica / brakes / LOGAN - JY-946AE - alloy die casting brakes, 70 mm shoe, black
glave / hubs / KRIPTON X - KT-A15F front black / KT-A11R rear black
lula / handle stem / KRIPTON X - JB-A112-8A, 31.8, 7 deg., 90 1-1/8, black
rog / bar ends / -
stub sedla / seat post / KRIPTON X - JB-SP-301- 27.2x350mm long, with alloy clamp, sandblasted black
pedale / pedals / FP-906, PP body, steel cage, 9/16”, with balls, with reflector
19” 21”
MM 483 533
A 483 533
B 579 604
C 604 628
D 115 130
E 445 445
F 1096 1121
G 73.5 73.5
H 71.5 71.5

LEVEL 27.5”
ZA LJUBITELJE MAKSIMALNIH PERFORMANSI
Svoja reli bicikla razvili smo s jednim jasnim ciljem
na umu – da biciklistima koji žude za takmičenjem i
najtežim izazovima pružimo upravo ono što oni žele.
Ove mašine visokih performansi odlikuju preciznost
i lakoća.
FOR MAXIMUM PERFORMANCE ADMIRERS
We developed our rally bicycles with only one goal –
to offer the cyclists who crave for competitions and
hardest challenges exactly what they want. These
machines of high performance are precise and light.

13.70kg27.5” SHIMANO - TOURNEY TX RD-TX35
SHIMANO - ST-EF 51 INDEX FRONT / 7
SPEED REAR
komponente
components
veličina
size
geometrija
geometry

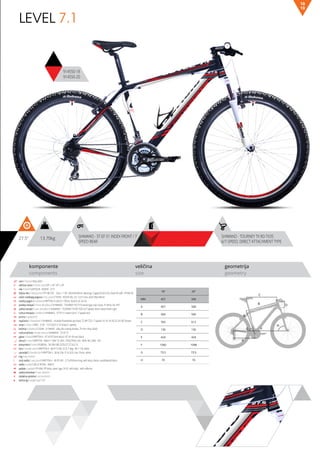

LEVEL 7.1
C
DB
A
F
H
G
E
914550-18
914550-20
19
18
vila / fork / SUNTOUR - M3030 - 27.5
ručica menjača / shifters / SHIMANO - ST-EF 51 index front / 7 speed rear
brzina / speed / 21
obruči / rims / KRIPTON - MACH 1 584-19, 36H , EYELETING: NO, RDA: NO, GBS: YES
pneumatici / tires / RUBENA - 54-584 V85 OCELOT 27.5x2.10
lula / handle stem / KRIPTON X - JB-A112-8A, 31.8, 7 deg., 90 1-1/8, white
upravljač / handle bar / KRIPTON X - JB-AL104, 31.8, 620, rise 15mm, white
rog / bar ends / -
18” 20”
MM 457 508
A 457 508
B 569 590
C 593 612
D 130 130
E 424 424
F 1082 1098
G 73.5 73.5
H 70 70

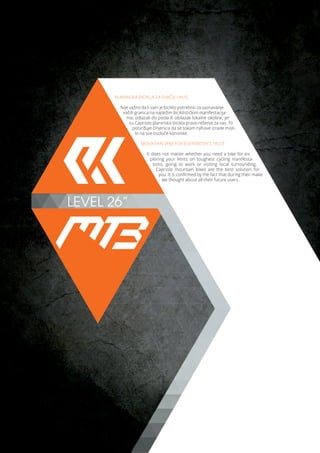

LEVEL 26”
PLANINSKA BICIKLA ZA SVAČIJI UKUS
Nije važno da li vam je biciklo potrebno za saznavanje
vaših granica na najtežim biciklističkim manifestacija-
ma, odlazak do posla ili obilazak lokalne okoline, jer
su Capriolo planinska bicikla pravo rešenje za vas. To
potvrđuje činjenica da se tokom njihove izrade misli-
lo na sve buduće korisnike.
MOUNTAIN BIKE FOR EVERYBODY’S TASTE
It does not matter whether you need a bike for ex-
ploring your limits on toughest cycling manifesta-
tions, going to work or visiting local surrounding,
Capriolo mountain bikes are the best solution for
you. It is confirmed by the fact that during their make
we thought about all their future users.

C
D
B
A
F
H
G
E
14,50kg26” SHIMANO - DEORE RD-M591, 9 SPEED,
SHIMANO - ALIVIO SL-M430 INDEX
FRONT / 9-SPEED REAR
komponente
components
veličina
size
geometrija
geometry
LIZARD
PRO RACES
914520-18
914520-20
914520-22
21
20
veličina rama / frame size / 26” x 18”; 26” x 20”; 26” x 22”
vila / fork / SUNTOUR - XCT MLO DS V4 26
srednji pogon /crankset / SUNTOUR XCT 414 WH, 175mm, 44-32-22
prednji menjač / front derailleur / SHIMANO- FD-M430 low clamp, black, Ø34.9, top pull
zadnji menjač / rear derailleur / SHIMANO - DEORE RD-M591, 9 speed, top normal, direct attachment
ručica menjača / shifters / SHIMANO - ALIVIO SL-M430 index front / 9-speed rear
brzina / speed / 27
zupčanici / freewheel / SHIMNAO - CS-HG30 9 MTB Cassette 11-32
lanac / chain / KMC - Z99, 1/2”x11/128” (114 LINKS) (9 SPEEDS)
kočnica / brakes / TEKTRO - DRACO - disc brake, 160mm front, 160 mm rear
ručica kočnice / brake levers / TEKTRO DRACO
pneumatici / tires / RUBENA - 54-559 V75 SCYLA SPORT 26x2.10 white line
rog / bar ends / -
sedlo / sadle / SELLE ROYAL - VIPER HRT
18” 20” 22”
MM 457 508 558
A 457 508 558
B 555 588 617
C 579 610 639
D 130 130 160
E 425 425 425
F 1072 1098 1122
G 73.5 73 72.5
H 70 70 70

15kg 26”SHIMANO - ST-EF652 INDEX FRONT /
8-SPEED REAR
SHIMANO - ALIVIO RD-M410, 8 SPEED,
komponente
components
veličina
size
geometrija
geometry
C
DB
A
F
H
G
E
GILA 2.0
PRO RACES
914505-18
914505-20
914505-22
914506-18
914506-20
914506-22
vila / fork / SUNTOUR - XCT DS 26
ručica menjača / shifters / SHIMANO - ST-EF652 index front / 8-speed rear
brzina / speed / 24
lanac / chain / KMC - HG-50 1/2”x3/32” (114 LINKS) (8 SPEEDS)
kočnica / brakes / SHIMNAO - BR-M375 - disc brake, 160mm front, 160 mm rear
ručica kočnice / brake levers / SHIMANO - ST-EF652
rog / bar ends / -
težina kg / weight kg / 15
18” 20” 22”
MM 457 508 558
A 457 508 558
B 555 588 617
C 579 610 639
D 130 130 160
E 425 425 425
F 1072 1098 1122
G 73.5 73 72.5
H 70 70 70

C
D
B
A
F
H
G
E
15kg26” SHIMANO - ALIVIO RD-M410, 8 SPEED,
SHIMANO - ST-EF652 INDEX FRONT /
8-SPEED REAR
komponente
components
veličina
size
geometrija
geometry
GILA 1.0
914501-18
914501-20
914501-22
23
22
914500-18
914500-20
914500-22
vila / fork / SUNTOUR - XCT 26
ručica menjača / shifters / SHIMANO - ST-EF652 index front / 8-speed rear
brzina / speed / 24
lanac / chain / KMC - HG-50 1/2”x3/32” (114 LINKS) (8 SPEEDS)
kočnica / brakes / AVID – SINGLE DIGIT 3 BLACK, 90 DEG., 16.0MM FIXING BOLTS
ručica kočnice / brake levers / SHIMANO - ST-EF652
rog / bar ends / -
18” 20” 22”
MM 457 508 558
A 457 508 558
B 555 588 617
C 579 610 639
D 130 130 160
E 425 425 425
F 1072 1098 1122
G 73.5 73 72.5
H 70 70 70

ANOLIS
14kg 26”SRAM - 3.0 INDEX FRONT / 7 SPEED
REAR
SRAM - X3 MEDIUM CAGE 8-SPEED,
DIRECT ATTACHMENT
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
913490-18
913490-20
913490-22
vila / fork / MODE - MD-986S
uložci srednjeg pogona / b.b. parts / THUN - ROCKY ML 2.0 - 117.5 mm, shell: BSA 68mm
srednji pogon /crankset / TRUVATIV - E300 3.0, SQ 175mm, BLACK 42-32-22
prednji menjač / front derailleur / SHIMANO - FD-TY10, TOURNEY - down-swing, top-route 31.8mm for 42T
zadnji menjač / rear derailleur / SRAM - X3 medium cage 8-speed, direct attachment
ručica menjača / shifters / SRAM - 3.0 index front / 7 speed rear
brzina / speed / 21
zupčanici / freewheel / SHIMANO - multiple freewheel sprocket MF-TZ21 7-speed 14-16-18-20-22-24-28T brown
ručica kočnice / brake levers / LOGAN - JY-341AE - die casting alloy lever with alloy clamp, 2.5 finger, for V-brakes
rog / bar ends / -
18” 20” 22”
MM 457 508 559
A 457 508 559
B 565 596 623
C 590 619 642
D 125 130 155
E 430 430 430
F 1059 1098 1122
G 73 73 73
H 71 71 71

913491-18
913491-20
913491-22
25
24

MOUNTAIN
BIKE
Capriolo je razvio čitav asortiman pouzadanih višenamenskih planinskih bicika-
la za profesionalne sportiste, ali i svakodnevnu namenu. Ponosimo se činjen-
icom da iz godine u godinu mogućnosti ovog asortimana proširujemo tako da
on postaje pristupačan svim biciklistima.
Capriolo has developed a whole assortment of reliable multi-purpose moun-
tain bikes not only for professional athletes, but also for everyday use. We are
proud of the fact that year after year we expand our assortment so that is
becomes affordable to all cyclists.

13.60kg 26”SHIMANO ST-EF 51 INDEX FRONT / 7
SPEED REAR
komponente
components
veličina
size
geometrija
geometry
C
DB
A
F
H
G
E
MONITOR FS
914438-18
914438-20
914438-22
vila / fork / XC-996A
ručica menjača / shifters / SHIMANO ST-EF 51 index front / 7 speed rear
brzina / speed / 21
ručica kočnice / brake levers / SHIMANO ST-EF 51
rog / bar ends / -
sedlo / sadle / SELLE ROYAL - MACH PU
18” 20” 22”
MM 450 510 559
A 450 510 559
B 555 574 591
C 579 596 610
D 140 160 180
E 420 420 420
F 1053 1079 1094
G 74 74 74
H 71 71 71

914440-18
914440-20
914440-22
914439-18
914439-20
914439-22
29
28

SPEED REAR
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
MONITOR FS
914448-17
914448-19
vila / fork / XC-996A
srednji pogon /crankset / KRIPTON X LASCO 170mm, WHITE 42-34-24
prednji menjač / front derailleur / SHIMANO - TOURNEY FD-TY10 band type, down-route, 31.8mm, for 44T
brzina / speed / 21
rog / bar ends / -
sedlo / sadle / DDK - D5633-02
17” 19”
MM 430 483
A 430 483
B 525 543
C 552 569
D 135 145
E 425 425
F 1026 1041
G 72 72
H 70 70

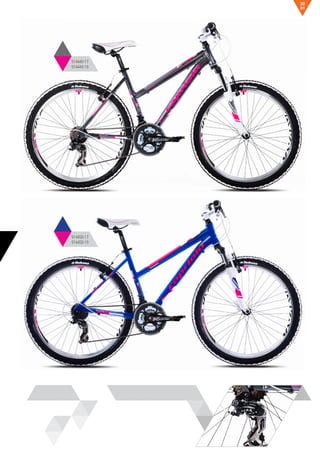

914449-17
914449-19
914450-17
914450-19
31
30

SPEED REAR
6/7-speed, direct attachment type
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E

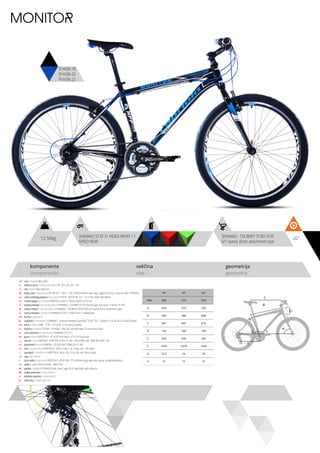

MONITOR
914436-18
914436-20
914436-22
vila / fork / Steel rigid fork
brzina / speed / 21
pneumatici / tires / RUBENA - 50-559 V58 COBRA (26 X 1.90)
rog / bar ends / -
18” 20” 22”
MM 450 510 559
A 450 510 559
B 560 586 606
C 581 602 616
D 140 160 180
E 420 420 420
F 1053 1079 1094
G 73.5 74 74
H 72 72 72

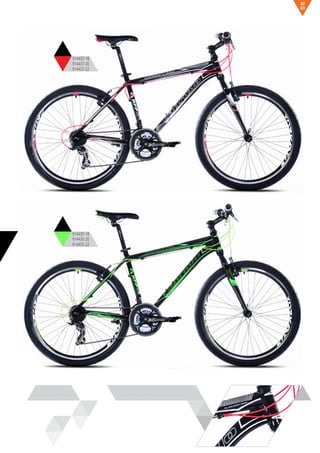

914437-18
914437-20
914437-22
914435-18
914435-20
914435-22
33
32

SPEED REAR
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
MONITOR
914446-17
914446-19
srednji pogon /crankset / KRIPTON X LASCO 170mm, WHITE 42-34-24
brzina / speed / 21
rog / bar ends / -
17” 19”
MM 430 483
A 430 483
B 525 553
C 552 574
D 135 145
E 425 425
F 1026 1041
G 72 72
H 71 71

914447-17
914447-19
914445-17
914445-19
35
34

12.50kg 26”SHIMANO SL-RS35 FRICTION FRONT
/ 6 SPEED REAR
SHIMANO - TOURNEY TX RD-TY21
6-SPEED, DIRECT ATTACHMENT TYPE
komponente
components
veličina
size
geometrija
geometry
ATTACK
914562-20
914562-22
C
D
B
A
F
H
G
E
šoljica vile / head parts / FP-H808F - 11pcs, 1-1/8”, 28.6/34/30mm, Bearings: Caged (5/32”x22), Steel ED w/ FP-HW-03
uložci srednjeg pogona / b.b. parts / THUN - GOAL - 122.5 mm, shell: BSA 68mm
srednji pogon /crankset / LASCO - 42/34/24,170 mm, PVC coated, W/ chainguard
zadnji menjač / rear derailleur / SHIMANO - TOURNEY TX RD-TY21 6-speed, direct attachment type
ručica menjača / shifters / SHIMANO SL-RS35 friction front / 6 speed rear
brzina / speed / 18
zupčanici / freewheel / SHIMANO - multiple freewheel sprocket, TZ MF-TZ20 6-speed 14-16-18-21-24-28T brown
ručica kočnice / brake levers / LOGAN - LL-325PAE V-brake levers
pneumatici / tires / RUBENA - 52-559 V36 RAPID (26 X 1.95)
rog / bar ends / -
sedlo / sadle / DDK - SA-0111
pedale / pedals / FP-818,PP body, 9/16”, with balls, with reflector
20” 22”
MM 430 483
A 430 483
B 525 553
C 552 574
D 135 145
E 425 425
F 1026 1041
G 72 72
H 71 71

914561-20
914561-22
914560-20
914560-22
37
36

15.80kg 26”SHIMANO - ST-EF40 INDEX FRONT / 7
SPEED REAR
SHIMANO - TOURNEY TX RD-TX35 6/7-SPEED,
NOT RAPID-RISE, W/RIVETED ADAPTER
komponente
components
veličina
size
geometrija
geometry
C
DB
A
F
H
G
E
OXYGEN
913421-18
913421-20
ram / frame / Hi-ten
vila / fork / MODE - MD-735F
zadnji menjač / rear derailleur / SHIMANO - TOURNEY TX RD-TX35 6/7-speed, not rapid-rise, W/riveted adapter
ručica menjača / shifters / SHIMANO - ST-EF40 index front / 7 speed rear
brzina / speed / 21
kočnica / brakes / LOGAN - DX2003F - Front mechanical disc brake; JY-946AE - Rear alloy V-brake, 70 mm shoe, black
ručica kočnice / brake levers / SHIMANO - ST-EF40 V-brake levers
glave / hubs / KRIPTON X - KT-MP7F front black / KT-A11R rear black
lula / handle stem / KRIPTON X - MDHS-12 - A-HEAD stem; EXT: 90mm, Rise: +15, Length: 50mm
upravljač / handle bar / KRIPTON X - GWHB-02, MTB - steel, W=580mm, angle: 5 deg., 22.2x25.4mm
rog / bar ends / -
stub sedla / seat post / KRIPTON X - GWSPSTEEL 25.4 - steel seat post 25.4x300mm long, W/O clamp
18” 20” 22”
MM 457 508 559
A 457 508 559
B 556 580 605
C 579 599 619
D 125 140 160
E 420 420 420
F 1059 1080 1101
G 73 73 73
H 70 70 70
913421-22

913420-18
913420-20
39
38
913420-22

16kg 26”SHIMANO - ST-EF40 INDEX FRONT / 7
SPEED REAR
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
ADRENALIN
914430-18
914430-20
914430-22
brzina / speed / 21
lula / handle stem / RIPTON X - MDHS-12 - A-HEAD stem; EXT: 90mm, Rise: +15, Length: 50mm
upravljač / handle bar / KRIPTON X - GWHB-02, ATB - steel, W=600mm, angle: 15 deg., 22.2X25.4mm
rog / bar ends / -
sedlo / sadle / SELLE ROYAL - WOLF PU
18” 20” 22”
MM 457 508 559
A 457 508 559
B 550 593 625
C 574 613 638
D 140 140 150
E 440 440 440
F 1070 1109 1134
G 73 73 73
H 71 71 71

914432-18
914432-20
914432-22
914431-18
914431-20
914431-22
41
40

15.40kg 26”SHIMANO - TOURNEY ST-EF40 INDEX
FRONT / 7 SPEED REAR
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
COBRA
914411-18
914411-20
914411-22
šoljica vile / head parts / FP-H853 - Threaded head set 7pcs, 25.4x44x30mm , with key washer, finish: ED
uložci srednjeg pogona / b.b. parts / THUN - ROCKY MLK 2.0 - 122.5 mm, shell: BSA 68mm
srednji pogon /crankset / LASCO - 42/34/24 , 170mm, PVC coated, W/ chainguard
ručica menjača / shifters / SHIMANO - TOURNEY ST-EF40 index front / 7 speed rear
brzina / speed / 21
ručica kočnice / brake levers / SHIMANO - TOURNEY ST-EF40 V-brake levers
lula / handle stem / KRIPTON X - MD-HS15-steel stem, dia. 25.4mm, ext:100mm, bar bore: 25.4mm, angle +25 °
upravljač / handle bar / KRIPTON X - GWHB-02, MTB - steel, W=580mm, angle: 5 deg., 22.2X25.4mm
rog / bar ends / LOGAN - LE-T-56, steel, black
sedlo / sadle / SELLE ROYAL - SHADOW PU
18” 20” 22”
MM 457 508 559
A 457 508 559
B 561 609 643
C 584 626 650
D 150 150 160
E 440 440 440
F 1068 1109 1134
G 73 73 73
H 72 72 72

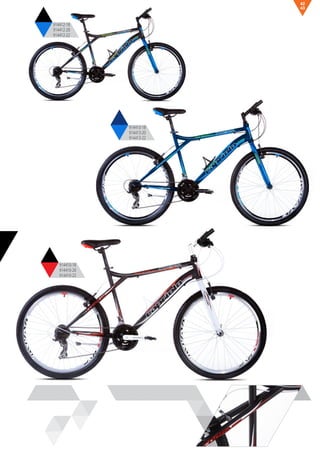

914412-18
914412-20
914412-22
914413-18
914413-20
914413-22
914410-18
914410-20
914410-22
43
42

14.80kg 26”SHIMANO - SL-TX30 MICRO INDEX
SHIMANO - TOURNEY RD-TY21 6-SPEED, NOT
RAPID-RISE, DIRECT ATTACHMENT TYPE
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
PASSION
914371-19
914371-21
914371-23
šoljica vile / head parts / FP-H515 - 8 pcs, thread: 22.2/30/27mm, W/key washer
srednji pogon /crankset / LASCO - 42/34/24 170mm, PVC coated, W/ chainguard
prednji menjač / front derailleur / SHIMANO - TOURNEY FD-TZ30 band type, down-route, 28.6mm, for 44T
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TY21 6-speed, not rapid-rise, direct attachment type
ručica menjača / shifters / SHIMANO - SL-TX30 micro index front / 6 speed rear
brzina / speed / 18
kočnica / brakes / LOGAN - JY-946AE - alloy die casting brakes, 70 mm shoe, silver
ručica kočnice / brake levers / LOGAN - JY-332PAE - die casting alloy lever with plastic clamp, 2.5 finger, for V-brakes
glave / hubs / QUANDO - KT-122F front black / KT-122R rear black
lula / handle stem / KRIPTON X - GW-HS14 - steel, ext.: 100mm, rise: +25, dia.: 22.2mm, bar bore: 25.4mm
upravljač / handle bar / KRIPTON X - GWHB-02, ATB - steel, W=600mm, angle 15 deg., 22.2X25.4mm
rog / bar ends / -
stub sedla / seat post / KRIPTON X - GWSPSTEEL25.4 - steel seat post 25.4x300mm long, W/O clamp
sedlo / sadle / DDK - 5310 nex
pedale / pedals / FP-818, PP body, 9/16”, with ball, with reflector, 2-face axle
19” 21” 23”
MM 483 533 584
A 483 533 584
B 539 584 619
C 558 593 623
D 150 150 160
E 440 440 440
F 1053 1088 1110
G 73 73 73
H 71 71 71

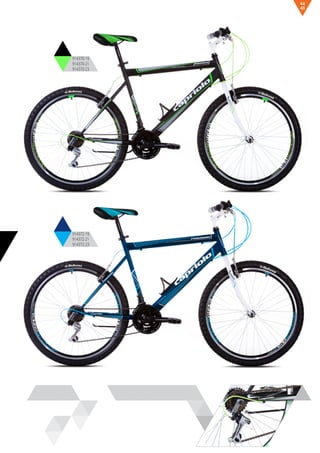

914370-19
914370-21
914370-23
914372-19
914372-21
914372-23
45
44

SHIMANO - TOURNEY RD-TY21 6-SPEED,
NOT RAPID-RISE, DIRECT ATTACHMENT TYPE
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
PASSION
914380-17
914380-19
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TY21 6-speed, not rapid-rise, direct attachment type
brzina / speed / 18
rog / bar ends / -
17” 19”
MM 432 482
A 432 482
B 508 543
C 529 558
D 130 130
E 435 440
F 1035 1067
G 72 72
H 70 70

914382-17
914383-17
914382-19
914383-19
914381-17
914381-19
47
46

SHIMANO - TOURNEY RD-TZ50 6-SPEED,
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
DIAVOLO 600 FS
914310-17
914310-19
vila / fork / MODE - MD-711X
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TZ50 6-speed, not rapid-rise, direct attachment type
brzina / speed / 18
rog / bar ends / -
sedlo / sadle / DDK - SA 0111
17” 19”
MM 432 483
A 432 483
B 568 597
C 597 623
D 140 150
E 440 440
F 1075 1101
G 72 72
H 71 71

914312-17
914312-19
914311-17
914311-19
49
48

komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
DIAVOLO 600
914316-17
914316-19
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TZ50 6-speed, not rapid-rise, direct attachment type
brzina / speed / 18
rog / bar ends / -
sedlo / sadle / DDK - SA 0111
17” 19”
MM 432 483
A 432 483
B 564 595
C 591 616
D 140 150
E 440 440
F 1075 1101
G 72 72
H 71 71

914317-17
914317-19
914315-17
914315-19
51
50

14.40kg 24”SHIMANO - SL-TX30 FRICTION FRONT /
6 SPEED REAR
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
DIAVOLO 400
914301-13
veličina rama / frame size / 24” x 13”
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TZ50 6-speed, not rapid-rise, W/riveted adapter
ručica menjača / shifters / SHIMANO - SL-TX30 friction front / 6 speed rear
brzina / speed / 18
pneumatici / tires / RUBENA - 50-507 V78 NEPTUN (24 X 1.90)
rog / bar ends / -
sedlo / sadle / DDK - 1217A XC
pedale / pedals / FP-818, PP body, 9/16”, with balls, with reflector
13”
MM 330
A 330
B 495
C 520
D 130
E 420
F 992
G 72
H 71

SHIMANO - SL-TX30 FRICTION FRONT
/ 6 SPEED REAR
komponente
components
veličina
size
geometrija
geometry
DIAVOLO 400 W
914303-13
C
D
B
A
F
H
G
E
14.40kg 24”
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TZ50 6-speed, not rapid-rise, W/riveted adapter
ručica menjača / shifters / SHIMANO - SL-TX30 friction front / 6 speed rear
brzina / speed / 18
rog / bar ends / -
13”
MM 330
A 330
B 495
C 520
D 130
E 420
F 992
G 72
H 71

12.80kg 20”SHIMANO - SL-TX30 6 SPEED REAR SHIMANO - TOURNEY RD-TY21 SS 6-SPEED,
komponente
components
veličina
size
geometrija
geometry
C
DB
A
F
H
G
E
DIAVOLO 200
914294-11
11.5”
MM 292
A 292
B 459
C 483
D 125
E 380
F 913
G 72
H 71
veličina rama / frame size / 20” x 11.5”
uložci srednjeg pogona / b.b. parts / FP-602 BB parts 5 pcs, thread: 1.37”X24T, 1/4”X9 ball, axle: 3T, 126 mm
srednji pogon /crankset / LASCO - RP840DP - cotterless type, steel with plastic chainguard, size: 40T X 152mm
prednji menjač / front derailleur / -
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TY21 SS 6-speed, not rapid-rise, W/riveted adapter
ručica menjača / shifters / SHIMANO - SL-TX30 6 speed rear
brzina / speed / 6
rog / bar ends / -
sedlo / sadle / DDK - 1216 rush 2

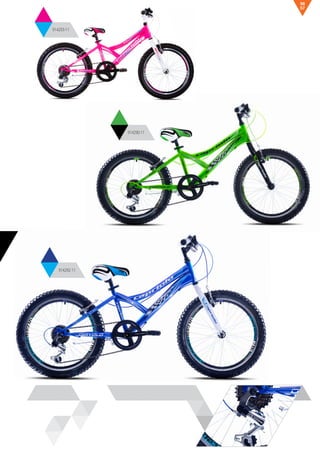

914293-11
914290-11
914292-11
57
56

FULLSUSPENSION
Full Suspension za nas predstavlja avanturistički biciklizam. Bez obzira da li tragate za nep-
oznatim stazama koje ostavljaju bez daha u ušuškanom svetu najizazovnijih vrhova, ili se pak
trkate u reli stilu na terenu punom šiblja, ova u potpunosti planinska bicikla moraju da budu
lagana, efikasna i čvrsta. Naš legendarni Mayan, sinonim za avanturu, performans i spos-
obnost, redizajniran je da bi ispunio standarde vašeg stila vožnje. Izaberite svoju avanturu,
izaberite Mayan.
Full Suspension represents adventurous cycling. No matter if you search for unknown tracks
that take your breath away in tucked world of peaks, or put on a number plate and race Rally
Car-style through Mother Nature’s terrain gauntlet, these completely mountain bikes must
be light, efficient and tough. Our legendary Mayan, synonym for adventure, performance
and capability, has been redesigned to fulfill standards of your style of ride. Choose your
adventure, choose Mayan.

FULL SUSPENSION
SVESTRANOST I MAKSIMALNO UŽIVANJE
Mayan i GTX su naša najrasprostranjenija bicikla. Uz
pomoć njih udobno se provedite na svim vrstama
terena i uživajte u svojim izletima kao nikada ranije.
Vozeći ih osetićete adrenalin koji će promeniti vašu
svakodnevnu rutinu.
VERSATILITY AND MAXIMUM PLEASURE
Mayan and GTX are our most common bicycles. Have
fun on all kinds of terrain riding them and enjoy your
field trips like never before. Riding them you will feel
adrenaline that will change your everyday routine.

C
DB
A
F
H
G
E
16kg26” SHIMANO - ALTUS RD-280 SMART 7/8-SPEED
DIRECT ATTACHMENT TYPE, BLACK
SHIMANO - ST-EF51 index front / 7
speed rear
komponente
components
veličina
size
geometrija
geometry
MAYAN
914475-19
61
60
ram / frame / Alloy 6061 / Hi-ten
vila / fork / SUNTOUR - M3030 DS 26
prednji menjač / front derailleur / SHIMANO - FD-TX50, TOURNEY - top-swing, dual-route band type 31.8mm for 42T
zadnji menjač / rear derailleur / SHIMANO - ALTUS RD-280 smart 7/8-speed direct attachment type, black
brzina / speed / 21
zupčanici / freewheel / SHIMANO - CS-HG20-7I 7-speed, 12-14-16-18-21-26-32(AN)
kočnica / brakes / SHIMANO - BR-M375, mechanical disc brake 160 IS/F, 160 IS/R
glave / hubs / KRIPTON X - KT-MP7F front black / KT-MD2R rear black
pneumatici / tires / RUBENA - 57-559 V79 HARPIE (26 X 2.25)
rog / bar ends / -
stub sedla / seat post / KRIPTON X - JB-SP-306 - 31.6x250mm long, with alloy clamp, sandblasted black
zadnji amortizer / rear shock / KIND SHOCK KS-261 F(LBS/IN) 1000
19”
MM 483
A 483
B 556
C 577
D 130
E 440
F 1079
G 70
H 71

18.30kg 26”SHIMANO - SL-RS35 SHIFTERS
FRICTION FRONT / 7 SPEED REAR
6/7-speed, not rapid-rise, W/ adapter
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E

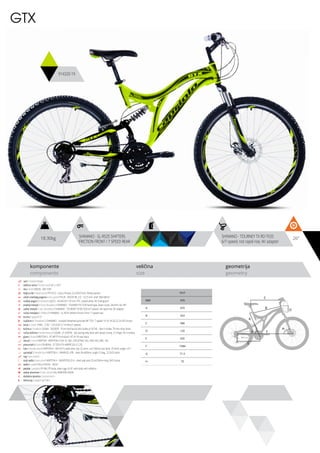

GTX
914320-19
srednji pogon /crankset / LASCO - 42/34/24T,170 mm, PVC coated white, W/ chainguard
zadnji menjač / rear derailleur / SHIMANO - TOURNEY TX RD-TX35 6/7-speed, not rapid-rise, W/ adapter
ručica menjača / shifters / SHIMANO - SL-RS35 shifters friction front / 7 speed rear
brzina / speed / 21
kočnica / brakes / LOGAN - DX2003F - Front mechanical disc brake; JY-927AE - Rear V-brake, 70 mm shoe, black
glave / hubs / KRIPTON X - KT-MP7F front black / KT-A11R rear black
pneumatici / tires / RUBENA - 57-559 V79 HARPIE (26 X 2.25)
lula / handle stem / KRIPTON X - MD-HS15-steel stem, dia. 22.2mm, ext:100mm, bar bore: 25.4mm, angle +25 °
rog / bar ends / -
sedlo / sadle / SELLE ROYAL - WOLF
zadnji amortizer / rear shock / KLJ 400B 850 LBS/IN
18.5”
MM 470
A 470
B 553
C 586
D 120
E 435
F 1084
G 71.5
H 70

26”
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
CTX 260
913350-18
17.20kg SHIMANO - SL-RS35 SHIFTERS
FRICTION FRONT / 6 SPEED REAR
SHIMANO - TOURNEY TX RD-TY21 GS
6-SPEED, W/ ADAPTER
zadnji menjač / rear derailleur / SHIMANO - TOURNEY TX RD-TY21 GS 6-speed, W/ adapter
brzina / speed / 18
zupčanici / freewheel / SHIMANO - multiple freewheel sprocket MF-TZ20 6-speed 14-16-18-21-24-28T brown
gglave / hubs / QUANDO - KT-122F front black / KT-122R rear black
rog / bar ends / -
sedlo / sadle / DDK - 2582
pedale / pedals / FP-818 PP body, 9/16”, with balls, with reflector
zadnji amortizer / rear shock / LJ 400B 850 LBS/IN
18.5”
MM 470
A 470
B 553
C 586
D 120
E 435
F 1084
G 71.5
H 70

24”
komponente
components
veličina
size
geometrija
geometry
CTX 240
913342-16
C
D
B
A
F
H
G
E
16.50kg SHIMANO - SL-RS35 SHIFTERS FRIC-
TION FRONT / 6 SPEED REAR
SHIMANO - TOURNEY RD-TY21 GS
6-SPEED W/ADAPTER
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TY21 GS 6-speed W/adapter
brzina / speed / 18
rog / bar ends / -
17.5”
MM 445
A 445
B 520
C 540
D 120
E 420
F 1010
G 69
H 71

20”
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
CTX 200
913331-13
14.10kg SHIMANO - SL-RS35 6 speed rear SHIMANO - TOURNEY RD-TY21 SS
6-SPEED, W/RIVETED ADAPTER
srednji pogon /crankset / LASCO - RP840DP - cotterless type, steel with plastic chainguard, size: 40T X 152mm
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TY21 SS 6-speed, W/riveted adapter
ručica menjača / shifters / SHIMANO - SL-RS35 6 speed rear
brzina / speed / 6
rog / bar ends / -
sedlo / sadle / DDK - 1216 rush 2
14.3”
CM 365
A 365
B 449
C 468
D 120
E 365
F 889
G 69
H 71

ROAD
RACE
Brzina, preciznost i okretnost osobine su koje krase naša drumska bicikla. Kao
kombinacija tehnologije i pouzdanosti ona su biciklisti na raspolaganja gde god.
Nudimo vam od modela dizajniranih za takmičenje pa sve do onih koji su namen-
jeni za zadovoljstvo i uživanje u beskrajnim vožnjama do najudaljenijih lokacija.
Speed, preciseness and agility are features that our city bicycles have. As a com-
bination of technology and reliability they are available anywhere. We offer not
only models designed for competitions but also those made for pleasure and
enjoyment in endless rides towards furthest locations.

10.80kg 700SHIMANO - 2400 ST-2400 LEFT
2-SPEED; RIGHT 8-SPEED
SHIMANO - SORA RD-3500 SS 9-SPEED
DIRECT ATACHMENT
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
FIREBIRD
913615-50
913615-52
913615-54
veličina rama / frame size / 700 x 540, 700 x 560, 700 x 580
vila / fork / Steel aero fork
šoljica vile / head parts / FP-H812PL - 7pcs, 28.6/44/30mm, Bearings: Caged (5/32”x22), Steel ED with FP-HW-03
uložci srednjeg pogona / b.b. parts / TRUVATIV - POWER SPLINE 108 /68 alloy cups
srednji pogon /crankset / TRUVATIV - ISOFLOW ROAD 2.0 PS 175mm AEGRY 53,39T
prednji menjač / front derailleur / SHIMANO - 2400 FD-2400 BAND- TYPE 31.8MM, FOR DOUBLE CHAINWHEEL
zadnji menjač / rear derailleur / SHIMANO - SORA RD-3500 SS 9-speed direct atachment
ručica menjača / shifters / SHIMANO - 2400 ST-2400 LEFT 2-speed; RIGHT 8-speed
brzina / speed / 16
zupčanici / freewheel / SHIMANO - CS-HG50-8 8-speed ni-plated 12-13-15-17-19-21-23-25T
lanac / chain / KMC - HG50, 1/2”x3/32” (114 LINKS) (8 SPEEDS)
kočnica / brakes / PROMAX - RC-469 FRONT, 27.5MM PIVOT BOLT; REAR, 12.8MM PIVOT BOLT
ručica kočnice / brake levers / SHIMANO - 2400 ST-2400
obruči / rims / KRIPTON - KRIPTON X 622-15, 36H, EYELETING: NO, RDA: NO, GBS: YES
pneumatici / tires / RUBENA - 23-622 SYRINX (700 x 23C)
lula / handle stem / KRIPTON X - JB-A114-8A, 31.8, 7 deg., 80 / 90 mm 1-1/8, black
upravljač / handle bar / KRIPTON X - JB-AL-105 - Alloy handlebar, Diameter: 31.8mm, Width: 440mm, Finish Black
rog / bar ends / -
540 560 580
MM 500 520 540
A 500 520 540
B 529 543 558
C 548 563 581
D 145 170 205
E 405 405 405
F 978 986 1003
G 73.5 73.25 73
H 73 73.5 73.5

913614-50
913614-52
913614-54
73
72

11.50kg 700SHIMANO - SL-SY20A LEFT 2-SPEED
FRICTION; RIGHT 7-SPEED
SHIMANO - A070 RD-A070 7-SPEED
DIRECT ATACHMENT
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
ECLIPSE
914616-54
914616-56
914616-58
veličina rama / frame size / 700 x 540, 700 x 560, 700 x 580
uložci srednjeg pogona / b.b. parts / THUN - ROCKY ML 2.0 - 110 mm, shell: BSA 68mm
srednji pogon /crankset / KRIPTON X LASCO - FR1204S, 170mm, silver 52-39T
prednji menjač / front derailleur / SHIMANO - FD-A050 BAND- TYPE 28.6MM, FOR DOUBLE CHAINWHEEL
zadnji menjač / rear derailleur / SHIMANO - A070 RD-A070 7-speed direct atachment
ručica menjača / shifters / SHIMANO - SL-SY20A LEFT 2-speed friction; RIGHT 7-speed
brzina / speed / 14
kočnica / brakes / PROMAX - RC-469 FRONT, 27.5MM PIVOT BOLT; REAR 12.8MM PIVOT BOLT
ručica kočnice / brake levers / PROMAX - BL-250
obruči / rims / KRIPTON - KRIPTON X 622-15,36H, EYELETING: NO, RDA: NO, GBS: YES
pneumatici / tires / WANDA - 25-622 P1035 (700 x 25C)
upravljač / handle bar / KRIPTON X - JB-AL-105 - Alloy handlebar, Diameter: 31.8mm, Width: 440mm, Finish Black
rog / bar ends / -
sedlo / sadle / DDK-510
540 560 580
MM 540 560 580
A 540 560 580
B 558 563 568
C 569 574 577
D 130 150 160
E 408 408 408
F 1018 1024 1027
G 74 74 74
H 72 72 72

10,50kg700 SHIMANO - SORA RD-3500 GS 9-SPEED
DIRECT ATACHMENT
SHIMANO – SL - R440 LEFT 3-SPEED;
RIGHT 8-SPEED
komponente
components
veličina
size
geometrija
geometry
SPEEDSTER
913616-52
913616-55
C
D
B
A
F
H
G
E
75
74
ram / frame / Alloy6061
veličina rama / frame size / 700x520; 700x550
uložci srednjeg pogona / b.b. parts / TRUVATIV - POWER SPLINE 113 /68 alloy cups
srednji pogon /crankset / TRUVATIV - ISOFLOW ROAD 3.0 PS 175mm AEGRY 52,42,30T
prednji menjač / front derailleur / SHIMANO - 2403 FD-2403 BAND- TYPE 31.8MM, FOR TRIPLE CHAINWHEEL
zadnji menjač / rear derailleur / SHIMANO - SORA RD-3500 GS 9-speed direct atachment
ručica menjača / shifters / SHIMANO – SL - R440 LEFT 3-SPEED; RIGHT 8-SPEED
brzina / speed / 24
zupčanici / freewheel / SHIMANO - CS-HG51-8 8-speed ni-plated 11-13-15-17-19-21-24-28T
lanac / chain / KMC - HG50, 1/2”x3/32” (114 LINKS) (8 SPEEDS)
kočnica / brakes / AVID – SINGLE DIGIT 3 BLACK, 90 DEG., 16.0MM FIXING BOLTS
ručica kočnice / brake levers / AVID - FR5 V-brake lever
upravljač / handle bar / KRIPTON X - JB-AL101, 31.8mm, 6 deg., 600mm, black
rog / bar ends / -
520 550
MM 520 550
A 520 550
B 568 587
C 586 605
D 160 185
E 430 430
F 1049 1069
G 73 73
H 72 72

10.10kg 26”PROWHEEL - FIXED, 170MM, 46T SINGLE SPEED FREEWHEEL 18T AND FIX
16T
komponente
components
veličina
size
geometrija
geometry

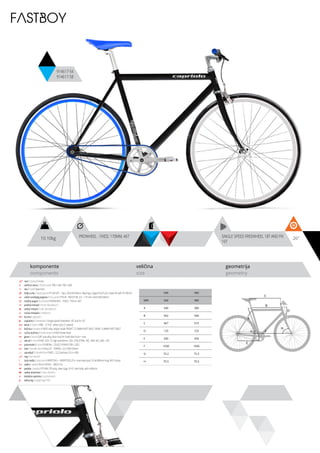

FASTBOY
914617-54
914617-58
veličina rama / frame size / 700 x 540, 700 x 580
vila / fork / Steel fork
uložci srednjeg pogona / b.b. parts / THUN - ROCKY ML 2.0 - 119 mm, shell: BSA 68mm
srednji pogon /crankset / PROWHEEL - FIXED, 170mm, 46T
zadnji menjač / rear derailleur / -
ručica menjača / shifters / -
brzina / speed / 1
zupčanici / freewheel / single speed freewheel 18T and fix 16T
lanac / chain / KMC - Z-410 - white color (1 speed)
kočnica / brakes / FIXED alloy caliper brake FRONT, 27.5MM PIVOT BOLT; REAR 12.8MM PIVOT BOLT
ručica kočnice / brake levers / FIXED brake lever
glave / hubs / 3/8” axle alloy silver hub for fixed bike front + rear
obruči / rims / FIXED 622-15, high wall 40mm, 32H, EYELETING: NO, RDA: NO, GBS: YES
lula / handle stem / KALLOY - TORINO- 22.2 60X150mm
upravljač / handle bar / FIXED - 22.2 barbore 25.4 x 400
rog / bar ends /
stub sedla / seat post / KRIPTON X - GWSPSTEEL25.4- steel seat post 25.4x300mm long, W/O clamp
540 580
MM 540 580
A 540 580
B 562 568
C 567 573
D 125 125
E 430 430
F 1030 1045
G 72.2 72.2
H 70.5 70.5
C
D
B
A
F
H
G
E

CRUISER
Modeli bicikala iz ove grupe zadovoljavaju potrebe svih gradskih biciklista. Veoma
se lako voze i izgledaju neverovatno. To ih čini vladarima grada. Jedina poteškoća
kod vožnje Cruiser Capriolo bicikala jeste odabrati koji da se vozi. U okviru svake
linije nudimo više kolekcija sa različitim modelima. Odvojite svoje vreme kako
biste uspeli da izaberete savršeni model za sebe.
Models of bicycles from this group satisfy the needs of all city cyclists. They are
easily ridden and they look amazing. That makes them city rulers. The only dif-
ficulty during the ride of Cruiser Capriolo bike is to choose which one to ride.
We offer several collections with various models. Spend some time choosing a
perfect model for yourself.

16.50kg 26”
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
KANGEE
914576-18
SRAM IMOTION3 SRAM IMOTION3
17.5”
MM 440
A 440
B 620
C 662
D 180
E 524
F 1164
G 69
H 68
ram / frame / ALLOY 6061
vila / fork / STEEL RIGID FORK
uložci srednjeg pogona / b.b. parts / 9-pcs BB parts
srednji pogon /crankset / 1/2*1/8*44T (JT-503),6-1/2 crank,1/2
zadnji menjač / rear derailleur / SRAM IMOTION3
ručica menjača / shifters / SRAM IMOTION3
brzina / speed / 3
zupčanici / freewheel / 18T
kočnica / brakes / Front alloy V-brake / Rear SRAM - IMOTION3 - Coaster brake
ručica kočnice / brake levers / Left hand alloy V-brake lever
glave / hubs / QUANDO - KT-A16F front silver / SRAM - IMOTION3 COASTER HUB
obruči / rims / HLQC-10C - 26*1.50,14G*36H for 2.30 tire
pneumatici / tires / RUBENA - 52-559 V99 CITYHOPER (26 x 2.00)
lula / handle stem / MQ-41 - 85MM,25.4*100L
upravljač / handle bar / WADER - GWHB-08, CRUISER - steel, W=700mm, angle: 15 deg., 22.2X25.4mm
rog / bar ends / -
stub sedla / seat post / WADER - SP-501 - 27.2*300L w/o clamp
sedlo / sadle / WADER - GW902
pedale / pedals / VP-813 - w/CPSC reflector, 1/2, w/steel ball, al silver braket

C
D
B
A
F
H
G
E
16,50kg26” SRAM IMOTION3SRAM IMOTION3
komponente
components
veličina
size
geometrija
geometry
NECTAR
914575-18
81
80
uložci srednjeg pogona / b.b. parts / 9-pcs BB parts
srednji pogon /crankset / 1/2*1/8*44T (JT-503),6-1/2 crank,1/2
zadnji menjač / rear derailleur / SRAM IMOTION3
ručica menjača / shifters / SRAM IMOTION3
brzina / speed / 3
kočnica / brakes / Front alloy V-brake / Rear SRAM - IMOTION3 - Coaster brake
glave / hubs / QUANDO - KT-A16F front silver / SRAM - IMOTION3 COASTER HUB
rog / bar ends / -
18.5”
MM 470
A 470
B 618
C 650
D 135
E 540
F 1224
G 68
H 67

17.20kg 26”
komponente
components
veličina
size
geometrija
geometry

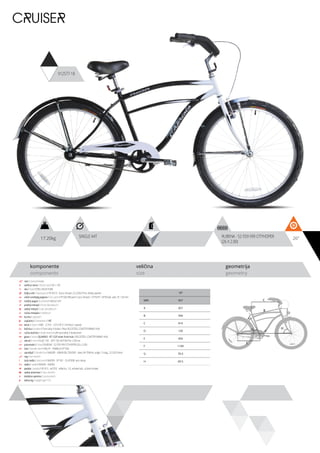

CRUISER
912577-18
SINGLE 44T RUBENA - 52-559 V99 CITYHOPER
(26 X 2.00)
C
D
B
A
F
HG
E
veličina rama / frame size / 26” x 18”;
srednji pogon /crankset / SINGLE 44T
brzina / speed / 1
kočnica / brakes / Front alloy V-brake / Rear VELOSTEEL COASTER BRAKE HUB
glave / hubs / QUANDO - KT-122F silver front hub / VELOSTEEL COASTER BRAKE HUB
rog / bar ends / -
18”
MM 457
A 457
B 594
C 616
D 120
E 450
F 1109
G 70.5
H 69.5

26”
komponente
components
veličina
size
geometrija
geometry
SUNSHINE
914585-18
C
D
B
A
F
H
G
E
SINGLE 44T RUBENA - 52-559 V99 CITYHOPER
(26 X 2.00)
18”
MM 450
A 450
B 644
C 681
D 170
E 530
F 1153
G 68
H 70
veličina rama / frame size / 26” x 18”;
brzina / speed / 1
kočnica / brakes / Front alloy V-brake / Rear VELOSTEEL COASTER BRAKE HUB
rog / bar ends / -
16.90kg

85
84
914578-18
914579-18
914586-18

19kg 28”SINGLE 44T RUBENA HOOK 700X35C W/RS
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E

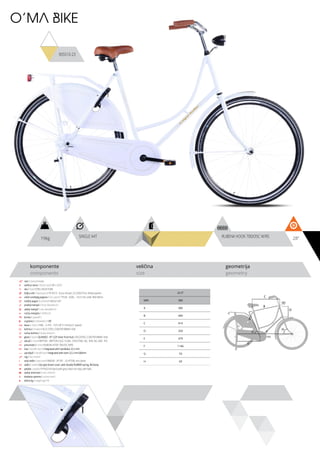

O’MA BIKE
905510-23
veličina rama / frame size / 28” x 22.5”;
brzina / speed / 1
kočnica / brakes / VELO STEEL COASTER BRAKE HUB
ručica kočnice / brake levers / -
pneumatici / tires / RUBENA HOOK 700x35C W/RS
lula / handle stem / integrated with handlebar 22.2 mm
upravljač / handle bar / integrated with stem 22.2 mm 600mm
rog / bar ends / -
sedlo / sadle / city type brown cover ,with double RUBBER spring, W/clamp
pedale / pedals / FP-833 full black (with grey inlaid non-slip), with balls
22.5”
MM 580
A 580
B 600
C 616
D 250
E 479
F 1146
G 70
H 69

TOURING
COMFORT
Bicikla iz gradskog spektra idealna su za obilazak grada. Njihova udobnost, sves-
tranost i mogućnost da pružaju više od prosečnih bicikala čine ih pravim izborom
za srednje i duge distance na ulicama grada. Zbog toga su savršena bicikla za
komforno kretanje u svakodnevici.
City bicycles are ideal for city touring. Their comfort, versatility and possibility to
offer more than average bicycles make them the right choice for middle and long
distances on city streets. That is why they are perfect bicycles for comfortable
everyday travel.

TOURING COMFORT
BICIKLA ZA SVAKI DAN U NEDELJI
Svi oni koji tragaju za izuzetnom udobnošću, mogu
da je pronađu u asortimanu bicikala dizajniranih za
užitak u vožnji. U ovaj dobro razvijeni asortiman na
godišnjem nivou mi smo uneli dodatna poboljšanja.
Zato Roadster modeli pružaju ultra-udoban prevoz.
BICYCLE FOR EVERY DAY OF THE WEEK
All those people who are looking for extreme comfort
now can find it in assortment of bicycles designed for
pleasure of ride. We made certain improvements of
this assortment. That is why Roadster models offer
ultra-comfortable ride.

15,50kg28” SHIMANO - TOURNEY TX RD-TX35
6/7-SPEED DIRECT ATTACHMENT TYPE
SHIMANO - ST-EF51 INDEX FRONT / 7
SPEED REAR
komponente
components
veličina
size
geometrija
geometry
ROADSTER
914600-21
914600-23
91
90
C
DB
A
F
H
G
E
veličina rama / frame size / 28” X 21”, 28” X 23”
vila / fork / SUNTOUR - CR-7V A 700C
uložci srednjeg pogona / b.b. parts / THUN - GOAL - 119 mm, shell: BSA 68mm
srednji pogon /crankset / KRIPTON X LASCO - 48-38-28, 170mm, W/ chainguard
prednji menjač / front derailleur / SHIMANO - TOURNEY FD-TX51 band-type 31.8mm 48T top-pull
zadnji menjač / rear derailleur / SHIMANO - TOURNEY TX RD-TX35 6/7-speed direct attachment type
brzina / speed / 21
pneumatici / tires / RUBENA - 37-622 V 66 HOOK (700 x 35C) W/ reflector stripes
lula / handle stem / KRIPTON X - JB-A392-8- ext.: 100mm, A-HEAD, dia.: 25.4mm, angle:0~60 DEG, black
upravljač / handle bar / KRIPTON X - JB-AL200, 25.4, W: 640mm, rise 35mm, black
rog / bar ends / -
sedlo / sadle / SELLE ROYAL - RIO RVS
dodatna oprema / accesories / Alloy carrier HYL02, MARCON mudguards 28”, Lighting set
21” 23”
MM 535 584
A 535 584
B 577 646
C 604 665
D 150 180
E 445 445
F 1082 1145
G 72 72
H 71.5 71.5

15.50kg 28”SHIMANO - ST-EF51 INDEX FRONT
/ 7 SPEED REAR
komponente
components
veličina
size
geometrija
geometry
C
DB
A
F
H
G
E
ROADSTER
914605-17
914605-19
brzina / speed / 21
lula / handle stem / KRIPTON X - JB-A392-8- ext.: 100mm, A-HEAD, dia.: 25.4mm, angle:0~60 DEG, white
upravljač / handle bar / KRIPTON X - JB-AL200, 25.4, W: 640mm, rise 35mm, white
rog / bar ends / -
dodatna oprema / accesories / Alloy carrier HYL02, MARCON mudguards 28” , Lighting set
17” 19”
MM 440 480
A 440 480
B 570 578
C 598 607
D 150 170
E 450 450
F 1075 1085
G 72 72
H 71.5 71.5

komponente
components
veličina
size
geometrija
geometry
ROADSTER TREKKING
914603-21
914603-23
14,50kg SHIMANO - TOURNEY TX RD-TX35
SHIMANO - ST-EF51 INDEX FRONT
/ 7 SPEED REAR
C
DB
A
F
H
G
E
28”
brzina / speed / 21
lula / handle stem / KRIPTON X - JB-A392-8- ext.: 100mm, A-HEAD, dia.: 25.4mm, angle:0~60 DEG, black
upravljač / handle bar / KRIPTON X - JB-AL200, 25.4, W: 640mm, rise 35mm, black
rog / bar ends / -
21” 23”
MM 535 584
A 535 584
B 577 646
C 604 665
D 150 180
E 445 445
F 1082 1145
G 72 72
H 71.5 71.5

komponente
components
veličina
size
geometrija
geometry
ROADSTER TREKKING W
914607-17
914607-19
95
94
14.50kg SHIMANO - ST-EF51 INDEX FRONT / 7
SPEED REAR
C
DB
A
F
H
G
E
28”
brzina / speed / 21
lula / handle stem / KRIPTON X - JB-A392-8- ext.: 100mm, A-HEAD, dia.: 25.4mm, angle:0~60 DEG, white
upravljač / handle bar / KRIPTON X - JB-AL200, 25.4, W: 640mm, rise 35mm, white
rog / bar ends / -
17” 19”
MM 440 480
A 440 480
B 570 578
C 598 607
D 150 170
E 450 450
F 1075 1085
G 72 72
H 71.5 71.5

15.20kg 28”SHIMANO - SL-RS35 6 SPEED REAR SHIMANO - TOURNEY RD-TY21 GS 6-SPEED,
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
DIANA S
914750-16
srednji pogon /crankset / DOTEK - CTS22-132G 42T
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TY21 GS 6-speed, not rapid-rise, W/riveted adapter
ručica menjača / shifters / SHIMANO - SL-RS35 6 speed rear
brzina / speed / 6
pneumatici / tires / RUBENA - 37-622 V66 FLASH (700 x 35C)
lula / handle stem / Alloy adjustable stem, 0-50 degrees, D 22.2mm, 90/180mm, black
upravljač / handle bar / Alloy city handlebar W: 600mm, diameter 25.4mm
rog / bar ends / -
dodatna oprema / accesories / steel tube carrier, MARCON mudguards 28” , Lighting set
16.5”
MM 420
A 420
B 556
C 580
D 150
E 465
F 1101
G 73
H 70

15.70kg 28”SRAM - MRX TWIST SHIFTERS MICRO
INDEX FRONT / 6 SPEED REAR
SHIMANO - TOURNEY RD-TZ50 GS
6-SPEED W/ADAPTOR
komponente
components
veličina
size
geometrija
geometry
C
D
B
A
F
H
G
E
SUNRISE MAN
914592-20
uložci srednjeg pogona / b.b. parts / THUN - GOAL - 122.5mm, shell: BSA 68mm
srednji pogon /crankset / KRIPTON X - CTS22-S391F 48/38/28,170 mm, steel CP, W/ chainguard
prednji menjač / front derailleur / SHIMANO - TOURNEY FD-TZ31 band type, down-route, 28,6mm, for 48T
zadnji menjač / rear derailleur / SHIMANO - TOURNEY RD-TZ50 GS 6-speed W/adaptor
ručica menjača / shifters / SRAM - MRX twist shifters micro index front / 6 speed rear
brzina / speed / 18
ručica kočnice / brake levers / LOGAN - JY-327PAE - die casting alloy lever with plastic clamp, 4 finger, for V-brakes
pneumatici / tires / RUBENA - 37-622 V66 FLASH (700 x 35C)
lula / handle stem / KRIPTON X - MD-HS14 - steel, ext.: 100mm, rise: +25, dia.: 22.2mm, bar bore: 25.4mm
rog / bar ends / -
sedlo / sadle / SELLE ROYAL - RIO PU
dodatna oprema / accesories / Steel carrier, Steel mudguards, Lighting set
20”
MM 510
A 510
B 564
C 586
D 160
E 455
F 1090
G 72.5
H 71

Katalog parts 2014 small

Recommended

Recommended

More Related Content

What's hot

What's hot (12)

Viewers also liked

Viewers also liked (18)

Similar to Katalog parts 2014 small

Similar to Katalog parts 2014 small (20)

Recently uploaded

Recently uploaded (20)

Katalog parts 2014 small
