Fast Forward Wheels USA Products 2013
- 1. 2013 Products FFWD USA| ffwdusa.com | sales@ffwdusa.com /ffwdusa @ffwdwheels_usa.com
- 2.
- 3. FFWD "Fast Forward"® is a high-end brand specializing in high speed wheels. Carbon only, period. FFWD’s goal is to deliver fast, lightweight and durable wheels to the Road, Triathlon, Track & Cyclocross markets. Our primary focus is on outstanding craftsmanship, quality and design. All spoked wheels are laced and hand built at our production facilities in Holland. Each wheel is meticulously assembled by master wheelbuilders, trued to the ‘Mµ’ and released into the world of speed with a unique serial number. Our current range of products consist of high performance Road, Triathlon, Track and Cyclocross wheels available in full carbon clincher, alloy clincher and tubular options. FFWD is proud to sponsor several top-level European professional road, cyclocross and track teams and we work closely with riders to further push the technology envelope. ffwdusa.com

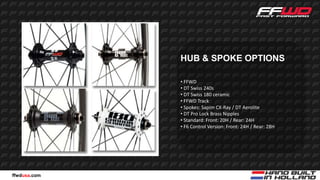

- 4. HUB & SPOKEOPTIONS • FFWD • DT Swiss 240s • DT Swiss 180 ceramic • FFWD Track • Spokes: Sapim CX-Ray / DT Aerolite • DT Pro Lock Brass Nipples • Standard: Front: 20H / Rear: 24H • F6 Control Version: Front: 24H / Rear: 28H ffwdusa.com
- 5.

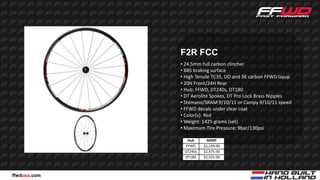

- 6. F2R FCC • 24.5mm full carbon clincher • BBS braking surface • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear • Hub: FFWD, DT240s, DT180 • DT Aerolite Spokes, DT Pro Lock Brass Nipples • Shimano/SRAM 9/10/11 or Campy 9/10/11 speed • FFWD decals under clear coat • Color(s): Red • Weight: 1425 grams (set) • Maximum Tire Pressure: 9bar/130psi Hub MSRP FFWD $2,199.00 DT240s $2,475.00 DT180 $2,925.00 ffwdusa.com

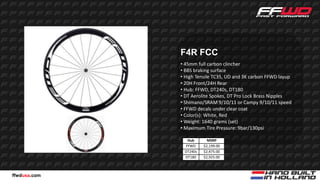

- 7. F4R FCC • 45mm full carbon clincher • BBS braking surface • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear • Hub: FFWD, DT240s, DT180 • DT Aerolite Spokes, DT Pro Lock Brass Nipples • Shimano/SRAM 9/10/11 or Campy 9/10/11 speed • FFWD decals under clear coat • Color(s): White, Red • Weight: 1640 grams (set) • Maximum Tire Pressure: 9bar/130psi Hub MSRP FFWD $2,199.00 DT240s $2,475.00 DT180 $2,925.00 ffwdusa.com
- 8. F4R-C • 38mm carbon/aluminum clincher • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear • Hub: FFWD, DT240s, DT180 • DT Aerolite Spokes, DT Pro Lock Brass Nipples • Shimano/SRAM 9/10/11 or Campy 9/10/11 speed • FFWD decals applied under clear coat • Welded alloy brake surface with wear indicators • Color(s): White, Red • Weight: 1635 grams (set) Hub MSRP FFWD $1,749.00 DT240s $1,999.00 DT180 $2,499.00 ffwdusa.com

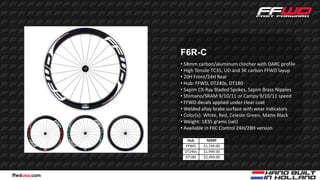

- 9. F6R-C • 58mm carbon/aluminum clincher with DARC profile • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear • Hub: FFWD, DT240s, DT180 • Sapim CX-Ray Bladed Spokes, Sapim Brass Nipples • Shimano/SRAM 9/10/11 or Campy 9/10/11 speed • FFWD decals applied under clear coat • Welded alloy brake surface with wear indicators • Color(s): White, Red, Celeste Green, Matte Black • Weight: 1835 grams (set) • Available in F6C Control 24H/28H version Hub MSRP FFWD $1,749.00 DT240s $1,999.00 DT180 $2,499.00 ffwdusa.com
- 10.

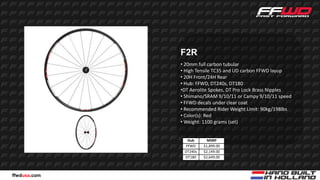

- 11. F2R • 20mm full carbon tubular • High Tensile TC35 and UD carbon FFWD layup • 20H Front/24H Rear • Hub: FFWD, DT240s, DT180 •DT Aerolite Spokes, DT Pro Lock Brass Nipples • Shimano/SRAM 9/10/11 or Campy 9/10/11 speed • FFWD decals under clear coat • Recommended Rider Weight Limit: 90kg/198lbs • Color(s): Red • Weight: 1100 grams (set) Hub MSRP FFWD $1,899.00 DT240s $2,149.00 DT180 $2,649.00 ffwdusa.com
- 12. F4R • 45mm full carbon tubular with DARC profile • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear • Designed for Road or Cyclocross • Hub: FFWD, DT240s, DT180 •DT Aerolite Spokes, DT Pro Lock Brass Nipples • Shimano 9/10/11 or Campagnolo 9/10/11 speed • FFWD decals under clear coat • Color(s): White, Red • Weight: 1250 grams (set) Hub MSRP FFWD $1,749.00 DT240s $1,999.00 DT180 $2,499.00 ffwdusa.com

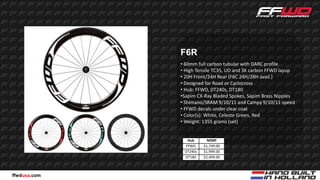

- 13. F6R • 60mm full carbon tubular with DARC profile • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear (F6C 24H/28H avail.) • Designed for Road or Cyclocross • Hub: FFWD, DT240s, DT180 •Sapim CX-Ray Bladed Spokes, Sapim Brass Nipples • Shimano/SRAM 9/10/11 and Campy 9/10/11 speed • FFWD decals under clear coat • Color(s): White, Celeste Green, Red • Weight: 1355 grams (set) Hub MSRP FFWD $1,749.00 DT240s $1,999.00 DT180 $2,499.00 ffwdusa.com

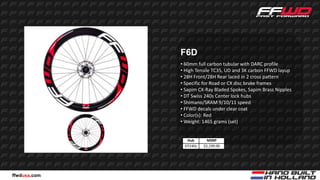

- 14. F6D • 60mm full carbon tubular with DARC profile • High Tensile TC35, UD and 3K carbon FFWD layup • 28H Front/28H Rear laced in 2 cross pattern • Specific for Road or CX disc brake frames • Sapim CX-Ray Bladed Spokes, Sapim Brass Nipples • DT Swiss 240s Center lock hubs • Shimano/SRAM 9/10/11 speed • FFWD decals under clear coat • Color(s): Red • Weight: 1465 grams (set) Hub MSRP DT240s $2,199.00 ffwdusa.com

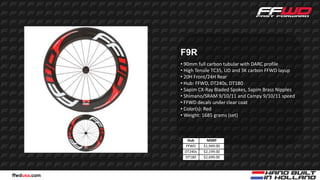

- 15. F9R • 90mm full carbon tubular with DARC profile • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear • Hub: FFWD, DT240s, DT180 • Sapim CX-Ray Bladed Spokes, Sapim Brass Nipples • Shimano/SRAM 9/10/11 and Campy 9/10/11 speed • FFWD decals under clear coat • Color(s): Red • Weight: 1685 grams (set) Hub MSRP FFWD $1,949.00 DT240s $2,199.00 DT180 $2,699.00 ffwdusa.com
- 16.

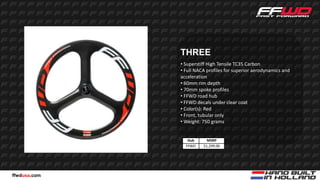

- 17. THREE • Superstiff High Tensile TC35 Carbon • Full NACA profiles for superior aerodynamics and acceleration • 60mm rim depth • 70mm spoke profiles • FFWD road hub • FFWD decals under clear coat • Color(s): Red • Front, tubular only • Weight: 750 grams Hub MSRP FFWD $1,299.00 ffwdusa.com

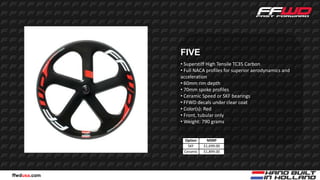

- 18. FIVE • Superstiff High Tensile TC35 Carbon • Full NACA profiles for superior aerodynamics and acceleration • 60mm rim depth • 70mm spoke profiles • Ceramic Speed or SKF bearings • FFWD decals under clear coat • Color(s): Red • Front, tubular only • Weight: 790 grams Option MSRP SKF $1,699.00 Ceramic $1,899.00 ffwdusa.com
- 19. F9R • 90mm full carbon tubular with DARC profile • High Tensile TC35, UD and 3K carbon FFWD layup • 20H Front/24H Rear • Hub: FFWD, DT240s, DT180 • Sapim CX-Ray Bladed Spokes, Sapim Brass Nipples • Shimano/SRAM 9/10/11 and Campy 9/10/11 speed • FFWD decals under clear coat • Color(s): Red • Weight: 1685 grams (set) Hub MSRP FFWD $1,949.00 DT240s $2,199.00 DT180 $2,699.00 ffwdusa.com

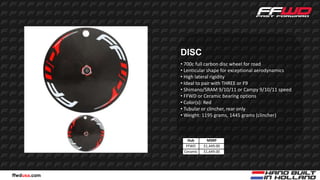

- 20. DISC • 700c full carbon disc wheel for road • Lenticular shape for exceptional aerodynamics • High lateral rigidity • Ideal to pair with THREE or F9 • Shimano/SRAM 9/10/11 or Campy 9/10/11 speed • FFWD or Ceramic bearing options • Color(s): Red • Tubular or clincher, rear only • Weight: 1195 grams, 1445 grams (clincher) Hub MSRP FFWD $1,449.00 Ceramic $1,649.00 ffwdusa.com
- 21.

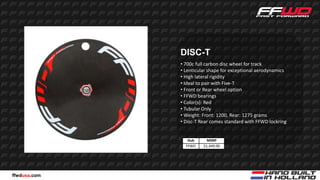

- 22. DISC-T • 700c full carbon disc wheel for track • Lenticular shape for exceptional aerodynamics • High lateral rigidity • Ideal to pair with Five-T • Front or Rear wheel option • FFWD bearings • Color(s): Red • Tubular Only • Weight: Front: 1200, Rear: 1275 grams • Disc-T Rear comes standard with FFWD lockring Hub MSRP FFWD $1,449.00 ffwdusa.com

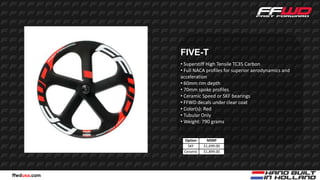

- 23. FIVE-T • Superstiff High Tensile TC35 Carbon • Full NACA profiles for superior aerodynamics and acceleration • 60mm rim depth • 70mm spoke profiles • Ceramic Speed or SKF bearings • FFWD decals under clear coat • Color(s): Red • Tubular Only • Weight: 790 grams Option MSRP SKF $1,699.00 Ceramic $1,899.00 ffwdusa.com

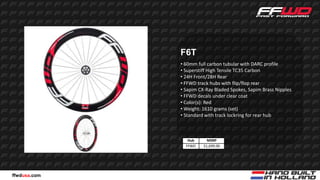

- 24. F6T • 60mm full carbon tubular with DARC profile • Superstiff High Tensile TC35 Carbon • 24H Front/28H Rear • FFWD track hubs with flip/flop rear • Sapim CX-Ray Bladed Spokes, Sapim Brass Nipples • FFWD decals under clear coat • Color(s): Red • Weight: 1610 grams (set) • Standard with track lockring for rear hub Hub MSRP FFWD $1,699.00 ffwdusa.com

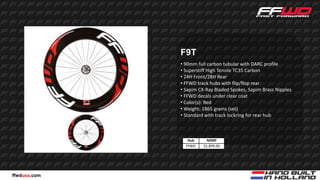

- 25. F9T • 90mm full carbon tubular with DARC profile • Superstiff High Tensile TC35 Carbon • 24H Front/28H Rear • FFWD track hubs with flip/flop rear • Sapim CX-Ray Bladed Spokes, Sapim Brass Nipples • FFWD decals under clear coat • Color(s): Red • Weight: 1865 grams (set) • Standard with track lockring for rear hub Hub MSRP FFWD $1,899.00 ffwdusa.com
- 26. FFWD USA |ffwdusa.com | sales@ffwdusa.com /ffwdusa @ffwdwheels_usa.com
