- 1. DUST THE QUARRYINDUSTRY’S VIEW John Salmon Land & Mineral Management Ltd

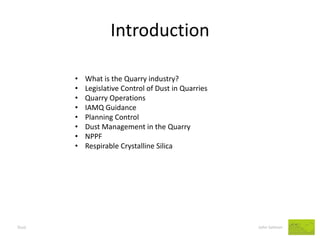

- 2. Introduction Dust JohnSalmon •What is the Quarry industry? •Legislative Control of Dust in Quarries •Quarry Operations •IAMQ Guidance •Planning Control •Dust Management in the Quarry •NPPF •Respirable Crystalline Silica

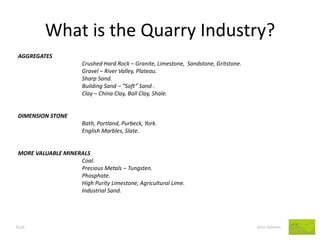

- 3. What is theQuarry Industry? AGGREGATES Crushed Hard Rock – Granite, Limestone, Sandstone, Gritstone. Gravel – River Valley, Plateau. Sharp Sand. Building Sand – “Soft” Sand . Clay – China Clay, Ball Clay, Shale. DIMENSION STONE Bath, Portland, Purbeck, York. English Marbles, Slate. MORE VALUABLE MINERALS Coal. Precious Metals – Tungsten. Phosphate. High Purity Limestone, Agricultural Lime. Industrial Sand. Dust John Salmon

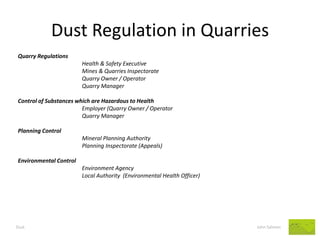

- 4. Dust Regulation inQuarries Quarry Regulations Health & Safety Executive Mines & Quarries Inspectorate Quarry Owner / Operator Quarry Manager Control of Substances which are Hazardous to Health Employer (Quarry Owner / Operator Quarry Manager Planning Control Mineral Planning Authority Planning Inspectorate (Appeals) Environmental Control Environment Agency Local Authority (Environmental Health Officer) Dust John Salmon

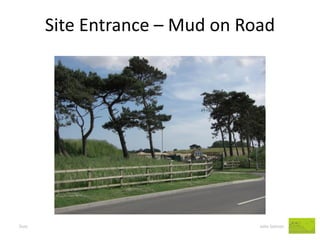

- 5. Site Entrance –Mud on Road Dust John Salmon
- 6. Soil Stripping DustJohn Salmon

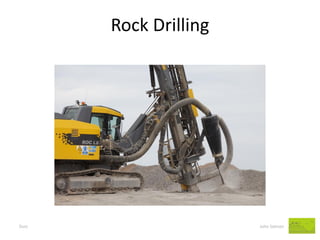

- 7. Rock Drilling DustJohn Salmon

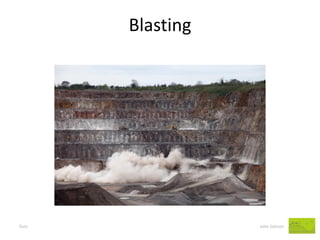

- 8. Blasting Dust JohnSalmon
- 9. Limestone Quarry DustJohn Salmon

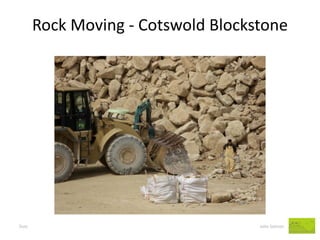

- 10. Rock Moving -Cotswold Blockstone Dust John Salmon

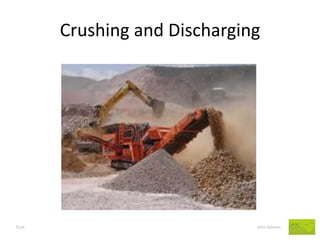

- 11. Crushing and Discharging Dust John Salmon

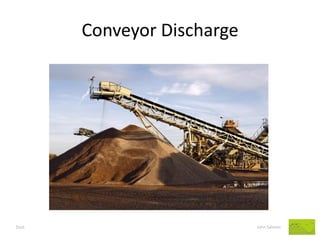

- 12. Conveyor Discharge DustJohn Salmon

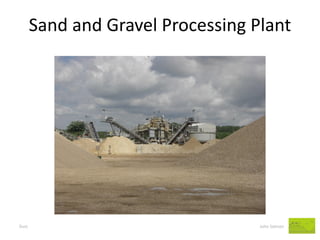

- 13. Sand and GravelProcessing Plant Dust John Salmon
- 14. Forming Stockpiles DustJohn Salmon
- 15. Loading Dust JohnSalmon

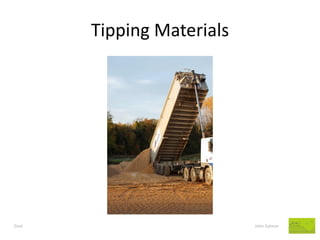

- 16. Tipping Materials DustJohn Salmon

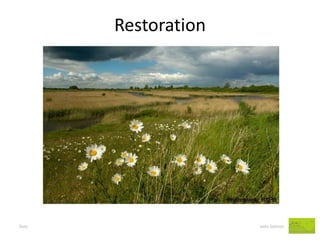

- 17. Restoration Dust JohnSalmon

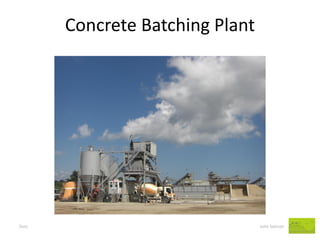

- 18. Concrete Batching Plant Dust John Salmon

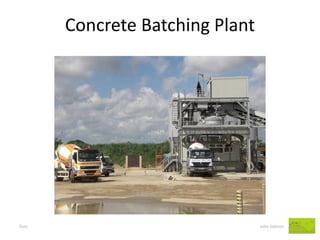

- 19. Concrete Batching Plant Dust John Salmon

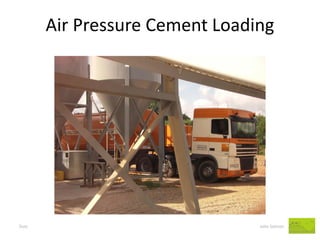

- 20. Air Pressure CementLoading Dust John Salmon
- 21. IAQM Guidance DustJohn Salmon

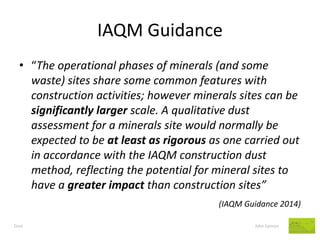

- 22. IAQM Guidance DustJohn Salmon •“The operational phases of minerals (and some waste) sites share some common features with construction activities; however minerals sites can be significantly larger scale. A qualitative dust assessment for a minerals site would normally be expected to be at least as rigorous as one carried out in accordance with the IAQM construction dust method, reflecting the potential for mineral sites to have a greater impact than construction sites” (IAQM Guidance 2014)

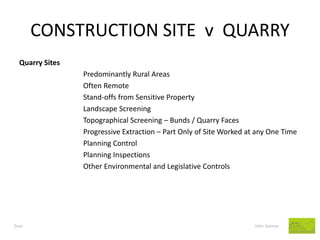

- 23. CONSTRUCTION SITE vQUARRY Dust John Salmon Quarry Sites Predominantly Rural Areas Often Remote Stand-offs from Sensitive Property Landscape Screening Topographical Screening – Bunds / Quarry Faces Progressive Extraction – Part Only of Site Worked at any One Time Planning Control Planning Inspections Other Environmental and Legislative Controls

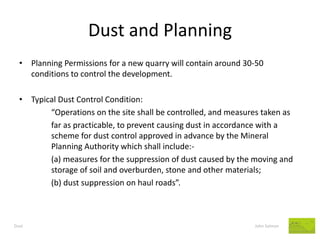

- 24. Dust and Planning Dust John Salmon •Planning Permissions for a new quarry will contain around 30-50 conditions to control the development. •Typical Dust Control Condition: “Operations on the site shall be controlled, and measures taken as far as practicable, to prevent causing dust in accordance with a scheme for dust control approved in advance by the Mineral Planning Authority which shall include:- (a) measures for the suppression of dust caused by the moving and storage of soil and overburden, stone and other materials; (b) dust suppression on haul roads”.
- 25. Dust Scheme DustJohn Salmon

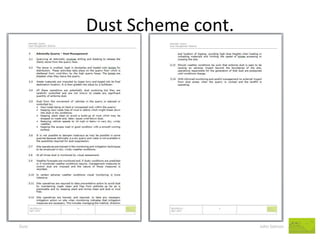

- 26. Dust Scheme cont. Dust John Salmon
- 27. Dust Scheme cont. Dust John Salmon

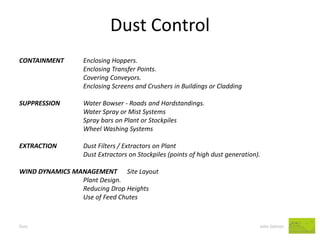

- 28. Dust Control DustJohn Salmon CONTAINMENT Enclosing Hoppers. Enclosing Transfer Points. Covering Conveyors. Enclosing Screens and Crushers in Buildings or Cladding SUPPRESSION Water Bowser - Roads and Hardstandings. Water Spray or Mist Systems Spray bars on Plant or Stockpiles Wheel Washing Systems EXTRACTION Dust Filters / Extractors on Plant Dust Extractors on Stockpiles (points of high dust generation). WIND DYNAMICS MANAGEMENT Site Layout Plant Design. Reducing Drop Heights Use of Feed Chutes

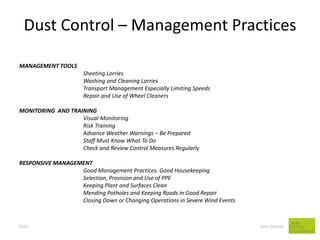

- 29. Dust Control –Management Practices Dust John Salmon MANAGEMENT TOOLS Sheeting Lorries Washing and Cleaning Lorries Transport Management Especially Limiting Speeds Repair and Use of Wheel Cleaners MONITORING AND TRAINING Visual Monitoring Risk Training Advance Weather Warnings – Be Prepared Staff Must Know What To Do Check and Review Control Measures Regularly RESPONSIVE MANAGEMENT Good Management Practices. Good Housekeeping Selection, Provision and Use of PPE Keeping Plant and Surfaces Clean Mending Potholes and Keeping Roads in Good Repair Closing Down or Changing Operations in Severe Wind Events

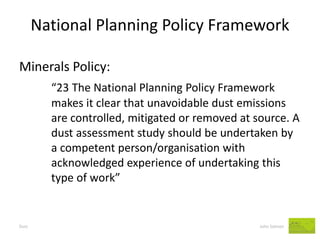

- 30. National Planning PolicyFramework Dust John Salmon Minerals Policy: “23 The National Planning Policy Framework makes it clear that unavoidable dust emissions are controlled, mitigated or removed at source. A dust assessment study should be undertaken by a competent person/organisation with acknowledged experience of undertaking this type of work”

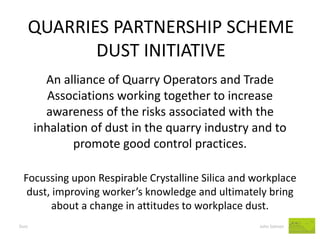

- 31. QUARRIES PARTNERSHIP SCHEMEDUST INITIATIVE Dust John Salmon An alliance of Quarry Operators and Trade Associations working together to increase awareness of the risks associated with the inhalation of dust in the quarry industry and to promote good control practices. Focussing upon Respirable Crystalline Silica and workplace dust, improving worker’s knowledge and ultimately bring about a change in attitudes to workplace dust.
- 32. Respirable Crystalline SilicaHSE Occupational Health Intervention Strategy 2014 Mineral Products Association Guidance Dust John Salmon CONTROL OF RCS Workplace Exposure Limit of 0.1 mg/m3. Provision, Selection and Use of Respiratory Protective Equipment Health Surveillance GOOD CONTROL PRACTICES (COSHH REGULATIONS) Design and Operating Processes Minimise Escape and Spread of Hazardous Substances Education and Training Protective Clothing HOUSEKEEPING Good Management Practices. Keeping Plant and Surfaces Clean and Tidy Maintenance of Plant Cabs, Plant Control Rooms, Mess Rooms Personal Hygiene “Stop Dust Before it Stops You”
- 33. DUST THE QUARRYMAN’SVIEW THANK YOU FOR YOUR ATTENTION John Salmon Land & Mineral Management Ltd
